USER MANUAL Compact Home Steamer 332770 PRINCESS

Instructions for use

Mode d'emploi

Anleitung

When using your appliance, basic precautions should always be followed, including the following:

1. Read all instructions before use.
2. Close supervision is necessary when any appliance is used by or near children.
3. Do not leave appliance unattended while connected to power source.
4. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to nearest authorized service facility for examination, repair or adjustment.
5. To reduce the risk of contact with hot water emitting from steam vents, check appliance before each use by holding it away from body and operating.
6. The unit has to be placed on the oor when operation.
7. Use appliance only for its intended use. Steam only in an up and down vertical motion. Never use steamer in a horizontal position or tilt into a backward position, this may result in water discharge.

1. To reduce the risk of electric shock, do not immerse the appliance in water or other liquids.
2. Never tug cord to disconnect from outlet; instead grasp plug and pull to disconnect.
3. Do not allow cord to touch sharp edges or hot surfaces. Let appliance cool completely before putting away. Loop cord loosely around appliance when storing.
4. Do not try to fasten the hose adapter during operation. Scalding may occur if the hose adapter is removed.
5. Always disconnect appliance from electrical outlet when filling with water, emptying it when not in use.
6. To reduce the risk of electric shock, do not disassemble or attempt to repair the appliance, take it to a qualified service person for examination and repair. Incorrect reassembly may cause injury to persons when the appliance is used.
7. Do not attempt to hang up the unit using the hose.
8. Burns could occur from touching hot parts, hot water or steam. Use care when you empty a steam appliance as there may be hot water in the reservoir.
9. For household use only.
10. To reduce the likelihood of circuit overload, do not operate another high wattage appliance on the same circuit.
11. Do not cut or attempt to extend the steaming hose.
12. Children should be supervised to ensure that they do not play with the appliance.
13. The use of this appliance by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance.
14. The appliance is not intended to be operated by means of an external timer or separate remote-control system.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

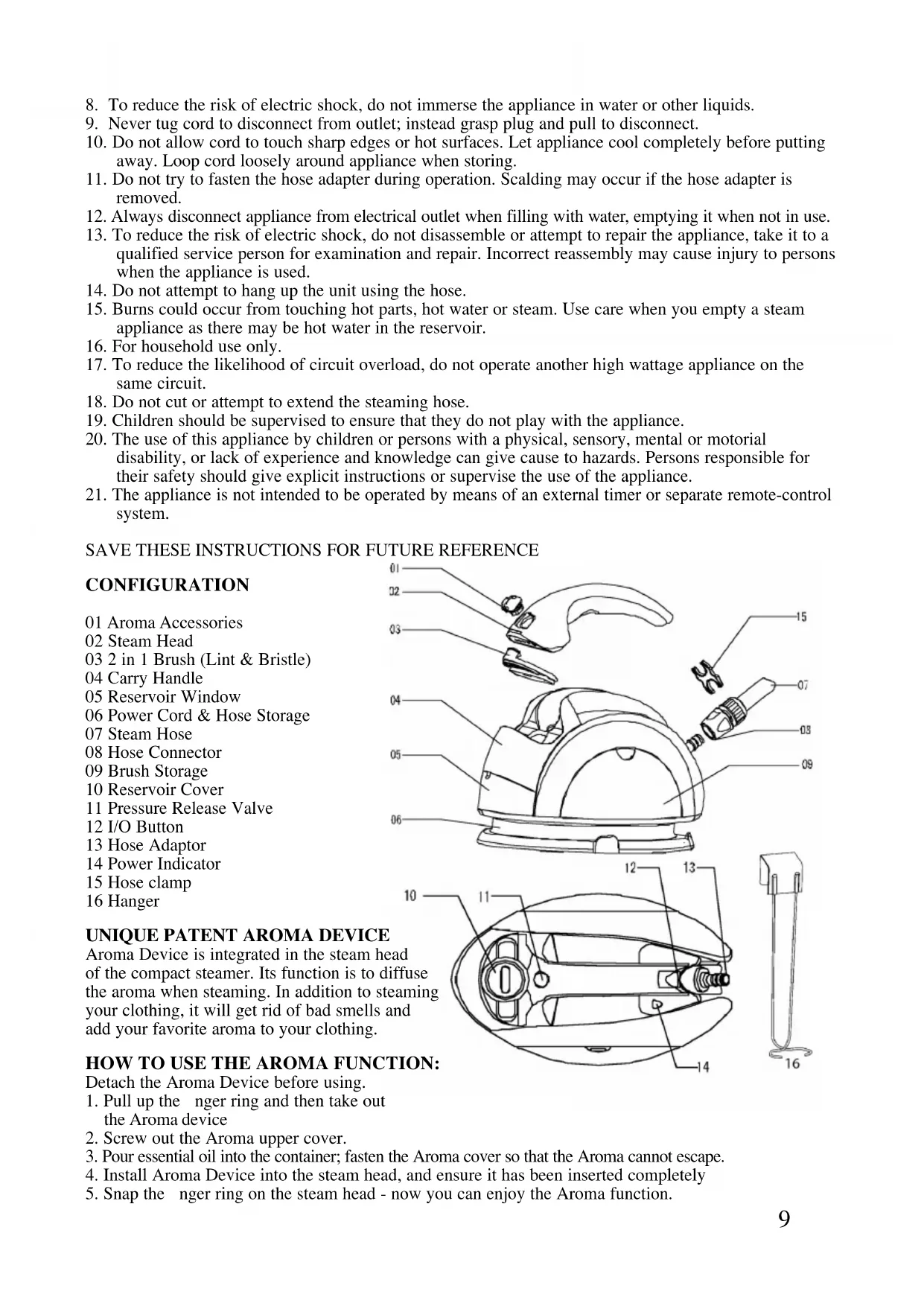

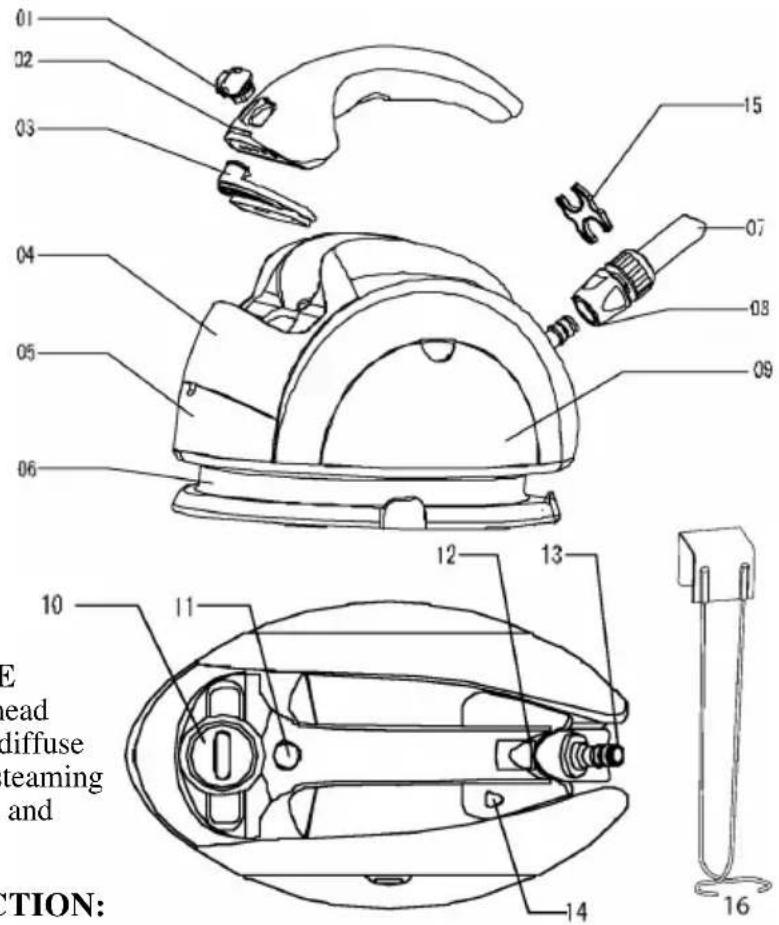

CONFIGURATION

01 Aroma Accessories
02 Steam Head
03 2 in 1 Brush (Lint & Bristle)
04 Carry Handle
05 Reservoir Window
06 Power Cord & Hose Storage
07 Steam Hose
08 Hose Connector
09 Brush Storage
10 Reservoir Cover
11 Pressure Release Valve
12 I/O Button
13 Hose Adaptor
14 Power Indicator
15 Hose clamp
16 Hanger

UNIQUE PATENT AROMA DEVICE

Aroma Device is integrated in the steam head of the compact steamer. Its function is to diffuse the aroma when steaming. In addition to steaming your clothing, it will get rid of bad smells and add your favorite aroma to your clothing.

HOW TO USE THE AROMA FUNCTION:

Detach the Aroma Device before using.

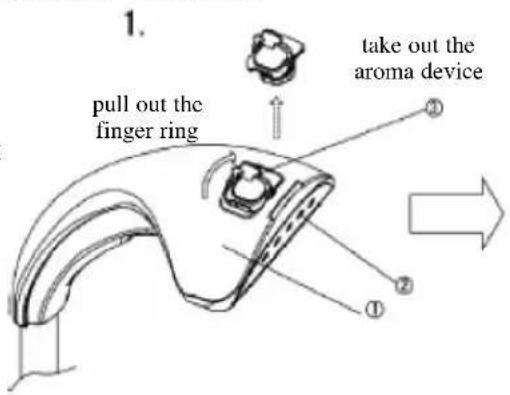

1. Pull up the nger ring and then take out the Aroma device
2. Screw out the Aroma upper cover.
3. Pour essential oil into the container; fasten the Aroma cover so that the Aroma cannot escape.

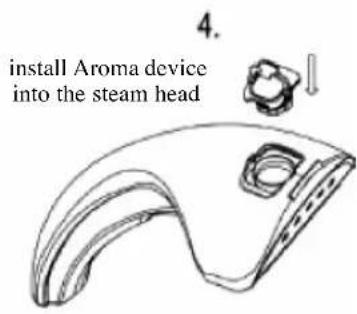

4. Install Aroma Device into the steam head, and ensure it has been inserted completely
5. Snap the nger ring on the steam head - now you can enjoy the Aroma function.

After turning on the steamer, steam will come through the hose and pass through the Aroma Device as well because it is situated in the head of the steamer. Essential oil will diffuse on your clothing. As a result, your clothing will be infused with your favourite aroma after ironing.

CAUTION: Please DON'T take out the Aroma device when it is operating.

PARTS OF THE AROMA DEVICE:

1. Steam head
2. Exhaust holes
3. Finger ring
   4.Aroma upper cover
4. Aroma Lower Unit

5. snap the nger ring on the steam head, now you can enjoy the Aroma function

PREPARING FOR USE

Please read the instructions for use and important safeguards carefully DO NOT PLUG IN OR TURN ON UNTIL ASSEMBLY IS COMPLETED.

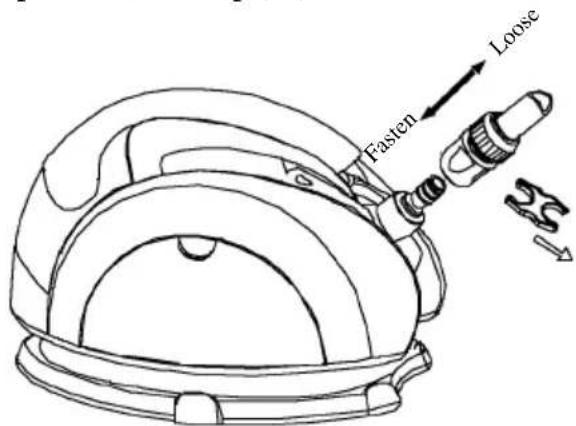

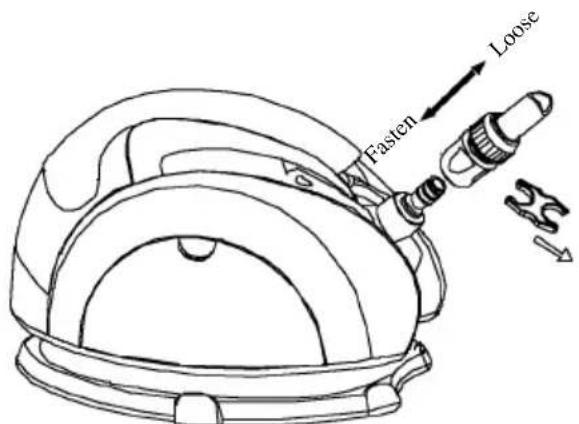

1. Remove the Hose Clamp (15). Insert the Hose Connector (08) into the Hose Adaptor (13), and then replace Hose Clamp (15)

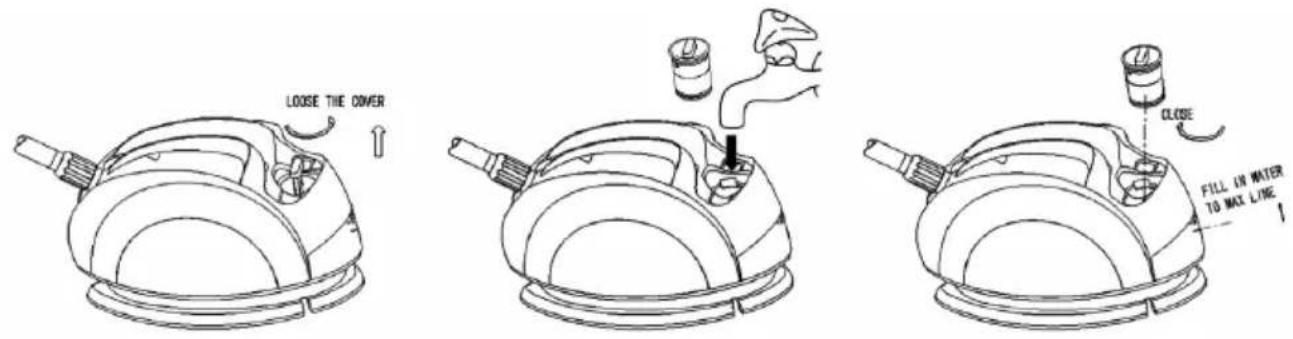

1. Turn the Reservoir Cover (10) anticlockwise to open it, and then ll with water to Max. Line (1.6 L) indicated on the Reservoir Window (05), never over ll the steamer and never fill it with hot water. Finally, turn the Reservoir Cover clockwise to lock into place.

Never overfill your steamer. Never fill it with hot water.

Important: The heat concentrates the elements that contained in water during evaporation. Use clean water. When doubt use distilled or demineralized water. Also use distilled or demineralized water only as advised above.

1. The steamer is ready for use.

HOW TO USE

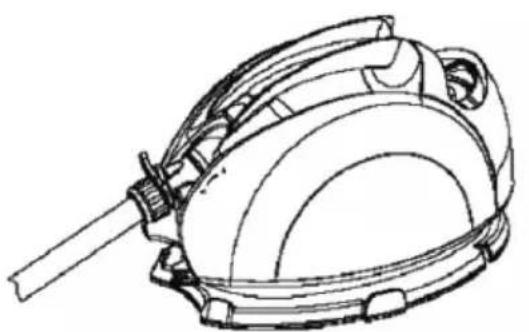

1. Place the Steamer on at and stable oor. Note: this appliance must be placed on the oor.

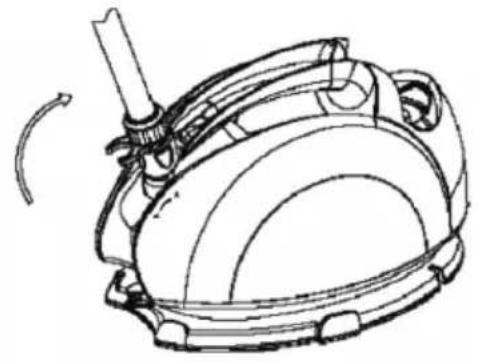

2. Turn the hose adaptor (13) upwards until you hear a click and the hose adaptor is then locked in its position.

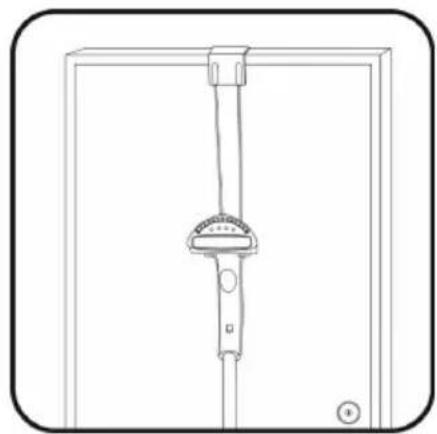

1. Place the Steam Head (02) on the Hanger (16) pointing away from the door. The steam head should be hung on the door hook while unit is heating up.

1. Plug the steamer into proper voltage outlet.

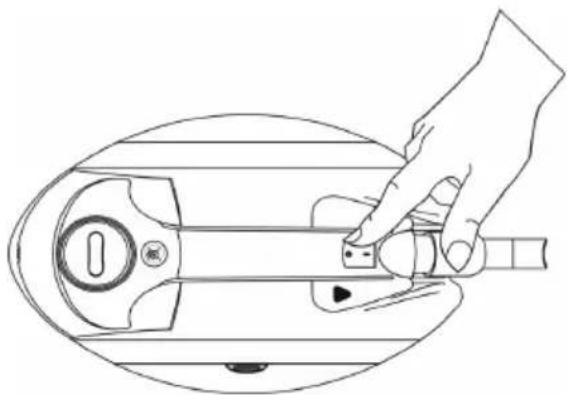

2. Push the on/off switch to "I" position (the power indicator will lit).

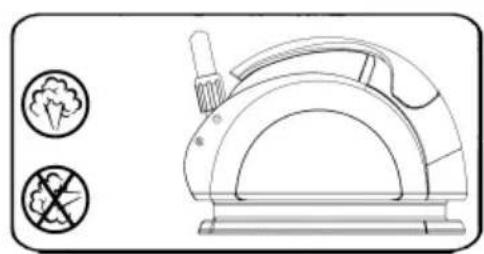

1. Wait for the steam to come out for about 2-3 minutes.
2. Remove the steamer head and place your garment onto the hanger head.

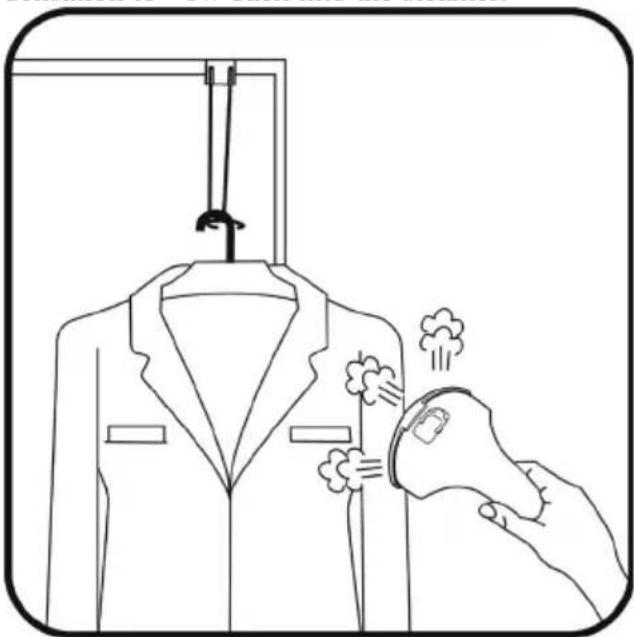

3. Grasp the steam head handle with the steam vents pointing away from you. Start steaming by touching material lightly with steaming head and moving in an up/down vertical motion. Begin at the top of the garment and move in a downward direction. Steam with hose in an upright position, this allows condensation to slow back into the steamer.

Do not touch silk or velvet with the steam head. DO NOT ALLOW STEAMER TO RUN DRY

• Tips: If steaming in a low position near oor, straighten hose up and out frequently to clear condensation. If hose becomes clogged, it will make a gurgling noise or the amount of steam will be reduced. You may also experience dripping if the hose becomes clogged. Heavier fabrics may require repeated steaming. Exercise caution at all times.
• WARNING: Never steam clothes while they are being worn. Hose and steam head will become hot during use. This is normal. Use caution and avoid prolonged contact.
• In case the steam hose is curved to block the steam out, the Steam Release Valve (11) will be activated for pressure release as safety feature.

CAUTION: Be careful of the steam during steaming.

During operation, the steamer hose may make a gurgling noise. This is normal because of condensation. If it begins to gurgle, extend hose up and out to move excess moisture back into the base.

9.2 in 1 Brush (Lint & Bristle) (03)

Be sure unit is unplugged and completely cool before attaching this accessory.

Attach the 2 in 1 brush to the steam head by lining up the bottom of the brush with the bottom of the steam head. Gently push the top of the brush into place on the steam head until it clicks into place.

• Gently brush the area to be steamed following the grain or nap of the fabric.
• Remove the fabric brush once unit is unplugged and completely cool by pressing on the release tab on top of brush while pulling it forward.

AFTER USE

1. After using the steamer, push the on/off switch to the O position. The power indicator goes off. You can then remove the plug from socket.
2. Place back the steam head on the steamer unit.
3. Remove the hose clamp.
4. Remove the hose from hose adaptor.
5. Make sure the unit has completely cooled down before removing it from the Hose Adaptor.
6. Store the steam hose in the hose wrapping position (06) when not in use for easy storage.

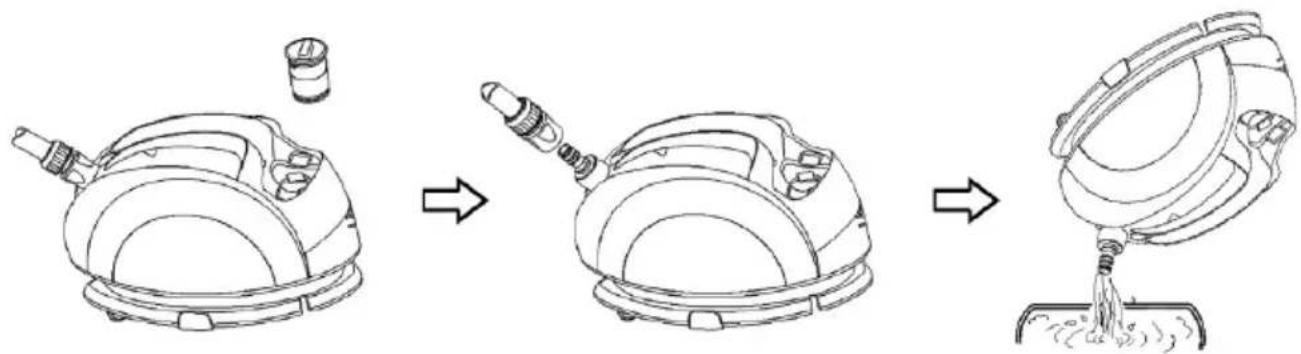

7. Turn the reservoir cover out from the unit anticlockwise and empty the water container from the opening of the hose adaptor, and lock the reservoir cover back into place.

1. You can carry your steamer by its handle for easy portability and storage.
2. For cord and hose winding or transport, never turn your appliance upside down. Empty all water from the unit before storing it.

WARNING:

Never touch the steam head until it cools completely

Never operate without water.

Unplug after each time use.

HOW TO CLEAN

Clean the main unit with a damp cloth. To maintain maximum performance, your steamer must be descaled occasionally. The descending intervals will depend on the water quality and the frequency of use. The unit should be descaled at least once a year or every 100 hours of use.

For descending, proceed as follows:

1. Unplug the unit and fill it with 1/3 white vinegar and 2/3 water.
2. Let the appliance run for 3 minutes and do not steam any clothing with this mixture.
3. Switch the appliance off. Unplug it and allow cooling down for at least 30 minutes.
4. Empty the water over the sink. Rinse the appliance with fresh water.
5. Fill the unit with fresh water and repeat steps 2-4.

U.K. WIRING INSTRUCTIONS

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

GREEN/YELLOW EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or and is coloured GREEN or GREEN/YELLOW

If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the Distribution Board.

WARNING: THIS APPLIANCE MUST BE EARTHED

PRINCESS COMPACT HOME STEAMER ART. 332770
