USER MANUAL Silver Vertical Steamer 332731 PRINCESS

Instructions for use

Mode d'emploi

Anleitung

Identification Parts

Figure 1

Figure 2

Figure 3

Figure 4

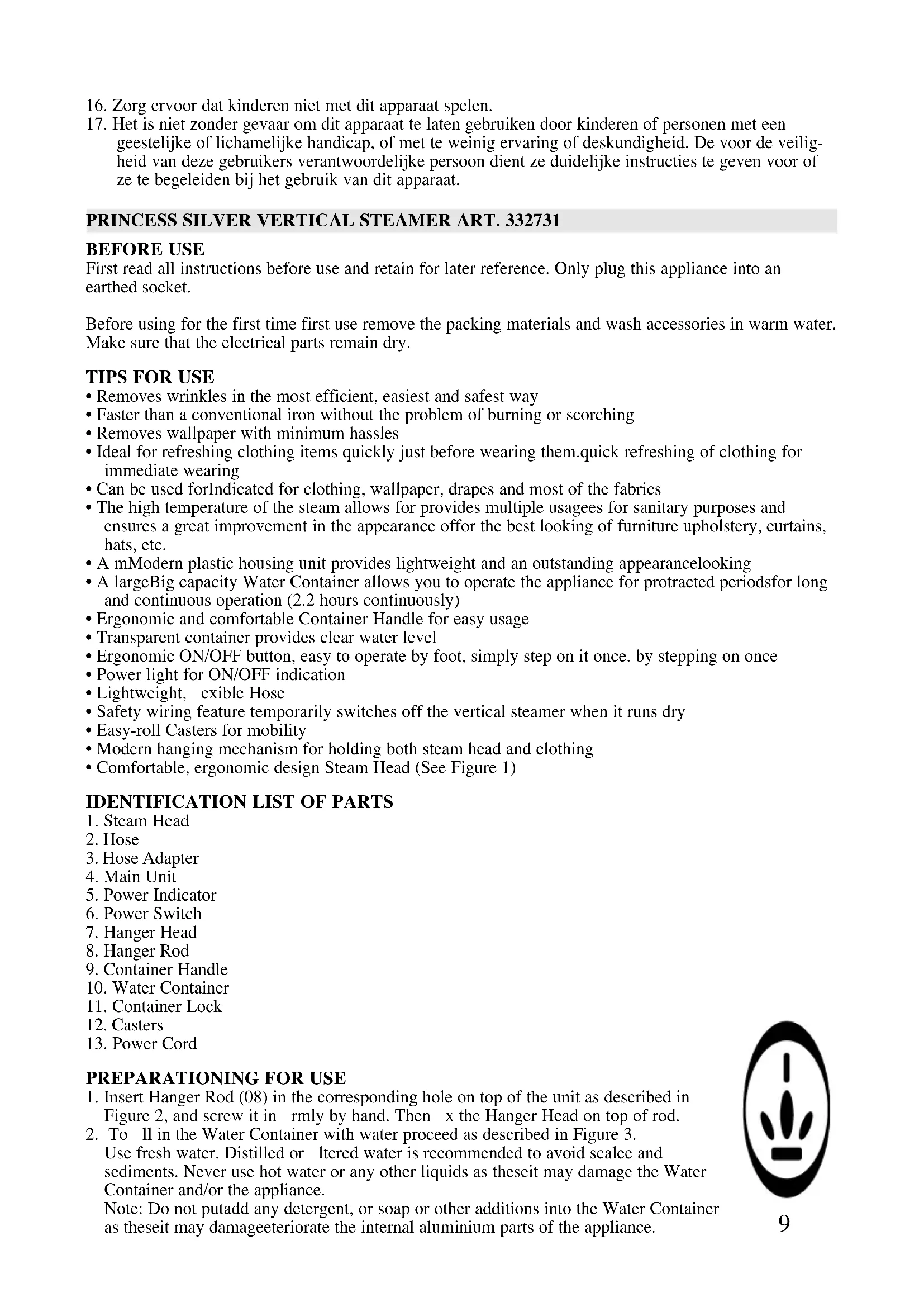

PRINCESS SILVER VERTICAL STEAMER ART. 332731

VOOR GEBRUIK

LAAT HET STOOMAPPARAAT NIET DROOGSTOMEN

NA GEBRUIK

First read all instructions before use and retain for later reference. Only plug this appliance into an earthed socket.

Before using for the first time first use remove the packing materials and wash accessories in warm water. Make sure that the electrical parts remain dry.

TIPS FOR USE

• Removes wrinkles in the most efficient, easiest and safest way
• Faster than a conventional iron without the problem of burning or scorching
• Removes wallpaper with minimum hassles
• Ideal for refreshing clothing items quickly just before wearing them. quick refreshing of clothing for immediate wearing
• Can be used for Indicated for clothing, wallpaper, drapes and most of the fabrics
• The high temperature of the steam allows for provides multiple usages for sanitary purposes and ensures a great improvement in the appearance offer the best looking of furniture upholstery, curtains, hats, etc.
• A mModern plastic housing unit provides lightweight and an outstanding appearancelooking
• A largeBig capacity Water Container allows you to operate the appliance for protracted periods for long and continuous operation (2.2 hours continuously)
• Ergonomic and comfortable Container Handle for easy usage
• Transparent container provides clear water level
• Ergonomic ON/OFF button, easy to operate by foot, simply step on it once. by stepping on once
• Power light for ON/OFF indication
• Lightweight, exible Hose
• Safety wiring feature temporarily switches off the vertical steamer when it runs dry
• Easy-roll Casters for mobility
• Modern hanging mechanism for holding both steam head and clothing
• Comfortable, ergonomic design Steam Head (See Figure 1)

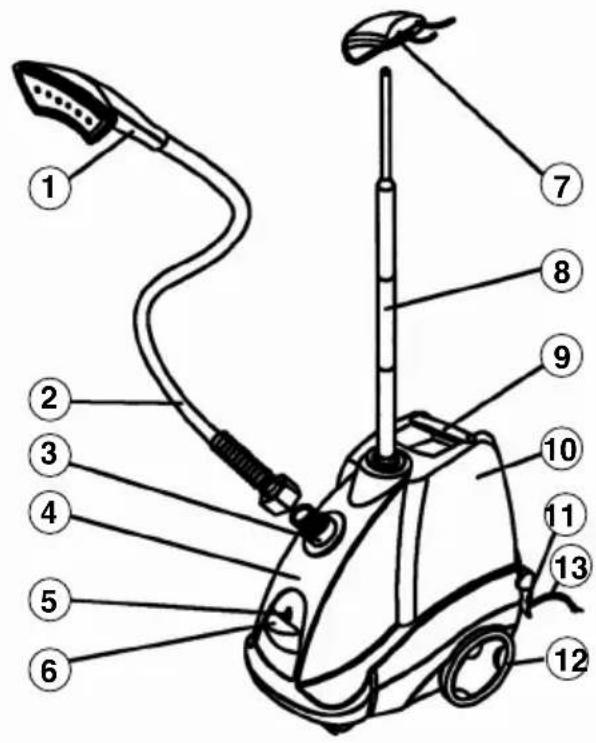

IDENTIFICATION LIST OF PARTS

1. Steam Head
2. Hose
3. Hose Adapter
4. Main Unit
5. Power Indicator
6. Power Switch
7. Hanger Head
8. Hanger Rod
9. Container Handle
10. Water Container
11. Container Lock
12. Casters
13. Power Cord

PREPARATIONING FOR USE

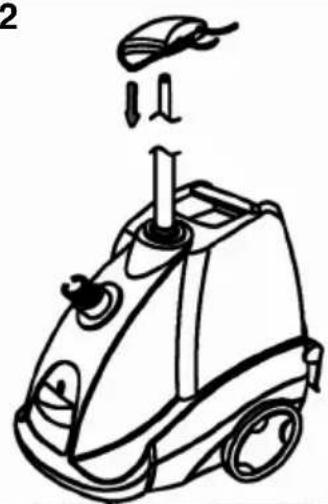

1. Insert Hanger Rod (08) in the corresponding hole on top of the unit as described in Figure 2, and screw it in rmly by hand. Then x the Hanger Head on top of rod.

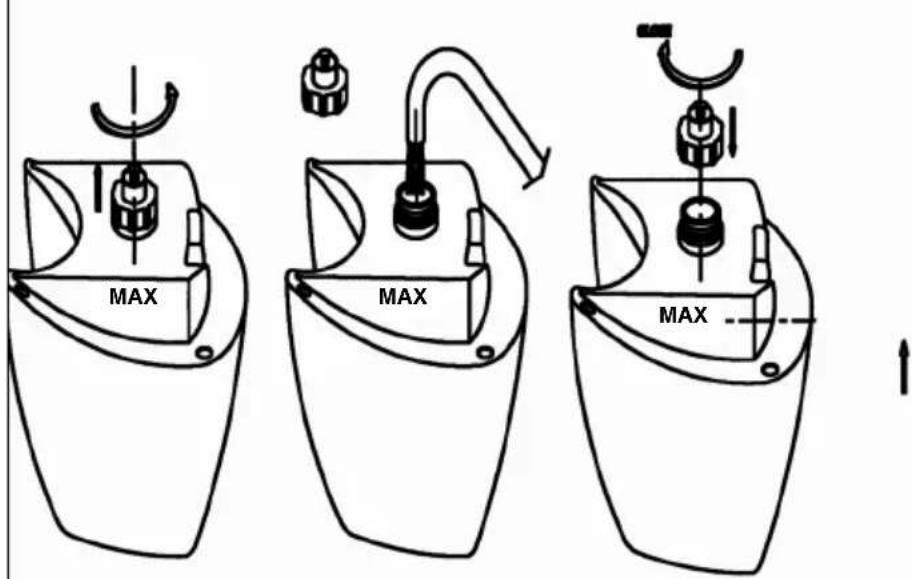

2. To ill in the Water Container with water proceed as described in Figure 3. Use fresh water. Distilled or itered water is recommended to avoid scalee and sediments. Never use hot water or any other liquids as theseit may damage the Water Container and/or the appliance.

Note: Do not putadd any detergent, or soap or other additions into the Water Container as theseit may damageeteriorate the internal aluminium parts of the appliance.

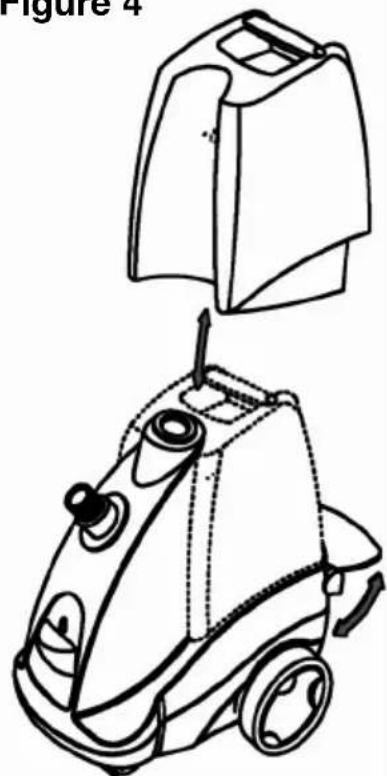

1. Release Container Lock and insert Water Container. When in place, close Container Lock by foot. To detach the Water Container for re-ling, switch off the unit, unplug, and just pull up the lock using your foot again. Handle can be used is used to carryfor carrying the Water Container, not the whole unit. (See Figure 4)

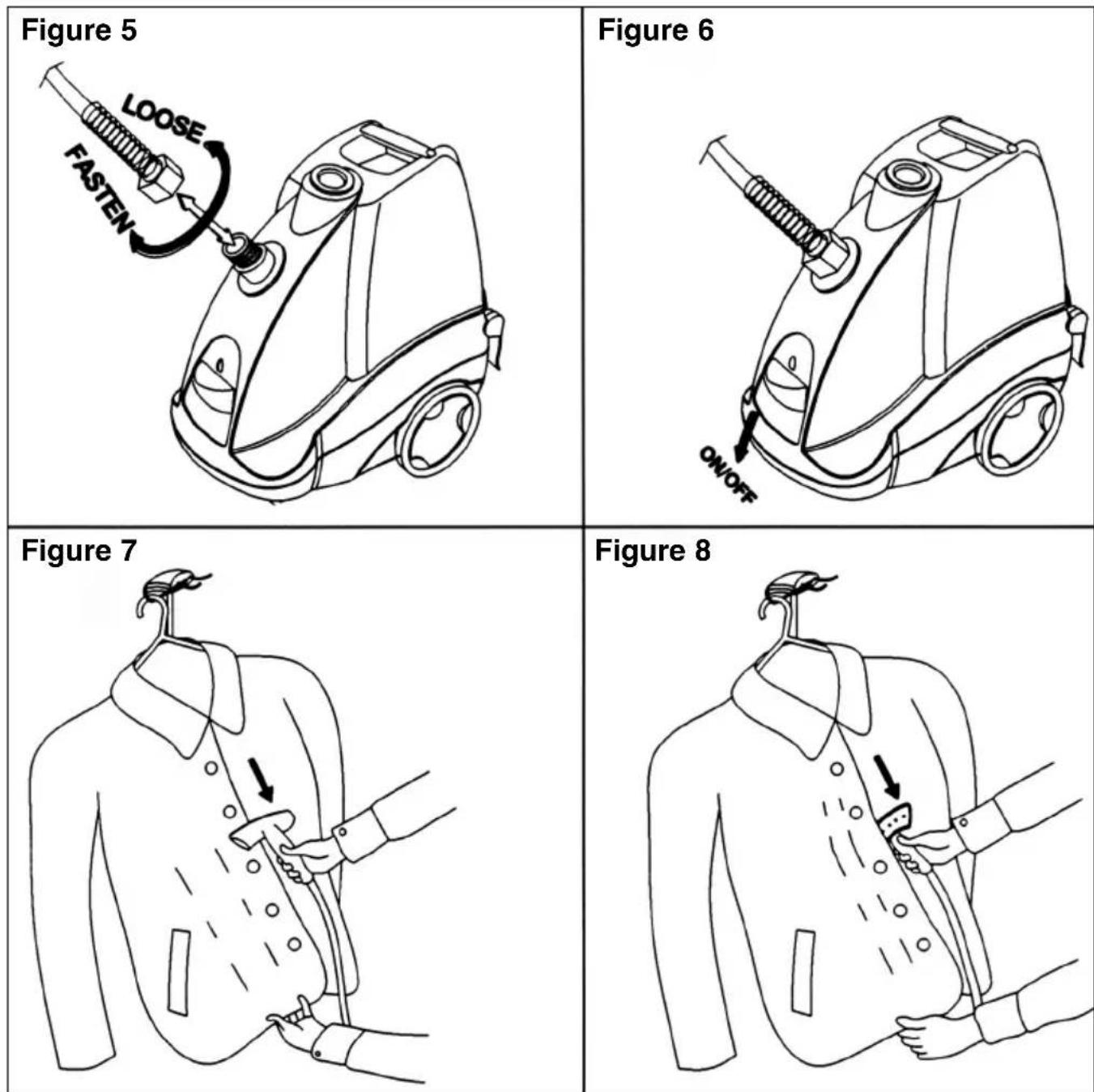

2. Insert Hose (02) in the Hose Adapter (03), and screw in firmly by hand (do not use any tool). (See figure 5)
3. The steamer is ready for use.

HOW TO USE

1. Plug into a proper voltage outlet, activate Power Switch by hand or foot to ON position as described in Figure 6. (Power Indicator will light up).

Do not switch the steamer on if there is no water in the Water Container because it may get overheated. Wait 2 to 3 minutes for steam to come out.

Note: It is normal to hear a gurglinges sound from the steamer while the heater starts to make creating the steam or ifdue to condensation forms. If If thisit occurs during operation, just positionstraight the Steam Head upwards to allow the excess of condensation to drain back into steamer.

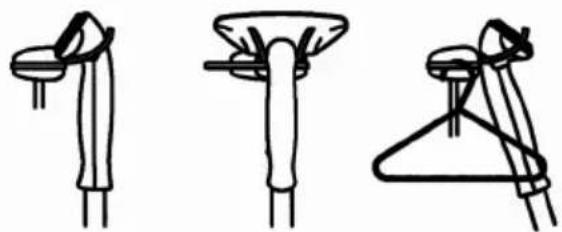

1. Hold allany kinds of shirts, jackets, cardigans, pullovers, up by their etc. by its regular coat hangers.. A trouser hanger is recommended for steaming trousers , and ties.
2. Then hold hold the clothing item in place usingit in the appropriate rod located in the Hanger Head.
3. Steam with a downward motion to avoid your hand coming into contact to get in touch with the steam, as described in Figure 7. Use the other hand to straighten the area to be steamed and use yourthe ngers to widen the area.
4. Steam slowly by touching material lightly with Steaming Head and wrinkles will vanish instantly. It is very important to combine the touch of the Steaming Head with and direct steam. Some clothing items articles can be steamed better from the underside. Speed and ef ciency can be is achieved with a through little practice. (See Figure 8)

NOTE: Steam with Hose in an upright position, so any condensation is free to ow back into steamer. If steaming in a low position near floor i.e. steaming under lm, straighten Hose up and out FREQUENTLY to keep clear of condensation.

Do not touch silk or velvet with the steam head.

DO NOT ALLOW STEAMER TO RUN DRY

AFTERUSE

1. After using the steamer, switch to OFF (Power Indicator light will go outwill light off) and disconnect the Power Cord from the outlet.
2. Hang the Steam Head in an upright position in Hose Hanger Rod when not in use.
3. Pour out the water each time after use. This is important as microorganisms may be able to grow in the water and could damage the unit.

Therefore, regular replacement of the water is necessary.

WARNING:

1. Never touch the Steam Head until it cools completely
2. Never operate without water.
3. Unplug after each use.
4. Do not use the Water Container Handle to carry the whole unit, as the steamer may tip overbe turn over.

MAINTENANCE AND CLEANING

• Always unplug before cleaning the unit
• Let the steamer cool down and then use a damp cloth for cleaning.
• Never use harsh or abrasive cleaning agents or solvents

Cleaning the Water Container:

This is to be done regularly to prevent the growth growing of microorganism inside the Water Container.

1. Unplug and pull up Container Lock to detach the Water Container.
2. Pour old water out if it has not been used for a period of time.
3. Re ll water to the Water Container and then pour the water it out.

From time to time, and depending on the quality of your water supplier, the Water

Container has to be disinfected. Proceed as follows:

1. Unplug and pull up Container Lock to detach the Water Container.

1. Fill it with fresh water and add a half-teaspoon of Chlorine bleach to the water.
2. Shake it vigorously.
3. Pour out the water.
4. For rinsing, re ll water to the Water Container, shake it and pour water out.

Periodically, pour old water out of steamer to remove sediment and maintain the correct proper water level.

NOTE: No two water suppliers have the same mineral content. If your steamer begins to cut on and off during normal use, the thermostat is indicating that the heating unit requires needs descaling of the sediments. the sediments to be descaled.

Descaling:

To prevent malfunctioning, your steamer must be descaled regularly. The descending interval will depend on the water quality and the frequency of use. For descending, proceed as follows:

1. Unplug, remove the Water Container, ll it with water and shake it vigorously to remove large-scale sediments. Pour out the water and repeat it as necessary.
2. Half fill Fill in the Water Container half capacity with a mix of decalcifying agent and water (follow the instructions from the decalcifying productier product to to discover the correct percentage learn the percentage of water you have to add and the descaling time). Close the Water Container.
3. Leave the Water Container apart for the time indicated by the decalci yinger agent manual. Afterwards turn the Water Container up-and-down to descale the other part for the same amount of time.
4. Then, attach the Water Container to the unit, plug in and switch on.
5. Let the appliance run until the Water Container is about to empty (do not steam any clothing during this time).
6. Unplug, detach and empty Water Container and rinse it with water. Then pour out the water.
7. Refill Water Container again with water and repeat steps 4 to 5.
   The steamer is now ready for use again.

Note: If after descending, you believe there is still scale in the boiler, repeat descending process as necessary. If you always use distilled water, it will not be necessary to descale the boiler.

Tip: The descending agent is available in most supermarkets and is the same as the one used for espresso machines, stainless steel kettles, or humidi ers.

PRINCESS TIPS

When using this appliance, the following basic precautions should always be followed:
1. Read the instructions thoroughly and understand all instructions before use.
2. To reduce the risk of electrical shock, do not immerse the appliance in water or other liquids.
3. Children should not use this appliance. Close supervision is necessary when any appliance is used near children. Do not leave the appliance unattended while plugged to outlet.
4. Unplug from outlet when attaching or removing the Water Container, before cleaning, re lling water orand when not in use. When disconnecting from outlet, grasp and pull plug. Never tug the cord.
5. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any any waymanner. Return appliance to the nearest authorized service facility for examination, repairs or adjustments.
6. Do not disassemble or attempt to repair any part of the appliance under any circumstances. Return appliance to the nearest authorized service facility for examination, repairs or adjustments.
7. Do not let the Power Cord or the extension cord come into contact with sharp edges or hot surfaces, including the stove.
8. Let appliance cool down completely and loop cord loosely around appliance when storing.
9. Steam only in an up and down vertical motion.
10. Never use steamer in a horizontal position or tilt into a backward position, as this may result in water discharge.
11. Do not attempt to hang up the unit by the Hose.
12. Avoid contact withing hot parts, hot water or steam.
13. While operating, do not let the Water Container dry outget dry.
14. Use appliance only for its intended use. Indoor use only.
15. To reduce the likelihood of a circuit overload, do not operate another high wattage appliance on the same circuit.
16. Children should be supervised to ensure that they do not play with the appliance.

1. The use of this appliance by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance.

U.K. WIRING INSTRUCTIONS

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

GREEN/YELLOW EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or ± and is coloured GREEN or GREEN/YELLOW.

With this appliance, if a 13 amp plug is used a 13 amp fuse should be tted. If any other type of plug is used a 15 amp fuse must be tted either in the plug or at the distribution board.

WARNING: THIS APPLIANCE MUST BE EARTHED

PRINCESS SILVER VERTICAL STEAMER ART. 332731

AVANT L'EMPLOI

VEDLIKEHOLD OG RENGJØRING
