USER MANUAL 6770M1 ELTA

Design Stereo radio recorder with CD player

Rádio-gravador estéreo de design com Leitor de CDs

Design Stereo radio recorder with CD player

SAFETY INFORMATION

A triangle with a lightning symboldraws the user's attention to "dangerous voltage" withoutinsulation in the cabinet which maybe high enough to entail a risk ofelectronic shock.

WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCETHE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PART INSIDE. REFER SERVICING TO QUALIFIEDSERVICE PERSONNEL.

A triangle with an excclamation mark draws the user's attention to important instructions for use and maintenance in the accompanying manual, which should be studied.

FURTHER INFORMATION

Beware of small pieces and batteries, do not swallow them. It may be hazardous to your health and lead into suffocation. Please, Make sure to keep small devices and batteries out of the reach of children.

Important advice regarding hearing protection

Caution:

You care for your hearing, and so do we.

Therefore, use caution while using this appliance.

Our recommendation: Avoid high volumes.

Children should be supervised while using headphones; make sure that the appliance is not set to high volume.

Caution!

High volumes may cause irreparable damage to children's ears.

NEVER let allow anyone, especially children, to put objects into the holes, slots or openings on this devise. This may lead into death due to electric shock. The device must only be opened by a qualified assistant.

Only use the appliance for its intended purpose.

This device may only be used in housings and business premises.

Please keep this instruction manual for further reference.

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal. The materials are recyclable as mentioned in its marking. By recycling, material recycling or other forms of reutilization of old appliances, you are making an important contribution to protect our environment.

Please inquire at the community administration for the authorized disposal location.

Do not obstruct the ventilation of the device. Make sure, that no curtains, newspapers, furniture or any other type of object are blocking the ventilation system of the apparatus. The ventilation system must be clear of objects at all times! Overheating may lead into serious damage of the device and reduce its performance and lifespan.

Heat and warmth

Do not expose the appliance to direct sunlight. Make sure that the appliance is not subject to direct heat sources such as heaters or open fire. Make sure that the ventilation slots of the appliance are not covered.

Moisture and cleaning

This appliance is not waterproof! Do not immerse player in water. Do not allow player to come in contact with water. If water gets inside the player it may cause serious damage. Do not use cleaning agents that contain alcohol, ammoniac, benzene or abrasives as these could damage the player. For cleaning, use a soft, moistened cloth.

Professional recycling

Batteries and packaging should not be disposed of in the trash. Batteries must be handed over to a collection centre for used batteries. Separating disposable packaging materials is ecologically friendly.

POWER SOURCES

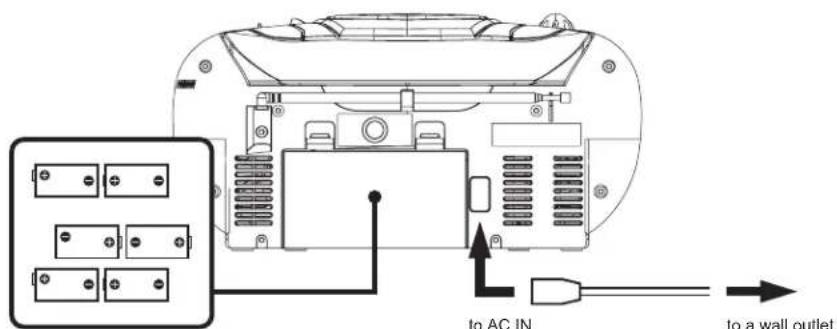

Insert 6 x R14/UM-2 size batteries into the battery compartment

AC POWER

You can power your portable system by plugging the detachable AC power cord into the AC inlet at the back of the unit and into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage. Make sure that the AC power cord is fully inserted into the appliance.

BATTERY POWER

Insert 6 x R14/UM-2 size batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

Notes:

• Use batteries of the same type. Never use different types of batteries together.

• To use the appliance with batteries, disconnect the AC power cord from it.

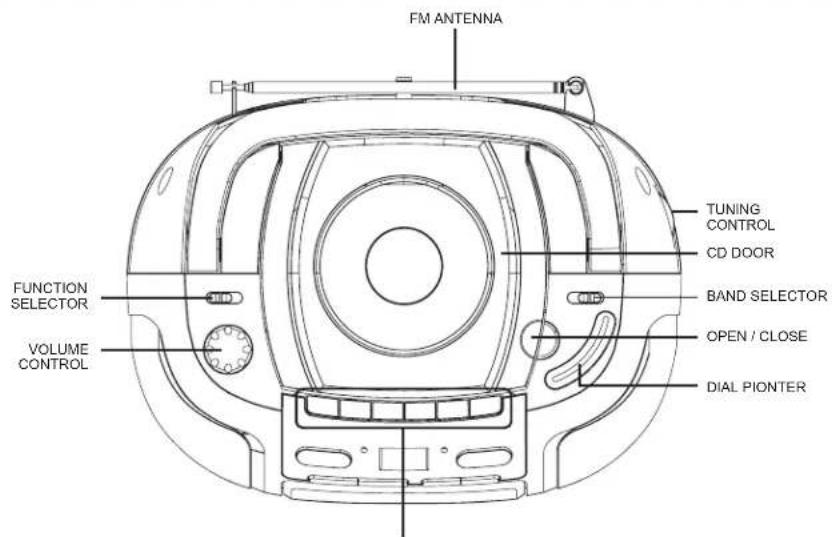

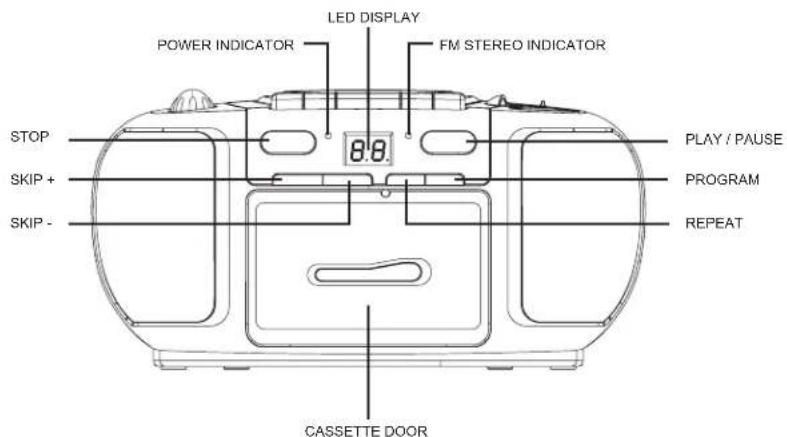

LOCATION OF CONTROL

TAPE BUTTONS - PAUSE, STOP / EJECT, FAST FORWARD, REWIND, PLAY, RECORD

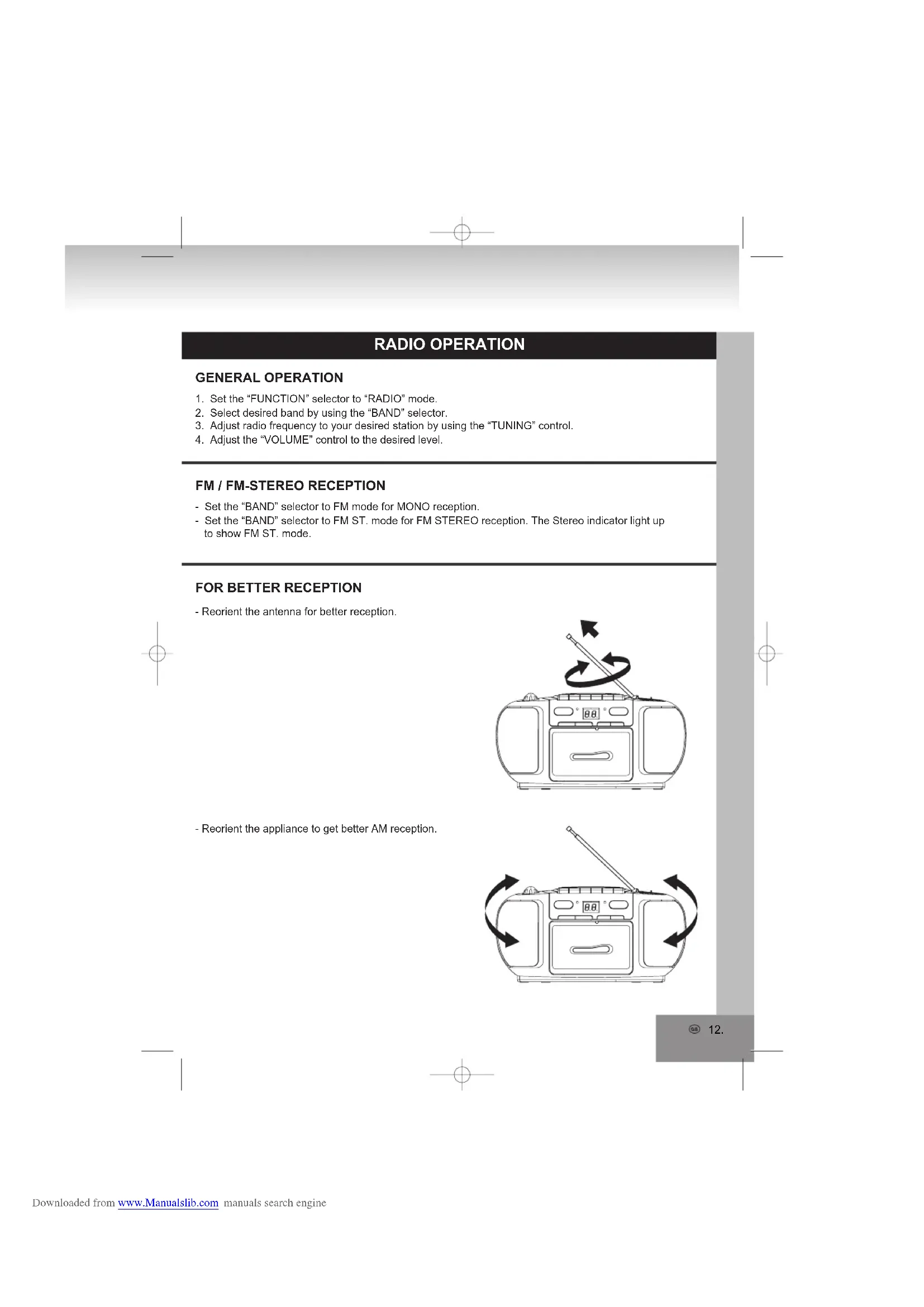

RADIO OPERATION

GENERAL OPERATION

1. Set the "FUNCTION" selector to "RADIO" mode.
2. Select desired band by using the "BAND" selector.
3. Adjust radio frequency to your desired station by using the "TUNING" control.
4. Adjust the "VOLUME" control to the desired level.

FM / FM-STEREO RECEPTION

• Set the "BAND" selector to FM mode for MONO reception.
• Set the "BAND" selector to FM ST. mode for FM STEREO reception. The Stereo indicator light up to show FM ST. mode.

FOR BETTER RECEPTION

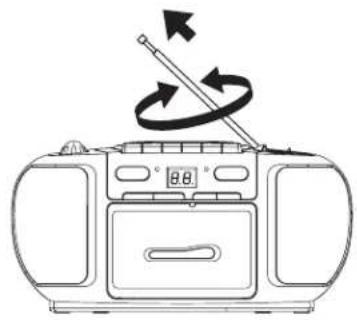

• Reorient the antenna for better reception.

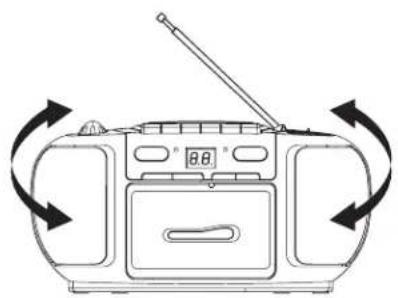

• Reorient the appliance to get better AM reception.

TAPE OPERATION

GENERAL OPERATION

PLAY

Press to start playing tape.

PAUSE II

Press to stop playing tape operation temporarily.

Press again to resume tape operation.

STOP/EJECT

Press to stop tape operations.

FAST FORWARD

Press again to open the cassette door after the tape spools stop turning.

REWIND

Press to start rapid tape winding either forward or reverse direction.

RECORD/PLAY

Press it together with "PLAY" button to start recording. / Press to start

playing tape.

PLAYBACK

1. Set the "FUNCTION" selector to "TAPE" mode.
2. Press the "STOP / EJECT" button to open the cassette door and insert your tape.
3. Close the cassette door.
4. Press the "PLAY" button to start playing tape.
5. Adjust the "VOLUME" control to the desired level.
6. Press the "PAUSE" button when you want to stop playing tape operation temporarily.
7. Press the "STOP / EJECT" button when finished.

RECORDING

1. Press the "STOP / EJECT" button to open the cassette door and insert a blank tape.
2. Select the source you want to record.

To record from radio - Set the "FUNCTION" selector to "RADIO" mode and adjust the desired station.

To record from CD / MP3 - Place a disc on the CD compartment. Set the "FUNCTION" selector to

"CD / MP3" mode and select the desired track.

1. Press the "RECORD" button together with the "PLAY" button to start recording.
2. Press the "STOP / EJECT" button when finished.

CD OPERATION

GENERAL OPERATION

PLAY/PAUSE

Press to start playing CD disc.

Press again to stop playing CD operation temporarily.

Press again to resume playback

SKIP+&

Press to go to the next track or back to the previous track.

SKIP-

Press and hold while playing until you find the point of the sound.

STOP

Press to stop all CD operation.

PLAYBACK

1. Set the "FUNCTION" selector to "CD" mode.
2. Open the CD door and place a CD disc with the label up in the CD compartment.
3. Close the CD door.
4. Focus search is performed if disc is inside. Total number of tracks is read and appears on the display.
5. Press the "PLAY / PAUSE" button to start playing CD disc.
6. Adjust the "VOLUME" control to the desired level.
7. Press the "PLAY / PAUSE" button again when you want to stop playback temporarily
8. Press the "STOP" button when finished.

CD OPERATION

PROGRAM

Up to 20 tracks can be programmed for disc play in any order.

Be sure to press the "STOP" button before use.

1. Press the "PROGRAM" button, the display will show "01" and flash.
2. Select desired track by using the "SKIP +" or "SKIP -" button.
3. Press the "PROGRAM" button again to confirm desired track into the program memory.
4. Repeat step 2 and 3 to enter additional tracks into the program memory.
5. When all the desired tracks have been programmed. Press the "PLAY / PAUSE" button to play the disc in the order you have programmed and the program indicator flashes.

1. Press the "STOP" button twice to terminate programmed play and the program indicator will turn off.

REPEAT

Press the "REPEAT" button before or during playing CD, a single track or all the tracks can be repeated. Each press switches the repeat mode as follows:

1- REPEAT 1 (The repeat indicator is flashing.)
2 - REPEAT ALL ( The repeat indicator is steadily on. )
3-NORMAL PLAYBACK

REPEAT1 REPEATALL

NORMAL PLAYBACK

TECHNICAL SPECIFICATIONS

GENERAL

Power supply: AC 230V ~ 50Hz

9V DC 6 x C (UM-2/R-14) batteries (not included)

Dimensions: 210 (L) x 145 (W) x 290 (H) mm

Weight: 1.9 kg

Frequency band: AM (MW) 525 - 1615kHz FM (UKW) 87.5 - 108MHz

AUDIO

Speaker impedance: 8 Ohm

(Specifications are subject to change without notice.)
