USER MANUAL Roxx'x BGS62232 BOSCH

Exterior view of a Bosch vacuum cleaner with black and white casing (no visible text or symbols)

Line drawing of a hand holding a small vacuum cleaner (no text or symbols)

GS60

de Gebrauchsanleitung
en Instructions for use
fr Mode d'emploi
it Istruzioni per l'uso
nl Gebruiksaanwijzing
da Brugsanvisning
no Bruksanvisning
sv Bruksanvisning
fi Käyttöohje
pt Manual de instruções
es Instrucciones de uso

Please keep this instruction manual. When passing the vacuum cleaner on to a third party, please also pass on this instruction manual.

Intended use

This vacuum cleaner is intended for domestic use and not for commercial use. Only use this vacuum cleaner in accordance with the instructions in this instruction manual. The manufacturer will not accept any responsibility for damage caused by improper use or incorrect operation.

Therefore, please note the following points.

The vacuum cleaner must only be operated with:

■ Original replacement parts, accessories or special accessories

In order to prevent injuries and damage, the vacuum cleaner must not be used for:

■ Vacuum-cleaning persons or animals
■ Vacuuming up:

• insects or spiders.
• hazardous, sharp-edged, hot or glowing substances.
• damp or liquid substances.
• highly flammable or explosive substances and gases.
• ash, soot from tiled stoves and central heating systems.
• toner dust from printers and copiers.

Safety information

This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations.

■ Only connect and use the vacuum cleaner in accordance with the specifications on the rating plate.
■ Never vacuum without the dust container and particulate filter.

=> This can damage the appliance.

■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and the have understood the potential dangers of using the appliance.

■ Children must never play with the appliance.
■ Cleaning and user maintenance must never be carried out by children without supervision.
■ Do not vacuum close to the head when using a nozzle and tube.

=> This could cause injury!

■ When vacuuming stairs, the appliance must always be positioned below the user.
■ Do not use the power cord or the hose to carry or transport the vacuum cleaner.
■ Fully extend the power cord when using the vacuum cleaner continuously for several hours.
■ When disconnecting the appliance from the mains, pull on the plug itself to remove it; do not pull on the power cord.
- Do not pull the power cord over sharp edges or allow it to become trapped.
■ For safety reasons, if this appliance's mains power cable becomes damaged, it must be replaced by the manufacturer, their after-sales service department or a similarly qualified person.
■ Pull out the mains plug before carrying out any work on the vacuum cleaner.
■ Do not operate the vacuum cleaner if it is damaged. Unplug the appliance from the mains if a fault is detected.
■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
■ Protect the vacuum cleaner from the weather, moisture and sources of heat.
- Do not pour flammable substances or substances containing alcohol onto the filters (dust bag, motor protection filter, exhaust filter, etc.).
■ The vacuum cleaner is not suitable for use on construction sites. =>Vacuuming up building rubble could damage the appliance.
■ Switch off the appliance when it is not in use.
■ At the end of its life, the appliance should immediately be rendered unusable, then disposed of in an appropriate manner.

Please note

- The mains socket must be protected by at least a 16 amp circuit breaker.

If a circuit breaker is tripped when you switch on the vacuum cleaner, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the circuit breaker from tripping, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

Disposal information

■ Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can therefore be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.

■ Old appliance

Old appliances still contain many valuable materials. Therefore, please take appliances that have reached the end of their service life to your retailer or recycling centre so that they can be recycled. For current disposal methods, please enquire at a retailer or your local council.

■ Disposal of filters and dust bags

Filters and dust bags are manufactured from environmentally friendly materials. Provided they do not contain substances that are not permitted in household waste, you can dispose of them with your normal household waste.

fr

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Gerätebeschreibung

3D rendering of a mechanical component with cylindrical and stepped features (no text or symbols)

3D rendered image of a gray mechanical component with a curved handle (no text or symbols visible)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

Zum Saugen glatter Böden (Parkett, Fliesen, Terracotta,...)

D Hartboden-Düse BBZ124HD

3D rendered mechanical component with a lever-like handle (no text or symbols visible)

We are delighted that you have chosen to purchase a Bosch vacuum cleaner from the GS60 model series A variety of GS60 models are shown in this instruction manual. It is therefore possible that not all of the appliance features and functions described match your model. You should only use original accessories from Bosch that were specially developed for your vacuum cleaner, so that you achieve the best possible vacuuming results.

Fold out the picture pages.

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Appliance description

1 Adjustable floor tool with accessory connection
2 Telescopic tube with adjusting sleeve and accessory connection
3 Handle
4 Flexible hose
5 Pivoting carrying handle
6 Dust container
7 Power cord
8 Exhaust filter cover
9 On/off button with electronic suction regulator

10 Power level indicator
11 Parking aid on the side of the appliance
12 "Clean" filter cleaning button*
13 Accessories compartment
14 Storage aid on the underside of the appliance
15 Upholstery nozzle
16 Crevice nozzle
17 Plate filter
18 Fluff filter
19 Hard-floor brush*
20 TURBO-UNIVERSAL® brush for floors*

Replacement parts and special accessories

A TURBO-UNIVERSAL® brush for upholstery BBZ42TB

3D rendering of a mechanical component with cylindrical and rectangular parts (no text or symbols)

Brushing and vacuuming of upholstered furniture, mattresses, car seats, etc. in one operation.

Especially suitable for picking up pet hair. The brush roller is driven by the suction air flow of the vacuum cleaner. No separate electrical connection is needed.

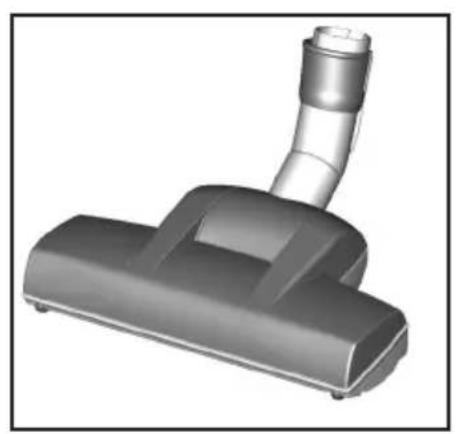

B TURBO-UNIVERSAL® brush for floors BBZ102TBB

3D rendered image of a gray mechanical component with a curved handle and flange (no text or symbols visible)

Brushing and vacuuming of rugs and carpets and all hard floor coverings in one operation. Especially suitable for picking up pet hair. The brush roller is driven by the suction air flow of the vacuum cleaner.

No separate electrical connection is needed.

C Hard floor brush BBZ 123HD

3D rendering of a Y-shaped pipe fitting (no text or symbols)

Forvacuuminghard floors (parquet flooring, tiles, terracotta, etc.)

D Hard floor brush BBZ 124HD

3D rendered mechanical component with a curved handle and flange (no text or symbols visible)

With 2 rotating brush rollers, for caring for expensive hard floors and better collection of coarse dirt

Setting up

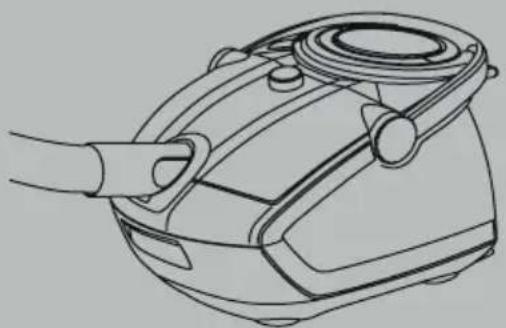

Figure 1

- Push the flexible tube adapter into the air intake opening on the appliance. Check for correct seating – the moulded hook on the tube adapter must fit into the recess in the air intake opening and audibly click into place.

Figure 2\*

a) Push the handle into the suction tube/telescopic tube. To remove it, turn the handle slightly and pull it out of the tube.

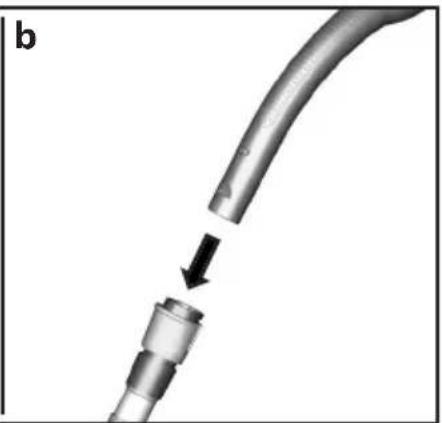

b) Push the handle into the telescopic tube until it engages. To release the connection, squeeze the locking collar and pull out the handle.

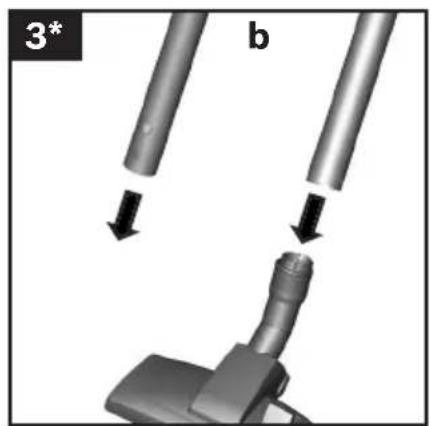

Figure 3\*

a) Insert the telescopic tube into the connecting piece of the floor tool. To release the connection, turn the tube slightly and pull it out of the floor tool.
b) Push the telescopic tube into the connecting piece of the floor tool until it engages. Press the locking collar and pull out the telescopic tube to release the connection.

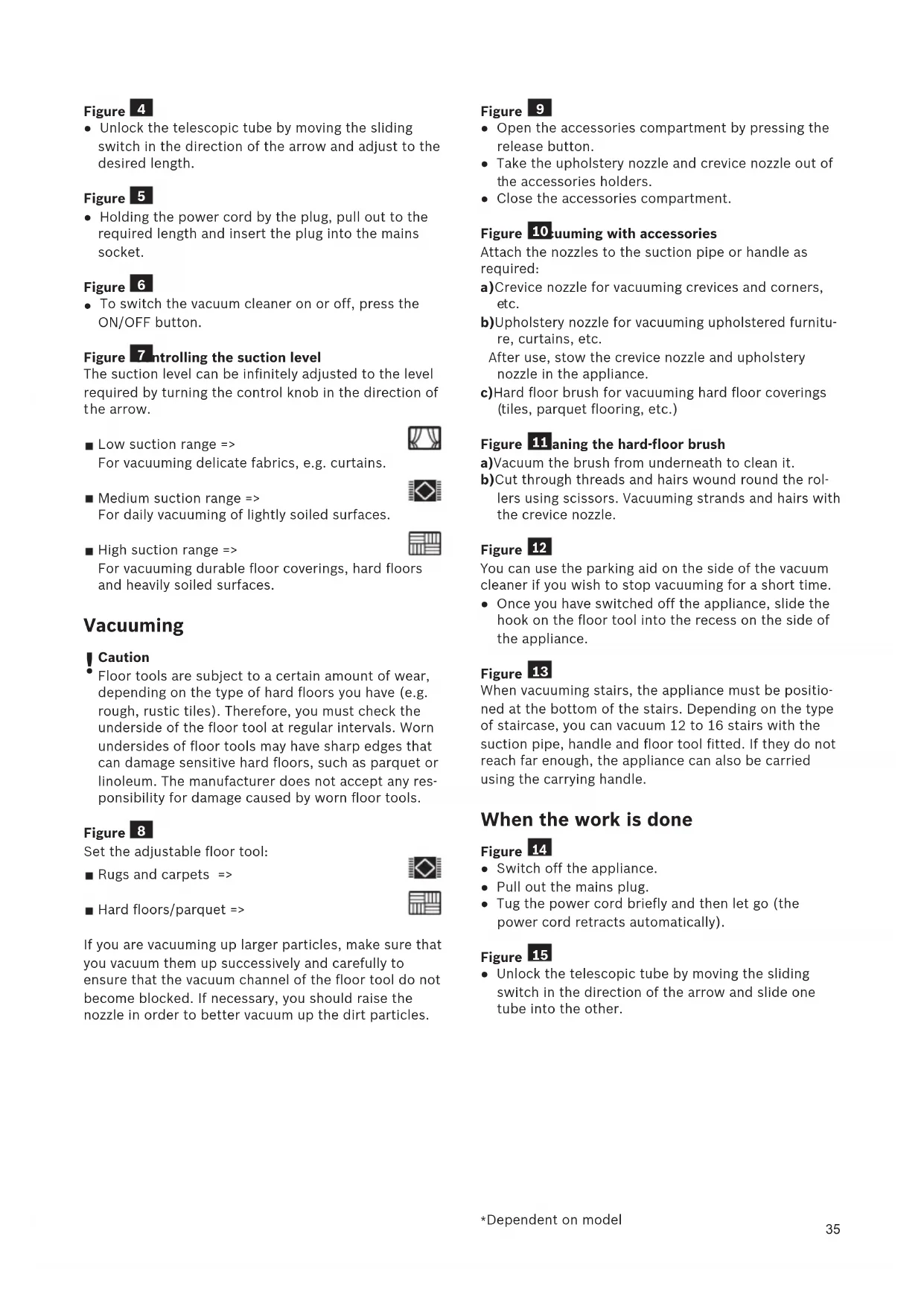

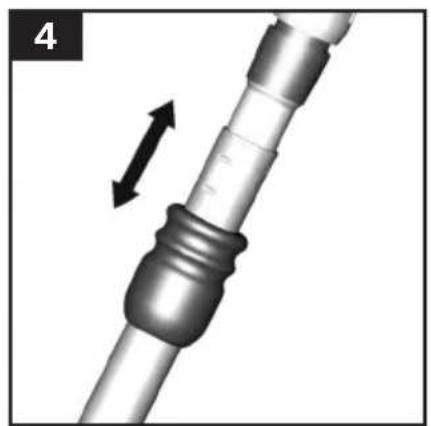

Figure 4

- Unlock the telescopic tube by moving the sliding switch in the direction of the arrow and adjust to the desired length.

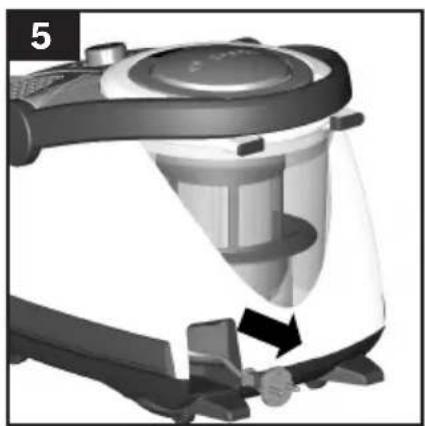

Figure 5

- Holding the power cord by the plug, pull out to the required length and insert the plug into the mains socket.

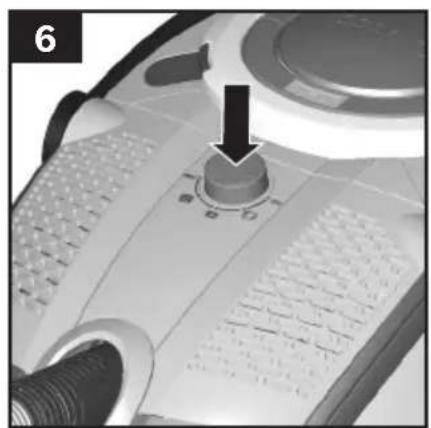

Figure 6

- To switch the vacuum cleaner on or off, press the ON/OFF button.

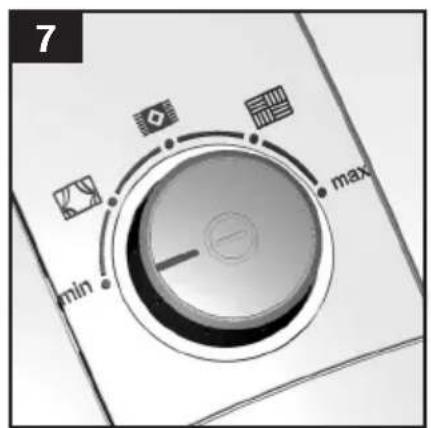

Figure 7 Controlling the suction level

The suction level can be infinitely adjusted to the level required by turning the control knob in the direction of the arrow.

■ Low suction range =>

For vacuuming delicate fabrics, e.g. curtains.

■ Medium suction range =>

For daily vacuuming of lightly soiled surfaces.

■ High suction range =>

For vacuuming durable floor coverings, hard floors and heavily soiled surfaces.

Vacuuming

Caution

- Floor tools are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). Therefore, you must check the underside of the floor tool at regular intervals. Worn undersides of floor tools may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. The manufacturer does not accept any responsibility for damage caused by worn floor tools.

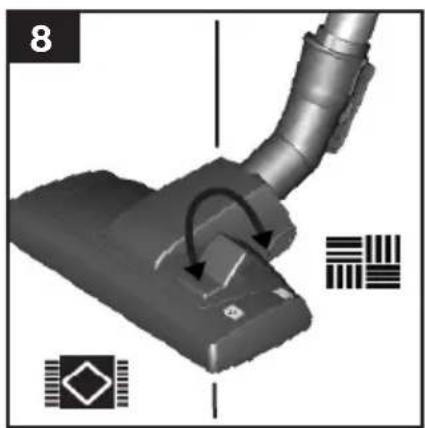

Figure 8

Set the adjustable floor tool:

■ Rugs and carpets =>

■ Hard floors/parquet =>

If you are vacuuming up larger particles, make sure that you vacuum them up successively and carefully to ensure that the vacuum channel of the floor tool do not become blocked. If necessary, you should raise the nozzle in order to better vacuum up the dirt particles.

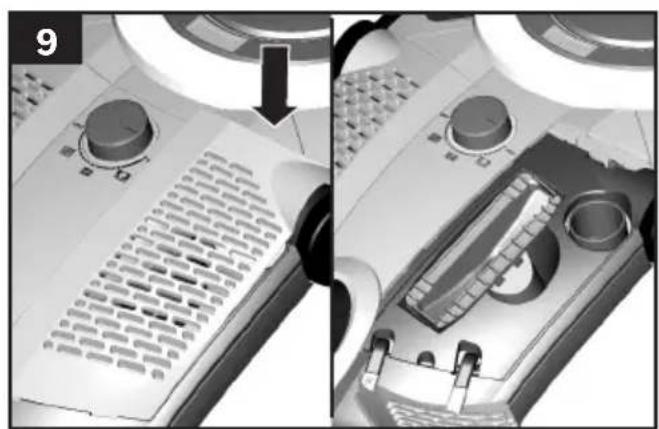

Figure 9

• Open the accessories compartment by pressing the release button.
• Take the upholstery nozzle and crevice nozzle out of the accessories holders.
• Close the accessories compartment.

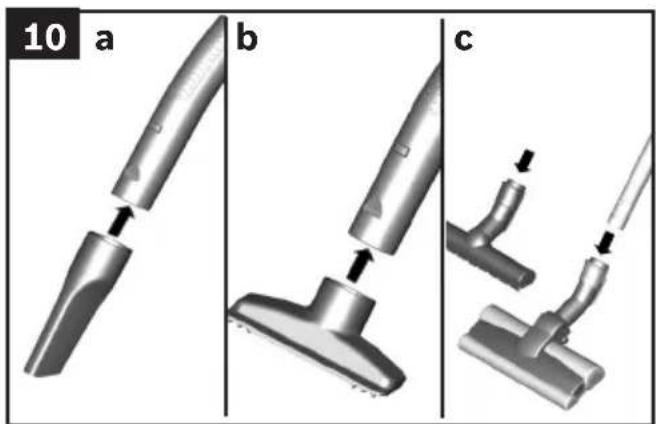

Figure 10: cuuming with accessories

Attach the nozzles to the suction pipe or handle as required:

a) Crevice nozzle for vacuuming crevices and corners, etc.
b) Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.
After use, stow the crevice nozzle and upholstery nozzle in the appliance.
c) Hard floor brush for vacuuming hard floor coverings (tiles, parquet flooring, etc.)

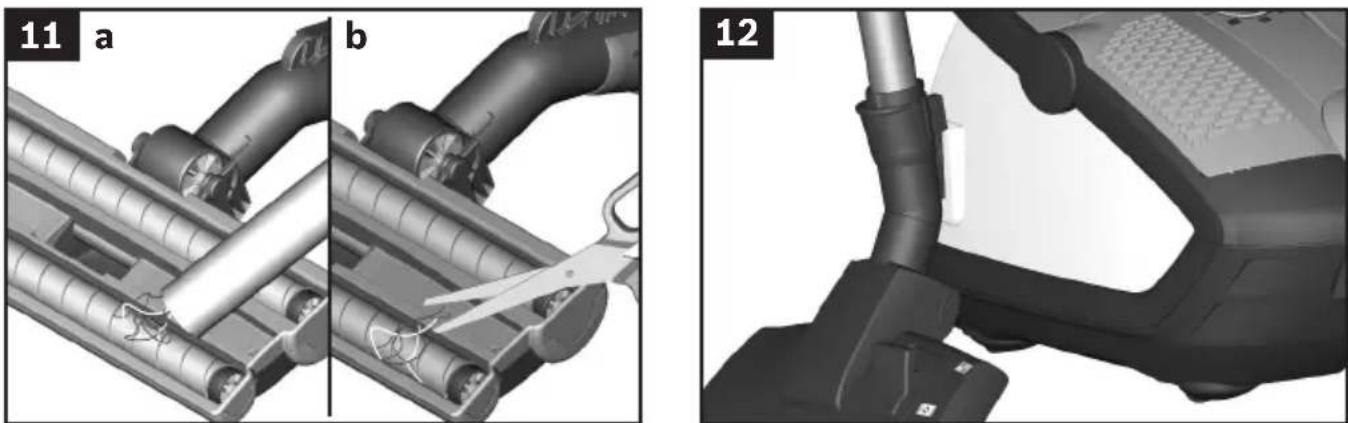

Figure 11. aning the hard-floor brush

a) Vacuum the brush from underneath to clean it.
b) Cut through threads and hairs wound round the rollers using scissors. Vacuuming strands and hairs with the crevice nozzle.

Figure 12

You can use the parking aid on the side of the vacuum cleaner if you wish to stop vacuuming for a short time.

- Once you have switched off the appliance, slide the hook on the floor tool into the recess on the side of the appliance.

Figure 13

When vacuuming stairs, the appliance must be positioned at the bottom of the stairs. Depending on the type of staircase, you can vacuum 12 to 16 stairs with the suction pipe, handle and floor tool fitted. If they do not reach far enough, the appliance can also be carried using the carrying handle.

When the work is done

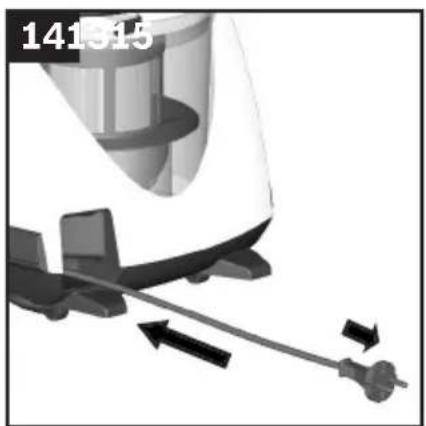

Figure 14

• Switch off the appliance.
• Pull out the mains plug.
• Tug the power cord briefly and then let go (the power cord retracts automatically).

Figure 15

- Unlock the telescopic tube by moving the sliding switch in the direction of the arrow and slide one tube into the other.

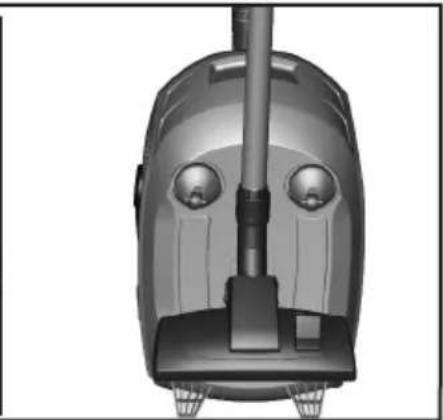

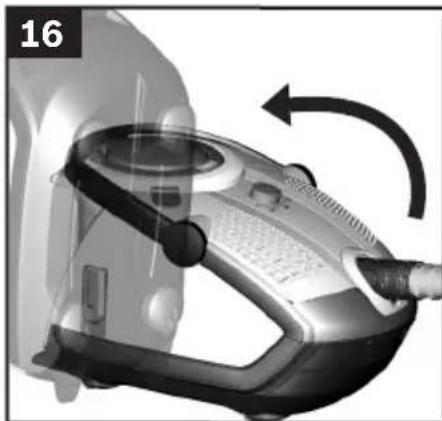

Figure 16

When putting the appliance away after use, you can use parking aid on the underside.

• Stand the appliance upright by the hose.
• Slide the hook on the floor tool into the recess on the underside of the appliance.

If you have put your appliance away and stored it in the upright position, you should take hold of it by the suction adapter to lift it up or reposition it.

Emptying the dust container

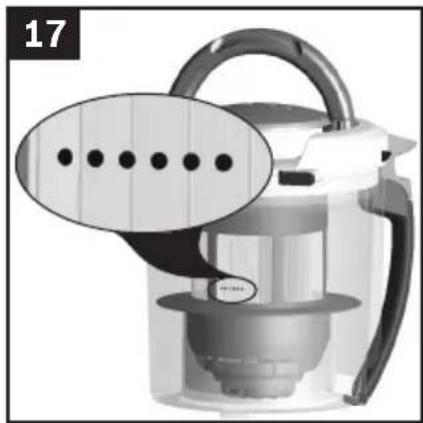

Figure 17

In order to achieve good vacuuming results, the dust container should be emptied after every use or, at the latest, when dust or dirt has visibly collected on the fluff filter or when dust at one point in the container has reached the height of the marking.

When emptying the dust container, always check how dirty the fluff filter is and, if necessary, clean it as detailed in the "Cleaning the fluff filter" instructions.

Figure 26

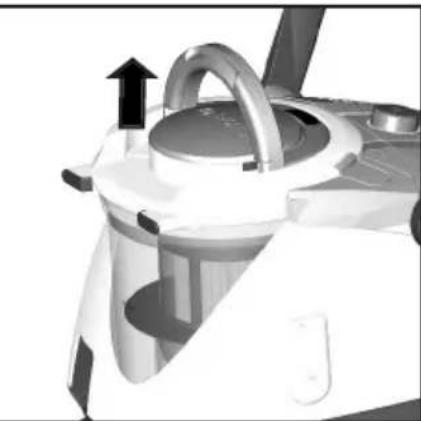

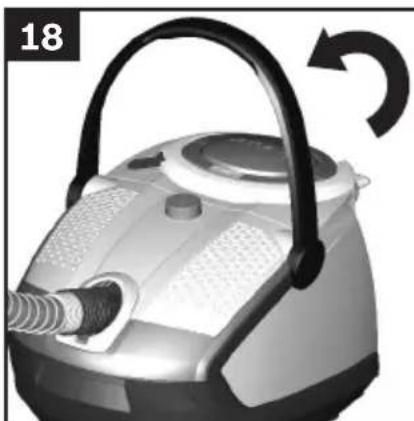

Figure 18

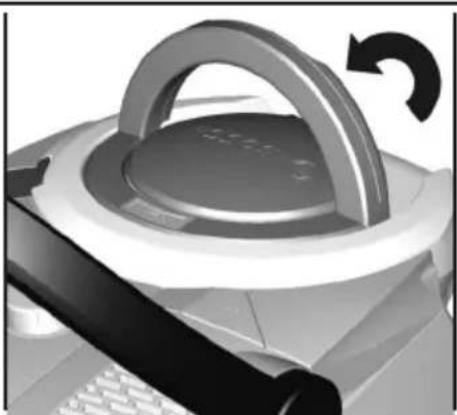

- Fold up the carrying handle, unlock the dust container by folding up the hand grip and take the dust container out of the appliance.

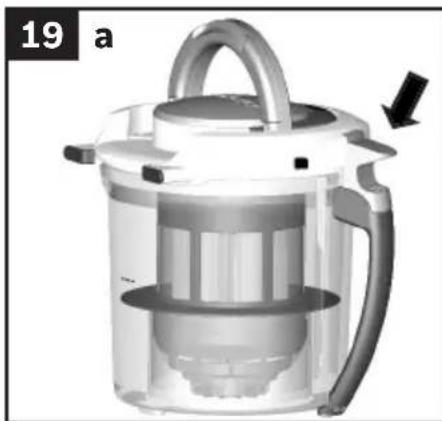

Figure 19

a) Release the filter unit of the dust container by pressing the release button.

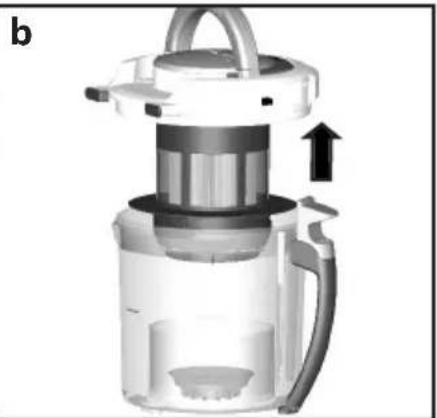

b) Take the filter unit out of the dust container and empty the dust container.

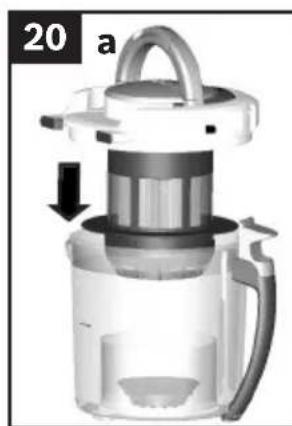

Figure 20

a) Insert the filter unit into the dust container, making sure it is correctly seated.

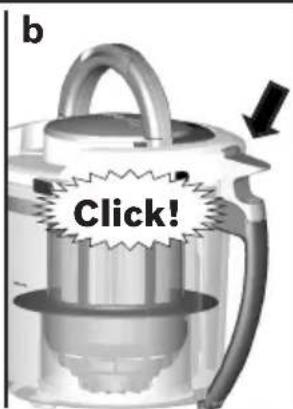

b) Push the release button back into its original position until it clicks into place, in order to ensure that the container has been closed properly.

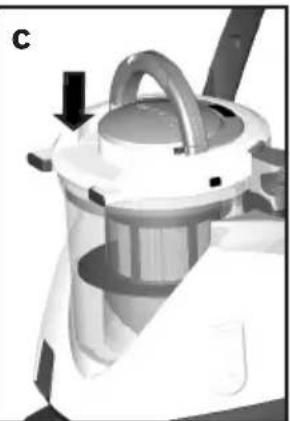

c) When re-inserting the dust container into the appliance, make sure it is correctly seated. Fold back the hand grip to lock the dust container in position in the vacuum cleaner.

Filter care

Cleaning the plate filter

Your appliance is equipped with a "Sensor Control" Function. Figure 21: Figure The function constantly monitors whether your vacuum cleaner is achieving its optimum power level. The indicator light lets you know when you need to clean the plate filter, so that the vacuum cleaner can reach its optimum power level once more.

Vacuum cleaner with "RotationClean" function

Figure 21

The indicator lights up blue when the appliance is working at its optimum level. Once the indicator flashes red, the plate filter must be cleaned. The appliance is automatically adjusted back to the lowest power setting.

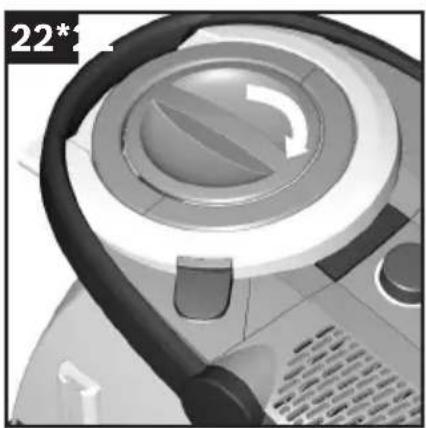

Figure 22

- Switch the appliance off in order to clean the plate filter.

Caution

- The filter can only be cleaned if the appliance is switched off.

- To clean the plate filter, turn the knob at least three times 180^ clockwise.

You can also clean the filter if the suction is becoming less powerful, even if the indicator has not lit up. We recommend that you clean the plate filter before emptying the dust container. It must be cleaned at the latest when the "Sensor Control" indicator lights up:

If the indicator flashes three times in quick succession, even though the plate filter has been cleaned, this is probably due to a dirty fluff filter. In this case, the appliance automatically adjusts to the lowest power setting and the indicator lights up red permanently.

- Switch the appliance off, empty the dust container and clean the fluff filter according to the instructions in "Cleaning the fluff filter". Figure 26

Vacuum cleaner with "SelfClean" function

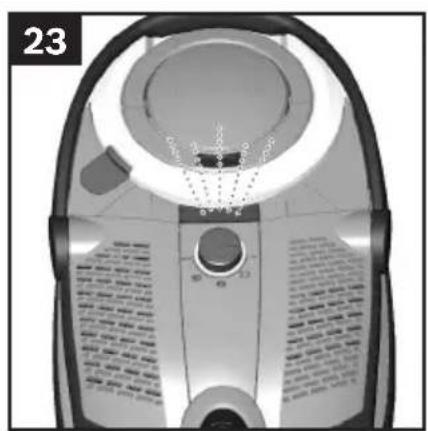

Figure 23

The indicator lights up blue when the appliance is working at its optimum level. Once the indicator turns red and flashes, the appliance switches off automatically. Filter cleaning is activated and performed by the integrated cleaning motor.

If the appliance cleans three times in quick succession, this is probably due to a dirty fluff filter. In this case, the appliance automatically adjusts to the lowest power setting and the indicator lights up red.

- Switch the appliance off, empty the dust container and clean the fluff filter according to the instructions in "Cleaning the fluff filter". Figure 26

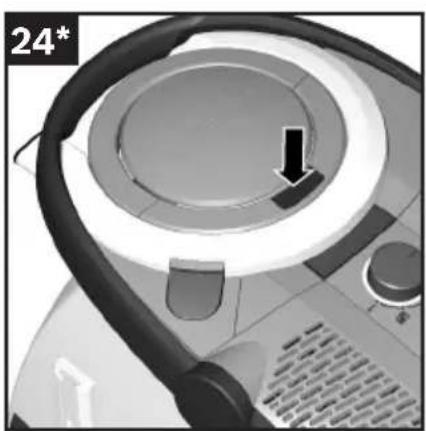

Figure 24

If required, you can also activate cleaning manually by pressing the "Clean" filter cleaning button.

You can also clean the filter if the suction is becoming less powerful, even if the indicator has not lit up.

We recommend that you clean the plate filter before emptying the dust container.

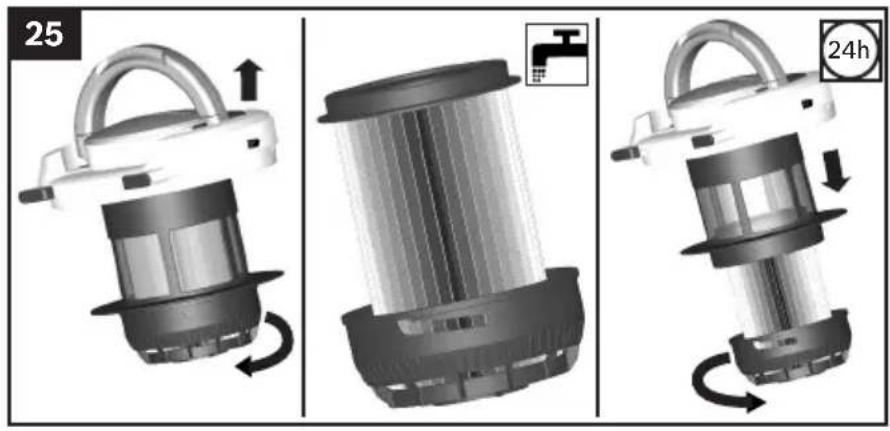

Figure 25

If the plate filter is particularly dirty, it can also be rinsed clean.

• Turn the bottom part of the filter system clockwise as far as the stop.
• Remove the plate filter from the filter system.
• Rinse the filter under running water.
• When it has dried completely, insert the plate filter into the filter system and lock the bottom part by turning it anticlockwise.

Under normal circumstances, and the appliance is used as intended for household cleaning, the plate filter does not need to be removed or cleaned manually in order to achieve the optimum power level.

! Do not brush the filter.

• For simple dry cleaning, simply tap the filter around the edge of the cap.
• For more thorough cleaning, rinse the filter from the outside with water, and allow it to dry completely before using it in the vacuum cleaner again.

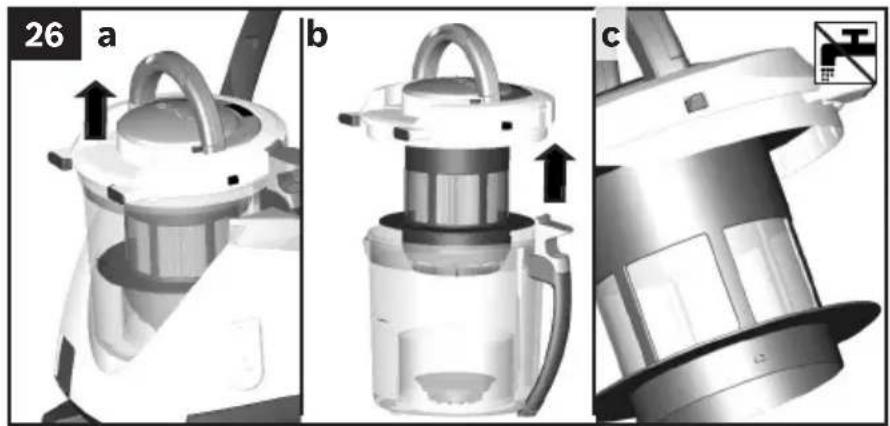

Figure 26

a) Unlock the dust container and take it out of the appliance.
b) Take the filter unit out of the dust container.
c) Clean the fluff filter.

When emptying the dust container, always check how dirty the fluff filter is and, if necessary, clean it as detailed in the “Cleaning the fluff filter” instructions.

Cleaning the fluff filter

The fluff filter should be cleaned at regular intervals in order to ensure optimum operation of the vacuum cleaner. It is usually sufficient to lightly shake or tap out the filter housing when the dust container is emptied in order to dislodge any particles of dirt.

! Caution: the fluff filter must not be cleaned under running water.

The Hepa filter is designed so that it does not need to be replaced if the appliance is used as intended for household cleaning. To ensure that the vacuum cleaner keeps working at its optimum performance level, the Hepa filter should be rinsed clean after approx. 3 years. The filtering effect of this filter in maintained, even though the filter surface may become discoloured.

Rinsing the Hepa filter

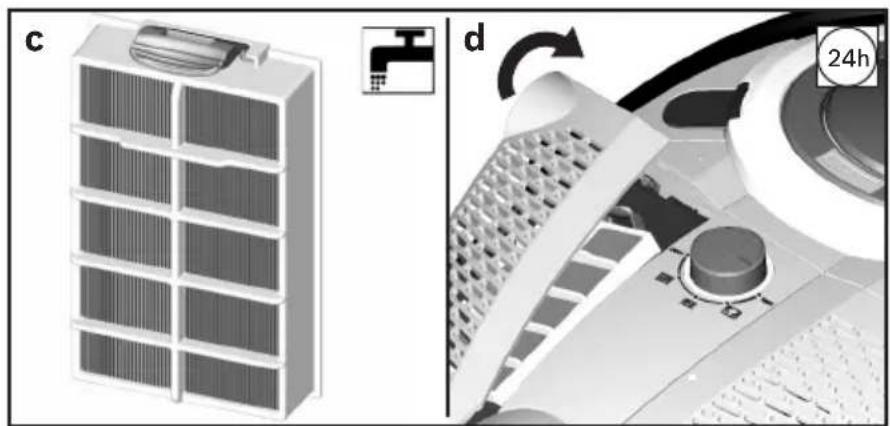

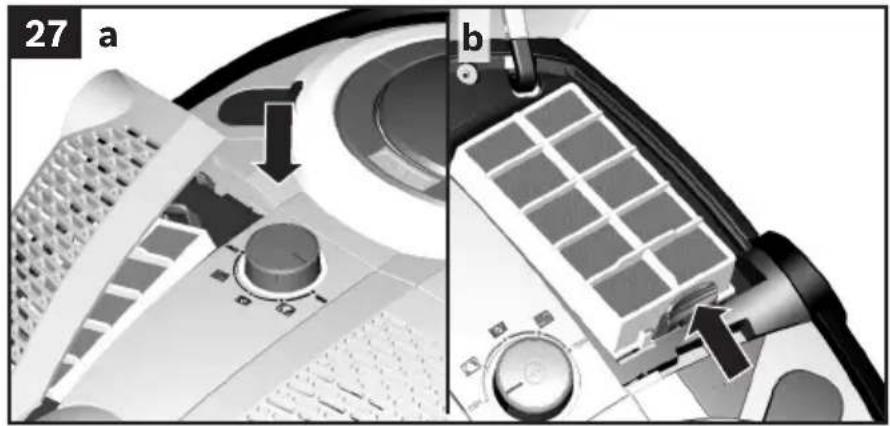

Figure 27

a) Open the exhaust grille by pressing the release button.
b) Unlock the Hepa filter by pressing the locking tab and remove it from the appliance.
c) Tap out the Hepa filter and rinse under running water
d) Do not re-insert the Hepa filter into the appliance until it has completely dried and then close the exhaust filter compartment.

Cleaning instructions

Always switch off the vacuum cleaner and disconnect it from the mains before cleaning the vacuum cleaner. The vacuum cleaner and plastic accessories can be cleaned with a conventional plastic cleaner.

! Do not use scouring agents, glass or all-purpose cleaners. Never immerse the vacuum cleaner in water.

Subject to technical modifications.

fr

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

3D rendering of a mechanical component with two cylindrical parts and a curved base (no text or symbols)

3D rendered image of a gray mechanical component with a cylindrical protrusion (no text or symbols visible)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

3D rendered image of a metallic mechanical component with a curved handle (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Illustration of a mechanical clamp or bracket component (no text or symbols)

3D rendered image of a gray mechanical component with a curved handle and flange (no text or symbols visible)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

3D rendered image of a metallic mechanical component with a protruding rod (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

3D rendering of a mechanical component with cylindrical and rectangular parts (no text or symbols)

3D rendered image of a gray mechanical component with a curved handle and flange (no text or symbols visible)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

3D rendered image of a mechanical clip or bracket component (no text or symbols visible)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Beskrivelse

1 Universalgulvmundstykke med tilslutning for tilbehør
2 Teleskoprør med skydemanchet og tilslutning for tilbehør
3 Håndgreb

4 Sugeslange

3D illustration of a mechanical component with cylindrical and rectangular parts (no text or symbols)

3D rendered image of a mechanical component with a cylindrical protrusion and a flanged base (no text or symbols visible)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

Til støvsugning af glatte gulve (parket, fliser, terrakotta, etc.)

3D rendered image of a metallic mechanical component with a curved handle (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

3D rendering of a mechanical component with cylindrical and stepped features (no text or symbols)

3D rendered image of a mechanical component with a cylindrical protrusion and a small circular feature (no text or symbols visible)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

Metallic mechanical component with a curved handle and flange (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

3D rendering of a mechanical component with cylindrical and stepped features (no text or symbols)

3D rendered image of a gray mechanical component with a curved handle and flange (no text or symbols visible)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

3D rendered image of a metallic mechanical component with a protruding rod (no text or symbols visible)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Laitteen kuvaus

Illustration of a mechanical component with two cylindrical parts and a curved base (no text or symbols)

3D rendered image of a mechanical component with a curved handle and flange (no text or symbols visible)

3D rendered Y-shaped pipe fitting (no text or symbols)

3D rendered image of a metallic mechanical clip or bracket (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Illustration of a mechanical component with two cylindrical parts and a handle (no text or symbols)

3D rendered image of a gray mechanical component with a curved handle (no text or symbols visible)

3D rendered image of a Y-shaped pipe fitting (no text or symbols)

3D rendered mechanical component with a curved handle and flange (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

3D rendering of a mechanical component with two cylindrical parts and a curved base (no text or symbols)

3D rendered image of a gray mechanical component with a curved handle (no text or symbols visible)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

Para aspirar sobre suelos lisos (parquet, baldosas, terracota,...)

3D rendered image of a metallic mechanical component with a curved handle (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Περιγραφή συσκευής

3D illustration of a mechanical component with two cylindrical parts and a curved base (no text or symbols)

3D rendered image of a gray mechanical component with a curved handle and flange (no text or symbols visible)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

3D rendered image of a metallic mechanical component with a protruding rod (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

3D rendering of a mechanical component with two cylindrical parts and a flanged end (no text or symbols)

3D rendered image of a gray mechanical component with a curved handle and flange (no text or symbols visible)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

3D rendered image of a metallic mechanical component with a curved handle (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

A készülék leírása

Illustration of a mechanical component with cylindrical and rectangular parts (no text or symbols)

3D rendered image of a mechanical component with a cylindrical protrusion and a threaded end (no text or symbols visible)

3D rendered image of a Y-shaped pipe fitting (no text or symbols)

3D rendered image of a metallic mechanical component with a curved handle (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Opis urządzenia

3D rendering of a mechanical component with cylindrical and rectangular parts (no text or symbols)

3D rendered image of a gray mechanical component with a curved handle and flange (no text or symbols visible)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

3D rendered image of a metallic mechanical component with a protruding rod (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Описание на уреда

3D illustration of a mechanical component with cylindrical and stepped parts (no text or symbols)

3D rendered image of a mechanical component with a curved handle and flange (no text or symbols visible)

3D rendered Y-shaped pipe fitting (no text or symbols)

За изсмукване на прах по гладки подове (паркет, плочки, теракота,...)

Metallic mechanical component with a lever handle (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Описание прибора

3D illustration of a mechanical component with cylindrical and stepped parts (no text or symbols)

3D rendered image of a gray mechanical component with a curved handle and flange (no text or symbols visible)

3D rendered Y-shaped pipe fitting (no text or symbols)

Metallic mechanical component with a curved handle and flanged base (no visible text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Illustration of a mechanical clamp or bracket component (no text or symbols)

3D rendered image of a gray mechanical component with a curved handle and flange (no text or symbols visible)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

Pentru aspirarea pardoselilor netede (parchet, dale de gresie, teracotă,...)

3D rendered image of a metallic mechanical component with a curved handle (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Склад пилососа

Illustration of a mechanical component with two cylindrical parts and a flanged end (no text or symbols)

3D rendered image of a gray mechanical component with a curved handle and flange (no text or symbols visible)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

3D rendered image of a metallic mechanical component with a protruding rod (no text or symbols visible)

3D rendered image of a gray mechanical component with a curved handle and flange (no text or symbols visible)

3D rendered Y-shaped pipe fitting (no text or symbols)

3D rendered image of a metallic mechanical component with a protruding rod (no text or symbols visible)

التشغيل

1 صورة

Simple line drawing of an open book with blank pages (no text or symbols)

وصف المكنسة

3D illustration of a mechanical component with cylindrical and stepped features (no text or symbols)

DE Deutschland,

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

AERTECH SH.P.K.

Rr. Sami Frasheri

Pallati i Aviacionit te vjetar

Shkalla 1, Hyrja 2

Tirana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

AT Österreich,

BSH Hausgeräte

Gesellschaft mbH

Werkskundendienst

für Hausgeräte

Quellenstrasse 2

1100 Wien

Tel.: [phone]*

Fax: [phone]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com.au

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajewo

Info-Line: 061 100 905

Fax: [phone]

mailto:[e-mail]

B E B el g i q u e, B

BSH Home Appliances S.A.

European Trade Center Building, 5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.bosch.home.bg

BH Bahra-yn

Khalaifat Est.

P.O.BOX 5111

Tel.: [phone]

mailto:[e-mail]

+ 7 snt/min (alv 23%)

+ 17 snt/min (alv 23%)

FR France

BSH Electroménager S.A.S.

50 rue Ardoin – BP 47

93401 SAINT-OUEN cedex

To arrange an engineer visit, to order spare parts and accessories

or for product advice please visit www.bosch-home.co.uk or call

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel:. [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.bosch-home.com/hr

HU Magyarország,

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests,

Spares and Accessories

Tel.: [phone]

Fax: [phone]

www.bosch-home.co.uk

I L I ŞİKT Wa e I,

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat,

BSH Customer Service Front Office

Shop No.4, Everest Grande,

Opp. Shanti Nagar Bus Stop,

Mahakali Caves Road, Andheri East

Mumbai 400093

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, It

www.bosch-home.com/it

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

Fax: [phone]

mailto:[e-mail]

www.servisacentrs.lv

M D M o ldo va

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

тел./факс: [phone]

mailto:[e-mail]

ME Crna Gora, Montenegro

Elektronika komerc

UI. Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069 324 812

mailto:ekobosch.servis@

t-com.me

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

PL Polska, Polan

Bin Hamran Commercial Centr.

6th Floor 603B

Jeddah 21481

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/sa

SE Sverige, Swede

Union Industrial Building

Block A, #01-03

577177 Singapore

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.sg

S I S I o v e n i j a ,

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

www.bosch-home.com/tr

TW Taiwa台湾

Achelis Taiwan Co. Ltd.

4th floor, No. 112 Sec 1

Chung Hsiao E Road

Taipei ROC 100

Tel.: [phone]

mailto:[e-mail]

UA Ukraine, Україна

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Milutina Milankovića 11 ^4

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.bosch-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

de

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

fr

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

pt

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

7.「Supporting is therefore

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is incorrect because underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line violates the rule and constitutes an error. Therefore, the OCR result is inconsistent with the Ground Truth.

[e-mail]

Two 3D renderings of a Y-shaped mechanical component, one shown in grayscale and the other in grayscale (no text or symbols)

3D rendering of a black vacuum cleaner with a handle and lever (no text or symbols visible)

1 Click!

Close-up of a curved metallic pipe with a black arrow indicating a process or movement (no text or symbols)

Close-up of a metallic pipe fitting with a black arrow indicating a process step (no text or symbols)

Mechanical assembly diagram showing two connected components with arrows indicating motion (no text or symbols)

Close-up of a mechanical component with a black arrow indicating direction (no text or symbols)

Mechanical device with a downward arrow indicating motion or assembly (no visible text or symbols)

Close-up of a mechanical device with a knob labeled 'a', 'e', and 'D' pointing to a circular component (no readable text or symbols beyond labels)

7 min max

3D mechanical component with curved arrow indicating rotation, no visible text or symbols

Close-up of a device's front panel showing a ventilation grille and control knobs, with no visible text or symbols.

10 a b c

Exterior view of a modern office building (no signage)

Close-up of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Close-up of a mechanical component with a curved arrow indicating motion (no text or symbols)

Close-up of a vacuum cleaner's air purifier with directional arrow indicating motion (no text or symbols)

3D rendered image of a vacuum cleaner with visible internal components and mounting feet (no text or symbols)

Illustration of a portable coffee maker with a speech bubble highlighting the interior (no text or symbols)

Close-up of a vacuum cleaner with handle and bulb, showing internal components and a curved arrow indicating rotation (no text or symbols)

Close-up of a mechanical component with a curved arrow indicating rotation (no text or symbols visible)

Close-up of a white industrial machine with a handle and circular top component, showing mechanical components and a black arrow indicating upward motion (no text or symbols visible)

Cross-sectional view of a transparent kitchen pot with lid and handle (no text or symbols visible)

Cross-sectional diagram of a vacuum cleaner with internal structure and directional arrow (no text or symbols)

Close-up of a mechanical device with a handle and internal structure, showing a downward arrow indicating a change (no text or symbols visible)

b Click!

3D rendering of a mechanical device with a handle and internal components, no visible text or symbols

Technical diagram of a vacuum cleaner with printed text and technical annotations

Close-up of a vacuum cleaner's air vent with a circular dial and handle (no visible text or symbols)

23

Close-up of a vacuum cleaner's head and neck with a black arrow pointing to the circular component (no text or symbols visible)

25 24h

Three-panel technical illustration of a vacuum cleaner's internal structure, showing top, side, and side views with arrows indicating motion (no text or symbols)

27 a b

Technical illustration of a solar panel assembly and its 24-hour cycle, showing internal structure and control knob (no text or symbols)

A
