USER MANUAL CL474 AudioSonic

Digital audio soccer phone with a spherical head and digital display showing 12:00, 28:00 (no text or symbols on device body)

INSTRUCTION MANUAL GEBRUIKERSHANDLEIDING BEDIENUNGSANLEITUNG MODE D'EMPLOI MANUAL DE INSTRUCCIONES MANUAL DE INSTRUÇÕES INSTRUKCJE OBSŁUGI

ENGLISH

Instruction Manual

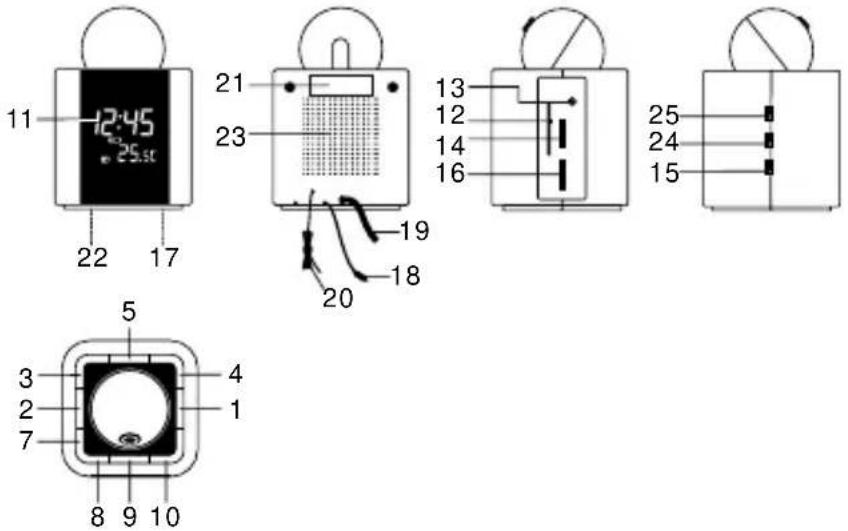

Location of controls

1. MODE SET BUTTON
2. ALARM SET BUTTON
3. ALARM 1 BUZZER / RADIO SELECT BUTTON
4. ALARM 2 BUZZER / RADIO SELECT BUTTON
5. °C / °F BUTTON
6. FOCUS ADJUSTMENT FOR PROJECTION UNIT
7. SET BUTTON
8. ▶SET BUTTON
9. ON/OFF (ALARM OFF) BUTTON
10. SNOOZE / SLEEP BUTTON
11. LCD DISPLAY
12. DIAL SCALE AND POINTER
13. LINE IN JACK
14. VOLUME CONTROL
15. WAVE BAND
16. TUNING CONTROL
17. RESET BUTTON
18. TEMPERATURE SENSOR (IN DOOR)
19. AC POWER CORD
20. FM ANTENNA WIRE
21. RATING LABEL
22. BATTERY COMPARTMENT
23. SPEAKER
24. PROJECTION ON/OFF SLIDE SWITCH
25. NIGHT LIGHT ON/OFF SLIDE SWITCH

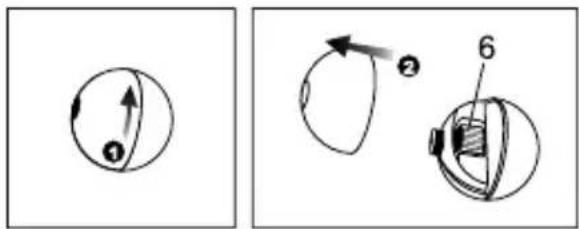

PROJECTION UNIT :

1. TWIST THE BALL COUNTER-CLOCKWISE UNTIL IT LOOSENS (1)
2. PULL THE TOP HALF UPWARDS TO ADJUST THE FOCUS (6)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including numbered annotations.

POWER CONNECTION

Plug the AC power cord to a household outlet AC source. This unit is equipped with a battery back up system, it requires a 3V flat lithium batteries x 3 CR2025 (not included). Insert the battery in the battery compartment, making certain that the positive and negative (+ and -) battery terminals are attached to the corresponding terminals on the plate in the battery compartment. If and AC power failure occurs, the clock automatically switches to the battery power supply, the clock and timer memory continue running. When the AC power resumes, the clock switches back to AC again.

1. TIME AND CALENDAR SETTING

A. Setting Time and Calendar – Press Mode Set button (1) in normal mode and keep depress over 2 seconds to enter Time Set mode, after enter the setting mode, press Mode Set button (1) to change the mode cycle as follows :

Normal → Year → Month → Day → 12/24 H → RTC Hour → RTC Min → Normal

Action (during data adjustment) :

• Press <button (7) to adjust data backward
• Press ▷button (8) to adjust data forward
• Keep depress <or button for 2 second to enable auto forward.

a. Year Set Mode

Initial Value : 2007

Year Range : 2000 to 2099

YR 2007 MON 25.0°C

Display Show Year Set Mode

b. Month Set Mode

I_D 25.0°C 8_M MON

Display Show Month Set Mode

c. Day Set Mode

8.1 ON MON 25.0°C

Display Show Day Set Mode

Remark : Weekday will recalculate when year, month or day is adjusted.

d. 12/24 H Set Mode

24H 25.0°C MON

Display Show 12/24 H Set Mode (Select 24H)

82H 25.0°C

Display Show 12/24 H Set Mode (Select 12H)

e. RTC Hour Set Mode

8:00 MON 25.0°C

Display Show Hour Set Mode

f. RTC Min Set Mode

0:00 MON 25.0°C

Display Show Min Set Mode

Remark : Second will reset for every minutes adjustment

B. Setting Alarm 1 and Alarm 2 – Press Alarm Set Button (2) during normal mode and keep depress over 2 second to enter alarm set mode, after enter the setting mode, press Alarm Set Button (2) to change the mode cycle as follows :

Normal → AL 1 Hour → AL 1 Min → AL 1 weekend Alarm → AL 2 Hour → AL2 Min → AL 2 weekend Alarm → Normal

Action (during data adjustment) :

• Press ◀button (7) to adjust data backward
• Press ▷button (8) to adjust data forward
• Keep depress <or ▷button for 2 second to enable auto forward.

8:00 ON AL.1

Display Show Setting Alarm 1 Hour

0:00 MOM AL.1

Display Show Setting Alarm 1 Min

0:00 FRI THU WED TUE MON 21 AL 1

Display Show Setting Alarm 1
Weekend Alarm – Mon to Fri

0:00 SAT PRI THU WED TUE MON AL 1

Display Show Setting Alarm 1 Weekend Alarm – Mon to Sat

0:00 SAT FRI THU WED TUE MON SUN 01 03 RL 1

Display Show Setting Alarm 1 Weekend Alarm – Mon to Sun

0:00 MAX AL2

Display Show Setting Alarm 2 Hour

0:00 MON AL 2

Display show Setting Alarm 2 Min

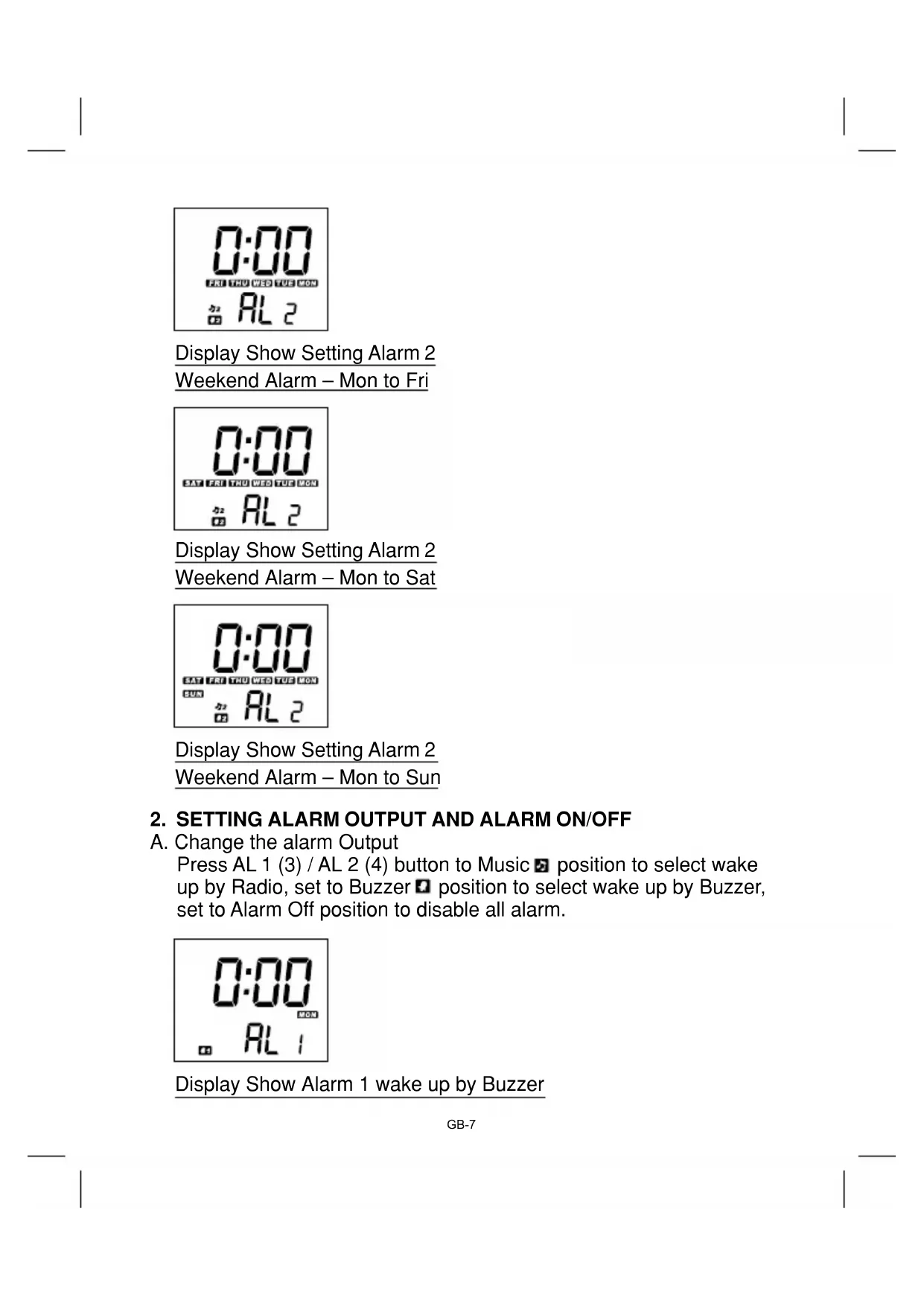

0:00 FRI THU WED TUE MON AL2

Display Show Setting Alarm 2

Weekend Alarm – Mon to Fri

0:00 SAT FRI THU WED TUE MON 02 AL 2

Display Show Setting Alarm 2

Weekend Alarm – Mon to Sat

0:00 SAT FRI THU WED TUE MON SUN 22 AL 2 03

Display Show Setting Alarm 2

Weekend Alarm – Mon to Sun

2. SETTING ALARM OUTPUT AND ALARM ON/OFF

A. Change the alarm Output

Press AL 1 (3) / AL 2 (4) button to Music ➤ position to select wake up by Radio, set to Buzzer ➤ position to select wake up by Buzzer, set to Alarm Off position to disable all alarm.

0:00 MOM AL

Display Show Alarm 1 wake up by Buzzer

0:00 MON AL 1

Display Show Alarm 1 wake up by Radio

0:00 MON AL 2

Display Show Alarm 2 wake up by Buzzer

0:00 加2 AL 2

Display Show Alarm 2 wake up by Radio

B. Buzzer Pattern

1st 8 second output 1 beep, 2nd 8 second output 2 beep, 3rd 8 second output 4 beep, after that continue output beep tone, the same pattern repeat at next minute again.

3. ALARM DURATION AND SNOOZE FUNCTION

Alarm Duration – Buzzer Alarm or Radio Alarm will continue output for 30 minutes if no key press, then it will stop automatically and wait for same alarm time on next day.

Action for Snooze :

- During alarming, press Snooze button (10) will enable snooze function, Buzzer Alarm or Radio Alarm will stop.

• Snooze interval is 9 minute (not include second offset)
• Snooze will continue unless press On/Off (Alarm off) button (9) to Alarm off of Buzzer Alarm or Radio Alarm stop automatically after 30 minutes.

4. CHANGE DISPLAY CONTENT

Press ▶ button (8) during normal can switch to display year, after 5 second timeout and return back to display time.

YR 2007 MON 25.0°C

Display Show Year

5. CHANGE DISPLAY CONTENT

Press ◀ button (7) during normal can switch to display month and day, after 5 second timeout and return back to display time.

I_D I_M MON 25.0°C

Display Show Month and Day

6. SLEEP FUNCTION

During radio on mode, press Snooze/Sleep button (10) to turn on Sleep mode, the Sleep time will keep flashing by 5 second, within 5 second and press Sleep button can change the duration from 90 min – 15 min. Press On/Off button (9) to cancel sleep function.

90 MON SLEEP 25.0°C

Display Show Setting Sleep Duration

0:01 MON SLEEP 25.00°

Display Show Under Sleep Mode

(Radio Now Turn On)

DST – Daylight Saving Time

Press ▶▶ button (8) and hold for 3 seconds to toggle on and off DST Function.

1:00 MON 25.00

Display Show turn DST Icon On

7. THERMOMETER FUNCTION

Remark :

Temperature Range for Indoor : 0 to +50°C or 32 to 122°F

LINE IN OPERATION

You can play other music sources (MP3 player or other digital audio player) through the speaker of this player by connecting the LINE IN JACK (13) to your external players audio out jack or headphone jack.

1. Plug one end of an audio cable (not included) into the LINE IN JACK (13) and the other end of the cable to the headphone jack of your digital audio player.
2. Press ON/OFF BUTTON (9) to turn on the clock radio.
3. Play your digital audio player.
4. Turn the VOLUME CONTROL (14) until you reach a comfortable listening level.

RADIO OPERATION

• Press the On/Off button (9) to turn radio On.
• Select MW or FM band using the Wave band switch (15).
• Select the station using the tuning control (16)
• Turn the volume control (14) to adjust volume as required.
• Press the On/Off button (9) to turn radio Off.

Note :

• The MW band use an internal directional aerial. Rotate the radio for best reception.
• Ensure that the FM cord antenna (20) is completely unrolled and extended for best FM reception.

RESET

- The reset bottom (17) is located on the back of unit. Use a ballpoint pen to press it whenever you change the batteries, or unit is not performing as expected. This will return all settings to default value, and you will lose any stored data (alarm and clock settings).

PROJECTOR

• This unit has a built-in projector for clock.
• Set projection On/Off slide switch (24) to On position to turn time projection On.
• Focus setting : To adjust the projection clock brightness by turning the focus (6) until the projected time is clearly shown on the ceiling or wall.

NOTE : PROJECTS TIME IMAGE ON THE CEILING OR WALL OF A DARKENED ROOM.

MAXIMUM PROJECTION DISTANCE IS 3-9 FEET..

WARNING

1. No flame sources, such as lighted candles, should be placed on the apparatus.
2. Do not place the product in closed bookcases or racks without proper ventilation.
3. The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
4. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
5. It shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
6. Do not connect FM antenna to outside antenna.
7. The unit should not be exposed to direct sunlight, very high or low temperature, moisture, vibrations or placed in dusty environment.
8. Do not use abrasive, benzene, thinner or other solvents to clean the surface of the unit. To clean, wipe it will mild non-abrasive detergent solution and clean soft cloth.
9. Never attempt to insert wires, pins or other such objects into the vents or opening of the unit.

Do not dispose of the device with the household waste. This product must be disposed of according to EU directive 2002/96/EC-WEEE (Waste Electrical and Electronic equipment). Return the device to a collection point. Observe the applicable regulations. Contact your municipality, if in doubt.

CAUTION

• Danger of explosion if battery is incorrectly replaced.
• Replace only with the same or equivalent type of battery.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Attention should be drawn to the environmental aspects of battery disposal.
