CL1488 - Alarm Clock AudioSonic - Free user manual and instructions

Product Type	Clock Radio
Brand	AudioSonic
Model	CL1488
Mains Power Supply	230V ~ 50Hz, 5W
Backup Battery	1 x Lithium CR2032 (not included)
Radio Bands	AM 530-1600 kHz / FM 88-108 MHz
FM Antenna	Telescopic, extendable
Alarms	Dual alarm (Alarm 1 and Alarm 2)
Wake-up Type	Radio or beep (selectable)
Alarm Duration	30 minutes before auto stop
Snooze Function	9 minutes of silence
Sleep Function	Yes, adjustable from 15 to 90 minutes
Nap Function	Yes, countdown from 10 to 90 minutes
Display	LED with brightness adjustment (Low / High / Auto off)
Projection	Yes, with sharpness adjustment and 180° inversion
Auxiliary Input	3.5 mm jack for external audio source
Date Display	Yes (year, month, day)
Daylight Saving Time Adjustment	Yes (DST)
Alarm Backup Power	Yes, independent mini beeper
Reset Button	Yes, on the back
Maintenance	Soft dry cloth; avoid chemical products
Safety	Do not expose to water, flames, extreme temperatures

Frequently Asked Questions - CL1488 AudioSonic

How to set the time on the CL1488 clock radio?

Press and hold the MODE button for 2 seconds to enter time setting mode. Use the << and >> buttons to adjust the values. Press MODE to move to the next setting (year, month, day, 12/24h, hour, minutes).

How to set the alarms?

Press and hold the ALARM SET button for 2 seconds. Use the << and >> buttons to adjust the hour, minutes, and alarm days. Select the days by choosing from the predefined options (1-5, 1-7, 6-7, 1-1).

How to use the snooze function?

When the alarm sounds, press the SNOOZE/SLEEP/NAP button to stop the alarm for 9 minutes. Snooze repeats until you press ON/OFF.

How to tune the radio?

Press ON/OFF to turn on the radio. Select AM or FM band with the switch. Use the frequency tuning dial to choose a station. Adjust the volume with the VOLUME dial.

How to use the auxiliary input?

Connect a 3.5 mm audio cable (not included) from your external source to the AUX INPUT on the back. Playback is through the device's speakers.

How to project the time?

Use the PROJECTOR SHARPNESS button to adjust sharpness. Press 180° FLIP if the image is upside down. Place the device 1-3 meters from a wall or ceiling in a dark room.

What to do in case of power outage?

The clock radio has a backup battery (CR2032) that retains the time and settings. The alarm can sound via an independent mini beeper for 30 seconds. The display and radio do not work.

How to clean the device?

Use a soft dry cloth. Never use abrasive products, benzene, or chemical solvents. Avoid liquid entering the device.

How to reset the device?

Use a ballpoint pen to press the RESET button on the back. This clears all settings (time, alarms) and restores factory defaults.

How to enable daylight saving time?

Press the >> (DST) button for 3 seconds to toggle between summer time and winter time.

USER MANUAL CL1488 AudioSonic

Clockradio

Projection-MW/FM CL-1488

AudioSonic

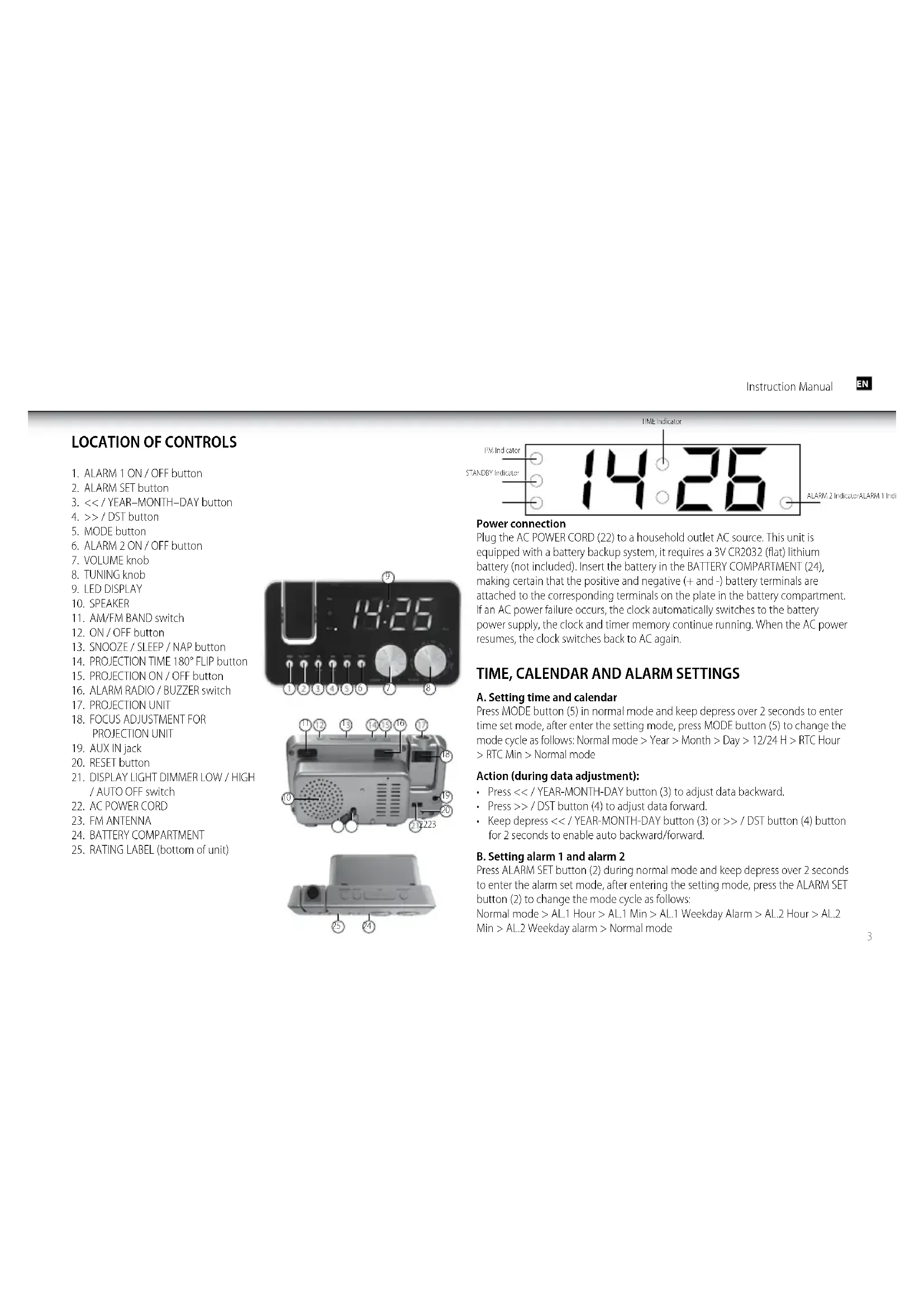

LOCATION OF CONTROLS

1. ALARM 1 ON / OFF button

2. ALARM SET button

3. << / YEAR-MONTH-DAY button

4. / DST button

5. MODE button

6. ALARM 2 ON / OFF button

7. VOLUME knob

8. TUNING knob

9. LED DISPLAY

10. SPEAKER

11. AM/FM BAND switch

12. ON/OFF button

13. SNOOZE / SLEEP / NAP button

14. PROJECTION TIME 180° FLIP button

15. PROJECTION ON / OFF button

16. ALARM RADIO / BUZZER switch

17. PROJECTION UNIT

18. FOCUS ADJUSTMENT FOR PROJECTION UNIT

19. AUX IN jack

20. RESET button

21. DISPLAY LIGHT DIMMER LOW / HIGH / AUTO OFF switch

22. AC POWER CORD

23. FM ANTENNA

24. BATTERY COMPARTMENT

25. RATING LABEL (bottom of unit)

Exterior view of a gray electronic device casing with labeled ports (no readable text or symbols)

Power connection

Plug the AC POWER CORD (22) to a household outlet AC source. This unit is equipped with a battery backup system, it requires a 3V CR2032 (flat) lithium battery (not included). Insert the battery in the BATTERY COMPARTMENT (24), making certain that the positive and negative (+ and -) battery terminals are attached to the corresponding terminals on the plate in the battery compartment. If an AC power failure occurs, the clock automatically switches to the battery power supply, the clock and timer memory continue running. When the AC power resumes, the clock switches back to AC again.

TIME, CALENDAR AND ALARM SETTINGS

A. Setting time and calendar

Press MODE button (5) in normal mode and keep depress over 2 seconds to enter time set mode, after enter the setting mode, press MODE button (5) to change the mode cycle as follows: Normal mode > Year > Month > Day > 12/24 H > RTC Hour > RTC Min > Normal mode

Action (during data adjustment):

- Press << / YEAR-MONTH-DAY button (3) to adjust data backward.

- Press >> / DST button (4) to adjust data forward.

- Keep depress << / YEAR-MONTH-DAY button (3) or >> / DST button (4) button for 2 seconds to enable auto backward/forward.

B. Setting alarm 1 and alarm 2

Press ALARM SET button (2) during normal mode and keep depress over 2 seconds to enter the alarm set mode, after entering the setting mode, press the ALARM SET button (2) to change the mode cycle as follows:

Normal mode > AL.1 Hour > AL.1 Min > AL.1 Weekday Alarm > AL.2 Hour > AL.2 Min > AL.2 Weekday alarm > Normal mode

AudioSonic

Instruction Manual

Select alarm weekday mode as follows

1-5 Monday to Friday
1-7 Whole week
6-7 Saturday and Sunday
1-1 One day of the week

Action (during data adjustment):

• Press << / YEAR-MONTH-DAY button (3) to adjust data backward.
• Press >> / DST button (4) to adjust data forward.
• Keep depress << / YEAR-MONTH-DAY button (3) or >> / DST button (4) button for 2 seconds to enable auto backward/forward.

SETTING ALARM OUTPUT AND SWITCHING ALARM ON/OFF

A. Setting the alarm output

• Set the ALARM RADIO / BUZZER switch (16) to the radio position to select wake up by radio or to the beep position to select wake up by buzzer.
• Set the DISPLAY LIGHT DIMMER LOW / HIGH / AUTO OFF switch (21) to the AUTO OFF position (the display will switch off automatically in 15 seconds). When the alarm sounds, the display will automatically switch on again.

B. Switching alarm on/off

• Press ALARM 1 ON / OFF button (1) to toggle on and off alarm output function.
• Press ALARM 2 ON / OFF button (6) to toggle on and off alarm output function.

Alarm duration and snooze function

A. Alarm duration

- Buzzer alarm or Radio alarm will continue output for 30 minutes if no key's are pressed, then it will stop automatically and wait for same alarm time on the next day.

B. Snooze function

• During alarming, press SNOOZE / SLEEP / NAP button (13) will enable snooze function, buzzer alarm or radio alarm will stop.
  • Snooze interval is 9 minutes
• Snooze will continue unless the ON/OFF button (12) is pressed to end the radio or buzzer alarm. The alarm will stop automatically after 30 minutes.

- Set the DISPLAY LIGHT DIMMER LOW / HIGH / AUTO OFF switch (21) to the AUTO OFF position (the display will switch off automatically in 15 seconds). When the alarm sounds, the display will automatically switch on again. Press the SNOOZE / SLEEP / NAP button (13) to enable the snooze function, stopping the alarm and turning off the display.

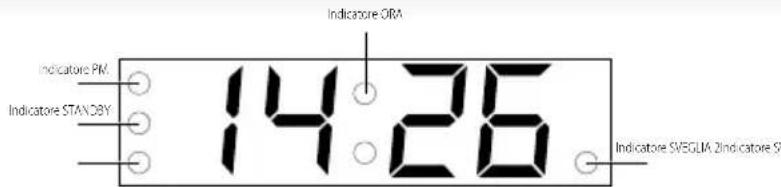

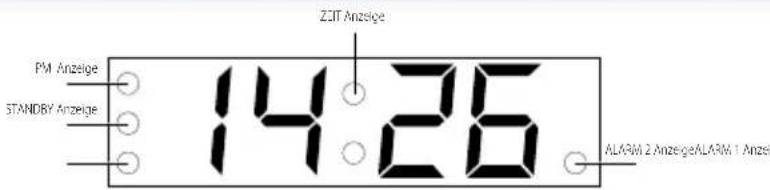

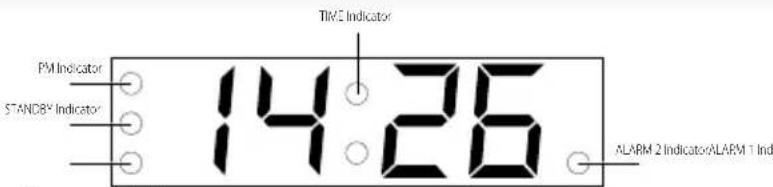

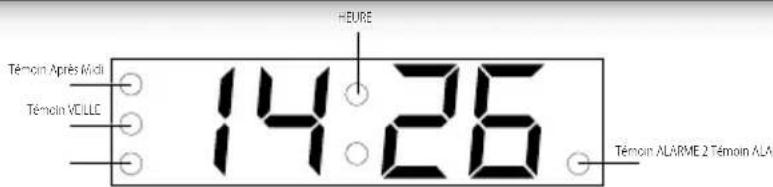

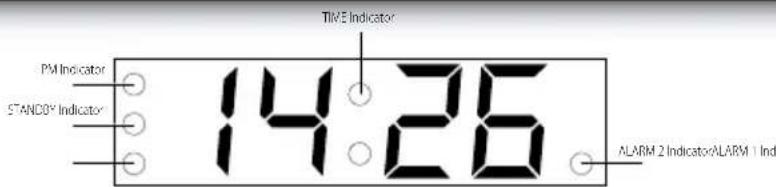

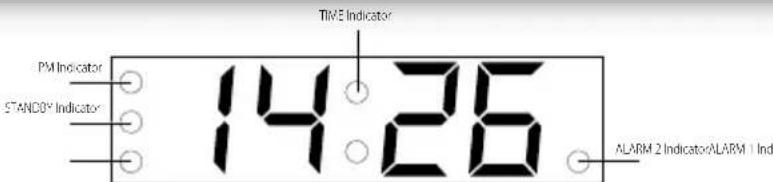

Change display content

Press the << / YEAR-MONTH-DAY button (3) to switch to display the Year/Month/Day, after 5 seconds timeout the display will switch back to time automatically.

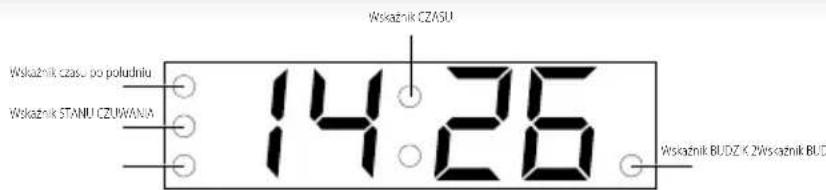

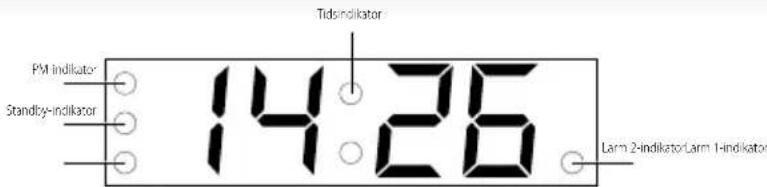

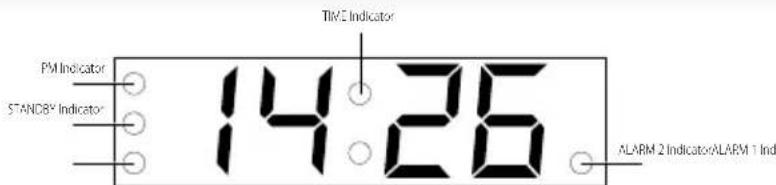

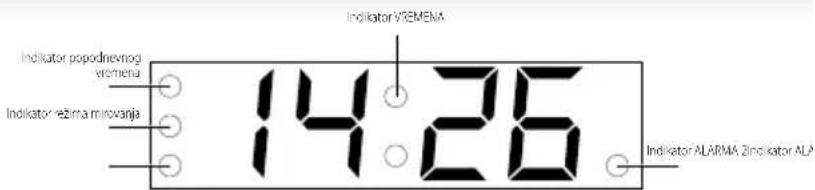

MONTH Indicator DAY Indicator

Sleep function

When the radio is turned on, press the SNOOZE / SLEEP / NAP button (13) to turn on the sleep mode. The sleep time will keep flashing for 10 seconds, during that time press the SNOOZE / SLEEP / NAP button (13) again to change the duration from 90 to 15 minutes. Press the ON/OFF button (12) to cancel the sleep function.

Nap function (countdown timer)

When the radio is turned off, press SNOOZE / SLEEP / NAP button (13) to turn on NAP mode, the NAP time will keep flashing by 10 seconds, within 10 seconds and press SNOOZE / SLEEP / NAP button (13) button can change the duration from 90 min – 10 min. The alarm buzzer will sound for 30 min and then shut off automatically. To stop the alarm buzzer, press the ON/OFF button (12). Press the SNOOZE / SLEEP / NAP button (13) button has no effect during alarm operation. Press the ON/OFF button (12) to cancel the NAP function.

Display light dimmer

When the radio is turned off, set the DISPLAY LIGHT DIMMER LOW / HIGH / AUTO OFF (21) to the AUTO OFF mode, the LED display will automatically turn off in 15 seconds. Press any key button to turn the display on.

DST – Daylight Saving Time (summer- and wintertime)

Press the >> / DST button (4) and hold it for 3 seconds to toggle between the summer- en wintertime.

Radio operation

• Press the ON / OFF button (12) to turn the radio on.
  • Set the AM/FM BAND switch (11) to the desired waveband.
  • Select the station by using the TUNING knob (8).
  • Turn the VOLUME knob (7) to adjust volume as required.
• Press the ON / OFF button (12) again to turn the radio off.

Notes:

• The AM band uses an internal directional aerial, rotate the radio for best reception.
- Ensure that the FM antenna (23) is completely unrolled and extended for best FM reception.

Aux in jack

The AUX IN jack (19) can be used to playback alternate audio signal sources on the unit speakers. This AUX IN jack (19) requires a 3.5mm audio cable for an input signal (3.5mm audio cable is not included).

SPECIFICATIONS

Frequency: AM 530 - 1600 kHz / FM 88 - 108 MHz

Battery backup : 1 x 3V CR2032 (flat) lithium battery (not included)

Power source: AC230V - 50Hz, 5W

Reset

The RESET button (20) is located on the back of the unit. Use a ballpoint pen to press the RESET button (20) whenever you change the batteries, or when the unit is not performing as expected. This will return all settings to the default value, you will lose any stored data (alarm and clock settings).

Projection unit

• Focus setting: to adjust the brightness / focus of the PROJECTION UNIT (17) use the FOCUS ADJUSTMENT FOR PROJECTION UNIT (18) until the projected time is clearly shown on the ceiling or wall.
  • To flip the projected image by 180^irc , press the PROJECTION TIME 180^irc FLIP button (14).

Notes:

• Projects time image on the ceiling or wall of a darkened room.
• Ideal projection distance is 3-9 feet/1-3 meters.

Alarm battery back-up system

This clock radio includes a alarm battery back-up circuit that can wake you up even if the power is 'off' at the selected wake up time. The clock display will be off and the radio will not operate, but a separate mini-buzzer will turn 'on' automatically to wake you up, even if you had selected the 'wake to radio' option.

The alarm will sound for 30 seconds and then shut off automatically. To stop the alarm buzzer immediately, press the power on/off button. Pressing the snooze button has no effect during battery back-up alarm operation.

WARNING

1. No flame sources, such as lighted candles, should be placed on the apparatus.
2. Do not place the product in closed bookcases or racks without proper ventilation.
3. The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
4. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
5. It shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
6. Do not connect FM antenna to outside antenna.
7. The unit should not be exposed to direct sunlight, very high or low temperature, moisture, vibrations or placed in dusty environment.
8. Do not use abrasive, benzene, thinner or other solvents to clean the surface of the unit. To clean, wipe it will mild non-abrasive detergent solution and clean soft cloth.

AudioSonic

Instruction Manual

1. Never attempt to insert wires, pins or other such objects into the vents or opening of the unit.
2. Class I LED product.

Do not dispose of the device with the household waste. This product must be disposed of according to EU directive 2002/96/EC-WEEE (Waste Electrical and Electronic equipment). Return the device to a collection point. Observe the applicable regulations. Contact your municipality, if in doubt.

caution

• Danger of explosion if battery is incorrectly replaced.
- Replace only with the same or equivalent type battery.
- Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Attention should be drawn to the environmental aspects of battery disposal.
