USER MANUAL UR965 Soundmaster

soundmaster® highline

DEUTSCH

NEDERLANDS

ENGLISH

ESPÁÑOL

FRANÇAIS

PORTUGUES

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging.

The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment.

Please contact your local authorities for details about collection points.

WARNING

Risk of electric shock Do not open!

Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device.

Safety, Environmental and Setup Instructions

• Use the device in dry indoor environments only.
• Protect the device from humidity.
• Do not open the device. RISK OF ELECTRIC SHOCK! Refer opening and servicing to qualified personnel.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
  Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
• A damaged mains cable or plug must immediately be replaced by an authorized service center.
  In case of lightning, immediately disconnect the device from the mains supply.
• Children should be supervised by parents when using the device.
• Clean the device with a dry cloth only.

Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!

• Do not expose the device to direct sunlight or other heat sources.
  Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!
• Install the device at a safe and vibration-free location.
  Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
• Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.
• Only use mercury and cadmium-free batteries.
  Used batteries are hazardous waste and NOT to be disposed of with the household waste!! Return the batteries to your dealer or to collection points in your community.
• Keep batteries away from children. Children might swallow batteries.

Contact a physician immediately if a battery was swallowed.

• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced

Replace only with the same or equivalent type

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling - no matter whether or not the batteries contain harmful substances *).

Return batteries free of charge to public collection points in your community or to shops selling batteries of the respective kind

Only return fully discharged batteries.

*) marked Cd = cadmium, Hg = mercury, Pb = load

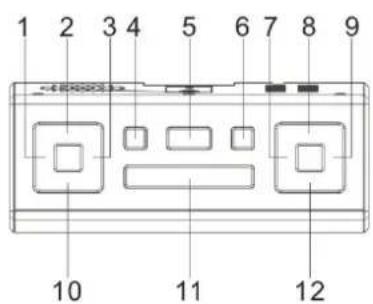

1. Volume Down
2. NAP
3. Volume Up / C-F
4. 12/24 Hour
5. ON/OFF
6. Memory Down
7. << / Tune- / YEAR/DAY
8. Memory / Memory Up / Display light auto on/off

9. / Tune+ / DST

10. CLK. ADJ
11. Snooze / Sleep / DIMMER
12. Temp / Alarm mode (0.3" LED display transition

temperature / alarm time)

1. 1.2" LED Display
2. Alarm 1 On / Off set
3. Alarm 2 On / Off set
4. 0.3" LED Display
5. Battery compartment (rear of unit)
6. Speaker
7. USB charging socket
8. DC IN Jack
9. FM Antenna
10. Temperature Sensor (IN Door)
11. Rating Label (rear of unit)
12. RESET

ENGLISH

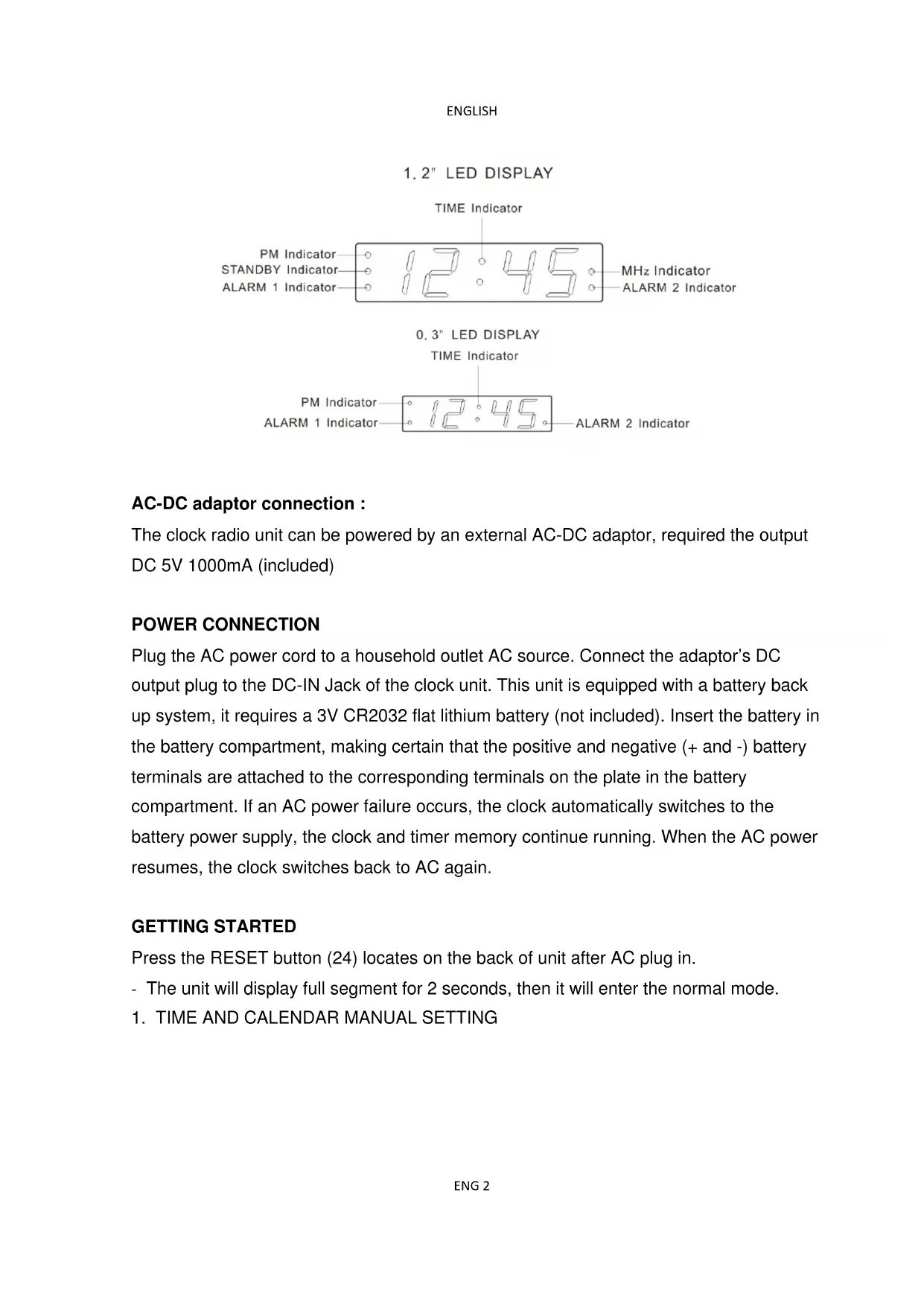

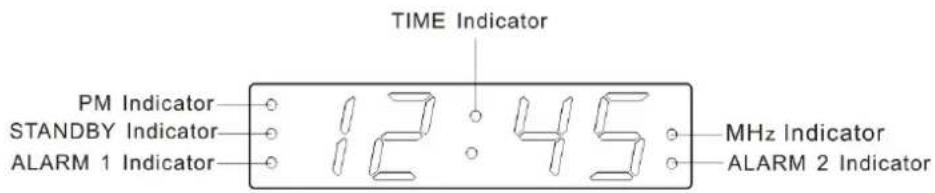

1.2"LED DISPLAY

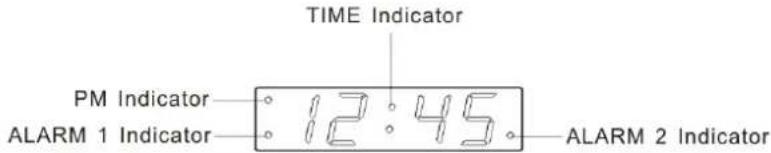

0.3"LED DISPLAY

AC-DC adaptor connection :

The clock radio unit can be powered by an external AC-DC adaptor, required the output DC 5V 1000mA (included)

POWER CONNECTION

Plug the AC power cord to a household outlet AC source. Connect the adaptor's DC output plug to the DC-IN Jack of the clock unit. This unit is equipped with a battery backup system, it requires a 3V CR2032 flat lithium battery (not included). Insert the battery in the battery compartment, making certain that the positive and negative (+ and -) battery terminals are attached to the corresponding terminals on the plate in the battery compartment. If an AC power failure occurs, the clock automatically switches to the battery power supply, the clock and timer memory continue running. When the AC power resumes, the clock switches back to AC again.

GETTING STARTED

Press the RESET button (24) locates on the back of unit after AC plug in.

• The unit will display full segment for 2 seconds, then it will enter the normal mode.

• TIME AND CALENDAR MANUAL SETTING

ENGLISH

A. Setting Time and Calendar - Press CLK. ADJ button (10) in normal mode and keep depress over 2 seconds to enter time set mode, after enter the setting mode, press CLK. ADJ button (10) to change the mode cycle as follows :

Normal Year Month Day 12/24 H Real time Hour Real time Min Normal

Action (during data adjustment):

• Press << / Tune-/ YEAR/DAY button (7) to adjust data backward.
• Press >> / Tune+ / DST button (9) to adjust data forward.
• Keep depress << or >> button for 2 seconds to enable auto forward.

B. Setting Alarm 1 and Alarm 2 - Press Alarm set button (14/15) during normal mode and keep depress over 2 seconds to enter alarm set mode, after enter the setting mode, press Alarm set button (14/15) to change the mode cycle as follows :

Normal AL 1 Hour AL 1 Min AL 1 weekday Alarm AL 1 wake beep AL 1 wake radio AL 1 wake radio volume Normal

Normal AL 2 Hour AL 2 Min AL 2 weekday Alarm AL 2 wake beep AL 2 wake radio AL 2 wake radio volume Normal

Select alarm weekday mode as follows

1-5:Monday to Friday
1-7:Wholeweek
6-7: Saturday & Sunday

1-1:One day of week

Action (during data adjustment):

• Press << / Tune- / YEAR/DAY button (7) to adjust data backward.
• Press >> / Tune+ / DST button (9) to adjust data forward.
• Keep depress << or >> button for 2 seconds to enable auto forward.

2. SETTING ALARM OUTPUT ON/OFF

Press and hold over 2 seconds the "MEM SET / M+ / Display Auto off" button to set the Auto off mode. The LED fragment of display disappears and turns automatically on while alarm wake up.

• Press Alarm 1 on/off set button (14) to toggle on / off alarm function.
• Press Alarm 2 on/off set button (15) to toggle on / off alarm function.

3. ALARM DURATION AND SNOOZE FUNCTION

Alarm Duration – Beep alarm or Radio alarm will continue output for 30 minutes if no key press, then it will stop automatically and wait for same alarm time on next day.

Action for Snooze :

• During alarming, press Snooze / Sleep / DIMMER button (11) will enable snooze function, Beep alarm or Radio alarm will stop.
• Snooze interval is 9 minute (not include second offset)
• Snooze will continue unless press ON / OFF button (5) to alarm off of Buzzer alarm or Radio Alarm stop automatically after 30 minutes.
• Press Memory / Memory Up / Display light auto on/off (8) for 3 seconds, LED display indicator light on, LED display automatically trun off after 15 seconds, then press any button, LED display will start 15 seconds.
• Press Memory / Memory Up / Display light auto on/off (8) for 3 seconds, LED display indicator light off, cancel this function.

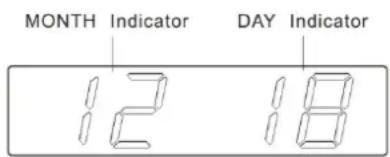

4. CHANGE DISPLAY CONTENT

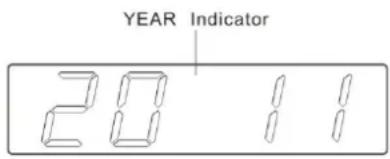

Press << / Tune- / YEAR/DAY button (7) during normal can switch to display Year / Month / Day, after 5 seconds timeout and return back to display time.

1.2"LED DISPLAY

1.2"LED DISPLAY

Listening to Radio

Press the ON/OFF button (5) to turn the unit on.

Use the Tune + or Tune - button to select the desired FM station. If you press and hold the Tune + or Tune - button for one second, then release, the unit will automatically scan to the next broadcasting station.

Press the ON/OFF button (5) to turn the radio OFF.

To set / recall the radio presets

Press the ON/OFF button (5) to turn the unit on.

Use the Tune + or Tune - button to select the desired FM station.

Press the memory / memory + button; "P01" will blink in the display.

Press the memory / memory + button again to set the preset.

Repeat steps 2 through 4 to set more presets.

The unit can preset 10 stations totally for FM.

When "P01-P10" is blinking, press the Tune+ or Tune- button to select the preset number.

When recalling preset stations, press memory+ / memory - to select the preset number.

Sleep operation

When listening to radio, press Snooze / Sleep / DIMMER button (11) to enter sleep mode.

You can just adjust the sleep timer from 90 mins to 15 mins by pressing the Snooze /

Sleep / DIMMER button (11). The unit will automatically turn off after the selected time.

NAP timer function (count down timer)

During radio off mode, press NAP button (2) to turn on NAP mode, the NAP time will keep by 5 seconds, within 5 seconds and press NAP button (2) can change the duration from 90min - 10min .

The alarm buzzer will sound for 30 min and then shut off automatically. To stop the alarm buzzer, press the ON / OFF button (5).

Press the NAP (2) button has no effect during alram operation. Press ON / OFF button (5) to cancel NAP function.

SPECIFICATIONS

Frequency range: 87.5 - 108 MHz

Battery backup : 3V (CR2032 Flat Lithium battery x 1) not included

Power Adaptor: Input AC 100-240 V 50/60Hz

Output DC 5V 1000mA

RESET

The reset button (24) is located on the back of unit. Use a ballpoint pen to press it whenever you change the batteries, or unit is not performing as expected. This will return all settings to default value, and you will lose any stored data (alarm and clock settings).

Note :

• Ensure that the FM antenna is completely unrolled and extended for best FM reception.

USB Charging socket :

USB devices : DC 5V 700mA

• The product functions as a charger for your mobile phone and USB device.
• The connector of the USB charging cable (not supplied)

DST - Daylight Saving Time

Press >> / Tune+ / DST button and told for 3 seconds to toggle on and off DST function. (For one hour summer & winter time difference)
