Product type	Digital clock radio
Brand	Soundmaster
Model	UR 923
Main power supply	AC 230 V ~ 50 Hz, 5 W
Backup battery	1 CR2032 lithium battery (3 V) not included
Power consumption	5 W
Radio bands	AM 540-1611 kHz, FM 87.5-108 MHz
FM antenna	Retractable telescopic antenna
AM antenna	Built-in directional ferrite antenna
Display	Digital display with date, time and temperature
Brightness adjustment	Switch auto off/low/high
Infrared sensor	For temperature display, snooze and sleep activation
Number of alarms	2 independent alarms (AL1 and AL2)
Wake-up mode	Radio or buzzer
Snooze function	9-minute delay
Sleep function	Delayed shut-off from 15 to 90 minutes
Temperature display	Indoor in °C or °F
Built-in calendar	Year, month, day
Reset button	At the back, with a pen
Battery compatibility	Alkaline or lithium batteries without mercury or cadmium

Frequently Asked Questions - UR 923 Soundmaster

How to set the time and date on the Soundmaster UR 923?

Press the adjustment button (9) in normal mode and hold it for more than 2 seconds. Then use the |<< (6) and >>| (2) buttons to adjust year, month, day, 12/24h format, hour and minute. Press button (9) again to confirm and return to normal mode.

How to set the AL1 and AL2 alarms?

Press the alarm adjustment button (4) in normal mode and hold it for more than 2 seconds. Use |<< (6) and >>| (2) to set hour, minute and weekend for AL1 then AL2. Press (4) to confirm.

How to activate or deactivate an alarm?

Press the AL1 (7) or AL2 (8) button to scroll through options: music icon (radio), buzzer or alarm off. Set to 'alarm off' to fully disable this alarm.

How to use the Snooze function?

When the alarm sounds, press the Snooze/Sleep button (3) or place your hand in front of the infrared sensor (16). The alarm stops for 9 minutes then sounds again. To cancel permanently, press the On/Off button (5).

How to set the Sleep timer?

In radio mode, press the Snooze/Sleep button (3); the duration flashes. Within 5 seconds, press (3) repeatedly to choose between 90, 75, 60, 45, 30 or 15 minutes. The radio will automatically turn off after this time.

How to turn on the radio and tune a station?

Press the On/Off button (5) to turn on the radio. Use the Band button (1) to choose AM or FM. Turn the tuning knob (19) to select a station. Adjust the volume with the knob (18). For better FM reception, fully extend the telescopic antenna (15).

What to do in case of malfunction or after battery change?

Use a pen to press the reset button (11) located at the back. This restores factory settings and erases all data (alarms, clock).

How to maintain and clean the device?

Unplug the device before cleaning. Use a soft dry cloth. Do not use detergents or abrasive products. Avoid moisture and direct sunlight.

Which backup battery to use and how to install it?

Use a flat CR2032 lithium battery (3 V) not included. Open the battery compartment, insert it respecting polarity (+ and -). This allows retaining time and alarms in case of power outage.

How to use the infrared sensor?

Pass your hand over the sensor (16) to: display indoor temperature (radio off), display radio frequency (radio on), activate Snooze mode (alarm sounds) or activate Sleep function (radio on). The display also turns on.

USER MANUAL UR 923 Soundmaster

soundmaster® highline

14:14:0 band CT EST AT-26 AC-62 AL-19 engine Y-M-D engine/sleep

DEUTSCH

ENGLISH

FRANÇAIS

NEDERLANDS

ROMÂNĂ

ESPAÑOL

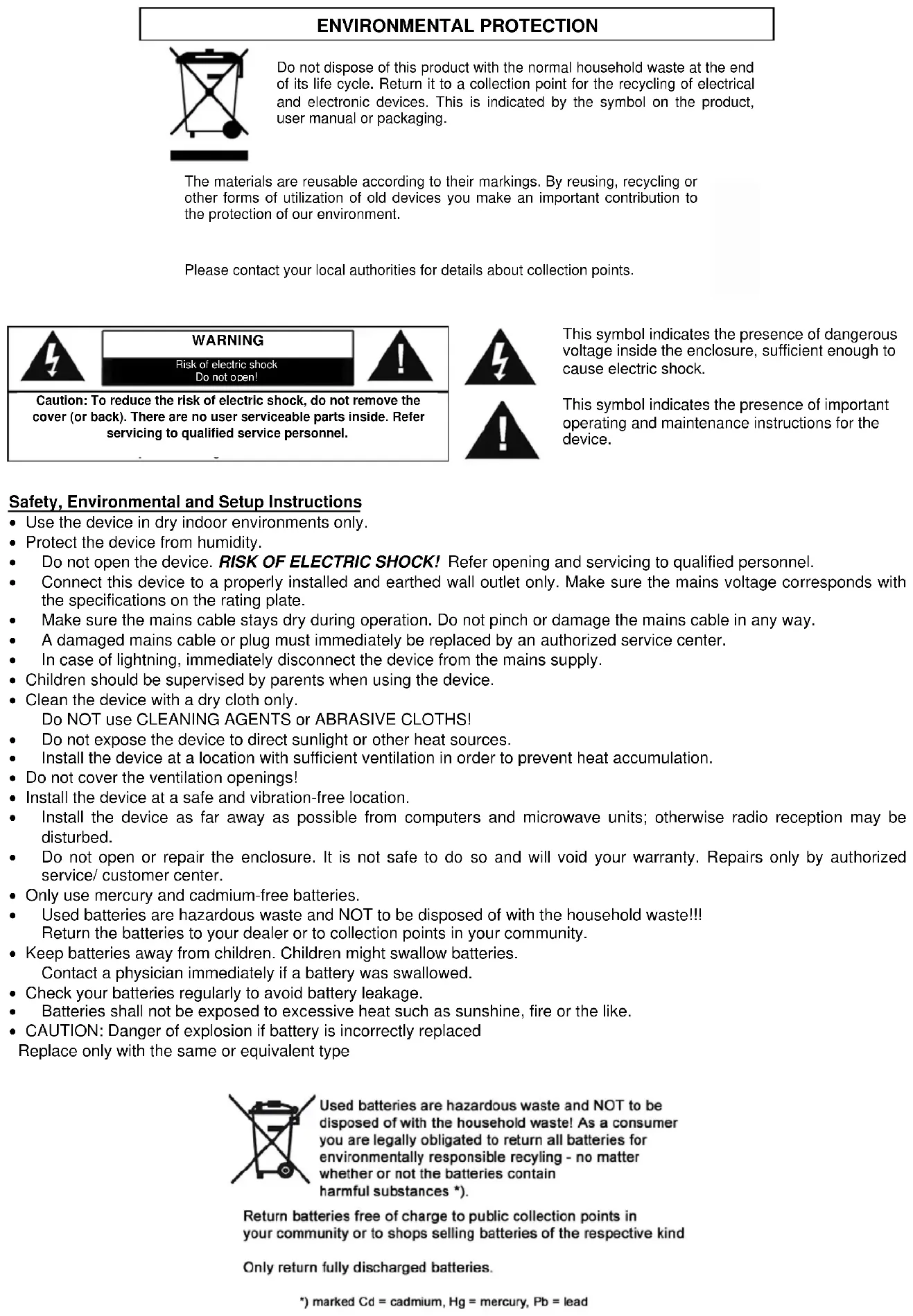

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging.

The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment.

Please contact your local authorities for details about collection points.

WARNING

Risk of electric shock Do not open!

Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device.

Safety, Environmental and Setup Instructions

• Use the device in dry indoor environments only.
• Protect the device from humidity.
  • Do not open the device. RISK OF ELECTRIC SHOCK! Refer opening and servicing to qualified personnel.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
  • Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
  • A damaged mains cable or plug must immediately be replaced by an authorized service center.
  • In case of lightning, immediately disconnect the device from the mains supply.
• Children should be supervised by parents when using the device.
• Clean the device with a dry cloth only.

Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!

• Do not expose the device to direct sunlight or other heat sources.
  • Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!
  • Install the device at a safe and vibration-free location.
• Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
• Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.
• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!! Return the batteries to your dealer or to collection points in your community.
• Keep batteries away from children. Children might swallow batteries.

Contact a physician immediately if a battery was swallowed.

• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced

Replace only with the same or equivalent type

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling - no matter whether or not the batteries contain harmful substances *).

Return batteries free of charge to public collection points in your community or to shops selling batteries of the respective kind

Only return fully discharged batteries.

*) marked Cd = cadmium, Hg = mercury, Pb = lead

ENGLISH

11 12 13 14 15 24 16 17

6 7 8 9 12:28 10 1 2 3 4 5 23 22 21

1. AM/FM BAND BUTTON

2. | / Y-M-D / DST BUTTON

3. SNOOZE / SLEEP BUTTON
4. ALARM SET BUTTON
5. ON / OFF BUTTON
6. |<< / TEMP / °C/°F BUTTON
7. ALARM 1 RADIO / BUZZ BUTTON
8. ALARM 2 RADIO / BUZZ BUTTON
9. MODE BUTTON
10. LED DISPLAY
11. RESET BUTTON

12. DISPLAY AUTO OFF / LOW / HIGH DIMMER

13. AC POWER CORD

14. TEMPERATURE SENSOR (IN DOOR)
15. FM ANTENNA
16. INFRARED SENSOR
17. LINE IN JACK
18. VOLUME KNOB
19. TUNE KNOB
20. SPEAKER
21. RATING LABEL
22. BATTERY DOOR

POWER CONNECTION

Plug the AC power cord to a household outlet AC source. This unit is equipped with a battery back up system, it requires a 3V CR2032 flat lithium battery (not included). Insert the battery in the battery compartment, making certain that the positive and negative (+ and -) battery terminals are attached to the corresponding terminals on the plate in the battery compartment. If an AC power failure occurs, the clock automatically switches to the battery power supply, the clock and timer memory continue running. When the AC power resumes, the clock switches back to AC again.

1. TIME AND CALENDAR SETTING

A. Setting Time and Calendar – press mode set button (9) in normal mode and keep depress over 2 seconds to enter time set mode, after enter the setting mode, press mode set button (9) to change the mode cycle as follows.

Normal → Year → Month → Day → 12/24 H → RTC Hour → RTC Min → Normal

Action (during data adjustment):

• Press |<< / TEMP / °C / °F button (6) to adjust data backward
• Press >>| / Y-M-D / DST button (2) to adjust data forward
• Keep depress |<< or >>| button for 2 seconds to enable auto forward.

B. Setting Alarm 1 and Alarm 2 – press alarm set button (4) during normal mode and keep depress over 2 seconds to enter alarm set mode, after enter the setting mode, press alarm set button (4) to change the mode cycle as follows :

Normal → AL 1 Hour → AL 1 Min → AL 1 weekend Alarm → AL 2 Hour → AL 2 Min → AL 2 weekend alarm → Normal

Action (during data adjustment):

• Press |<< / TEMP / °C / °F button (6) to adjust data backward
• Press >>| / Y-M-D / DST button (2) to adjust data backward
• Keep depress |<< or >>| button for 2 seconds to enable auto forward.

2. SETTING ALARM OUTPUT AND ALARM ON/OFF

A. Change the alarm output

Press AL 1 (7) / AL 2 (8) button to Music ♪ position to select wake up by Radio, set to Buzzer position to select wake up by Buzzer, set to Alarm off position to disable all alarm.

Select the Display Auto Off / Low / High dimmer switch (12) to the Auto off Mode. Alarm wake up the time display is auto turn on.

3. ALARM DURATION AND SNOOZE FUNCTION

Alarm Duration – Buzzer alarm or radio alarm will continue output for 30 minutes if no key press, then it will stop automatically and wait for same alarm time on next day.

Action for Snooze:

• During alarming, press Snooze / Sleep button (3) will enable snooze function, Buzzer alarm or Radio alarm will stop.
• Snooze interval is 9 minute (not include second offset)
• Snooze will continue unless press On / Off button (5) to alarm off of Buzzer alarm or Radio alarm stop automatically after 30 minutes.
• Select the Display Auto Off / Low / High dimmer switch (12) to the auto off mode. During alarming display auto turn on. Press Snooze / Sleep button (3) will enable snooze function, buzzer alarm or radio / display will stop & off.

4. CHANGE DISPLAY CONTENT

A. Press >>| / Y-M-D / DST button (2) during normal can switch to display YEAR / MONTH / DAY, after 5 seconds timeout and return back to display time.
B. Press |<< / TEMP / °C / °F button (6) during normal can switch to display in door temperature, after 5 second timeout and return back to display time.
C. Press |<< / TEMP / °C / °F button during normal can switch to display in door temperature and hold for 3 seconds change temperature unit °C / °F

5. SLEEP FUNCTION

During radio on mode, press Snooze / Sleep button (3) to turn on Sleep mode, the sleep time will keep flashing by 5 second, within 5 seconds and press Sleep button can change the duration from 90 min – 15 min. Press On/Off button (5) to cancel sleep function.

DST – Daylight saving time

Press >>| / Y-M-D / DST button and hold for 3 seconds to toggle on and off DST function. (For one hour summer & winter time difference)

RADIO OPERATION

• Press the On / Off button (5) to turn radio on.
• Select AM/FM band press the AM/FM band button (1).
• Select the station using the Tune knob (19).
• Turn the volume knob (18) to adjust volume as required.
• Press the On / Off button (5) to turn radio off.

Note:

• The AM band use an internal directional aerial, rotate the radio for best reception.
• Ensure that the FM antenna (15) is completely unrolled and extended for best FM reception.

RESET

- The reset button (11) is located on the back of unit. Use a ballpoint pen to press it whenever you change the batteries, or unit is not performing as expected. This will return all settings to default value, and you will lose any stored data (alarm and clock settings).

ENGLISH

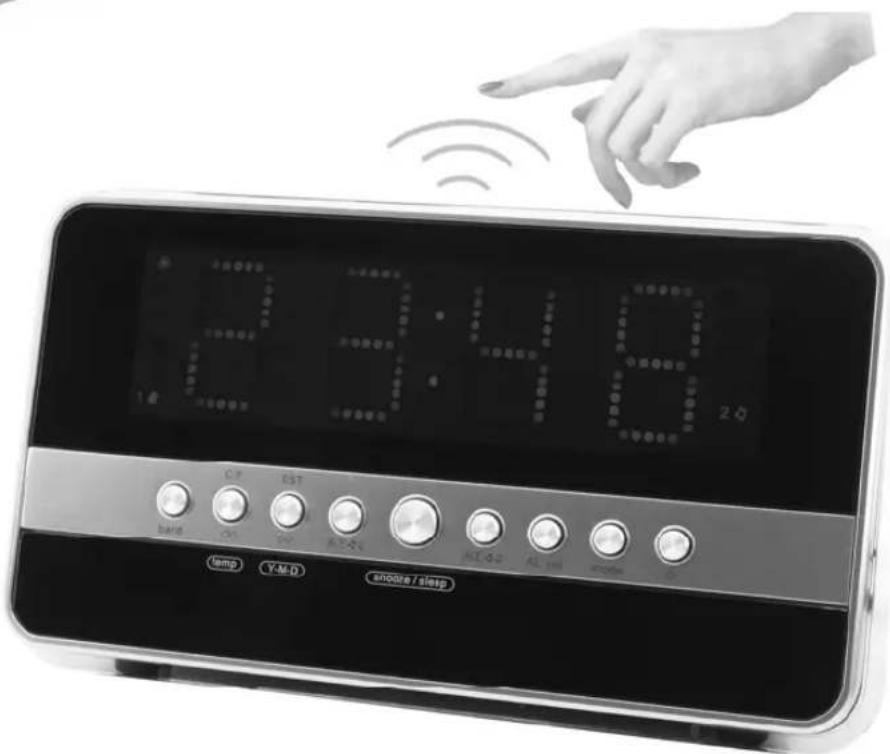

INFRARED SENSOR FUNCTION

1. The radio Off mode, infrared display in door temperature

- Hand on top of sensor (16) within 1 second to show the in door temperature

25.c

1. The radio On mode, use the infrared sensor to turn sleep function On

30°

- Hand on top of sensor (16) within 2 seconds to turn the sleep on, the word 'Slp' showing on the LED display. Sleep time from 10-90 minutes. (Refer to page 4 for require sleep time adjustment). Press On/Off button (5) to cancel sleep function.

1. The alarm On mode, use the infrared sensor to turn snooze function On

7:30

- Hand on top of sensor (16) within 1 second snooze off for 9 minutes.

1. The radio On mode, use the infrared display radio frequency and in door temperature

2.5.c

- Hand on top of sensor (16) within 1 second to show the indoor temperature

103.0-

- Hand on top of sensor (16) within 1 second to show the radio frequency.

1. The radio OFF mode, select the Display Auto Off / Low / High dimmer switch (12) to the auto off mode, the time display will automatically off in 15 seconds.

7:30

- Hand on top of sensor (16) within 1 second to turn the display on. - Press all key button to turn display on.

SPECIFICATIONS

Frequency: AM 540 – 1611 kHz

FM 87.5 - 108 MHz

Power Consumption: 5W

Battery backup: 1 x 3V CR2032 flat lithium battery (not included)

Power source: AC 230V \~ 50 Hz, 5W
