| Product type | Stereo radio with CD/MP3 player |
| Model | SR 4328 CD/MP3 |
| Mains power | 220-240 V, 50 Hz, 13 W |
| Battery power | 6 x 1.5 V (type UM2/R14) |
| Net weight | 1.45 kg |
| Protection class | II |
| Radio frequency bands | UKW/FM 88-108 MHz, MW/AM 540-1600 kHz |
| Compatible CD formats | Audio CD, CD-R, CD-RW, MP3 |
| CD playback functions | Play, pause, skip forward/backward, search, repeat (track/disc/folder), random, intro (10 s), programming |
| Auxiliary input | AUX IN (3.5 mm stereo jack socket) |
| Antenna | FM telescopic antenna, built-in AM antenna |
| Display | LCD screen |
| Speakers | 2 built-in speakers |
| Laser safety | Class 1 laser |
| Cleaning | Unplug before cleaning; wipe with a slightly damp cloth without additives |
| General information | Private use only; protect from moisture; do not open the device |
Frequently Asked Questions - SR 4328 CD AEG
User questions about SR 4328 CD AEG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Radio in PDF format for free! Find your manual SR 4328 CD - AEG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SR 4328 CD by AEG.
USER MANUAL SR 4328 CD AEG
Radio stereo con lettore CD/MP3 • Stereo radio with CD/MP3 player
Radio stereofoniczne z odtwarzaczem CD/MP3 • Sztereó rádió CD/MP3 lejátszóval
AEG
Deutsch
Inhalt
Overview of the Components ......Page 3
Instruction Manual......Page 35
Technical Data......Page 39
Français
Sommaire
MW / AM 540 \~ 1600 kHz
D-47906 Kempen/Germany
5 Bandkeuzeschakelaar (FM.ST / FM / AM)
5 Zenderschaal
6 TUNING-regelaar
11 Touche PLAY/PAUSE (Lecture/Pause)
12 Touche MODE

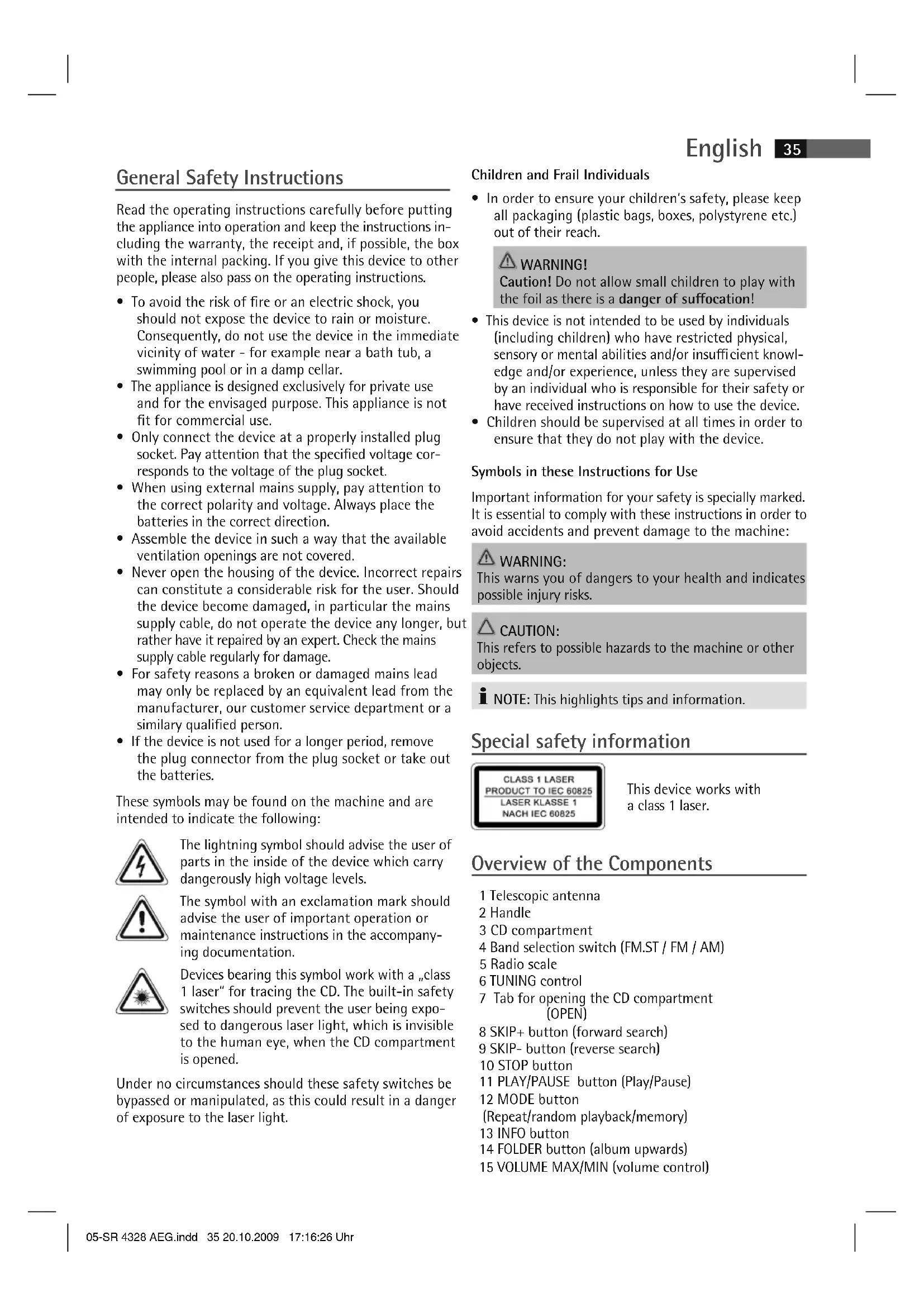

General Safety Instructions
Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.
- To avoid the risk of fire or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar.
- The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
- Only connect the device at a properly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of the plug socket.
- When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.
- Assemble the device in such a way that the available ventilation openings are not covered.
- Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.
- For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.
- If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries.
These symbols may be found on the machine and are intended to indicate the following:
The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels.
The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation.
Devices bearing this symbol work with a „class 1 laser“ for tracing the CD. The built-in safety switches should prevent the user being exposed to dangerous laser light, which is invisible to the human eye, when the CD compartment is opened.
Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light.
Children and Frail Individuals
- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
WARNING!
Caution! Do not allow small children to play with the foil as there is a danger of suffocation!
- This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
- Children should be supervised at all times in order to ensure that they do not play with the device.
Symbols in these Instructions for Use
Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:
WARNING:
This warns you of dangers to your health and indicates possible injury risks.
△ CAUTION:
This refers to possible hazards to the machine or other objects.
i NOTE: This highlights tips and information.
Special safety information
This device works with a class 1 laser.
Overview of the Components
1 Telescopic antenna
2 Handle
3 CD compartment
4 Band selection switch (FM.ST / FM / AM)
5 Radio scale
6 TUNING control
7 Tab for opening the CD compartment (OPEN)
8 SKIP+ button (forward search)
9 SKIP- button (reverse search)
10 STOP button
11 PLAY/PAUSE button (Play/Pause)
12 MODE button
(Repeat/random playback/memory)
13 INFO button
14 FOLDER button (album upwards)
15 VOLUME MAX/MIN (volume control)
36 English
16 FUNCTION Function selector switch (OFF / CD/MP3 / RADIO)
17 AUX IN connection
18 AC Mains connection

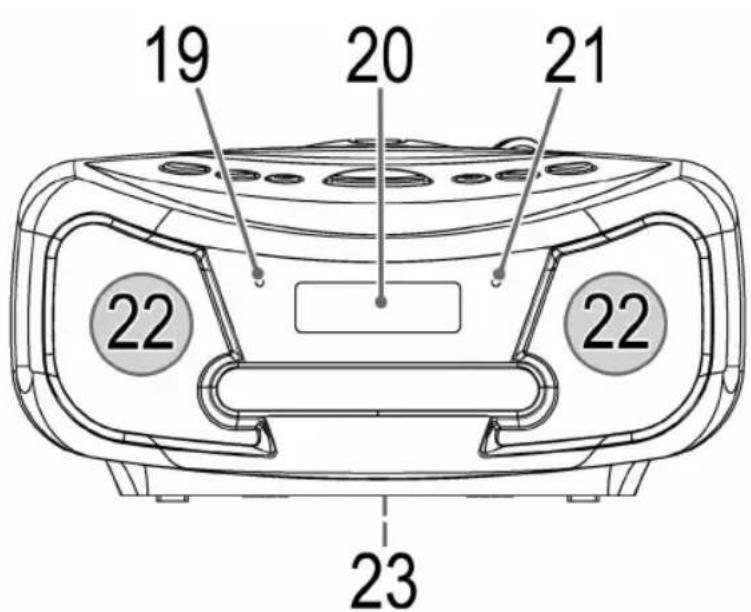

19 POWER control lamp
