USER MANUAL MM 42201 Micromaxx

Microwave Oven with Convection and Grill MM 42201

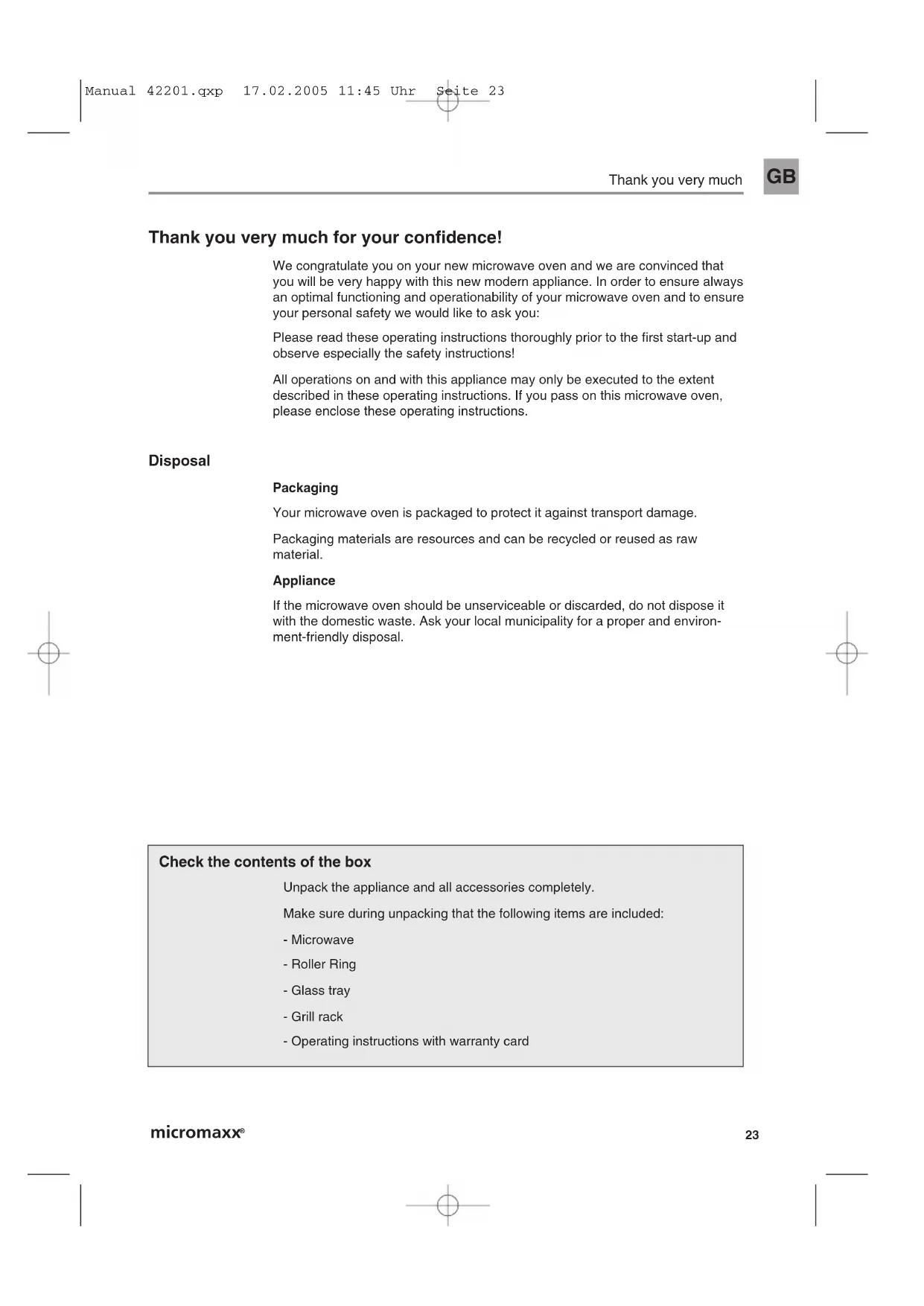

Thank you very much for your confidence! We congratulate you on your new microwave oven and we are convinced thatyou will be very happy with this new modern appliance. In order to ensure alwaysan optimal functioning and operationability of your microwave oven and to ensureyour personal safety we would like to ask you:Please read these operating instructions thoroughly prior to the first start-up andobserve especially the safety instructions!All operations on and with this appliance may only be executed to the extent described in these operating instructions. If you pass on this microwave oven,please enclose these operating instructions. Disposal PackagingYour microwave oven is packaged to protect it against transport damage.Packaging materials are resources and can be recycled or reused as raw material.ApplianceIf the microwave oven should be unserviceable or discarded, do not dispose itwith the domestic waste. Ask your local municipality for a proper and environ-ment-friendly disposal. Check the contents of the box Unpack the appliance and all accessories completely.Make sure during unpacking that the following items are included:- Microwave- Roller Ring- Glass tray- Grill rack- Operating instructions with warranty card Manual 42201.qxp 17.02.2005 11:45 Uhr Seite 23Safety instructions

Microwave Oven with Convection and Grill MM 42201 Safety instructions Application

• This device is exclusively intended for use in households. It must only be used for heating suitable foodstuff in containers suitable for microwave use.

• When you heat foodstuff in plastic or paper containers, you must supervise the microwave oven since such materials could catch fire.

• The microwave oven is not suitable for preparing food by deep-frying. Neither is the oven suitable for the drying of objects. Caution: fire hazard!

• Please note that children must not use the appliance since children are not yet able to recognise dangers that may arise when handling electrical appliances. Installation and electrical connection

• Connect the microwave oven only to a regular 230V ~ 50Hz shockproof socket protected with at least 16 ampere. Do not use an extension cable.

• Place the appliance only on a stable and level surface in a protected and dry room.

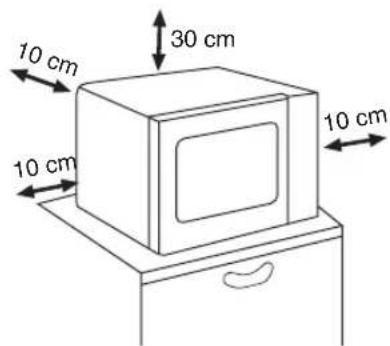

• Adhere to the minimum distances and never cover up the air slots. Do not place any items on the microwave oven since the latter gets hot during operation.

• Protect the appliance from dripping water and splash water. Should the appliance happen to come in contact with water, immediately pull the mains plug from the socket. Note: During operation, the accessible surfaces may become very hot. Caution! Hot surface! Manual 42201.qxp 17.02.2005 11:45 Uhr Seite 24Safety instructions

• Use the microwave oven only with the enclosed roller ring and turntable.

• Never operate the appliance without food in the cooking compartment.

• Only use the accessories enclosed or approved by us.

• Only use crockery specially suitable for microwave ovens.

• Never use crockery with metal decoration, metallic crockery or the grill stand when operating the microwave oven in microwave mode, as this could damage the appliance.

• Do not remove any covers of the microwave oven or the inner foil of the inspection window as this could result in microwave radiation leaks.

• Never leave the appliance unattended during operation. Note: When heating liquids in the microwave oven, so-called boiling delay may occur, i.e. the liquid is already at boiling temperature without the presence of the steam bubbles typical for boiling. Vibrations, such as occur for instance during removal, will result in the liquid suddenly boiling up. Attention: There is a risk of scalding! Therefore: When heating liquids it is imperative to place a glass or ceramic rod into the vessel. This will prevent subsequent boiling up of the liquid.

• Never heat food in closed containers. It is also imperative to remove the lid of bottles, e.g. when heating up baby food, since otherwise the bottle may easily explode.

• In the case of food with a firm skin, such as sausages or tomatoes, score the skin at various points prior to heating in order to avoid bursting of the food.

• Boil eggs only in microwave crockery specially provided for this purpose. Do not heat hard-boiled eggs in the microwave. Attention: Already boiled eggs can still burst even after removal from the oven.

• After heating, mix the food if possible in order to achieve even temperature distribution or allow it to cook for a short time longer.

• Prior to consumption, check the temperature of the foodstuff heated with the microwave oven. Be particularly careful as far as baby food is concerned and always stir or shake children’s food before checking the temperature in order to avoid burns. Manual 42201.qxp 17.02.2005 11:45 Uhr Seite 25Safety instructions

Microwave Oven with Convection and Grill MM 42201 Malfunction

• Protect the appliance and the mains cable from damage.

• Prior to every use, check the mains cable and the appliance for damage.

• Should you discover any damage, do not on any account start the appliance. Immediately pull the mains cable from the socket using the plug.

• Should your microwave be defective or should the mains cable be damaged, have it immediately repaired by a qualified service shop or send it to the Medion Service to avoid any hazard. Warning! It is hazardous to anybody except for specialised technicians to carry out any maintenance or repair work that requires the removal of a cover ensuring the protection against radiation exposure through microwave energy.

• If smoke develops it is imperative to keep the door closed in order to avoid flames from developing or to suffocate existing ones and immediately switch off the appliance using the Stop/Delete button.

• Then pull the mains plug from the power outlet immediately. Warning! On no account must the appliance be used if housing, covers, door or catch, door seal or seal seating faces are damaged. Have the appliance repaired by a qualified service shop or contact the Medion Service.

• Also ensure that the microwave oven is not situated too close to a heat source or in an area where it could come in contact with water. About microwaves Microwaves are high-frequency electromagnetic waves causing your food in the cooking compartment to be heated. The more water the foodstuffs contain, the better the heating. In order to achieve optimum heat distribution, leave finish-heated meals in the microwave for one to two minutes for additional cooking. Manual 42201.qxp 17.02.2005 11:45 Uhr Seite 26Before first use

Before first use Remove all packing materials and accessories.• Place the microwave oven onto a plane, firm surface inured to heat.Note:Check the microwave oven for any damage, e.g. for misaligned or deformed door, door seals or seal seating faces, for defective hinges or door catch, andcheck the cooking compartment interior for bumps and dents. Should there beany damage, do not put the microwave oven into operation but contact the customer service.• Do not place the microwave oven close to any sources of heat or inflammablematerials, nor in locations with water or high humidity.• Do not put any objects onto the appliance (vases, blankets o.s.).• Check the accessories for completeness before trashing the packing material.• Before starting up your microwave oven for the first time clean the applianceand all accessories from production residues.• Remove the protection film from the appliance and the control panel.• Clean all accessories in hot water using a gentle dishwashing detergent anddry them.• Carefully clean the interior and exterior area of the appliance by a damp clothand dry it.The microwave oven may not be used outdoors! 10 cm 30 cm 10 cm10 cm Manual 42201.qxp 17.02.2005 11:45 Uhr Seite 27Before first use

Microwave Oven with Convection and Grill MM 42201 Heat up the appliance empty

• Activate the appliance in operation mode GRILL without any food nor accessories. Therfore turn the power/function knob clockwise beyond the highest microwave power level.

• After 20 minutes the appliance turns off automatically. Wait until it has cooled down completely.

Set Up Warning! Do not remove any covers of the microwave oven or the inner foil of the inspection window as this could result in microwave radiation leaks. Make sure that the power cable, the appliance and especially the door and the door lock is not damaged. Warning! If you discover any damage, do not connect the appliance to the mains. The appliance should be repaired by a qualified service shop or you should contact the Medion Service.

• Connect the microwave oven only to a regular 230V~50Hz shockproof socket.

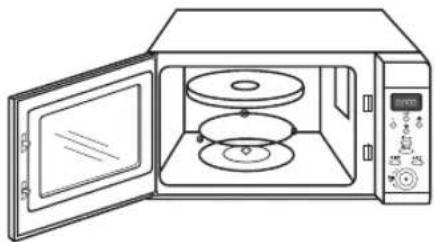

Microwave Oven with Convection and Grill MM 42201 Turntable installation

• Put the turntable ring into the middle of the microwave ovens cooking area.

• Position the glass tray onto the turntable ring until it locks with the turntable shaft. Grill rack installation

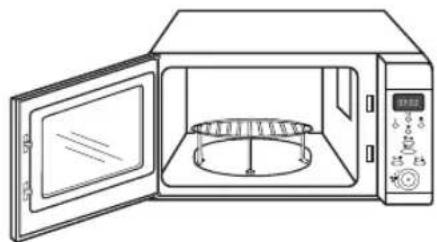

• For broiling oder during convection mode you can use the grill rack. Put it axial onto the glass tray with the grid face up. Caution: Only use grill rack during grilling operation - do not place it during microwave operation! Manual 42201.qxp 17.02.2005 11:45 Uhr Seite 30Microwave Cooking Principles

Microwave Cooking Principles

• To fill in and arrange the food properly for cooking, place the thickest parts at the outer edge.

• Look for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.

• Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

• Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items such as roasts or broiled chicken must be turned over at least once.

• Rearranging, e.g. of meatballs, is also important: Rearrange foods halfway through cooking both from top to bottom and from the centre of the dish to the outside. Utensils Guide

• The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and.heat the food.

• Microwaves can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.

• Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.

• Round/oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.

• Narrow strips of aluminium foil may be used to prevent overcooking of exposed areas. But be careful not to use too much and keep a distance of 1 inch (2.5 cm) between foil and cavity. The list below is a general guide to help you select the correct utensils. Utensils Combi cooking Heat–Resistant Glass Non Heat–Resistant Glass Heat–Resistant Ceramics Microwave–Safe Plastic Dish Kitchen Paper Metal Tray Metal Rack Aluminium Foil & Foil Containers in the microwave Yes

Yes Yes Yes Combination Yes

Microwave Oven with Convection and Grill MM 42201 Setting the oven functions Signal beeps during the setting

• one beep: input has been accepted.

• two beeps: input has not been accepted. Please check the settings and try it again. Clock setting

1. Press the Clock/Timer button (19).

2. Rotate the Time/Menu controller (15) until the correct hour is displayed.

3. Press the Clock/Timer button (19).

4. Rotate the Time/Menu controller (15) until the correct minutes are displayed.

5. Press the Clock/Timer button (19) to acknowledge.

• The clock starts automatically at 1:00 when the oven is connected.

• To use the Timer function press the Clock/Timer button (19) and rotate the Time/Menu controller (15) to set an additional cooking time of maximum 95 min. Quick Start Use this function to switch the oven to microwave operation and to start cooking at once, without any presettings.

1. Press the Start button (16) repeatedly and rapidly to set the cooking time.

2. The maximum cooking time is 10 minutes.

3. The oven starts 2 seconds later.

4. When the time has elapsed, four signal beeps sound and "END" is shown in

5. Press the Stop/Reset button (18) or open the door before you start another

cooking function. Stopping the oven during operation:

1. Press the Stop/Reset button (18) once to interrupt cooking.

2. You can restart the oven by pressing the Start button (16) again.

3. Press the Stop/Reset button (18) to delete all initial settings.

Microwave Microwave cooking allows you to set power and time. First select a power level by pressing the Microwave button (10) for several times (see table below). Rotate the Time/Menu controller (15) to set the cooking time (max. 95 min.), then press the Start button (16). Press the Microwave button (10) to select the power level: Example: You want to cook for 5 minutes at 60% power level.

1. Press the Microwave button (10) five times.

2. Rotate the Time/Menu controller (15) until the correct cooking time (5:00) is

4. The cooking process starts.

1. If you want to interrupt cooking for a time, press the Stop/Reset button (18)

once. Press Start (16) again to resume cooking or press the Stop/Reset button (18) twice to stop the same.

2. When the cooking time has elapsed, four signal beeps sound and "END" is

Microwave Oven with Convection and Grill MM 42201 Grill cooking Especially suitable for grill cooking are thin meat slices, steaks, chops, kebabs, sausages and chicken pieces as well as warm sandwiches and gratins. Example: You want to program 12 minutes of grill cooking:

1. Make sure that the system is in its initial setting, i.e. no cooking program is

activated and the system is ready for new inputs.

2. Press the Grill button (11).

3. Rotate the Time/Menu controller (15) to 12:00.

4. Press the Start button (16).

Note: The default grill power is set in the system to maximum power. The maximum grill cooking time amounts to 95 minutes. Convection Cooking with convection Press the Convection button (12) to set the temperature. During convection cooking, hot air is circulated throughout the oven cavity to brown and crisp foods quickly and evenly. This oven can be programmed to ten different cooking temperatures. Example: You want to cook at 180°C for 40 minutes.

1. Press the Convection button (12) thrice.

2. Rotate the Time/Menu controller (15) until the correct cooking time is shown in

Note:• The maximum convection cooking time is 9 h and 30 minutes. When the timehas elapsed, four signal beeps sound and „END“ is shown in the display.Press the Stop/Reset button (18) and delete „END“ before you start a newcooking process.• Press the Convection button (12) to check the temperature during cooking. Preheating and convection cooking Your oven can be programmed to combine preheating and cooking.Example:You want to preheat the oven to 170°C and then cook for 35 minutes.1. Press the Convection button (12) four times.

2. Press the Start button (16). When the oven has reached the pre-programmed

time, a signal beep sounds and „PREH“ is shown in the display.3. Open the door and place the dish with food on the middle of the turntable.

4. Rotate the Time/Menu controller (15) to program the cooking time.

5. Press the Start button (16).Note:The preheating period may take up to 30 minutes. 200°C will be reached afterabout 15 minutes. Microwave + Grill This function allows you to combine microwave cooking with grill cooking in twodifferent settings. First press the Microwave + Grill button (13) once or twice to set a suitable combination. Rotate the Time/Menu controller (15) to select the desired cookingtime. After having pressed the Start button (16) the system starts counting backwards.Note:• In this case, the maximum cooking time amounts to 95 minutes.

• Press the Microwave + Grill button (13) during cooking to check the programmed settings. Manual 42201.qxp 17.02.2005 11:45 Uhr Seite 35Microwave + Convection

Microwave Oven with Convection and Grill MM 42201 Combination 1 30% of the time for microwave cooking and 70 % of the time for grill cooking. Suitable for fish, potatoes or gratins. Example: You want to select combination 1 with 25 minutes.

1. Press the Stop/Reset button (18).

2. Press the Microwave + Grill button (13) twice.

3. Rotate the Time/Menu controller (15) to 25:00.

4. Press the Start button (16).

Combination 2 55 % of the time for microwave cooking and 45 % of the time for grill cooking. Suitable for pudding, omelette, baked potatoes and poultry. Example: You want to select combination 2 for 12 minutes.

1. Press the Stop/Reset button (18).

2. Press the Microwave + Grill button (13) twice.

3. Rotate the Time/Menu controller (15) to 12:00.

4. Press the Start button (16).

Microwave + Convection This oven has four pre-programmed settings which make an automatic heating and cooking with this combination easy. Press the Microwave + Convection (14) button to select the temperature. Example: Suppose you want to bake a cake for 24 minutes with KOMB3.

1. Press the Microwave + Convection button (14) three times.

2. Rotate the Time/Menu controller (15) to set the baking time.

3. Press the Start button (16).

4. The baking process starts.

• The maximum convection cooking time is 9 h and 30 minutes. When the time has elapsed, four signal beeps sound and „END“ is shown in the display. Press the Stop/Reset button (18) and delete „END“ before you start a new cooking process.

• Press the Microwave + Convection button (14) to check the temperature du- ring cooking. Quick defrosting (Weight button) Example: You want to defrost frozen food in five minutes.

3. Rotate the Time/Menu controller (15) to program the defrosting time.

• For frozen raw or cooked food the following guideline applies: 5 minutes per pound.

• Interrupt the defrosting process regularly to remove defrosted parts. If the food is not yet defrosted after the set time, program the oven in intervals of 1 minute until the food is completely defrosted.

• If you use plastic dishes directly from the freezer, defrost the food for some time until you can refill it into a dish suitable for microwaves.

• In this case, the maximum defrosting time amounts to 45 minutes.

Microwave Oven with Convection and Grill MM 42201 Setting the „Auto Menu“ „Auto Menu“ allows you to automatically cook or heat foot without having to set power or time. These foods serve only as examples! Baked potatoes

2. Press the Weight button (17) to select the desired quantity.

3. Press the Start button (16).

Note: When the cooking program is finished allow the food to cool down in the oven for 5-10 minutes. Beverage

1. Rotate the Time/Menu controller (15) until „02“ and „CODE“ is shown.

2. Press the Weight button (17) to select the desired quantity.

2. Press the Weight button (17) once, the cooking time (2 minutes 30 seconds)

2. Press the Weight button (17) once, the heating time (3 minutes 40 seconds) is

Heating of pizza (ready baked, cooled in the refrigerator) Pizza (small)

1. Rotate the Time/Menu controller (15) until „05“ and „CODE“ is shown.

2. Press the Weight button (17) twice, the baking time (1 minutes 10 seconds) is

2. Press the Weight button (17) twice, the baking time (3 minutes 30 seconds) is

displayed.3. Press the Start button (16). Skewered meat

1. Rotate the Time/Menu controller (15) until „06“ and „CODE“ is shown.

2. Press the Weight button (17) to select the desired quantity.

3. Press the Start button (16).Note:A signal beep reminds you halfway through cooking to open the door and turnthe skews. Close the door again to resume cooking. Cake

1. Rotate the Time/Menu controller (15) until „07“ and „CODE“ is shown.

2. Press the Weight button (17) once. The baking time (40 min.) is shown.

3. Press the Start button (16).Note:Stopping the baking time:

1. Rotate the Time/Menu controller (15) until „07“ and „CODE“ is shown.

2. Press the Weight button (17) twice and rotate the Time/Menu controller (15)

to program the new cooking time.

3. Press the Start button (16) to acknowledge.

If you use the CAKE function, the new cooking time will remain set until youchange it.press weight 1 x 2 x 3 x 4 x weightapprox. 200 gapprox. 300 gapprox. 500 gapprox. 750 gCooking time12 Min.15 Min.23 Min.30 Min. Manual 42201.qxp 17.02.2005 11:45 Uhr Seite 39Additional features

Microwave Oven with Convection and Grill MM 42201 Additional features Timer function during cooking operation The Timer function is the set additional cooking time for the foods. To use the Timer function press the Clock/Timer button (19) and rotate the Time/Menu controller (15) to set the additional cooking time (max. 95 minutes). Press Start button (16) first and then Stop/Reset (18) to stop the Timer. Timer function when the cooking operation is finished

1. Press and hold the Clock/Timer button (19) for 3 seconds.

2. Rotate the Time/Menu controller (15) until the desired time is displayed.

3. Press the Start button (16).

Note: The maximum time amounts to 95 minutes. The time is indicated in the display for 3 seconds, then the clock or cooking time is displayed again. A long signal beep sounds at the end of the elapsed time. Press the Stop/Reset button (18) to stop the Timer during the process. Child Proof Lock The child lock system prevents an unintentional operation by small children. Setting the child lock system: Press and hold the Stop/Reset button (18) for 3 seconds until a signal beep sounds and „Lock“ is shown in the display. The buttons are without function in the locked state. To terminate the child lock system: Press and hold the Stop/Reset button (18) for 3 seconds until a signal beep sounds and „Lock“ is not shown anymore in the display. Manual 42201.qxp 17.02.2005 11:45 Uhr Seite 40Cleaning and care

• Switch the microwave oven off and remove the plug from the wall outlet before cleaning.

• Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

• The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

• Wipe door and inspection window on both sides. Wipe the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Never use abrasive powder.

• Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.

• If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth.

• This may occur when the microwave oven is operated under high humidity conditions; this is normal.

• It is occasionally necessary to remove the glass tray for cleaning.

• Wash the tray in warm sudsy water or in a dishwasher.

• The roller ring and oven floor should be cleaned regularly to avoid excessive noise.

• Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.

• Remove odours from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
