USER MANUAL MD 16548 Micromaxx
www.medion.com/conformity.
16. Impressum
Copyright © 2015
-in bed & breakfasts.
www.medion.com/conformity.
16. Colofon
Copyright © 2015
- About these instructions 70
1.1. Symbols and key words used in these instructions 70
- Proper use
- Safety information
3.1. People not permitted to use this appliance 72
3.2. General instructions 72
3.3.Setting up the appliance 72
3.4. Mains connection 73
3.5. Instructions for use 74
3.6. Faults 75
3.7. Cleaning and care 76
- Package contents
- General diagram
- Before initial use 77
- Using the fondue set. 78
7.1. Using the fondue with fat 78
7.2.Preparing food for cooking in fat 79
- After the fondue 80
- Protective devices
- Cleaning and care 80
- Storing the fondue set 81
- Troubleshooting 82
- Disposal 83
- Technical data 83
- Conformity information 83
- Legal notice 84
- General Warranty Conditions 84
- Service Address 87

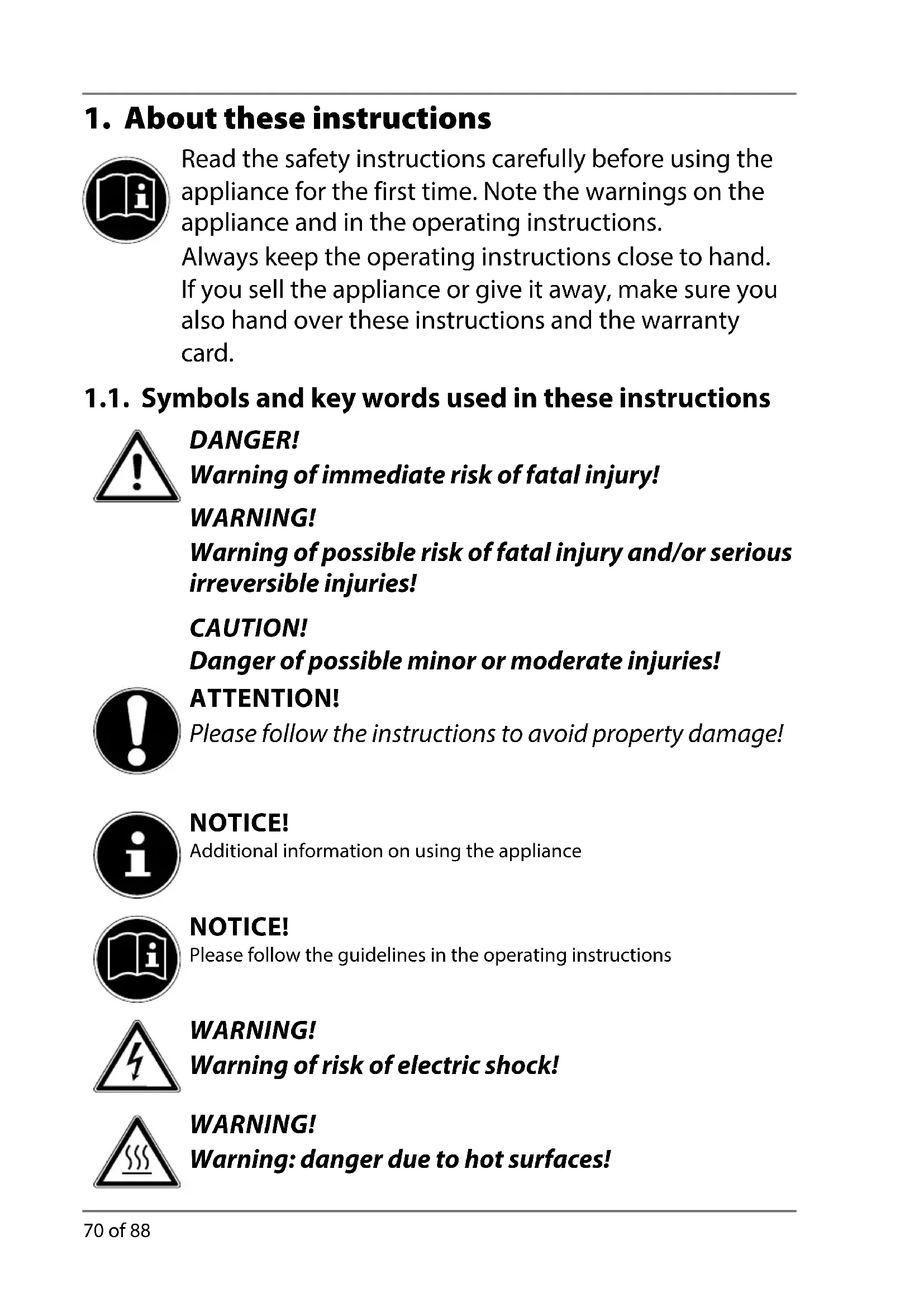

1. About these instructions
Read the safety instructions carefully before using the appliance for the first time. Note the warnings on the appliance and in the operating instructions.
Always keep the operating instructions close to hand. If you sell the appliance or give it away, make sure you also hand over these instructions and the warranty card.
1.1. Symbols and key words used in these instructions
DANGER!
Warning of immediate risk of fatal injury!
WARNING!
Warning of possible risk of fatal injury and/or serious irreversible injuries!
CAUTION!
Danger of possible minor or moderate injuries!
ATTENTION!
Please follow the instructions to avoid property damage!
NOTICE!
Additional information on using the appliance
NOTICE!
Please follow the guidelines in the operating instructions
WARNING!
Warning of risk of electric shock!
WARNING!
Warning: danger due to hot surfaces!
2. Proper use
The MD 16548 fondue set may only be used for preparing food in standard household amounts.
This appliance is intended to be used in private households or in similar situations, such as the following:
-in staff kitchens in shops, offices and other businesses
-on agricultural estates
-in hotel and motel rooms and other residential facilities
-in bed & breakfast accommodation
The appliance is not suitable for commercial or industrial use.
Please note that we shall not be liable in cases of improper use:
- Do not modify the product without our consent and do not use any auxiliary equipment which we have not approved or supplied.
- Use only spare parts and accessories that we have supplied or approved.
- Heed all the information in these operating instructions, especially the safety information. Any other use is deemed improper and can cause personal injury or property damage.
-
Do not expose the appliance to any extreme conditions. The following should be avoided:
-
High levels of humidity or moisture
-Extremely high or low temperatures
-Direct sunlight
-Naked flames
3. Safety information
The appliance may only be used indoors for the purpose for which it is designed in accordance with these instructions.
3.1. People not permitted to use this appliance
- This appliance may not be used by children under the age of 8. This appliance may be used by children aged 8 and upwards if constantly supervised. This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are under supervision or have been given instructions concerning the safe use of the appliance and if they understand the potential risks. The appliance and its connecting cable must be kept away from children younger than 8 years old. Cleaning and maintenance may not be carried out by children.
WARNING!
Keep plastic packaging and protective film out of the reach of children.
There is a risk of suffocation!
3.2. General instructions
- To avoid risks caused by unintentional resetting of the overheating protection, the appliance should not be operated using an external switching system, such as a timer plug, or connected to a power circuit that is regularly switched on and off by another system.
- If the mains cable for this appliance is damaged, it must be replaced by the Medion Service Centre or a suitably qualified person in order to avoid hazards.
- Never immerse the appliance in water or other liquids.
3.3. Setting up the appliance
- Place the appliance on a heat-resistant, dry and level surface. If you use the appliance on wooden furniture, you should
place a protective cover under it to avoid damage to sensitive surfaces.
- Do not place the appliance on surfaces that can become hot (e.g. on hotplates, naked flames).
- Cooking appliances should be lifted by the handles (where applicable) and placed in a secure position to avoid spillage of hot liquids.
WARNING!
Ensure that the appliance does not come into contact with any other objects when in use. Maintain a distance of at least 10 cm from other objects. Do not place the appliance near easily flammable materials (curtains, drapes, paper, etc.). There is a risk of fire.
- During operation, do not place the appliance under wall cupboards or other objects that could hinder the free upwards flow of steam.
- Do not cover the appliance.
- Do not place any objects on the appliance.
- Do not use this appliance near water contained in baths, sinks or other containers and do not expose it to rain or other moisture.
- Do not place the appliance near gas or electric heaters or in a hot oven.
3.4. Mains connection
- Connect the fondue set to a properly installed AC 220-240 V 50/60 Hz safety plug socket that has at least a 16 A fuse. Do not use extension cables and check before using the appliance that the voltage given on the appliance corresponds with the local mains voltage.
- Always remove the plug from the safety socket after use, before cleaning and at times when the appliance is unattended.
-
When disconnecting the appliance from the mains supply, always pull on the plug rather than on the cable.
-
Do not kink or crush the mains cable.
- Make sure that the power cable is not damaged and does not run underneath the appliance or over hot surfaces or sharp edges.
- Lay the cable so that nobody is able to step on it or trip over it.
- The mains cable should not come into contact with the appliance or any other hot objects when in use.
3.5. Instructions for use
- Do not heat the appliance when it is empty.
- Do not overfill the appliance. Note the level indicators inside the appliance. Do not exceed the MAX mark and do not use the appliance filled below the MIN mark.
- Use only the accessories supplied.
- Do not touch the hot fondue container.
3.5.1. Fondue with oil/fat
- Use fats/oils in the fondue which are specifically intended for frying. Do not use fat blends. Note the manufacturer's instructions on the packaging.
- Replace the oil/fat after use because used oil/fat may ignite even at normal frying temperatures. In the event of a fire, pull the plug out immediately and smother the flame with the lid or a cloth. Never try to extinguish using water!
WARNING!
Never fight oil or fat fires with water!
There is a risk of explosion!
- Do not pour hot oil/fat into plastic containers and do not pour used oil/fat down the sink. The pipes can become clogged when the fat cools.
- Allow the appliance to cool completely before cleaning it.
- Oil and fat require a very long time to cool down. Do not move the fondue set while the contents are hot. Do not touch
any of the appliance's hot surfaces and do not place your hands over the steam vents. There is a risk of burns.
Avoiding acrylamide
According to the latest research, excessive browning, especially in foods containing starch, may cause a health hazard due to the acrylamide formation in the crust.
- Do not brown food to an excessive degree.
- Remove burnt residues. Do not brown food to an excessive extent. Fry fresh potatoes and other carbohydrate-rich foods, such as cereal-based products, at a temperature no higher than 180^ to avoid the development of harmful acrylamide.
- Try to use the lowest possible temperatures and short cooking times. Potato products should be cooked to a golden yellow colour at most. The darker the chips or crisps, the higher the probability that they contain acrylamide.
- If you prepare chips yourself from raw potatoes, you should not store your potatoes under 10^ .
- Potatoes which have sprouted and potatoes with green tinges should not be eaten.
3.6. Faults
WARNING!
Live components. There is a risk of electric shock. Therefore please follow the instructions below:
- Always check the power cable and the appliance for damage before use.
- If you notice any damage, do not use the appliance under any circumstances. Immediately remove the plug from the mains socket in this case.
-
Have any defects repaired immediately by a specialist repair shop. If the mains cable for this appliance is damaged, it must be replaced by the Medion Service Centre or a suitably qualified person in order to avoid hazards.
-
Never try to open and/or repair an appliance component yourself.
3.7. Cleaning and care
WARNING!
Live components. There is a risk of electric shock. Never immerse the appliance in water or other liquids. – if the appliance does fall into liquid, under no circumstances should you attempt to touch it. Disconnect the mains plug first!
- Always pull out the plug before cleaning the appliance.
- To prevent burns, allow the appliance to cool down completely before cleaning.
- The fondue set and the accessories may not be washed in the dishwasher.
- Do not use aggressive chemical cleaners, scouring agents, hard sponges, etc. to clean the appliance.
4. Package contents
When unpacking the product, ensure that the following parts are included:
Fondue set, incl.
-4 bowls with handles
-6 stainless steel fondue forks
-1 holder for fondue forks
- Operating instructions incl. warranty documents

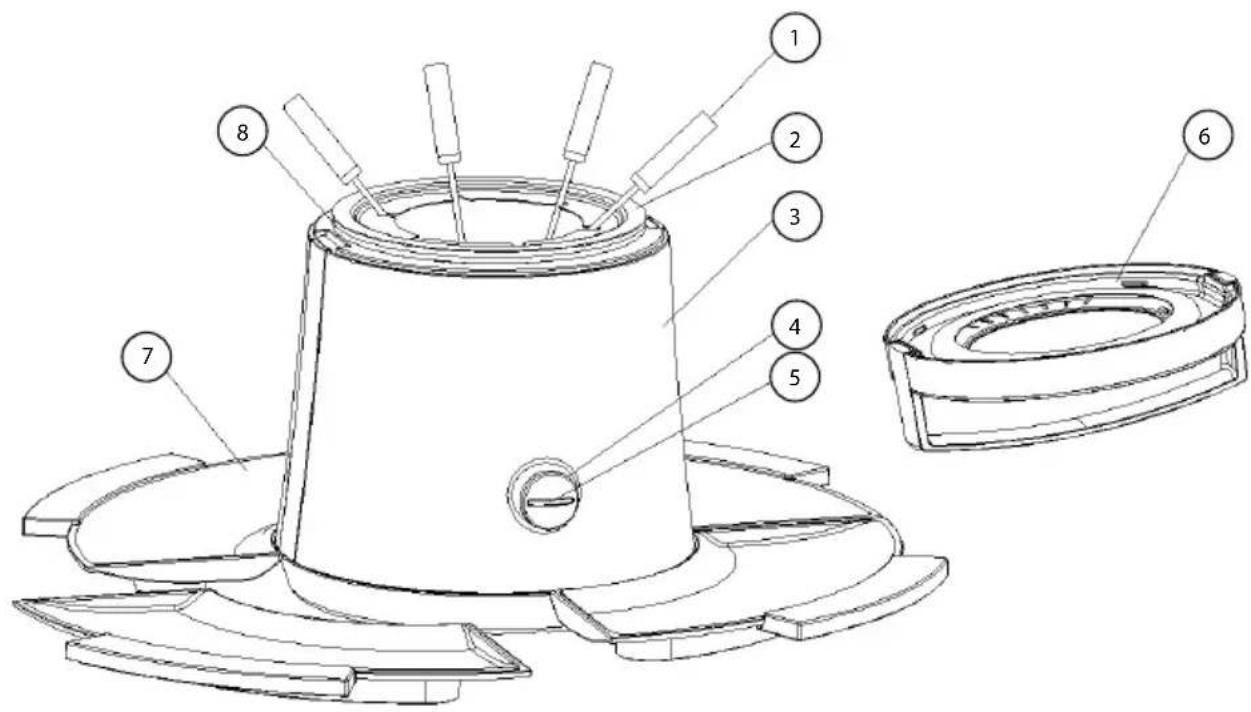

5. General diagram
1) Fondue fork
2) Fondue fork holder
3) Housing
4) Temperature control
5) Operating LED
6) Lid
7) Bowls with handles
8) Fondue container
6. Before initial use
Remove all the packing material from the fondue set.
Remove the appliance lid.
Clean all the parts as instructed in section "10. Cleaning and care" on page 80.
Place the appliance on a heat-resistant, dry and level surface.
- Connect the fondue to a properly installed and earthed safety socket. The fondue set is now ready for use.
7. Using the fondue set
You can use the fondue set to cook food in stock or fat or to prepare a cheese or chocolate fondue.
WARNING!
Do try to move or carry the fondue set while it is still hot or while it still contains hot fat, stock or other hot foods.
Remove the lid.
- Add fat, stock, chocolate or cheese to the fondue container as specified in the recipe.
When using fat or stock, the pot must be filled between the MIN and MAX markings.
Use the temperature control TEMP. (^) to set the required temperature (130°C to max. 190°C).
The operating LED on the temperature control TEMP. (^) lights up green.
- Heat the fat or stock initially at the highest temperature until the boiling point has been reached and then set the required temperature.
- When melting cheese or chocolate, select a lower temperature and stir the cheese or chocolate constantly to prevent it from sticking.
Place the fondue fork holder onto the fondue container.
Insert the fondue forks into the individual slots on the fondue container to prepare the food.
7.1. Using the fondue with fat
Ideally you should use pure vegetable fats, such as coconut or peanut oil, which can withstand high temperatures. Following the instructions on the packaging. Olive oil and peanut oil are low in unsaturated fatty acids and are only suitable for short frying times.
Vegetable oils containing highly unsaturated fatty acids (e.g. safflower or sunflower oil) and animal fats (e.g. lard, butter or suet) are not suitable.
WARNING!
Do not put wet or damp foods into the fondue set. Always be attentive when cooking in fat. Fat can spit and so there is a risk of burns.
WARNING!
Replace the oil/fat regularly because used oil/fat may ignite even at normal frying temperatures. In the event of a fire, pull the plug out immediately and smother the flame with the lid or a cloth. Never try to extinguish using water!
CAUTION!
Note the following instructions when using deep-frying fat to avoid health hazards:
-
Note the use-by date on the packaging. Never use the fat more than 3-4 times, and filter the fat after each use.
-
Never use fat which has gone bad and never mix it with fresh fat.
- Never mix different kinds of fat.
NOTICE
The following signs are indicative of fat which has gone bad:
-Brown colouring
Emission of smoke when heated to 180^
-Increasing viscosity of fat when heated
Unpleasant smell/taste of the fat and of the food
7.2. Preparing food for cooking in fat
Dry damp or wet food carefully.
Cut the food into small pieces (around 3 cm long) as this will reduce the cooking time and the food will absorb less fat.
- When frying potatoes, make sure that you do not cut them too small in order to minimise the formation of acrylamide.
Thaw frozen food prior to use.
Add salt and seasoning to food after frying and never over the fondue set.
8. After the fondue
Turn the temperature control TEMP. (^) anticlockwise to position 0.
Unplug the appliance from the mains socket.
- Allow the appliance and the remaining contents to cool down.
- Remove any fat or oil in order to clean the appliance: Remove solid fat with a wooden or plastic scraper.
-Deep-frying oil
Filter the remaining oil through a fine sieve and pour it into bottles. Store the bottles in a cool and dark place until you want to reuse the oil.
- Dispose of fat or oil which cannot be reused in a plastic bag in the household rubbish. Never pour fat that is still liquid into the toilet or down a drain. As the fat solidifies, it could block the pipes.
9. Protective devices
The appliance is equipped with a device to prevent overheating. The overheating cut-out is triggered when the appliance is heated up with nothing in it or with too little in it, for example, or if there is solidified fat inside and the temperature has been set too high.
If the overheating cut-out has been triggered, please contact the customer service department.
10. Cleaning and care
The appliance must be cleaned after each use.
WARNING!
Live components. There is a risk of electric shock.
Never immerse the appliance in water or other liq-
uids. – if the appliance does fall into liquid, under no circumstances should you attempt to touch it. Disconnect the mains plug first!
Always pull out the plug before cleaning the appliance.
WARNING!
To prevent burns, allow the appliance to cool down completely before cleaning.
ATTENTION!
The bowls and fondue forks may not be washed in the dishwasher.
Do not use aggressive chemical cleaners, scouring agents, hard sponges, etc. to clean the fondue set.
| Appliance part Cleaning instructions | |
| Lid > Clean the lid with a damp cloth and, if necessary, some mild detergent and then dry thoroughly. | |
| Housing > Clean the outside of the fondue set with a damp cloth and, if necessary, some mild detergent and then dry thoroughly. | |
| Fondue container | Empty the fondue container completely. Clean the fondue container with a damp cloth and some washing-up liquid. Wipe dry afterwards. |
| Fondue forks | Clean the fondue forks with a damp cloth and some mild detergent. |
| Bowls | Clean the bowls with a damp cloth and some mild detergent. |
11. Storing the fondue set
The fondue set is switched off and unplugged.
- Store the cleaned fondue set in a dry location.
12. Troubleshooting
The product left our warehouse in perfect condition. If you do encounter a problem, however, please consult the table below to see if you can solve the problem. If the problem persists, please contact our customer service department.
| Problem Possible | cause Remedy | |
| The appliance is not working. | The plug is not connect- ed to the mains. | Connect the appliance to a properly installed AC 220-240 V~ 50/60 Hz safety socket. |
| The overheating protec- tion has been triggered. | Contact the customer service department. | |
| The food is not cooked. The | fondue container is overfilled. | Cut the food into small pieces which cook more evenly. |
| The cooking tempera- ture is too low. | Set the temperature con- trol to the required tem- perature. | |
| The cooking time is too short. | Cook the food a little longer. | |
| The food is not cooked evenly. | The pieces of food are too close to each other. | Distribute the food even- ly in the fondue con- tainer. |
| Large amounts of smoke, unpleasant odours or taste | The deep-frying fat has gone off. | Changing the frying oil or fat. |
| The fat is not suitable for deep-frying. | Change the frying fat and use suitable frying fat. |
13. Disposal
Packaging
The product has been packaged to protect it from damage in transit. Packaging is raw material and can therefore be reused or recycled.
Appliance
Used appliances should not be disposed of with the normal household rubbish.
In accordance with Directive 2012/19/EU, the appliance must be properly disposed of at the end of its service life. This involves separating the
materials in the appliance for the purpose of recycling and avoiding any impact on the environment.
Take old appliances to a collection point for electrical scrap or a recycling centre. Contact your local waste disposal company or your local authority for more information on this subject.
14. Technical data
Power supply: 220 - 240V 50 / 60Hz
Power output: 800 W
Protection class: 1
Temperature range: 130^ - 190^
Fondue container
Capacity: approx. 1 litre
Diameter: approx. 14 cm
Power cable length: 1 m
Subject to technical modifications!
15. Conformity information
Medion AG hereby declares that the product MD 16548 conforms to the following European requirements:
EMC Directive 2004/108/EC
- Low Voltage Directive 2006/95/EC
- Ecodesign Directive 2009/125/EC
RoHS Directive 2011/65/EU
Full declarations of conformity are available at www.medion.com/conformity.
16. Legal notice
Copyright © 2015
All rights reserved.
This operating manual is protected by copyright.
Mechanical, electronic and any other form of reproduction is prohibited without the written permission of the manufacturer
Copyright is owned by the company:
Medion AG
Am Zehnhof 77
45307 Essen
Germany
The operating manual can be reordered via the service hotline and is available for download via the service portal at www.medion.com/gb/service/start/.
You can also scan the QR code above and download the operating manual onto your mobile device via the service portal.
17. General Warranty Conditions
17.1. General information
The warranty period is 24 months and begins on the day the product is purchased. The warranty covers all types of material and product damage that could occur during normal use.
Please keep your original proof of purchase in a safe place. The warranty provider reserves the right to refuse to confirm the status of the warranty or to carry out a repair under warranty if a valid proof of purchase cannot be produced.
If it is necessary to return your device for repair, please ensure that it is suitably packaged for transportation. Unless otherwise specified, you shall bear the costs for sending the device and the transport risk. The warranty provider does not assume any liability for additional materials sent with the product that do not belong to the original package contents supplied with the product.
Please enclose as much information as possible about the fault when sending the device to the warranty provider. In order to make a valid claim under warranty and before returning the device, please contact the Service Hotline operated by the warranty provider or the Service Portal. They will provide you with information on how to proceed further.
This warranty has no effect on your statutory warranty rights and is subject to the laws of the country in which the first purchase of the product was made by the end customer.
17.1.1. Scope
In the event of a fault on your product that is covered by this warranty, the warranty provider guarantees to repair or replace the product. The decision about whether to
repair or replace the device is taken by the warranty provider. Therefore, the warranty provider can at its own discretion decide to replace a device submitted for repair under warranty with a refurbished device of the same quality.
No warranty is provided for batteries or rechargeable batteries or for consumable materials i.e. parts which have to be replaced at regular intervals during the normal use of the product e.g. video projector lamps.
A pixel error (permanently coloured, light or dark point in an image) is not generally considered a fault. Please refer to the information provided in the manual for this product for the precise number of permissible defects in the image.
The warranty provider gives no warranty for burnt-in images on plasma or LCD devices that result from the improper use of the device. Please refer to the information provided in the manual for this product for precise instructions on operating your plasma or LCD device.
The warranty does not cover errors relating to the playback of data media that have been created in an incompatible format or as a result of using unsuitable software. If it is discovered during the repair that the fault concerned is not covered under warranty, the warranty provider reserves the right to invoice the customer for the costs already incurred in the form of a flat-rate handling charge, as well as to charge the customer for the materials and labour required for the repair after submitting a cost estimate. You will be informed in advance as the customer about these repair charges; you are responsible for accepting or rejecting the repair process.
17.1.2. Exclusions
Malfunctions and damage to the device caused by external influences, accidental damage, improper use, changes made to the product, modifications, upgrades, the use of third-party parts, neglect, viruses or software faults, improper transport, improper packaging or loss during the return of the product are not covered by the warranty issued by the warranty provider.
The warranty will be invalidated if the fault to the device is caused by maintenance or repair carried out by someone other than a service partner authorized by the warranty provider. The warranty will also be invalidated if labels or serial numbers on the device or a component of the device have been modified or made illegible.
17.1.3. Service Hotline
Before sending the device to the warranty provider, you must contact us via the Service Hotline or the Service Portal. This ensures that you receive further information on how to make a valid claim under warranty.
The use of the hotline may be subject to a charge.
The Service Hotline should under no circumstances be considered a substitute for user training for software and hardware or reading the manual, nor does it provide support for third-party products.
17.2. Special warranty conditions for PC, notebook, pocket PC (PDA), devices with navigation functions (PNA), telephone devices, mobile telephones and devices with a memory function
Should any of the supplied options (e.g. memory cards, etc.) have a fault, you are entitled to a repair or replacement. The warranty covers material and labour costs for restoring the functionality of the product concerned.
The warranty can be invalidated if any damage to the product itself or the supplied options results from the addition of any hardware to your product that is not produced or distributed by the warranty provider.
A limited warranty is provided for supplied software. This applies to a pre-installed operating system and also to supplied programs. For software supplied with the device by the warranty provider, a warranty is issued that any data media, e.g. discs and CD-ROMs on which the software is supplied, shall be free from faults in terms of their materials and workmanship for a period of 90 days following purchase. In the event of a faulty data medium being supplied, the warranty provider shall replace the faulty data medium free of charge; any further claims are excluded. Excluding the warranty for data media, all software is supplied without warranty. Furthermore, it is not warranted that this software shall function without interruption or errors or that it will meet your requirements. In the case of map material supplied for a device with navigation functions, no warranty is provided for its completeness.
It may be necessary to delete all data from the device in order to repair it. Please ensure that you have a backup copy for all of the data on the device before sending back the device. We expressly point out that the factory settings will be restored in the event of a repair. The warranty provider assumes no liability for the cost of a software configuration, lost revenue, loss of data or software, or other consequential damages.
17.3. Special warranty conditions for repair on site or replacement on site
If there is an entitlement to on-site repair or replacement, the specific warranty terms and conditions for on-site repair or replacement shall apply to your product. The following provisions must be ensured by you for carrying out repairs or replacements on site:
- Personnel from the warranty provider who arrive at your premises for the above-mentioned purpose must have unrestricted, safe and immediate access to the devices.
- Telecommunication facilities required by these personnel for the proper execution of your order, for testing and diagnostic purposes or for remedying faults must be provided by you at your own expense.
-
You shall be personally responsible for restoring your own application software after completion of the service by the warranty provider.
-
You shall be personally responsible for configuring and connecting any existing external devices after completion of the service by the warranty provider.
- The free cancellation period for repairs or replacements on site is at least 48 hours, thereafter we shall invoice you for any costs resulting from a late or missing cancellation.
18. Service Address
0333
3213106
01793
715716
(costs:
local)
Mo - Fr: 08:00 - 20:00
Sa - Su: 10:00 - 16:00
www.medion.co.uk
@ Please use the contact form at www.medion.com/contact
