| Product Type | Microwave with Grill |
| Brand | SilverCrest |
| Model | SMW 800 C2 |
| Rated Voltage | 230-240 V ~ 50 Hz |
| Microwave Power | 800 W |
| Grill Power | 1000 W |
| Max. Power Consumption | 1200 W |
| Microwave Frequency | 2450 MHz |
| Functions | Microwave, Grill, Combination Cooking (2 modes), Defrost, Auto Menu (9 programs), Timer, Clock, Child Safety, Quick Start, Preset |
| Included Accessories | Turntable support, Glass plate, Grill rack |
| Control Type | Buttons and rotary knob |
| Display | LED screen |
| Child Safety | Yes, key lock |
| Interior Material | Metal (steel) |
| Cleaning | Glass plate dishwasher safe; other surfaces with damp cloth; avoid abrasive products |
| Maintenance | Do not use steam or chemicals; clean door seals regularly |
| Safety | Grounding mandatory; do not use metal containers in microwave mode; hot surface |
| Spare Parts and Repairability | Bulb replacement by authorized service; repairs only by qualified professional |
| Warranty | 3 years |
| After-sales Service (France) | Tel. 0800 919270, email: kompernass@lidl.fr |
| General Information | Household use only; do not install in a closed cabinet |
Frequently Asked Questions - SMW 800 C2 SILVERCREST
User questions about SMW 800 C2 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microwaves in PDF format for free! Find your manual SMW 800 C2 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SMW 800 C2 by SILVERCREST.
USER MANUAL SMW 800 C2 SILVERCREST
Operating instructions
FR BE
FOURÀMICRO-ONDES
Mode d'emploi
DE AT CH
MIKROWELLE
Bedienungsanleitung
SE
MIKROVÄGSUGN
Bruksanvisning
NL BE
MAGNETRON
Gebruksaanwijzing
IAN 102982/102984
GB IE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
SE
GB/IE Operating instructions Page 1
| SE | Bruksanvisning | Sidan | 23 |
| FR/BE Mode d'emploi Page 45 | |||
| NL/BE Gebruiksaanwijzing Pgina 67 | |||
| DE/AT/CH Bedienungsanleitung Seite 89 | |||

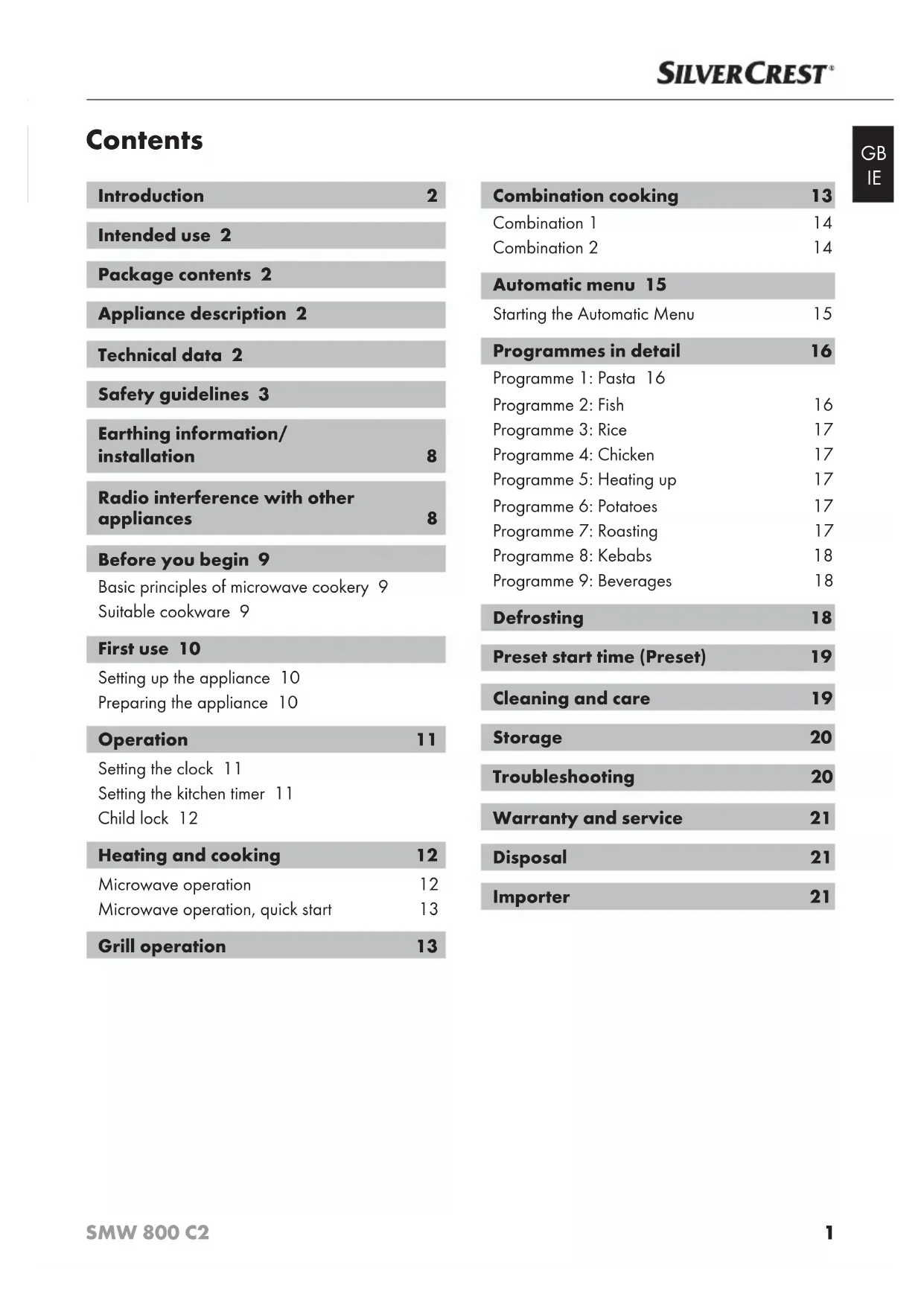

Contents
Introduction 2
Intended use 2
Package contents 2
Appliance description 2
Technical data 2
Safety guidelines 3
Earthing information/ installation 8
Radio interference with other appliances 8
Before you begin 9
Basic principles of microwave cookery 9
Suitable cookware 9
First use 10
Setting up the appliance 10
Preparing the appliance 10
Operation 11
Setting the clock 11
Setting the kitchen timer 11
Child lock 12
Heating and cooking 12
Microwave operation 12
Microwave operation, quick start 13
Grill operation 13
Combination cooking 13
Combination 1 14
Combination 2 14
Automatic menu 15
Starting the Automatic Menu 15
Programmes in detail 16
Programme 1: Pasta 16
Programme 2: Fish 16
Programme 3: Rice 17
Programme 4: Chicken 17
Programme 5: Heating up 17
Programme 6: Potatoes 17
Programme 7: Roasting 17
Programme 8: Kebabs 18
Programme 9: Beverages 18
Defrosting 18
Preset start time (Preset) 19
Cleaning and care 19
Storage 20
Troubleshooting 20
Warranty and service 21
Disposal 21
Importer 21
Introduction
Congratulations on the purchase of your new appliance.
You have selected a high quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner(s).
Intended use
This appliance is intended exclusively for heating up and preparing foodstuff according to the described procedures.
Any modifications to the appliance shall be deemed to be improper use and implies substantial danger of accidents. The manufacturer shall assume no liability for damage attributable to misuse.
This appliance is intended solely for use in private homes.
Do not use it for commercial applications, or in industrial or laboratory situations!
Package contents
Microwave oven
Rotator assembly
Glass plate
■ Grill stand
Operating instructions
Quick guide
Appliance description

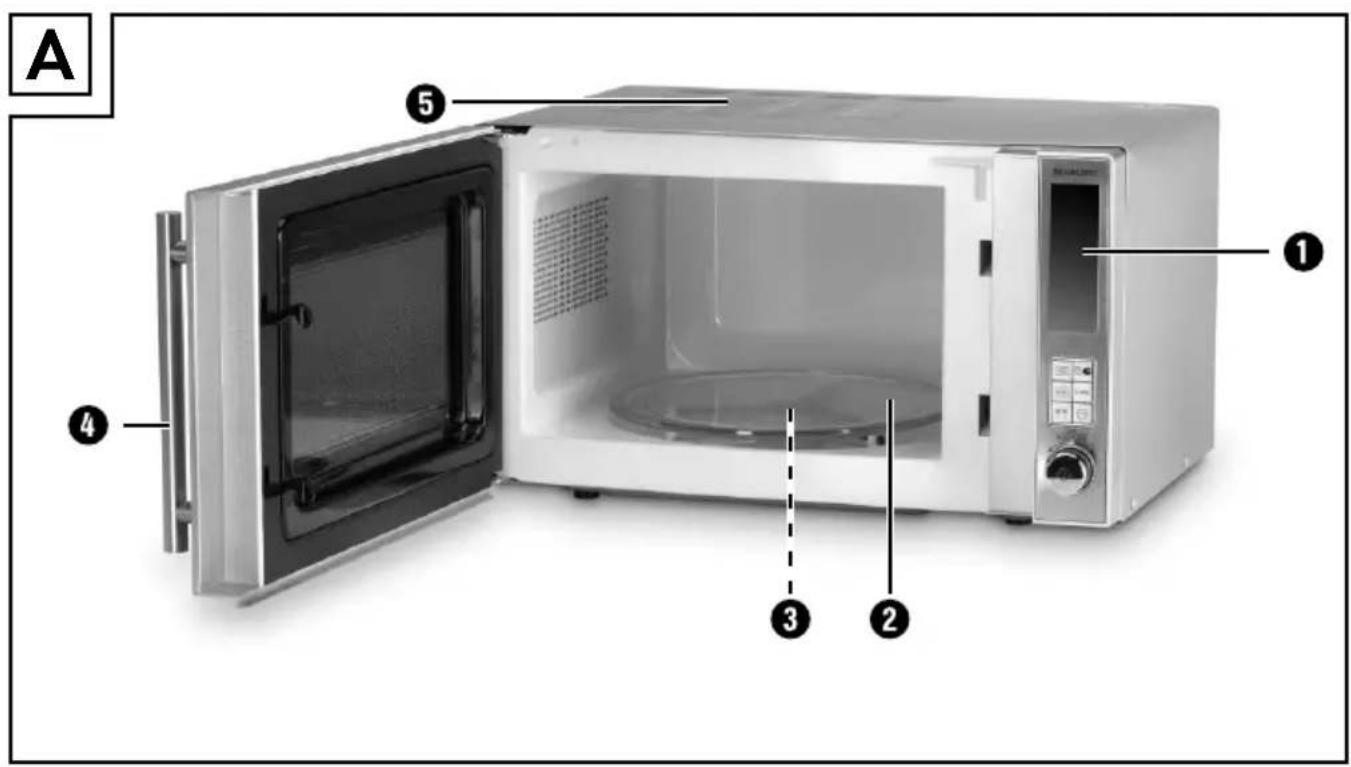

Figure A:
1 Display
2 Glass plate
3 Rotator assembly
4 Door handle
5 Ventilation slits

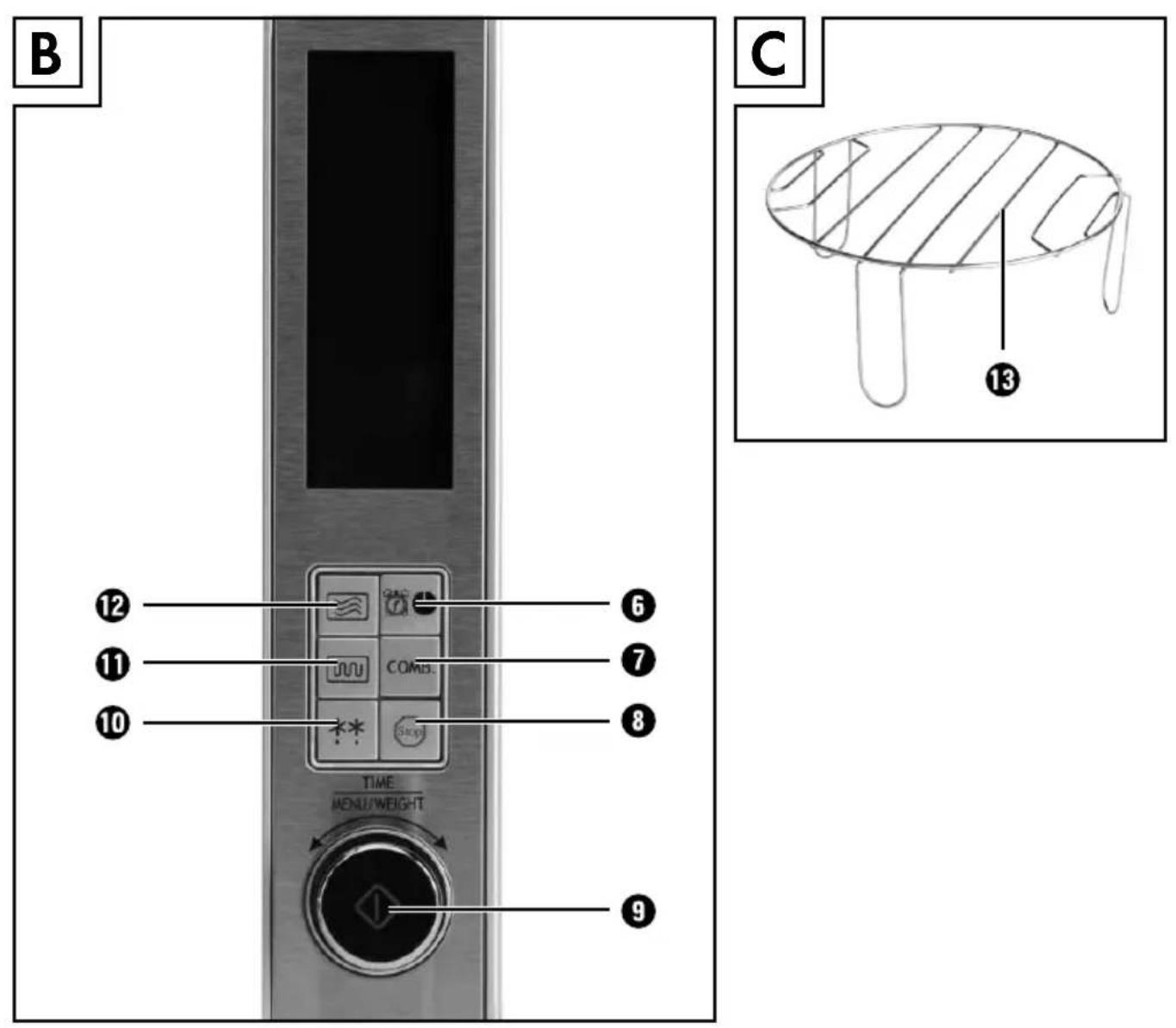

Figure B:
6 Timer/clock button
7 Combination buttonCOMB.
8 Stop button
9 Control dial / Start/Quick start
0 Defrost button**
q Grill buttoW
Microwave butto
Figure C:
e Grill stand
Technical data
Rated voltage: 230 - 240V ,50Hz
Max. power consumption: 1200 W
Maximum power output - Microwave: 800 W
Max. power consumption - Grill: 1000 W
Microwave frequency: 2450 MHz
Safety guidelines
Read the following important safety information carefully and keep it for further reference.
The appliance must only be connected to a correctly installed and earthed mains power socket. Ensure that the rating for your local power supply corresponds with the details on the rating plate of the appliance.
- Ensure that the power cable does not become wet or moist during use. Route the cable in such a way that it cannot be crushed or damaged.
- Keep the power cable well away from sources of heat. Do not route it in front of the microwave oven door. The heat could damage the cable.
- Remove the plug from the mains power socket when the appliance is being cleaned or in the event of a fault. Just switching off the appliance is not sufficient, as the appliance is subject to mains voltage for as long as the plug is connected to the mains power socket.
Always remove the plug from the mains power socket when the appliance is not in use.
- To prevent accidents, have defective plugs and/or power cables replaced immediately by a qualified specialist technician or our Customer Service department.
The appliance and its connecting cable must be kept away from children.
- Never submerge the appliance, the power cable or the plug in water or other liquids.
- Never pour fluids into the ventilation openings or the safety locks. If liquids ever get into the vents, switch off the microwave oven immediately and pull the plug from the mains power socket. Have the appliance checked by qualified specialists.
Never submerge the appliance in water or other liquids.
WARNING! RISK OF INJURY!
- If the door or the door seal is damaged, do not continue using the appliance under any circumstances. Have the appliance repaired as soon as possible by qualified specialists.
- Never attempt to repair the appliance yourself. Removal of the appliance housing could cause the release of microwave energy. Arrange for the repair to be carried out only by qualifi ed specialists.
This appliance may be used by children aged 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised, or have been instructed in the safe use of the appliance and have understood the potential risks.
The appliance must not be used as a plaything by children. - Cleaning and user maintenance must not be carried out by children, unless they are aged 8 or over and are supervised.
Children younger than eight years of age must be kept away from the appliance and the power cable. - Use this appliance only for its intended purpose as described in this manual. Do not use any caustic chemicals or vapours in this appliance. This microwave oven is designed especially for heating, cooking, grilling, or drying foodstuff s. It is not intended for use in industrial applications or laboratories.
- Keep children well away from the microwave oven when it is in use. Risk of burns!
Under no circumstances should you remove the microwave oven housing. - If the lamp in the interior of the microwave oven needs replacing, have this done by a qualified specialist.
People fitted with a heart pacemaker should consult their doctor about the possible risks of using a microwave oven before using it. - Liquids or other food products should not be heated in sealed containers as they can easily explode.
Caution! Hot surface!
WARNING! RISK OF INJURY!
It is dangerous for anyone apart from trained technicians to carry out maintenance or repair work that requires the removal of the housing, since this provides protection against radiation exposure due to microwave energy.
- Do not perform any repairs on the appliance. All repairs must be performed by our Customer Service Unit or by a qualified specialist technician.
- Never touch the microwave oven door, housing, ventilation openings, accessories or the crockery directly after the cooking process. The parts will be very hot. Allow them to cool down before cleaning them.
- Ensure that the plug is easily accessible at all times, so that it can be removed quickly in the event of an emergency.
- Do not allow the power cable to hang down from a table or work surface. Children could pull on it.
After heating, always open containers, popcorn bags, etc. so that the opening faces away from your body. Escaping steam could cause scalds.
- Never stand directly in front of the microwave oven when opening the door. Escaping steam could cause scalds.
- Do not fry foods in the microwave. Hot oil can damage parts of the appliance and utensils and even cause skin burns.
Always shake up or stir heated up jars of baby food or baby bottles! The contents can heat up unevenly and burn or scold your baby. Always check the temperature before you feed your baby!
Do not modify the microwave oven.
Always check the temperature before eating, to avoid a potentially life-threatening burning injury, for instance, to babies. Cooking utensils can become hot from the heat emitted by the food, therefore you may require oven gloves to touch them. Cooking utensils must also be checked to ensure they are microwaveable.
WARNING! RISK OF INJURY!
-
When heating drinks in the microwave, bubbling may be delayed when the drink boils. Therefore, be careful when handling the container. To avoid sudden boiling or risks of injury:
-
Place a glass rod in the liquid, if possible, for as long as it is being heated.
-
To avoid an unexpected reboiling, leave the liquid to stand in the microwave oven for about 20 seconds after heating.
-
Proceed with caution when heating liquids. Use only open containers, so that any air bubbles produced can escape.
- Eggs in their shells and hard-boiled eggs should not be heated in the microwave oven as they could explode, even after completion of the heating process.
Food with thick skins, such as potatoes, whole pumpkins, apples and chestnuts must be pricked before cooking.
- The drying of foods or clothing or the warming of heating pads, slippers, sponges, damp cloths or similar can lead to injuries, ignition of the material or fire.
WARNING! RISK OF FIRE!
- When heating food in plastic or paper containers, the cooking utensils must be monitored frequently due to the danger of ignition.
- Do not place flammable materials close to the microwave oven or the ventilation openings.
- Remove all metallic closures from the packaging of the foodstuff that you intend to heat. Risk of fire!
- When making popcorn, use only microwaveable popcorn bags.
WARNING! RISK OF FIRE!
- Do not use the microwave oven to warm up cushions fi lled with kernels, cherry stones or gels. Risk of fire!
- Do not use the microwave oven for storing foodstuff s or other objects.
Do not exceed the cooking times given by the manufacturer. - Do not place any objects on the microwave oven when it is in use. This will block the ventilation openings!
- Do not place the microwave oven next to other appliances discharging heat, for example, an oven.
- Clean the microwave oven thoroughly after warming up greasy foods, especially if they were not covered. They could possibly overheat and ignite. Allow the appliance to cool down completely before cleaning it.
- Do not thaw frozen fat or oil in the microwave oven. The fat or oil could ignite.
- Do not use an external timer switch or a separate remote control system to operate the appliance.
If the appliance starts to give off smoke it should be switched off immediately or the plug removed from the mains, and the door should be kept closed to smother any fl ames that might otherwise escape. - Do not place plastic containers in the microwave oven immediately after a grill, combi or automatic menu process. The plastic could melt.
- Ensure that you maintain a minimum clearance of 10cm from neighbouring walls/surfaces. Keep a gap of at least 20cm free above the microwave.
ATTENTION! PROPERTY DAMAGE!
- Never operate the appliance in the operating mode "microwave" or using combination cooking processes if there is no food inside.
- Never operate the microwave oven when it is empty.
- Never insert any foreign objects into the ventilation openings or the door safety locks.
- Do not use metallic utensils which could reflect microwaves and lead to sparking. Do not place cans in the microwave oven.
- The microwave oven may not be set up in areas with high humidity or where moisture could collect.
Do not lean on the microwave oven door.
Insufficient cleanliness of the appliance could lead to the destruction of the upper surfaces, which themselves aff ect its useful lifespan and could possibly lead to dangerous situations. - Do not move the microwave oven when it is in use.
Earthing information/ installation
This appliance must be earthed. This appliance is to be connected only to a correctly earthed power socket. An individual circuit solely for the connection of the microwave is recommended.
DANGER - ELECTRIC SHOCK!
- Improper use of the earthing connector could increase the risk of an electric shock.
NOTE
If you have any questions about earthing or the instructions on the use of this electrical appliance, please consult an electrician or a maintenance technician.
Neither the manufacturer nor the dealer can accept liability for damage to the microwave oven or injury to persons resulting from failure to comply with the instructions for electrical connection.
Radio interference with other appliances
The operation of the microwave may cause interference on your radio, television or similar appliances. If such interference occurs, it can be reduced or corrected by the following remedial measures:
Clean the door and the sealing surface of the microwave.
Reorient the receiving antenna of the radio or television.
Position the microwave in a different location to the receiver.
Move the microwave away from the receiver.
Plug the microwave into another wall socket. The microwave and the receiver should be connected to different circuits.
Before you begin
Basic principles of microwave cookery
Arrange the food with consideration.
Place the thickest parts near the edges.
Pay attention to the cooking time. Select the shortest possible stated cooking time and increase as required. Food that is cooked too long can begin to smoke or catch fire.
Cover the food during cooking with a lid suitable for microwave cookery. The lid prevents splashing and helps in the even cooking of the food.
While cooking, turn the food in the microwave once so that items such as chicken or hamburgers are cooked more quickly.
Large pieces of food, such as joints of meat, must be turned at least once.
- Completely rearrange foods, such as meatballs, after half the cooking time. Turn them over and move the meatballs from the middle of the cookware to the edge.
Suitable cookware
The ideal material for a microwave oven is microwave-permeable, allowing the energy to penetrate the container to heat the food. Microwaves cannot permeate metal. For this reason, metal containers and cookware should not be used.
When using the microwave for heating, do not use products made of recycled paper. These can contain minute fragments of metal, which can generate sparks and/or fires.
We recommend the use of round/oval cookware instead of square or oblong containers, as food in corner areas tends to overcook.
The following list provides general hints to assist you in selecting the correct cookware.
| Cookware | Micro-wave oven | Grill | Combination |
| Heat-resistant glass | Yes Yes Yes | ||
| Non-heat-resistant glass | No No No | ||
| Heat-resistant ceramics | Yes Yes Yes | ||
| Microwaveable plastic dishes Yes No | No | ||
| Kitchen roll Yes No No | |||
| Metal trays/plates | No Yes No | ||
| Grill stand No Yes No | |||
| Aluminium foil No Yes No | |||
| Foil containers No Yes No |
WARNING!RISKOFFIRE!
- Never use the grill stand e or other metallic objects when you are using the appliance in the microwave mode or in the combination cooking process. Metals reflect the microwave radiation and this leads to the generation of sparks. This can cause a fire and irreparably damage the appliance!
First use
ATTENTION! MATERIAL DAMAGE!
- Never operate the appliance when it is empty. There is a danger of overheating, especially in the "microwave" and "combination cooking process" modes!
Setting up the appliance
WARNING! RISK OF FIRE!
This microwave oven is not suitable for installation in a kitchen cabinet. Suffi cient ventilation for the appliance cannot be assured in enclosed cabinets. The appliance could be damaged and there is an additional risk of a fire!
Select an level surface off ering suffi cient space for the adequate ventilation of the appliance:
- Ensure that you maintain a minimum clearance of 10cm from neighbouring walls/surfaces.
Make sure that the door of the microwave oven can be opened easily.
- Keep a gap of at least 20~cm free above the microwave.
Ensure that the electrical plug is accessible without problem, so that it can be easily reached and removed in case of danger.
Do not remove the feet underneath the microwave oven.
Do not block the ventilation openings 5. If you do, it could cause damage to the appliance.
Install the appliance as far away as possible from radios and televisions. The operation of the microwave oven can cause malfunctions of radio and television reception.
ATTENTION! MATERIAL DAMAGE!
Do not install the microwave above a cooker or any other appliance generating heat. Installation in such a location could cause damage to the appliance and thus invalidation of the warranty.
Preparing the appliance
1) Remove all packaging materials and any stickers from the appliance.
NOTE
Donot remove the light grey mica cover plate, which is mounted in the cooking chamber to protect the magnetron.
2) Place the rotator assembly 3 on the drive axle in the cooking chamber so that this is fitted securely onto the drive axle.
3) Place the glass plate 2 centrally on the rotator assembly 3.
4) Insert the plug into a mains power socket. Use a 230-240 V ~, 50 Hz, mains power socket with a 16 amp fuse. It is recommended that the microwave oven is powered from its own power circuit. If you are unsure about how to connect the microwave oven, consult a specialist.
Before using the microwave oven, the appliance must be heated up without food to remove any remaining production residues.
Place a microwaveable and heat-proof bowl filled with water in the microwave.
Switch the appliance on in grill mode.
1) Press the Grill button q once. This selects Grill mode. The vicon appears in the display 1 .
2) Adjust the control dial 9 to a cooking time of 3 minutes.
3) Press Start/Quick start 9 to start the grilling process.
NOTE
During initial use, the generation of light smoke and a slight smell can occur, this is due to the production residues. This not harmful. Provide for suffient ventilation. For example, open a window.
4) After 3 minutes, the appliance will switch itself off automatically. Signal tones sound.
5) Open the door. Wait until it has cooled down completely.
6) Pull the mains plug from the socket and then clean the appliance, the rotator assembly 3 and the glass plate 2 with a damp cloth and then dry it thoroughly.
Operation
Setting the clock
When you use the microwave oven for the first time, or there has been a power cut, the display 1 shows "1:01".
1) Press and hold the Timer/clock button 6 until "Hr 12" appears on the display 1. If you want to switch to 24-hour mode, turn the control dial 9 until "Hr 24" appears. Confirm your selection by pressing the Start/Quick Start button 9.
2) Now set the required hour by turning the control dial 9.
3) Press the Start/Quick start button 9 The minute indicator appears.
4) Now set the required minutes by turning the control dial 9.
5) When the clock is correctly set, press the Start/Quick Start button 9. The colon blinks to indicate that the clock is running.
Setting the kitchen timer
The microwave oven is provided with a kitchen timer which you can use independently of the microwave operation.
1) Press the Timer/clock button 6 when the appliance is in standby mode. "00:00" and the icon for the kitchen timer appear on the display 1.
2) Set the desired time using the rotary dial 9. You can select any time range from 10 seconds to 95 minutes.
3) Press the Start/Quick start button 9. The appliance beeps. The countdown begins.
To stop the countdown timer, press the Stop button 8 The kitchen timer is cancelled, the icon disappears and the current time appears in the display 1.
As soon as the programmed time period has expired, you will hear three beeps.
NOTE
If you want to use the timer at the same time as a cooking or grilling function, start this as described previously while the microwave is already running.
After you have started the timer, the time and settings of the selected cooking or grill function will be shown after about 3 seconds.
The timer continues in the background, the icon appears on the display 1 to indicate that the timer is active.
If you wish to check the progress of the kitchen timer, press the Timer/clock button 6. The timer appears for a short time on the display.
If the set cooking or grill function is fi nished before the time has expired, the timer will continue to run in the background. You will hear 3 beeps as soon as the time has expired and the icon disappears.
Child lock
Activate this setting to prevent accidental operation by children or other persons not familiar with the operation of the appliance.
The child lock icon appears in the display 1 and the appliance cannot be put into operation as long as this function is activated.
Press and hold the Stop button until you hear a beep and the child lock icon appears on the display 1. The buttons and the control dial are now deactivated.
To deactivate the child lock, press and hold the Stop button 8 until you hear an extended beep and the child lock icon disappears.
Heating and cooking
NOTE
You can cancel all input processes by pressing the Stop 8 button.
The appliance reverts to standby mode.
Microwave operation
WARNING! RISK OF FIRE!
Never use the grill stand e or other metallic objects when you are using the appliance in the microwave mode. Metals reflect the microwave radiation and this leads to the generation of sparks. This can cause a fire and irreparably damage the appliance!
NOTE
During the cooking process, drops of water can form on the oven door or on the housing. This is normal and is not an indication of a malfunction. When the appliance has cooled down, wipe the moisture off with a dry cloth.
1) Press the microwave button w
(800 watts) appears on the display 1 and the
2) Turn the control dial 9 to set the desired output level (P800-P100).
3) Confirm your selection by pressing the Start/Quick Start button 9.
4) Now select the desired operating time by turning the control dial 9.
5) Confirm the set operating time by pressing the Start/Quick Start button 9.
6) The microwave process starts.
NOTE
Pausing the cooking process
Press the Stop button 8 once to pause a cooking process. The appliance pauses the cooking process and stops countdown of the remaining time. Press the Start/Quick start button 9 to resume the cooking process.
Cancel the cooking process
Press the Stop button 8 twice to stop the cooking process. The appliance reverts to standby mode.
Check the output level
During the cooking process, press the Microwave button W. The set output level is shown briefly on the display 1 (P100-P800)
7) When a cooking process is complete, "End" appears on the display 1 and you will hear 4 beeps.
If the door of the microwave is not opened, the appliance beeps again after about 2 minutes.
Microwave operation, quick start
With this function you can start cooking immediately for 30 seconds (or longer, up to 12 minutes) at 800 W.
Press the button Start/Quick start button 9 once. The icon appears in the display 1 as well as "30". After a brief moment, the cooking process starts for 30 seconds. The countdown begins.
If you wish to cook for a longer period, press the Start/Quick start button 9 repeatedly until the desired time (up to 12 minutes) is reached.
Grill operation
You can use the grill function for thin slices of meat, steaks, burgers, sausages or chicken pieces. It is also excellent for use in making topped sandwiches and gratins.
NOTE
Always use the grill stand e for grilling. This will help you to achieve an optimal grilling result.
Always place the grill stand on the glass plate 2 .
1) Press the Grill button q to activate the grill function. The icon appears on the display 1 as well as "10".
2) Set the required cooking time with the control dial 9. The maximum possible cooking time setting is 95 minutes.
3) To start the grill function, press the button Start/Quick start 9.
4) Turn the meat after about half of the cooking time.
5) When a grill process is complete, "End" appears on the display 1 and you will hear 4 beeps. If the door of the microwave is not opened, the appliance beeps again after about 2 minutes.
Combination cooking
WARNING! RISK OF INJURY!
If the appliance is operated in the combination cooking mode, children may only use the appliance under adult supervision due to the high temperatures.
This function combines the grill function and the normal microwave operation. In combination mode, a certain amount of time is automatically set aside for cooking and the remaining time for grilling in a single process. You may notice a quiet clicking noise when the oven is switching between modes.
WARNING! RISK OF FIRE!
Never use the grill stand e or other metallic objects when you are using the appliance in the combination cooking mode. Metals reflect the microwave radiation and this leads to the generation of sparks. This can cause a fire and irreparably damage the appliance!
Combination 1
In Combination 1 the microwave component is 30% and the grill element amounts to 70% of the cooking time.
This is suitable for fish or gratins, for example.
1) Press the Combination button 7 COMB. and COMB1 appear on the display 1 as well as "10".
2) Confirm your selection by pressing the Start/Quick Start button 9.
3) Set the required cooking time with the control dial 9. The maximum possible cooking time setting is 95 minutes.
4) To start, press the Start/Quick start button 9
Example: "Simple potato gratin":
Cut approx. 500g of potatoes into thin slices, and place these in an ovenproof gratin dish.
Pour between 150 and 200ml of cream over them, and then season everything with salt and pepper.
Sprinkle grated cheese on top. The cooking time is approx. 30-40 minutes.
Combination 2
In Combination 2 the microwave component is 55% and the grill element amounts to 45% of the cooking time.
This is suitable for puddings, omelettes, poultry dishes or lasagne.
1) Press the Combination button 7 COMB. and COMB1 appear on the display 1 as well as "10".
2) Turn the control dial until COMB2 appears on the display 1. Confirm your selection by pressing the Start/Quick Start button 9.
3) Set the required cooking time with the control dial 9. The maximum possible cooking time setting is 95 minutes.
4) To start, press the Start/Quick start button 9
Example: lasagne (ready meal, defrosted)
A "lasagne" ready meal weighing 400g requires around 15 minutes to cook.
NOTE
The time information for the combination cooking examples can vary considerably due to differing ingredients or food qualities. The specified times are merely guidelines.
Please check the cooking results and adjust the cooking time to suit if necessary.
Automatic menu
For foods that are prepared in the Automatic menu modus, it is not necessary to programme in the duration of the cooking process and the power level. You only need to enter the type of food you wish to cook and its weight.
WARNING! RISK OF INJURY!
The cooking utensils and the food may be very hot after cooking! Use oven gloves or similar to remove the food from the microwave!
WARNING! RISK OF FIRE!
When using programmes with incorporated grill function (programme nos. 4, 7 and 8), you should not use any form of covering or cookware that is not heat resistant, as these could melt or ignite!
NOTE
The microwave calculates the time/output level for fresh foods. Frozen foods will not be adequately cooked with the times programmed into the microwave.
If required, defrost frozen foods using the defrost programme beforehand (see section "Defrosting").
Starting the Automatic Menu
NOTE
Always place the food item in a suitable container or on a plate. Bear in mind that liquids such as grease, etc. can drain from the food during the cooking or heating process. The container/plate should therefore be large enough to avoid the overfl owing of liquids.
1) Turn the control dial 9 slowly to the left. A number (e.g. "A-02" for Auto Programme 2 (fi sh)) appears on the display 1, and the "Fish" icon fl ashes. Select the appropriate automatic menu for your foodstuff (1 to 9). After you have selected automatic menu mode, you can also access the desired automatic menu with a clockwise rotation. Confirm your selection by pressing the Start/Quick Start
button 9
| no. | Symbol Food | Weight (millilitres) | |
| 1 | Pasta 100-300 g | ||
| 2 | Fish 100-1000 g | ||
| 3 | Rice 100-1000 g | ||
| 4 | Chicken 800-1400 g | ||
| 5 | Heating up | 100-1000 g | |
| 6 | Potatoes | 50-600 g | |
| 7 | Roasting 300-1300 g | ||
| 8 | Kebabs 100-700 g | ||
| 9 | Beverages | 200-600 ml |
2) You can now set the desired weight/number of servings by rotating the control dial 9.
3) Press Start/Quick start 9 to start the cooking process.
4) When the cooking/grill process is complete, "End" appears on the display 1 and you will hear 4 beeps.
If the door of the microwave is not opened, the appliance beeps again after about 2 minutes.
NOTE
In order to achieve an even cooking or heating result in programmes 4, 7 and 8, the food should be turned over after about two thirds of the cooking time. The microwave will remind you to turn the food over:
"turn" appears in the display 1 and you will hear a beep.
- Open the door and turn the food over.
Be careful, the food may already be very hot.
-Press the Start/Quick start button 9 to resume the cooking process.
If you wish to dispense with turning, simply ignore the beeps. The microwave will automatically continue its programme.
NOTE
Please note that the size, shape and the type of foodstuff affcts the result of the cooking process.
If the meal is not properly cooked upon completion of the automatic menu, continue cooking for a couple of minutes using the Quick start programme. For programmes that involve the use of the grill function (programme numbers 4, 7 and 8), the food can be cooked further with the grill function. Continued cooking with the grill function also increases the browning of the food.
Programmes in detail
Programme 1: Pasta
This programme uses only
microwave power. This programme runs for between 25 and 35 minutes depending on the weight set.
When cooking pasta, use a tall container as there is a risk of it boiling over.
Use the same amount of water as when cooking pasta conventionally. The pasta should "fl oat" in the water.
■Boil the water first:
- set the highest possible microwave output level of the microwave (P800) and start heating. You will need about 10 minutes to boil one litre of water.
Then carefully add the pasta. After this, you can start the automatic menu for pasta.
Finally, allow the pasta to stand for approx. 3 minutes.
Programme 2: Fish
This programme uses only microwave power.
This programme runs for between 3:30 and 16 minutes depending on the weight set.
Lay the pieces of fi sh on a microwaveable plate, add a little butter or another fat, add flavouring to taste and then start the automatic menu for fi sh.
Programme 3: Rice
This programme uses only microwave power.
Depending on the weight set, this programme runs for between 16 and 36 minutes.
When cooking rice, use a tall container as there is a risk of it boiling over. Use around 400ml water for 200g of rice. Regardless of the amount of water you use the weight setting "200 g". Always use the weight of the rice for your setting.
Place the rice in the container, fi ll it with the required volume of liquid and then allow the rice to swell for approx 3 minutes.
Cover the container. Ensure that it is not sealed airtight. After this, you can start the automatic menu for rice.
Programme 4: Chicken
This programme runs over several cooking stages, using microwave power and the grill function. Depending on the weight set, this programme runs for between 39 and 50 minutes.
Place the chicken on a microwaveable plate.
■ Season to taste and then start the automatic menu for chicken.
A whole chicken must be turned over, otherwise the side facing upwards could dry out. For this reason the microwave oven automatically halts the programme after about 2/3 of the time has elapsed and beeps. Turn the chicken and then press the Start/Quick start button 9 once again to resume the programme.
Programme 5: Heating up
This programme uses only microwave power.
This programme runs for between 1:00 and 6:20 minutes depending on the the weight set.
Place the plate with the food that you wish to heat up on the glass plate 2 in the cooking chamber and then start the automatic menu for heating up.
Programme 6: Potatoes
This programme uses only microwave power.
This programme runs for between 3:50 and 11 minutes depending on the the weight set.
Use unpeeled potatoes for the cooking process.
As far as possible, use potatoes of the same size.
■ Prick the skins a couple of times.
Place the unpeeled potatoes onto a microwaveable plate or into a receptacle. If possible, the potatoes should not touch each other.
Programme 7: Roasting
This programme runs over several cooking stages, using microwave power and the grill function. Depending on the weight set, this programme runs for between 16 and 60 minutes.
Place the roast on a microwaveable plate. Season the meat to taste and then start the automatic menu for roasting.
A whole roast must be turned over, otherwise the side facing upwards could dry out. For this reason the microwave oven automatically halts the programme after about 2/3 of the time has elapsed and beeps. Turn the meat over and then press the button Start/Quick start 9 once again to resume the programme.
Programme 8: Kebabs
This programme runs over several cooking stages, using microwave power and the grill function. Depending on the weight set, this programme runs for between 9 and 27 minutes.
Place the kebabs on a microwaveable plate. Season the meat to taste and then start the automatic menu for kebabs.
The kebabs must be turned over to ensure even cooking. For this reason the microwave oven automatically halts the programme after about 2/3 of the time has elapsed and beeps. Turn the kebabs over and then press the button Start/Quick start 9 once again to resume the programme.
Programme 9: Beverages
This programme uses only microwave power. This programme runs for between 1:30 and 3:50 minutes depending on the the quantity set.
Place the beverage that you wish to heat up on the glass plate 2 in the cooking chamber. If you wish to place several glasses or cups in the microwave oven, ensure that the receptacles do not touch each other.
NOTE
To avoid sudden boiling:
-If possible, place a glass rod in the liquid while it is being heated.
-To avoid unexpected reboiling, leave the liquid to stand in the microwave oven for about 20 seconds after heating.
Defrosting
You can use this function to defrost meat, poultry and fish. The defrosting time and the power level are calculated and set automatically once you have entered the weight.
1) Press the Defrost button 0 appears in the display 1
2) Use the control dial 9 to enter the weight of the food to be defrosted. You can enter a weight of between 100g and 1800g .
3) Press the Start/Quick start button 9
The appliance calculates the defrosting time automatically. It appears in the display 1 and starts to count down.
After about 1/2 of the time, you will hear a beep and "turn" appears on the display 1. Open the door and turn the food. Close the door again and press the Start/Quick Start button 9 to resume the defrosting process.
NOTE
If you wish to dispense with turning, simply ignore the beeps. The defrosting programme will continue despite the beeps!
Preset start time (Preset)
With this programme, you can preset a specific start time to cook or grill your food. If the programming is carried out correctly, the appliance starts automatically at the programmed time.
TIPS
The clock must be correctly set to be able to select the function "Preset start time".
The "Preset start time" function does not work in combination with the "Defrost" function, automatic programme 5 or the quick start function.
1) Set the desired microwave function (cooking, grilling or automatic menu (except auto programme 5)):
-For microwave operation: Press the microwave button w select a power output level and adjust the cooking time with the control dial 9.
For grill operation: Press the Grill button q to activate the grill function. Set the desired grilling time with the control dial 9.
-For the automatic menu: Use the control dial 9 to select the appropriate programme for your food (excluding auto programme 5). Confirm your selection by pressing the Start/Quick Start button 9. Turn the control dial 9 to set the desired weight/number of servings.
2) Press the Timer/clock button 6. "01:" fl ashes on the display 1 and the icon will appear in the display 1.
3) Turn the control dial 9 to program the hours.
4) Press the Start/Quick Start button 9, now the minutes appear.
5) Turn the control dial 9 to program the minutes.
6) Press the Start/Quick start button 9
The icon flashes. The start time is displayed. The microwave oven automatically starts the cooking process at the programmed time. The appliance gives off a beep when it starts.
TIPS
To erase the saved start time and thus cancel the saved procedure, press the Stop button 8
The symbol disappears and the time is displayed.
Cleaning and care
#
DANGER - ELECTRIC SHOCK!
ATTENTION! MATERIAL DAMAGE!
Before cleaning the appliance, disconnect the power plug from the mains power socket! There is a risk of electric shock!
NEVER immerse the appliance in water or any other liquid!
Do not use abrasive or aggressive cleaning materials. These may damage the surfaces of your appliance.
Always keep the interior of the microwave oven clean.
If splashes of food or spilt liquids stick to the walls of the microwave, wipe them off with a damp cloth.
Use a mild detergent if the microwave is more heavily soiled.
Avoid using cleaning sprays and other aggressive cleaning agents, as they can cause stains, smears or clouding of the door surface.
Clean the external surfaces with a damp cloth.
To avoid damage to the functional components in the interior of the microwave, do not allow liquids to seep in through the ventilation slits 5.
GBIE
Remove splashes or soiling. Clean the door, both sides of the viewing window, door seals and adjacent components with a damp cloth. Do not use abrasive cleaning agents.
If condensation accumulates on or around the outside of the door, wipe it off with a soft cloth. This can happen if the microwave is operated in extremely humid conditions.
Clean the glass plate 2 regularly. You can also clean the glass plate 2 in the dishwasher or in hot water with a little washing-up liquid.
Wipe the rotator assembly 3 off with a damp cloth.
Clean the grill stand e in hot dishwater and dry it well.
Remove odours regularly. Put a deep microwave bowl with a cup of water, juice and peel of a lemon into the microwave. Heat for 5 minutes. Wipe off thoroughly and rub dry with a soft cloth.
If the bulb in the microwave needs replacing, arrange for it to be exchanged by a dealer or consult our Service Department.
Storage
Store the cleaned appliance in a clean, dust-free and dry place.
Troubleshooting
There is nothing on the display 1 .
The plug is not inserted into a mains power socket. Check the plug.
The mains power socket is defective. Try another mains power socket.
The display 1 is defective. Contact Customer Service.
The appliance does not respond to pressing the buttons.
The Child lock is activated. Deactivate the Child lock (see chapter "Operation").
The appliance does not start the cooking/ heating process.
The door is not properly closed. Close the door properly.
The plug is not inserted into a mains power socket. Connect the plug to the power supply.
The glass plate 2 makes a loud noise when turning.
The glass plate 2 is not correctly positioned on the rotator assembly 3.
Centre the glass plate 2 on the rotator assembly 3.
The rotator assembly 3 and/or the floor of the cooking chamber are dirty. Clean the rotator assembly 3 and the floor of the cooking area.
Warranty and service
The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.
Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our Customer Service Department. Only in this way can a post-free despatch for your goods be assured.
The warranty covers only claims for material and manufacturing defects, but not for transport damage, wearing parts or for damage to fragile components, e.g. buttons or batteries.
This product is for domestic use only and is not intended for commercial use.
The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorised service branch.
Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts.
Damages and defects extant at the time of purchase must be reported immediately after unpacking, resp. no later than two days after the date of purchase.
Repairs made after the lapse of the warranty period are subject to charge.
GB Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
IAN 102982/102984
IE Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 102982/102984
Hotline availability: Monday to Friday
08:00 - 20:00 (CET)
Disposal
Never dispose of the appli- ance in the normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.
Dispose of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please observe applicable regulations.
Please contact your waste disposal centre if you are in any doubt.
The packaging for this product is made from environmentally friendly material and can be disposed of at your local recycling plant.
Importer
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Program 6: Potatis 39
Program 7: Stekar 39
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
SE Service Sverige
Tel.: 0770 930739
E-Mail: kompernass@lidl.se
IAN 102982/102984
FI Service Suomi
Tel.: 010309 3582
E-Mail: kompernass@lidl.fi
IAN 102982/102984
Tillganglighet Hotline:
Programme 1: Pates 60
Programme 2: Poisson 60
Programme 3:Riz 61
Programme 4: Poulet 61
Programme 5:Rechauffer 61
Programme 7: Rofi 61
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
FR BE
Inhoud
WAARSCHUWING! LETSELGEVAAR!
WAARSCHUWING! LETSELGEVAAR!
WAARSCHUWING! LETSELGEVAAR!
WAARSCHUWING! BRANDGEVAAR!
WAARSCHUWING! BRANDGEVAAR!
WAARSCHUWING! BRANDGEVAAR!
WAARSCHUWING! BRANDGEVAAR!
WAARSCHUWING! BRANDGEVAAR!
WAARSCHUWING! LETSELGEVAAR!
WAARSCHUWING! BRANDGEVAAR!
WAARSCHUWING! LETSELGEVAAR!
WAARSCHUWING! BRANDGEVAAR!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
DE AT CH
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND/GERMANY
www.kompernass.com
Last Information Update · Informationsstatus
Version des informations - Stand van de informatie
