USER MANUAL DG 5 STEBA

10. Start- and quick reheat button

11. Setting cooking time or weight

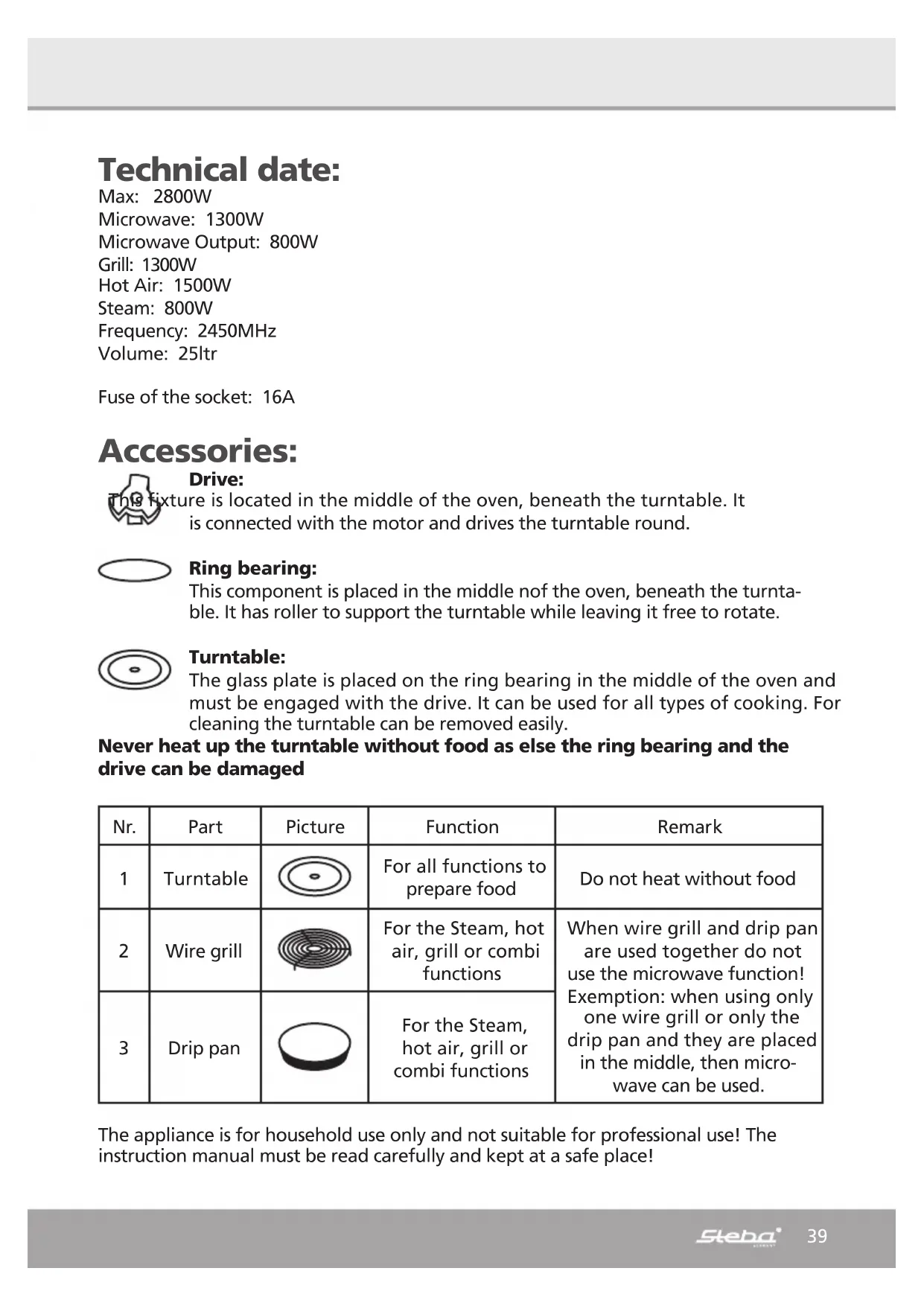

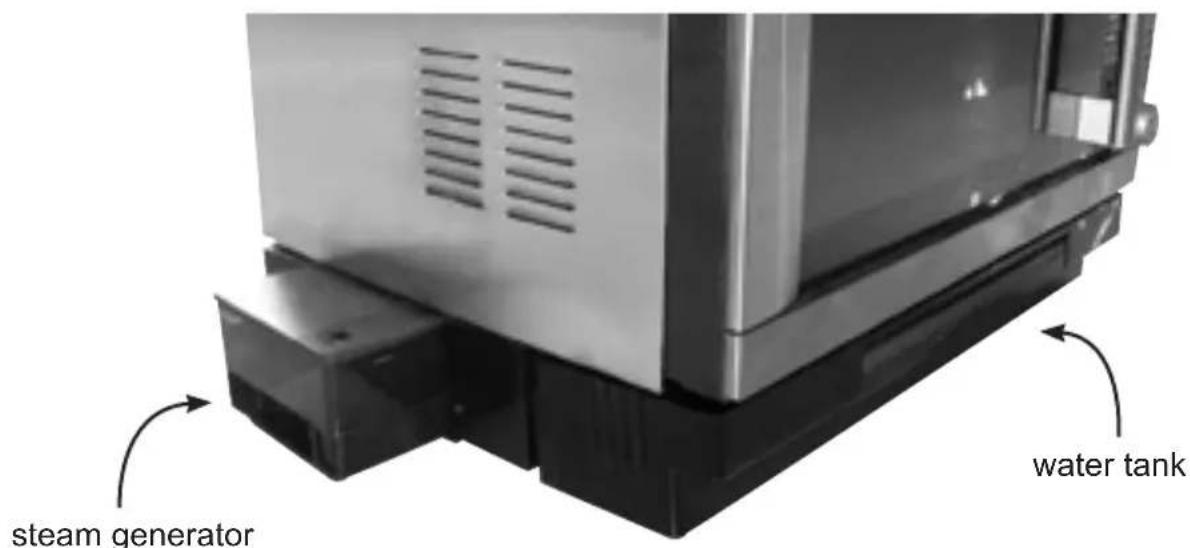

control button steam generator water tank39 Technical date: Max: 2800W Microwave: 1300W Microwave Output: 800W Grill: 1300W Hot Air: 1500W Steam: 800W Frequency: 2450MHz Volume: 25ltr Fuse of the socket: 16A Accessories: Drive: This fixture is located in the middle of the oven, beneath the turntable. It is connected with the motor and drives the turntable round. Ring bearing: This component is placed in the middle nof the oven, beneath the turnta- ble. It has roller to support the turntable while leaving it free to rotate. Turntable: The glass plate is placed on the ring bearing in the middle of the oven and must be engaged with the drive. It can be used for all types of cooking. For cleaning the turntable can be removed easily. Never heat up the turntable without food as else the ring bearing and the drive can be damaged Nr. Part Picture Function Remark 1 Turntable For all functions to prepare food Do not heat without food 2 Wire grill For the Steam, hot air, grill or combi functions When wire grill and drip pan are used together do not use the microwave function! Exemption: when using only one wire grill or only the drip pan and they are placed in the middle, then micro- wave can be used. 3 Drip pan For the Steam, hot air, grill or combi functions The appliance is for household use only and not suitable for professional use! The instruction manual must be read carefully and kept at a safe place!40 Check your microwave: The appliance should be taken out of the packaging. Remove all packaging material and check the appliance if there is any damage like broken door handles or cracks at the door. If there are any damages contact your trader. Never use the appliance when it is damaged! Earthing of the appliance: Important: The appliance must be earthed correctly to ensure the personal safety. When your AC socket is not earthed, then it is the personal responsibility to exchange it to a correct earthed socket. Power supply: Only connect the appliance to the power supply according to the data shown on the rating label. If a higher Voltage is used then shown on the rating label fire or other damages can occur. Position of the appliance:

1. Place the appliance on a stable non-sensitive surface.

2. Position the appliance in such way that the supply socket or the socket switch is

readily accessible so it can be easily disconnected.

3. For correct working it is important that enough space is around the appliance. The-

re should be a gap of at least 15cm above the steam microwave, 10 cm behind and 5cm at each side.

4. To disconnect the appliance from the power supply the plug of the power cord

must be easy to access. Installation: This steam microwave must only be used on a table or on a working plate. It is not ∙ suitable for build in use, like a cupboard. Do not place the appliance near an electrical or gas stove. ∙ Do not remove the feet ∙ The appliance must only be used inside. Do not use it outside, e.g. garden. ∙ The appliance should not be used in a damp area. ∙ The power cord should not touch the outside housing. Keep the power cord away ∙ from hot surfaces. Never pull the power cord over edges of tables or working places. Do not immerse the cable or the plug in water. The cooling opening at the sides and the back of the housing must not be blocked. ∙ When they are blocked during usage the appliance can be overheated. Do not pull at the power cord or pinch it. ∙41

1. The door sealing should only be cleaned with a damp cloth. The appliance must be

checked at the door area for damages and when there are damages then the appli- ance must not be used.

2. Never try to make any changes or repairs at the door, the control panel, the safety

lock mechanism or any other part of the appliance. The housing of the steam microwave, which protects against microwave radiation must never be removed at any time.

3. Do not use the appliance when the plug or the power cord has any damage or the

appliance fell down or was damaged in any way.

4. To avoid any danger, repairs (e.g. exchange of a power cord, door sealing, housing

etc) must only be done by a qualified service person.

5. Do not use the water tank when it shows any cracks or damages, because water can

leak out and cause an electrical failure or electrical shock. If the water tank shows any damage, contact our service department.

6. The appliance is not suitable to be used from persons (including children) with red-

uced physical, sensorical or mental abilities or insufficient knowledge or insufficient experience, except they were instructed by a person in charge for their safety or is supervised by such a person. Small children should be supervised that they are not playing with the appliance.

7. Only allow children to use the appliance not supervised, when they were instructed

in a sufficient way, so they can use it in a safe way and understand the dangers which can be caused by non sufficient usage, including the dangers of escaping steam. To avoid any dangers of burns, it should be taken care that nobody touches the hot inner surfaces and the hot outer surface after the appliance was used.

The appliance can produce extreme hot steam!!!! Liquids and food must not be heated in closed containers, as they can explode. Usuage:

1. Use the appliance to no other purpose than to heat up food. Never heat up chemi-

cals or other products, which is no food.

2. Always ensure that the used accessories are suitable to be used in a microwave.

3. Never put any inflammable things into the appliance.

4. Never store any objects inside the appliance when it is not used, except the deliver-

ed accessories, to avoid any danger when the appliance is turned on by accident.

5. The appliance must not be used as a microwave or a microwave combination func-

tion when there is no food inside the appliance. If the appliance is used in that way it can cause damage to the appliance. To test the microwave program please put a glass of water inside to absorb the microwave radiation. An exemption is the up- heating with hot air function with bake pan or a wire grill.

6. If any flame occur inside the appliance then press the „Stop Cancel“ button and

leave the door closed to extinguish any flames. Pull the plug.42

7. Never place the face to near to the appliance during or after the cooking when

opening the door. Take care when opening he door, as hot steam can cause injuries. During opening the door some vapour can escape. If any hot steam is inside the appliance never put the bare hands into the appliance! Danger of burns! Always use special oven gloves.

The door must be closed correctly at all programs, as else the safety mechanism ∙ won´t switch on the appliance. If some fat splashes touch the heating element during the grill program it can hap- ∙ pen sometimes that small flames occur, which are extinguished by their own and have no harming effects on the appliance. Always keep a minimum distance of 2cm between the food and the heating element. Attention: Never try to use the appliance with an open door, to bypass the safety ∙ mechanism or put anything into the safety mechanism. Take care that nothing is blocking the door when opening or closing the door. ∙ Never allow food or cleaning products residues to accumulate on the door seals. ∙ Always clean the appliance after use. If the door or the door seals are damaged, the ∙ oven must not be operated anymore. The appliance must not be operated with a external Timer or any other remote ∙ sytem. Using of the appliance:

1. Before using the Hot Air, Combination or grill function for the first time, remove

excessive process oil from the inside of the appliance. Use the appliance without glass turntable, ring bearing, drive o accessories, like wire grill or pan, for ca 10 min. With this process oil is removed. Some smoke or smell can occur during the first time of use. This is normal and disappear after short time.

2. Never touch the water which is condensed from steam, as it can be hot.

Danger of burns! Please always keep in mind that after cooking all accessories of the appliance can be very hot. To avoid any burns always use oven gloves when removing e.g. pots, table ware, bake pans etc, from the appliance and carrying it. Cooling system: When the microwave is used the cooling system is working permanent to cool all electrical components. After the appliance has stopped, the cooling system could still work for some time. That is normal and food can still be removed from the appliance.43 Illumination of the appliance: If the illumination is not working any more, please contact us directly. Accessories: The steam microwave is equipped with accessories. Always obey the instructions, which are for using the accessories. Wire grill:

1. The wire grill can be used for grilling food. It also can be used for Hot Air or Combi-

nation Cooking with and without steam.

2. When using the microwave function the wire grill can be used alone, when it is

centred in the middle of the glass turntable. Water collect slot:

1. Before using the appliance put the water collect slot in the correct position. Put the

slot into both hands and snap the water collect slot into the feet of the appliance

2. The purpose of the water collect slot is to collect all excessive water which can occur

the use of the Steam and Microwave functions. After each use of the Steam or the Microwave function the slot should be poured out (Be careful, water can be hot!). Cooking Times: The cooking times shown in the instruction manual are average values. The cooking time is depending from the kind, temperature and quantity of the food and from the kind of the cooking accessories used. Always start with the minimum cooking time to avoid a too long cooking time. When the food is not cooked long enough then make the cooking time longer. Notice: When the recommended cooking time is exceeded then the food can go bad and in extreme cases can catch fire and damage the interior of the appliance. Temperature of food: The Microwave heats up food. The container can be cold, but the food can be hot. Before the food is served stir the food and check carefully the temperature before the food is served to children. Small quantities of food: Small quantities of food or food which contains only small quantity of water can burn, dry out or catch fire, when they are cooked to long. If any food catches fire inside the appliance, keep the door closed, switch off the appliance and pull the plug out of the socket.44 Eggs: Never cook eggs inside the microwave when they are still in the shell or are already hard boiled. Pressure can be build up, which can make the eggs explode, even after the cooking process is finished. Punctuation of skins: Food with a non porous skin, like potatoes, yellow of a egg and sausages must be punctuated before cooking with a microwave to avoid a burst of the food. Meat thermometer: Only us a meat thermometer to check the temperature inside of meat or poultry, when the food is put out of the appliance. Never use a standard Meat thermometer when using the microwave or a Combination function, as sparks can occur. Liquids: When liquids like soups, sauces or beverages are heated up in the appliance then a overheating of the liquids over the boiling point can occur, without any sign of bubble formation. This can cause a delayed eruptive boiling or a splattering of hot liquids. a) Never overheat any liquids b) Stir the liquid carefully Paper/Plastic: When heating up food inside a paper or plastic container then the appliance must be check more often as these containers can catch fire when they are overheated. Never use recycled paper products, only when it is written on them that they are microwave safe they can be used. Recycled paper products can contain impurities which can cau- se sparks and/or fire. Always remove metal parts like cramps from cooking containers before insert them into the microwave. Utensils/Foils: Never heat up close cans or bottles, as they may explode. Metal containers and bowls with metal decoration must be not used when cooking with microwave. Sparks can occur. When aluminium foil, meat skewer or metal cook ware is used, the minimum distance between them and the interior walls is 2cm to avoid any sparks. Baby bottles/Glasses with baby food Upper parts or the teat/comforter or covers of baby feeding bottles or glasses with baby food must be removed before they are put into the microwave. Before the food/ bottles is give to babies the temperature of the liquid or the food must be carefully checked to avoid any danger of burns. Never use the appliance as a deep fryer as the oil or fat can overheat and catch fire!45 Overview, which materials are suitable for microwaves and for high temperatures Material Microwave suitable Remark Aluminium Foil In certain cases Can be used in small quantities to avoid overcooking. Risk to have an electrical arc when the foil is to near to the side walls or to much is used. Metal pots with high edge No Danger of electrical arcing and fire Metal pots not hig- her than 3-4cm Yes Place in the middle of the turntable, min 2cm distance to the walls Glass Yes Glass with metal decorative elements No Danger of electrical arcing Thin glass No Can crack because of high tempera- tures. Plastic Yes If the plastic is temperature resisting Some containers can deform and chan- ge the colout. Never seal the container Porcelain Yes Porcelain with metal decorative elements No Danger of electrical arcing Paper/Foils Yes Short time use inside Microwave, but not at the grill or hot Air Function Never use hermetic closed containers, cans baby bottles, plastic containers etc as this can cause danger of explosion. Always remove the lid or put holes in it. To test if a container is microwave safe put a cup of water inside the container and place it in the middle of the glass turntable. Start the microwave for ca 1min on max power. Is the container cold and the water hot then it can be used. Is the container warm or hot, then it is not suitable. If any sparks occur, then switch off the microwave instantly. The appliance must be supervised permanently.46 What is microwave? Electrical energy is transformed inside a magnetron into microwaves. The microwaves makes water molecules, which are in food, start to oscillate. The friction between the molecules heats up the food. The microwaves are reflected from the interior walls of the oven on the food. The cold microwaves are absorbed from the water molecules or the fat of the food. Microwaves enter into the food ca 4cm and cooking the food from the outside to the inside. Therefore some time after switching off the appliance is recommended, as the food is still cooking to the inside. The cooking utensils are getting hot up by the food. Therefore always use cooking gloves to remove them. Cooking utensils made from metal cannot be passed from the microwaves and must therefore normally not be used. Steam Take care, that the water collect slot is correctly inserted. Fill the water tank to max and close with the cap correctly. Do not use mineral water. Insert the water tank into the opening of the water collect slot. After ca 1min the steam generator is filled then the appliance can be started. If the appliance was not used for some time, insert the filled water tank into the water collect slot opening. After ca 1min open the screw at the left side of the housing which fixate the steam generator inside the appliance and pull out the steam generator. Pour out the water inside the steam generator carefully. Then insert the steam generator again and secure it with the screw again. After another minute the appliance can be started again. The steam generator must only be removed for repair or cleaning purpose. Always unplug the appliance before removing the steam generator! Never immerse the steam generator in water. When the steam generator is used it gets hot. Do not touch! Clean up function After steaming the interior of the appliance can be wet. With the clean up function is it possible to dry the appliance automatically. Press the “Steam” button longer than 3 seconds. The display will show “CL” and the appliance starts to work. After ca 5 minutes the appliance will stop working or press the “Stop/Clear” button.47 Grill At the upper side of the appliance there is a 1300W heating element for grilling or au four of food. The high or low wire grill should be put on the drip pan and then on the turntable. Always take care to have enough distance between the food and the heating ele- ment, to avoid any ignition of splattering oil. To reduce the grilling time- when the food is slightly brown- the microwave can be added. Always take care, that only one wire grill is used when using the microwave function. Hot Air In the inside of the back plate of the oven there is a adjustable (100-220°C) heating element combined with a convection unit. By the circulating hot air it is possible to cook food on different levels. By the circulation the food preparation is more energy efficient. When using hot air and microwave at the same time it is important to use only one wire grill and the drip pan or the two wire grills without the pan on the glass turnta- ble. Always place the wire grill in the middle of the glass turntable. Adjustments: Microwave: Press the Power button 1x, at the display the words 800Watts microwave output and the symbol is visible. Press 2x for 550Watts Press 3x for 400Watts Press 4x for 250Watts Press 5x for 100Watts With the time/weight control button the time can be adjusted by turning it from 10sec to 60min. Press the start button, the program runs. During the use of the appliance the time can be modified by turning the time/weight control knob. After the time run up the appliance will sound 4 times, after that each minute it will sound 3 times. By pressing the Stop/Clear button the program will be deleted. The colder the food is, the more time is necessary. Small quantities are cooked faster than large quantities. Food should not be stacked over each other as the outer areas will heat up faster and the inside is still cold. Thick pieces, e.g. Chicken legs, should be placed at the edge of the plate. Airy food, e.g. bread, is heating up faster than compact food like meat. Place the food on the drip pan and put it inside the microwave.48 Grill: Press the Grill button. The display shows „O“and the symbol . During the use of the appliance the time can be modified by turning the time/weight control knob. After the time run up the appliance will sound 4 times, after that each minute it will sound 3 times. By pressing the Stop/Clear button the program will be deleted. The temperature cannot be adjusted! Hot Air: Press the button Convection 1x. The display shows 220°C and the symbol . Press 2x for 200°C Press 3x for 180°C Press 4x for 160°C Press 5x for 140°C Press 6x for 120°C Press 7x for 100°C Turn the Time/Weight button to adjust the time and start the appliance. During the use of the appliance the time can be modified by turning the time/weight control knob. After the time run up the appliance will sound 4 times, after that each minute it will sound 3 times. By pressing the Stop/Clear button the program will be deleted. Place the food on the wire grill and place it in the middle of the glass turntable. The hot air unit is assembled behind the back plate with an adjustable temperature from 100°C to220°C Press the button convection and choose the time. Put the low wire grill on the drip pan. On this a bake plate or a baking form can be placed. If it should be baked on two levels, put the higher wire grill over the lower one and place another bake pan on it. After 5-10min of preheating insert the whole drip pan with an oven glove. After the door is closed press the Start button again to restart the appliance. If the baking time is not sufficient then turn the time/ weight button to add time in 10min steps. Temperature : 100°C-120°C Baiser 160°C-180°C Cake 180°C – 200°C Braised meat- Fish 200°C-220°C Puff paste- Meat All above shown Temperatures are an „ca“ values and are depending on the weight, quality and personal taste or different recipe suggestions.49 Steaming: With this appliance it is possible to cook healthy, carefully and low fat. The steam covers the food and avoids the loss of nutritious substances. Shape, colour and taste are preserved. Fill water in the water tank. Insert the tank and wait for ca 1min that the steam gene- rator fills with water. Press the steam button. The display shows“O“and the symbol

The time can be adjusting by turning the Time/Weight button and start the applian- ce. After some seconds the steam is generated. During the use of the appliance the time can be modified by turning the time/weight control knob. After the time run up the appliance will sound 4 times, after that each minute it will sound 3 times. By pressing the Stop/Clear button the program will be deleted. If there is no more water in the tank, the appliance will sound 8 times, after that it sounds 4 times each minute until water is refilled. The program is interrupted at that time. Microwave and Grill: Press the „Combi“-button 1x. The display shows 800Watts and the symbols . Press the „Power“-button 1x for 550Watts microwave output. Press 2x for 400Watts Press 3x for 250Watts Press 4x for 100Watts The time can be adjusted by turning the time/weight button, then start the appli- ance. During the use of the appliance the time can be modified by turning the time/weight control knob. After the time run up the appliance will sound 4 times, after that each minute it will sound 3 times. By pressing the Stop/Clear button the program will be deleted.50 Microwave and Hot Air: Press the „Combi” button 2x. The display will show 220°C and the symbols . Press the Convection button 1x for 220°C. Press 2x for 200°C Press 3x for 180°C Press 4x for 160°C Press 5x for 140°C Press 6x for 120°C Press 7x for 100°C The microwave can be adjusted, too. Press the power button 1x for 800Watts Press 2x for 550Watts Press 3x for 400Watts Press 4x for 250Watts Press 5x for 100Watts The time can be adjusted by turning the time/weight button, then start the appli- ance. During the use of the appliance the time can be modified by turning the time/weight control knob. After the time run up the appliance will sound 4 times, after that each minute it will sound 3 times. By pressing the Stop/Clear button the program will be deleted. Microwave with Steam: Press the „Combi“-button 3x. The display will show 800Watts and the symbol . Press the „Power“-button 1x for 550Watts microwave output. Press 2x for 400Watts Press 3x for 250Watts Press 4x for 100Watts The time can be adjusted by turning the time/weight button, then start the appli- ance. During the use of the appliance the time can be modified by turning the time/weight control knob. After the time run up the appliance will sound 4 times, after that each minute it will sound 3 times. By pressing the Stop/Clear button the program will be deleted. If there is no more water in the tank, the appliance will sound 8 times, after that it sounds 4 times each minute until water is refilled. The program is interrupted at that time.51 Grill with Steam: Press the „Combi“-button 4x. The display will show „O“and the symbols . The time can be adjusted by turning the time/weight button, then start the appli- ance. Within short time steam is generated During the use of the appliance the time can be modified by turning the the time/ weight control knob. After the time run up the appliance will sound 4 times, after that each minute it will sound 3 times. By pressing the Stop/Clear button the program will be deleted. If there is no more water in the tank, the appliance will sound 8 times, after that it sounds 4 times each minute until water is refilled. The program is interrupted at that time. Hot Air with Steam: Press the „Combi“-button 5x. The display will show 220°C and the symbols . Press the Convection button 1x for 220°C. Press 2x for 200°C Press 3x for 180°C Press 4x for 160°C Press 5x for 140°C Press 6x for 120°C Press 7x for 100°C The time can be adjusted by turning the time/weight button, then start the appli- ance. Within short time steam is generated During the use of the appliance the time can be modified by turning the time/weight control knob. After the time run up the appliance will sound 4 times, after that each minute it will sound 3 times. By pressing the Stop/Clear button the program will be deleted. If there is no more water in the tank, the appliance will sound 8 times, after that it sounds 4 times each minute until water is refilled. The program is interrupted at that time.52 Child Lock: Press the „Stop/Clear“-button for more than 3 seconds. The display will show „L“ Press the „Stop/Clear“-button again for more than 3 seconds to deactivate the child lock. Special Function: Quick Start This function only works with microwave. Press the „Start“-button 1x. The microwave will start with 800Watts microwave out- put and 30sec time. Every press on the „Start“-button will make the time for another 30seconds longer. The program can be stopped by pressing the „Stop“-button. Timer function: Press the „Clock“-button 1x. The display shows „O“ Turn the „Time/Weight button“to the desired time and start the appliance. At the end of the countdown the oven will sound 4 times. After that it will sound 3 times every minute. Setting the Time: Press the „Clock“-button 2x. The display will show „0:00“and will blink. Adjust the hours by turning the „Time/weight“-button. Press the „Clock“-button to enter the hour setting and to adjust the minutes. The „OO“ for the minutes will blink. Adjust the minutes by turning the „Time/weight“-button. Press the „Clock“-button to enter the minutes setting.53 Using Auto Express cook Function: Setting the Auto cook function by pressing the „Express/Defrost/Steam“cook button 1x. The display will show “C--1“. By turning the „Time/Weight“- button the different programs from „C1 to C4“ (see bellow table)can be adjusted. Press the „Start“ 1x and adjust the weight by turning the „Time weight button“. Then start the appliance by pressing the „Start“-button again. At the end of the countdown the oven will sound 4 times. After that it will sound 3 times every minute. Quantity Time Program/ Wattage Remark C 1 Potato (medium size) 1pcs 2pcs 3pcs 6min. 9min. 12min Microwave 800Watts Punctuate the skin C 2 Rice/Pasta 0,2kg 0,5kg 23min 35min Microwave 800/400Watts Put the rice or noodles in a microwave safe pot and cover with water, stir one time during cooking C 3 Meat 0,9 kg 1,5 kg 20min 32min Microwave 550Watts + Hot Air Place the wire grill or the drip pan on the turntable. Turn around after half of time. C 4 Poultry 1,0kg 1,5kg 20min 30min Microwave 550Watts + Hot Air Place the wire grill or the drip pan on the turntable. Turn around after half of time.54 Defrost: Setting the defrost function by pressing the „Express/Defrost/Steam“-cook button 2x. The display will show “D--1“. By turning the „Time/Weight“ the different programs from „D1 to D4“ (see the bellow table) can be adjusted. Press the „Start“ 1x and adjust the weight by turning the „Time weight button“. Then start the appliance by pressing the „Start“-button again. At the end of the countdown the oven will sound 4 times. After that it will sound 3 times every minute. Quantity Time Recovery time D 1 Braten / Fleisch 0,6kg 1,2kg 1,8kg 10min 22min 32min 15min 30min 45min D 2 Steak 0,4kg 0,8kg 1,2kg 8min 16min 22min 10min 20min 20min D 2 Seafood 0,2kg 0,4kg 4min 8min 10min 10min D 3 minced meat / quicken quarters 0,3kg 0,6kg 1,2kg 5min 9min 18min 20min 30min 40min D 4 fish 0,5kg 0,8kg 1,2kg 15min 20min 28min 20min 30min 30min The recovery time is necessary, that the food can warm from the outside to the inside. The output of the Microwave is at all Defrost programs 250Watts. Do not freeze any defrosted food again!!55 Auto steam cook function: Setting the auto steam function by pressing the „Express/Defrost/Steam“-cook button 3x. The display will show “S--1“. By turning the „Time/Weight“-button the different programs from „S1 to S7“ (see the bellow table) can be adjusted. Press the „Start“ 1x and adjust the weight by turning the „Time weight button“. Then start the appliance by pressing the „Start“-button again. At the end of the countdown the oven will sound 4 times. After that it will sound 3 times every minute. If there is no more water in the tank, the appliance will sound 8 times, after that it sounds 4 times each minute until water is refilled. The program is interrupted at that time. Quantity Time Programm/Watts S 1 Vegetables 0,1kg 0,2kg 3min 4min Microwave 400Watts+Steam S 2 Potato gratin 0,1kg 0,2kg 11min 14min Microwave 400Watts+Steam S 3 Frozen Bread 0,1kg 0,3kg 9min 11min Steam S 4 Steamed Egg 50gr 100gr 4min 11min Steam S 5 Beef 0,5kg 1,0kg 36min 44min Steam+Hot Air S 6 Chicken 0,5kg 1,0kg 25min 32min Steam+Hot Air S 7 Fish 0,3kg 0,6kg 7min 11min Microwave 400Watts+Steam56 Cleaning: Pull the plug out of the socket ∙ Never immerse the appliance, the power cord or the steam generator into water. ∙ The condensed water in the appliance, the water in the collect slot, the heating ∙ element inside and the walls inside the chamber can be very hot. Is there scale inside the water collect slot, it can be washed inside the dish washer. ∙ The steam generator at the left outside housing can get scaled, too. Be careful, the ∙ steam generator can be hot. Open the screw and pull the generator out. Put a little vinegar inside the steam generator and clean it carefully. Do not immerse in water. Put the steam generator back into the oven with the plugs showing to the front ∙ and screw it again correctly. Clean the door sealing, the stainless steel inner walls and the door with a mild ∙ detergent. Do not use any aggressive or abherasive cleaners. The back plate inside the oven is coated with a selfcleaning coating. The outer surfaces and the control panel should be cleaned with a damp cloth. ∙ Due to the steam concentration some water can collect in front of the appliance. ∙ Wipe it away with a cloth. This is not a malfunction of the appliance. When the appliance is not cleaned correctly it can happen that splatters of fat can ∙ cause smoke and therefore reduce the lifetime and the usuage of the appliance. Check if the ventilation outlets are jammed with dust or similar substances. This can ∙ cause an overheating of the appliance. To reduce cooking odeurs from the appliance place a cup of vinegar on the turnta- ∙ ble. Switch on the appliance on with microwave function (800Watts) for 3minutes. After that wipe the inner chamber walls with a damp cloth.57 Disposal: Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin. Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers. Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Service and Repair: If the appliance must be repaired, plaese get in touch with your trader or with the manufacturer: STEBA Elektrogeräte GmbH & Co KG Pointstr. 2 96129 Strullendorf / Germany Tel. 0 95 43 / 4 49 -17 oder -1858 Kombinations-Mikrowelle
