USER MANUAL MWG 725 CLATRONIC

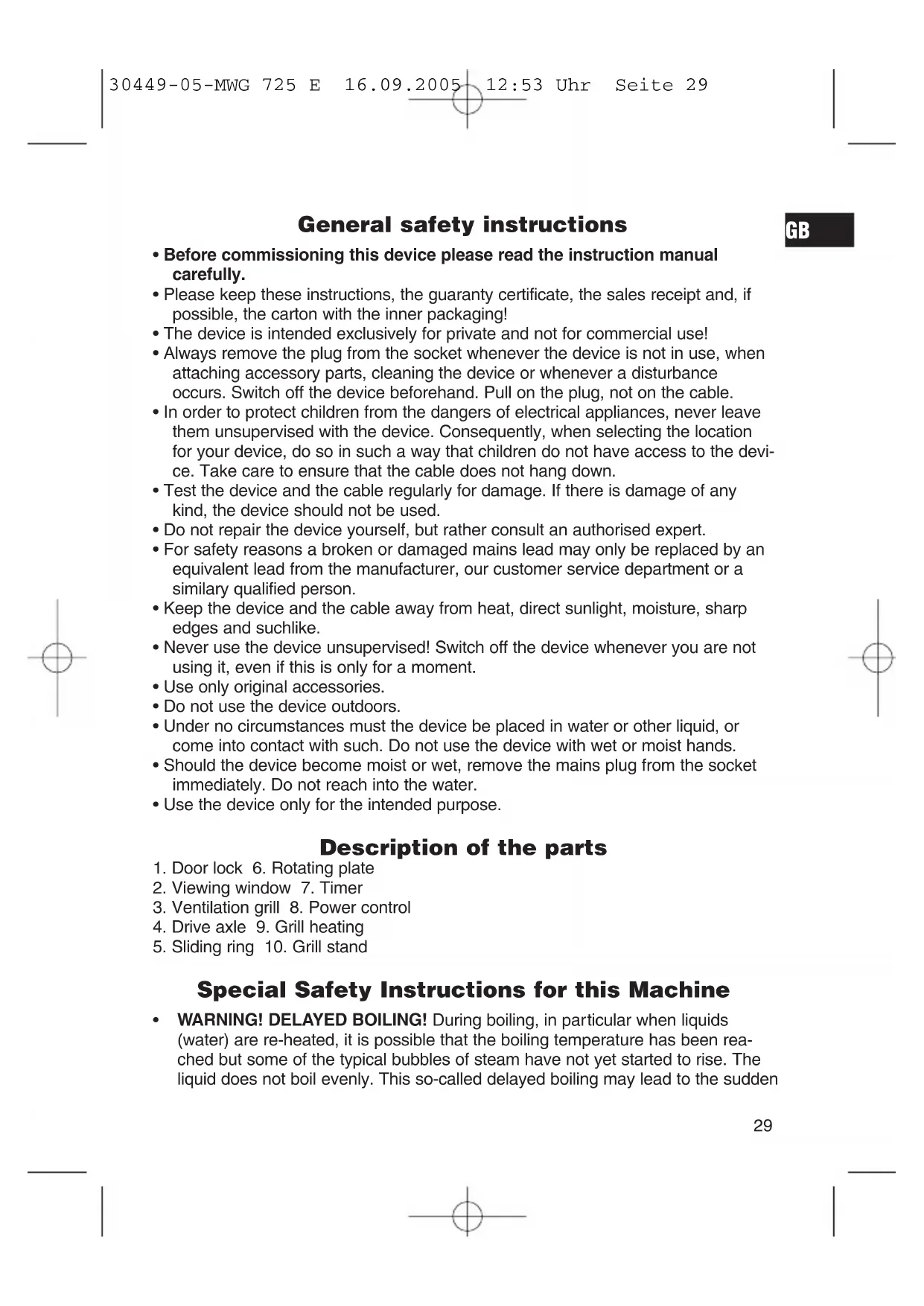

• Before commissioning this device please read the instruction manual carefully.

• Please keep these instructions, the guaranty certificate, the sales receipt and, if possible, the carton with the inner packaging!

• The device is intended exclusively for private and not for commercial use!

• Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a disturbance occurs. Switch off the device beforehand. Pull on the plug, not on the cable.

• In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the device. Consequently, when selecting the location for your device, do so in such a way that children do not have access to the devi- ce. Take care to ensure that the cable does not hang down.

• Test the device and the cable regularly for damage. If there is damage of any kind, the device should not be used.

• Do not repair the device yourself, but rather consult an authorised expert.

• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similary qualified person.

• Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and suchlike.

• Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.

• Use only original accessories.

• Do not use the device outdoors.

• Under no circumstances must the device be placed in water or other liquid, or come into contact with such. Do not use the device with wet or moist hands.

• Should the device become moist or wet, remove the mains plug from the socket immediately. Do not reach into the water.

• Use the device only for the intended purpose. Description of the parts

4. Drive axle 9. Grill heating

5. Sliding ring 10. Grill stand

Special Safety Instructions for this Machine

• WARNING! DELAYED BOILING! During boiling, in particular when liquids (water) are re-heated, it is possible that the boiling temperature has been rea- ched but some of the typical bubbles of steam have not yet started to rise. The liquid does not boil evenly. This so-called delayed boiling may lead to the sudden

30449-05-MWG 725 E 16.09.2005 12:53 Uhr Seite 29formation of bubbles of steam and boiling over when the vessel is removed and slightly shaken. There is a danger of scalding! So that boiling is even, place a glass rod or the like - but nothing metal - into the vessel.

• Never use metal tableware or tableware containing metal parts (e.g. golden edges or wire clips) in the microwave. This will damage the machine.

• Always use the microwave oven with the turntable and the roller ring.

• Never operate the machine when the oven is empty.

• If the door frame or seal or neighbouring parts are damaged, the machine may not be used until repaired by a service technician.

• Servicing work or any repair work may only be carried out by a service technici- an trained by the manufacturer.

• If smoke forms in the machine, keep the door closed and switch the machine off or disconnect it from the power supply.

The machine should be kept under observation if meals are warmed up or cooked in disposable containers made of plastic, paper or other combustible materials.

• The contents of glasses and bottles of baby food must be stirred or shaken before consumption. The temperature should be checked before consumption in order to avoid burns.

A minimum distance at 10 centimetres should be kept clear around the machine.

• When operating the microwave oven alone never use the metal grill stand as this will damage the machine. Information concerning grill and combined operation

• As irradiated heat is used during grill and combined operation please use only heat-resistant tableware.

• When operating the grill alone only metallic or aluminium tableware may be used - but not during combined or microwave operation.

• Do not place anything on top of the housing, as this becomes hot. Always keep the ventilation slits clear.

Please use the grill stand to bring the food to be cooked up to the heating element. Initial Operation

Remove all the accessories from the oven compartment, unpack them and place the sliding ring in the middle. Position the glass plate on the drive axle such that the plate fits into the hollow sections of the drive shaft and is lying level.

• Inspect the machine for visible damage, in particular in the area of the door. If any type of damage whatsoever is found, the machine must not be used.

• In order that there is no interference from other electrical equipment during the operation of the microwave oven, do not place your machine in the direct vicinity of other electronic equipment.

• Remove any adhesive protective foil from the housing.

• Insert the plug into a correctly installed safety socket of 230 V, 50 Hz.

• Do not remove any fitted parts from the oven interior nor from the inside of the door!

• Your oven works with microwave radiation which heats up water particles in food in a very short time. There is no heat radiation and therefore no browning. For this reason the machine is not suitable for drying objects.

• Only food should be heated with this oven.

• The machine is not suitable for baking in deep fat.

• Do not heat too large quantities at the same time, otherwise the machine will be less efficient.

• In order to interrupt the cooking process, turned the timer to "0".

• Do not heat any enclosed food such as eggs, sausages, preservatives in jars, etc, as there is a danger of explosion!

• Microwaves supply a great deal of energy immediately. Pre-heating is therefore unnecessary.

• The microwave oven does not replace the traditional cooker. It mainly serves for: - defrosting frozen or deep frozen food - rapidly warming up or heat food or drinks - some types of cooking food

• Only suitable tableware should be used, such as:

• - glass, porcelain, ceramics, heat-resistant plastic or special microwave crockery. Operation

1. Place the food to be heated in a suitable piece of tableware.

2. Open the door and place the vessel in the middle of the glass plate. Then close

the door. (For safety reasons the oven only operates when the door is tightly closed.)

3. Adjust the microwave power as required:

Level Power Power Application Grill in % Mikrowave in % High/5 - 100 Rapid heating Medium high/4 - 81 Cooking meat, for example Medium/3 - 58 Continued cooking Medium low/2 - 36 Defrosting frozen food Low/1 - 18 Melting cheese, etc Grill/9 100 - Grilling and baking in cheese Grill+microwave/6 70 30 Defrosting and browning lightly Grill+microwave/7 51 49 Cooking and browning Grill+microwave/8 33 67 Boiling and grilling 30449-05-MWG 725 E 16.09.2005 12:53 Uhr Seite 314. Set the required cooking time with the timer. The cooking time depends on the quantity and constituency of the contents of the oven. With a little practice you will soon learn to estimate the cooking time. Please note: preparation of food in a microwave oven is very much faster than in a conventional cooker. Set the cooking time to a low level if you are not sure and continue cooking again if necessary. Once the cooking time is set the oven switches itself on. The light inside the oven goes on. If you would like to set times shorter than 3 minutes, turn the button past the 10 minute mark and then back. The timer will then run more accurately.

5. After the time has elapsed the oven switches itself off.You can then remove

the food. For recipes and the correct cooking time please use a recipe book especially for microwave ovens available in bookshops. Cleaning Disconnect the oven from the power supply.

• Clean the inside of the oven after use with a slightly damp cloth.

• Clean the accessories in the usual way in soapy water.

• The door frame and seal and neighbouring parts must be cleaned carefully when dirty with a damp cloth. This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements. Subject to technical changes without prior notice! Guarantee Our appliances are guaranteed for a period of 12 months from the date of purchase (receipt). Faulty appliances will be repaired or replaced free of charge if these are attribu- ted to faulty material or manufacture. The guarantee will be invalidated if the appliances are tampered with. For repairs within the guarantee period, please take the complete appliance with the receipt to the place where it was purchased.
