USER MANUAL TributeCollection JB 3010 BRAUN

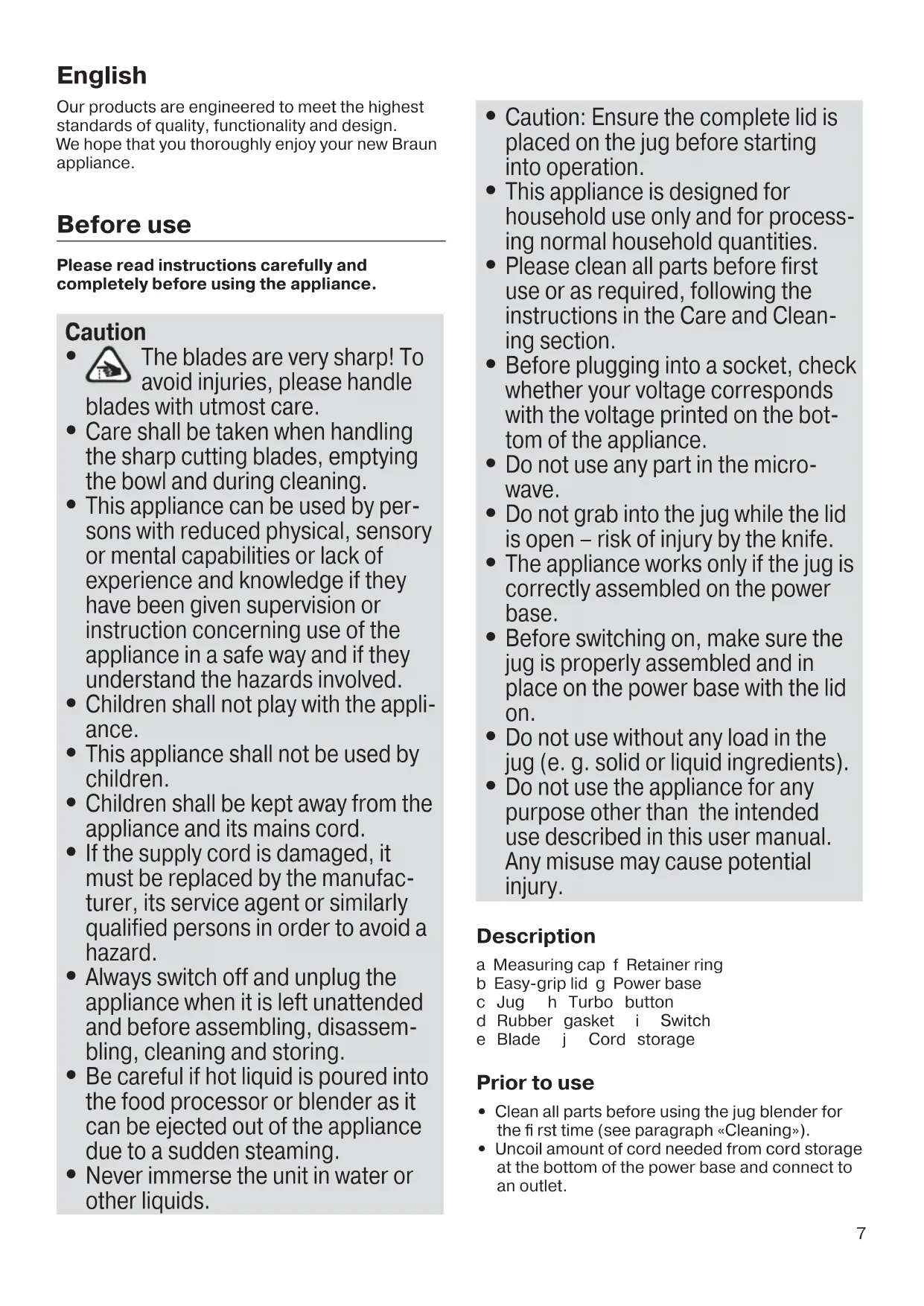

The blades are very sharp! To avoid injuries, please handle blades with utmost care.

Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

This appliance can be used by per- sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appli- ance.

This appliance shall not be used by children.

Children shall be kept away from the appliance and its mains cord.

If the supply cord is damaged, it must be replaced by the manufac- turer, its service agent or similarly qualified persons in order to avoid a hazard.

Always switch off and unplug the appliance when it is left unattended and before assembling, disassem- bling, cleaning and storing.

Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

Never immerse the unit in water or other liquids.

Caution: Ensure the complete lid is placed on the jug before starting into operation.

This appliance is designed for household use only and for process- ing normal household quantities.

Please clean all parts before first use or as required, following the instructions in the Care and Clean- ing section.

Before plugging into a socket, check whether your voltage corresponds with the voltage printed on the bot- tom of the appliance.

Do not use any part in the micro- wave.

Do not grab into the jug while the lid is open – risk of injury by the knife.

The appliance works only if the jug is correctly assembled on the power base.

Before switching on, make sure the jug is properly assembled and in place on the power base with the lid on.

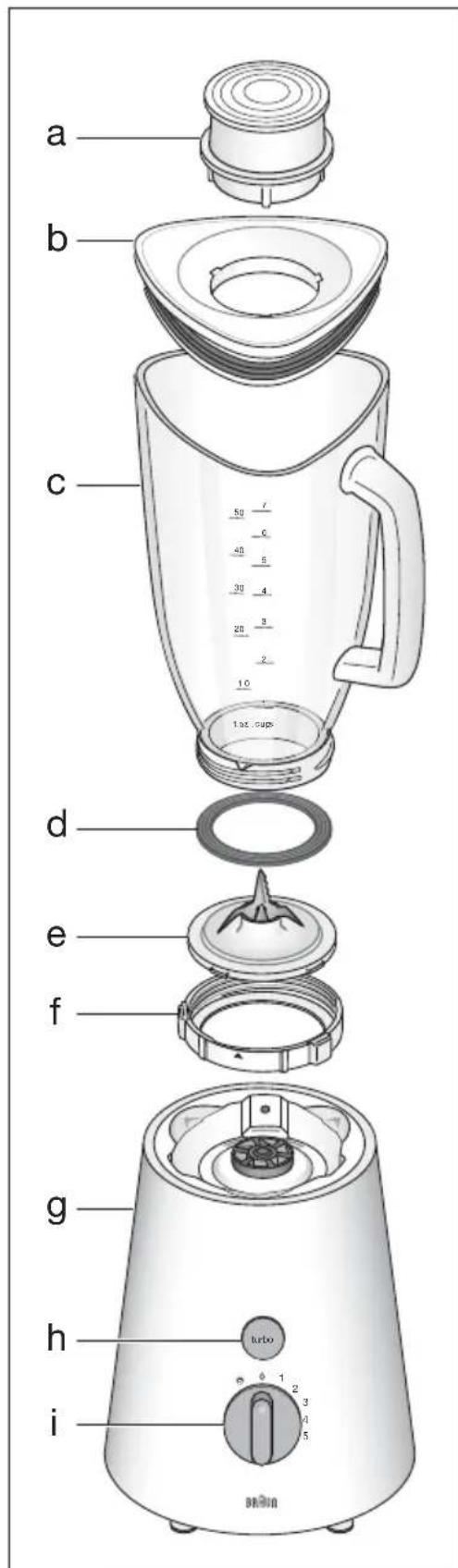

Do not use the appliance for any purpose other than the intended use described in this user manual. Any misuse may cause potential injury. Description a Measuring cap f Retainer ring b Easy-grip lid g Power base c Jug h Turbo button d Rubber gasket i Switch e Blade j Cord storage Prior to use

• Clean all parts before using the jug blender for the fi rst time (see paragraph «Cleaning»).

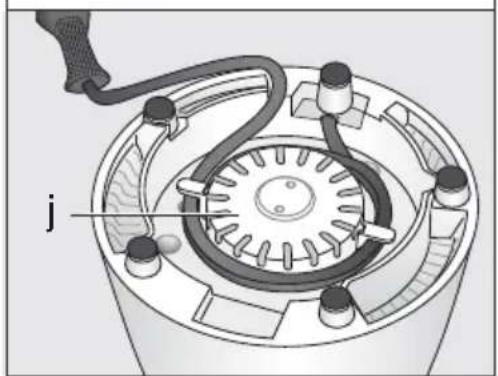

• Uncoil amount of cord needed from cord storage at the bottom of the power base and connect to an outlet. 5722310344_JB3010_JB3060_JB3070_INT_S4-78.indd 7 05.07.17 15:308 Recipe example: Raw vegetable soup Cut 750 g carrots into cubes and fi ll them into the jug. Add 750 ml water, seasoning and herbs. Mix for 9 seconds at maximum speed. Practical hints

• For best puréeing results when puréeing with solid ingredients, feed small portions into the jug gradually rather than adding a large quantity at one time.

• When mixing solid ingredients, cut up into small pieces (2–3 cm).

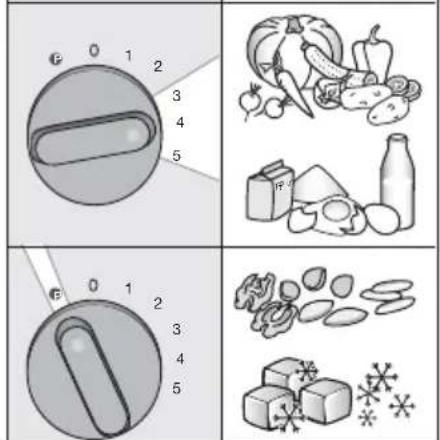

• Always start by mixing solid ingredients with a small amount of liquid. Then gradually add more liquid through the opening in the lid. Speed Applications 1-3 light applications with liquid ingredients 3-5 for thicker consistency – mixing both liquids and solid ingredients

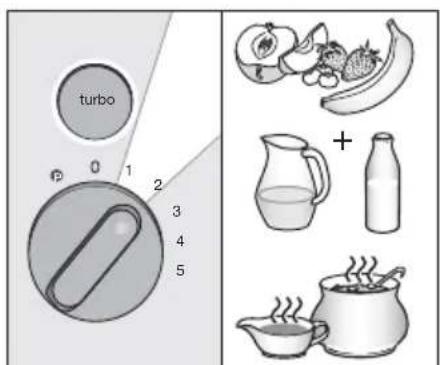

pulse: instant power bursts (The switch does not catch at this setting. Hold the switch in pulse position or turn it to pulse position repeatedly.) Turbo button (1-2) speed boost to max. speed (the button needs to be pressed continuously)

• After use, always turn the switch to the «O» position and unplug the power base.

• To remove the jug, lift it straight up; there is no need to twist it Applications Speed Maximum quantity Time Blending all liquids drinks, warm soups 1-5 1-5

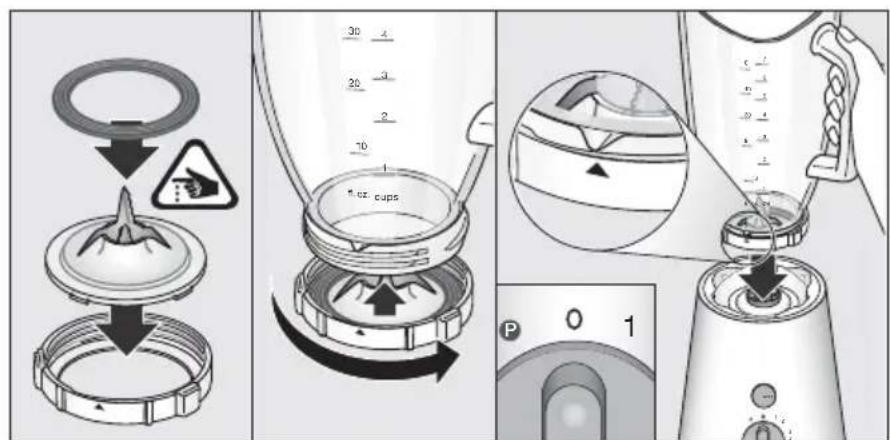

• Carefully place the blade into the retainer ring.

• Position the rubber gasket onto the rim of the blade.

• Screw the jug securely into the retainer ring until the mark on the jug matches the retainer ring. Attaching the jug

• Make sure that the switch is in the «O» position.

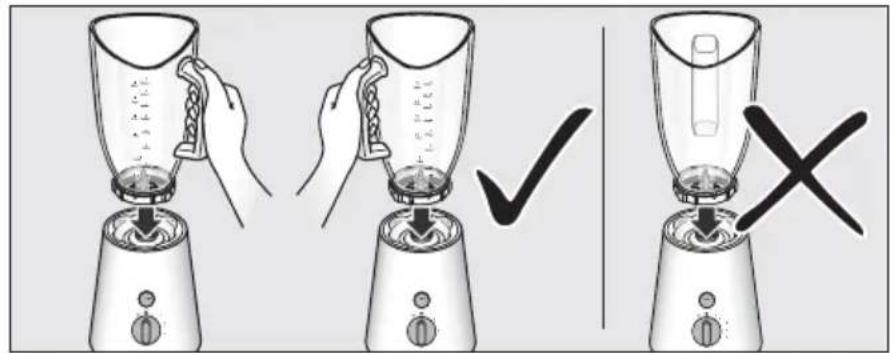

• Place the jug on the power base and push it down until it is securely locked into place. How to use

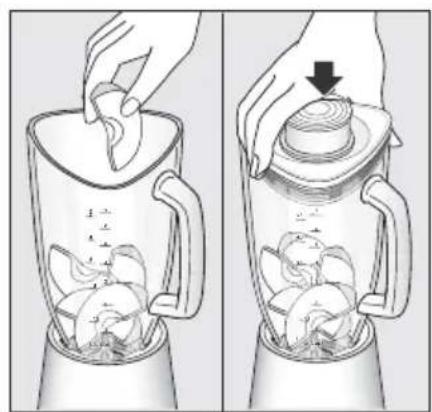

• Put the food to be processed into the jug.

• Place the lid fi rmly on the jug. Insert the measuring cap into the lid opening and turn it clockwise to lock.

• Turn the power base on: 5722310344_JB3010_JB3060_JB3070_INT_S4-78.indd 8 05.07.17 15:309

• Always operate the unit with your hand positioned on the top.

• When preparing mayonnaise, oil may be added through the drip holes in the lid without removing the measuring cap.

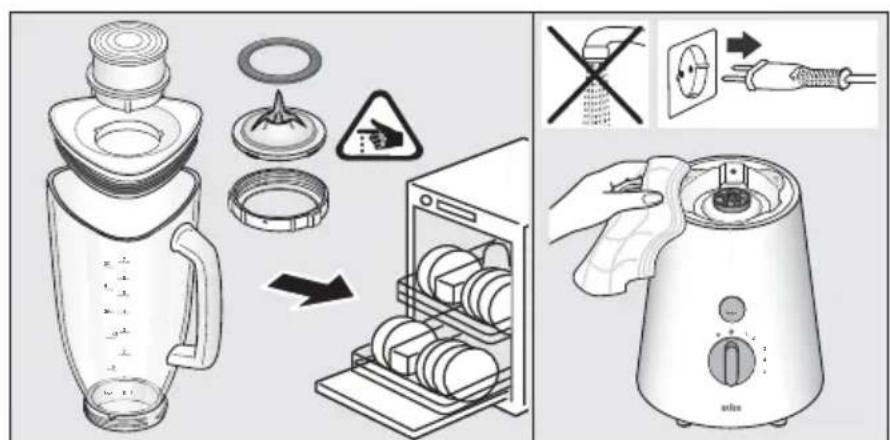

• We recommend that you use the pulse mode when mixing solid or highly viscous ingredients to avoid the blade becoming stagnant. Cleaning Power base Do not immerse the power base in water. Wipe clean with a damp cloth only. Easy cleaning/rinsing of assembled jug After emptying the jug, fi ll it with water. Place it on the power base and turn the switch to the «» setting several times. Empty the jug and rinse clean. Thoroughly cleaning the disassembled jug Make sure the jug is empty before you unscrew the fastener ring. Exercise caution when handling the blade. All detachable parts are dishwasher-safe. Subject to change without notice. Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country. Materials and accessories coming into contact with food conform to EEC regulation 1935/2004. For UK Only Guarantee Information All Braun Household products carry a minimum guarantee period of two years. The rights and benefi ts under this guarantee are additional to your statutory rights which are not aff ected. Please keep your receipt as this will form the basis of your guarantee. In the unlikely event of a breakdown you have access to professional help from our team simply by calling:

For service in the Republic of Ireland please call:

Braun Household undertakes within the specifi ed period to repair or replace any part of the appliance, free of charge (with the exception of any glass or porcelain-ware incorporated in the product) found to be defective provided that;

• We are promptly informed of the defect.

• The product is used and maintained in accordance with the User Instructions.

• The appliance has not been altered in any way or subjected to misuse or repair by a person other than an authorised service agent for Braun Household.

• No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal use.

• Any repaired or replaced appliance will be guaranteed on these terms for the unexpired portion of the guarantee.

• The need for repair has not been caused by insuffi cient aftercare or cleaning: or damage caused by the chemical or electrochemical eff ects of water. Under no circumstances shall the application of this guarantee give rise to the complete replacement of the appliance or entitle the consumer to damages. Braun Household, New Lane, Havant, Hampshire PO9 2NH www.braunhousehold.co.uk Thank You for choosing Braun. We are confi dent that you will get excellent service from this product.
