USER MANUAL TP 20 TECTRO

For safety reasons, please read this manual carefully before operating. Persons who are not familiar with this manual must not use this air conditioner. We strongly recommend keeping this manual in a safe place for future reference.

A. Do not use a damaged cable.	G. Do not immer in water.
B. Do not clamp or bend the cable.	H. Do not spill.
C. Do not place unevenly.	I. Do not insert anything.
D. Do not place in front of an open window.	J. Do not use an extension cord.
E. Do not bring in contact with chemicals.	K. Keep out of the reach of children.
F. Do not place near a heat source.	L. Do not repair.

SICUREZZA

F TOMNING AF VANDBEHOLDER

No实用性. No utility, but the aparato is a good solution.

CONSERVACION

K CONDITIONS DE GARANTIE

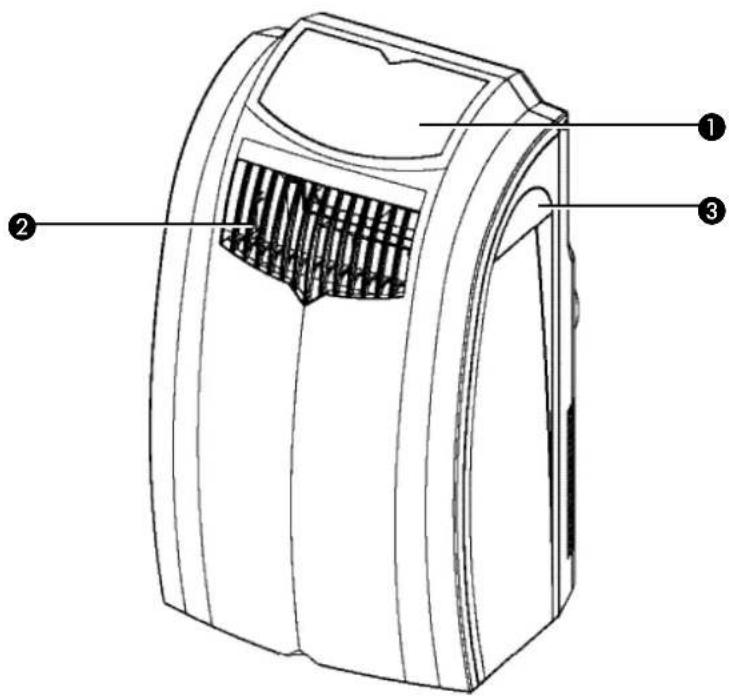

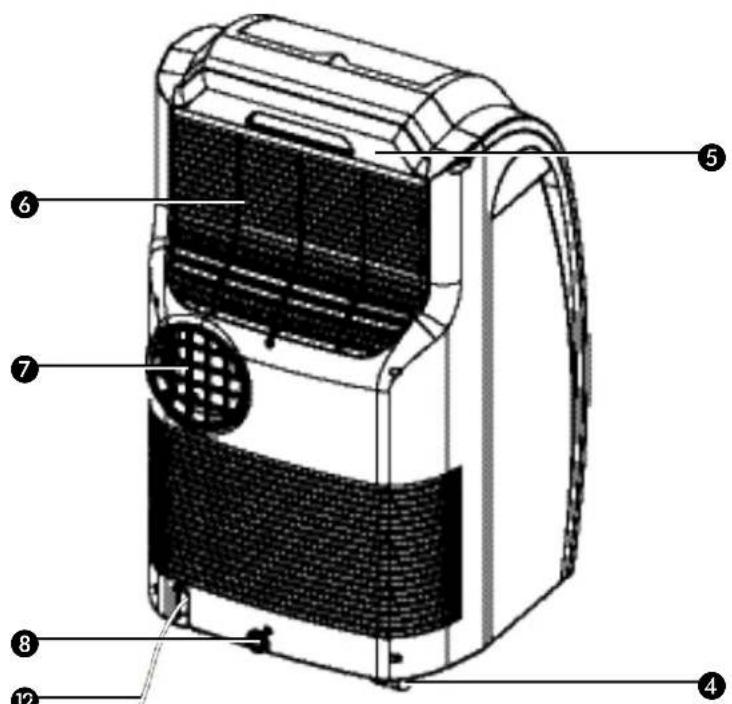

Control panel
Air outlet
3 Handle
4 Casters
Air filter
6 Air inlet
7 Exhaust air outlet
Rubber plug
9 Hose adapter
10 Exhaust hose
Window air outlet
12 Power cord
Remote control

13

1. READ THE DIRECTIONS FOR USE FIRST.
2. IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.

GB

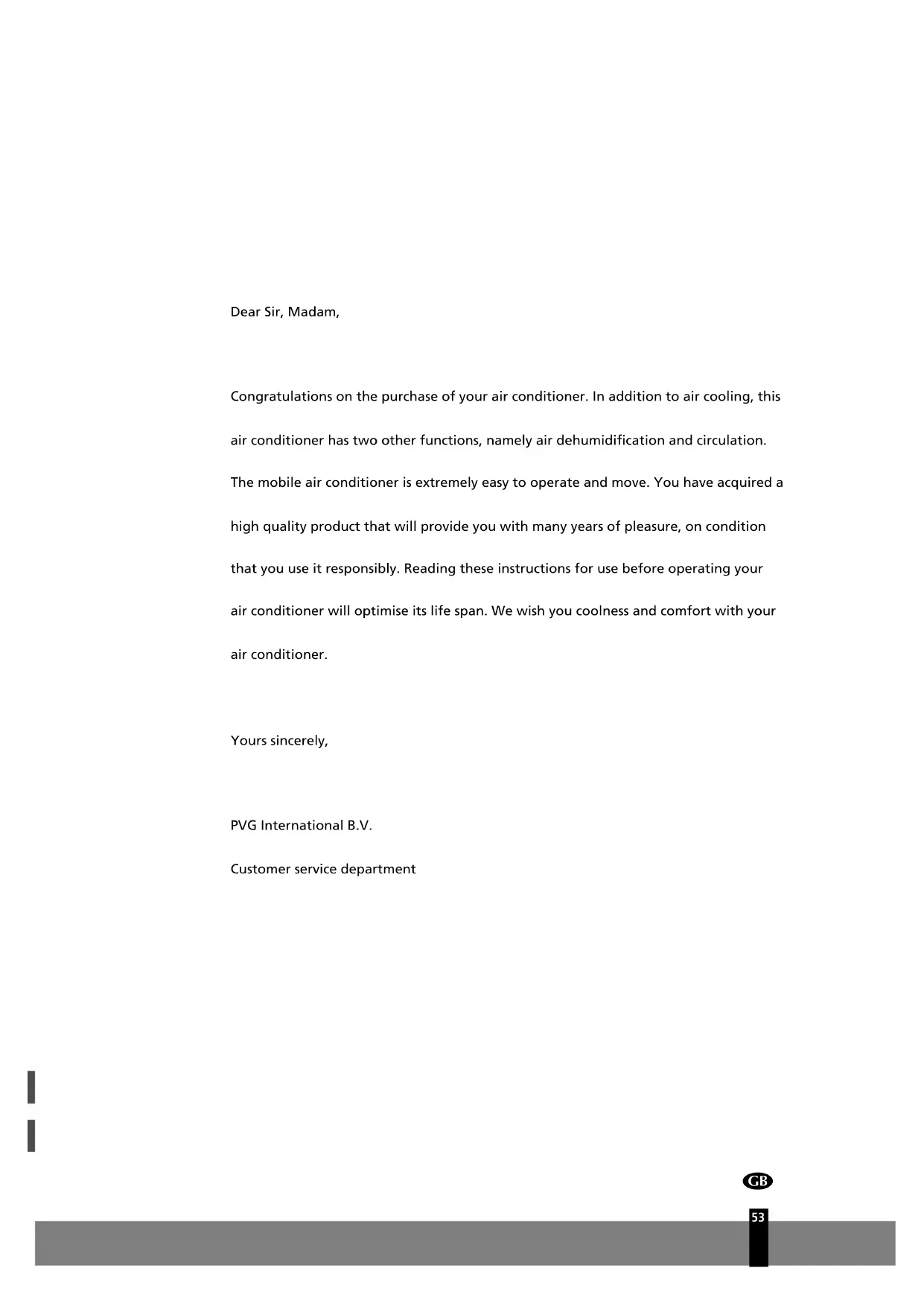

Dear Sir, Madam,

Congratulations on the purchase of your air conditioner. In addition to air cooling, this air conditioner has two other functions, namely air dehumidification and circulation.

The mobile air conditioner is extremely easy to operate and move. You have acquired a high quality product that will provide you with many years of pleasure, on condition that you use it responsibly. Reading these instructions for use before operating your air conditioner will optimise its life span. We wish you coolness and comfort with your air conditioner.

Yours sincerely,

PVG International B.V.

Customer service department

A SAFETY INSTRUCTIONS

Install the device only when it complies with local regulations, by-laws and standards. The unit is only suitable for use in dry locations, indoors. Check the mains voltage and frequency. This unit is only suitable for earthed sockets, connection voltage 220-240 V. / 50 Hz.

IMPORTANT

The device MUST always have an earthed connection. If the power supply is not earthed, you may not connect the unit. The plug must always be easily accessible when the unit is connected. Read these instructions carefully and follow the instructions.

Before connecting the unit, check the following:

• The voltage supply must correspond with the mains voltage stated on the rating label.
• The socket and power supply must be suitable for the current stated on the rating label.
• The plug on the cable of the device must fit into the wall socket.
• The device must be placed on a flat and stable surface.

The electricity supply to the device must be checked by a recognised professional if you have any doubts regarding the compatibility.

• This device is manufactured according to CE safety standards. Nevertheless, you must take care, as with any other electrical device.
• Do not cover the air inlet and outlet grill.
• Empty the water reservoir before moving the unit.
• Never allow the device to come into contact with chemicals.
• Never spray the unit with or submerge in water
• Do not insert objects into the openings of the unit.
• Always remove the plug from the electric power supply before cleaning or replacing the unit or components of the unit.
• Never use an extension cable to connect the device to the electric power supply. If there is no suitable, earthed wall socket available, have one installed by a recognised electrician.
• For safety reasons take care when children are in the surrounding of the device, as with any other electrical device.
• Have any repairs only carried out by a recognised service engineer or your supplier. Follow the instructions for use and maintenance as indicated in the user manual of this device.
• Always remove the plug of the unit from the wall socket when it is not in use.
• A damaged power cord or plug must always be replaced by a recognised electrician or your supplier.

ATTENTION!

• Never use the device with a damaged power cord, plug, cabinet or control panel. Never trap the power cord or allow it to come into contact with sharp edges.
• Never seal the room - where this device will be used - completely airtight. This will prevent under pressure in this room. Under pressure can disrupt the safe operation of geysers, ventilation systems, ovens, etc.
• Failing to follow the instructions may lead to nullification of the guarantee on this device.

B INSTALLATION

WARNING

Before using the air conditioner it should be left in an upright position for at least 2 hours.

This unit is portable and can easily be moved from one room to another. In doing so keep this in mind:

Ensure that the unit is positioned upright and on a level surface.
2 Do not operate the unit inside the bathroom, shower, or in any other very humid environment.
3 Please keep a distance of 50 cm between the unit and the wall or other objects to ensure proper air circulation.
4 Insert both ends of the air exhaust hose in the round connectors. Fasten the connectors by turning them clockwise onto the hose.
5 Insert one round connector 9 in the backside of the unit 7. Fasten the other connector 9 to the window air outlet 11.
6 Ensure that the window air outlet has a free flow outside. Close the window or door as much as possible to prevent outside air from entering the room.

IMPORTANT

The flexible exhaust hose should be less than 1m during operation, which provides the best performance. This length has been designed especially according to the specifications of the air conditioner. Do not use an extension or exchange for a different hose as that may lead to malfunctioning. The exhaust air must flow freely, any blockage can lead to overheating of the air conditioner. Take care to prevent any bow or bend in the exhaust hose.

GB

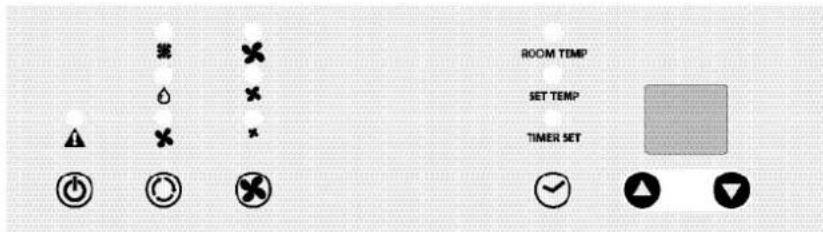

C OPERATION

Insert the plug into the wall outlet.

Press the button to switch on the air conditioner.

3 With button you can change the operating mode of the unit. By pressing the button the following modes appear:

• Cabling, the green light lits.
• Dehumidifying, the orange light lits.
• A circulation, the yellow light lits.

COOLING

When the unit is in the cooling mode, the following functions apply:

The fan speed can be adjusted by pressing the -byston

• Maximum setting.
• Medium setting.

• Lowest setting.

• The temperature can be set by pressing the and buttons, anywhere between 16^ en 32^ . The display will show the set temperature for 15 seconds and the "set temp" will light up. Fifteen seconds after setting the required temperature, the display will show the room temperature.

It depends on the environment whether the required temperature will be reached. It is not a malfunction of the air conditioner if the room temperature remains above the "set temp".

DEHUMIDIFYING

When the unit is primarily used as a dehumidifier, then please follow these instructions: Do not connect the air exhaust hose and let the warm air go back into the room. Connect a drainage hose onto the permanent drain connector on the back of the unit (refer to Chapter G).

When the unit is in the dehumidifying mode, the fan speed cannot be adjusted. The fanspeed will be automatically set on 'Medium setting'. The buttons and so not be adjusted.

AIR CIRCULATION

In this mode the unit only circulates air; the unit will not cool or dehumidify. When the unit is in this mode, the following functions apply:

The fan speed can be adjusted by pressing the -bton

• Maximum setting.
• Medium setting.
• Lowest setting.

4 When the unit is switched off the most recent setting will be stored in memory.

The timer function allows you to switch the unit on or off at a certain time.

TO SWITCH ON THE UNIT AT A CERTAIN TIME

• Ensure that the unit is set in the required operating mode , 4 .
• Switch off the unit by pressing the -button. Ensure that the plug is properly inserted into the wall outlet.
• Press the button. The light "Timer set" will flash.
• Use the and but to set a time between 1 and 12 hours.
• When the set time has expired the unit will switch on.

TO SWITCH OFF THE UNIT AT A CERTAIN TIME

• When the unit is operating in the required mode press the -button. The light "Timer set" will flash.
• Use the area button to set a time between 1 and 12 hours.
• When the set time has expired the unit will switch off.

NOTE!

The compressor has been set so that it starts functioning three minutes after the (re)start of the air conditioner.

The cooling will switch off when the room temperature is lower than the set one. Air circulation will however continue to work on the set level. When the room temperature rises above the selected value, the cooling will work again.

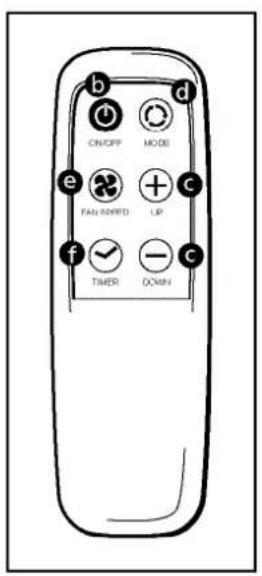

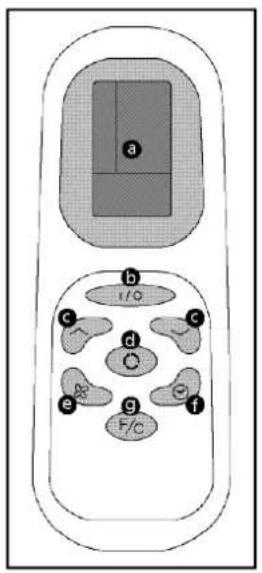

REMOTE CONTROL

a. LCD Screen (TP 25)
b. Power on/off button
c. Timer and thermostat setting buttons
d. Mode button (select A/C, Fan or Dehumidifier)
e. A/C Fan Speed button (High, Medium, Low)
f. Timer ON / OFF button
g. Celsius/Fahrenheit selector (TP 25)

The remote control works in combination with the control panel. Aim the front end of the remote control at the red window. The maximum operating distance from the air conditioner is approximately 5 metres. Place AAA Batteries before use.

TIMER PROGRAMMING

Press the button on the remote or the "Timer Setting" button on the control panel to turn on the Timer Function.
Press the on buttons on the remote or the or button on v control panel to set the desired shut-off period.
The unit will shut off when the set time elapses.

Press the button on the remote or the MODE button on the control panel to select the dehumidifier mode. When the dehumidifier mode is on, the temperature buttons and the fan speed buttons do not function and the fan will operate on medium speed.

The dehumidifier indicator light will illuminate and stay solid while the unit is dehumidifying. When the humidity in the room is 50% or lower, the compressor will not run, the unit will not dehumidify, and the dehumidifier light will blink. Remember, the exhaust hose does not need to be used in dehumidifier mode.

AIR FILTER

The air conditioner is equipped with a screen mesh to filter dust particles from the room air and to keep the internals of the unit clean.

With normal usage the screen mesh filter has to be cleaned every two weeks with a vacuum cleaner. If the filter is not cleaned regularly the filter may block the air flow.

NOTEI

• Remove the active carbon filter before seasonal storage and install a new filter at the beginning of the new season. The old filter can be disposed in the 'Non-biological garbage container'.
• Never use the airconditioner without the screen filter.
• Using the unit without the activated carbon filter will not damage your airconditioner. In that case, airborne micro-organisms are not neutralised and unpleasant odours are not removed.
• Only use suitable Tectro filters. This will prevent damage to your airconditioner.
• Suitable filter packages are available at your dealer.

E AIR FLOW

Move the air vent directly to adjust the air flow direction of the horizontal louvres.

F EMPTY INTERNAL WATER CONTAINER

Under extreme (environmental) circumstances it may be necessary to empty the internal water container regularly. When the internal water container is full the

A light will flash and the unit will beep continuously. The unit will switch off automatically. To empty the water container do the following:

1 Do not move the unit. Drastic movements can cause water leakage.
Switch off the unit and remove the plug from the wall outlet.
Place a pan or appropriate tray on the floor underneath the permanent drain tube.
4 Remove the rubber plug 8 from the drain tube and let the water run out. (± 0.5 litres).
Replace the rubber plug, put the plug into the wall outlet, and switch on the unit. The warning light should be off.

NOTE!

When the air conditioner is in use, under normal circumstances the condensed water will be drained through the air outlet-tube.

G CONTINUOUS DRAINAGE

Switch off the unit and remove the plug from the mains.
Place a pan or appropriate tray on the floor underneath the permanent drain tube to collect any water draining away.
3 Remove the rubber plug 8.
4 Connect a drain tube ( 15mm) into the water outlet and extend with extra water tube as needed.
Place the other end of the drain tube at a location suitable for the purpose (a drain hole, for instance). In doing so, take care to ensure that the tube is not twisted and is free of kinks. The tube must be placed so as to be declining along its entire length.

DEHUMIDIFICATION

If the unit will be used mainly as dehumidifier, do not connect the exhaust hose and let the warm air return in the room. Continuous drainage is then necessary and more efficient. You must, however, use a water drain tube (ø 0.5 inch internal diameter), placing its discharge end at a suitable drainage point.

HCLEANING

WARNING!

First of all switch off the unit and pull the plug.

Clean the housing with a soft, damp cloth. Never use aggressive chemicals, petrol, detergents or other cleansing solutions. Clean the screenfilter regularly with a vacuum cleaner. See also chapter D "Air filter".

NOTE!

Never use the air conditioner without screenfilter.

STORAGE

1 Empty the internal water container (refer to Chapter F)
2 Clean and replace the filter.
3 Put the unit in air circulation mode for a couple of hours to ensure that the inside becomes completely dry.
Store cable as shown, protect the unit against dust and store in a dry place not accessible to children.

J

Problem Cause	Solution
The unit does not function	No power supply	Connect to a functioning outlet and switch on
	Water tank indicator is on	Empty the internal water container (refer to Chapter F)
The unit does not seem to perform	In direct sunlight Close curtains
	Windows or doors open, many people or heat source in room	Close doors and windows, or place an extra air conditioner
	Dirty filter Clean or replace filter
	Air inlet or air outlet blocked Remove blockage
	Room temperature lower than selected value	Change temperature selection
The unit is noisy	Unit stands uneven	Place on even surface (less vibrations)
The compressor does not work	Overheat protection probably activated	Wait 3 minutes until the temperature has decreased, and turn on the unit again
Remote control does not function	Distance too great	Make sure the remote control is correctly aimed at the control panel
	Remote control signal not detected by control panel
	Batteries empty Replace the batteries

Never try to repair or dismantle the air conditioner yourself. Incompetent repairs result in loss of warranty and can endanger the user.

K GUARANTEE CONDITIONS

The air conditioner is supplied with a 24-month guarantee, commencing on the date of purchase. All material and manufacturing defects will be repaired or replaced free of charge within this period. The following rules apply:

1. We expressly refuse all further damage claims, including claims for collateral damage.
2. Repairs to or replacement of components within the guarantee period will not result in an extension of the guarantee.
3. The guarantee is invalidated if any modifications have been made, non genuine parts are fitted or repairs are carried out by third parties.
4. Components subject to normal wear, such as the filter, are not covered by the guarantee.
5. The guarantee is valid only when you present the original, dated purchase invoice and if no modifications have been made.
6. The guarantee is invalid for damage caused by neglect or by actions that deviate from those in this instruction booklet.
7. Transportation costs and the risks involved during the transportation of the air conditioner or air conditioner components shall always be for the account of the purchaser.
8. Damage caused by not using suitable Tectro filters is not covered by the guarantee.

To prevent unnecessary expense, we recommend that you always first carefully consult the instructions for use. Take the air conditioner to your dealer for repairs if these instructions do not provide a solution.

L TECHNICAL DATA

To be used as indication, subject to modifications

Model		TP 20 TP 25
Cooling capacity* W 2000 2500
EE Class*		B	B
EER*		2.5 2.5
Power consumption	W 800	1000
Current nom.	A 3.6 4.5
Mains	V/Hz/PH	220 - 240 / 50 / 1
Air delivery max.	m³/h	320	360
Dehumidification max. **	L/24h	23	28
Room size	m³	65	85
Compressor model		rotary
Refrigerant	type/gr	R-407c / 500	R-407c / 600
Thermostat range	°C	16 - 32
Fan speeds		3
Noise level	dB	52
Dimensions (w x h x d)	mm	435 x 760 x 420
Weight	kg	34.2
Unit protection		IP 20
Active carbon filter		yes yes

* Conform EN 14511
** Moisture removal at 32^ , 80% RH

Waste electrical products should not be disposed with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
