Geteiltes Klimagerät zur Wandmontage

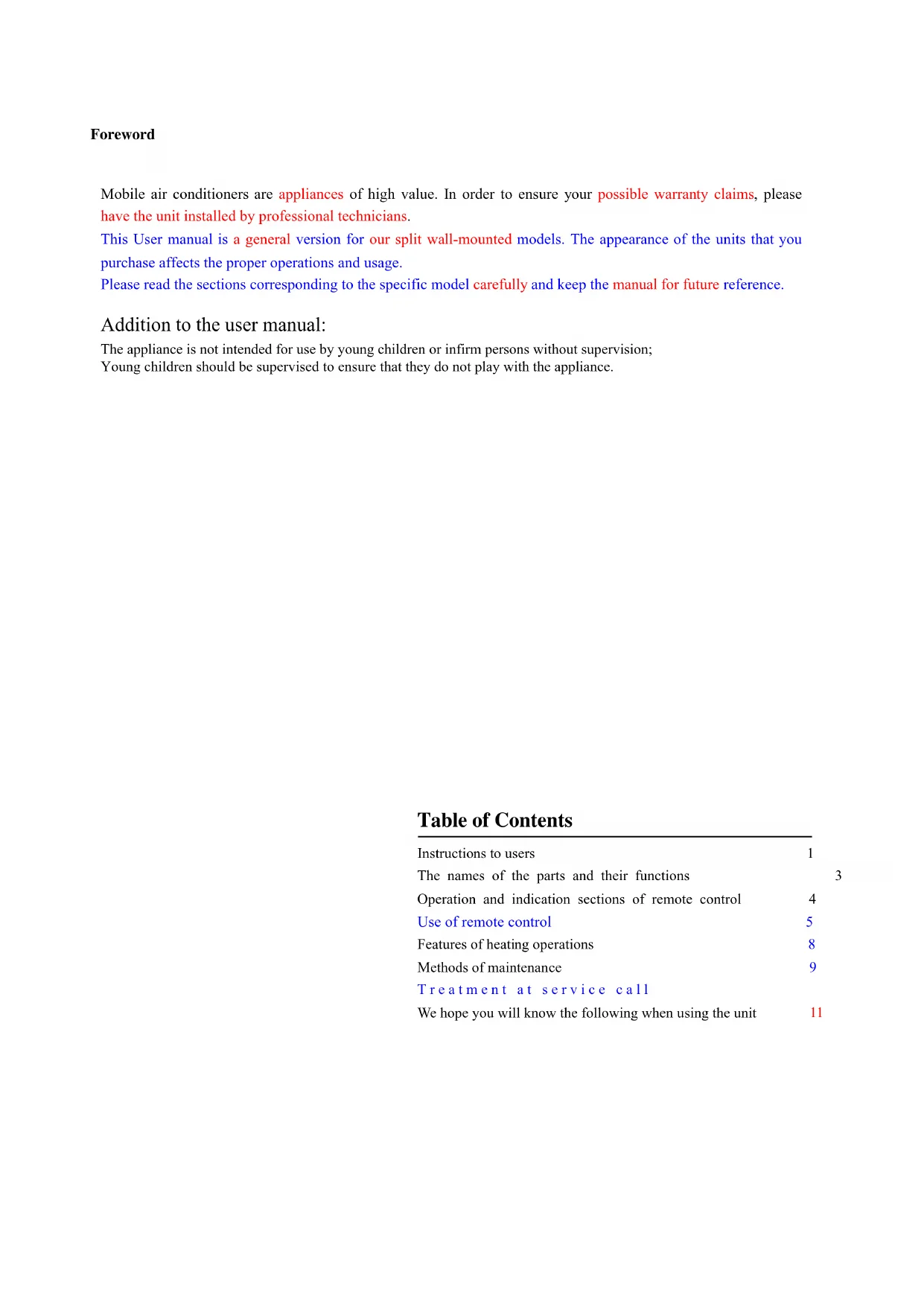

11Mobile air conditioners are appliances of high value. In order to ensure your possible warranty claims, please

have the unit installed by professional technicians.

This User manual is a general version for our split wall-mounted models. The appearance of the units that you

purchase affects the proper operations and usage.

Please read the sections corresponding to the specific model carefully and keep the manual for future reference.

Addition to the user manual:

The appliance is not intended for use by young children or infirm persons without supervision;

Young children should be supervised to ensure that they do not play with the appliance.

Instructions to users 1

The names of the parts and their functions 3

Operation and indication sections of remote control 4 Use of remote control 5

Features of heating operations 8 Methods of maintenance 9

Treatment at service call 10

We hope you will know the following when using the unit 11 Foreword【Instructions for users】

Please read the user manual carefully prior to the use of your air conditioner to ensure proper operation.

● Make sure to have the professional after-sale service personnel of our company or authorized dealers to install the

1.The units are not to be installed at places where there

might be leakage of combustible gases.

In case that the leaked gas accumulates around the units,

there might be fire hazards.

Make sure that the earth leakage-circuit breaker

Absence of the earth leakage-circuit breaker might lead to

electric shock and some other hazards.

After connecting the wires between indoor and outdoor

units, check whether the connection is loose by pulling

the wire with a little force.

The loose connection might result in

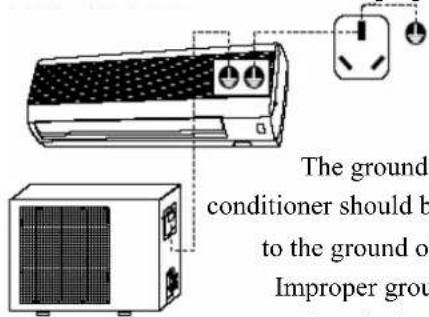

Make sure that the air conditioner is properly grounded.

The grounding wire on the air

conditioner should be tightly connected

to the ground of the power source.

Improper grounding might cause

electric shock or other hazards.

Never try to switch off the air

conditioner by disconnecting the

Such performance might cause

electric shock or fire hazards.

Do not connect to convenience

receptacle, the use of an extension

cord is strictly prohibited. Nor is it

allowed to share the same plug

connector with other electric

It might cause electric shock,

overheating, fire hazard or other

Do not press, stretch, damage, heat or

modify the power supply cable.

It might cause electric shock, overheating,

fire hazards, etc. If the power supply cable

is damaged or needs to be replaced due to

some other reasons, please ensure to have

authorized maintenance personnel doing

Do not operate the switch with

It might cause electric shock.

Before plugging the unit in, please

make sure that there is no dust on it

and that it is plugged fully in place

If there is dust on the

plug or if the plug is not

in place, it might cause

electric shock or fire hazards.

Never use a fuse with incorrect capacity or

The use of metal or copper wires for fuse

might cause malfunction or fire hazards.

lit Wall-Mounted Air Conditione

wireRemoval and Repair

●When removal or repair is needed, please contact your retailer or authorized maintenance & installation personnel.

●In case of any abnormal occurrences (smell or burning), please stop the unit at once, disconnect the power supply and

contact your retailer or authorized maintenance & installation personnel.

Try to prevent the sunlight and

hot air from entering the room.

During cooling operation,

curtains or window-blinds should

be used to shade off the sunlight.

Try to minimize heat generation

during cooling operation.

Place the heating sources outside the

Do not use coal-burning stoves in the

air-conditioned room.

It might lead to the incomplete

Do not place insecticides or

paints and other flammable

sprays near the air conditioner, or

spray them directly at the air

When it is necessary to use the air

conditioner and coal-burning stoves in

the same room, ensure proper air

Insufficient ventilation might lead to

lack of oxygen or some other dangers.

Prior to the maintenance of the air

conditioner, please disconnect from

mains power supply. Never clean of

the units when the fan is in

high-speed operations.

Do not insert foreign objects into

As the fan is in high-speed

operation, the insertion might

Adjust the air direction correctly.

Properly adjust the up/down and

left/right directions of the airflow to

get an even room temperature.

Do not expose yourself to the cool

It might cause discomforts, which is

harmful to your health.

Do not clean the air conditioner

It might cause electric shock.

Do not attach, hang or stack articles

on the air conditioner

It might fall down and cause accidents

Check the supporting structures of

the units carefully.

In case of damages the supporting

structures should be immediately

repaired to avoid the unit falling

down, which might cause injuries or

Do not sit on the outdoor unit or

place any objects on it.

the unit or the objects

Do not use the following substances:

Hot water (over 40°C)

The use of hot water will deform the

air conditioner or discolor it.

Gasoline, thinners, benzene and

polishing agents, etc.

These substances will deform the air

conditioner or cause scratches.

Disconnect when the unit is not in

use for long time to ensure safety.

When disconnecting, make sure that

the air conditioner is switched off.

USER’S MANUAL Split Wall-Mounted Air Conditioner

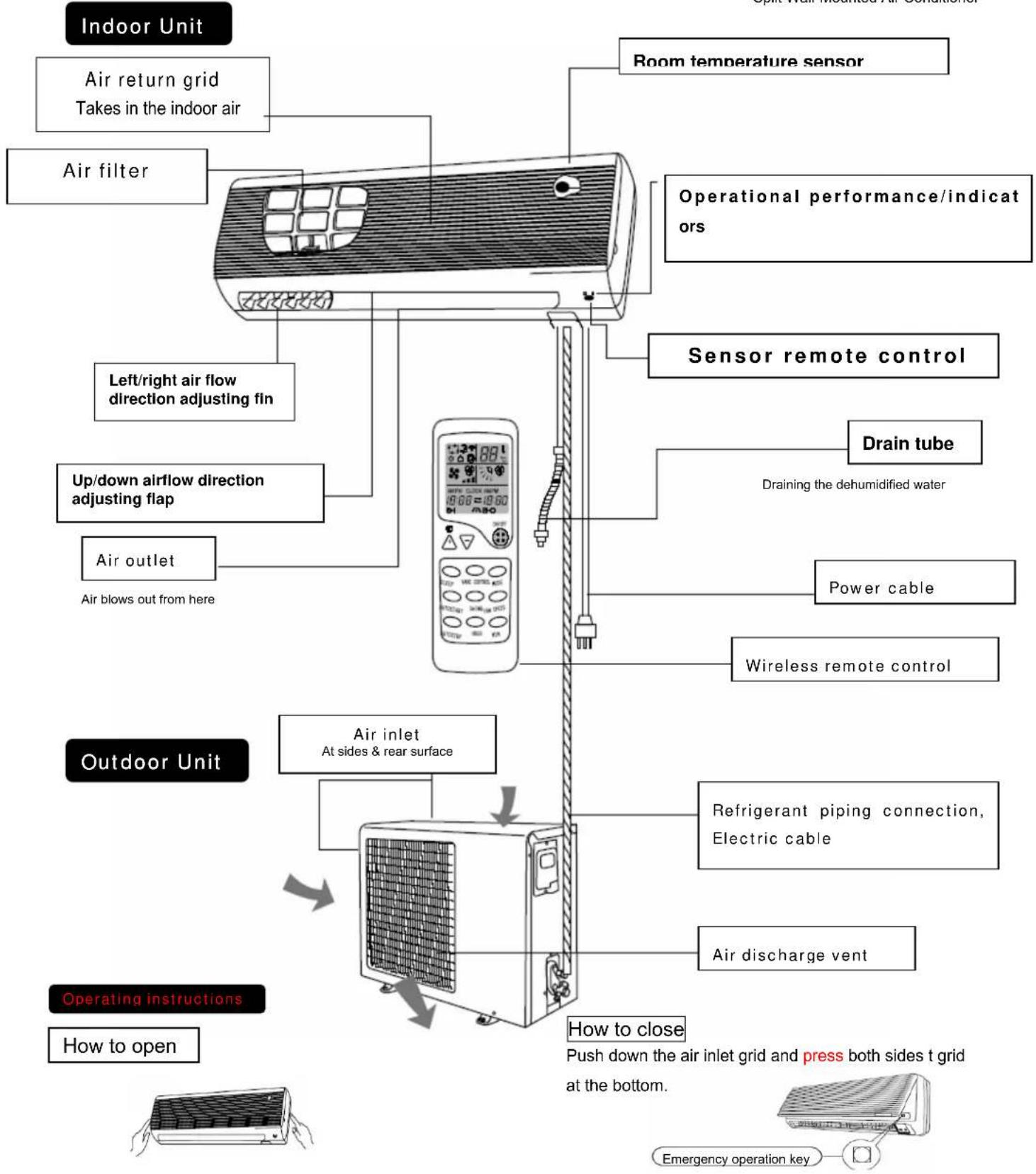

2【 The names of the parts and their functions】

Lightly push both sides of the air inlet grid at the bottom

and pull it to the side till a resistance is felt.

This button can be used as an emergency measure to turn

on/off unit when remote control is not available.

y Note: Do not open the grid at an angle over 60degrees. Do not handle the units with too much force.

USER’S MANUAL Split Wall-Mounted Air Conditioner

Takes in the indoor air

Operational performance/indicat

Sensor remote control

Drain tube Draining the dehumidified water

Up/down airflow direction adjusting flap

Left/right air flow direction adjusting fin

Air blows out from here How to close

How to open Emergency operation key Push down the air inlet grid and press both sides t grid

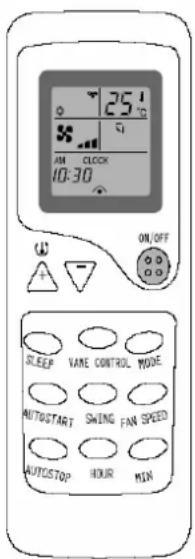

ireless remote control

Refrigerant piping connection, Electric cable

At sides & rear surface Outdoor UnitT he names of the parts and their functions

NOTE Above illustration shows all indications for

explanation but actually only the pertinent

parts are indicated. When air-conditioner is

cool-only model, the HEAT changes to FAN During TIMER operation display of

TIMER. During normal operation

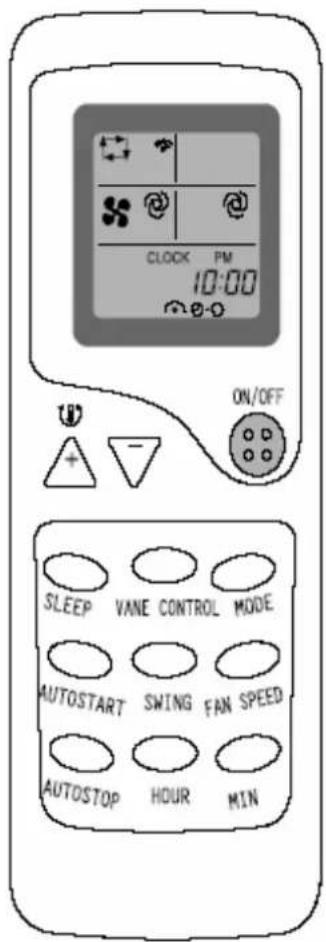

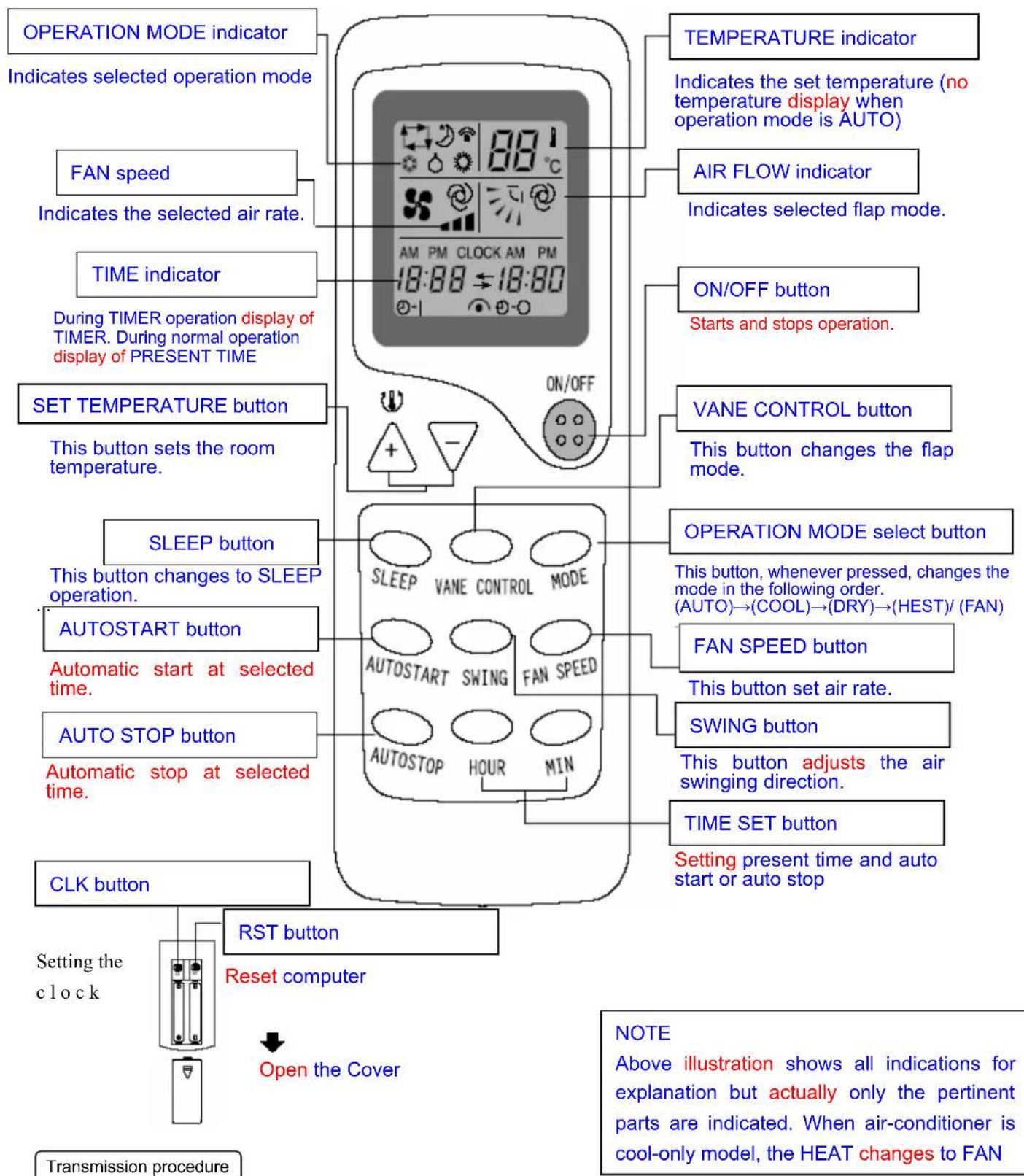

display of PRESENT TIME Starts and stops operation.

This button sets the room

This button changes the flap

Automatic start at selected

This button set air rate.

Automatic stop at selected

This button adjusts the air

Setting present time and auto

This button, whenever pressed, changes the

mode in the following order.

(AUTO)→(COOL)→(DRY)→(HEST)/ (FAN)

Transmission procedure

Point remote control towards the sensor in the unit.

When the signal is received correctly, a receiving sound is emitted

USER’S MANUAL Split Wall-Mounted Air Conditioner

Indicates selected operation mode

Indicates the selected air rate.

Indicates selected flap mode.

Indicates the set temperature (no

temperature display when

operation mode is AUTO)

This button changes to SLEEP

Open the CoverAdjust airflow direction

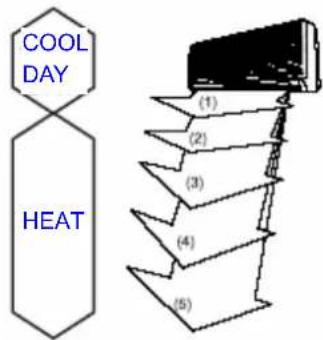

Adjusting up/down airflow direction

Up/down direction can be adjusted by using the VANE CONTROL button on the remote control. This button cycles

through the modes as follows:

(1) (2) (3) (4) (5) (AUTO)

Change to the VANE CONTROL mode.

Each time the button is pressed, fan speed is changed in sequence, from

[Lo] [Mid] [Hi] [AUTO],

To cool the whole room, use the

(HI) mode, (COOL MODE). If the sound of the operating unit disturbs your sleep,

HEAT mode when adjusting to

z In cooling operation, when the air conditioner is operated

with VANE CONTROL blowing down (4) or (5) for 1 hour,

the VANE CONTROL direction is automatically set to level

to prevent condensed water from dropping.

z Adjust the vertical VANE CONTROL direction using the

remote control. If the horizontal vanes are moved manually,

it may cause trouble.

z In heating operation, if the output air temperature is too low

or when defrosting is done, the horizontal vane position is

Adjusting left/right air flow direction

Adjust the direction by manually changing the

left/right airflow direction adjusting fin.

SWING ADJUSTMENT Press the SWING button

z To stop the SWING operation mode;

Press the SWING button again

z If the SWING button is pressed during swing

USER’S MANUAL Split Wall-Mounted Air Conditioner

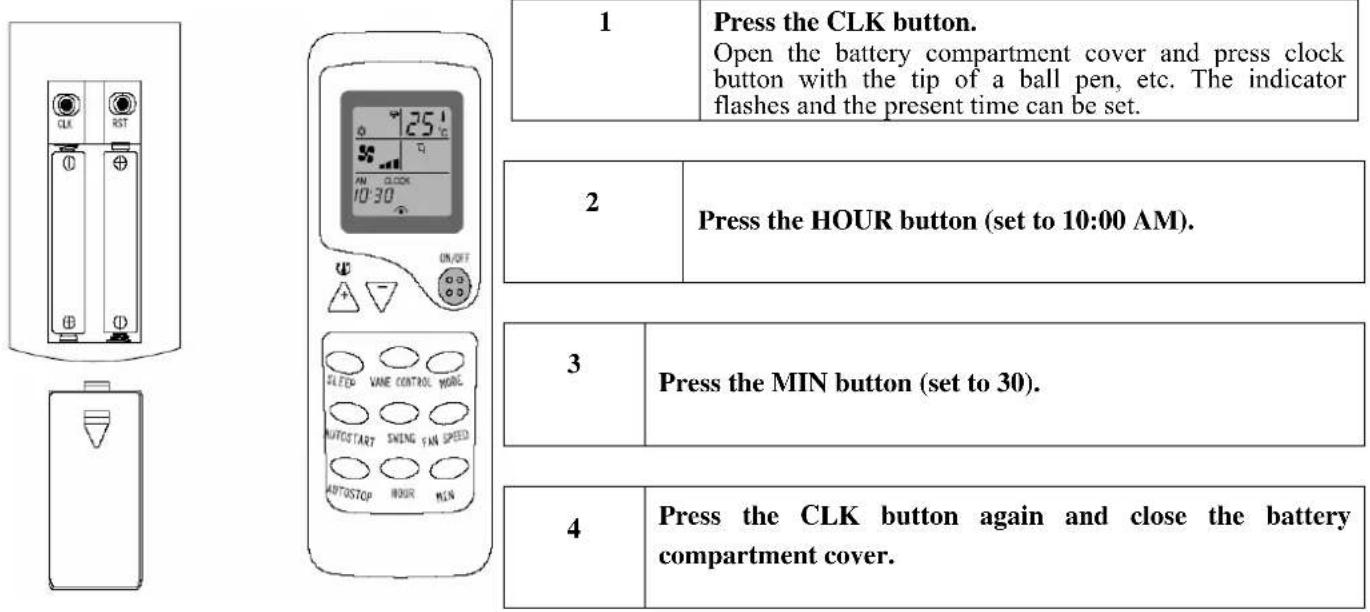

CAUTIONSET PRESENT TIME After installing the batteries, the present time is automatically set to AM 12:00. Example: Set to 10:30 AM.

Press the CLK button.

Open the battery compartment cover and press clock

button with the tip of a ball pen, etc. The indicator

flashes and the present time can be set.

NOTE: The timer is according to the present time. So please take care

in setting the correct time.

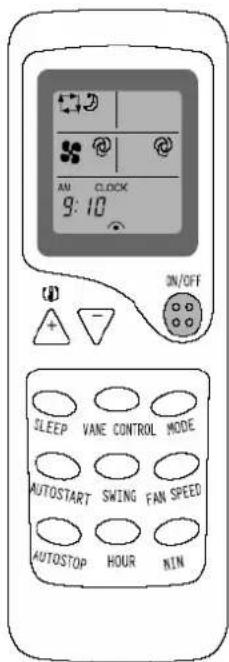

SLEEP OPERATION Use this mode to reduce operation sound when sleeping, etc.

To stop the sleep mode:

The airflow sound from the indoor unit is reduced.

When the FAN SPEED button is pressed during the SLEEP mode,

the SLEEP mode is stopped.

Press the CLK button again and close the battery

Press the SLEEP button

Press the SLEEP button again.

Use the sleep mode when you are going to bed. If this mode it

used in the day, the capacity is reduced since the ambient

temperature is too high. (COOL MODE).

USER’S MANUAL Split Wall-Mounted Air ConditionerHow to set the ON timer

Press the AUTO START button to set the on timer mode during

Each time the button is pressed, the ON timer mode alternates

Set the time of the timer using the HOUR and MIN buttons.

Each time the HOUR button is pressed, the Set time is counted up by

1 hour; each time the “MIN” button is pressed, the set time is counted

• To disable the ON timer:

Press the AUTO START button to disable the timer.

HOW to set the OFF timer

Press the AUTO STOP button to set the OFF timer mode during

Each time the HOUR button is pressed, the set time is counted up by

Each time the MIN button is pressed, the set time is counted up by 10

Set the time of the timer using the HOUR and MIN buttons.

Each time the HOUR button is pressed, the Set time is counted up by

1 hour; each time the “MIN” button is pressed, the set time is counted

• TO disable the OFF timer:

Press the AUTO stop button to disable the timer.

The On timer and OFF timer can be used in combination. The time of the set

time, which is reached first will operate first (

mark indicates the order of

• If the current time has not been set, the timer operation cannot work.

【 Features of Heating Operations 】

Basic principles and performances

• The unit absorbs heat from the outdoors air and transfers it indoors to heat the room air. The heating capabilities

through this principle of heat pump vary with the increase/decrease of the temperature outside.

• It only needs a fairly short time for such hot air circulation system to raise the room temperature.

• When the outdoor air temperature is very low, the system can be used together with other heating devices. Good

ventilation should be maintained to ensure safety and prevent accidents.

When the outdoor air temperature is very low and humidity is very high, frosting will occur to the heat exchanger of the

outdoor unit, which has negative impacts upon the efficiency of the heating performance. In such case the automatic

defrosting function will come into play. The heating operation will be stopped for 5-10 minutes to defrost.

• The fans of both outdoor and indoor units are stopped. During the defrosting operation, the pilot light will flash

• During the defrosting, the outdoor unit might generate some steam; it is caused by fast defrosting and is not a

• Upon the completion of the defrosting process, the heating operation is resumed.

USER’S MANUAL Split Wall-Mounted Air Conditioner

Convenient timer setting for sleeping,

coming home or the following

The air conditioner must be turned off and unplugged from wall outlet before carrying out maintenance.

Prior to operating season After the operating season

Cleaning of the air filter screen (Standard intervals should be

once every two weeks).

After the operating season

1. Set the temperature at 30ºC and operate in fan

mode for about half a day.

To dry the interior of the units

2. Switch the unit off.

The air conditioner will consume about 5W

of electric power after the machine is turned

off. For the purpose of energy saving and

safety, it is advisable to disconnect

during the non-operational seasons.

3. Clean and install the air filter screen.

4. Clean the indoor and outdoor units.

5. Take the batteries out from the remote control.

USER’S MANUAL Split Wall-Mounted Air Conditioner

Check if there are any blockages in

the intake and outlet vents of the

indoor and outdoor units

Remove the air filter screen from the

x Gently press the lower ends of

the grid and open it.

x Gently pull up the air filter screen

and take it out towards your body.

Check if the installation stand is

grounded. Grounding terminal Clean the air filter screen.

If the screen is very dirty, please use lukewarm wate

(about 30 ℃) to clean it. Dry it fully after cleaning.

y Do not use boiling water to clean the screen

y Do not dry over a fire.

y Do not exert too much fore in pulling and stretching the screen.

Check if the air filter is clean.

Connect to the power source.

Insert batteries in the remote control.

Install the air filter screen

To operate the unit without the air filter screen on will make the

interior of the machine dirty which might lead to poor performances

or damages to the units

Clean the air conditioner

y Use a soft and dry cloth to rub the air

conditioner, or use a vacuum cleaner to clean

y If the air conditioner is very dirty, use a piece

of cloth and soak it with neutral household

detergent and clean it.

If the air filter screen is blocked by dust or dirt,

cooling and heating will be affected while the

operation noise and power consumption will

Therefore, the air filter screen should be cleaned

regularly.【Treatment at service call】

Please check the following before requesting after-sales service from your dealer.

Cases requiring immediate contact with the distributor

Disconnect immediately from power supply and inform your distributor about the following situations:

Fuse or breaker often blows Power plug or cord is excessively hot. Insulation power plug or cord is

When malfunctioning is observed when the RUN button is pressed, disconnect and restart after 3 minutes.

USER’S MANUAL Split Wall-Mounted Air Conditioner

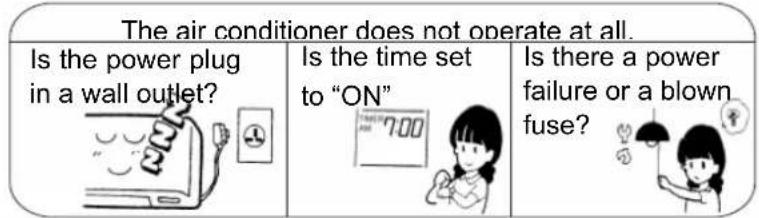

The air conditioner does not operate at all.

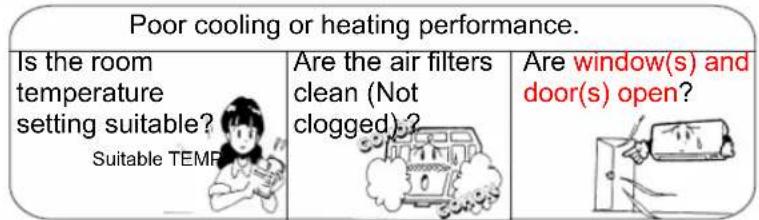

Poor cooling or heating performance.

Room temperature cannot be controlled

(Too cold or too hot)

Is the room temperature setting too

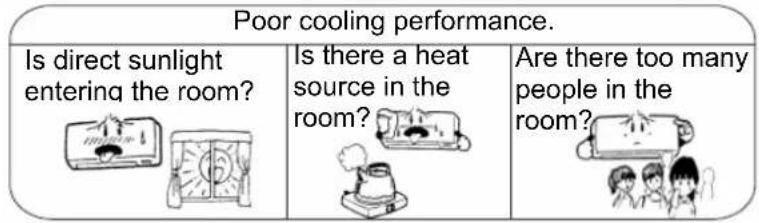

Poor cooling performance.

Malfunction occurs to TV, radio

Switch does not work

bnormal noise during operation

If the air conditioner does not operate

properly even after conducting the above

checks, when the doubt still remains even

after consulting page 11 or in case that

such phenomena as those shown below,

turn off the power and contact you

distributor.【Please remember the following

when using the unit】

The unit cannot be restarted right after shut down

Restart is not available for 3 minutes after the unit shuts down

in order to protect the unit

Three-minute protection timer incorporated in the

microcomputer actuates automatically, Except that power is

connected, this function does not actuate.

Air is not blown out at starting of heating operation

Air blow stops to prevent blowing out of cold air until the

indoor heat exchanger is warmed up. (2 to 5 min) (HOT KEEP)

Air is not blown out for 6 to 12 min, at heating

When outdoor temperature is low and the humidity is high, the

unit sometimes conducts defrosting operation automatically.

Please wait. During defrosting, water or steam is released from

Air is not blown out at DRY operation. Indoor fan sometimes stops to prevent vapor or dehumidified

moisture and to save energy.

Mist is blown out at COOL operation.

This phenomenon sometimes occurs when the temperature and

humidity of the room are very high, but it will disappear with

the decrease of the temperature and humidity.

Air blown out during operation may smell. This is the smell of

tobacco or cosmetics stuck to the unit.

Noise like cracking sound is heard.

This is caused by the refrigerant that is circulating inside the

Noise is heard, cracking sound. After a power

stoppage or after disconnecting the power supply.

This is caused by heat expansion or contraction of plastics.

Operation cannot be restarted even if the power

The memory of the microcomputer is cleared. Operate the

remote control again to restart the operation.

Remote control signals are not received.

Remote control signals may not be received when the sensor on

the air conditioner is exposed to direct sunlight or strong

lighting. In that case, cover the windows or darken the lighting.

Moisture may form on the air outlet grilles.

If the unit operates for a long period at high humidity, moisture

may form on the air outlet grilles and drip down.

Operational performance/indicators

After installing the batteries, the present time is automatically set to AM 12:00. Example: Set to 10:30 AM.

Automatic stop at selected

5. Remove as baterias do remote controle.

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point

for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts

your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic

appliances you contribute an important push to the protection of our environment. Ask your local authorities for information

regarding the point of recollection..

Avvertenza per la tutela dell’ambiente
