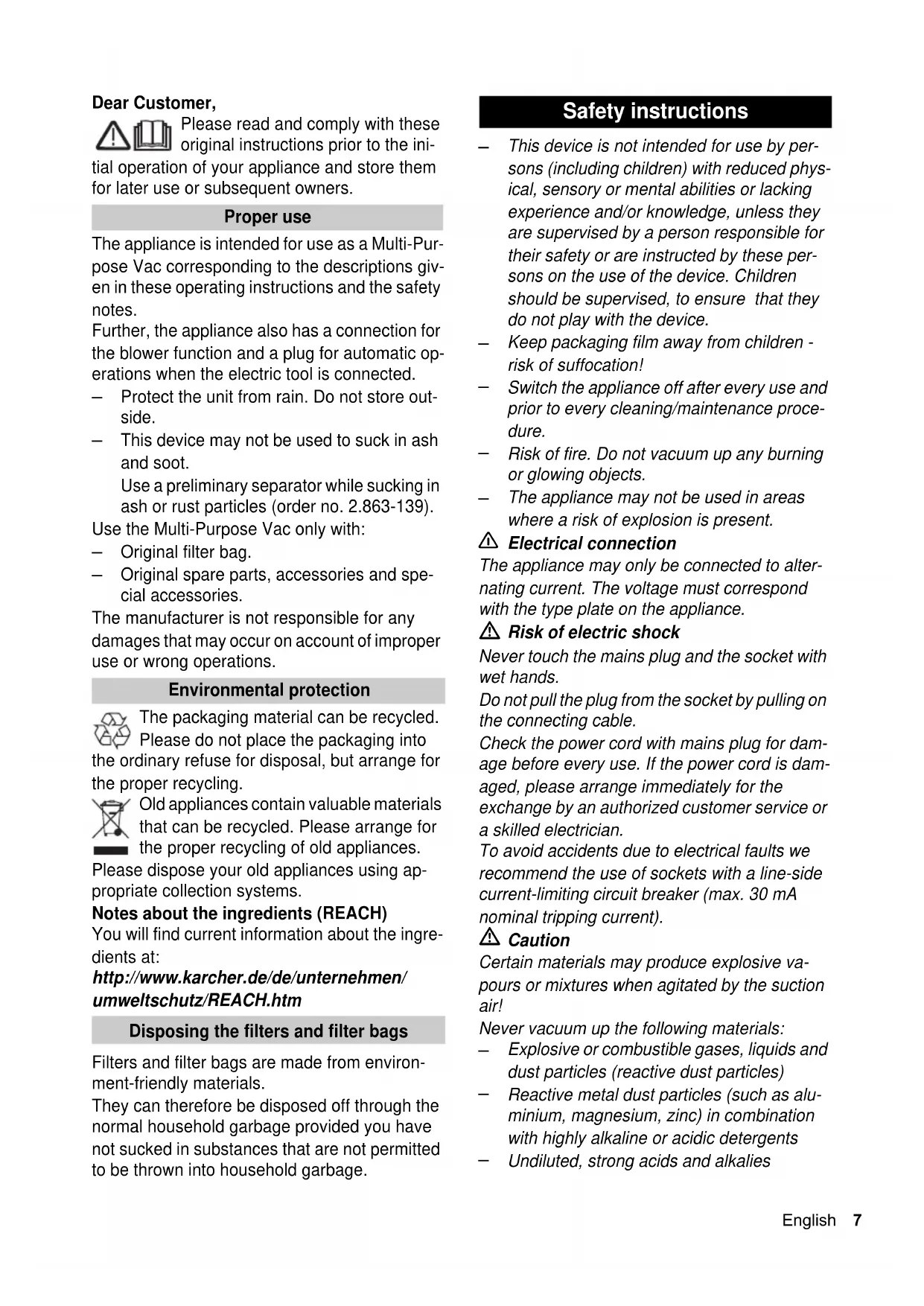

Please read and comply with these original instructions prior to the ini

tial operation of your appliance and store them for later use or subsequent owners.

Proper use

The appliance is intended for use as a Multi-Purpose Vac corresponding to the descriptions given in these operating instructions and the safety notes.

Further, the appliance also has a connection for the blower function and a plug for automatic operations when the electric tool is connected.

• Protect the unit from rain. Do not store outside.
• This device may not be used to suck in ash and soot.

Use a preliminary separator while sucking in ash or rust particles (order no. 2.863-139).

Use the Multi-Purpose Vac only with:

Original filter bag.
- Original spare parts, accessories and special accessories.

The manufacturer is not responsible for any damages that may occur on account of improper use or wrong operations.

Environmental protection

The packaging material can be recycled.

Please do not place the packaging into

the ordinary refuse for disposal, but arrange for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances.

Please dispose your old appliances using appropriate collection systems.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

Disposing the filters and filter bags

Filters and filter bags are made from environment-friendly materials.

They can therefore be disposed off through the normal household garbage provided you have not sucked in substances that are not permitted to be thrown into household garbage.

Safety instructions

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental abilities or lacking experience and/or knowledge, unless they are supervised by a person responsible for their safety or are instructed by these persons on the use of the device. Children should be supervised, to ensure that they do not play with the device.
• Keep packaging film away from children - risk of suffocation!
• Switch the appliance off after every use and prior to every cleaning/maintenance procedure.
• Risk of fire. Do not vacuum up any burning or glowing objects.
  The appliance may not be used in areas where a risk of explosion is present.

Electrical connection

The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.

Risk of electric shock

Never touch the mains plug and the socket with wet hands.

Do not pull the plug from the socket by pulling on the connecting cable.

Check the power cord with mains plug for damage before every use. If the power cord is damaged, please arrange immediately for the exchange by an authorized customer service or a skilled electrician.

To avoid accidents due to electrical faults we recommend the use of sockets with a line-side current-limiting circuit breaker (max. 30 mA nominal tripping current).

Caution

Certain materials may produce explosive vapours or mixtures when agitated by the suction air!

Never vacuum up the following materials:

• Explosive or combustible gases, liquids and dust particles (reactive dust particles)
• Reactive metal dust particles (such as aluminium, magnesium, zinc) in combination with highly alkaline or acidic detergents
  Undiluted, strong acids and alkalies

Organic solvents (such as petrol, paint thinners, acetone, heating oil).

In addition, these substances may cause the appliance materials to corrode.

Start up

Description of the Appliance

These operating instructions describe the basic models of the Multi-Purpose Vacs shown on the front cover.
The illustrations show the maximum equipment; depending on the model, there are differences in equipment and supplied accessories.

When unpacking the product, make sure that no accessories are missing and that none of the package contents have been damaged. If you detect any transport damages please contact your dealer.

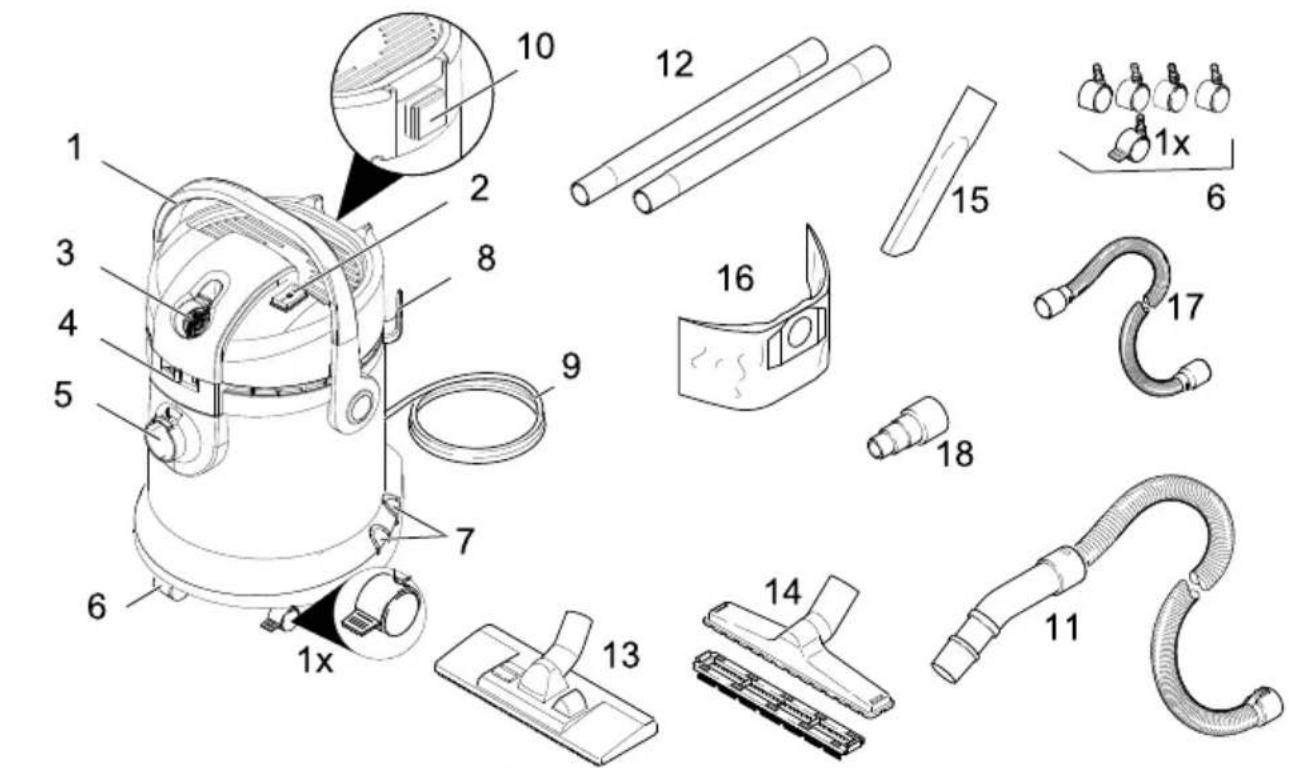

Illustrations on Page 2

1 Carrying handle
2 ON/OFF switch for appliance
3 Blowing connection
4 Air regulation of the blowing function
5 Suction hose connection
6 Swivel casters
7 Accessory mount
8 Storage, power cord
9 Power cord with plug
10 Machine socket
11 Suction hose
12 Suction tubes 2 × 0.5 ~m
13 Floor nozzle, reversible (A 2534 pt / A 2574 pt)
14 Floor nozzle with hard surface insert (A 2234 pt)
15 Crevice nozzle
16 Filter bag
17 Hose Flex-Tool
18 Adapter

Attaching the Accessories

Illustration 1

Fold down the carrying handle.
Remove the motor casing and take accessories out of the container.

Illustration 2

Fit the swivel casters on the container bottom. Insert filter bag if required.
Put motor casing onto container and lock it. Illustration 3
Connect accessories.

Operations

Always work with an inserted cartridge filter - during wet as well as dry vacuum cleaning!

Turning on the Appliance

Illustration 4

Plug in the main plug.
Switch on the appliance using the ON/OFF switch.

Position I: Normal operations, suction or blowing

Position II: Automatic operations with connected electric tool

Position 0: Appliance and the connected electric tool are switched off

Dry vacuum cleaning

Illustration 5

For a dust-free disposal of the vacuuming material we recommend to insert the paper filter bag as well. This provides the additional advantage that the cartridge filter will not become contaminated that quickly.

Work only with a dry cartridge filter!
Therefore: Always let the cartridge filter dry thoroughly before using it!
Added filter bags can burst!
Therefore: Change the filter bag at the appropriate time!
Always use a filter bag while sucking in fine dust!
The filling level of the filter bag depends on the dirt that is sucked in.

The filter bag needs to be replaced more frequently while sucking in fine dust, sand, etc.

Use a preliminary separator while sucking in ash or rust particles (order no. 2.863-139).

Illustration 6

Vacuuming hard surfaces

A 2534 pt / A 2574 pt :

Use your foot to press the reversing switch of the floor nozzle. The brush strips at the bottom of the floor nozzle are extended.

A 2234 pt:

Insert the hard surface inlay into the floor nozzle.

The bristles should point towards the front.

Vacuuming carpeted floors

A 2534 pt / A 2574 pt :

Use your foot to press the reversing switch of the floor nozzle. The brush strips at the bottom of the floor nozzle are retracted.

A 2234 pt:

Work without the hard surface insert.

Blowing function

Use this function, for example, to blow out leaves or dust from the garage, workroom or work shop.

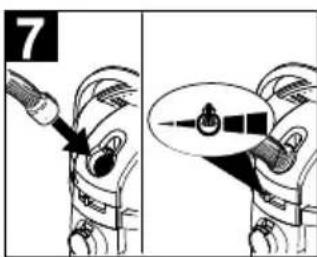

Illustration 7

Connect connection hose. Open the slide of the air regulation, and select the desired blowing performance.

Wet vacuum cleaning

Caution:

Do not use a filter bag!

Immediately switch the appliance off if foam forms or liquids escape!

Note: If the container is full a float closes the suction opening and the appliance works at a higher speed. Switch off the appliance immediately and empty the container.

Working with electrical power tools

Adapt the adapter to the connection diameter of the electric tool using a knife if necessary.

Illustration 8

Electric power tools with a power consumption of 100-2100 W can be connected.

	A 2234 pt A 2534 pt
		A 2574 pt
EU 100	- 2100 W 100 - 210	0 W
CH 100	- 1100 W 100 - 900	W
GB 100	- 1800 W 100 - 160	0 W

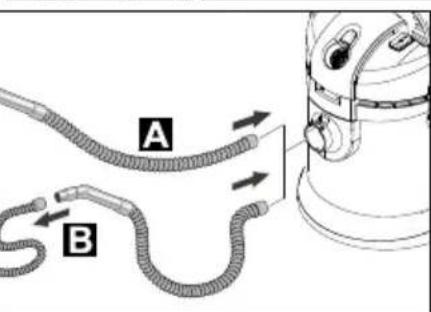

A) Plug the enclosed adapter onto the suction hose and connect the electric tool with the connection.

or

B) Use hose Flex-Tool; attach the thicker end directly to the surction hose and the other end on the enclosed adapter and connect it to the electric tool.

Illustration 9

Connect the mains plug of the electric power tool to the vacuum cleaner.
Switch the vacuum cleaner to Position II and start working.

Note: The suction turbine starts with a delay of 0.5 seconds after the electric tool has been switched on. After the electric tool has been switched off, the suction turbine will continue to run for approx. 5 seconds to suck in the remaining dirt from the suction hose.

Finish operation

Turn off the appliance and disconnect the mains plug.

Empty the container

Illustration 10
Remove the motor casing and empty the container.

Storing the Appliance

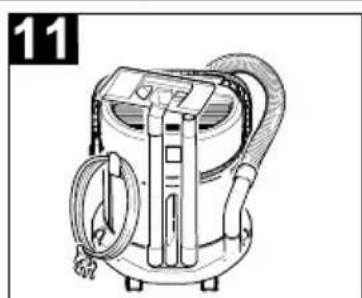

Illustration 11

Place the accessories in the appropriate compartments at the appliance and store the appliance in a dry room.

Transporting the device

The device is to be fastened properly before transporting the device in the car.

Maintenance and Care

Risk of injury

Always switch off the appliance and pull out the mains plug before care and maintenance work.

Cleaning the appliance and accessories

Caution

Do not use abrasives, glass or universal cleaners! Never immerse the appliance in water.

Clean the appliance and accessory parts made of plastic with a commercial plastic cleaner.

If required, rinse the container and accessories with water properly and dry them before reuse.

General notes

Warranty

The terms of the guarantee applicable in each country have been published by our respective national distributors. We will repair possible faults on your unit free of charge within the warranty period, insofar as the faults are caused by material defects or defective workmanship. Guarantee claims should be addressed to your dealer or the nearest authorized customer service centre, and supported by documentary evidence of purchase.

(See address on the reverse)

Customer Service

Our KARCHER branch will be pleased to help you further in the case of questions or faults. (See address on the reverse)

Ordering spare parts and special attachments

At the end of the operating instructions you will find a selected list of spare parts that are often required.

You can procure the spare parts and the attachments from your dealer or your KÄRCHER branch office.

(See address on the reverse)

Troubleshooting

Suction power decreases

Attachment, suction hose or suction pipe are blocked

Remove the blockage with the help of a stick.

Filter bag is full

Insert new filter bag.

Cartridge filter is dirty

Take out the filter and shake it. If the dirt does not come off, then clean it under flowing water and let it dry thoroughly before fitting it back. Replace it if the dirt is stubborn or if the filter itself is damaged.

Appliance does not suck in water

Container is full

Switch off the appliance and empty the container.

Helpline

KARCHER UK Limited operate a helpline allowing customers to discuss any problems experienced with our products.

The helpline operates during normal business hours and may be busy at peak periods. If you have difficulty getting through we would ask that you try to contact us again later in the day.

The helpline number is 01295 752200, open from 8.30 am to 5.00 pm

Monday to Friday.

It helps us if you have the model number and data plate details to hand before making your call so that we can assist you with your query more effectively.

Alternatively you may write to us at the address below:

KARCHER UK Ltd

Kärcher House

Beaumont Road

Banbury

Oxon, OX16 1TB

or E-mail us:

[e-mail]

Specifications

Subject to technical modifications!

	A 2234 pt	A 2534 pt A 2574 pt
Voltage	220-240V
Current type	50/60 Hz
Mains fuse EUR (*GB) (slow-blow)	16 (*13) A
Container capacity	18 | 25 |
Water volume	8 | 13 |
Output Pnom	1200 W | 400 W
Output Pmax	1400 W | 600 W
Power cord	H 05VV-F3G1,5
Sound pressure level (EN 60704-2-1)	75 dB(A)
