Thank you very much for buying this SHARP product. Before using your SHARP refrigerator, please read this operation manual to ensure that you gain the maximum benefit from it.

Household use only.

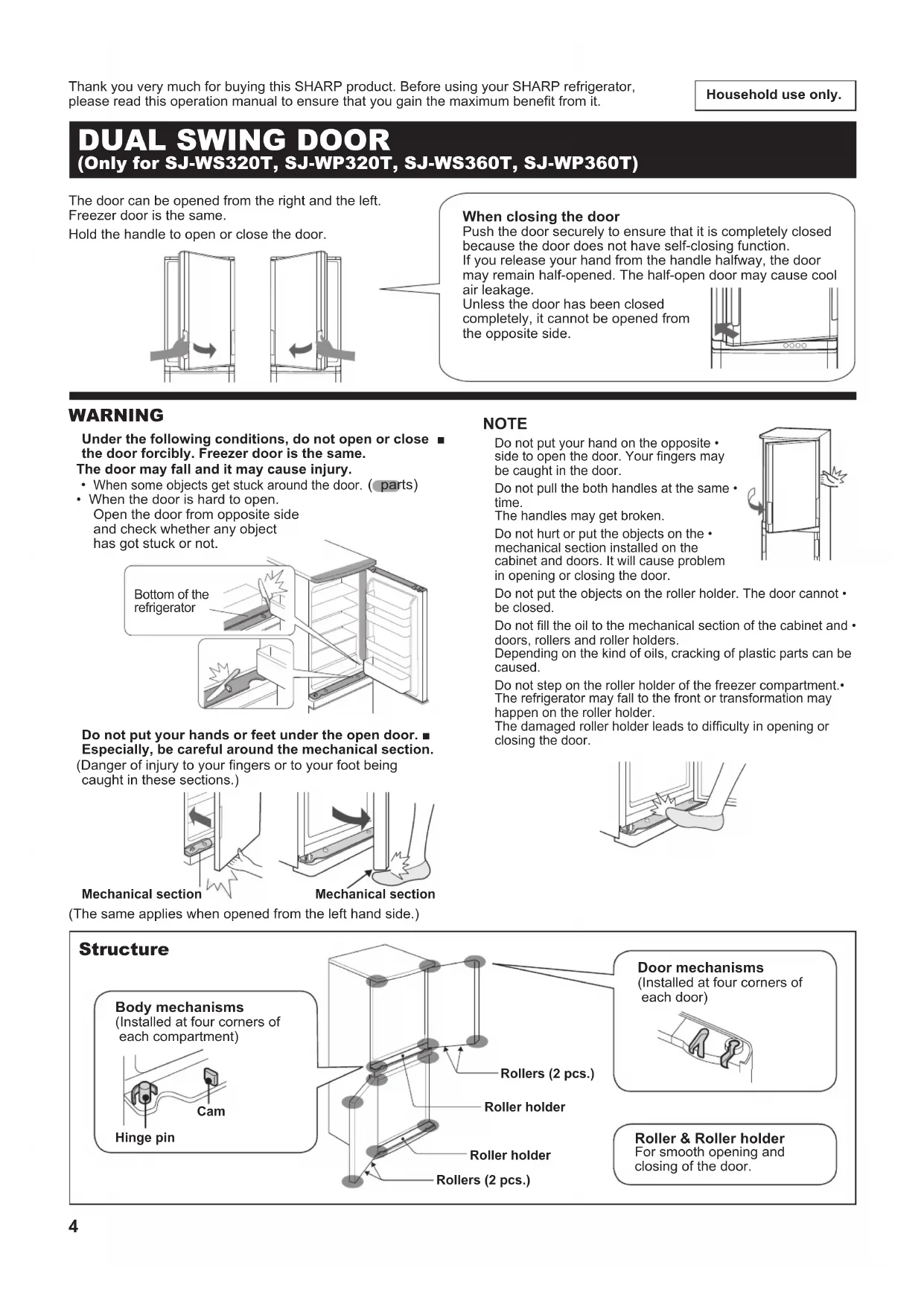

DUAL SWING DOOR

(Only for SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

The door can be opened from the right and the left. Freezer door is the same.

Hold the handle to open or close the door.

Diagram showing two identical mechanical or architectural frame setups with hands holding arrows indicating rotation (no text or symbols)

When closing the door

Push the door securely to ensure that it is completely closed because the door does not have self-closing function. If you release your hand from the handle halfway, the door may remain half-opened. The half-open door may cause cool air leakage.

Unless the door has been closed completely, it cannot be opened from the opposite side.

WARNING

Under the following conditions, do not open or close ■ the door forcibly. Freezer door is the same.

The door may fall and it may cause injury.

• When some objects get stuck around the door. (parts)
• When the door is hard to open.

Open the door from opposite side and check whether any object has got stuck or not.

got stuck or not. Bottom of the refrigerator

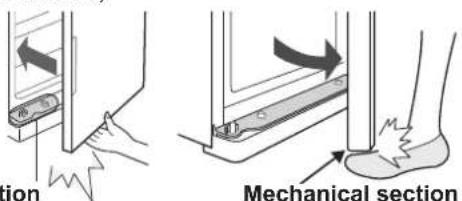

Do not put your hands or feet under the open door. ■ Especially, be careful around the mechanical section.

(Danger of injury to your fingers or to your foot being caught in these sections.)

Section Mechanical section

Mechanical section

(The same applies when opened from the left hand side.)

NOTE

Do not put your hand on the opposite side to open the door. Your fingers may be caught in the door.

Do not pull the both handles at the same time.

The handles may get broken.

Do not hurt or put the objects on the mechanical section installed on the cabinet and doors. It will cause problem in opening or closing the door.

Simple line drawing of a cabinet with a handle and decorative elements (no text or symbols)

Do not put the objects on the roller holder. The door cannot be closed.

Do not fill the oil to the mechanical section of the cabinet and • doors, rollers and roller holders.

Depending on the kind of oils, cracking of plastic parts can be caused.

Do not step on the roller holder of the freezer compartment. The refrigerator may fall to the front or transformation may happen on the roller holder.

The damaged roller holder leads to difficulty in opening or closing the door.

Illustration of a person's foot pressing down on a mechanical component (no text or symbols visible)

Structure

Body mechanisms

(Installed at four corners of each compartment)

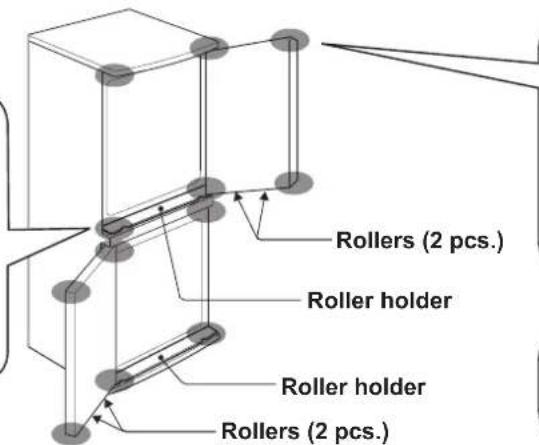

Hinge pin

Rollers (2 pcs.) Roller holder Roller holder Rollers (2 pcs.)

Door mechanisms

(Installed at four corners of each door)

Roller & Roller holder

For smooth opening and closing of the door.

WARNING CAUTION

■ This refrigerator contains flammable refrigerant (R600a: isobutane) and insulation blowing gas (cyclopentane). Observe the following rules to prevent ignition and explosion.

- The refrigeration system behind and inside the refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.

- Do not use mechanical devices or other means to accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.)

- Do not use electric appliances inside the refrigerator.

- Use only the specified parts for the refrigerator compartment light.

- Do not block the openings on the circumference of the refrigerator.

- Do not use flammable sprays, such as spray paint near the refrigerator. It may cause explosion or fire.

- If the refrigeration system should get punctured, do not touch the wall outlet and do not use open flames. Open the window and air out the room. Then ask a service agent approved by SHARP for servicing.

- This refrigerator should be disposed appropriately. Take the refrigerator to a recycling plant for flammable refrigerant and insulation blowing gases.

■ Do not store highly volatile and flammable materials such as ether, petrol, propane gas, aerosol cans, adhesive agents and pure alcohol etc. These materials are liable to explode.

■ Dust deposited on the power plug may cause fire. Wipe it off carefully.

■ Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury.

■ Ensure that the refrigerator presents no danger to children while being stored for disposal. (e.g. remove the magnetic door seals to prevent child entrapment.)

■ Do not touch the compressor unit or its peripheral parts, as they become extremely hot during operation and the metal edges may cause injury.

■ Do not touch foods or metal containers in the freezer compartment with your wet hands. This may cause frostbite.

■ Do not use an extension cord or adapter plug.

■ Do not place bottled and canned drinks in the freezer as they may crack when frozen.

■ Make sure that the power cord has not been damaged during installation or moving. If the power plug or cord is loose, do not insert the power plug. There is a risk of electric shock or fire.

■ Disconnect from the mains electricity supply by removing the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire.

■ Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP as a special cord is required.

In case of gas leak, ventilate the area by opening a window, etc. Do not touch the refrigerator or the power outlet.

■ Do not place objects containing liquid or unsteady objects on top of refrigerator.

■ This refrigerator is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the refrigerator by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the refrigerator.

Information on Disposal for Users (private households)

Symbol of a trash bin crossed with no visible text or labels

Attention:

Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

WARNING

Do not install the refrigerator in a damp or wet location ■ as this may cause damage to the insulation and a leakage. Condensation may also build on the outer cabinet and cause rust.

In order to prevent possible electric shock, connect the receptacle of earth to the earth terminal properly.

1 Keep adequate ventilation space around the refrigerator.

• The figure shows the minimum required space for installing the refrigerator. The measurement condition of power consumption is conducted under a different space dimension.
• By keeping greater space, the refrigerator may be operated under a less amount of power consumption.
• If using the refrigerator in the smaller space dimension than the below figure, it may cause the temperature rise in the unit, loud noise and failure.

90mm or more 60mm or more 60mm or more 1300mm 60mm or more 1040mm 1350mm Free standing type SJ-RP320T SJ-WS320T SJ-RM320T SJ-WP320T SJ-RP360T SJ-WS360T SJ-RM360T SJ-WP360T

2 Use the two front adjustable feet, to ensure that the refrigerator is positioned firmly and flat on the floor.

Adjustable foot

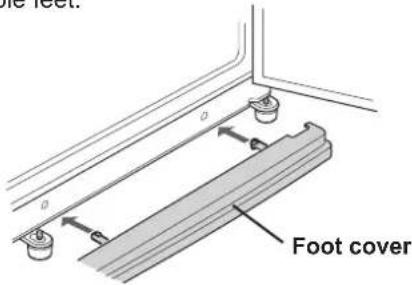

3 Clip the foot cover (supplied inside the refrigerator compartment) in the position on the front of the two adjustable feet.

φ φ Foot cover

NOTE

Position your refrigerator so that the plug is accessible. • Keep your refrigerator out of direct sunlight. Do not place next to heat generating appliance. Do not place directly on the ground. • Provide suitable stand.

Before using your refrigerator

Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly with water.

Before transporting

- Wipe up water in the evaporating pan. Before wiping up the water, wait more than 1 hour after pulling out the plug because the refrigeration cycle equipment is extremely hot. (The evaporating pan is located on the rear of the product.)

Evaporating Pan

NOTE

Do not bend or damage the ductwork located on the inside of the evaporating pan. It may cause failure.

When transporting

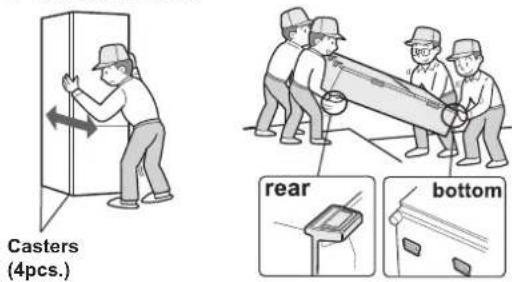

- The casters allow the refrigerator to move back and forth. - Carry the refrigerator by holding the handles located on the rear and the bottom.

Casters (4pcs.) rear bottom

When the door is heavy to open

(Only for SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

When one side door is heavy

- When the left side is heavy, lower the right side adjustable foot. (Until the opposite side adjustable foot is slightly off-ground.)

Heavy Adjustable foot

- When the right side is heavy, lower the left side adjustable foot.

When both sides are heavy

- When the refrigerator is tilted backwards, insert a wooden board (with relatively large width), etc. between the rear of the refrigerator and the floor to adjust the tilting.

Front Back A wooden board (with relatively large width)

Reversible door

(Only for SJ-RP320T, SJ-RM320T, SJ-RP360T, SJ-RM360T) It is possible to change the door to left side opening. To modify the door a REFRIGERATOR HINGE KIT (for left side opening) will be required, SJ-LR320TD. For details of the kit and the modification work, please contact the service agent approved by SHARP.

CAUTION SHARP recommends that all modification work will be carried out by the approved service agent.

GB

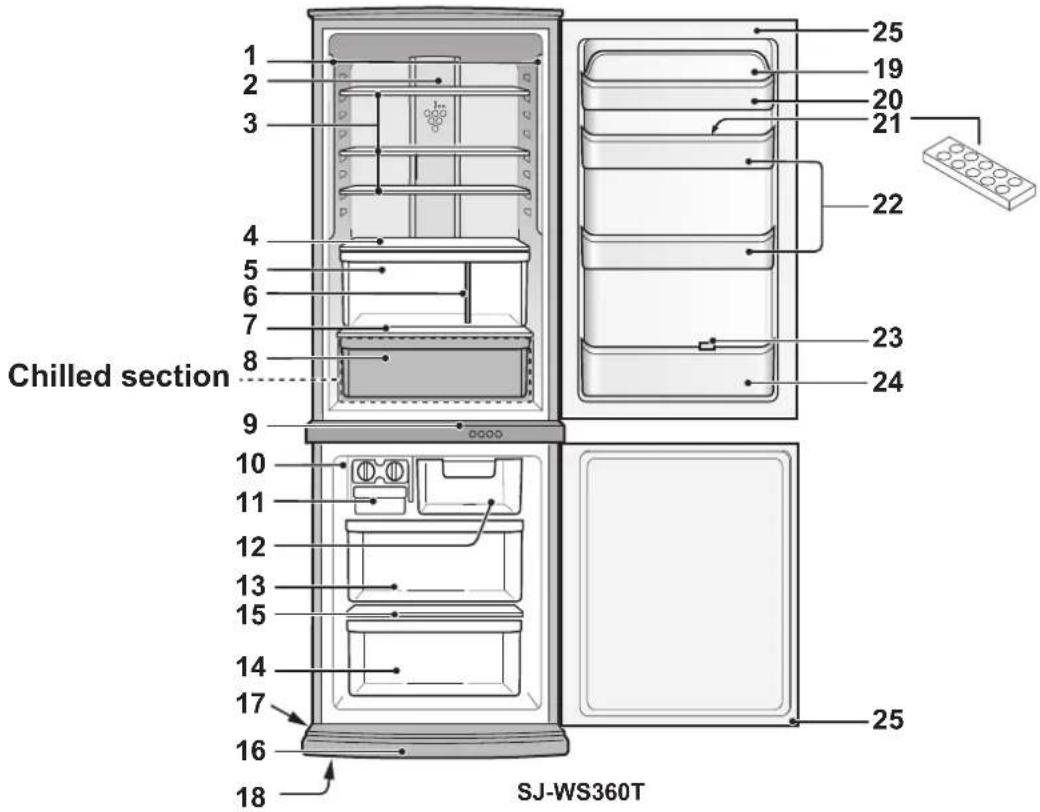

1 2 3 4 5 6 7 8 9 10 11 12 13 15 14 17 16 18 25 19 20 21 22 23 24 Chilled section SJ-WS360T

1. LED lights
2. Hybrid cooling panel (Aluminum panel)

The panel is cooled from the rear, thus indirectly cools the refrigerator compartment. In this way, food is refrigerated gently, without exposing it to cold air flow.

1. Refrigerator shelves

(SJ-WS320T,SJ-RP320T : 2 pcs.) (SJ-WP320T,SJ-RM320T (SJ-WS360T,SJ-RP360T : 3 pcs.) (SJ-WP360T,SJ-RM360T

1. Fruit & vegetable shelf

The airflow to the vegetable crisper can be controlled by moving the vent hole lever to the right or left.

1. Fruit & vegetable crisper
2. Divider
3. Shelf
4. Chilled case

5. Control panel

6. Ice cube maker

1) Do not over fill the ice cube trays; otherwise the ice cubes will be joined together when frozen. 2) When the ice cubes are made, turn the lever clockwise to empty the ice into the ice cube box.

Diagram of a device with a table and control panel, no visible text or symbols

NOTE

To prevent damage to the ice cube box, do not make ice in the ice cube box or pour oil into it.

1. Ice cube box
2. Freezer case (top)
3. Freezer case (middle)
4. Freezer case (bottom)

1. Freezer shelf
2. Foot cover
3. Casters (4 pcs.)
4. Adjustable feet (2 pcs.)
5. Utility pocket cover
6. Utility pocket
7. Egg holder
8. Door pockets (2 pcs.)
9. Bottle stopper / Tube stand Prevents bottles etc. from falling. Stick-type food products stored inside.
10. Bottle pocket
11. Magnetic door seals (2 pcs.)

Deodorizing unit

Deodorizing catalyst is installed on the routes of cold air. No operation and cleaning are required.

More foods can be stored by removing the following accessories as indicated in the figure below.

Chilled case, Ice cube maker, Ice cube box, Freezer case (top & middle)

• If the refrigerator is operated with these accessories taken out, it will work under the most energy-efficient condition.
• Please do not remove Freezer case (bottom).

Diagram of a refrigerator with open doors and internal compartments (no text or symbols)

OPERATION

Control panel

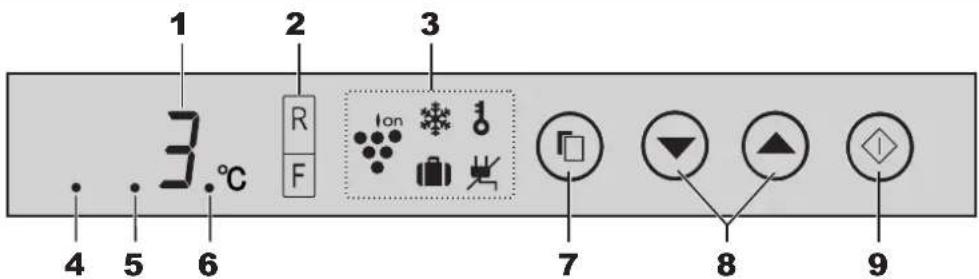

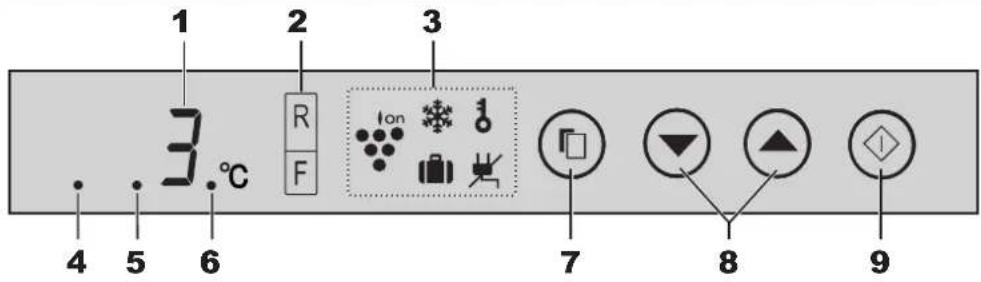

1 2 3 4 5 6 R F Ion 7 8 9

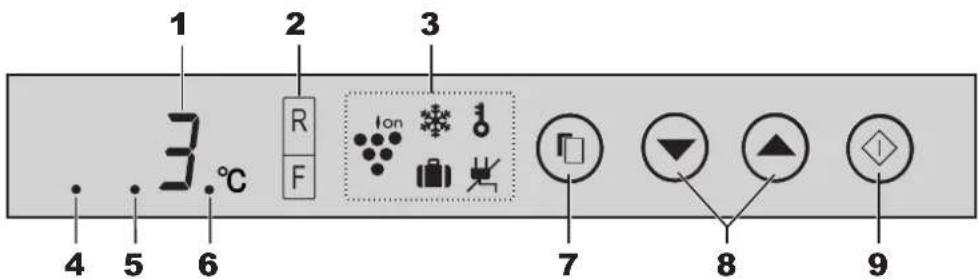

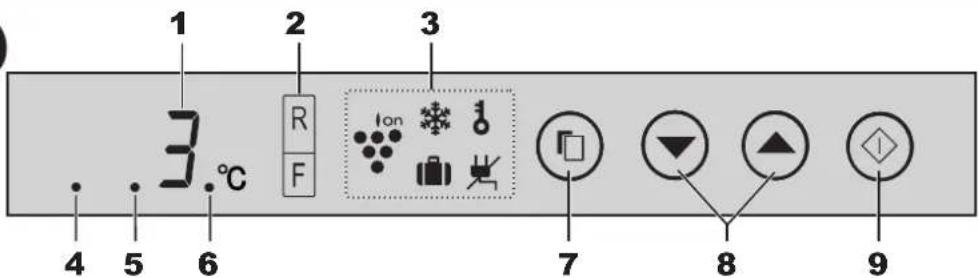

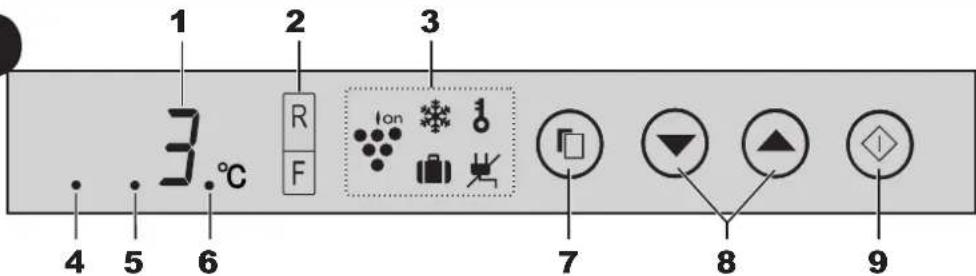

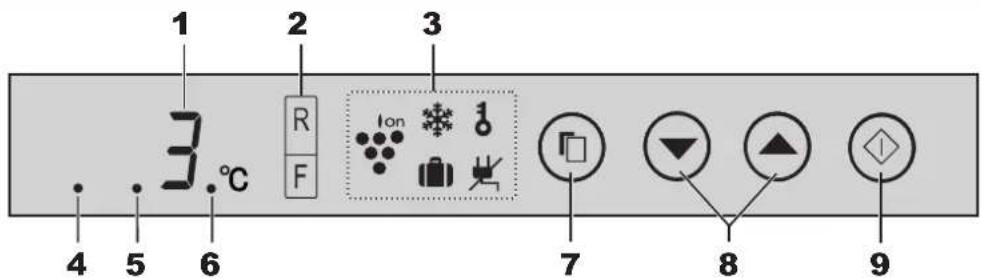

1. Display for temperature setting

The preset temperature of selected compartment is displayed. It is not the actual temperature in the compartment.

2. Display for controlling temperature

The temperature of refrigerator and freezer can be selected. The indicator of the temperature will light when the compartment is selected to change its temperature.

3. Display for feature icon

Icons of features in operation are displayed.

Plasmacluster

Child lock*

Express Freezing*

Power failure

Vacation mode*

(*: Except for SJ-RM320T, SJ-RM360T)

4. Energy saving indication

This indication shows energy saving "ON".

5. Sound ON/OFF indication

This indication shows sound "OFF".

6. Door alarm indication

This indication shows door alarm "ON".

(Door alarm is only for the refrigerator compartment.)

7. Select button

Press to select feature icon and door alarm signal.

8. ▼ button

Press to select feature ON/OFF or temperature setting.

9. ◇(Enter) button

Finalize the setting.

NOTE

Features start automatically like right • figure when inserting the power plug. (The initial content is only Door alarm "ON".)

When there is no operation for 1 minute, the display will automatically return to the initial content.

Additionally, the display will be turned off when there is no operation for 1 minute.

When either of the button is pressed, the display will blink • once and show the initial content. When the refrigerator stops with power failure, the display shows similarly as before having a power failure at the time of re-power distribution. However, when it has a power failure during operation of Express Freezing, the operation is stopped at the time of re-power distribution.

Plasmacluster

The ionizer inside your refrigerator releases clusters of ions, which are collective masses of positive and negative ions, into the refrigerator compartment.

These ion clusters inactivate airborne mold fungus.

1 2 3

1 Press the Select button and select Plasmacluster icon.

OFF C Ton Flashing

2 Press the ▲utton. [ : ▲, : OF▼]

Image displaying stylized symbols including 'On', 'c', and 'lon' with geometric shapes, possibly representing a digital or symbolic process.

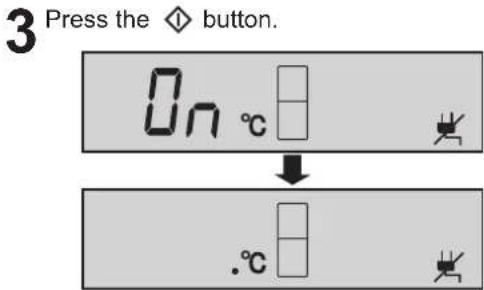

3 Press the ◆ button.

On °C Ion .°C Ion

To cancel operation

It is the same method as starting operation. Press the ▼ button in step 2.

OFF C ton

NOTE

- There may be a slight odor in the refrigerator. This is the smell of ozone generated by the ionizer. The amount of ozone is minimal, and quickly decomposes in the refrigerator.

Express Freezing (Except for SJ-RM320T, SJ-RM360T)

High-quality frozen foods can be made using this feature and is convenient for home-freezing.

1 Press the select button and select express freezing icon.

OFF c Flashing

2 Press the ▲Button. [ ▲ : ON, ▼OFF ] {On}c

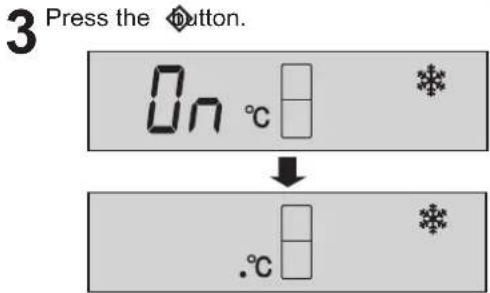

3 Press the button. On °C . °C

Vacation Mode (Except for SJ-RM320T, SJ-RM360T)

Use this feature when going on a trip or leaving the house for a long time.

1 Press the select button and select vacation mode icon.

OFF c Flashing

2 Press the ▲Button. [ ▲ : ON, ▼OFF ] {On}c {OK}

3 Press the ◇ button. On °C ↓ .°C

To cancel operation

Press the ▼ button in step 2.

OFF c

NOTE

The temperature inside the refrigerator compartment will be adjusted to about 10°C.

Food storage period in the refrigerator compartment • becomes approx. 1/2-1/3 of normal operation. Please utilize only when there is no perishable food.

Temperature of refrigerator compartment cannot be modified. • ("10°C" is indicated on the display.)

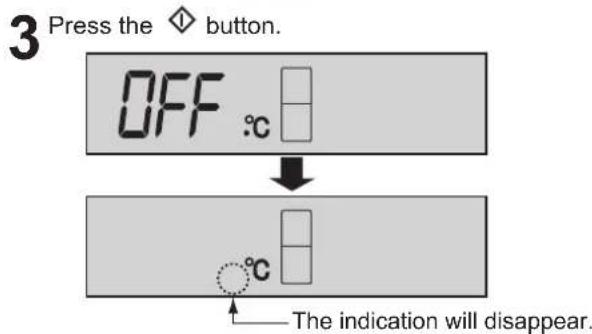

To cancel operation

It is the same method as starting operation. Press the ▼ button in step 2.

OFF c

NOTE

Express Freezing ends automatically in about 2 hours. • (The icon will disappear.)

Large foods cannot be frozen in a single operation. Express Freezing may require more than 2 hours in the case operation overlaps with defrosting as operation is started after defrosting is completed.

Avoid opening the door as much as possible during operation • of this feature.

Child Lock (Except for SJ-RM320T, SJ-RM360T)

Key operation of the control panel will be locked. Use this feature to prevent the panel from being used unintentionally by children or someone.

1 Press the select button and select the child lock icon.

OFF c Flashing

2 Press the ▲ button. [ ▲ : ON, ▼ OFF ]

Handwritten symbols including 'On', 'c', and a vertical bar, possibly representing a digital or symbolic notation.

3 Press the button.

On °C ↓ .°C

To cancel operation

It is the same method as starting operation. Press the ▼ button in step 2.

OFF c

Controlling Temperature

The refrigerator controls its temperature automatically. However, if needed, adjust the temperature as follows.

1 2 3

Refrigerator compartment

Adjustable between 0^ C and 6^ C in steps of 1^ C.

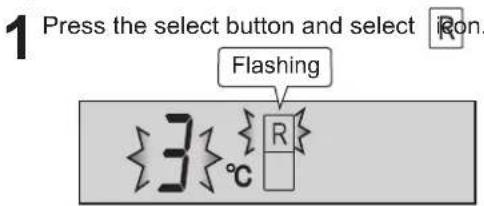

1 Press the select button and select Ron. Flashing 3 °C R

2 Press the ▲ button and set the temperature. [▲: increase, ▼ decrease]

{43c}R

NOTE

During vacation mode is operating, this compartment cannot be set. ("10°C" is indicated on the display.)

2 Press the button.

4 °C R . °C

Freezer compartment

Adjustable between -13^ and -21^ in steps of 1^ .

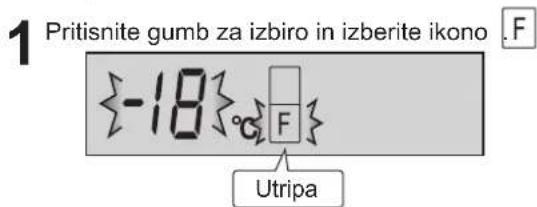

1 Press the select button and select icon.

-18 F Flashing

2 Press the ▲ ▼ button and set the temperature. [▲: increase, ▼ decrease]

-17 F

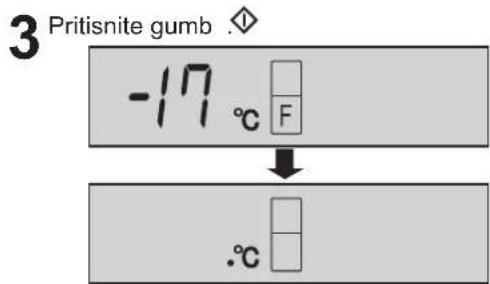

3 Press the ◆ button.

-17 °C F .°C

Advanced Setting of Refrigerator compartment

The temperature of refrigerator compartment can be adjusted in steps of 0.5^ C by following steps ① to ③ below.

① Select icon.
② Press button continuously for 3 seconds or more.
③ Adjust the temperature in the same way as steps 2 to 3 above.

Follow steps ① to ② again if you want to adjust the temperature in steps of 1°C.

{3} {R} ↓ {3.0} {R}

Indicator of Temperature

This refrigerator is provided with an indicator of temperature in the refrigerator compartment to allow you to control the average temperature in the coldest zone.

Coldest zone

The symbol indicates the coldest zone in the refrigerator compartment.

(The door pocket positioned at the same height isn't the coldest zone.)

Checking the temperature in the coldest zone

You can carry out regular checks to ensure the temperature in the coldest zone is correct and, if necessary, adjust the refrigerator temp. control. To maintain a correct temperature inside the appliance, check that the indicator of temperature is always BLUE. If the indicator of temperature turns WHITE, the temperature is too high; in this case, increase the refrigerator temp. control setting and wait for 6 hours before checking the indicator of temperature again.

Symbol

BLUE

WHITE

Correct setting Temperature too high, adjust the refrigerator temp. control.

NOTE

The internal temperature of the refrigerator depends on various factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening.

When fresh food has been introduced or the door has been • left open for some time, it is normal for the indicator of temperature to turn WHITE.

1 2 3 GB

Power Failure

While this feature is operating, it will indicate the rise of inside temperature caused by power failure or something.

1 Press the select button and select the power failure icon. (The icon is orange.)

OFF °C Flashing

2 Press the ▲utton. [ ▲ : ON, ▼OFF ] {On}c

3 Press the ◇ button. On °C .°C

To cancel operation

It is the same method as starting operation. Press the ▼ button in step 2.

OFF ℃

Indication of power failure

- At the time of repower, if the inside temperature of the refrigerator and freezer compartment becomes as follows, R: more than 7°C, F: more than -10°C, power failure icon will blink slowly.

R F Blink slowly

- Check the quality of food before you eat.

How to cancel the indicator blink

Press the ◆ button while the icons are blinking.

Door Alarm

• When the refrigerator door is left open, the door alarm will sound.
• The door alarm will sound in 1 minute after opening the door and again after 1 minute (once in each case).
• If the door is left open for approx. 3 minutes, the alarm will sound continuously.
• At first, door alarm is set "ON".

To cancel operation

1 Press the select button and select the door alarm indication like the below figure.

Flashing Door alarm indication

2 Press the ▼button. [ ▲ : ON, ▼OFF ] OFF

3 Press the ◇ button. OFF °C The indication will disappear.

To start operation

It is the same method as canceling operation. Press the ▲ button in step 2.

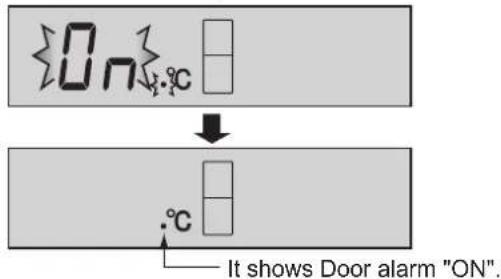

0°C °C It shows Door alarm "ON".

Sound ON/OFF

Use this feature to turn off the sound of key operation.

User interface toolbar with four function buttons labeled 1, including document, dropdown arrow, triangle, and diamond icons

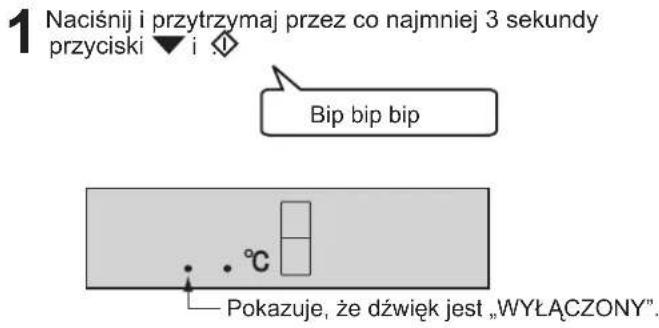

1 Press the button and button simultaneously and continuously for 3 seconds or more.

Beep beep beep It shows the sound "OFF"

To set sound "ON"

Press the ▼ button and ◊ button simultaneously and continuously for 3 seconds or more again.

Beep beep beep °C

Energy Saving

Use this feature when you want to switch the appliance to energy-saving operation.

Diagram showing four directional icons with arrows pointing to specific buttons, labeled '1' at the bottom.

1 Press the ▲ button and ◇ button simultaneously and continuously for 3 seconds or more.

Beep beep beep . °C It shows Energy Saving "ON".

To cancel operation

Press the ▲ button and button simultaneously and continuously for 3 seconds or more again.

Beep beep beep .°C The indication will disappear.

NOTE

While this feature is operating, the inside temperature of the refrigerator and freezer compartment will be higher than the preset temperature as follows; R: about 1°C, F: about 2°C. (If the preset temperature is set at R: 3°C, F: -18°C.) The displayed temperature will not be changed.

The efficiency of power saving depends on the usage environment (controlling temperature, ambient temperature, frequency of opening or closing the door, amount of food). If express freezing is operated at the same time, the efficiency of power saving will also change.

Cancel this feature when you feel the beverages are not • cooled enough or ice making takes time.

Tips for saving energy

• Keep the ventilation space as much as possible around the refrigerator.
• Keep your refrigerator out of direct sunlight, and do not place next to heat generating appliance.
  ■ Open your refrigerator door as briefly as possible.
  ■ Hot foods should be cooled before storing.
  ■ Place the food evenly on the shelves to allow the cooling air to circulate efficiently.

The amount of power consumption of this model is measured according to the international standard of the refrigerator performance.

• The amount of power consumption of this model is measured under the space dimensions on the right figure.
- The amount of power consumption of this model is measured with some accessories taken out as indicated in the right figure.

90mm 60mm 300mm 300mm

Line drawing of a refrigerator with doors open and shelves inside (no text or symbols)

STORING FOOD

GB

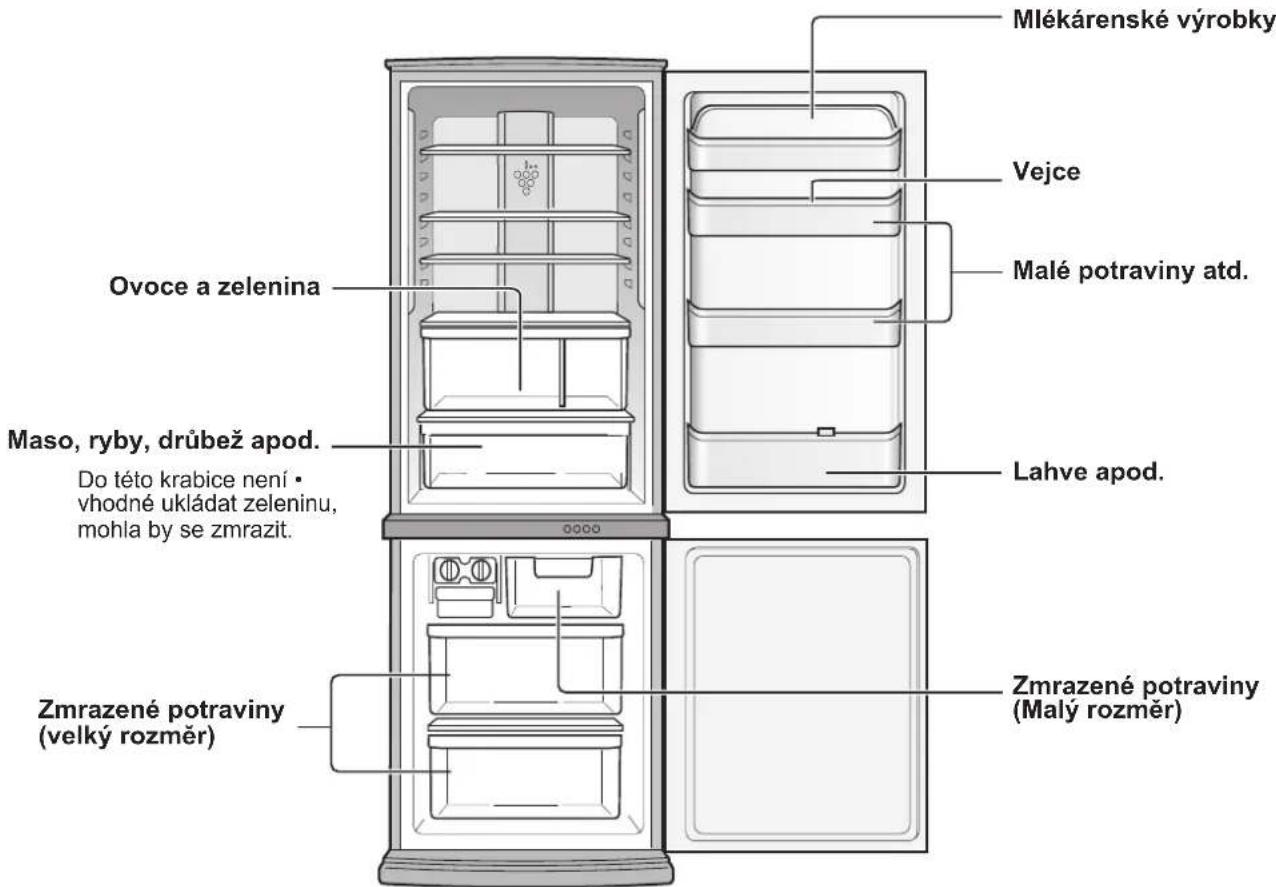

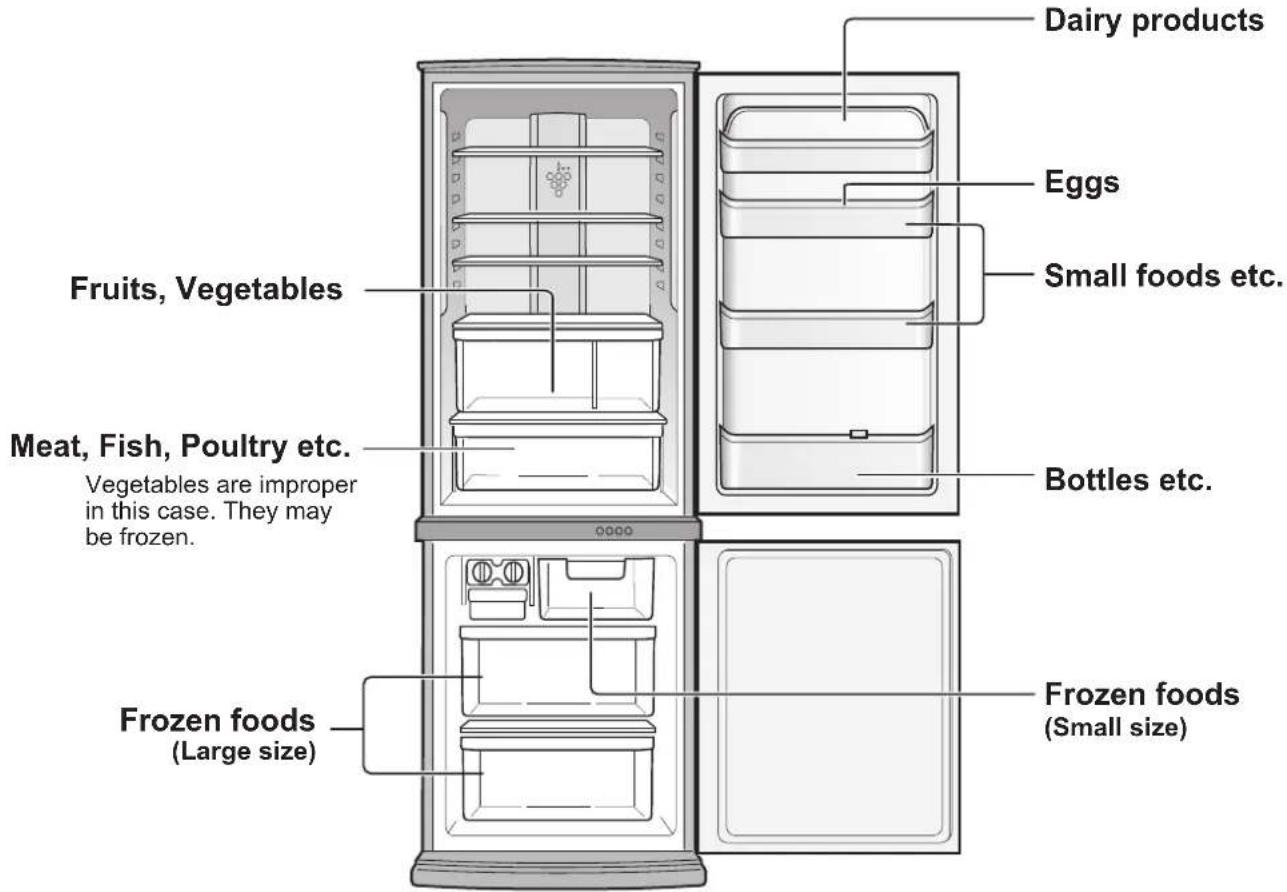

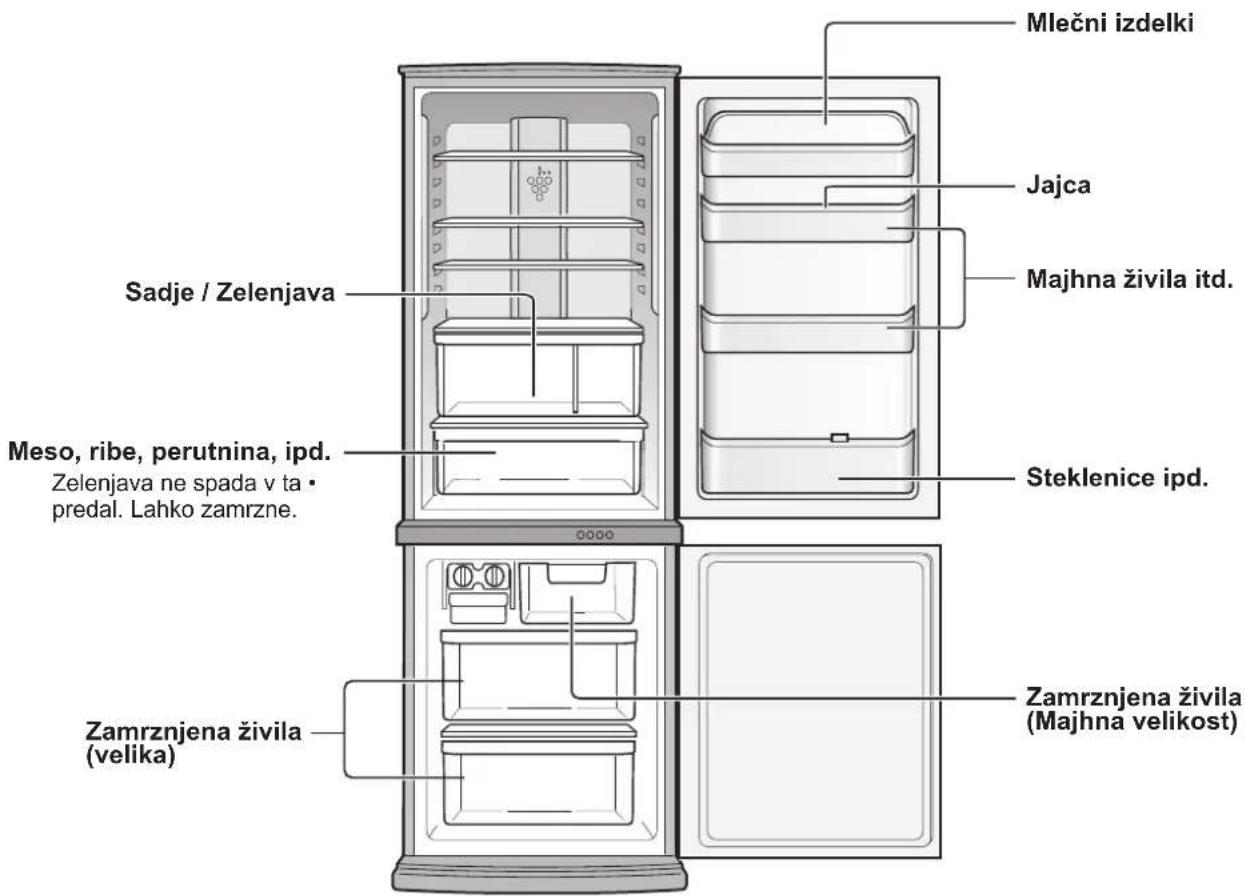

Dairy products Eggs Small foods etc. Fruits, Vegetables Bottles etc. Meat, Fish, Poultry etc. Vegetables are improper in this case. They may be frozen. Frozen foods (Large size) Frozen foods (Small size)

Refrigeration reduces the rate of food spoilage. To maximize the shelf life of perishable food products, ensure that the food is the freshest possible quality. The following is a general guide to help promote longer food storage.

Fruit / Vegetables

To minimize moisture loss, fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and place in the vegetable crisper.

Dairy Products & Eggs

• Most dairy products have a use by date on the outer packaging which informs the recommended temperature and shelf life of the product.
• Eggs should be stored in the Egg holder.

Meats / Fish / Poultry

• Place on a plate or dish and cover with paper or plastic wrap.
• For larger cuts of meat, fish, or poultry, place to the rear of the shelves.
• Ensure all cooked food is wrapped securely or placed in an airtight container.

NOTE

Evenly place the food on the • shelves to allow the cooling air to circulate efficiently. Hot foods should be cooled • before storing. Storing hot foods increases the temperature in the unit and increases the risk of food spoilage.

Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator. Keep the door securely closed.

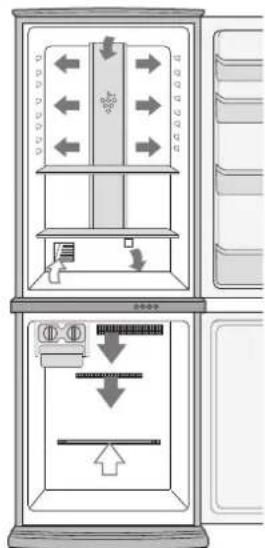

Diagram of a refrigerator interior showing directional arrows and labeled compartments with icons

Do not place food directly in front of cold air outlet. This may lead to the food freezing.

For best freezing

• Quality of foods should be fresh.
- Freeze small quantities of food at a time to freeze them quickly.
- Food should be properly sealed, sealed tightly or covered.
• Evenly place the food in the freezer.
- Label bags or containers to keep an inventory of freezing food.

CARE AND CLEANING

WARNING

Unplug the refrigerator first to prevent electric shock. ■ Do not splash water directly on the outer cabinet or ■ the interior. This may lead to rusting and deterioration of the electrical insulation.

IMPORTANT

To prevent cracking on inside surfaces and plastic components, follow these tips.

• Wipe any food oils adhered to plastic components.
• Some household chemicals may cause damage, so use only diluted washing-up liquid (soapy water).
• If undiluted detergent is used or soapy water is not wiped off thoroughly, cracking of plastic parts can result.

1 Remove the accessories e.g. shelves from the cabinet and door. Wash them in warm soapy dishwashing water; rinse in clean water and dry.
2 Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water.
3 Wipe the exterior with a soft cloth each time it is soiled.
4 Clean the magnetic door seal with a toothbrush and warm soapy dishwashing water.
5 Wipe the control panel with the dry cloth.

NOTE

To prevent damage to your refrigerator, do not use heavy-duty cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.)

If the power supply is disconnected, please wait for at least 5 minutes before re-connecting power.

The glass shelves weigh approximately 2kg each. Hold firmly • when removing from the cabinet or carrying.

When dropped the juice and the like near the control panel, wipe off directly. It becomes cause of failure of the control panel.

Do not drop objects inside the refrigerator or strike the inner wall. This may cause the inner surface to crack.

Defrosting

Defrosting is fully automatic due to a unique energy saving system.

When the compartment light is blown

Contact the service agent approved by SHARP to request a replacement compartment light. The compartment light is not to be removed other than by qualified service personnel.

Switching off your refrigerator

If you switch your refrigerator off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open.

BEFORE YOU CALL FOR SERVICE

Before you call for service, check the following points.

Problem Solution
The outside of the cabinet is hot when touched.	It is normal. The hot pipe is in the cabinet in order to prevent dew generation.
When there is refrigerator noise. It is normal for the refrigerator to produce the following sounds.Loud noise produced by the compressor when operation starts --- Sound becomes quieter after a while.Loud noise produced once a day by the compressor --- Operating sound produced immediately after automatic defrost operation.Sound of flowing fluid (gurgling sound, fizzing sound) --- Sound of refrigerant flowing in pipes (sound may become louder from time to time).Cracking or crunching sound, squeaking sound--- Sound produced by expansion and contraction of inner walls and internal parts during cooling.
Frosting or dew generation occurs inside or outside the refrigerator.	This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry cloth for wiping dew.When the ambient humidity is high.·When the door is frequently opened and closed.When foods containing plenty of moisture are stored. (Wrapping is required.)
The foods in the refrigerator compartment freeze.	·Is the refrigerator operated for a long time with refrigerator temp. control set at 0°C?·Is the refrigerator operated for a long time with freezer temp. control set at -21°C?·Low ambient temperature may cause placed foods to freeze even if refrigerator temp. control is set to 6°C.
It smells in the compartment.	·Wrapping is required for the foods with strong smell.·Deodorizing unit cannot remove all of the smell.

IF YOU STILL REQUIRE SERVICE

Refer to your nearest service agent approved by SHARP.

Diagram showing two identical mechanical or architectural views with hands holding arrows, no text or symbols present.

Al cerrar la puerta

Diagram illustrating door lock mechanism with labeled parts and directional arrows indicating movement

Illustration of a foot pressing down on a mechanical component (no text or symbols visible)

Estructura

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Atención:

Pie ajustable

Diagram of a mechanical device with a central shaft and directional arrow, no visible text or symbols

Line drawing of a refrigerator with open door, shelves, and drawer (no text or symbols)

FUNCIONAMIENTO

Panel de control

1 2 3 3.°C R F Ion 7 8 9

E

On °C Ion .°C Ion

Handwritten symbols including 'On', 'c', and a rectangular box with two sets of symbols, likely representing electronic or signal notation.

2 Pulse el botón "

On °C ↓ .°C

-17 °C F ↓ .°C

User interface toolbar with four function buttons labeled 1, showing icons for document, dropdown, triangle, and diamond functions.

Diagram showing a temperature scale with a pointer and a rectangular block, likely representing a physical or mathematical model.

User interface toolbar with icons and numbered callouts, likely for navigation or button press functions

90mm 60mm 300mm300mm a

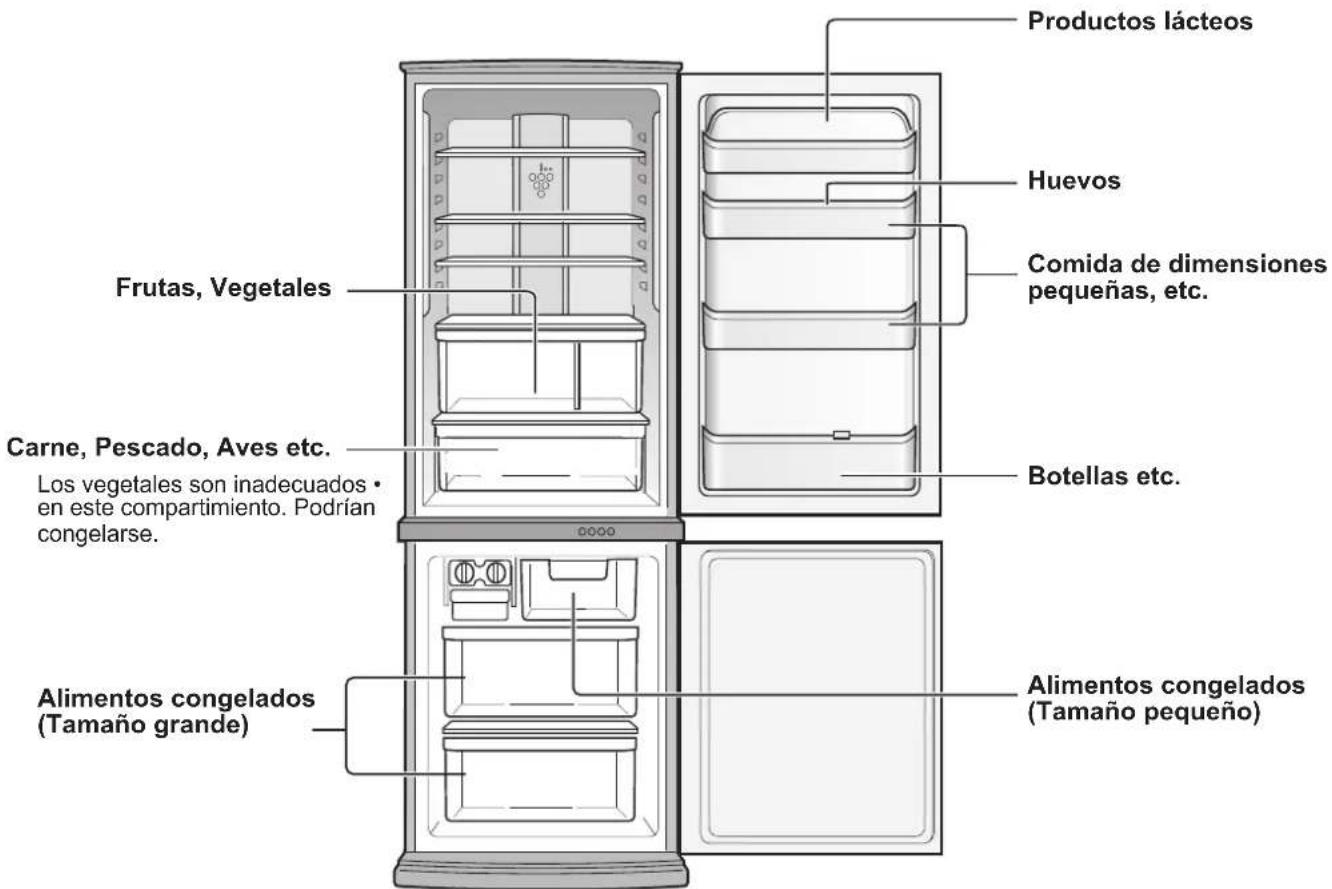

PARA ALMACENAR LOS ALIMENTOS

Diagram of refrigerator interior showing directional arrows and labeled compartments with symbols like 'F', 'O', and 'P'

ENTRADA SALIDA

(Solo per i modelli SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram showing two identical mechanical or architectural views with hands holding arrows, no text or symbols present.

Simple line drawing of a door with a handle and scroll, no text or symbols present

Illustration of a person's foot pressing down on a wall-mounted panel (no text or symbols visible)

Struttura

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Attenzione:

(Solo per i modelli SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram of a refrigerator with doors, shelves, and storage compartments (no text or labels)

COMANDI

On °C Ion .°C Ion

{3}°C ↓ {3.0}°C

Diagram showing four labeled buttons with icons and numbered indicators, likely from a software interface or menu.

Diagram showing four labeled buttons with icons and a finger pointing to the first three, labeled '1' at the bottom.

90mm 60mm 300mm300mm

Illustration of a refrigerator with open doors and internal compartments (no text or symbols)

Diagram of refrigerator interior showing airflow direction and control panel with arrows and labels

Diagram showing two identical mechanical or architectural views with hands holding arrows indicating rotation, no text or symbols present.

Illustration of a foot stepping on a wooden plank with a hammer and nut, showing mechanical components (no text or symbols)

Structure

Mécanismes du corps

(Installé aux quatre coins de chaque compartiment)

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

Attention :

Simple line drawing of a cabinet with a lid and drawer (no text or symbols)

Bac d'évaporation

NOTE

Illustration of four workers in hard hats lifting a large cylindrical object (no text or symbols visible)

Diagram of a mechanical device with a central shaft and directional arrow, no visible text or symbols

Illustration of a refrigerator with open door, shelves, and drawer (no text or symbols)

UTILISATION

Congélation express *

Panne de courant

Mode vacances *

On °C Ion .°C Ion

-17 °C F .°C

Diagram showing four labeled buttons with directional arrows and icons, marked with '1' indicating key points.

Diagram showing three labeled buttons with icons and a finger pointing to the first two, marked as '1' for visibility or navigation.

NOTES

90mm 300mm 60mm 300mm

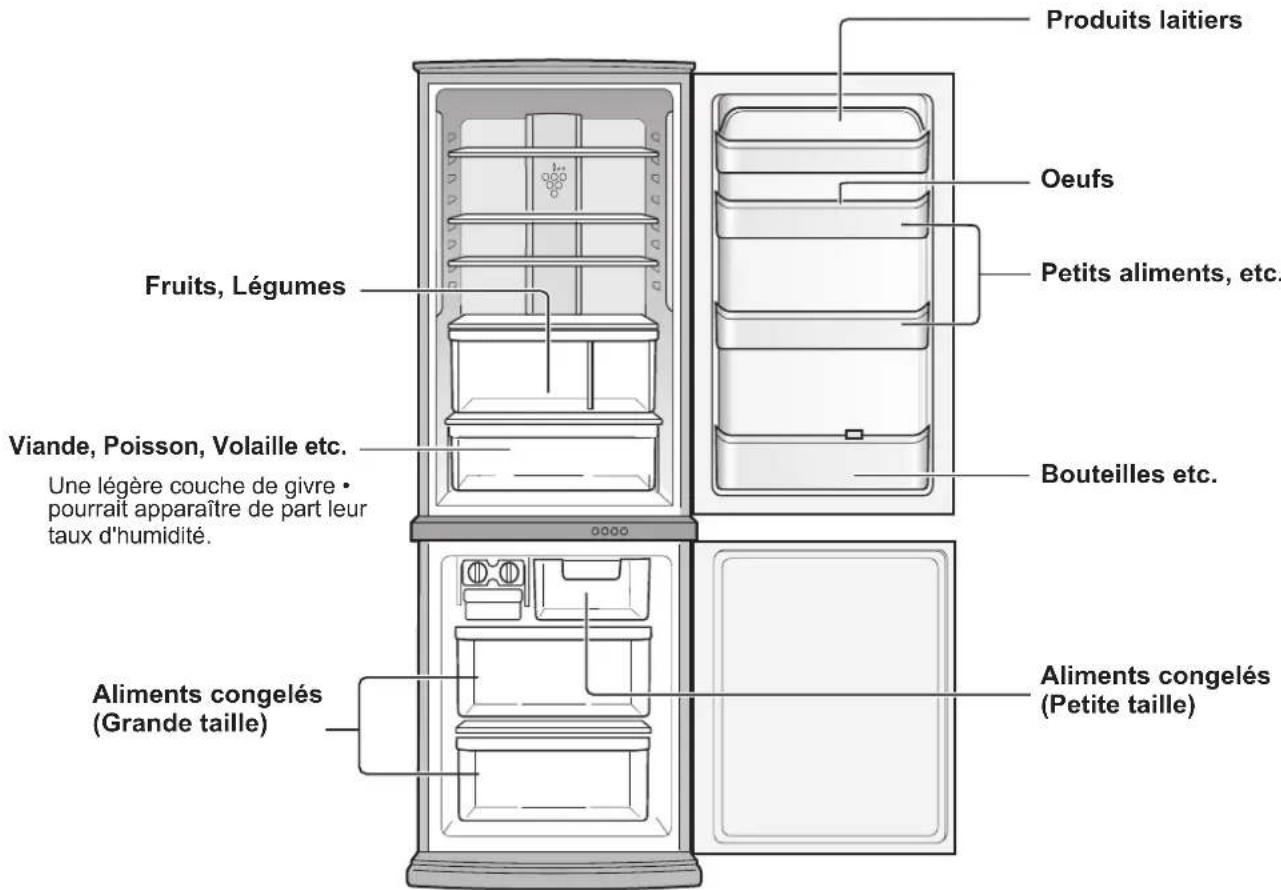

CONSERVATION DES ALIMENTS

Diagram showing two mechanical or architectural components with directional arrows indicating movement, no text or symbols present.

Ao fechar a porta

Illustration of a person's foot stepping on a wooden bracket with a small inset showing the blade (no text or symbols)

Estrutura

Mecanismos do corpo

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Atenção:

90mm ou mais 60mm 60mm ou mais 1300mm 1040mm 1350mm S-J-RP320T SJ-WS320T SJ-RM320T SJ-WP320T SJ-RP360T SJ-WS360T SJ-RM360T SJ-WP360T Tipo isolado

Diagram of a mechanical device with a central component and directional arrow, no visible text or symbols

Gaveta para frutas e legumes5

Placa separadora6.

Prateleira7.

Caixa refrigerada8.

Painel de controlo9.

Illustration of a refrigerator with open door, shelves, and drawer (no text or symbols)

FUNCIONAMENTO

Painel de controlo

1 2 3 4 5 6 °C R F ion 1 7 8 9

On °C Ion .°C Ion

OFF pc A piscar

2 Prima o botão ▲: ON(LIGADO), : OFF(DESLIGADO) ]

On c

2 Prima o botão "1

On °C *

.°C

Modo férias

(Excepto para SJ-RM320T, SJ-RM360T)

OFF C A piscar

2 Prima o botão ▲: ON(LIGADO), : OFF(DESLIGADO) ]

c>

3 Prima o botão "1

On °C

.℃

OFF A piscar

2 Prima o botão ♠: ON(LIGADO), : OFF(DESLIGADO) ]

Handwritten symbols including 'On', 'c', and a grid of symbols with brackets, possibly representing a digital logic or waveform.

3 Prima o botão "1

On °C ↓ .°C

A piscar 3°C R

Diagram showing four labeled buttons with icons and numbered indicators, likely from a software interface or control panel.

User interface toolbar with four function buttons and two finger icons labeled '1'

OBSERVAÇÕES

90mm 300mm 300mm 60mm

Diagram of a refrigerator interior showing directional arrows and labeled compartments with symbols like 'P', 'D', and 'E'.

Diagram showing two identical views of a refrigerator with hands holding arrows indicating rotation (no text or symbols)

Simple line drawing of a cabinet with a handle and scroll, no text or symbols present

Illustration of a person's foot stepping on a wall-mounted panel with a spring, no text or symbols present

Δομή

Μηχανισμοί σώματος

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

Illustration of four workers in hard hats pulling a large cylindrical object (no text or symbols visible)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Diagram of a refrigerator with shelves and doors, no text or symbols present

ΛΕΙΤΟΥΡΓΙΑ

Πίνακας ελέγχου

1 2 3 3 °C R F Ion 1 7 8 9

On °C Ion .°C Ion

OTE TO TPIHKTPO " ◇ 4 °C R ↓ .°C

Χώρος καταψύκτη

-17 °C F .°C

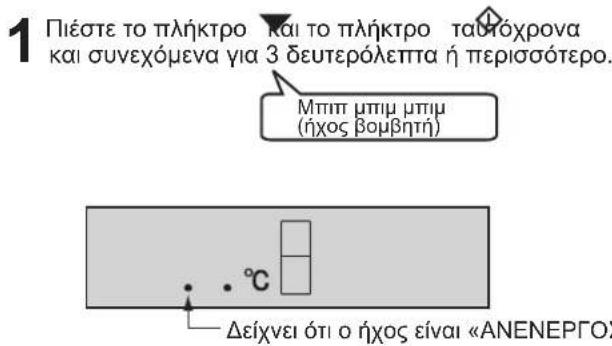

Diagram showing four directional control buttons with icons and two labeled '1' fingers pointing to them.

User interface toolbar with four function buttons and two finger icons labeled '1' pointing to them

Diagram of a refrigerator interior showing directional arrows and labeled compartments with symbols like 'F', 'A', and 'B'.

Diagram showing two identical views of a door frame with arrows indicating rotation, no text or symbols present.

Simple line drawing of a door with a handle and decorative elements, no text or symbols present.

Illustration of a person's foot stepping on a wall-mounted device (no text or symbols visible)

Aufbau

Gehäusemechanismen

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Diagram of a device with a top panel and internal components, showing no text or symbols.

Diagram of an open refrigerator with shelves and doors, no text or symbols present

BEDIENUNG

Bedienfeld

1 2 3 4 5 6 R F Ion 1 7 8 9

On °C Ion .°C Ion

-17 °C F ↓ .°C

{3}°C ↓ {3.0}°C

Temperaturanzeige

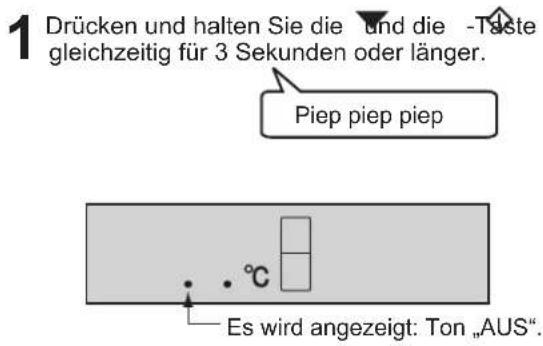

Diagram showing four labeled icons with arrows pointing to control buttons, numbered 1 at the bottom.

Diagram showing four directional icons with arrows pointing to specific symbols, labeled '1' at the bottom.

90mm 300mm 60mm 300mm

Diagram of a refrigerator interior showing directional arrows and control panel with icons for status, function, and operation.

Diagram showing two identical mechanical or architectural views with hands holding arrows indicating rotation (no text or symbols)

Simple line drawing of a cabinet with a hand holding a paper airplane (no text or symbols)

Illustration of a person's foot pressing down on a wall-mounted bracket (no text or symbols visible)

Structuur

Inhoudsmechanismen

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Let op:

Diagram of a mechanical device with a central shaft and directional arrow, no visible text or symbols

N.B.

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

GEBRUIK

Bedieningspaneel

2 13 3.0°C R F Ion 1 4 5 6 7 8 9

On °C Ion .°C Ion

OFF Knippert

OFF Knippert

Handwritten symbols including 'On', 'c', and a sequence of symbols with brackets, possibly representing a digital or symbolic notation.

Knippert 3°C R

-17 °C F .°C

OFF Knippert

Diagram showing four directional control buttons with icons and numbered labels 1

Diagram showing four directional control buttons with icons and a '1' label pointing to one finger

90mm 300mm 300mm 60mm

Illustration of a refrigerator with open doors and internal compartments (no text or symbols)

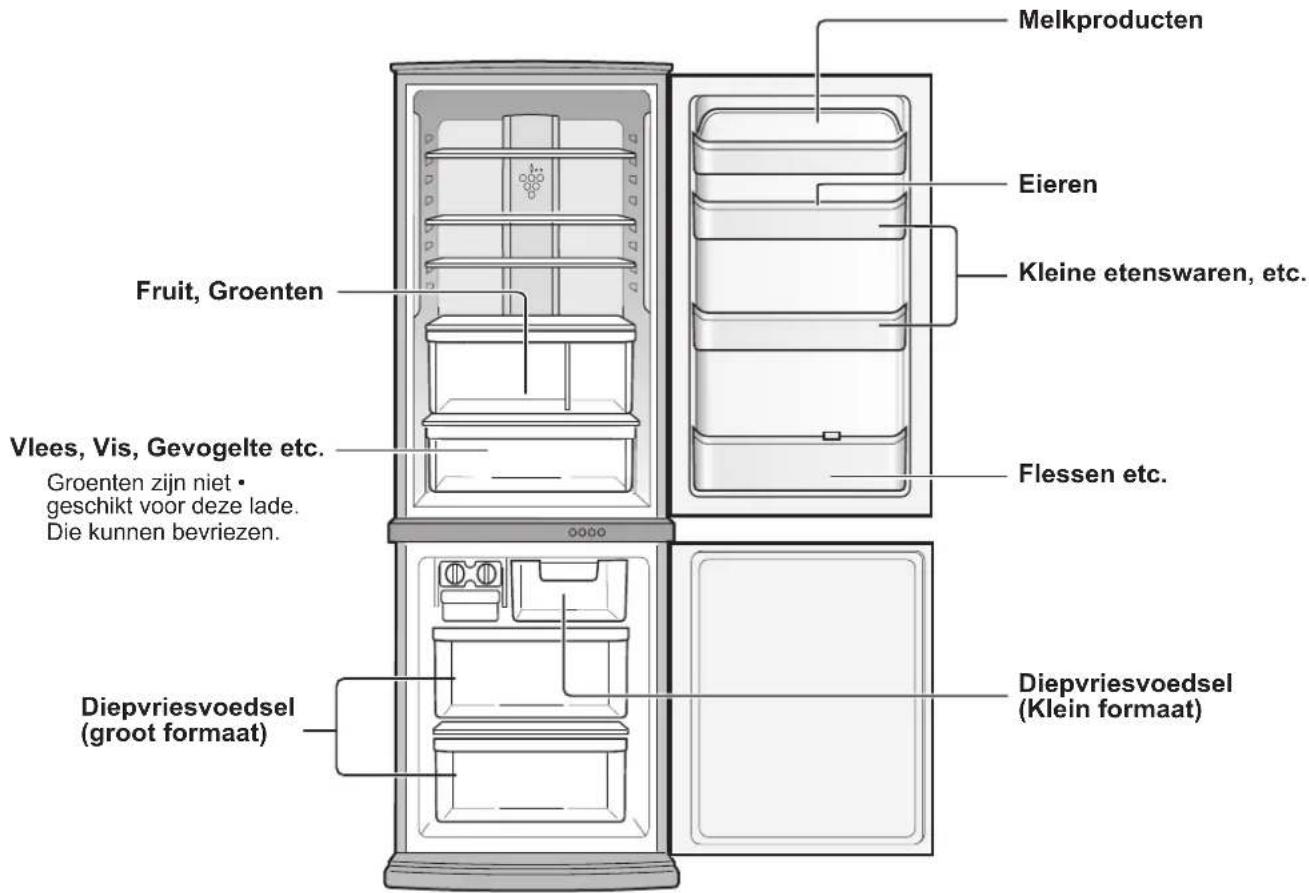

OPBERGEN VAN VOEDSEL

Diagram of a refrigerator interior showing directional arrows and labeled components, likely for electrical or mechanical control.

Diagram showing two identical mechanical or architectural views with directional arrows indicating movement, no text or symbols present.

Zamykanie drzwi

Simple line drawing of a cabinet with a handle and decorative elements (no text or symbols)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Struktura

Mechanizmy korpusu

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Diagram of a device with a top panel and internal components, showing directional arrows (no text or symbols)

UWAGA

Illustration of a refrigerator with shelves and doors, no text or symbols present

OBSŁUGA

Panel sterujący

1 2 3 3.0°C R F Ion 7 8 9

On °C Ion .°C Ion

Wyłączenie funkcji

4 °C R ↓ .°C

Komora zamrażarki

-17 °C F ↓ .°C

Diagram showing four directional control buttons with icons and numbered labels pointing to them

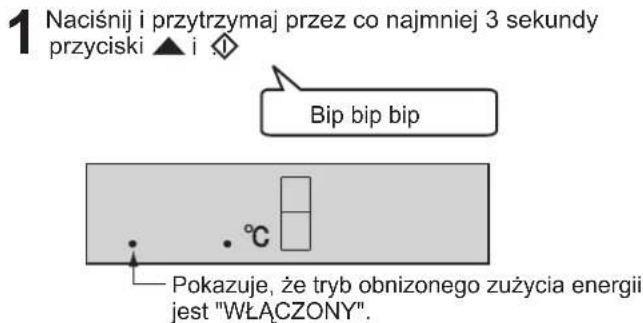

Diagram showing four directional icons with arrows pointing to control buttons, labeled '1' at the bottom.

Diagram showing two identical mechanical or architectural views with hands holding arrows indicating rotation, no text or symbols present.

Illustration of a person's foot pressing down on a mechanical component (no text or symbols visible)

Symbol of a trash bin crossed out by two diagonal lines, with a solid black rectangle below (no text or labels)

Figyelem:

Diagram of a mechanical device with a central shaft and directional arrow, no visible text or symbols

Müködtetőkar

MEGJEGYZÉS

Illustration of a refrigerator with doors and shelves (no text or symbols)

MÜKÖDTETÉS

Vezérlőpanel

1 2 3 3 °C R F Ion 1 7 8 9

On °C Ion .°C Ion

4 °C R ↓ .°C

Fagyasztótér

-17 °C F .°C

.°G R F Lassan villog

Diagram showing four directional control buttons with icons and two labeled '1' fingers pointing to them.

Diagram showing four directional control buttons with icons and two labeled '1' fingers pointing at them.

90mm 60mm 300mm300mm

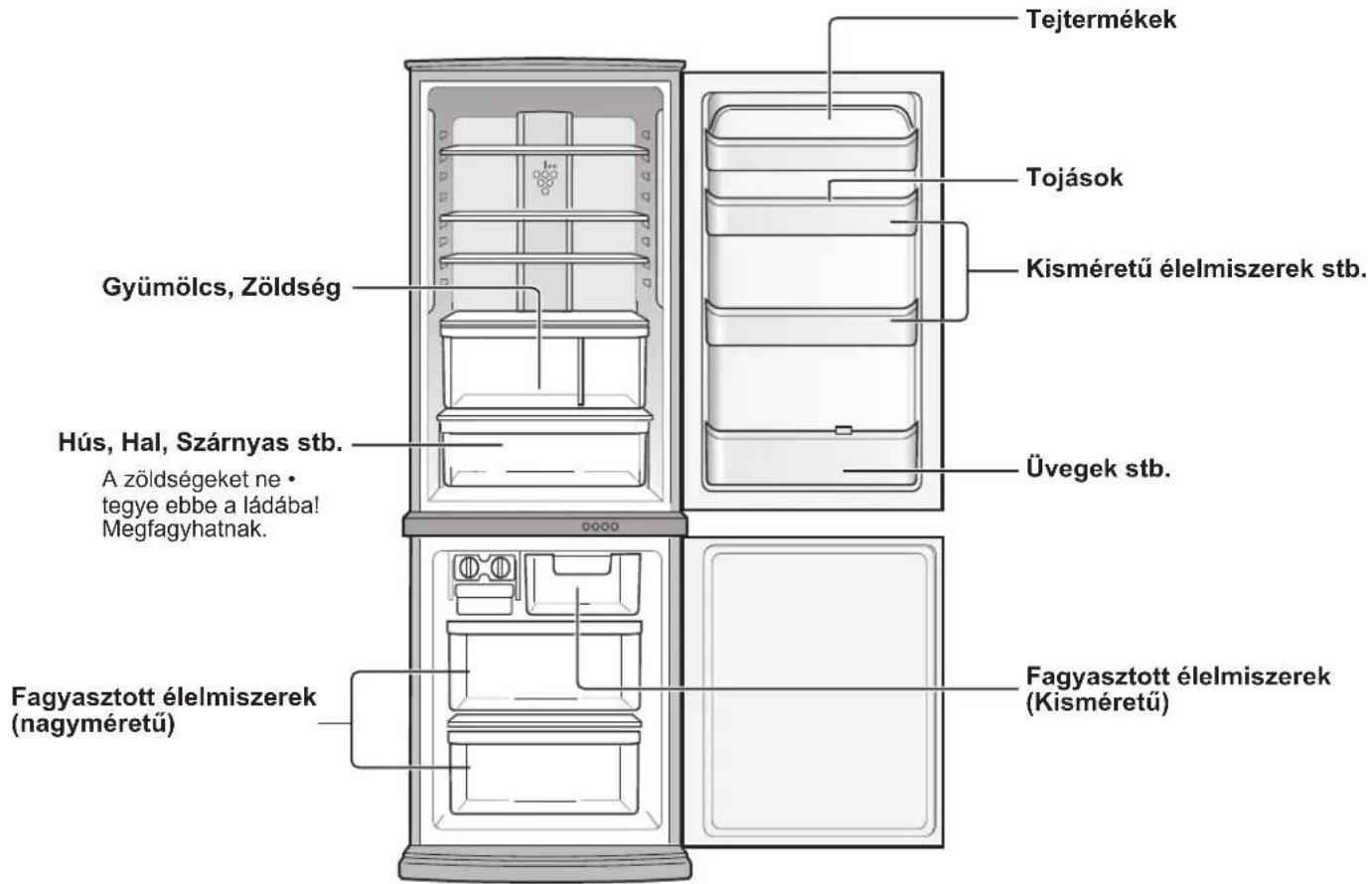

ÉLELMISZER-TÁROLÁS

Diagram of refrigerator interior showing door, front panel, and side view with directional arrows and control buttons

(Numai pentru SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram showing two identical mechanical or architectural views with hands holding arrows, no text or symbols present.

La închiderea uşii

Pure technical diagram showing a mechanical or structural component with no visible text, numbers, or symbols.

AVERTISMENT

Line drawing of a person's foot stepping on a wall-mounted panel (no text or symbols)

Structură

Mecanisme corp

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Atentie:

Produsul

90mm sau mai mult 1300mm 60mm sau mai mult sau mai mull 60mm60mm 1040mm 1350mm Tip stabil neancorat SJ-RP320T SJ-WS320T SJ-RM320T SJ-WP320T SJ-RP360T SJ-WS360T SJ-RM360T SJ-WP360T

Illustration of five workers in hard hats pulling a large cylindrical object (no text or symbols visible)

(Numai pentru SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram of a mechanical device with a lever and directional arrow, no visible text or symbols

Illustration of a refrigerator with open door, shelves, and drawer (no text or symbols)

FUNCTIONAREA

Panou de comandă

1 2 3 4 5 6 R F Ion 7 8 9

OFF Strălucire

On °C Ion .°C Ion

OFF Strălucire

(Cu exceptia SJ-RM320T, SJ-RM360T)

OFF Strălucire

(Cu exceptia SJ-RM320T, SJ-RM360T)

OFF Strălucire

Strălucire 3°C R

4 °C R 0°C

-17 °C F .°C

{3} R ↓ {3.0} R

OFF Strălucire

Diagram showing four directional control buttons with icons and numbered labels '1' pointing to them.

Diagram showing four directional icons with arrows pointing to circular and square buttons, labeled '1' at the bottom.

NOTĂ

90mm 60mm 300mm300mm

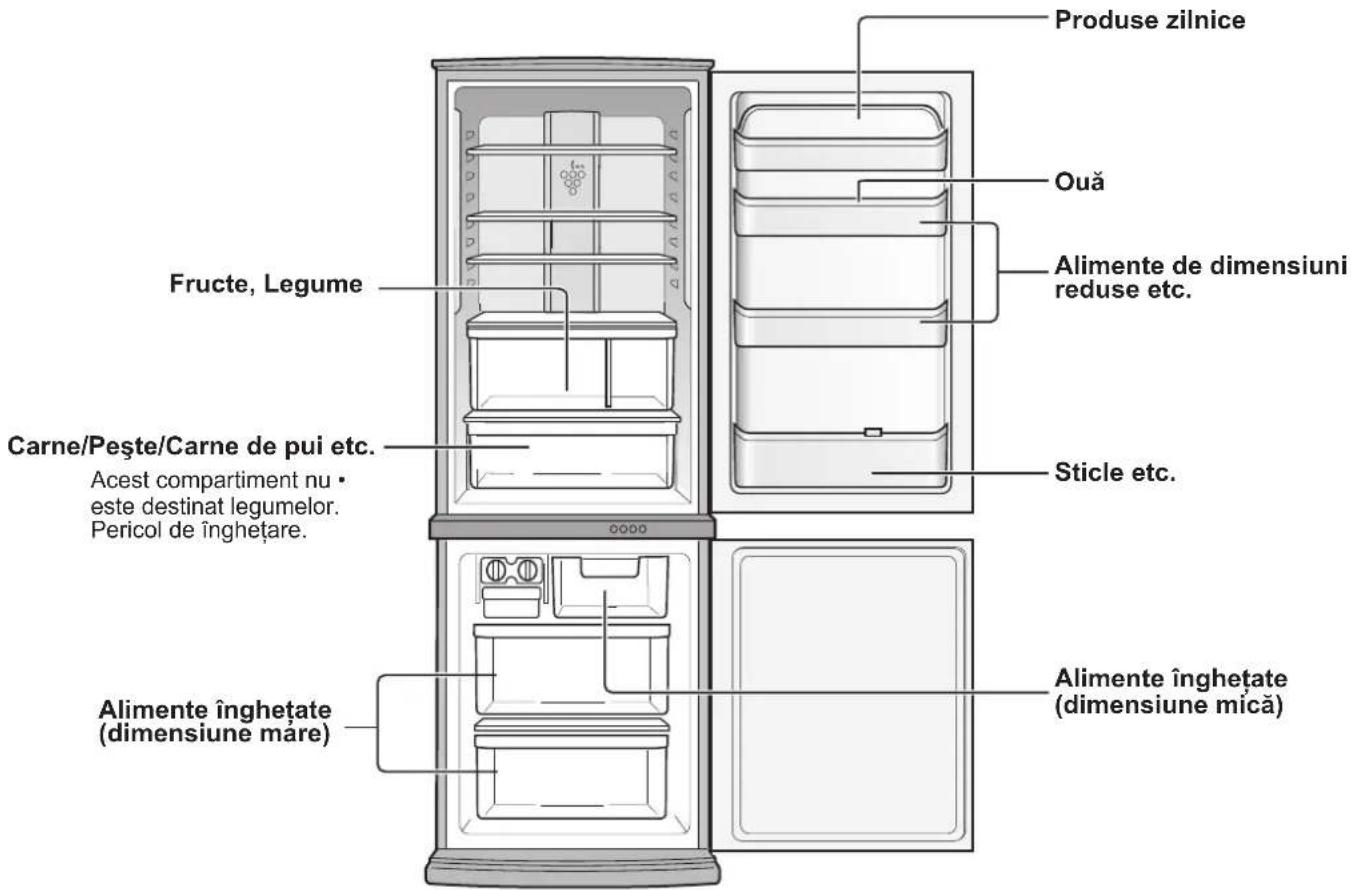

PĂSTRAREA ALIMENTELOR

Diagram of a refrigerator interior showing directional arrows and control panel layout with labels like 'Control Panel' and 'Order Box'.

(Pouze pro SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram showing two mechanical assembly steps with arrows indicating motion direction (no text or symbols)

Při zavírání dveří

Diagram illustrating foot movement and change in a mechanical or architectural component, with arrows indicating direction of movement.

POZNÁMKA

Simple line drawing of a cabinet with arrows indicating motion or force (no text or symbols)

Illustration of a human foot pressing down on a mechanical component (no text or symbols visible)

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

Upozornění:

(Pouze pro SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram of a mechanical device with a lever and internal components, no visible text or symbols

Illustration of a refrigerator cabinet with open doors and shelves (no text or symbols)

OBSLUHA

Ovládací panel

1 2 3 3 °C R F Ion 7 8 9

On °C Ion .°C Ion

Zrušení operace

-17 °C F .°C

On °C .°C

Zrušení operace

Diagram showing four labeled buttons with directional icons and numbered callouts, likely from a software interface or control panel.

User interface toolbar with five function buttons and two finger icons labeled '1' pointing to them

90mm 300mm 300mm 60mm

ULOŽENÍ POTRAVIN

Diagram of a refrigerator interior showing directional arrows and labeled compartments with icons

(Iba SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram showing two identical mechanical or architectural views with directional arrows indicating movement, no text or symbols present.

Pri zatváraní dverí

Simple line drawing of a cabinet with a handle and a spring, no text or symbols present

Illustration of a person's foot stepping on a wall-mounted panel with a foot fixed at the end (no text or symbols)

Konštrukcia

Mechanizmus zavesenia

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

Pozor:

(Iba SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Zásuvka na ovocie a zeleninu5

Deliaca doska6.

Polica7.

Priehradka na chladenie8.

Ovládací panel9.

Výrobník l'adu10.

Illustration of a refrigerator with doors, shelves, and storage compartments (no text or symbols)

PREVÁDZKA

Ovládací panel

1 2 3 3.0°C R F Ion 7 8 9

1 Stlačte tlačidlo vol'by a vyberte ikonu Plasmacluster.

OFF on Bliká

2 Stlačte tlačidlo ▲ [ ▲: ON (ZAP), ▼: OFF (VYP) ]

On Ion

On °C Ion .°C Ion

Zrušit' činnost'

(Okrem SJ-RM320T, SJ-RM360T)

(Okrem SJ-RM320T, SJ-RM360T)

-17 °C F .°C

Diagram showing four labeled icons with arrows pointing to control buttons, numbered 1 at the bottom.

Diagram showing four icons with arrows pointing to control buttons, labeled '1' at the bottom.

Diagram of a refrigerator interior showing directional arrows and labeled storage unit (SK)

Diagram showing two identical mechanical or architectural views with hands holding arrows, no text or symbols present.

Uždarydami duris

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Simple line drawing of a cabinet with arrows indicating motion or force (no text or symbols)

Struktūra

Korpuso mechanizmai

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

Dèmesio:

Šaldoma dalis SJ-WS360T

Šviesos diodu ekrano lemputės1. Hibridinis šaldymo skydelis (aliuminio skydelis)2.

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

PASTABA

Illustration of a refrigerator with doors open, showing internal compartments and storage areas (no text or symbols)

APTARNAVIMAS

Valdymo pultas

1 2 3 3.0°C R F Ion 7 8 9

1 2 3 LT

On °C Ion .°C Ion

3 Paspauskite mygtuka, "I"

On °C ↓ .°C

-17 °C F .°C

3 c R ↓ 3.0 c R

Diagram showing four directional control buttons with icons and numbered labels pointing to them

User interface toolbar with five function icons and two finger buttons labeled '1' pointing to control buttons

90mm 60mm 300mm300mm

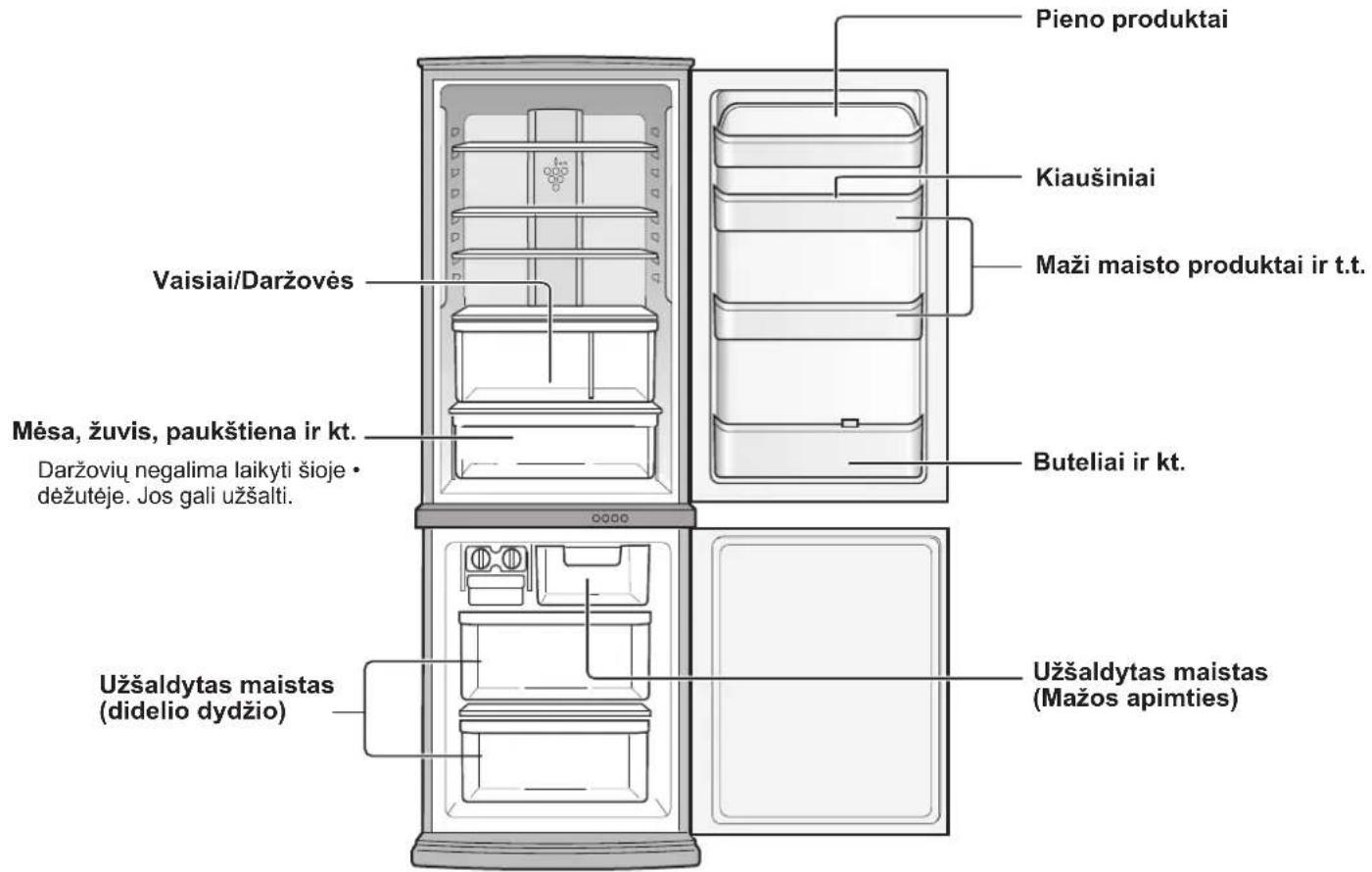

MAISTO LAIKYMAS

Diagram of a refrigerator interior showing directional arrows and labeled compartments with symbols like 'P', 'D', and 'E'.

Diagram showing two identical mechanical or architectural views with arrows indicating rotation, no text or symbols present.

Durvju aizvēršana

Diagram illustrating foot movement and change in a mechanical or architectural component, with arrows indicating direction of movement.

Line drawing of a person's foot stepping on a wall-mounted panel with a spring, no text or symbols present

Uzbüve

Korpusa mehānisms

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

Uzmanību!

Diagram of a mechanical device with a table and internal components, showing no text or symbols.

Illustration of a refrigerator with open doors and internal compartments (no text or symbols)

DARBİBA

Vadības panelis

1 2 3 3 °C R F Ion 1 7 8 9

On °C Ion .°C Ion

4 °C R ↓ .°C

-17 °C F ↓ .°C

Ledusskapja nodalijuma papildu iestatijumi iestatijumi

{3} R ↓ {3.0} R

OFF v:0°C

3 Nospiediet pogu.

Diagram showing four labeled buttons with icons and arrows, indicating selection or navigation steps

Diagram showing four labeled buttons with icons and a finger pointing to the first three, labeled '1' at the bottom.

Diagram of a refrigerator interior showing directional arrows and labeled components, including a 'LV' indicator.

Diagram showing two identical mechanical or architectural views with hands holding arrows, no text or symbols present.

Ukse sulgemine

Illustration of a hand pressing down on a wall-mounted panel (no text or symbols visible)

Ehitus

Põhiosa mehhanismid

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Tähelepanu:

Diagram of a device with a left-side control panel and a horizontal bar, no text or symbols present.

MÄRKUS

Diagram of a refrigerator with open door, showing internal compartments and storage areas (no text or labels)

On °C Ion .°C Ion

OFF pc Vilgub

2 Vajutage ▲uppu. [ : ON(SEES), : OFF(VÄLJAS) ]

On c

3 Vajutage -kuppu.

On °C ↓ .°C

Puhkuserežiim

OFF Vilgub

2 Vajutage ▲uppu. [ : ON(SEES), : OFF(VÄLJAS) ]

c>

3 Vajutage -nuppu.

On °C ↓ .°C

OFF C Vilgub

2 Vajutage ▲nuppu. [ : ON(SEES), : OFFVÄLJAS) ]

Digital display showing 'On' and 'c' symbols with corresponding musical notes above

3 Vajutage nuppu.

On °C ↓ .°C

4 °C R .°C

-17 °C F .°C

OFF C Vilgub

2 Vajutage ▲uppu. [ : O▲(SEES), : OFF▼VÄLJAS) ]

On c

3 Vajutage muppu.

On °C ↓ .°C

User interface toolbar with four function buttons labeled 1, pointing to icons for file operations and navigation

Diagram showing four directional control buttons with icons and a '1' button, likely indicating navigation or selection.

90mm 60mm 300mm300mm

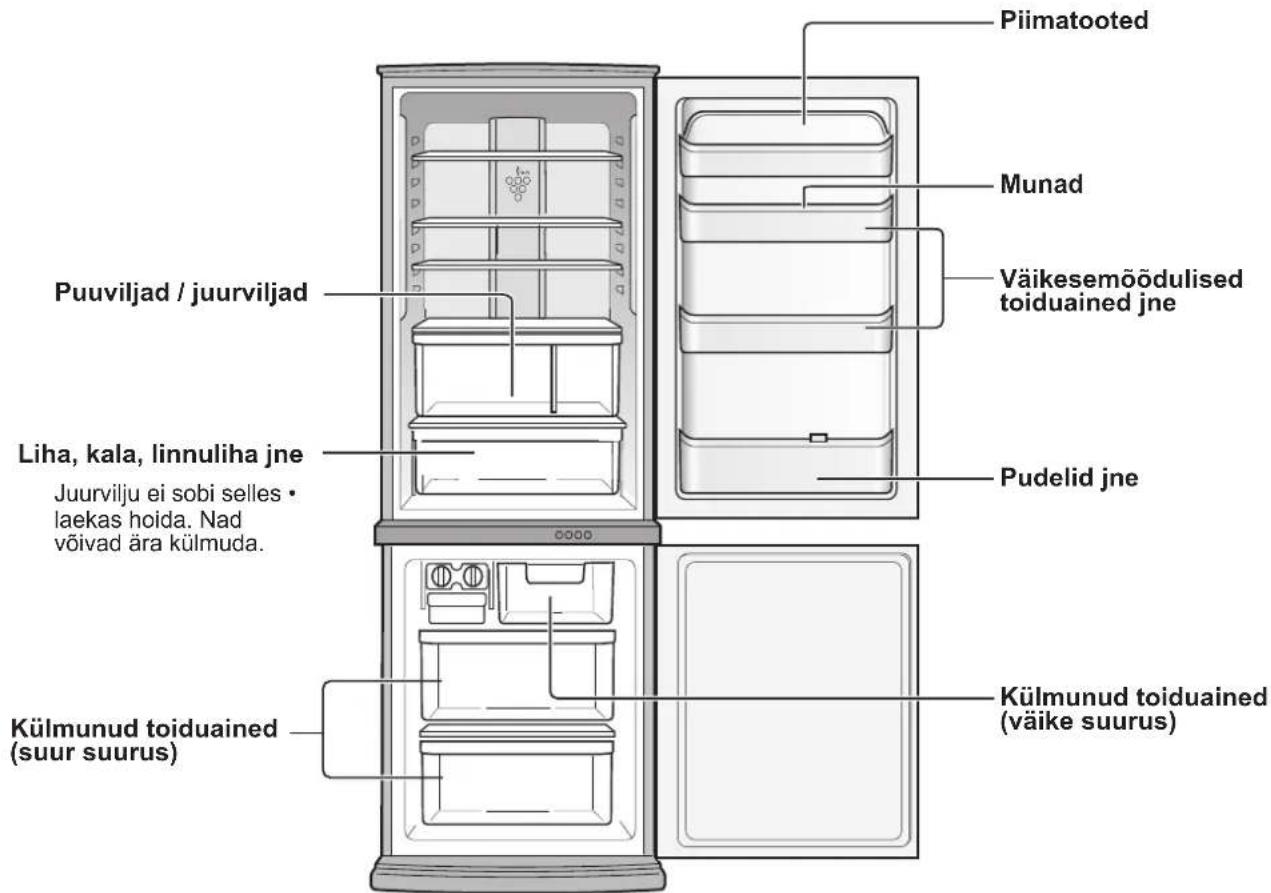

TOIDUAINETE HOIDMINE

Diagram of a refrigerator interior showing directional arrows and labeled compartments with icons

(Le za SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram of a door with an arrow indicating direction, no text or symbols present

Diagram of a door frame with a hand pressing a button, showing no text or symbols

Zapiranje vrat

Potisnite vrata in se prepričajte, da so dobro zaprta, saj nimajo funkcije samodejnega zapiranja.

Illustration of a human foot pressing down on a wall-mounted panel (no text or symbols visible)

Tehnični sestav

Mehanizem na ohišju

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Pozor:

(Le za SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram of a mechanical device with a lever and directional arrow, no visible text or symbols

OPOMBA

Illustration of a refrigerator front view showing internal compartments and storage compartments (no text or symbols)

DELOVANJE

Nadzorna plošča

1 2 3 4 5 6 R F Ion 1 7 8 9

Prikaz za nastavljanje temperature1.

Prikazana je prednastavljena temperatura izbranega predela. To ni dejanska temperatura v predelu.

Prikaz za nadzor temperature2.

1 Pritisnite gumb za izbiro in izberite ikono Plasmacluster.

OFF Utripa

2 Pritisnite gumb ▲. [▲: ON (VKLOP), ▼: OFF (IZKLOP)]

On c ton

Izbirni gumb7.

Pritisnite za izbiro ikone funkcije in alarmnega signala vrat.

Gumb8

OFF Utripa

2 Pritisnite gumb ▲ : ON (VKLOP), : OFF (IZKLOP)]

c>

2 Pritisnite gumb ◆

On °C ↓ .°C

3 Pritisnite gumb 4 °C R .°C

Zamrzovalni predel

Nastavljivo od -13 °C do -21 °C v korakih po 1 °C.

1 Pritisnite gumb za izbiro in izberite ikono .F {-18} F Utripa

2 Pritisnite tipko ▲ in ▼astavite temperaturo. [▲: povečanje, ▼zmanjšanje]

-173F

3 Pritisnite gumb -17 °C F ↓ .°C

Diagram showing four labeled buttons with directional icons and numbered callouts, likely from a software interface or control panel.

Diagram showing four directional icons with arrows pointing to specific buttons, labeled '1' at the bottom.

1 Hkrati pritisnite gumba ▲ terlu držite 3 sekunde ali več.

90mm 300mm 300mm 60mm

SHRANJEVANJE HRANE

Diagram showing two identical mechanical or architectural views with hands holding arrows, no text or symbols present.

Закривання дверей

Illustration of a person's foot stepping on a mechanical component with no visible text or symbols

Будова

Illustration of four workers in hard hats pulling a large cylindrical object (no text or symbols visible)

Diagram of a mechanical device with a top view and internal components, no visible text or symbols

Diagram of a refrigerator with open door, shelves, and drawer (no text or symbols)

ЕКСПЛУАТАЦІЯ

Панель керування

1 2 3 3 °C R F Ion 1 4 5 6 7 8 9

Diagram showing four labeled icons with arrows pointing to circular and diamond shapes, each marked with a numbered label '1'

User interface toolbar with four function buttons and two finger icons labeled '1'

Diagram of a refrigerator interior showing directional arrows and control panel layout with labels like 'Control Panel 1'

(Само за SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram showing two identical mechanical or architectural views with directional arrows indicating movement, no text or symbols present.

Illustration of a person's foot stepping on a mechanical component with a spring, no text or symbols present

Конструкция

(Camo SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

(Camo за SJ-RP320T, SJ-RM320T, SJ-RP360T, SJ-RM360T)

(SJ-WS320T,SJ-RP320T : 2 6p. SJ-WP320T,SJ-RM320T (SJ-WS360T,SJ-RP360T : 3 6p. SJ-WP360T,SJ-RM360T

Diagram of a mechanical device with a central component and directional arrow, no visible text or symbols

ЗАБЕЛЕЖКА

Illustration of a refrigerator cabinet with open doors and shelves (no text or symbols)

РАБОТА

Контролен панел

1 2 3 3 °C R F Ion 1 7 8 9

Дисплей за зададена температура 1.

On °C Ion .°C Ion

(Не важи за SJ-RM320T, SJ-RM360T)

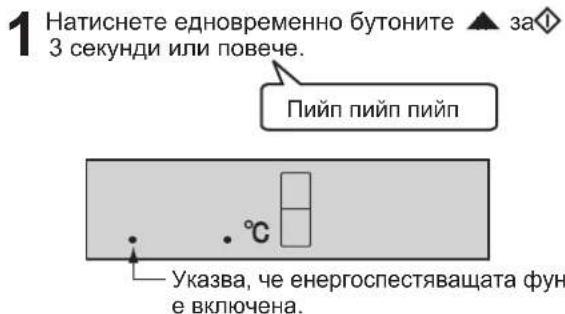

(Не важи за SJ-RM320T, SJ-RM360T)

Diagram showing four labeled buttons with directional icons and numbered callouts, likely from a software interface or control panel.

Diagram showing four directional icons with arrows pointing to specific buttons, labeled '1' at the bottom.

Diagram of a refrigerator interior showing directional arrows and control panel with labels like 'PDP' and 'S100'

НАВЪТРЕ

НАВЪН

(Толькі для мадэляў SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram showing two identical views of a refrigerator with hands holding arrows indicating rotation (no text or symbols)

Simple line drawing of a door with a handle and decorative elements, no text or symbols present.

Illustration of a foot pressing down on a wall-mounted panel (no text or symbols visible)

Структура

Механізмы корпуса

Simple line drawing of a bucket and drawer inside a container (no text or symbols)

Выпарная чаша

УВАГА

(Толькі для мадэляў SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

Diagram of a mechanical device with a central component and an arrow indicating rotation (no text or symbols)

УВАГА

Illustration of a refrigerator cabinet with shelves and doors (no text or symbols)

KIPABAHHE

Панэль кіравання

1 2 3 3.°C R F Ion 7 8 9

On °C Ion .°C Ion

Адмена аперацыі

Digital display showing 'On' and 'c' symbols with corresponding musical notes and numbers above

3 Націсніце кнопку.

On °C ↓ .°C

Адмена аперацыі

4 °C R ↓ .°C

-17 °C F ↓ .°C

Diagram showing four labeled buttons with directional arrows and icons, marked with '1' at the bottom of each button.

User interface toolbar with icons and finger buttons, showing document, downward arrow, up-right triangle, and diamond symbol functions

Diagram of a refrigerator interior showing directional arrows and labeled compartments with symbols like 'C' and 'D'

Federal Republic of Germany

Printed in Thailand
