USER MANUAL AF 5087PS AGFAPHOTO

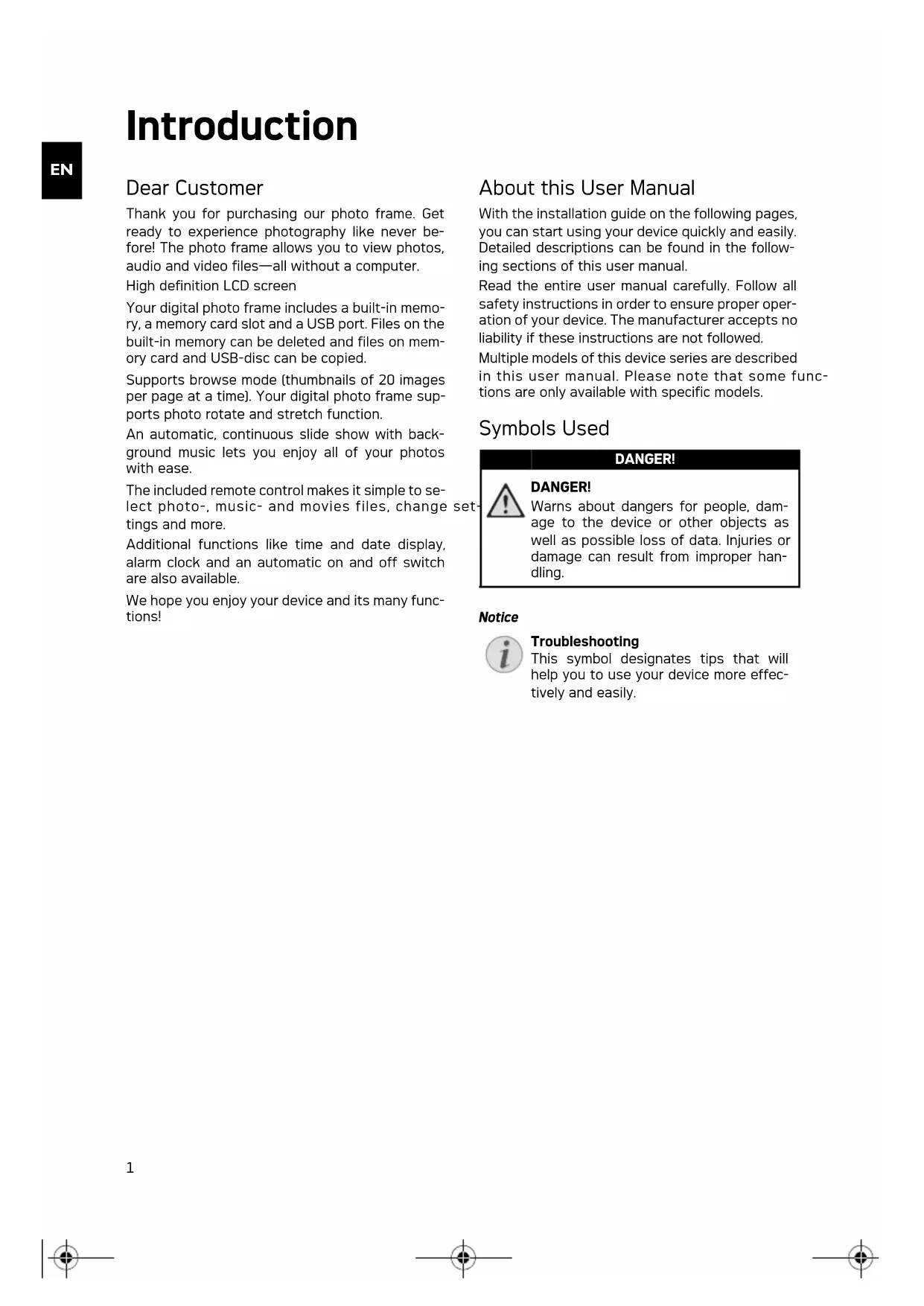

Introduction Dear Customer Thank you for purchasing our photo frame. Get ready to experience photography like never be- fore! The photo frame allows you to view photos, audio and video files—all without a computer. High definition LCD screen Memory Your digital photo frame includes a built-in memo- ry, a memory card slot and a USB port. Files on the built-in memory can be deleted and files on mem- ory card and USB-disc can be copied. Supports browse mode (thumbnails of 20 images per page at a time). Your digital photo frame sup- ports photo rotate and stretch function. An automatic, continuous slide show with back- ground music lets you enjoy all of your photos with ease. The included remote control makes it simple to se- lect photo-, music- and movies files, change set- tings and more. Additional functions like time and date display, alarm clock and an automatic on and off switch are also available. We hope you enjoy your device and its many func- tions! About this User Manual With the installation guide on the following pages, you can start using your device quickly and easily. Detailed descriptions can be found in the follow- ing sections of this user manual. Read the entire user manual carefully. Follow all safety instructions in order to ensure proper oper- ation of your device. The manufacturer accepts no liability if these instructions are not followed. Multiple models of this device series are described in this user manual. Please note that some func- tions are only available with specific models. Symbols Used Dangers Troubleshooting DANGER! DANGER! Warns about dangers for people, dam- age to the device or other objects as well as possible loss of data. Injuries or damage can result from improper han- dling. Notice Troubleshooting This symbol designates tips that will help you to use your device more effec- tively and easily. af-5077_5087_5107psms_manual_03_en_253243477-a.book Seite 1 Donnerstag, 2. Juli 2009 11:41 112

Safety Instructions and Recommendations Introduction 2 Do not make any changes or settings that are not described in this user manual. Physical injury or damage to the device or loss of data can result from improper handling. Take note of all warning and safety notes indicated. Setting Up the Device The device is exc lusively for indoor use only. The device is exclusively for indoor use only. The device should rest securely on a stabile, flat sur- face. Position all cables in such a way that no one will stumble on them, thus avoiding possible inju- ries to persons or damage to the device itself. LCD screen Always handle the unit with care. Avoid touching the LCD screen. Never place heavy or sharp ob- jects on the LCD panel, frame or power cord. Protect the devic e against direct sunlight Protect the device against direct sunlight, heat, large temperature fluctuations and moisture. Do not place the device in the vicinity of heaters or air conditioners. Observe the information on temper- ature and humidity in the technical data. Do not switch the device on immediately after transporting it. The device should not be switched on immediately after being moved from a cold to a warm room or vice versa or into a cold room which has been heated up quickly. In such cases, wait at least three hours until the device has adapted to the changed conditions (temperature, humidity…) . In the event th at the device becomes too hot, or if you see smoke coming from the de vice In the event that the device becomes too hot, or if you see smoke coming from the device, you must immediately pull the power cable out of the power socket. Have your device examined by trained pro- fessionals at a technical service location. To pre- vent the spread of fire, open flames should be kept away from the device. Do not p lug in the devi ce in moist roo ms. Do not plug in the device in moist rooms. Never touch the mains cable or the mains connection with wet hands. Do not allow liquids to enter into the devi ce. Do not allow liquids to enter into the device. Dis- connect the device from the power socket if liq- uids or foreign objects have entered the device and have your device examined by trained profes- sionals at a technical service location. Do not allow children to handle the device wi thout supervision. Do not allow children to handle the device without supervision. The packing materials should be kept out of the hands of children. Power Supply Use only the enclosed power adapter Use only the enclosed power adapter (see chapter Appendix / Technical Data). Check whether the mains voltage of your device (indicated on the type label) matches the mains voltage available at the setup location. This equipment complies with the voltage type specified on the unit. Never touch the pow er cable if the insulation is da maged. Never touch the power cable if the insulation is damaged. Replace damaged wires immediately. Use suitable cables only; if necessary please con- tact our technical customer service or your retail- er. Before cleaning the surf ace of your device, disconnect it from t he power network. Before cleaning the surface of your device, dis- connect it from the power network. Use a soft, lint-free cloth. Never use liquid, gaseous or easily flammable cleansers (sprays, abrasives, polishes, alcohol). Do not allow any moisture to reach the in- terior of the device. Only clean the display with a dry, soft cloth. Only clean the display with a dry, soft cloth. If the display breaks, a mildly corrosive liquid may es- cape. Avoid all contact with your skin and eyes. Repairs Repairs Do not make any repairs to the device yourself. Improper maintenance can result in injuries or damage to the device. Only have your device re- paired by an authorised service centre. Do not remove the type label from your device; this would void the warranty. Photo Memory Media Photo Memory Media Only use storage media that are compatible with the device. In order to prevent damage to the card or the unit, please turn off the power before re- moving or inserting the card. Never pull out the memory card while the device is accessing it. This could cause data to be damaged or lost. af-5077_5087_5107psms_manual_03_en_253243477-a.book Seite 2 Donnerstag, 2. Juli 2009 11:41 113

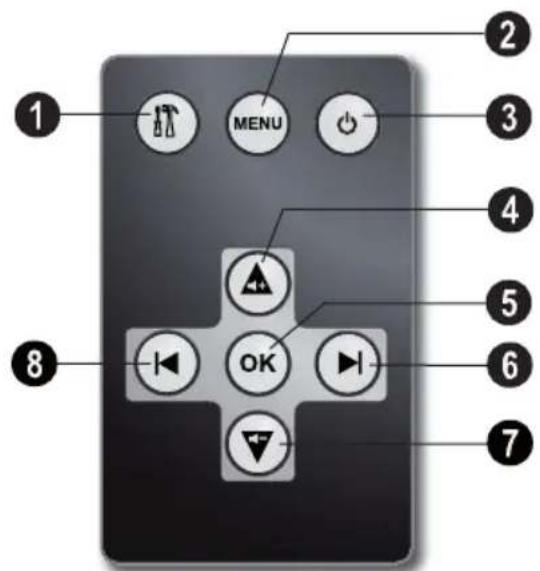

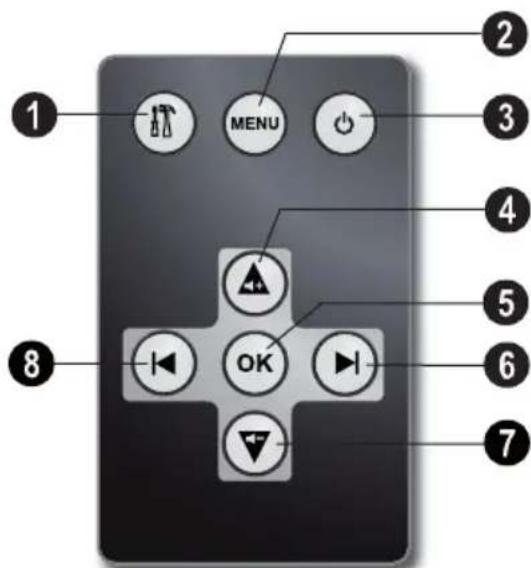

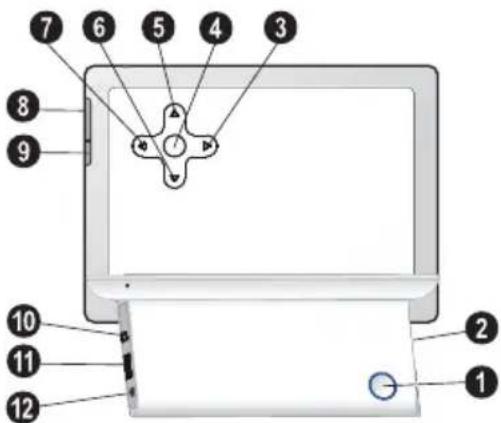

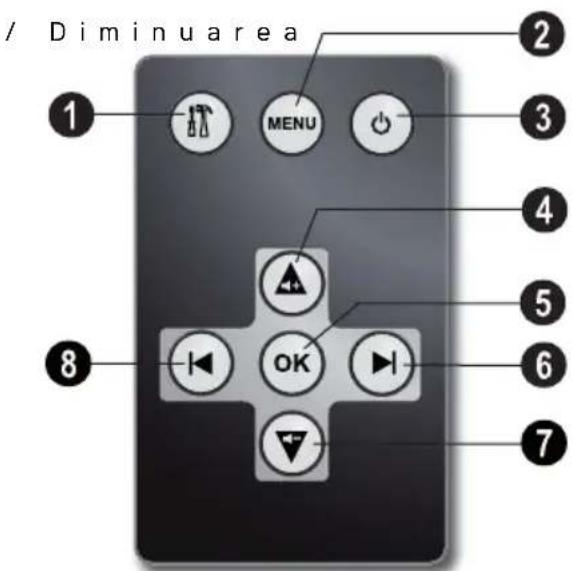

Overview Device Overview On/Off Switch 1B—On/Off switch Slot for Memory card 2—Slot for Memory card Arrow keys left 3 J—Navigating in the Menu / Decrease the brightness, contrast and colour saturation / Skips to the previous image, previous row or page

Initial Operation Packing Contents Digital photo frame ‚ Digital photo frame with bracket Power supply with exchangeable plugs ƒ Power supply with exchangeable plugs Remote control (with bat tery) Variable „ A remote control (with battery) (AF¦5077/¦5087/5107MS) User Guide (not depicted) User Guide (not depicted) Verpackungsinhalt AF 5077 Missing Package Co ntents Connecting power supply Mains Voltage a t the Site of Installation 1 Choose the right plug for your country and slide it onto the power adapter. Ensure that the plug snaps in completely. 2 Insert the small plug of the power supply into the socket on the rear side of your device. In- sert the power supply unit into the socket. Connecting to the PC Using the USB cable, you can connect your photo frame to a computer to transfer files between the internal memory and computer. 1 Switch the device off using the on/off switch on the rear. 2 With the frame turned off, connect the small end of the cable to the digital picture frame and the large end to your computer. 3 Switch the device on using the on/off switch on the rear. Allow the computer a few mo- ments to recognize the new hardware. Com- patible photo, music and video files can be cop- ied onto the internal memory. 4 If the connection with the computer is discon- nected, the digital photoframe will restart au- tomatically. Inserting a Memory Card 1 Insert a memory card into the appropriate card slot at the rear of the device. Your photo frame supports the following memory cards: SD/ MMC/MS/SDHC/XD. 2 Switch the device on using the on/off switch on the rear. The player will start slide show af- ter the start screen be displayed. 3 Press OK at the rear during a slide show to stop the slide show. Notice Missing Package Contents If one of the parts is missing or dam- aged, please contact your retailer or our customer service. CAUTION! Mains Voltage at the Site of Installation! Check whether the mains voltage of your device (indicated on the type label) matches the mains voltage available at the setup location. DANGER! Inserting a Memory Card! Only use storage media that are com- patible with the device. Never pull out the memory card while the device is accessing it. This could cause data to be damaged or lost. Notice Many Photos on the Memory Card If the memory card contains many photos, it can take some time until the slide show starts. Notice Using USB device and memory card at the same time If a USB storage device is used at the same time as a storage card, the im- ages from the memory card are dis- played first. af-5077_5087_5107psms_manual_03_en_253243477-a.book Seite 4 Donnerstag, 2. Juli 2009 11:41 115

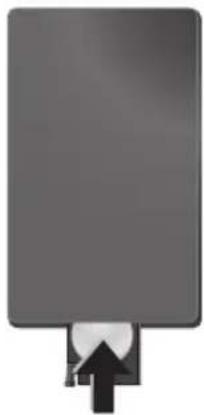

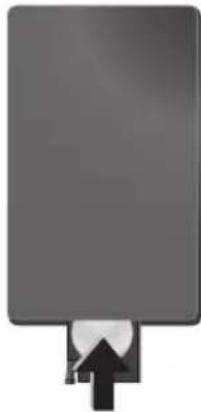

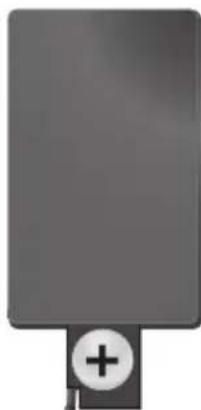

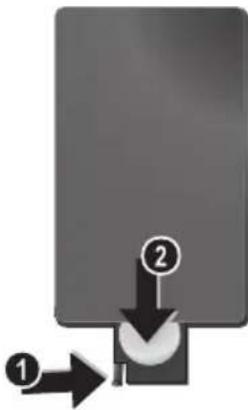

Installing or Changing the Batteries of the Remote Control 1 Take the battery compartment from the re- mote control by opening the locking mecha- nism (1) and pulling out the battery compart- ment (2). 2 Insert the new batteries into the battery com- partment with the positive and negative poles as shown on the back of the remote control. Make sure the polarities(+ and -) are aligned correctly. 3 Push the battery compartment back into the remote control until the locking mechanism en- gages. Using the Remote Control Point the remote control to the remote sensor on the front panel of the device. Its working limits is within an angle of 30 degrees and a distance of 2 meter. When using the remote control, no obstacle should be placed between the remote control and remote sensor. DANGER! Risk of explosion with incorrect type of batteries

CAUTION! RISK OF EXPLOSION IF BAT-

TERY IS REPLACED BY ONE OF AN IN- CORRECT TYPE. Notice Normally the batteries will last for around one year. If the remote control does not work, please replace the bat- teries. If the player is not used for a long time, take out the batteries. So you can prevent leakage and possible damage to the remote control. The batteries used should be disposed of according to the recycling regulations of your country. af-5077_5087_5107psms_manual_03_en_253243477-a.book Seite 5 Donnerstag, 2. Juli 2009 11:41 116

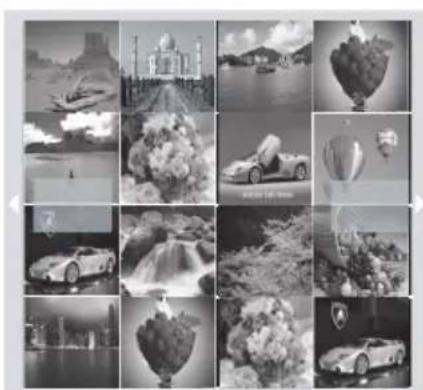

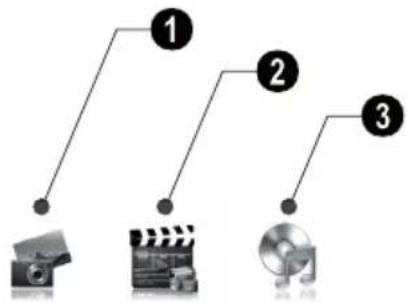

Playback Overview of the Menu Functions There are three items on the main menu. 1 Photo Menu 2 Video Menu (AF¦5077/¦5087/5107MS) 3 Music Menu (AF¦5077/¦5087/5107MS) Photomenü AF 5077 Navigating in the Menu 1 Press MENU on the remote control or MENU on the device. 2 Select the desired menu using Ý/Þ. 3Confirm with . Photo Playback 1 Select the photo menu in the main menu and confirm using OK. 2 Then the frame will display 16 thumbnail imag- es per page. 3Use G/I or J/H to select the image from which to start the slide show 4 Press OK to start the slide show. 5 Press OK to pause the slide show. A ‘pause symbol’ appears on the screen. 6 Press J/H to skip top the previous or next image. 7 End the slide show using MENU. Setting the Background Music of the Slide Show (AF¦5077/¦5087/5107MS) 1 During the slide show press Û on the remote control or G on the device, to start the back- ground music. Music Playback (AF¦5077/¦5087/5107MS) 1 Select the music menu in the main menu and confirm using . 2Using Ý/Þ or Û/Ü select the music title you want to play. 3 Press OK to start playback. Additional informations will be displayed during playback. 4 To stop, press OK. Notice Calling up Menu During the slideshow you can return to the main menu by pressing MENU at any time. Notice As background music, you can only use files that are stored together with the photos in the internal memory on the memory card or the USB connection. Notice Using Û/Ü, set the volume. af-5077_5087_5107psms_manual_03_en_253243477-a.book Seite 6 Donnerstag, 2. Juli 2009 11:41 117

Movie Playback (AF¦5077/¦5087/5107MS) 1 Select the video menu in the main menu and confirm using . 2Using Ý/Þ or Û/Ü select the video title you want to play. 3 Press OK to start playback. To stop, press OK. Adjusting Volume Level (AF¦5077/¦5087/5107MS) During playback you can adjust the volume using Ü/Û on the remote control. Press repeatedly Ü to switch off the volume (mute function). Notice Additional Playback Functions During playback , you can skip to the previous or next song by using Ý/Þ or Û/Ü. During playback, press the OK on the remote control to pause and to resume playback. af-5077_5087_5107psms_manual_03_en_253243477-a.book Seite 7 Donnerstag, 2. Juli 2009 11:41 118

Settings The settings menu contains four items and can be called up using ù on the device or ù on the re- mote control. 1 ECO Settings (Automatically switch on/off, Adaption of the LCD brightness automatically (AF¦5077/¦5087/5107MS)) 2 Picture-Settings (Slide show settings, rotating image) 3 File Management (Copy files, delete files, play- lists) 4 Basic-Settings (Brighness, contrast, date, clock) Settingsmenü A F 5077 ECO Settings The digital picture frame can be switched on or off automatically or the brightness of the LCD screen can be adapted according the ambient light (AF¦5077/¦5087/5107MS). Select from the following settings: Switching On and Off Automatically The digital photo frame can be switched on or off at a particular time of the day. 1 Press ù. 2Using J/H select the symbol and confirm with OK. 3 The symbol is selected. 4Use J/H to select the coloured symbol and confirm using OK. 5 Select the time at which the digital photo frame should be switched on using J/H. 6Confirm with OK. The colour of the cursor will change from white to red. 7 Select the time at which the digital photo frame should be switched off using J/H. 8Confirm with OK. The colour of the cursor will change from red to white. The time period when the digital picture frame is switched on, is marked green. 9 To delete a time period, mark the time period again. The green marking will be removed. 10 Press I and select the symbol using J/

11 Confirm with OK. 12 You can exit with ù. Automatic adaption of the LCD brightness (AF¦5077/¦5087/5107MS) With this function the brightness of the LCD screen can be adapted according the ambient light. 1 Press ù. 2Using J/H select the symbol and confirm with OK. 3Using I select the symbol and confirm with OK. 4 Select using J/H the black/white symbol (automatic switched off) or the coloured sym- bol (automatic switched on). 5Confirm with OK. 6You can exit with ù. Notice Switching Automatic On/Off You can deactivate the automatic on/ off. The actual setting is retained. 1 Press ù. 2Using J/H select the symbol and confirm with OK. 3 The symbol is selected. 4 Select using J/H the black/white symbol (automatic switched off) or the coloured symbol (automatic switched on). 5Confirm with OK. 6You can exit with ù. af-5077_5087_5107psms_manual_03_en_253243477-a.book Seite 8 Donnerstag, 2. Juli 2009 11:41 119

Modifying the Picture Settings Here you can rotating the images, changing as- pect ratio, determine the transition efects or ad- justing the slide show speed. 1 Press ù. 2Using J/H select (Picture Setting) and confirm with OK. 3Use G/I to select the required symbol. Rotating Image—Change the orientation of the image Aspect Ratio—The digital photo frame has a wide screen with 4:3 aspect ratio. Select whether you would like to view the image in the original format, in the wide screen format (16:9) or if the image should be stretched to match the shape of the screen. Transition Effects—Allows you to choose different styles of slide show effects. Slide Show Speed—Select from the dis- played times. Personal Frame – Select from different frames for displaying the pictures. 4 Select the required setting using J/H. 5Confirm with OK. 6You can exit with ù. File Management Files on the memory card or USB disk can be cop- ied. Files in the internal memory can be deleted. Copy / Delete Files 1 Press ù. 2Using J/H select (File Management) and confirm with OK. 3Using G to select (copy) or (delete) and confirm with OK. 4Using G/I, J/H select the file you want to copy or delete. 5Mark the file using OK. 6Using I to select the symbol line at the bot- tom of the screen. 7Using J/H to select icon and press OK to start copying or deleting. 8 The screen will display the processing bar. Af- ter finish copying, you can find the image in the internal memory. Starting Mode Select whether you would like images, movies or images and movies to be played automatically af- ter Power on. 1 Press ù. 2Using J/H select (File Management) and confirm with OK. 3Using G select and confirm with OK. 4 Select from the options displayed using J/H and confirm using OK. 5You can exit with ù. Notice Cancelling the Selection Press again OK to cancel the selec- tion. Notice Copy all Files from the Memory Card Select and confirm using OK to copy all files from the memory card to the internal memory. Notice Cancel Process Select and confirm using OK to cancel the process. af-5077_5087_5107psms_manual_03_en_253243477-a.book Seite 9 Donnerstag, 2. Juli 2009 11:41 1110

Playlists Create your own playlist for images, movies and music. Only images, movies and music in this playlists wil be played back. You can create up to five playlists. Creating Playlist 1 Press ù. 2Using J/H select (File Management) and confirm with OK. 3 Select (Playlists) using G/I and confirm with H. 4 Select using J/H wether you would like to create a playlist for music, images or movies. 5Confirm with OK. 6 Confirm 'OFF' using OK to create a new playl- ist. 7Using J/H select e.g. playlist 1 and confirm with OK. 8 Select using G/I or J/H the file you want to add to the playlist. Mark the file using OK. 9Mark further files using OK. 10 Using I to select the symbol line at the bot- tom of the screen. 11 Using J/H to select icon and press OK to save the playlist. 12 You can exit with ù. Switching Playlist On/Off 1 Press ù. 2Using J/H select (File Management) and confirm with OK. 3 Select (Playlists) using G/I and confirm with H. 4 Select using J/H wether you would like to switch on a playlist for music, images or mov- ies. 5Confirm with OK. 6 Confirm e.g. playlist1 using OK. 7 Select the desired playlist using J/H. Modifying the Basic Settings 1 Press ù. 2Using J/H select the symbol and confirm with OK. 3Use Û/Ü to select the setting you would like to allocate. 4Confirm with . You can allocate the following settings: , , (Brightness, Contrast, Colour satu- ration)—Adjustment of brightness, contrast, and colour saturation of the LCD screen. (Clock)—Setting the time and date. (Alarm) (AF¦5077/¦5087/5107MS)—Setting of the alarmtime, on/off of the alarm and the selection of the alarmtone. (Calendar) – Setting of year, month, day. (Default)—Restore the settings to the fac- tory default. 5 Select the desired setting using G/I. 6Confirm with 7 Modify the setting using J/H. 8 Confirm the modified setting using . 9You can exit with ù. Notice Switching Playlist Off With the selection of ’OFF’ uising J/ H the playlist will be switched off. All images, movies or music files are available again. af-5077_5087_5107psms_manual_03_en_253243477-a.book Seite 10 Donnerstag, 2. Juli 2009 11:41 1111

Service Changing the frame You can change the frame of the device using the picture frames supplied. The frames are held with magnets. 1 Press on the change frames key on the back of the device. Remove the frame. 2 Place the picture frame onto the device until it engages on the magnets. Problems Solutions Photo Frame does not power on. Check that you connect the AC adapter to the frame properly. Cannot save files Make sure that enough internal memory is availa- ble. Re-start the picture frame and delete some files in order to free up memory space. No sound Make sure the file format is supported, the compu- ter and the frame are correct connected or the memory card is not damaged. Memory card can not be recognized If you connected the frame to a computer, the in- serted memory card can not be recognized. Not all files of the memory card will be shown for the slide show, movie and music play back. Check whether a playlist is switched on. af-5077_5087_5107psms_manual_03_en_253243477-a.book Seite 11 Donnerstag, 2. Juli 2009 11:41 1112
