JetSet Control HP4880 - Hair dryer PHILIPS - Free user manual and instructions

Product type	Hair dryer
Brand	Philips
Model	JetSet Control HP4880
Usage	Silky, smooth and shiny hair
Temperature settings	3 positions: Quick drying, Protection, Fixation
Airflow settings	2 speeds (I and II) + Jet (ultra-powerful) and Set (cool air) positions
JetSet switch	Jet (extra-powerful air), off, Set (cool air for fixation)
Included accessories	Air concentrator
Volume diffuser	Not included (HP4881 model only)
Hanging loop	Yes, for storage
Power supply	Mains, suitable voltage (check label)
Power	2000 W (estimated)
Safety	Automatic shutdown in case of overheating; do not block the grilles
Maintenance and cleaning	Unplug before cleaning; clean air intake grille; dry cloth for the appliance, damp cloth for accessories
Storage	Do not wrap the cord around the appliance; hang by the loop
Warranty	Philips international warranty (see leaflet)
Service	Philips Authorized Service Center or Consumer Service

Frequently Asked Questions - JetSet Control HP4880 PHILIPS

How to use the Fixation setting?

Set the temperature button to the Fixation position and direct a stream of cool air over your hair to set your style. You can also use the Set position of the JetSet switch.

What is the difference between the Jet and Set positions?

The Jet position provides an extra-powerful air stream for quick drying. The Set position provides a cool air stream to set the hairstyle.

What to do if the appliance does not turn on?

Check that the socket is powered, the voltage is correct, and the appliance has not overheated (wait a few minutes). If the cord is damaged, have it replaced by an authorized service center.

How to clean the hair dryer?

Always unplug the appliance. Detach the air intake grille to remove hair and dust. Clean the appliance with a dry cloth and accessories with a damp cloth.

Can I use the diffuser with this model?

The volume diffuser is only supplied with the HP4881 model. For the HP4880, only the concentrator is included.

How to add volume to roots with the diffuser (if available)?

If you use the diffuser (HP4881 model), insert the diffuser tips into your hair up to the scalp and make circular movements.

Are ions dangerous for metal objects?

Do not point the ion generator at metal objects. This is normal and not harmful to your health.

How to store the hair dryer?

Unplug it, let it cool down, and store it in a safe place. Use the hanging loop to hang it. Do not wrap the cord around the appliance.

What to do in case of overheating?

The appliance stops automatically. Unplug it, wait for it to cool down, then check that the air intake grille is not blocked before plugging it back in.

Where to find the consumer service number?

Refer to the international warranty leaflet provided with the appliance or visit www.philips.com for contact details in your country.

USER MANUAL JetSet Control HP4880 PHILIPS

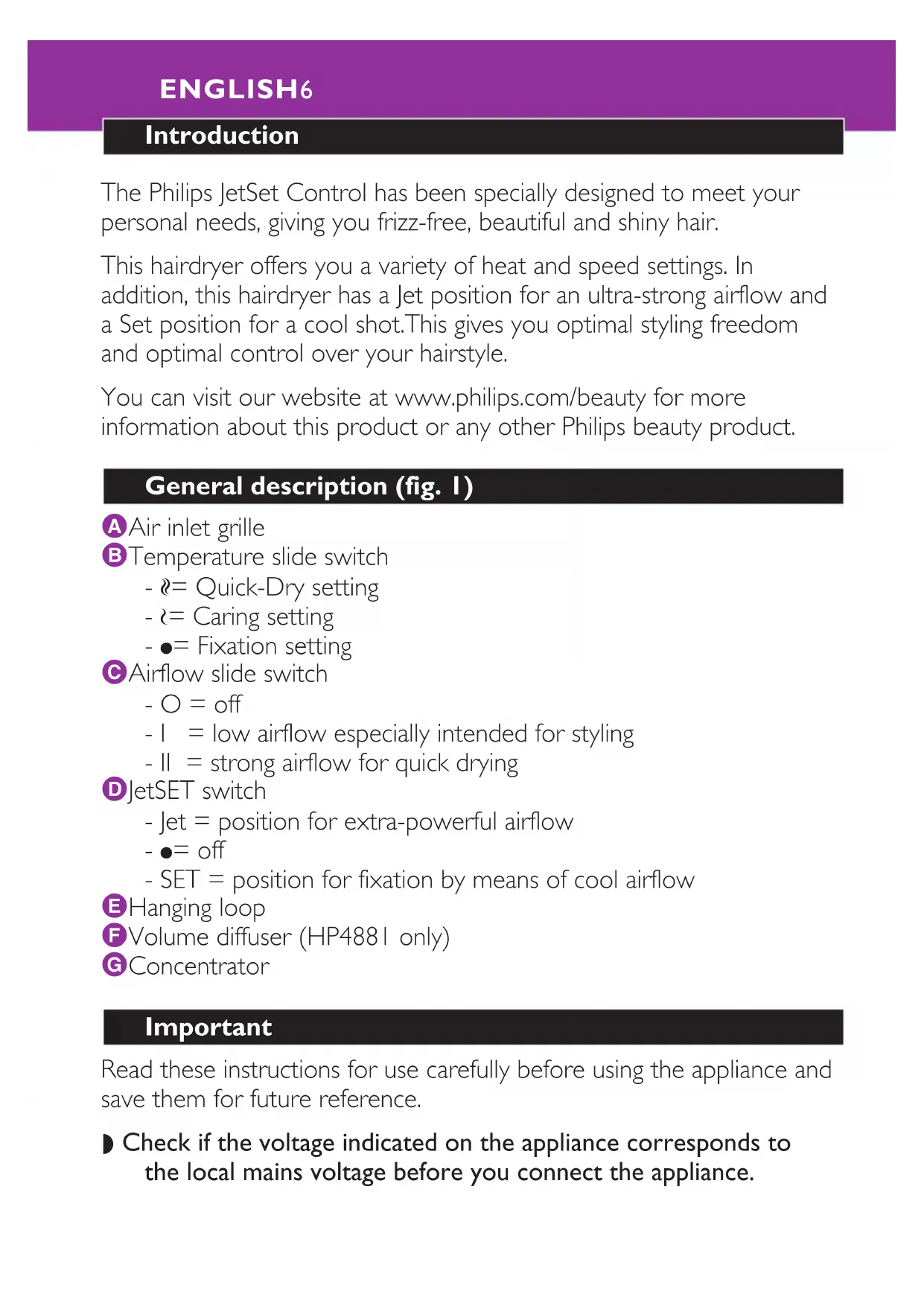

The Philips JetSet Control has been specially designed to meet your personal needs, giving you frizz-free, beautiful and shiny hair.

This hairdryer offers you a variety of heat and speed settings. In addition, this hairdryer has a Jet position for an ultra-strong airflow and a Set position for a cool shot. This gives you optimal styling freedom and optimal control over your hairstyle.

You can visit our website at www.philips.com/beauty for more information about this product or any other Philips beauty product.

General description (fig. 1)

Air inlet grille
Temperature slide switch

• = Quick-Dry setting
• = Caring setting
• = Fixation setting

Airflow slide switch

• O = off
• 1 = low airflow especially intended for styling
• II = strong airflow for quick drying

DJetSET switch

• Jet = position for extra-powerful airflow
• ●=off
• SET = position for fixation by means of cool airflow

EHanging loop

Volume diffuser (HP4881 only)
Concentrator

Important

Read these instructions for use carefully before using the appliance and save them for future reference.

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.

• Check the condition of the mains cord regularly. Do not use the appliance if the plug, the cord or the appliance itself is damaged.
  If the mains cord is damaged, it must be replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.

• Keep this appliance away from water! Do not use this product near or over water contained in baths, washbasins, sinks etc. When used in a bathroom, unplug the appliance after use since the proximity of water presents a risk, even when the hairdryer is switched off.
• For additional protection, we advise you to install a residual current device (RCD) with a rated residual operating current not exceeding 30mA in the electrical circuit supplying the bathroom. Ask your installer for advice.
• Keep the appliance out of the reach of children.
  Never block the air grilles.
  If the appliance overheats, it will switch off automatically. Unplug the appliance and let it cool down for a few minutes. Before you switch the appliance on again, check the grilles to make sure they are not blocked by fluff, hair, etc.
  Always switch the appliance off before putting it down, even if it is only for a moment.
  Always unplug the appliance after use.
  Do not wind the mains cord round the appliance.
  You may notice a characteristic odour when using this hairdryer. This is caused by the ions that are generated and it is not harmful to the human body.
  Do not probe the ion generator with metal objects.

Using the appliance

Drying

Put the plug in the wall socket.
2 Switch the appliance on by selecting the desired airflow setting:

• Set the slide switch to airflow setting II for ultra-quick drying.

ENGLISH8

• Set the slide switch to airflow setting I for drying short hair or styling your hair.

You can also use the Jet position of the JetSet switch for an extrapowerful airflow (fig. 2).
3 Set the temperature slide switch to the Quick-Dry, Caring or Fixation setting.

The Quick-Dry setting

• The Quick-Dry setting enables you to dry shower-wet hair very quickly (fig. 3).

It is recommended to use the Quick-Dry setting only on shower-wet hair and to select the Caring setting when the hair is almost dry in order to reduce the risk of overdrying.

The Caring setting

The Caring setting gently dries the hair at a caring temperature (fig. 4).

The Fixation setting

The Fixation setting fixes the style you have created (fig. 5).
For long-lasting styling results, set the switch to the Fixation setting and direct the cool airflow at your hair to fix your style.
- You can also use the Set position of the JetSet switch to fix your style (fig. 6).
4 Dry your hair by making brushing movements with the hairdryer at a small distance from the hair (fig. 7).

Attachments

Concentrator

The concentrator enables you to direct the airflow straight at the brush or comb with which you are styling your hair.

1 Connect the concentrator by simply snapping it onto the appliance. Disconnect it by pulling it off (fig. 8).

2 Switch the appliance on by setting the airflow slide to position I or II.
3 While you are drying your hair with the concentrator, you can use a brush or comb to style your hair (fig. 9).

Volume diffuser (HP488I only)

The volume diffuser has been specially developed to gently dry both straight and curly or wavy hair.

The volume diffuser emits a gentle airflow and allows you to give your style volume and bounce (fig. 10).
1 Connect the diffuser by simply snapping it onto the appliance and align the arrows on the diffuser and the barrel. Disconnect it by pulling it off (fig. 11).
To add volume at the roots, insert the pins into your hair in such a way that they touch your scalp (fig. 12).
2 Make rotating movements with the appliance to distribute the warm air evenly through your hair (fig. 13).

Curly or wavy hair

• When you are styling curly or wavy hair, hold the diffuser at a distance of 10-15 cm from your head to let the hair dry gradually (fig. 14).
• In the meantime you can style your hair with your free hand or with a comb.
• You can also scrunch locks of hair in your hand to model the curls and waves while drying. This will prevent the curls from sagging or becoming frizzy.

Long hair

To dry long hair, you can spread out locks of hair on top of the diffuser (fig. 15).
- Alternatively, you can comb the hair downwards with the pins of the diffuser while drying (fig. 16).

Cleaning

Always unplug the appliance before cleaning it.

Never rinse the appliance with water.

Open the inlet grille to remove hairs and dust.
Clean the appliance with a dry cloth.
Clean the attachments with a moist cloth or by rinsing them under the tap.

Remove the attachments from the appliance before cleaning them.

Storage

Always unplug the appliance before storing it.

Put the appliance in a safe place and let it cool down.
Do not wind the mains cord round the appliance.
The appliance can be stored by hanging it from its hanging loop.

Guarantee & service

If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

Troubleshooting

If problems should arise with your hairdryer and you are unable to solve them by means of the troubleshooting guide below, please contact the nearest Philips service centre or the Philips Customer Care Centre in your country.

Problem	Solution
The appliance does not work at all.	Perhaps the socket to which the appliance has been connected is not live:
	Make sure the socket is live.
	The appliance may have overheated and switched itself off:
	Unplug the appliance and let it cool down for a few minutes. Before you switch the appliance on again, check the grilles to make sure they are not blocked by fluff, hair, etc.
	The appliance may not be suitable for the voltage to which it has been connected:
	Make sure that the voltage indicated on the type plate of the appliance corresponds to the local mains voltage.
	The mains cord of the appliance may be damaged:
	If the mains cord is damaged, it must be replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.

Einleitung

Quick-Dry innstiling

HpuOmuon Fpyopou TeywmaToC

HpuOmuon Fpnyopou TReyvWmaTOc Oac EpiTpEeI va 0TeYVWOETe Ta BpEvMaVa Oac MaAIA POnyopa (EIK.3). Suviotatai va XpnoioIOINoETe Tn puOmuon Fpnyopou 0TeYVwmuTOc Movo e BpEvMaVa MaAIA kai va EIIAECTe Tn puOmuon AAnAoAepa otav Ta maAIA eivai oxEDov OTeyva TPOKEIevou va o KivduvoC va yivouv Enpa Ta maAIA oc.

HpuθμiσηAπaλouAεpa
