Product type	Compact hair dryer
Brand	Philips
Model	Compact HP4841
Power supply	220-240 V ~, 50-60 Hz
Power	1200-1600 W (estimated)
Number of speeds	2 (I: gentle airflow, II: powerful airflow)
Number of temperatures	2 (linked to speeds)
Cool air function	Yes (on some models, HP4845)
Accessories included	Concentrator, volume diffuser (HP4847 only)
Automatic shut-off in case of overheating	Yes
Cleaning	Dry cloth for the device, accessories washable with water
Safety	Air intake grille, do not use near water, unplug after use
Cord length	1.8 m (estimated)
Weight	Approximately 400 g (estimated)
Warranty	2 years (Philips international warranty)
After-sales service	Philips Authorized Service Center or Consumer Service

Frequently Asked Questions - Compact HP4841 PHILIPS

How to use the Philips Compact HP4841 hair dryer?

Plug in the device, use the toggle switch to choose between the two speeds (I for gentle airflow, II for powerful airflow). Direct the airflow from top to bottom at a short distance from the hair. To set the style, use the cool air button (HP4845 models).

How to clean the Philips Compact HP4841?

Unplug the device. Clean the device with a dry cloth. Remove the accessories (concentrator, diffuser) and clean them with a damp cloth or rinse them under the tap. Dry them before storing.

What to do if the hair dryer does not work?

Check the power supply by plugging in another device. If the device has shut off automatically (overheating), unplug it and let it cool down for a few minutes. Make sure the grilles are not blocked. Check that the indicated voltage matches the mains socket.

Can I use the hair dryer in the bathroom?

Yes, but keep it away from water (bathtub, sink). Unplug it after use because proximity to water can pose a risk even when off. It is recommended to use a socket protected by a 30 mA residual current circuit breaker.

What accessories are included with the HP4841?

The HP4841 model comes with a concentrator. The volume diffuser is included only on the HP4847 model. Check your box to verify.

How to attach the concentrator or diffuser?

Attach the accessory by snapping it onto the front of the device. To remove it, pull it gently. Make sure the device is off and cool before changing accessories.

The power cord is damaged, what should I do?

Do not use the device. The cord must be replaced by Philips, an Authorized Service Center, or a qualified technician to avoid any hazard.

How to store the Philips hair dryer?

Turn off and unplug the device. Let it cool down. Do not wrap it around the device. Lay it on its side, never on the grilles. Store it in a safe and dry place.

The hair dryer stops by itself, is this normal?

Yes, the device turns off automatically in case of overheating. Unplug it and let it cool down. Before turning it back on, check that the air intake grilles are not blocked by hair or dust.

What is the required electrical voltage?

Before plugging in, check that the voltage indicated on the device matches the local mains voltage (usually 220-240 V in Europe). Use the device only on the specified voltage.

USER MANUAL Compact HP4841 PHILIPS

Register your product and get support at www.philips.com/welcome

HP4847, HP4845, HP4844, HP4841, HP4840

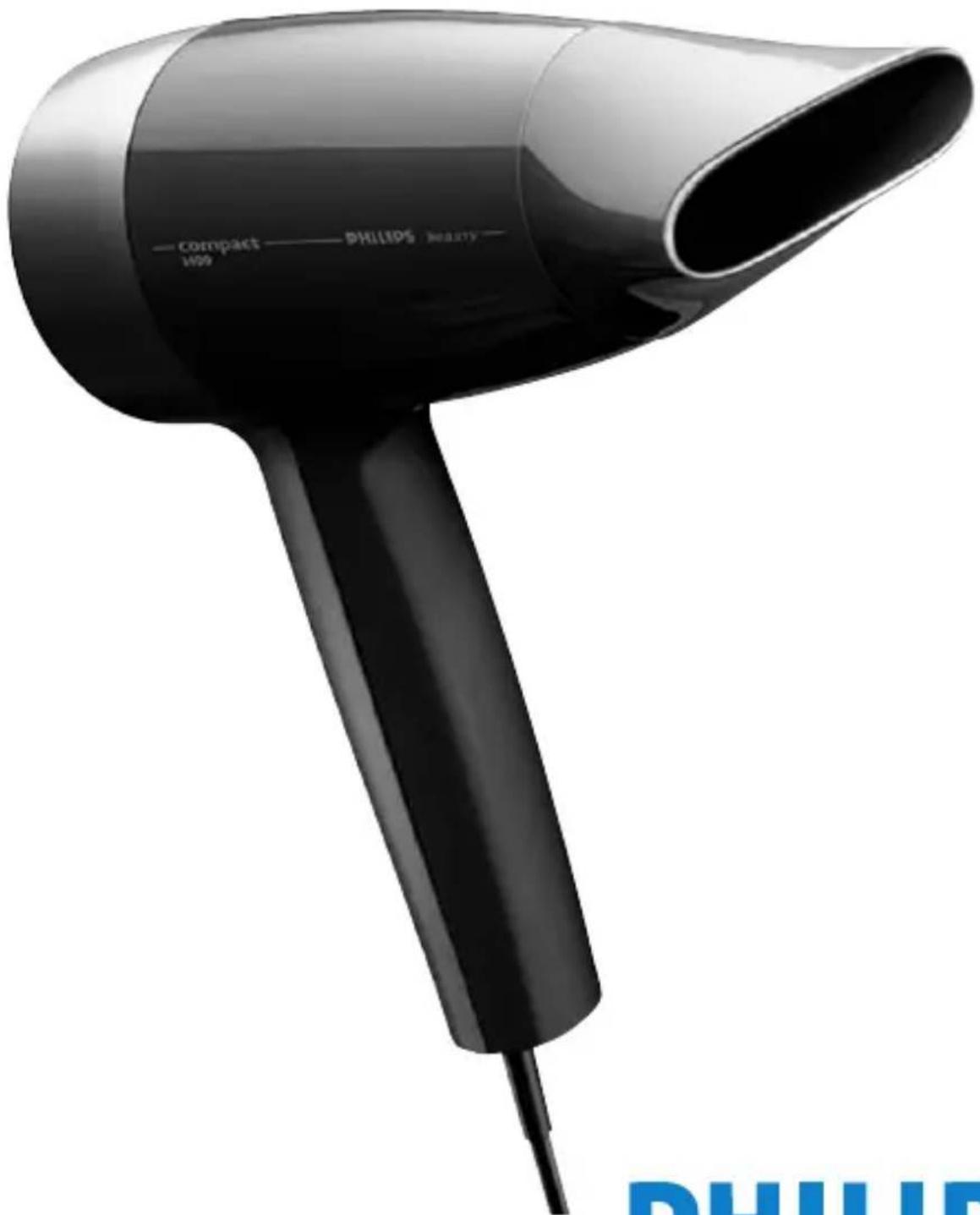

COMPACT 1409 PHILIPS Beauty PHILIPS

PHILIPS

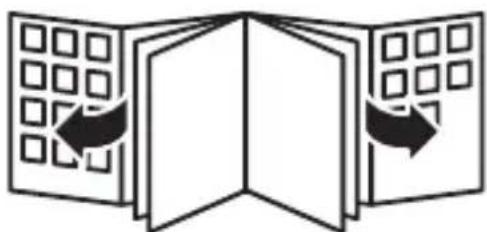

Diagram of a folded paper folding with arrows indicating rotation or movement (no text or symbols)

PHILIPS compact 1500 A C E B D

1

ENGLISH 6

FRANÇAIS 11

INDONESIA 16

한국어 21

BAHASA MELAYU 26

ภาษาไทย 32

TIÊNG VIÊT 36

繁體中文 41

简体中文 45

العربية 53

57 فارسی

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

This hairdryer is part of the new Philips Compact range and has been specially designed to offer you comfortable drying. It has an ergonomic and lightweight design and is therefore easy to use. Its strong airflow dries your hair fast, giving it the lustre, body and richness you love.

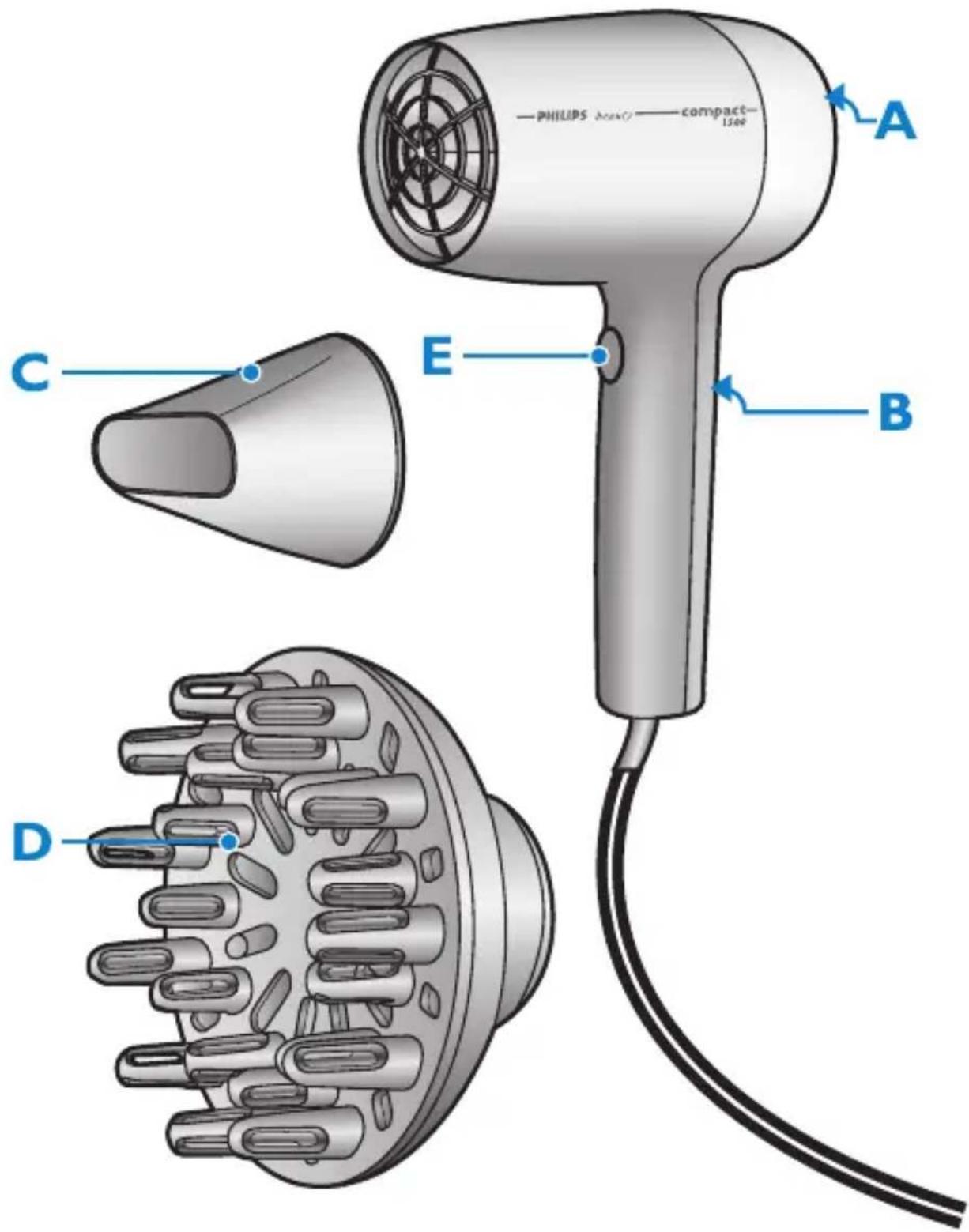

General description (Fig. 1)

A Air inlet grille
B Rocker switch with 2 heat/speed settings and off position
C Concentrator
D Volume diffuser (HP4847 only)
E Cool shot button (HP4845 only)

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

• Keep the appliance away from water. Do not use it near or over water contained in baths, washbasins, sinks etc. When you use the appliance in a bathroom, unplug it after use. The proximity of water presents a risk, even when the appliance is switched off.
• Do not insert metal objects into the air grilles to avoid electric shock.

Warning

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Check the condition of the mains cord regularly. Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.

• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

Caution

• For additional protection, we advise you to install a residual current device (RCD) in the electrical circuit that supplies the bathroom. This RCD must have a rated residual operating current not higher than 30mA. Ask your installer for advice.
• Never block the air grilles.
• If the appliance overheats, it switches off automatically. Unplug the appliance and let it cool down for a few minutes. Before you switch on the appliance again, check the grilles to make sure they are not blocked by fluff, hair, etc.
• Always switch off the appliance before you put it down, even if it is only for a moment.
• Always unplug the appliance after use.
• Do not wind the mains cord round the appliance.
• Do not use the appliance on artificial hair.
• Do not use the appliance for any other purpose than intended.
• Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Using the appliance

Drying

1 Put the plug in the wall socket.
2 Set the rocker switch to the desired setting to switch on the appliance: (Fig. 2)

- II: Strong airflow for fast drying

- I: Gentle airflow especially intended for styling

3 To dry your hair, make brushing movements with the hairdryer at a small distance from the hair.
4 When you have finished drying, press the cool shot button and direct the cool airflow at your hair. This fixes your style and adds shine.
5 Set the rocker switch to position 0 to switch off the appliance.

Concentrator

The concentrator directs the airflow at the brush or comb with which you are styling your hair.

1 Connect the concentrator, simply snap it onto the appliance (Fig. 3).
2 To disconnect the concentrator, pull it off the appliance.

Volume diffuser (HP4847 only)

The volume diffuser gives your hair volume and bounce.

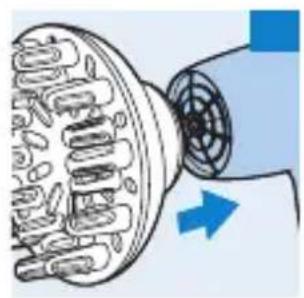

1 To connect the volume diffuser, simply snap it onto the appliance (Fig. 4).
2 To disconnect the volume diffuser, pull it off the appliance.

Cleaning

Never immerse the appliance in water or any other liquid, nor rinse it under the tap.

1 Unplug the appliance.
2 Clean the appliance with a dry cloth.

3 Remove any attachment from the appliance before you clean the attachment.
4 Clean the attachments with a moist cloth or rinse them under the tap.
5 Dry the attachments before you use or store them.

Storage

Do not wind the mains cord round the appliance.

Never put down the appliance on one of its air grilles. Always put it on one of its sides.

1 Switch off the appliance and unplug it.
2 Put the appliance in a safe place and let it cool down.
3 Store the appliance in a safe and dry place.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment (Fig. 5).

Guarantee & service

If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Customer Care Centre in your country.

Problem Possible cause Solution

The appliance does not work.	There is a power failure or the socket to which the appliance is connected is not live.	Check if the power supply works. If it does, plug in another appliance to check whether the socket is live.
	The appliance has overheated and switched itself off.	Before you switch on the appliance again, check the grilles to make sure they are not blocked by fluff, hair, etc.
	The appliance is not suitable for the voltage to which it is connected.	Make sure that the voltage indicated on the appliance corresponds to the local mains voltage.
	The mains cord is damaged	If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
