SalonDry Compact HP4963 - Hair dryer PHILIPS - Free user manual and instructions

Product Type	Compact Hair Dryer
Brand	Philips
Model	SalonDry Compact HP4963
Dimensions (L x W x H)	Approximately 20 x 8 x 25 cm
Weight	Approximately 400 g
Power Supply	220-240 V, 50-60 Hz
Power	1600-1800 W (estimated)
Number of speeds	2 (I: gentle, II: powerful)
Number of heat settings	2 (integrated with speed)
Cool shot button	No (reserved for model HP4962)
Included accessories	Concentrator, volume diffuser
Concentrator	Yes, for precise drying
Volume diffuser	Yes, for curly/wavy hair
Design	Compact and lightweight
Inlet grille type	Removable rear grille
Overheat protection	Yes, automatic shut-off
Cord length	Approximately 1.8 m
Maintenance	Dry cloth for the appliance, damp cloth for accessories
Cleaning the grilles	Dust regularly
Use in bathroom	Unplug after use
Warranty	Refer to the international warranty leaflet
Country of manufacture	Not specified (likely China)
Repairability	Philips Authorized Service Center

Frequently Asked Questions - SalonDry Compact HP4963 PHILIPS

What accessories are included with the Philips SalonDry Compact HP4963?

The hair dryer is supplied with a concentrator for precise drying and a volume diffuser specially designed for curly or wavy hair.

How to use the cool shot button on this model?

The HP4963 model does not have a cool shot button. This function is reserved for the HP4962 model. To set your hairstyle, use the diffuser at low temperature.

What to do if the hair dryer stops suddenly?

This is probably an overheat protection. Unplug the device, let it cool down for a few minutes, then check that the air inlet and outlet grilles are not blocked by hair or dust.

Can I use this device in a bathroom?

Yes, but with caution. Do not use it near a bathtub or a filled sink. Always unplug the device after use, even when switched off, because water poses a risk even when off.

How to clean the volume diffuser?

Remove the diffuser from the device. Clean it with a damp cloth or rinse it with water. Make sure it is completely dry before putting it back.

What is the power of the Philips SalonDry Compact HP4963?

The power is not explicitly stated in the manual, but for a compact hair dryer in this range, it is generally between 1600 and 1800 W.

Is the power cord detachable?

No, the cord is fixed. Do not wrap it around the device for storage, as this could damage it. Use the storage loop provided for this purpose.

How to add volume to the roots with the diffuser?

Insert the diffuser tips into your hair until they touch the scalp, then make circular movements to distribute the hot air and create volume.

What to do if the plug or cord is damaged?

Do not use the device. Have the cord replaced by Philips, an Authorized Service Center or a qualified technician to avoid any risk of electrocution.

Is this device suitable for artificial hair?

No, the manual explicitly advises against use on artificial hair (wigs, extensions) as heat could damage them.

USER MANUAL SalonDry Compact HP4963 PHILIPS

Register your product and get support at

www.philips.com/welcome

HP4963, HP4962, HP4961, HP4960

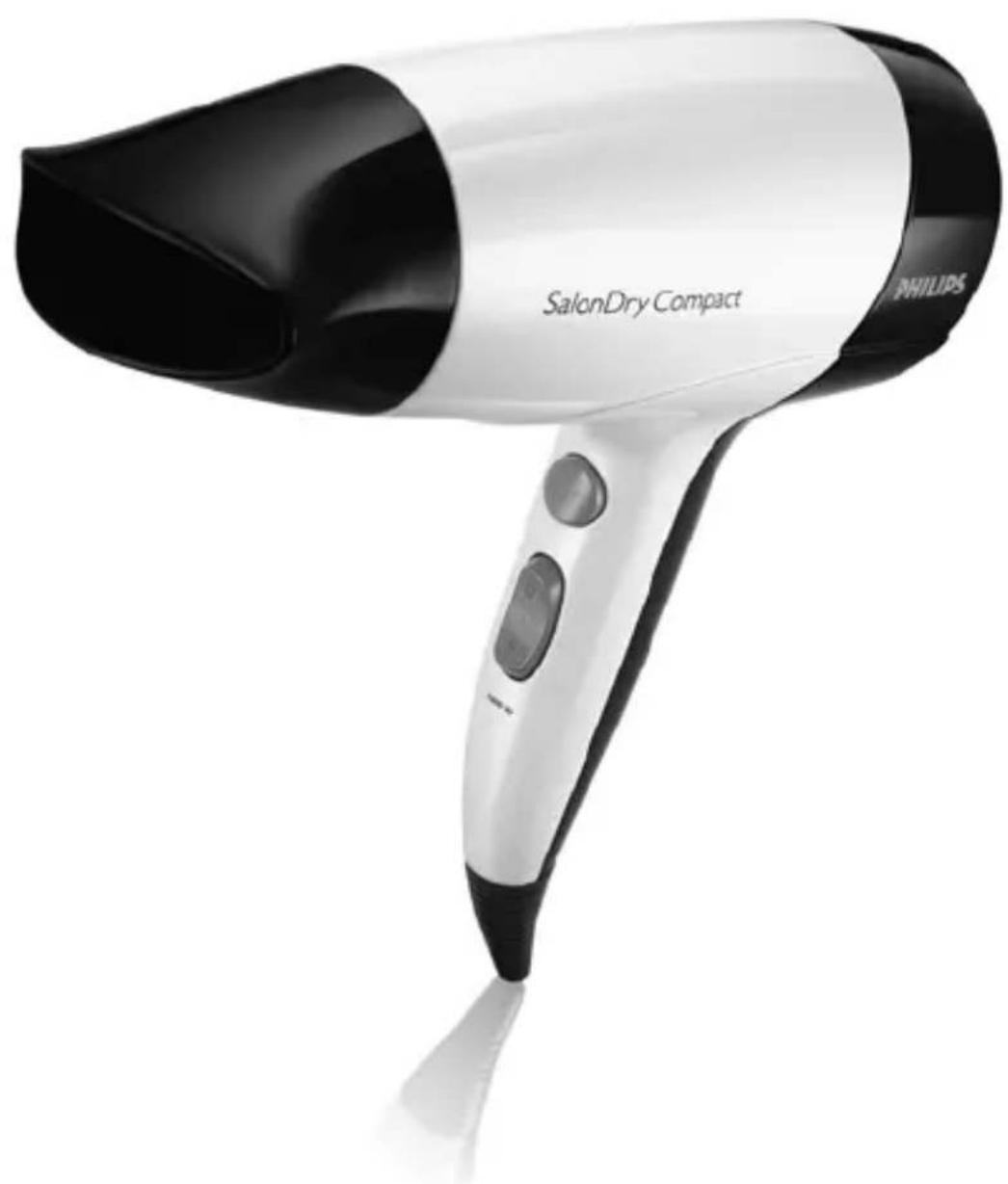

Black and white photo of a Philips SalonDry Compact hair dryer (no text or symbols on device body)

PHILIPS

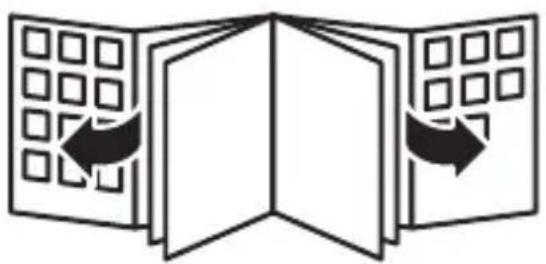

Diagram of a folded solar panel with grid patterns and directional arrows indicating rotation (no text or symbols)

ENGLISH 6
DANSK 11
DEUTSCH 16
ΕΛΛΗΝΙΚΑ 22
ESPAÑOL 28
SUOMI 34
FRANÇAIS 39
ITALIANO 45
NEDERLANDS 51
NORSK 57
PORTUGUÊS 62
PORTUGUÊS DO BRASIL 68
SVENSKA 74
TÜRKÇE 79

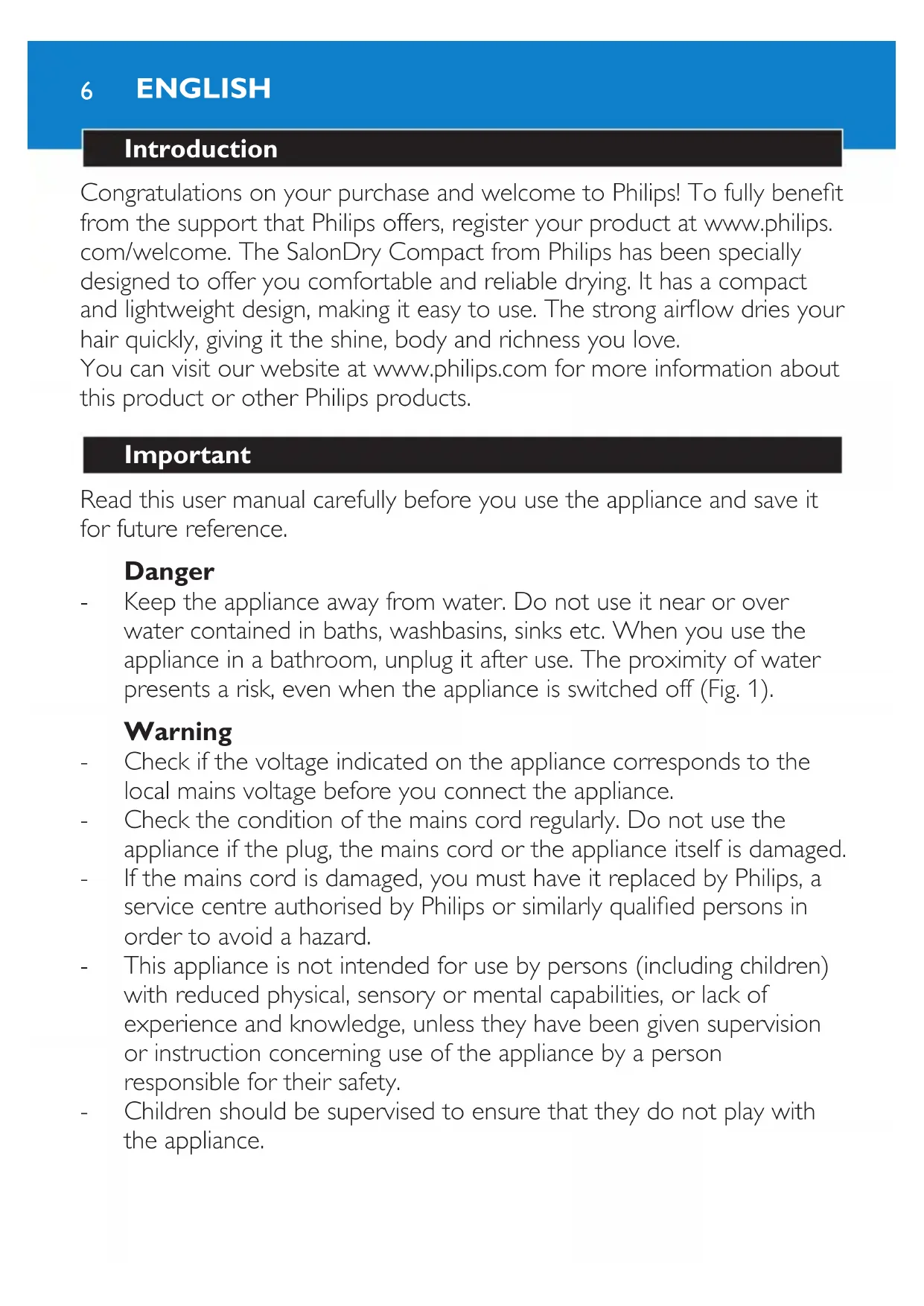

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. The SalonDry Compact from Philips has been specially designed to offer you comfortable and reliable drying. It has a compact and lightweight design, making it easy to use. The strong airflow dries your hair quickly, giving it the shine, body and richness you love.

You can visit our website at www.philips.com for more information about this product or other Philips products.

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Keep the appliance away from water. Do not use it near or over water contained in baths, washbasins, sinks etc. When you use the appliance in a bathroom, unplug it after use. The proximity of water presents a risk, even when the appliance is switched off (Fig. 1).

Warning

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Check the condition of the mains cord regularly. Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Caution

• For additional protection, we advise you to install a residual current device (RCD) in the electrical circuit that supplies the bathroom. This RCD must have a rated residual operating current not higher than 30mA. Ask your installer for advice.
• Never block the air grilles.
• This appliance is equipped with an overheat protection device. If the appliance overheats, it switches off automatically. Unplug the appliance and let it cool down for a few minutes. Before you switch on the appliance again, check the grilles to make sure they are not blocked by fluff, hair, etc.
• In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility (HP4962/01 only).
• Always switch off the appliance before you put it down, even if it is only for a moment.
• Always unplug the appliance after use.
• Do not wind the mains cord round the appliance.
• Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.
• Do not insert metal objects into the air grilles to avoid electric shock.
• Keep the hairdryer clean and free of dust, dirt and styling products such as mousse, spray and gel.
• Do not use the appliance on artificial hair.
• Do not use the appliance for any other purpose than described in this manual.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

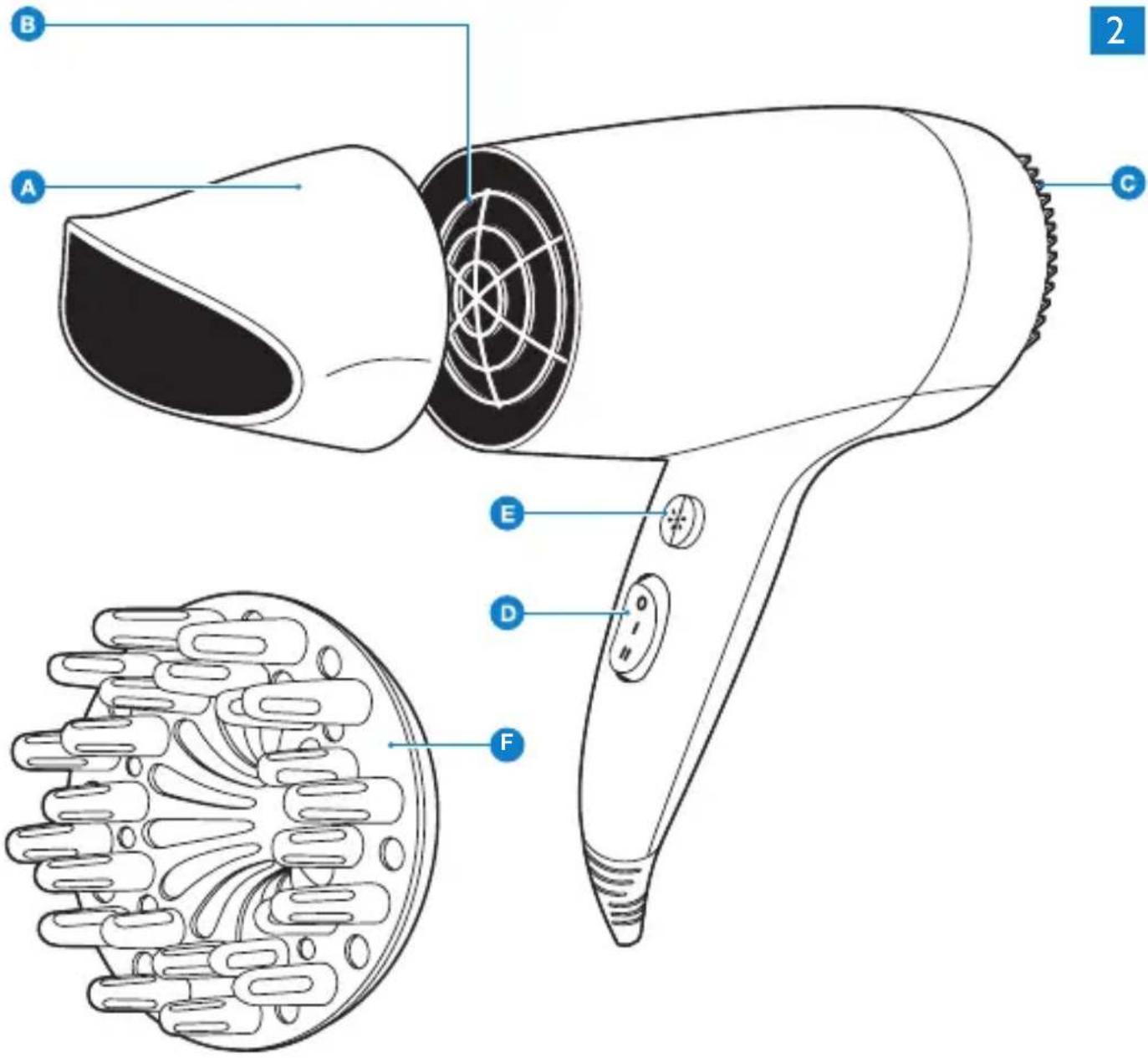

General description (Fig. 2)

A Concentrator
B Air outlet grille
Air inlet grille
D Rocker switch with 2 heat/speed settings and off position
E Cool shot button (HP4962 only)
F Volume diffuser (HP4963 only)

Using the appliance

Drying

1 Put the plug in the wall socket.
2 Select the desired setting to switch on the appliance (Fig. 3).

• II: Strong airflow for fast drying
• I: Gentle airflow especially intended for styling
• O: Off

3 To dry your hair, make brushing movements with the hairdryer at a small distance from the hair (Fig. 4).

4 HP4962 only: When you have finished drying, press the cool shot button for a cool airflow. This closes the cuticles and adds shine to the hair (Fig. 5).

Concentrator

The concentrator enables you to direct the airflow straight at the brush or comb with which you are styling your hair.

1 Snap the concentrator onto the appliance (Fig. 6).

- To disconnect the concentrator, pull it off the appliance.

Volume diffuser (HP4963 only)

The volume diffuser has been specially developed to gently dry both straight and curly or wavy hair.

1 To connect the volume diffuser, snap it onto the appliance. (Fig. 7) To disconnect the volume diffuser, pull it off the appliance.

2 To add volume at the roots, insert the pins into your hair in such a way that they touch your scalp (Fig. 8).
3 Make rotating movements with the appliance to distribute the warm air evenly through your hair (Fig. 9).

Cleaning

Always unplug the appliance before you clean it.

Do not immerse the appliance in water nor rinse it under the tap.

1 Make sure the appliance is switched off and unplugged.
2 Remove the attachment from the appliance before you clean it.
3 Clean the appliance with a dry cloth.
4 Clean the attachment with a moist cloth or rinse it under the tap.

Note: Make sure the attachment is dry before you use or store it.

Storage

Never wind the mains cord round the appliance.

1 Make sure the appliance is switched off and unplugged.
2 Put the appliance in a safe place and let it cool down before you store it.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 10).

Guarantee & service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the

worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Troubleshooting

If problems arise with your hairdryer and you cannot solve them with the information below, please contact the nearest Philips service centre or the Philips Consumer Care Centre in your country.

Problem Solution

The appliance does not work at all.	Perhaps the socket to which the appliance has been connected is not live. Make sure the socket is live.
	The appliance may have overheated and switched itself off. Unplug the appliance and let it cool down for a few minutes. Before you switch on the appliance again, check the grilles to make sure they are not blocked by fluff, hair, etc.
	The appliance may not be suitable for the voltage to which it has been connected. Make sure that the voltage indicated on the type plate of the appliance corresponds to the local mains voltage.
	The mains cord may be damaged. If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
