42LE1 - Monitor SANYO - Free user manual and instructions

Product Type	Liquid crystal display (LCD) monitor
Brand	Sanyo
Model	42LE1
Screen Size	42 inches (107 cm) measured diagonally
Display Resolution	1366 x 768 (WXGA)
Contrast Ratio	1500:1
Viewing Angles	H: 178°, V: 178°
Power Supply	220-240 V, 50 Hz, 5 A
Power Consumption	Variable depending on mode (standby, winter, etc.)

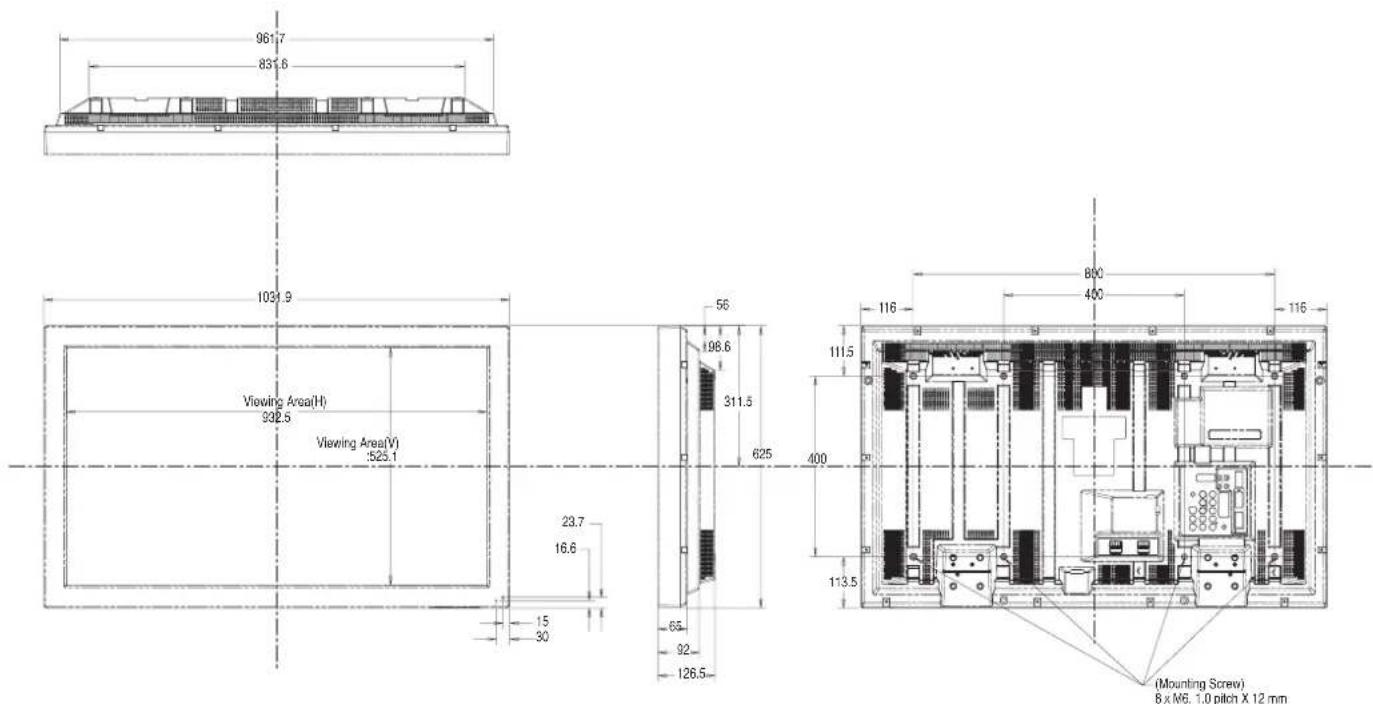

Dimensions (without stand)	1032 x 625 x 126.5 mm
Dimensions (with stand)	1032 x 683 x 340 mm
Weight (without stand)	22.5 kg
Weight (with stand)	23.5 kg
Video Inputs	SCART (AV1, RGB), BNC (AV2 Y/Pb/Pr or RGB H/V), AV3 composite, DVI-D, PC (D-Sub 15)
Audio Outputs	2 x 6 W speakers, line output (RCA)
Serial Port	RS232C (input/output)
Main Features	Standby mode, sleep timer, picture/sound settings, multi-language OSD, child/remote lock, winter mode, energy saver
Maintenance and Cleaning	Unplug before cleaning, use a damp cloth, no liquid or aerosol products
Safety	Grounded power supply, do not open the casing, keep away from liquids and heat sources, minimum distance of 5 cm from wall
Spare parts and repairability	Have repairs done by an authorized technician, use original spare parts

Frequently Asked Questions - 42LE1 SANYO

How to connect a PC to the monitor?

Use the provided VGA cable (D-Sub 15-pin) and plug it into the PC-IN input at the back of the monitor. For sound, use the 3.5 mm audio cable. Then select PC mode via the remote control.

What to do if the picture or sound does not work?

Check that the monitor is plugged in and turned on, and that it is not in standby mode. Check the cable connections. For the picture, adjust brightness and contrast. For sound, check the volume and audio connections.

How to use the remote control?

Install two AA batteries observing polarity. Use the TV/AV button to change input. The menu is displayed via the MENU button. If the remote does not work, check the batteries or if the remote lock is activated.

How to adjust the picture (contrast, brightness, etc.)?

Press MENU, select Picture using the e/d buttons, then adjust the settings (brightness, contrast, etc.) using the 1/2 buttons. The settings are automatically saved.

Can I mount the monitor on the wall?

Yes, a wall mount kit is available. Follow the manufacturer's installation instructions and ensure the wall can support the weight. The monitor must be securely attached.

What does winter mode mean and when to use it?

Winter mode is intended for use in cold temperatures (4°C or less). It heats the screen to maintain picture quality. Activate it in the Installation menu. Do not unplug the power cord during its operation.

How to lock the monitor to prevent children from using it?

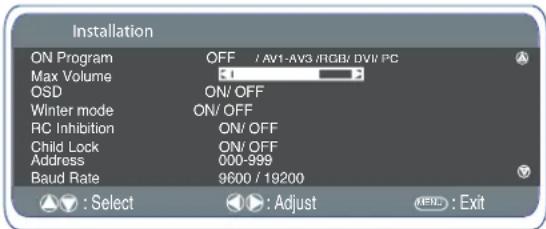

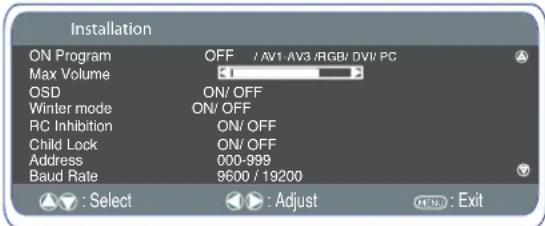

In the Installation menu, activate child lock. This disables the front panel buttons. To cancel, unplug the monitor or adjust the menu again.

What types of cables are supplied with the monitor?

The manual mentions a power cord with a British plug. Other cables (VGA, audio, etc.) are not explicitly listed as supplied, but the packaging may contain them.

How to clean the LCD screen?

Unplug the monitor. Use a soft, damp cloth (no chemicals). Wipe gently. Do not use liquids or aerosols directly.

What to do in case of malfunction or problem?

If the indicator blinks or the monitor does not work normally, put it into standby, unplug the power cord, and contact an authorized service center. Do not attempt to repair yourself.

USER MANUAL 42LE1 SANYO

Please read this Instruction book before using your LCD monitor. We wish you many hours of pleasure from your new LCD monitor

CAUTION: Please read and retain for your safety. This unit has been engineered and manufactured to assure your personal safety, but improper use can result in potential electric shock or fire hazards. In order not to defeat the safeguards incorporated in this monitor observe the following basic rules for its installation, use and servicing.

Installation

Do not allow anything to rest on the power cord. Do not locate this LCD monitor where the cord will be damaged by people walking on it.

Do not overload wall outlets and extension cords as this can result in fire or electric shock.

Do not place this LCD monitor near any heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).

Do not place this LCD monitor in direct sunlight.

Do not place your LCD monitor on an unstable stand, shelf or table. Serious injury to an individual, and damage to the LCD monitor may result if it should fall. Your sales person can recommend approved wall mounting kit. A special wall mounting kit is available for this model.

This LCD monitor should be operated only from the type of power source indicated on the monitor or as indicated in the Operating Instructions. If you are not sure of the type of power supply, consult your sales person or your local power company

For added protection it is strongly recommended that this LCD monitor is supplied via a RCCB. Safety unit.

WARNING: To prevent injury the LCD monitor must be securely attached to the wall in accordance with the manufacturers installation instructions.

Use

Never add accessories that have not been specifically designed for this monitor.

Do not place items such as vases containing liquid on top of the monitor. Some internal parts carry hazardous voltages and contact may result in an electric shock hazard. Never spill liquids of any kind on this LCD monitor.

Do not expose the LCD monitor to rain or use near water. For example, near a bathtub, kitchen sink, in a wet basement, etc.

Do not use immediately after moving the LCD monitor from a low temperature to a high temperature environment, as this causes condensation, which may result in fire, electric shock, or other hazards. Before cleaning, unplug the monitor from the wall socket.

Do not apply liquid cleaners or aerosol cleaners directly onto the LCD monitor. Use a damp cloth for cleaning.

This LCD monitor should have a minimum distance of 5cm away from the wall and the monitor should have 10cm distance around the top and sides

Do not mount near an open flame source. Open flames must never be used near this LCD monitor.

This LCD monitor should not be built in or enclosed in any way, heat build up will reduce the life of the monitor.

Always mount using recommended and substantial fixtures and fittings.

Important:

THIS PRODUCT MUST BE EARTHED

This equipment is fitted with an approved mains lead and an approved non rewireable UK mains plug. To change a fuse in this type of plug proceed as follows:

1. Remove the fuse cover and fuse.
2. Fit a new fuse which should be a BS1362 13 Amp A.S.T.A. or BSI approved type.
3. Ensure that the fuse cover is correctly refitted.

If the fuse cover is lost or damaged the plug must NOT be used but replaced with a serviceable plug.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a rating of 13 Amp, ensure the fuse cover is correctly fitted. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 13 Amp.

Note: The severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

The wires in this mains lead are coloured in accordance with the following code:

Blue- Neutral

Brown --->Live

Green and Yellow ----> Earth

1. The Blue wire must be connected to the terminal which is marked with the letter "N" or coloured BLACK.
2. The Brown wire must be connected to the terminal with the letter "L" or coloured RED.
3. The Green and Yellow wire must be connected to the terminal which is marked with the letter "E" or coloured GREEN or GREEN and YELLOW.

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the wires.

Do not attempt to bypass the safety purpose of the grounding type plug.

THIS UNIT IS NOT DISCONNECTED FROM THE MAINS UNLESS THE MAINS LEAD IS UNPLUGGED.

THE INSTALLER MUST MAKE SURE THE MAINS LEAD IS EASILY ACCESSIBLE.

Important recycling information.

Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately.

In the European Union there are separate collection systems for used electrical and electronic products.

Please help us to conserve the environment we live in!

Note: This symbol mark and recycle system are applied only to EU countries are not applied to other countries of the world.

Servicing

Your monitor is fully transistorised and does not contain any user serviceable components.

You must not remove the rear cover of the monitor by yourself. The apparatus is working with high voltages and could damage objects or even endanger people. Leave all required repair and service jobs to an authorised service technician. He will exclusively use such spare parts that are complying with the same safety standards as applicable to the original parts. The use of original spare parts can prevent fire, shock and other hazards.

Unplug the LCD monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

If the power cord or plug is damaged.
If liquid has been spilt in to the LCD monitor.
If the LCD monitor has been exposed to rain or water.
If the LCD monitor has been dropped or the cabinet has been damaged.
If the LCD monitor exhibits a distinct change in performance.
If the LCD monitor does not operate normally by following the operating instructions.

Adjust only those controls that are covered in the operating instructions as improper adjustment of other controls may result in damage. This will often require extensive work by a qualified technician to restore the monitor to normal operation.

End-User License

The product (meaning the equipment or appliance to which this documentation relates) incorporates Software (the software applications, utilities and modules embedded within the Product) which is owned by Sanyo or its licensors. Before using the product, please read the End-User License Conditions detailed below. If you do not agree to the terms and conditions of the End-User License, Please do not proceed to use the Product- repack the Product unused and return it to your supplier together with proof of purchase for a full refund. By using the product, you agree to be bound by the terms and conditions of the End-User License.

License Grant, Conditions and restrictions

1. Sanyo grants you a non-exclusive, world-wide (subject to export controls), non-transferable (except as permitted by 2 below), royalty-free license to use the Software upon and with the Product.
2. You may not transfer any of your license rights in the Software without the prior written consent of SANYO and if consent is provided then the Software shall only be transferred in conjunction with the transfer of the Product AND provided that the transferee has read and agreed to accept the terms and conditions of this license.
3. You must ensure that the copyright, trademark and other protective notices contained in the Software are maintained and not altered or removed.
4. The Software provided hereunder is copyrighted and licensed (not sold). SANYO especially does not transfer title or and ownership rights in the Software to you. The Software provided hereunder may contain or be derived from portions of materials provided to SANYO under license by a third party supplier.

5. Except as expressly permitted by statute you may not;

6. use the Software in conjunction with any other computer hardware other than the product;

7. copy all or part of the Software;

8. incorporate all (or any of) the Software into other programs developed by (or on behalf of) you and/or used by you;

9. reverse-engineer, decompile or disassemble the Software;
10. make the Software (or any part of it) available, or permit its redistribution, for use with any computer hardware other than the Product; or rent, lease, gift, loan, sell, distribute or transfer possession of the whole or any part of the Software.

Termination

This license is effective until terminated. This license will terminate automatically without notice if you fail to comply with any of its provisions.

Disclaimer

1. The Software is (to the extent permitted by law) supplied 'as is' and SANYO and its suppliers expressly exclude all warranties, express or implied, including (but not limited to) warranties of satisfactory quality, fitness for purpose and non-infringement (save to the extent that the same are not capable of exclusion at law).
2. In no circumstances will SANYO be liable for any direct, indirect, consequential, or incidental damage (including loss of profits, business interruption, loss of data or the cost of procurement of substitute goods, technology or services) arising out of the use or the inability to use the Software (save to the extent that such liability is not capable of exclusion at law).

General

1. This End-User License will be governed by laws of England and the User may only bring claims in the English Courts and SANYO shall be entitled to bring a claim in the courts of any jurisdiction.
2. The above terms and conditions supersede any prior agreement, oral or written, between you and SANYO relating to the Software.

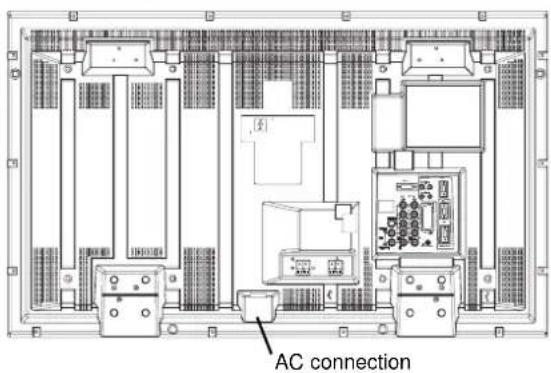

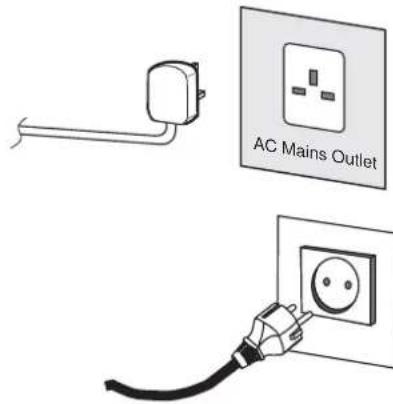

Step:1 Mains Connection

Connect the display unit to VGA, BNC and Scart connector as required.

1. Connect the IEC power connector to the mains inlet at the rear of the LCD monitor as shown above.
2. Connect the power cord of the LCD monitor to a wall outlet.
   As this product does not have a mains On/Off switch, please ensure your mains plug is easily accessible.
   The LCD monitor is prepared for a mains voltage AC220~240V, 50Hz. To completely switch off the mains, or when the display unit is not to be used for an extended period of time, it is advisable to disconnect the power cord from the power outlet.

Please use the correct mains lead supplied with the set for your area
3. Warning: To prevent injury, the unit must be securely attached to the wall in accordance with the installation instructions.

WARNING! High voltages are used in the operation of this set. Refer service to qualified service personnel.

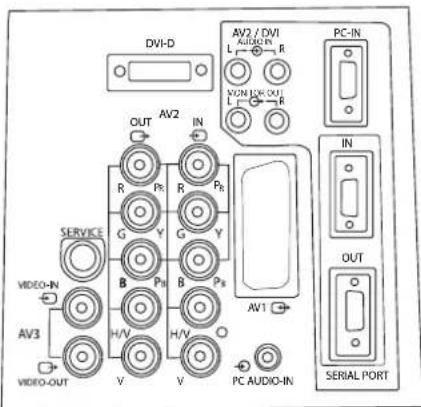

Step:2 Connections

INPUT selection

To switch between AV1, RGB, AV2 (RGB H/V or Y, Pb, Pr) AV3, DVI or PC mode press the TV/ AV button on your remote control repeatedly or press and hold the TV/AV button for a few seconds and a selection menu will appear on screen.Use the e or d buttons to select the correct input.

1.AV1

SCART connection

2.RGB

TTL input (5V RGB signals) into SCART terminal

1. Y,Pb,Pr/ RGBHV connection (AV2)

This LCD monitor has a choice of Y, Pb, Pr or RGB H/V connections. You can connect your DVD player to the Y, Pb, Pr terminals instead of using a scart lead. This can support high definition in analogue component form. RGB H/V can be used as a PC input via the BNC terminals. Both options support a large range of resolutions (page 11).

4.AV3

Composite (CVBS) signal input

AV3 OUT is to output the composite video signal from the VIDEO IN so that you can connect monitors with the use of a loop through function.

1. RS232C IN/OUT: Is a input for external commands to control the monitor (see page 8).

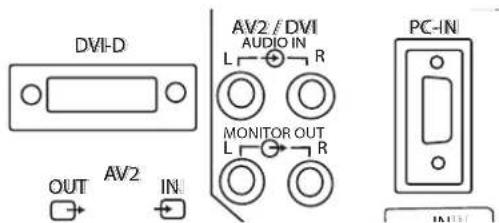

6. DVI-D (Digital Video Interface)

This monitor has an DVI connector. This is located at the back of the monitor next to the phono sockets. This input will support a large range of resolutions as shown on page 11. See page 6 for details of menu operation.

7 PC connection

This LCD monitor has a PC connector (PC-IN D-SUB). You can connect a PC to the LCD monitor and use it as a monitor display (see page 7). Audio can be connected via the 3.5mm PC audio in socket. This input will support a large range of resolutions (see pg11).

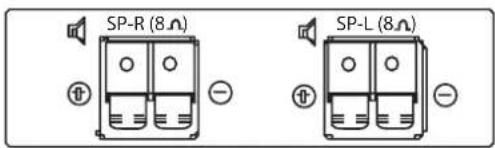

1. External Audio Output

To output the audio signal from AV 1,2,3, PC and DVI. The speaker impedance should be 8 ohms.

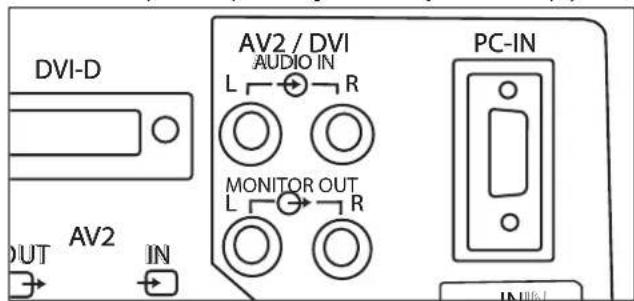

■ Use of Monitor Audio Output Connections

The audio monitor out sockets on the rear of the set provide a fixed level audio output for reproducing sound via your audio equipment.

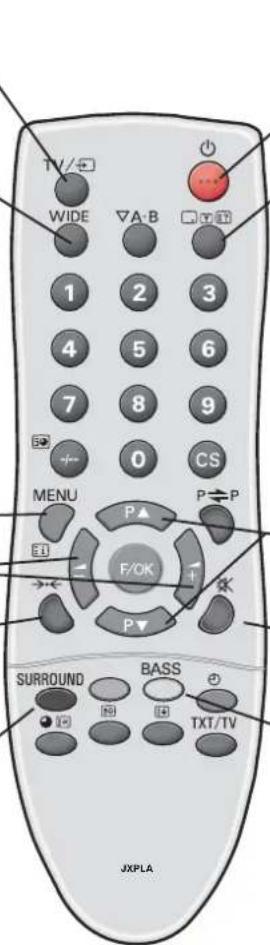

TV/AV button

To switch from AV1, RGB, AV2, AV3, PC or DVI mode press repeatedly. Press and hold in a few seconds, an AV selection bar appears. Select the mode you require using the keys

Screen mode selector

To select the screen mode, Natural, Full Zoom, Title-in or Normal. Refer to page 9.

MENU

To enter and exit sub menus.

Level up/down

To adjust the sound volume level, or enter sub menus

Picture mode selection

Press the button repeatedly to select the following picture modes.

Personal - Personal preference mode.

Dynamic - Suitable for brightly lit rooms.

Standard - Normal viewing mode

Eco - Suitable for dimly lit rooms and gives a cinema - like effect.

Surround mode selector

To select the surround mode, OFF, MID, MAX

Up and down

Standby

To switch the monitor on and off. Also see page 6

Recall

To display the program information.

You can also select colour systems in AV mode as follows

AUTO PAL SECAM NTSC3.58

To select the next item

Sound mute

To mute the sound from the speakers.

The sound changes as follows;

Normal volume Mute

Bass expander

To get an emphasised bass sound ON or OFF.

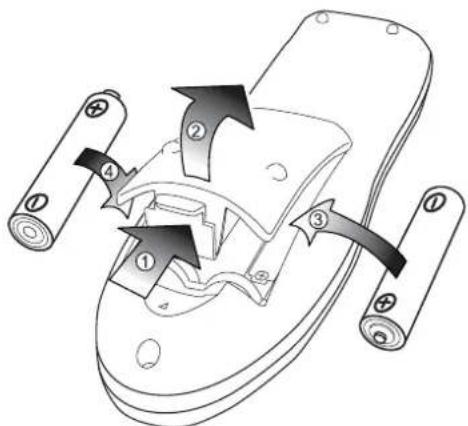

Remote control battery installation

Install two "AA" 1.5 volt batteries so that the "+" and "-" marks on the batteries match the "+" and "-" marks inside the unit into the remote control handset.

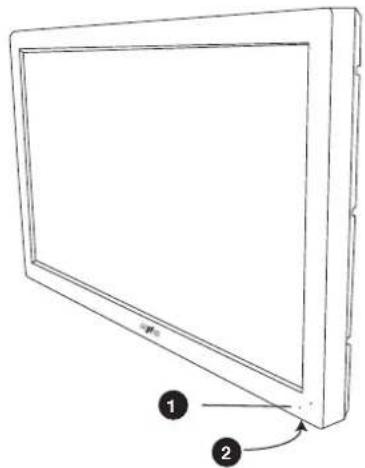

Controls and Menus

1. The LCD display has a Standby light to show there is power.

Switching into/from standby mode

The Standby mode is used for switching the LCD monitor off for short periods of time. In standby mode the monitor is switched off but is still receiving mains power.

To turn the monitor into standby mode, press the 4 button. The blue power indicator illuminates more brightly.
To turn the monitor ON from standby mode, press any of the following buttons: 4, 5, 6 or 0-9 buttons.

If you find the power indicator flashing, disconnect power cord from the power outlet and contact our Service desk.

This warning is a sign to let you know that the power protection function of this TV set is now operating.

2. Control buttons (bottom edge of cabinet)

Menu/F button: rotate between volume, Brightness, contrast, colour, sharpness and OSD language.

Input/ OK button: Switch between TV, AV1, RGB, AV2, AV3, DVI and PC mode.

ed

button provide up and down adjustments

4 button: To switch from display to standby mode (to switch off completely disconnect the monitor from the power supply)

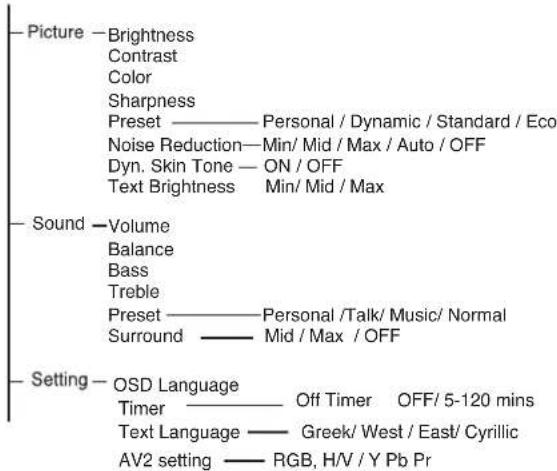

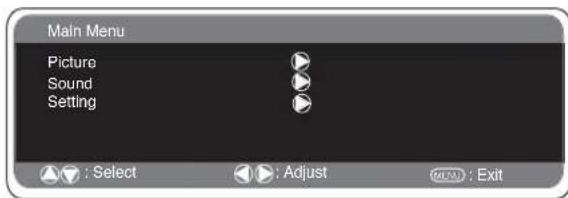

Menu Operation

Many of your monitors functions are controlled through the menu function, using the remote control handset.

MENU

During menu operation the bottom of the on screen display will show which controls can be used for menu navigation.

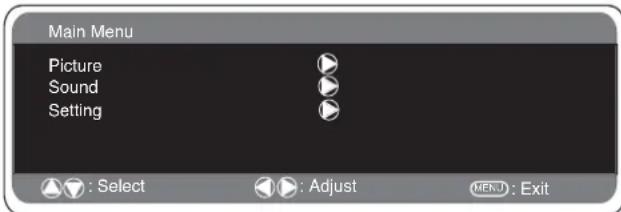

Press the MENU button to enter the main menu.

A sub menu is selected using the e or d button and pressing the 1 button when the required sub menu is highlighted.

When you have finished you can press the MENU button to exit, then the MENU button again to exit the main menu.

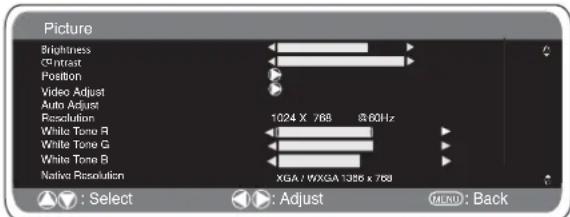

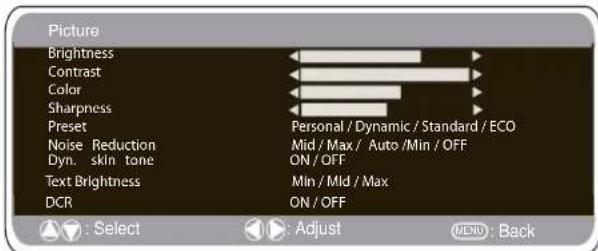

Picture menu

1. Press the MENU button. Select Picture using the e or d button. Press the1 button to enter.

Set the picture settings for your "personal" preference.

1. Use the e or d button to select eg. Brightness and the 1 button to adjust levels.

2. Preset : You can select either your "Personal" settings, or Dynamic, Standard or Eco settings.

3. Noise Reduction: May be used to reduce any local picture 'noise' (granular appearance) being experienced by using 1 2 to select between Mid / Max / Auto / OFF /Min.

4. Dynamic skin tone: May be used to enhance skin tone by using 1 2 to select between On / Off.

Tint : is only available if NTSC equipment is connected.

1. Text Brightness: May be adjusted by using 1 2 button to select between Min / Mid / Max.

Press the MENU button to return to Main Menu. These settings automatically store when you exit the menu. Press the MENU button to exit menu.

Your personal settings are automatically saved when you exit the menu.

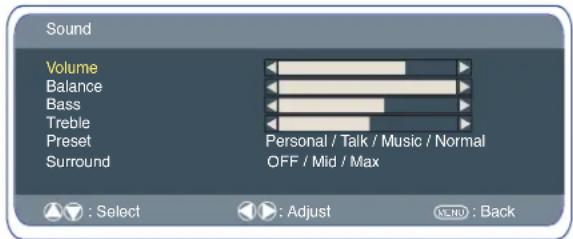

Sound menu

Press the MENU button and select Sound using the e or d buttons, press the1 button to enter.

Select and adjust to obtain the best sound settings for your environment using the e, d and 1 2 buttons. Press the MENU button to return to Main Menu. These settings automatically store when you exit the menu. Press the MENU button to exit menu.

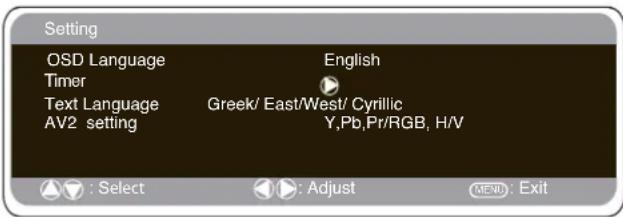

Setting menu

OSD Language

Use the 1 or 2 button to select the preferred OSD language (French, German, Italian, Spanish, Dutch). Press the MENU button to exit

AV2 setting

In setting menu, to select AV2 press the d button and set to Y,Pb,Pr or RGB, H/V depending on your external equipment.

1. Press the MENU button. Select Setting using the e or d button press the 1 button to enter.
2. Select AV2 setting using the e or d button.
3. Press the 1 or 2 button to select either Y,Pb,Pr or RGB H/V.
4. Press the MENU button to exit, this automatically stores your changes.
5. Press the MENU button to exit.

Off-timer setting

The Off timer will switch the monitor into the standby mode when the selected time has elapsed.
1. Press the MENU button. Select Setting using the e or d button press the 1 button to enter.

1. Select Timer using the e or d button, press 1 button to enter.
2. Press the 1 or 2 button to change time.

The time changes in 5 minute steps. The maximum time is 120 minutes.

If you have set the off timer, a count down display appears in the corner of the screen when the recall button is pressed.
If the monitor is switched off by the standby button 4 on the remote control or by the standby switch 4 on the bottom of the LCD monitor the timer settings will be cancelled.

PC menu settings

Connect your PC to either PC-IN or RGBHV or DVI on the rear of the set. Once connected select PC mode or AV2 (RGBHV, see page 4 for AV2 input settings) or DVI via the v button on your remote control. The set will become a monitor for the PC.

By pressing the MENU button on the remote control a menu window will appear on screen, this allows the settings to be adjusted.

To adjust the Picture settings select picture using the e or d buttons on the remote then the1 button to enter the following picture settings menu.

Press the 1 or 2 buttons to adjusted the Picture brightness and the same to adjust the contrast of the picture.

Picture position changes the picture horizontally or vertically. Press the1 button to enter the sub menus, adjustment is carried out using the1 or 2 buttons on the remote control.

Video adjust changes the Phase and the clock of the screen. If the picture is blurred or grainy this function will adjust it to a clearer picture, adjustment is carried out using the 1 or 2 buttons on the remote control.

Auto Adjust will automatically adjust the picture by using the 1 button. This will change all the above settings automatically.

Auto adjust can also be achieved by pressing the button on the remote control without having to select the menu (not included in DVI mode)

Resolution displays the current resolution of the picture. This is for information only and cannot be adjusted.

White tone: Using the 1 or2 buttons it is possible to adjust the colour tone of the picture using the White tone Red(R) / Green (G)/ Blue(B). This will adjust the picture to show more or less of the chosen colour. For example if red is selected you can adjust the proportion of red in the picture to increase or decrease using the 1 or 2 buttons

Native Resolution is used when the PC can output WXGA 1366 x 768. The setting on your Monitor set can be changed to receive XGA/WXGA signal using the1 or 2 buttons. Once the native resolution has been selected, save the settings by switching the monitor off then on using the standby button.

For Sound settings refer to previous menu

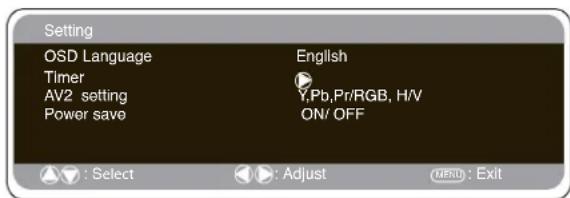

Setting: Press the menu button on your remote and using the o or d buttons to select Settings. The 1 button will enter the settings menu.

Timer and AV2 settings are the same as in all other input modes (pg 7).

Power save if turned ON will switch the monitor into Powersave mode after 1 minute if no signal is detected, the LED light will turn a brighter blue to indicate stand by. The monitor will automatically turn back on when a signal has been detected (PC input / RGBHV).

Use1 or 2 buttons to select power save ON or OFF.

RS232C settings

This monitor can be controlled via the RS232C connector using a suitable computer/ control commands.

Serial Interface Specification

Transfer Specification
1. Transmission Speed: initial setting value is 19200.
2. Transmission speed can be changed via the Installation menu (see below baud rate)

ITEM	SPECIFICATION
Synchronous system	Asynchronous
Transmission Speed	9600 / 19200
Data Length	8 bit
Parity	None
Stop Bit	1
Flow Control None

Connection

The Designated RS-232C serial cable must be used for a connection to a computer and LCD monitor.

(D-Sub 9 Pin) (D-Sub 9 Pin)

The TV command is defined by one command/ one line that starts with "C" and ends with carriage return. (0x0D)

There are two types of commands:

Functional Execution Command e.g Co5[CR] (table on page 63)
Status Read Commands e.g "CR0 [CR] (see table on page 63)

Setting the monitor address in RS232 mode

To Access Installation mode press the green button on the remote control and hold for 5 seconds. A new screen will appear.

Each monitor can have a specific Address for example 007, which enables the monitor to be controlled individually and will not affect other monitors connected to a controlling PC.

Address format command

The addressing format command is used for operating multiple monitor sets from a single PC via the RS232C command line. If you set your monitor address to '000', it will never respond to any addressing command from the PC.

If the address from the PC is 'FFF', all monitor sets will execute the command.

The Address format command is defined by one command, one line which starts with 'A' and ends with carriage return.(0 x0D)

The Monitor starts to decode when it receives a carriage return. (0x0D)

An address is added at the top of a control command Example:

Functional execution command:

"A001C05" [CR] means address is 001 and the control command is C05

Status_read command

"A001CR0"[CR] means address is 001 and command is CR0.

The monitor can set its own address in the Installation option menu (above) The address range is 000 - 999, the default address will be 000

The baud rate indicates the unit for transfer speed of data

from the PC to the monitor sets

Installation Menu

This LCD monitor allows you to set up the following:

Programme position at Start up SETTING PROCEDURE

1. Press and hold the green button on the Remote control handset for 5 seconds.(Installation menu will appear)
2. Use the 5 or 6 button to highlight each option, use the 1 to switch between each option.

■ On Program

Select ON program using the 6 button, select the start up position using the 1 or 2 buttons.

(Off/AV1/RGB/AV2/AV3/DVI/PC)

Press the MENU button to exit the menu.

Max Volume

Select Max volume using the 6 button, use the 1 or 2 buttons to set the maximum volume required.

OSD (On screen display)

Select OSD using the 6 button, select ON/OFF using the 1 or 2 buttons. Selecting OFF will inhibit the OSD. To re-instate OSD, press and hold the green button on the remote control to re-enter installation menu and select OSD ON.

Winter mode

This Function can be activated when the LCD monitor is used during cold temperature conditions, approximately 38^ / 4^ or below to maintain picture performance.

Using the e or d button select winter mode, once highlighted you can select ON or OFF by pressing the 1 or 2 button.
IMPORTANT: The AC cord should not be disconnected during the operation of Winter mode function.

When in winter mode, power consumption is higher than normal standby consumption. This is entirely due to the operation of heating circuitry. We strongly recommend to turn off Winter mode when the ambient temperature is above 38^ / 4^ .

■ RC Inhibition

You can prevent unwanted remote control operation by selecting RC Inhibition. When selected an inhibit symbol will appear on screen when a button is pressed on the remote control.

Select using the e or d button. Press the 1 or 2 button to select On or OFF.

To re-instate RC operation press and hold the green button on the remote control and select RC inhibition OFF.

Child lock

You can prevent unwanted operation of the LCD monitor via the buttons on the bottom edge of the monitor.

Select using the e or d button. Press the 1 button to select On or OFF.

Disconnecting the mains suppy will cancel this feature.

Selecting of picture size

Screen options

Today there are various transmission formats with different size ratios, eg. 4:3, 16:9 and video formats such as letterbox.

When in High Resolution (720p / 1080i) YPbPr or DVI, the picture will remain fixed in 16:9 format 'Full size' and may not be changed.

Natural

4:3 16:9		Letterbox Video
Stretches the picture horizontally to fill the screen. The picture is more stretched at the edges.	The picture fills the screen and is proportionally correct.	The black bars top and bottom remain and the height is compressed to fit the picture area.

Zoom

4:3	16:9	Letterbox Video
The correct picture width is maintained but the top and bottom are cropped.	Zooms in slightly cropping the top and bottom.	The black bars top and bottom are smaller and the picture height is compressed slightly.

Title-In

4:3 16:9		Letterbox Video
TITLE: SCREEN	TITLE: SCREEN	TITLE: SCREEN
As Zoom (16:9), but bottom is compressed even more to allow subtitles to be seen.	As Zoom (16:9), but bottom is compressed even more to allow subtitles to be seen.	As Zoom (16:9), but bottom is compressed even more to allow subtitles to be seen.

Full

4:3 16:9		Letterbox Video
The whole screen is filled stretching the width.	The whole screen is filled with the correct picture ratio.	The black bars top and bottom are present and the height is compressed.

■ Normal

4:3 16:9		Letterbox Video
The correct ratio is maintained with black bars on the left and right.	Black bars left and right, picture height is stretched.	Black bars left, right, top and bottom.

Specification

Common specification

Power source

220~240V 50Hz

Colour system

PAL NTSC3.5,SECAM

AV terminal

AV1:Scart CENELEC Standard

Input: Composite video, RGB (5V RGB with 5V sync to pin 14) and audio-L/R

AV2:BNC

Input: RGB, H and V / Y, Pb, Pr and audio L/R

Output: RGB, H and V/Y, Pb, Pr

AV3:BNC

Input: Composite video

Output : Composite video

Audio Monitor.Out: CINCH L/R

Audio Speaker out: 2 × 6W

DVI Input : DVI-D GROUP Standard

PC Input: Mini D-SUB 15 PIN and

Audio 3.5mm Jack

Serial port: RS232C: Input/Output

Contrast Ratio 1500:1

Screen(inches/cm) 42^ / 107 ~cm

viewing measured

diagonally)

Display Native Resolution 1366 x 768 (WXGA)

Viewing angles H:178°, V:178°

Dimensions (WxHxDmm) 1032x 625x126.5 (without stand)

1032 x 683 x 340 (with stand)

Weight (kg) 22.5 (without stand)

23.5 (With stand)

Helpful hints

NO PICTURE, NO SOUND

• Check if monitor is plugged in.
• Check monitor is not in standby mode

POOR PICTURE, SOUND OK

Adjust BRIGHTNESS/ CONTRAST LEVELS (too low).

NO COLOUR, PICTURE OK

Adjust COLOUR control.
- Check lead connections
- Does the signal input have colour?

■ REMOTE CONTROL DOES NOT WORK

• Check batteries are inserted correctly
• Check condition of batteries
• Check to see if remote control inhibit is set ON

PICTURE OK, NO SOUND

• Check external speakers are connected correctly
• Check lead connections to external equipment
  Volume turned down or mute selected

MODEL: CE42LE1

PC signal support timing

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Remark
720_400	31.47	70.09	DOS(VGA)
640_480	31.50	60.00	DOS(VGA VESA 60Hz)
640_480	37.50	75.00	VGA VESA 75Hz
640_480	37.86	72.81	VGA VESA 70Hz
640_480	37.86	74.38	VGA
640_480	35.00	67.00	Mac.
640_480	34.97	66.60	Mac LC 13"
800_600	35.16	56.25	SVGA VESA 56Hz
800_600	37.90	60.32	SVGA VESA 60Hz
800_600	46.90	75.00	SVGA VESA 75Hz
800_600	32.70	51.09	SVGA
800_600	34.50	55.38	SVGA
800_600	37.90	61.03	SVGA
800_600	38.00	60.51	SVGA
800_600	38.60	60.31	SVGA
832_624	49.00	74.00	Mac.
1024_768	48.40	60.00	XGA VESA 60Hz
1024_768	56.50	70.00	XGA VESA 70Hz
1024_768	60.000	75.00	XGA VESA 75Hz
1024_768	44.00	54.58	XGA
1024_768	46.90	58.20	XGA
1024_768	47.00	58.30	XGA
1024_768	48.50	60.02	XGA
1024_768	58.03	72.00	XGA
1024_768	60.31	74.92	XGA
1024_768	61.00	75.70	XGA
1024_768	60.24	75.08	MAC_Normal 19"
1280_960	60.00	60.00	SXGA VESA 60Hz
1280_1024	79.976	75.025	SXGA VESA 75Hz
1280_1024	62.50	58.60	SXGA
1280_1024	63.370	60.01	SXGA
1280_1024	63.34	59.98	SXGA
1280_1024	63.74	60.01	SXGA
1280_1024	63.79	60.18	SXGA
1280_1024	63.90	60.00	SXGA
1280_1024	71.69	67.19	SXGA
1280_1024	76.97	72.00	SXGA
1280_1024	81.13	76.107	SXGA
1152_864	64.20	70.40	SXGA
1152_900	61.20	65.20	SXGA
1152_900	61.85	66.00	SXGA
1152_900	71.40	75.60	SXGA
1152_870	68.68	75.06	MAC_Normal 21"
1280_960	75.00	75.08	Mac.
1280_1024	80.00	75.00	Mac..
1600_1200	75.00	60.00	UXGA VESA 60Hz
1366_768	48.36	60.00	WXGA
1360_768	47.70	60.00	WXGA

Component signal support timing

Resolution	Horizontal frequency (KHz)	Vertical frequency (Hz)	Remark
720x480 15	735 60i SDTV 480i
720x576 15	625 50i SDTV 576i
720x480 31	25 60p SDTV 4 80p
720x576 31	25 50p DTV 576p		S
1280x720 45	.00 60p HDTV 7 20p
1280x720 37	.50 50p HDTV 7 20p
1920x1080	33.75	60i HDTV	1080i
1920x1080	28.13	50i HDTV	1080i

DVI-D SIGNAL SUPPORT TIMING

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Remark
640_480	31.43	59.88	VGA VESA 60Hz
640_480	37.86	72.81	VGA VESA 72Hz
640_480	37.5	75	VGA VESA 75Hz
640_480	34.97	66.6 MAC	LC 13"
640_480	35	66.67	MAC_NORMAL 13"
800_600	35.16	56.25	SVGA VESA 56Hz
800_600	37.88	60.32	SVGA VESA 60Hz
800_600	46.875	75	SVGA VESA 75Hz
832_624	49.72	74.55	MAC_NORMAL 16"
1024_768	48.36	60 XGA VESA 60Hz
1024_768	60.23	75.03	XGA VESA 75Hz
1024_768	56.47	70.07	XGA VESA 70Hz
1024_768	60.24	75.08	MAC_NORMAL 19"
1152_870	68.68	75.06	MAC_NORMAL 21"
1280_1024	63.98	60.02	SXGA VESA 60Hz
720_480	31.7	59.94	480p
768_575	31.25	50	575p
1280_720	37.5	50	720p-50Hz
1280_720	45	60	720p-60Hz
1366_768	48.36	60	WXGA
1360_768	47.7	60	WXGA
1920_1080	28.125	50	1080i-50Hz
1920_1080	33.75	60	1080i-60Hz

Depending on the condition of signals and the type and length of cables, these signals may not be properly viewed.

To save the native resolution 1366_768 setting switch the monitor off then on using the standby button.

Concession de license, conditions et restrictions

DIESES PRODUKT MULLS GEERDET WERDEN.

Audio Monitor Out: CINCH:L/R

DIT PRODUCT MOET GEAARD ZIJN

AV1: SCART CENELEC standard

AV1, AV2, BNC, AV3, PC 0 DVI

PC signal support timing

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Remark
720_400	31.47	70.09	DOS(VGA)
640_480	31.50	60.00	DOS(VGA VESA 60Hz)
640_480	37.50	75.00	VGA VESA 75Hz
640_480	37.86	72.81	VGA VESA 70Hz
640_480	37.86	74.38	VGA
640_480	35.00	67.00	Mac.
640_480	34.97	66.60	Mac LC 13"
800_600	35.16	56.25	SVGA VESA 56Hz
800_600	37.90	60.32	SVGA VESA 60Hz
800_600	46.90	75.00	SVGA VESA 75Hz
800_600	32.70	51.09	SVGA
800_600	34.50	55.38	SVGA
800_600	37.90	61.03	SVGA
800_600	38.00	60.51	SVGA
800_600	38.60	60.31	SVGA
832_624	49.00	74.00	Mac.
1024_768 48.40	60.00		XGA VESA 60Hz
1024_768 56.50	70.00		XGA VESA 70Hz
1024_768	60.000	75.00	XGA VESA 75Hz
1024_768 44.00	54.58		XGA
1024_768 46.90	58.20		XGA
1024_768 47.00	58.30		XGA
1024_768 48.50	60.02		XGA
1024_768 58.03	72.00		XGA
1024_768 60.31	74.92		XGA
1024_768 61.00	75.70		XGA
1024_768 60.24	75.08		MAC_Normal 19"
1280_960	60.00	60.00	SXGA VESA 60Hz
1280_1024	79.976	75.025	SXGA VESA 75Hz
1280_1024 62.50	58.60		SXGA
1280_1024	63.370	60.01	SXGA
1280_1024 63.34	59.98		SXGA
1280_1024 63.74	60.01		SXGA
1280_1024 63.79	60.18		SXGA
1280_1024 63.90	60.00		SXGA
1280_1024 71.69	67.19		SXGA
1280_1024 76.97	72.00		SXGA
1280_1024 81.13	76.107		SXGA
1152_864 64.20	70.40		SXGA
1152_900 61.20	65.20		SXGA
1152_900 61.85	66.00		SXGA
1152_900 71.40	75.60		SXGA
1152_870 68.68	75.06		MAC_Normal 21"
1280_960 75.00	75.08		Mac.
1280_1024 80.00	75.00		Mac..
1600_1200	75.00	60.00	UXGA VESA 60Hz
1366_768	48.36	60.00	WXGA
1360_768	47.70	60.00	WXGA

Component signal support timing

Resolution Horizontal frequency (KHz)		Vertical frequency (Hz)	Dot Clock Frequency(Mhz)	Remark
720x480 15.735 60i 12.27 SDTV 4 80i
720x576 15.625 50i 13.50 SDTV 5 76i
720x480 31.25 60p 27 SDTV 4 80p
720x576 31.25 50p 27 HDTV 5 76p
1280x720 45.00 60p 74.25		HDTV 720p
1280x720 37.50 50p 74.25		HDTV 720p
1920x1080	33.75	60i 74.25	IHTDV 10	80i
1920x1080	28.13	50i 74.25	HDTV 10	80i
1920x1080	31.25	50i 74.25	HDTV 11	52i

DVI-D SIGNAL SUPPORT TIMING

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Remark
640_480	31.43	59.88 VGA VESA 60Hz
640_480	37.86	72.81 VGA VESA 72Hz
640_480	37.5	75	VGA VESA 75Hz
640_480	34.97	66.6	MAC LC 13"
640_480	35	66.67	MAC_NORMAL 13"
800_600	35.16	56.25	SVGA VESA 56Hz
800_600	37.88	60.32	SVGA VESA 60Hz
800_600	46.875	75 SVGA VESA 75Hz
832_624	49.72	74.55	MAC_NORMAL 16"
1024_768	48.36	60	XGA VESA 60Hz
1024_768	60.23	75.03	XGA VESA 75Hz
1024_768	56.47	70.07	XGA VESA 70Hz
1024_768	60.24	75.08	MAC_NORMAL 19"
1152_870	68.68	75.06	MAC_NORMAL 21"
1280_1024	63.98	60.02	SXGA VESA 60Hz
720_480	31.7	59.94	480p
768_575	31.25	50	575p
1280_720	37.5	50	720p-50Hz
1280_720	45	60	720p-60Hz
1366_768	48.36	60	WXGA
1360_768	47.7	60	WXGA
1920_1080	28.125	50	1080i-50Hz
1920_1080	33.75	60	1080i-60Hz

Depending on the condition of signals and the type and length of cables, these signals may not be properly viewed.
To save the native resolution 1366_768 setting switch the monitor off then on using the standby button.

Functional Execution Command Table

Command	Item	Comment
C00	Power ON
C01	Power OFF
C23	Wide "Auto" direct
C24	Wide "Natural" direct
C29	Wide "Full" direct
C0F	Wide "Normal" direct
C30	Picture	Toggle (Dynamic, Standard, Eco, Perconal)
C70	AV1 direct
C71	RGB direct
C72	AV2 RGBHV direct
C73	AV2 YPbPr direct
C74	AV3 direct
C75	DVI direct
C76	PC direct
C64	PC Auto adjust
C92	Factory settings
CF PSAVE ON	Power save ON
CF PSAVE OFF	Power save OFF
CF CLOK ON	Child Lock ON
CF CLOK OFF	Child Lock OFF
CF DEA RMCY	RC inhibition OFF
CF DEA RMCN	RC inhibition ON

"---" _means "No Function".

Status Read Command Table

Command	Item	Note
CRO	Power	On, Standby, power error,...
CR1	Input Mode	AV1, AV2,..., HDMI, PC
CR WIDE	Wide Mode	Auto, Normal, Full,...
CR PICTURE	Picture mode	Dynamic, Standard, ...
CR SIGNAL	Signal existence	Signal / No signal
CR CHILD	Child Lock	On / Off
CR PSAVE	Power Save (On/Off)	On / Off
CR TM	Panel operating time

---"__means "No Function"
