Mixer 350 W - Blender PHILIPS - Free user manual and instructions

Product type	Stand mixer
Brand	Philips
Model	Mixer 350 W
Power	350 W
Power supply	220-240 V, 50-60 Hz
Speeds	Variable speed with Turbo function
Maximum capacity (yeast dough)	500 g of flour
Maximum capacity (whipped cream)	500 g
Approximate weight	2.5 kg
Dimensions (L x W x H)	28 x 20 x 30 cm
Bowl material	Not specified (bowl not provided, use a mixing bowl)
Included accessories	Metal whisks (x2), dough hooks (x2)
Replacement parts available	Metal whisks (4203 065 64250), dough hooks (4203 065 64260), storage box (4203 065 64280)
Cleaning	Whisks and hooks in dishwasher or soapy water; motor unit with damp cloth
Safety	Do not immerse motor unit; unplug before cleaning; check voltage
Warranty	International Philips warranty (see leaflet)
Intended use	Whipping, mixing, kneading light to medium doughs

Frequently Asked Questions - Mixer 350 W PHILIPS

How to use the whisks and hooks?

Insert the whisks or hooks into the mixer until they click. For the dough hooks, the plastic collar must be in the largest opening. Lower them into the ingredients before starting.

What speed to use for kneading yeast dough?

Use speed 3 with the dough hooks for yeast dough (max. 500 g of flour). Preparation time is approximately 5 minutes.

How to clean the mixer?

Always unplug the appliance. The whisks and hooks can be cleaned in warm soapy water or in the dishwasher. The motor unit can be cleaned with a damp cloth; never immerse it.

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by Philips, an Authorized Service Center or a qualified technician to avoid any accident.

Can I use non-Philips accessories?

No, using accessories or parts from other manufacturers voids the warranty and may be dangerous. Only use accessories recommended by Philips.

How to store the appliance?

Wind the cord around the heel and secure the end with the strap. For model HR1561, store the appliance and accessories in the storage box (optional).

What are the maximum recommended quantities?

For whipped cream: max. 500 g, 3 min. For cake batter: approx. 750 g, 3 min. For egg whites: max. 5 whites, 3 min. Start at low speed to avoid splashing.

How to use the Turbo function?

Press the Turbo button to increase speed during difficult operations, such as kneading or mixing thick ingredients.

Can I make mayonnaise with this mixer?

Yes, with the whisks. Use max. 3 egg yolks and mix for approximately 15 minutes, starting at low speed then increasing.

What to do if the appliance does not work?

Check that the voltage matches your mains voltage. If the problem persists, contact Philips Consumer Service or an authorized dealer.

USER MANUAL Mixer 350 W PHILIPS

Register your product and get support at

www.philips.com/welcome

HR1561, HR1560

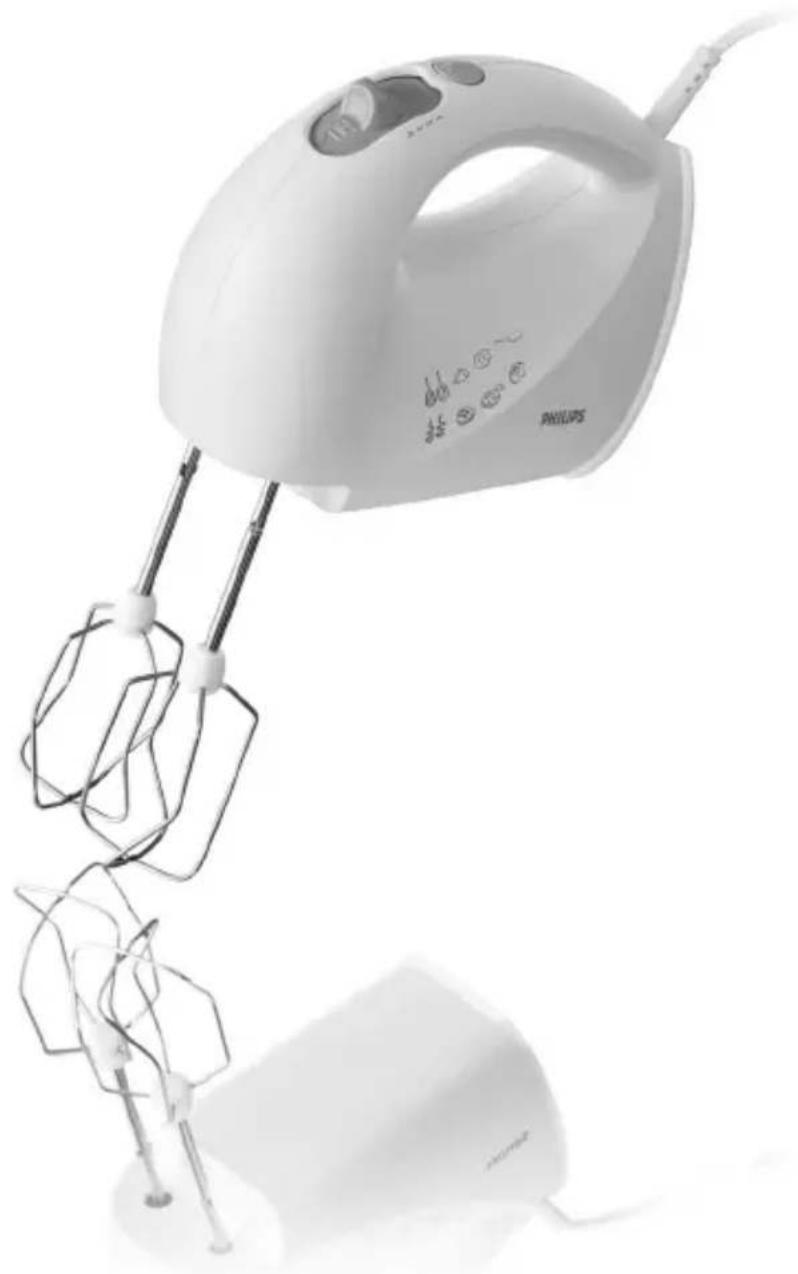

White Philips electric mixer with a hand mixer and stand mixer, no visible text or symbols on the device itself.

PHILIPS

Illustration of an open book with a grid and a black arrow pointing to the pages (no text or symbols)

Diagram of a car on a curved road with an arrow indicating motion (no text or symbols)

Line drawing of a kettle with a handle and spout, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a handbag with decorative elements (no text or symbols)

ENGLISH 6

DANSK 11

DEUTSCH 16

ΕΛΛΗΝΙΚΑ 22

ESPAÑOL 28

SUOMI 34

FRANÇAIS 39

ITALIANO 44

NEDERLANDS 49

NORSK 54

PORTUGUÊS 59

SVENSKA 64

TÜRKÇE 69

78 فارسی

العربية 83

6 ENGLISH

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Do not immerse the motor unit in water nor rinse it under the tap.

Warning

- Check if the voltage indicated on the bottom of the appliance corresponds to the local mains voltage before you connect the appliance.

- Do not use the appliance if the mains cord, the plug or other parts are damaged.

- If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

Caution

- Always insert the beaters or the kneading hooks into the mixer before you connect it to the mains.

- Lower the beaters or kneading hooks into the ingredients before you switch on the appliance.

ENGLISH 7

• Unplug the mixer before you remove the beaters or kneading hooks and before you clean it.
• Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Using the appliance

1 Insert the beaters or kneading hooks into the mixer ('click'). You may need to turn them slightly while you do this. (Fig. 1)

Note: Insert the kneading hook with the plastic collar into the larger opening in the bottom of the mixer.

2 Put the plug in the wall socket.
3 Put the ingredients in a bowl.

See the table below for the recommended quantities and processing times.

Quantities and processing times

Kneading hooks\* Quantity Time

Yeast dough Max. 500g flour Max. 5 minutes

*) Select speed 3

8 ENGLISH

Beaters\* Quantity Time

Batters for waffles, pancakes, etc.

Approx. 750g Approx. 3 minutes

Thin sauces, creams and soups

Approx. 750g Approx. 3 minutes

Mayonnaise Max. 3 egg yolks Approx. 15 minutes

Pureeing potatoes Max. 750g Max. 3 minutes

Whipping cream Max. 500g Max. 3 minutes

Whisking egg whites Max. 5 egg whites Approx. 3 minutes

Cake mixture Approx. 750g Approx. 3 minutes

*) Start mixing at a low speed to avoid splashing. Switch to a higher speed later.
4 Lower the beaters or kneading hooks into the ingredients.
5 Set the speed control to the desired speed setting to switch on the appliance (Fig. 2).

• You can press the turbo button to mix more quickly or to increase the speed during heavy jobs, e.g. kneading yeast dough.
• If you want to stop mixing for a while, set the speed control to '0' to switch off the mixer. Then put the mixer (with the beaters or kneading hooks still attached) on its heel until you continue (Fig. 3).
  6 When you have finished mixing, set the speed control to '0' and unplug the appliance.
  7 To release the beaters or kneading hooks, press the speed control forward to the eject position. (Fig. 4)

Cleaning

Always unplug the appliance before you clean it.

Never immerse the motor unit in water or rinse it under the tap.

ENGLISH 9

1 Clean the beaters and the kneading hooks in warm water with some washing-up liquid or in the dishwasher.
2 Clean the motor unit with a moist cloth.

Storage

1 Wind the cord round the heel of the appliance and fix the cord with the cord clip (Fig. 5).
2 HR1561 only: you can store the appliance, the beaters and the kneading hooks in the storage box (Fig. 6).

Accessories

The following items are available from your dealer for replacement or as extra accessories. Please use the service code number mentioned below when ordering.

• ⓄWire beaters are available in pairs under service code number 4203 065 64250
• §Kneading hooks are available in pairs under service code number 4203 065 64260
• △A storage box is available under service code number 4203 065 64280*

* optional for type HR1560.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 7).

Guarantee & service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

ENGLISH10

Recipe

Toscana bread

Ingredients:

• 750g flour
• 380ml water
• 50ml oil
• 1 teaspoon salt
• 1 teaspoon sugar
• 1 package yeast
• 1 spoon dry rosemary
• 25g green or black olives

1 Put the flour, water, salt, sugar, oil and yeast in a bowl.
2 Knead the dough with the kneading hooks for 60 seconds.
3 Put the bowl with the dough in the fridge for 60 minutes.
4 Cut the olives into small pieces.
5 Take the dough out of the fridge and add the rosemary and the olives.
6 Insert the kneading hooks. Press the turbo button and mix the added ingredients for 10 seconds.
7 Bake the Toscana bread in a baking tin at 180^ C for approximately 30 minutes.

Note: This recipe is extremely heavy for your mixer. Let your mixer cool down for 60 minutes after preparing this recipe.

Introduktion

The image is too blurry to recognize any text content.

100% recycled paper 100% papier recyclé

4203.064.5609.3
