Walita HR1351 - Blender PHILIPS - Free user manual and instructions

USER MANUAL Walita HR1351 PHILIPS

Product display of a white blender with kitchen utensils and a whisk against a pink background (no text or symbols visible)

PHILIPS

Diagram of a mechanical device with red arrows indicating motion or force direction (no text or symbols)

Medical illustration of a needle insertion into a patient's ear with screw, showing anatomical positioning (no text or labels)

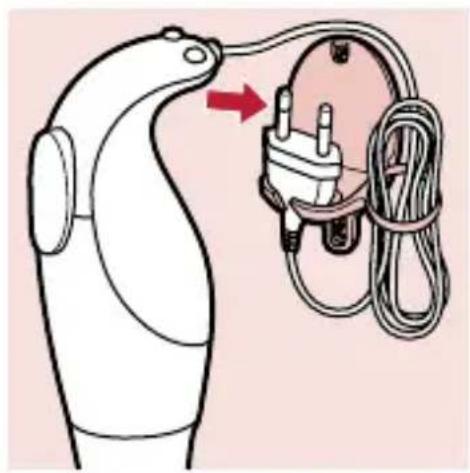

Illustration of a hand holding an electrical plug connected to a cord, with a red arrow indicating the cable's direction (no text or symbols present)

ENGLISH 4

FRANCAIS 8

ESPAÑOL 13

BAHASA MELAYU 18

简体中文 22

繁体中文 27

ภาษา32

Important

Illustration of a human leg with red directional arrows indicating movement or force (no text or symbols)

1 2

Illustration of a manual saw tool with red arrows indicating motion or movement (no text or symbols)

Simple line drawing of a beaker with liquid inside, showing a downward arrow (no text or symbols)

This appliance is intended for household use only.
▶ Assemble the appliance properly before plugging it into the wall socket.
▶ Unplug the appliance immediately after use, i.e. before unscrewing the bar.
- Avoid touching the SHARP blades, especially when the appliance is plugged in.
▶ Never immerse the motor unit in water.
- Keep the appliance out of the reach of children.
Do not exceed the quantities and preparation times indicated in the table.
If the mains cord is damaged, it must be replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
If the blades get stuck, UNPLUG THE APPLIANCE before removing the ingredients that are blocking the blades.
Let hot ingredients cool down before chopping them or pouring them into the beaker (max. temperature 80^ C/175°F).

Using the appliance

Bar blender

The bar blender is intended for:

- Blending fluids, e.g. dairy products, sauces, fruit juices, soups, mixed drinks, shakes.

Illustration of a pipette being heated in a beaker with red arrows indicating rotation (no text or symbols)

Simple line drawing of a beaker with liquid inside, showing a drop (no text or symbols)

• Mixing soft ingredients, e.g. pancake batter or mayonnaise.
• Pureeing cooked ingredients, e.g. for making baby food.

Immerse the blade guard completely in the ingredients.
2 Switch the appliance on and blend the ingredients by moving the appliance slowly up and down and in circles.
3 You can use the filter accessory to obtain extra finely blended sauces or juices.

Chopper (type HRI351, HRI354)

Diagram of a mechanical device with a central shaft and internal components, showing a downward arrow (no text or symbols)

Illustration of a bottle with liquid and a red arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a bottle with a bulb, showing fluid movement or mechanical process (no text or symbols)

The chopper attachment can be used for chopping ingredients such as nuts, meat, onions, hard cheese, dried fruits, chocolate, garlic, herbs, dry bread etc.
If the ingredients stick to the chopper beaker wall, loosen them by adding liquid or using a spatula.
Make sure the coupling unit has been properly fitted onto the chopper beaker.
2 Cut large ingredients into pieces of approximately 2 cm/l inch before processing.

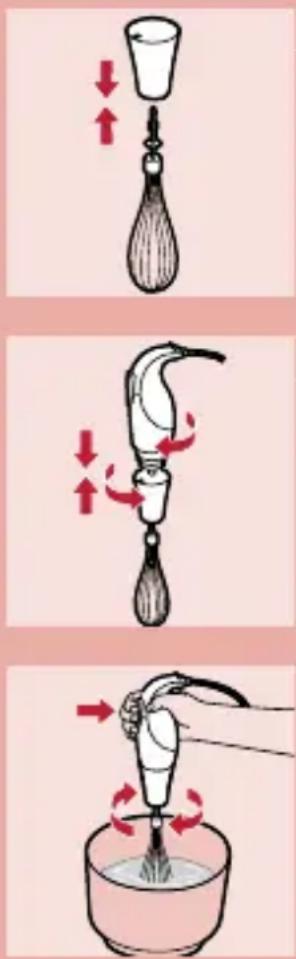

Whisk (type HR1354 only)

Illustration showing three-step hairpin tool application: drag, press, and brush stroke technique

- You can use the whisk attachment to whip cream, egg whites, desserts etc.

To obtain a good whipping result, please use a wider bowl.

2 To avoid splashing, insert the whisk into the bowl, switch the appliance on and whip the ingredients by slowly moving the appliance in circles.

Cleaning

Clean the beaker, the lid, the filter, the chopping beaker, the blade unit and the whisk in the dishwasher or in warm soapy water. It is recommended to remove the rubber ring from the chopper before cleaning.

2 The blade unit and the whisk of the bar blender can also be cleaned by immersing the blade guard or the whisk in warm soapy water and letting the appliance run for a while.

3 Wipe the motor unit, the coupling unit of the chopper (HRI351 & I354) and the coupling unit of the whisk (HRI354) with a damp cloth. Do not immerse these parts in water!

Quantities and preparation times

Ingredients	Bar Blender Quantity (g)	Time (sec.)	Chopper Quantity (g)	Time (sec.)
Onions & eggs			50-100	10
Meat & fish			50-150	30
Herbs			10-20	20
Fruits & vegetables	100-200	60	50-200	60
Baby food, soups & sauces	100-400	60	50-150	60
Cheese & nuts			50-100	60
Batters	100-500	60
Shakes & mixed drinks	100-1000	60

Ingredients	Whisk Quantity (g)	Time (sec.)	Filter Quantity (g)	Time (sec.)
Cream	250	90
Egg whites	4 eggs	120
Fruits			200	90
Juices (e.g.tomato juice)			200	90

If you need service or information or if you have a problem, please consult the worldwide guarantee leaflet.

Important

Illustration of a hip joint with red directional arrows indicating movement or force (no text or symbols)

1 2

Illustration of a hand tool with red arrows indicating motion or movement (no text or symbols)

Simple line drawing of a beaker with a lid and arrow indicating downward motion (no text or symbols)

Illustration of a pipette being heated in a beaker with red arrows indicating rotation (no text or symbols)

Hachoir (types HR1351, HR1354 uniquement)

Simple line drawing of a beaker with liquid inside, no text or symbols present

Cross-sectional diagram of a mechanical device with a central shaft and base, showing internal components and a downward arrow (no text or symbols)

Diagram showing a container with granular material and a downward arrow indicating flow or process, likely illustrating a chemical or biological process.

Illustration of a hand holding a bottle with arrows pointing to a bulb-like structure (no text or symbols)

Illustration of a dropper holding a glass with a handle, showing red directional arrows (no text or symbols)

Illustration of a tool with red arrows indicating motion or force direction (no text or symbols)

Illustration of a hand pouring liquid into a container with arrows indicating rotation (no text or symbols)

Illustration of a hand holding a pen or pipette with red arrows indicating motion (no text or symbols)

Simple line drawing of a beaker with a glass inside, showing liquid level and a red arrow pointing downward (no text or symbols)

Cross-sectional diagram of a mechanical device with a central shaft and base, showing internal components and a red arrow indicating direction (no text or symbols)

Illustration of a bottle with a white lid and red arrow indicating downward motion, containing granular material (no text or symbols)

Illustration of a hand holding a bottle with red arrows indicating force or movement (no text or symbols)

Illustration of a hand holding a glass with a handle, showing a red double-headed arrow indicating compression or force (no text or symbols)

Illustration of a hairpin with red arrows indicating force or movement (no text or symbols)

Illustration of a hand pouring liquid into a container with red arrows indicating flow direction (no text or symbols)

Illustration of a pipette being heated in a beaker with red circular arrows indicating rotation (no text or symbols)

Simple line drawing of a beaker with liquid and a red arrow indicating downward motion (no text or symbols)

Illustration of a mechanical device with a central shaft and a downward arrow, no text or symbols present.

Illustration of a bottle with liquid and a red arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a bottle with a bulb, showing fluid movement or mechanical process (no text or symbols)

Illustration showing three-step hairpin tool application: drag, press, and brush stroke technique

Illustration of a mechanical joint with red directional arrows indicating movement or force (no text or symbols)

Illustration of a curved tool with directional arrows indicating movement or force (no text or symbols)

Simple line drawing of a glass container with a lid and a downward arrow indicating direction (no text or symbols)

产品的使用

搅和罪

搅和器用于：

Illustration of a pipette being heated in a beaker with red arrows indicating rotation (no text or symbols)

Simple line drawing of a glass beaker with a lid and a downward arrow indicating compression (no text or symbols)

Illustration of a mechanical device with a central shaft and a downward arrow indicating motion (no text or symbols)

Illustration of a bottle with a lid and internal components, showing a red arrow pointing downward (no text or symbols)

Illustration of a hand holding a bottle with a bulb, showing two arrows pointing to the bulb (no text or symbols present)

Illustration of a droplet being held by a glass with a red arrow indicating downward motion (no text or symbols)

Illustration of a hand tool with red arrows indicating motion or force direction (no text or symbols)

Illustration of a hand pouring liquid into a bowl with arrows indicating flow direction (no text or symbols)

Illustration of a hand using a pipette to test liquid in a beaker with red arrows indicating rotation (no text or symbols)

Simple line drawing of a glass beaker with a red arrow indicating downward motion (no text or symbols)

Illustration of a mechanical device with a lever and base, showing internal components and a red arrow indicating motion (no text or symbols)

Illustration of a bottle with a red arrow pointing downward through it, containing granular material (no text or symbols)

Illustration of a hand holding a bottle with a bulb, showing fluid flow or movement (no text or symbols)

Illustration of a hand holding a small object with a downward arrow indicating compression or disassembly (no text or symbols)

您可用攪打器攪打奶油、蛋白、膳食等。

Illustration of a hand tool with red arrows indicating motion or force (no text or symbols)

Illustration of a hand pouring liquid into a bowl with red arrows indicating rotation (no text or symbols)

Illustration of a pipette being heated in a beaker with red circular arrows indicating rotation (no text or symbols)

Simple line drawing of a glass beaker with a lid and a downward arrow indicating compression (no text or symbols)

Illustration of a mechanical device with a central shaft and a red arrow indicating direction (no text or symbols)

Diagram showing a container with liquid and a lid, labeled with a red downward arrow indicating flow or process.

Illustration of a hand holding a bottle with arrows indicating force or movement (no text or symbols)

Illustration of a hand holding a glass with a handle, showing a downward arrow and an upward arrow (no text or symbols)

Illustration of a tool with red arrows indicating motion or force direction (no text or symbols)

Illustration of a hand pouring liquid into a bowl with red arrows indicating rotation (no text or symbols)

Illustration of a hand holding a bottle with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a glass with a handle, showing a downward arrow and red motion indicator (no text or symbols)

Illustration of a hairpin with red arrows indicating force or movement (no text or symbols)

Illustration of a hand pouring liquid from a bottle into a container with red arrows indicating motion (no text or symbols)

التنظيف

Illustration of a hand holding a pen-like object with red circular arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a beaker with a lid and a downward arrow indicating compression (no text or symbols)

(HR1354, HR1351) ألَة القطع (طراز

Cross-sectional diagram of a mechanical device with a central shaft and internal components, showing a downward arrow (no text or symbols)

Diagram showing a bottle with liquid and a conical container, labeled with a red downward arrow indicating flow or movement.

ملاحظات هامة

Illustration of a human leg with arrows indicating movement or force direction (no text or symbols)

1 2

Illustration of a curved tool with red arrows indicating motion or force direction (no text or symbols)

درجة مئو

استخدام Jinghaz

الخلاط اليدوي
