Pure Essentials Collection HR1374 - Blender PHILIPS - Free user manual and instructions

USER MANUAL Pure Essentials Collection HR1374 PHILIPS

Always here to help you

Register your product and get support at www.philips.com/welcome

HR1375, HR1374, HR1373, HR1372, HR1371, HR1370

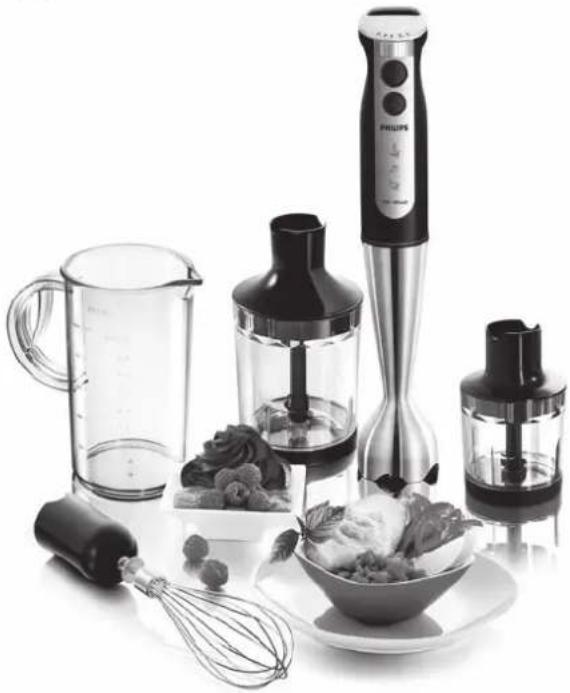

Black-and-white photo of kitchen utensils including a blender, spatula, and food bowl (no visible text or symbols)

PHILIPS

Technical line drawing of a mechanical device with labeled parts (no text or symbols)

Labeled diagram of a handheld device with numbered parts for identification

HR1375, HR1374, HR1372, HR1371

Simple line drawing of a cylindrical container with a central rod and label '9' (no text or symbols on the object itself)

Line drawing of a pitcher with handle and label (8), no text or symbols present

HR1375, HR1374, HR1372

Technical diagram showing a mechanical assembly with labeled parts 13 and 14, likely illustrating a component or assembly.

HR1372

Technical diagram showing three labeled parts of a kitchen appliance, including a lid, handle, and base with numbered annotations.

	×	×	√
	√	√	√
	√	×	√

1

Diagram illustrating a medical procedure with labeled step 2 and an inset showing a blood pressure test with a cross symbol.

3 ✓ ✓ ✓ ✓ ✓ ✓

1

②

Illustration of hands using a pipette to measure liquid in a glass (no text or symbols)

4 Turbo

5 P S E T G

Illustration of a hand holding a pen with arrows indicating motion or rotation (no text or symbols)

HR1375, HR1374, HR1372

Diagram showing a mechanical or cleaning process with downward and upward arrows indicating movement or force direction.

2

Simple line drawing of a dropper above a container with liquid (no text or symbols)

Illustration of a hand using a pipette to lift liquid into a bucket (no text or symbols)

5 Power

Illustration of a hand using a brush to clean water in a bucket, with arrows indicating rotation (no text or symbols)

HR1375, HR1374, HR1372, HR1371

HR1372

Diagram illustrating a hand holding a tool above a container with an arrow indicating downward motion, accompanied by a warning symbol.

Illustration of a plant experiment with garlic bulbs, a leafy branch, and a beaker with a pointed tool (no text or symbols)

Illustration of a mechanical presser pressing into a glass container with contents (no text or symbols)

Diagram showing a mechanical device with a downward arrow and radiating lines, no text or symbols present

4 Turbo

5 S S S

HR1375, HR1374, HR1372, HR1371

1 A B

Illustration of a beaker with a rod and arrow, emitting particles from bubbles (no text or symbols)

Diagram showing a mechanical device pressing into a container with a rod inserted, no text or symbols present

4

4 Turbo

5 6 7 8 9 10

		MAX.
		100-200 g	30 sec	Turbo
		100-400 ml	60 sec	5
		100-500 ml	60 sec	5
		100-1000 ml	60 sec	5
[SDCAI]	[SDCAI]	250 ml	70-90 sec
	[SDCAI]	4 x [IMAGE]	120 sec
HR1372	[SDCAI]	20 g	5 x 1 sec.	3-4
	[SDCAI]	100 g	5 x 1 sec.	1-2
	[SDCAI]	100 g	5 sec.	Turbo
	[SDCAI]	50 - 100 g(max)	15 sec.	Turbo
	[SDCAI]	100 g	2 x 10 sec.	Turbo
[ZZA7] 2x2x2 cm

2×2×2 cm

		MAX.
HR1375, HR1374, HR1372, HR1371,		30 g	10 x 1 sec.	3-4
		200 g	5 x 1 sec.	1-2
		200 g	10 sec.	Turbo
		200 g	20 sec.	Turbo
		100 g	20 sec.	Turbo
		2 x	4 x 1 sec.	1-2
		200 g	30 sec.	Turbo
	[4BCK]	80 g	30 sec.	Turbo
		500 g	30 sec.	Turbo
		8 x	Turbo x 5~Turbo x 8	Turbo
		8 x	10 sec.	Turbo
2x2x2 cm

2×2×2 cm

ENGLISH

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description

1 Wall holder

2 Speed selector

3 Normal speed button

4 Turbo speed button

5 Motor unit

6 Release buttons

7 Blender bar

8 Beaker

9 XL chopper bowl

10 XL chopper blade unit

11 Ice crushing blade unit

12 XL chopper lid

13 Whisk coupling unit

14 Whisk

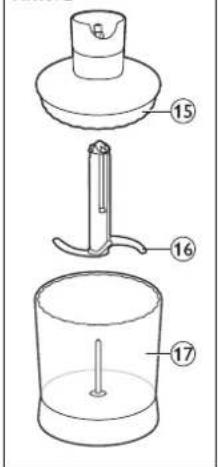

15 Compact chopper lid

16 Compact chopper blade unit

17 Compact chopper bowl

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Never immerse the motor unit in water or any other liquid, nor rinse it under the tap. Only use a moist cloth to clean the motor unit.

Warning

- Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.

- Do not use the appliance if the plug, the mains cord or other parts are damaged or have visible cracks.

- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

- This appliance shall not be used by children. Keep the appliance and its cord out of the reach of children.

- Children shall not play with the appliance.

- Do not touch the cutting edges of the blade units under any conditions, especially when the appliance is plugged in. The cutting edges are very sharp.

- If one of the blade units gets stuck, unplug the appliance before you remove the ingredients that block the blade unit.

- If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.

- To avoid splashing, always immerse the bar into the ingredients before you switch on the appliance, especially when you process hot ingredients.

- Be careful when you pour hot liquid into the beaker, as hot liquid and steam may cause scalding.

Caution

- Always disconnect the appliance from the mains if you leave it unattended and before you assemble, disassemble or clean it.

- Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.

- Only use this appliance for its intended purpose as shown in the user manual.

- This appliance is intended for household use only.

- Do not exceed the quantities and processing times indicated in the table.

- Do not use the appliance with any of the accessories longer than 3 minutes without interruption. Let the appliance cool down for 15 minutes before you continue processing.

- Clean the blade unit of the blender bar under the tap. Never immerse it in water.

- After cleaning, let the blender bar dry. Store it either horizontally or withthe blade pointing upwards. Make sure the blade unit is completely drybefore you store the blender bar.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details). You can order a direct-driven mini chopper (under service code number 4203 035 83150) from your Philips dealer or a Philips service centre as an extra accessory.

Recycling

- This symbol on a product means that the product is covered by European Directive 2012/19/EU. Inform yourself about the local separate collection system for electrical and electronic products. Follow local rules and never dispose of the product with normal household waste. Correct disposal of old products helps prevent negative consequences for the environment and human health (Fig. 1).

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

|Baby food recipe|

Ingredients

- 50g cooked potatoes

- 50g cooked chicken

- 50g cooked french beans

- 100ml milk

1 Put all ingredients in the beaker.

2 Press and hold the on button and let the blender operate for 5 seconds.
