Comfort HR1724 - Blender PHILIPS - Free user manual and instructions

Product type	Blender
Brand	Philips
Model	Comfort HR1724
Mixing bowl capacity	1.25 L (cold liquids), 1 L (hot or frothy liquids)
Speeds	2 speeds + Impulse function
Maximum ingredient temperature	80°C
Included accessories	Mixing bowl, lid, measuring cup, knife assembly, rubber ring
Optional accessories (depending on model)	Mill (HR1721/HR1727), Fruit filter (HR1724/HR1727)
Bowl material	Plastic
Blade material	Stainless steel
Cleaning	Bowl, lid and measuring cup dishwasher safe; wipe motor unit with a damp cloth
Safety	Disconnect before assembly/disassembly; do not immerse motor unit; blades are very sharp
Maximum continuous operating time	Mixer: 3 minutes; Mill: 30 seconds
Cooling time between cycles	Mill: at least 1 minute
Warranty	International Philips warranty (see leaflet)
After-sales service	www.philips.com or local Consumer Service

Frequently Asked Questions - Comfort HR1724 PHILIPS

What is the maximum capacity of the mixing bowl?

The mixing bowl can hold up to 1.25 liters of cold liquid ingredients. For hot or frothy liquids, do not exceed 1 liter to avoid overflow.

Can I blend hot ingredients?

Yes, but the temperature of ingredients must not exceed 80°C. Pour a maximum of 1 liter of hot liquid into the bowl.

How to use the Impulse function?

Turn the knob to the 'Impulse' position to operate the appliance in short bursts. This function is ideal for crushing ice or blending quickly without overheating.

Are the mixing bowl and accessories dishwasher safe?

Yes, the mixing bowl, mill glass (without knife assembly), lid and measuring cup are dishwasher safe. The motor unit, knife assemblies, filter and rubber rings should be hand washed.

How to avoid leaks during blending?

Before assembling the bowl, make sure the rubber ring is properly positioned on the knife assembly. Also, close the lid until it clicks and insert the measuring cup.

Can I grind coffee or hard spices with the mill?

No, the mill is not designed for very hard ingredients like nutmeg, candies or ice cubes. Use it for dry or wet ingredients of moderate size, respecting the MAX level.

How to prepare soy milk with the filter?

Soak 50 g of soybean sprouts for at least 4 hours. Put them in the filter, add 500 ml of water to the bowl, blend for 40 seconds. Then pour the milk into a saucepan, bring to a boil with sugar and serve hot or cold.

What is the maximum continuous operating time?

For the mixer, do not exceed 3 minutes continuous. For the mill, limit each cycle to 30 seconds and let it cool for at least 1 minute between uses.

Can I make mayonnaise with this blender?

Yes, use a lower speed and add the oil gradually through the lid opening to achieve the right consistency.

What to do if the blades jam?

Unplug the appliance immediately before removing ingredients. Use a spatula to loosen food after stopping. Never insert fingers or objects into the bowl while it is operating.

USER MANUAL Comfort HR1724 PHILIPS

HRI727, HRI724, HRI721, HRI720

PHILIPS

ENGLISH 6

DEUTSCH II

FRANÇAIS 16

NEDERLANDS 21

ESPANOL 26

ITALIANO 31

PORTUGUES 36

TÜRKÇE 41

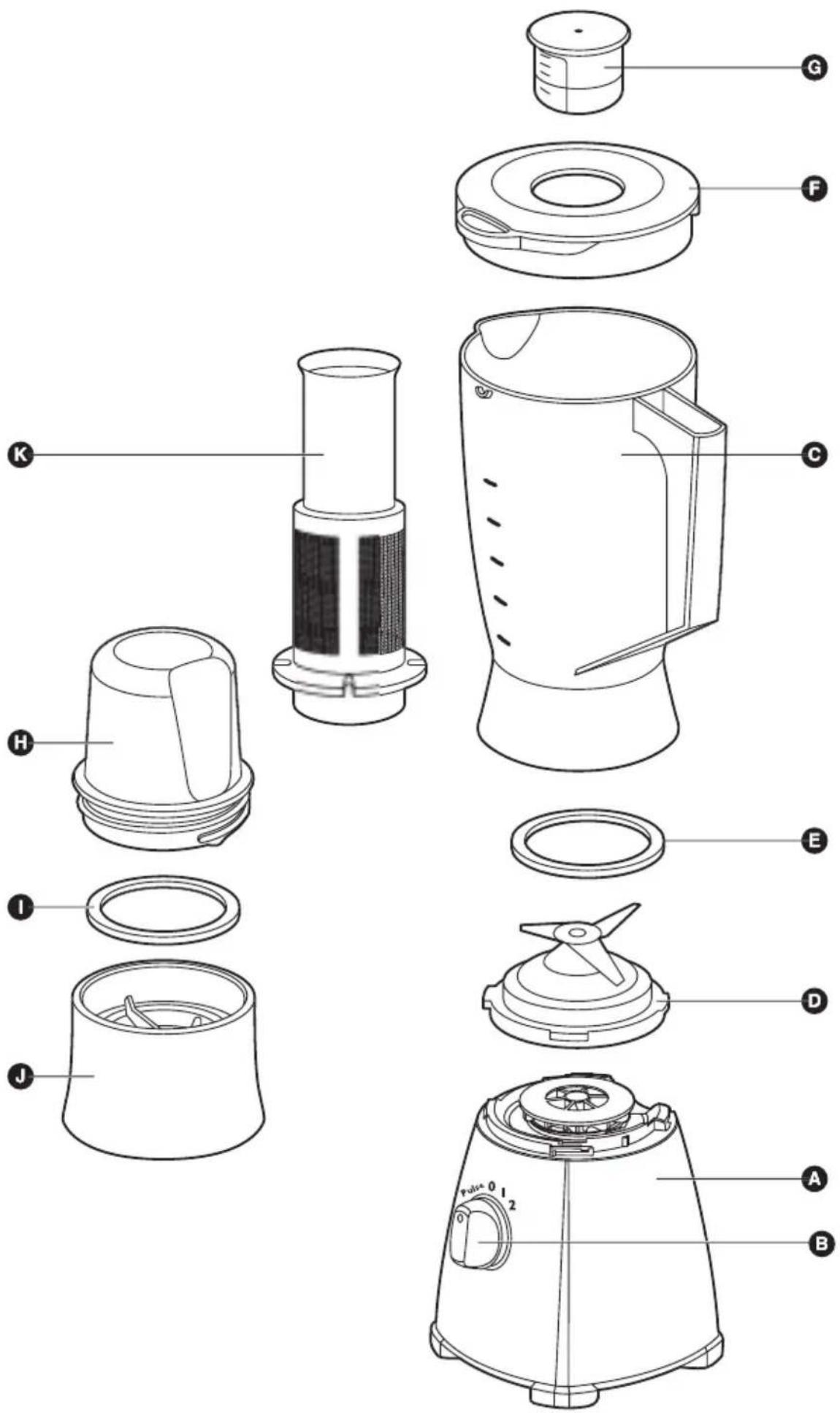

General description

Blender

A Motor unit
On/Off/Pulse knob
Blender jar with level indication
Blade unit
Sealing ring
F Lid
6Measuring cup

Mill (types HR1721 and HR1727 only)

Jar
Sealing ring
Blade unit

Filter (types HRI724 and HRI727 only)

Fruit filter

Safety notice

• Always unplug the appliance from the mains before assembling, disassembling or making adjustments to any of the accessories.
• Keep the appliance out of the reach of children.
• Never let the appliance unattended.
  The motor only starts if the blender jar or the mill attachment has been correctly assembled onto the motor unit.
• Make sure the blade unit is securely fastened onto the mill beaker before you screw the mill attachment onto the motor unit.
• Never touch the blade unit when it is assembled on the appliance and the appliance is plugged in.
• Avoid touching the cutting edges of the blade units when cleaning them. They are very sharp and you could easily cut your fingers on them.
• Do not exceed the maximum levels indicated on the accessories.
• Do not exceed the quantities and preparation times indicated at each recipe processing.

Important

Read these instructions for use carefully and look at the illustrations before using the appliance. Keep these instructions for future reference.

General

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
  If the mains cord is damaged, it must be replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• Always unplug the appliance from the mains before assembling, disassembling or making adjustments to any of the accessories.
• Never switch the appliance on and off by turning the accessories.
• Never immerse the motor unit in water or any other fluid, nor rinse it under the tap. Use only a moist cloth to clean the motor unit.
• Never let the appliance run unattended.
• Keep the appliance out of the reach of children.
• Avoid touching the blades, especially when the appliance is plugged in. The blades are very sharp!

• Never reach into the blender jar with your fingers or an object while the appliance is running.

• Never place the blade unit onto the motor unit without having the (blender or mill) jar properly attached.

• If the blades get stuck, unplug the appliance before removing the ingredients that are blocking the blades.

If necessary use a spatula to remove food from the wall of the jar after you have switched off the appliance.

Always make sure that the blade unit is correctly assembled before you plug the appliance in and switch it on.
- Never use any accessories or parts from other manufacturers that have not been specifically advised by Philips. Your guarantee will become invalid if such accessories or parts have been used.

Blender

• Never fill the blender jar with ingredients that are hotter than 80^irc C .
• To prevent spillage, do not put more than 1.25 litres of liquid in the blender jar, especially when you are processing at a high speed. Do not put more than 1 litre in the blender jar when you are processing hot liquids or recipes that create a great deal of foam.
• Never forget to place the sealing ring on the blade unit before assembling the blender jar, otherwise leakage will occur.
• Always make sure the lid is properly closed and the measuring cup has been inserted properly before you switch the appliance on.

Mill

• Never use the mill for more than 30 seconds without interruption. Allow the mill to cool down for at least 1 minute between the processing cycles.
• Never forget to place the sealing ring in the blade unit before you assemble the mill jar; otherwise leakage will occur.
• Never use the mill to grind very hard ingredients such as nutmeg, Chinese rock sugar and ice cubes.
  Always process cloves, star anise and aniseed together with other ingredients. If processed separately, these ingredients may attack the plastic materials of the appliance.
• The mill beaker may become discoloured when the mill is used to process ingredients such as cloves, anise and cinnamon
  The mill is not suitable for chopping raw meat. Use the blender instead.
• Do not use the mill to process liquid mixtures such as fruit juice.

Filter

• Never use the filter to process ingredients hotter than 80^irc C .
• Never overload the filter. Do not put more than 50g of dried soy beans or 150g of fruit in the filter at the same time.
• Always make sure the lid is properly closed and the measuring cup has been inserted properly before you switch the appliance on.
  Cut the fruit into smaller pieces before putting it in the filter.
• Soak dried ingredients, such as soy beans, before putting them in the filter.

Before first use

Thoroughly clean the parts which will come in contact with food before you use the appliance for the first time (see 'Cleaning').

Using the appliance

Measuring cup (G)

You can use the measuring cup to measure ingredients.

To prepare mayonnaise:The oil should be added very slowly to obtain the right consistency. Run the blender at a low speed when preparing mayonnaise.

Blender

The blender is used for fine pureeing, chopping and blending. With the blender you can prepare soups, sauces and milk shakes, and process vegetables, fruit, meat, batter etc.

Preparing the blender for use

1. Assemble the sealing ring (E) on the blade unit (D) (fig. 1).
   Screw the blade unit anticlockwise onto the bottom of the blender jar (C) until the blade unit is fixed properly (fig. 2).
   3 Mount the blender jar, with the blade unit attached onto the motor unit (A) and fix it by turning it clockwise until you hear a 'click'. The blender jar can be mounted in two positions (fig. 3 and fig. 4).
   Make sure that the appliance is plugged in.

How to use the blender

Put the ingredients in the blender jar.
2 Place the lid on the blender jar.
3 Close the lid by pushing it down and turning the lid clockwise until you hear a 'click' (fig. 5).
4 Insert the measuring cup into the opening in the lid.
5 Turn the control knob to speed I or 2.

Turn the control knob to 'pulse' position if you want to process ingredients very briefly.
6 Do not let the appliance run for more than 3 minutes at a time.

Disassembling the blender

Unplug the appliance.
2 Remove the lid with the measuring cup from the blender jar.
3 Remove the blender jar with the blade unit attached to it from the motor unit.
4 Always clean the removable parts immediately after use.

Tips

• If you want to crush ice cubes, put not more than 6 ice cubes (of approx. 24 × 35 × 25 mm ) in the blender jar and turn the control knob to pulse position a few times.
• Cut meat or other solid ingredients into smaller pieces before putting them in the blender jar.
• Do not process a large quantity of solid ingredients at the same time. To get good results, we advise you to process these ingredients in a series of small batches.
• To make tomato juice, cut the tomatoes in four and drop the pieces through the opening in the lid onto the rotating blades.

Filter Only types HRI724 and HRI727

With this filter you can make delicious fresh fruit juices, cocktails or soy milk. The filter prevents pips and skins from ending up in your drink.

Never overload the filter. Do not put more than 50g of unsoaked dried soy beans or 150g of fruit in the filter at the same time.

Preparing the filter for use

Mount the blender with the blade unit attached to it onto the motor unit (A) and fix it by turning it clockwise until you hear a click (fig. 3). The blender jar can be mounted in two positions.
2 Put the filter (K) in the blender jar (fig. 6).

Make sure that the grooves of the filter fit exactly onto the ribs inside the blender jar.
3Make sure that the appliance is plugged in.

How to use the filter

Place the lid (F) on the blender jar.
2 Put the ingredients in the filter (fig. 7). Do not fill the filter beyond the top of the sieve mesh. Cut fruits into smaller pieces and soak dry ingredients, such as soy beans, before putting them in filter.
3 Pour water or another liquid (milk, juice, etc.) into the blender jar.
4 Insert the measuring cup (G) into the hole in the lid.

Let the appliance run for approx. 40 seconds.

Switch the appliance off and remove the blender jar from the motor unit.
Pour the drink out via the pouring lip of the blender jar (fig. 8).

Do not remove the lid, the measuring cup and the filter.

For optimal results, put the jar with the remaining ingredients back onto the appliance and let it run for a few more seconds.

Note: when you are processing a large quantity, we advise you not to put all the ingredients in the filter at the same time. Start processing a small quantity and let the appliance run for a few seconds. Then switch the appliance off and add another small quantity, but do not exceed the top of the sieve mesh. Repeat this procedure until you have processed all the ingredients. Always keep the lid on the blender jar during processing.

Soy milk

This recipe can only be prepared with the filter.

Do not process more than two batches without interruption. Let the appliance cool down to room temperature before continue processing.

Ingredients

Soak the soy beans for 4 hours before processing them. Set aside to drain.
Put the soaked soy beans in the filter. Pour 500ml of water into the blender jar and blend for 40 seconds.
Pour the milk into a pan.
Bring the soy milk to the boil, then add sugar and leave to simmer until all the sugar has melted.
Serve hot or cold.

Mill Only types HR 1721 and HR 1727

How to use the mill

Put the ingredients in the jar (H) (fig. 9).

You can process wet and dry ingredients.

ENGLISH10

2 Do not fill the jar beyond the "MAX" indication.
3 Put the larger sealing ring (I) on the blade unit of the mill (J) (fig. 10).

Make sure that the rubber sealing ring has been placed correctly.

4 Screw the blade unit on the jar by turning it clockwise (fig. 11).
Hold the assembled mill upside down and screw it onto the motor unit (A) by turning it clockwise until you hear a 'click' (fig. 12).
Make sure that the appliance is plugged in.
7 Switch the appliance on and let it run until the ingredients are fine enough. This will take approx. 10-30 seconds.

Disassembling the mill

Unplug the appliance.
2 If the mill is still attached to the motor unit, remove the mill from the motor unit by turning it anticlockwise.
Place the mill upside down, unscrew the jar (anti-clockwise) and then remove the blade unit.
4 Always clean the removable parts immediately after use.

Cleaning

We advise you to clean the removable parts immediately after use.

Always unplug the appliance before cleaning.

• Never clean the motor unit, the blade units, the filter and the sealing rings in the dishwasher.
• Always disassemble all removable parts before cleaning them. Do not forget to remove the sealing rings from the blade units (blender and mill).
• Avoid touching the blades. The blades are very sharp.

The blender and mill jar (without blade unit), lid and measuring cup are dishwasher-proof.

Motor unit

• Clean the motor unit with a moist cloth. Do not rinse the motor unit under the tap. Do not use abrasives, scourers, alcohol, etc.

Storage

You can store excess mains cord by winding it round the base of the motor unit.

Environment

• Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment (fig. 13).

Guarantee & service

If you need information or if you have a problem, please visit the Philips Web site at www.philips.com or contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.
