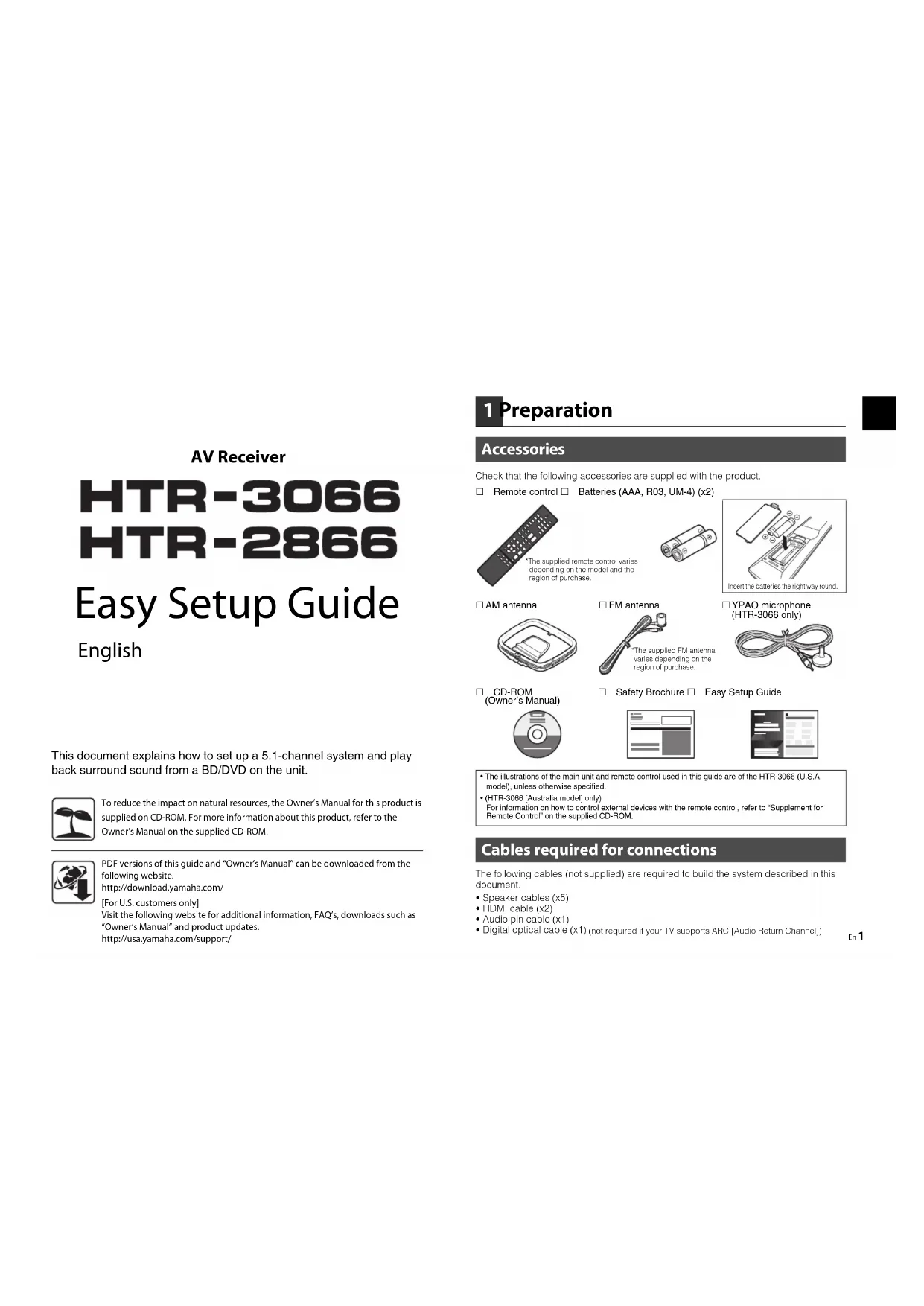

Easy Setup-gidsEn 1Check that the following accessories are supplied with the product.The following cables (not supplied) are required to build the system described in this document.• Speaker cables (x5)• HDMI cable (x2)• Audio pin cable (x1)• Digital optical cable (x1) (not required if your TV supports ARC [Audio Return Channel]) 1 Preparation

Accessories  Remote control  Batteries (AAA, R03, UM-4) (x2)Insert the batteries the right way round.  AM antenna  FM antenna  YPAO microphone (HTR-3066 only) CD-ROM (Owner’s Manual) Safety Brochure  Easy Setup Guide• The illustrations of the main unit and remote control used in this guide are of the HTR-3066 (U.S.A. model), unless otherwise specified.• (HTR-3066 [Australia model] only)For information on how to control external devices with the remote control, refer to “Supplement for Remote Control” on the supplied CD-ROM. Cables required for connections *The supplied remote control varies depending on the model and the region of purchase.*The supplied FM antenna varies depending on the region of purchase. This document explains how to set up a 5.1-channel system and play

back surround sound from a BD/DVD on the unit. To reduce the impact on natural resources, the Owner’s Manual for this product is supplied on CD-ROM. For more information about this product, refer to the Owner’s Manual on the supplied CD-ROM.PDF versions of this guide and “Owner’s Manual” can be downloaded from the following website.http://download.yamaha.com/ [For U.S. customers only]Visit the following website for additional information, FAQ’s, downloads such as “Owner’s Manual” and product updates.http://usa.yamaha.com/support/ Easy Setup Guide

Set up the speakers in the room using the following diagram as a reference.

For information on other speaker systems, refer to “Owner’s Manual”.

4 Surround speaker (L)

5 Surround speaker (R)

10° to 30°10° to 30°En 3 ■ Connecting speaker cables Speaker cables have two wires. One is for connecting the negative (-) terminals of the unit and the speaker, and the other is for the positive (+) terminals. If the wires are colored to prevent confusion, connect the black wire to the negative and the other wire to the positive terminals.(Connecting front speakers)a Remove approximately 10 mm (3/8”) of insulation from the ends of the speaker cable and twist the bare wires of the cable firmly together.b Loosen the speaker terminal.c Insert the bare wires of the cable into the gap on the side (upper right or bottom left) of the terminal.d Tighten the terminal.Using a banana plug(U.S.A., Canada, Australia and General models only)a Tighten the speaker terminal.b Insert a banana plug into the end of the terminal.(Connecting center/surround speakers)a Remove approximately 10 mm (3/8”) of insulation from the ends of the speaker cable and twist the bare wires of the cable firmly together.b Press down the tab.c Insert the bare wires of the cable into the hole in the terminal.d Release the tab. 1

Connect the front speakers (1/2)

to the FRONT (//\) terminals.

3 Connecting speakers/subwoofer • (U.S.A. and Canada models only)Under its default settings, the unit is configured for 8-ohm speakers. When connecting 6-ohm speakers, set the unit’s speaker impedance to “6 Ω MIN”. For details, see “Setting the speaker impedance” in “Owner’s Manual”.• Use a subwoofer equipped with built-in amplifier.• Before connecting the speakers, remove the unit’s power cable from the AC wall outlet and turn off the subwoofer.• Ensure that the core wires of the speaker cable do not touch each other or come into contact with the unit’s metal areas. This may damage the unit or the speakers. If the speaker cables short circuit, “Check SP Wires” will appear on the front display when the unit is turned on. FRONT

Connect the center speaker (3) to the

Connect the surround speakers

Connect the subwoofer (9) to the

(General model only)

(HTR-3066 U.S.A. model)

Connect external devices to the unit.

a Connect a BD/DVD player to the unit with an HDMI

If the BD/DVD player is currently connected to the

TV directly with an HDMI cable, disconnect the

cable from the TV and connect it to this unit.

b Connect a TV to the unit with the other HDMI cable.

c Connect a TV to the unit with a digital optical cable.

This connection is required to play back TV audio

on the unit. This connection is not required if your

TV supports ARC (Audio Return Channel).

d Connect the power cable to an AC wall outlet. • For information on how to connect radio antennas or other external devices, see “PREPARATIONS” in “Owner’s Manual”. 2

Turn on the unit, the TV and the BD/DVD

Use the TV remote control to change the

TV input to video from the unit.

The connections are complete.

Proceed to the next page to optimize the speaker

Proceed to “Playing back a BD/DVD” on the last page.

(As necessary, configure the speaker settings manually.

For details, refer to “Owner’s Manual” on the supplied

CD-ROM.) • By connecting a TV to the unit with an HDMI cable, you can configure the unit’s settings with the menu displayed on the TV. In addition, you can select the on-screen menu language from English (default), Japanese, French, German, Spanish, Russian, Italian and Chinese. For details, refer to “Owner’s Manual”. In this guide, illustrations of English menu screens are used as examples. Before connecting the power cable (General model only)

Make sure you set the switch position of

VOLTAGE SELECTOR according to your local voltage.

Voltages are AC 110-120/220-240 V, 50/60 Hz.6 En

The Yamaha Parametric room Acoustic Optimizer (YPAO) function detects speaker connections, measures the

distances from them to your listening position(s), and then automatically optimizes the speaker settings, such as volume balance and acoustic parameters, to suit your room. Preparing for YPAO

Optimizing the speaker settings automatically (YPAO) • During the measuring process, test tones are output at high volume. Ensure that the test tones do not frighten small children. Also, refrain from using this function at night when it may be a nuisance to others.• During the measuring process, you cannot adjust the volume.• During the measuring process, keep the room as quiet as possible.• Do not connect headphones.• Do not stand between the speakers and the YPAO microphone during the measurement process (about 3 minutes).• Move to the corner of the room or leave the room. 1

Connect the YPAO microphone to the

YPAO MIC jack on the front panel. The following screen appears.• To cancel the operation, disconnect the YPAO microphone, or use the cursor keys to select “Exit” and press ENTER, before starting the measurement. 2

To start the measurement, press SETUP. The measurement will start in 10 seconds.The following screen appears on the TV when the measurement finishes.Auto SetupStart Exit Press SETUP key to Start

FM I NF O MEM O RY AM P RESE T T UN N G S CE N E O PT O N RET UR N V O L U ME BD D D T V C D R ADI O MU TE T RAN S M T RECE VER HDM I AV AUDI O TUNE R S LEEP US B M O DE V AU X MOV E MUSI C S UR DECOD E S TRAIGH T E NHAN CE R The unit (front)Place the YPAO microphone at your listening position (same height as your ears). We recommend the use of a tripod as a microphone stand. You can use the tripod screws to fix the microphone in place.YPAO microphoneListening positionEar heightCursor keysENTERTurn on the subwoofer and set the volume to half. If the cross-over frequency is adjustable, set it to maximum.SETUP HTR-3066 onlyEn 7• If any error message (such as E-1) or warning message (such as W-2) appears, see “Error messages” or “Warning messages” in “Owner’s Manual”.• If the warning message “W-1:Out of Phase” appears, see “If “W-1:Out of Phase” appears”. 3

Use the cursor keys (e/r) to select

“SAVE” (Save) and press ENTER.

Disconnect the YPAO microphone from the

This completes optimization of the speaker settings.

Follow the procedure below to check the speaker

connections. a Check for the blinking of the front display’s indicator to identify the problem speaker.b Check the cable connections (+/-) of the problem speaker. If the speaker is connected correctly:

Depending on the type of speakers or room

environment, this message may appear even if the

speakers are connected correctly.

If the speaker is connected incorrectly:

Turn off the unit, reconnect the speaker cable, and then

try YPAO measurement again. • The YPAO microphone is sensitive to heat, so should not be placed anywhere where it could be exposed to direct sunlight or high temperatures (such as on top of AV equipment).Auto SetupStart Exit

Measurement FinishedResult3 / 2 / 0.1 ch3.0 / 10.5 m3.0 / +10.0 dB SAVE VOL SW L SL C SR R

If “W-1:Out of Phase” appears

message Auto SetupStart Exit

Measurement FinishedResult3 / 2 / 0.1 ch3.0 / 10.5 m3.0 / +10.0 dBW 1:Out of PhaseOK:ENTER VOL SW L SL C SR R W-1:PHASE Problem speaker (blinks)

HTR-3066 only8 En Now let’s play back a BD/DVD.We recommend playing back multichannel audio (5.1-channel or more) to feel surround sound produced by the unit. 1

Press HDMI 1 to select “HDMI 1” as the

Start playback on the BD/DVD player.

Press STRAIGHT repeatedly to select

“STRAIGHT”. • When “STRAIGHT” (straight decode) is enabled, each speaker produces each channel audio signal directly (without sound field processing). 4

Press VOLUME to adjust the volume. This completes the basic setup procedure.Sound is only being output from the front speakers during multichannel audio playbackCheck the digital audio output setting on the BD/DVD player.It may be set to 2-channel output (such as PCM).No sound is coming from a specific speakerSee “Troubleshooting” in “Owner’s Manual”. 6 Playing back a BD/DVD

FM I NF O MEM O RY AM P RESE T T UNIN G S CE N E O PTI O N S ET U P RET UR N BD DV D T V C D R ADI O MU TE ENTER T RAN S M I T RECEIVER HDM I AV AUDI O TUNE R S LEEP US B M O DE V AU X MOVIE MUSIC S UR DECOD E E NHAN CE R HDMI 1STRAIGHTVOLUME If surround sound is not working

SW C L SL SR R HDMI1

VOL SW C L SL SR R VOL STRAIGHT SW C L SL SR R Volume -30.0dB VOL Many more features! The unit has various other functions.Please refer to “Owner’s Manual” on the supplied CD-ROM to help you get the most out of the unit. Connecting other playback

devices Connect audio devices (such as CD player), game consoles, camcorders, and many others. Selecting the sound mode Select the desired sound program (CINEMA DSP) or surround decoder suitable for movies, music, games, sports programs, and other uses. Playing back from iPod

(HTR-3066 only) By using a USB cable supplied with iPod, you can enjoy iPod music on the unit. ■

Listening to FM/AM radio

■ Playing back music stored on

a USB storage device

(HTR-3066 only) For more information, see “What you can do with the unit”.Fr 1Vérifiez que les accessoires suivants sont fournis avec le produit.Les câbles suivants (non fournis) sont requis pour l’installation du système décrit dans le présent document.• Câbles d’enceinte (x5)• Câble HDMI (x2)• Câble de broche audio (x1)• Câble optique numérique (x1) (inutile si votre téléviseur prend en charge la fonction ARC [Audio Return Channel ])
