USER MANUAL Premium 1600 Super VALERA

Valera is a registered trademark of Ligo Electric S.A. - Switzerland

Ime i adresa kupca English Mod. Nr.Date of purchase Kaufdatum Date d’achat Data d’acquisto Fecha de adquisición Datum aankoop Data de compra Innkjøpsdato Inköpsdatum Ostopäivämäärä Købsdato Eladás dátuma Datum prodeje Data cumpãrãrii Дата на закупуване Dátum nákupu Data zakupu Satın alma tarihi Datum kupnje Ligo Electric SA - 6853 Ligornetto / Mendrisio - Switzerland 158 mm (Mod. 533..)148 mm (Mod. 554..)245 mm (Mod. 533.., 542..)225 mm (Mod. 554..)183 mm(Mod. 533.., 542..)160 mm(Mod. 554..)

Read these instructions thoroughly. Available also on www.valera.com

• For additional protection, the installation of a residual current device (RCD)

having a rated residual operating current not exceeding 30mA is advisable

in the electrical circuit supplying the bathroom. Ask your installer for advice.

• Make sure the electrical system is fitted with a device which guarantees

omnipolar disconnection from the electricity mains under category III

overvoltage conditions.

• Make sure the unit is perfectly dry before using it.

• WARNING: Do not use this appliance near bathtubs, showers, basins

or other vessels containing water.

• This hairdryer must be fixed so that a person taking a bath or shower

cannot reach the handle, considering the cord at maximum extension.

• This appliance can be used by children from 8 years of age and over, and by

persons with limited physical, sensory or mental abilities or who lack the

relevant experience and knowledge, if they are suitably supervised or have

been educated to use the appliance safely and made aware of the associated

• Do not allow children to play with the appliance.

• Children must not perform cleaning and maintenance procedures unless

• Do not use your unit if it is not working properly. Do not try to repair this

electrical unit yourself, rather contact an authorized technician. If the supply

cord is damaged, it must be replaced by the manufacturer, its service agent

or a similarly qualified person in order to avoid a hazard.

• Plug the hairdryer into an alternating current outlet only, and make sure

that the voltage of your electricity supply is the same as that indicated on

the rating plate of the appliance.

• Do not immerse in water or other liquids.

• Never put the appliance in a place where it could fall into water or in other

• Do not try to salvage an electrical appliance which has fallen into water.

• Turn the unit off when you put it down.

• Unplug the appliance when not in use, but never do it by pulling the cord.

00060814 cop_2021_01_Layout 1 25/01/2021 17:53 Pagina 27

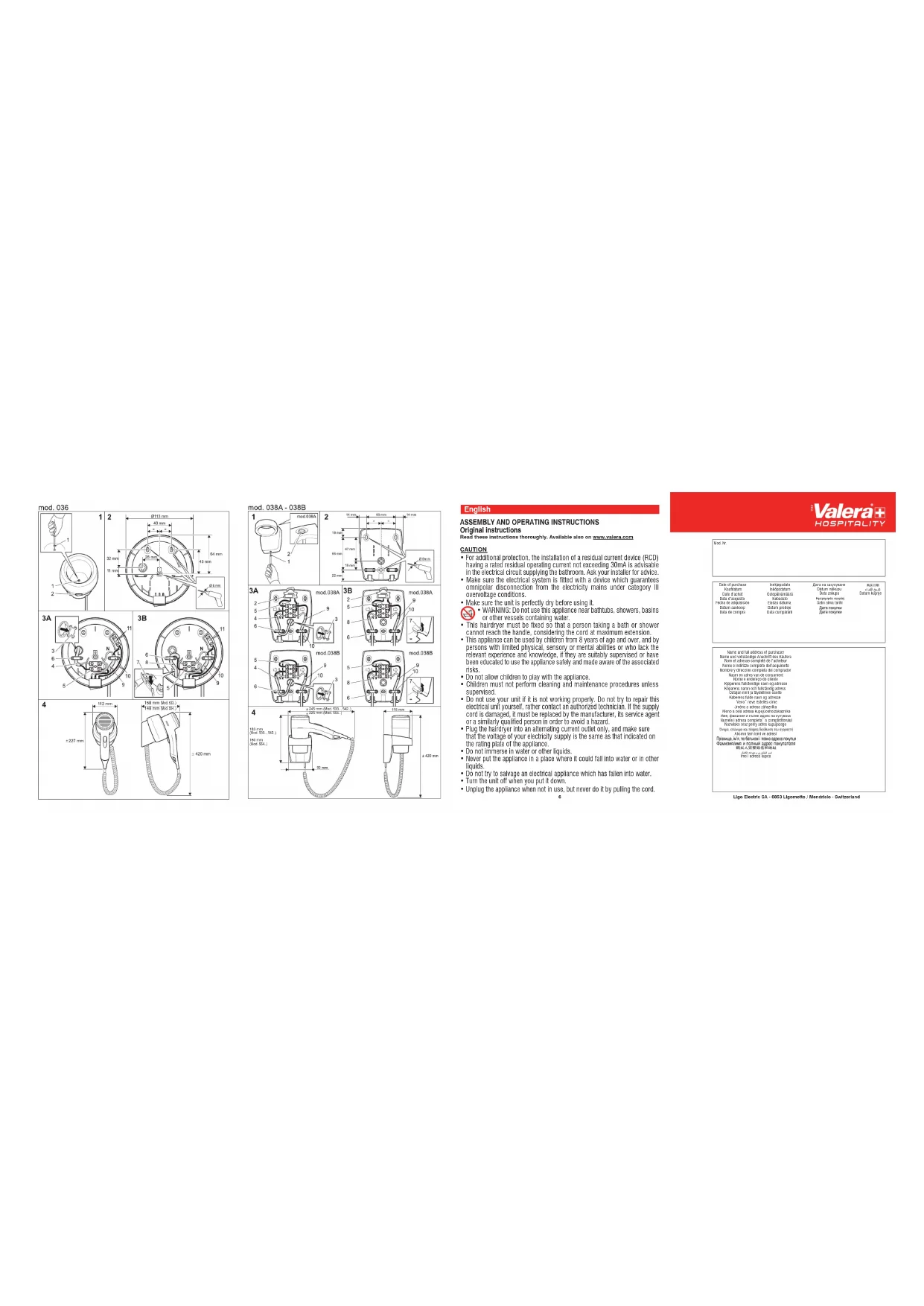

INSTALLATION INSTRUCTIONS Wall holder for hairdryer

Type 036 - 038A - 038B Type 036 Front housing model.

Type 038A Vertical housing model.

Type 038B As the 038A but with no switch.

Installation of wall holder This wall holder must only be installed by a qualified electrician in conformity to applicable safety standards.

The wall holder may be installed in one of two ways: A = for fixed connection lead B = for mobile connection lead

Attention: before installing the wall holder always switch off the general switch of your mains electricity. For each pole a switch with a minimum break distance between contacts of 3 mm must be fitted up-line of the appliance. Each time the appliance is opened, the switch must be used to disconnect the appliance. The connection wiring must be type H05VV-F 2x1,5 mm 2

Method A IMPORTANT: Refer to the figures for the model you have purchased. 1.Unscrew the screw (1) (fig. 1) and remove the cover from the wall unit. 2.Break the plastic membrane (3) at the back of the wall unit (fig. 3A). 3.Route the main power cable from the wall (4) through the hole left by the plastic membrane (3) (fig. 3A). 4.Fix the back of the wall unit to the wall using the fixing screws and wall plugs provided (fig. 2). 5.Remove the terminal strip (5). The input power cable (4) and the output power cable (9) of hairdryer with max input current of 10A,if not already connected, must be connected to the terminal strip(5). In mod. 036 the Neutral output cable(9) must be connected to terminal strip(5) and the Line output cable (9) to terminal strip (11). 6.Reposition the terminal strip. Tighten the cable clamp (6 and 10) with its own screws. (fig. 3A). IMPORTANT: This appliance is double insulated and has no ground (earth) connection. 7.Fit the cover back on the wall unit with (1) (fig. 1). 8.Switch the power on at the mains switch. The hair dryer is now ready to use.

Method B IMPORTANT: Refer to the figures for the model you have purchased. 1.Unscrew the screw (1) (fig. 1) and remove the cover from the wall unit. 2.Break the plastic membrane (7) (fig. 3B). 3.Fix the back of the wall unit to the wall using the fixing screws and wall plugs provided (fig. 2). 4.Route the input power cable (8) and the output power (9) into the holes (fig. 3B). 5.Remove the terminal strip (5). The input power cable (8) and the output power cable (9) of hairdryer with max input current of 10A,if not already connected, must be connected to the terminal strip(5). In mod. 036 the Neutral output cable(9) must be connected to terminal strip (5) and the Line output cable (9) to terminal strip (11). Reposition the terminal strip. Tighten the cable clamp (6 and 10) with its own screws. (fig. 3B). IMPORTANT: This appliance is double insulated and has no ground (earth) connection. 6.Fit the cover back on the wall unit with (1) (fig. 1). 7.Switch the power on at the mains switch. The hair dryer is now ready to use.

INSTRUCTIONS FOR USE Hairdryer with wall holder

Control Switches Control switch on wall holder (only for models equipped with a switch) rif. 2 fig. 1: 0-1 = Off/On

Type 533.03 - 533.05 - 533.03/I - 533.05/I

542.05 - 542.06 - 542.14 - 561.22 Pushbutton: ON=On/Off (pressure must be maintained to operate the hairdryer)

Slide Switch Cool=(low power) 1=(medium power) 2=(maximum power) • Remember to check regularly that the air inlet and outlet grills are clean.

• Allow your appliance to cool before storing away and do not wrap the supply

cord around the hairdryer in storage.

• The A-weighted sound pressure level of the hairdryers for commercial use is

00060814 int 2021_01_Layout 1 26/01/2021 10:22 Pagina 78

The symbol on the product or on its packaging indicates

that this product may not be treated as household waste.

Instead it shall be handed over to the applicable collection point

for the recycling of electrical and electronic equipment. By

ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment

and human health, which could otherwise be caused by

inappropriate waste handling of this product. For more detailed

information about recycling of this product, please contact your

local city office, your household waste disposal service or the

shop where you purchased the product.

VALERA is a registered trade mark

of Ligo Electric S.A. - Switzerland

GUARANTEE VALERA guarantees the appliance you have bought at

following conditions:

1. The guarantee conditions for this appliance are as defined

by our dealer in the country of sale. In Switzerland and the

countries of the European Union, the warranty period is 24

months if the final purchaser is a private person (domestic

use) and 12 months if the final purchaser is a company or

business or professional (professional use). The guarantee

period starts from the date of purchase as stated on the

present guarantee card regularly filled out and stamped by

the dealer or on the sale’s invoice.

2. The guarantee is applicable only against submission of the

present guarantee card or the sale’s invoice.

3. The guarantee covers the elimination of all defects arisen

during the guarantee period resulting from proven faults in

material or workmanship. The elimination of the defects will

be made either by repairing the appliance or exchanging it.

The guarantee does not cover any damage arising from

incorrect connection to the power supply, improper use,

breakage, normal wear and non-compliance with the

Instructions for Use.

4. All other claims of any nature, including those for eventual

damages outside of the appliance, are excluded, unless our

liability is legally mandatory.

5. The guarantee service is carried out free of charge; it does

not affect the expiry date of the guarantee.

6. The guarantee becomes void if repairs are under-taken by

unauthorized persons.

For UK only: this guarantee in no way affects your rights under

In case of defect, please return the appliance well packed and

together with the guarantee card regularly dated and stamped

to one of our Valera Service Centres or to the dealer who will

send it to the official importer for the guarantee service.

ON=On/Off (pressure must be maintained to operate the hairdryer)

(pressure must be maintained to operate the hairdryer)

Pushbutton ON= On/off (pressure must be

maintained to operate the

Right switch Cool = Low air temperature

1 = Medium air temperature

2 = High air temperature

PRODUCT CARE When not in use, the mains switch on the wall holder should be

in the “Off” position. The hairdryer requires no special care or

You can clean your appliance with a cloth dampened with water.

The cleaning of hairdryers with detergents, solvents, alcohol

and other chemical products is strictly prohibited.

When necessary, the air inlet grill should be cleaned with a soft

brush or by vacuum cleaner.

This hairdryer conforms to the safety regulations regarding

electrical appliances. This hairdryer has a safety cut-out which

will operate in case of overheating. The dryer will re-set itself

after being left to cool for a few minutes, but please check air

inlet and outlet grills are clear before continuing to use the dryer.

This appliance conforms to European Directives 2014/30/EU,

2014/35/EU, 2011/65/EC, 2015/863/EU, 2009/125/EC and

Regulation (EC) No. 1275/2008.

Schiebetaste links 0 = Aus

Mallit 533.03, 533.05, 533.03/I, 533.05/I,

Ligo Electric S.A. - Switzerland

00060814 int 2021_01_Layout 1 26/01/2021 10:22 Pagina 7778

WARNING The hairdryers listed in these instructions for use are NOT suitable for installation or use in

public areas, gyms, wellness/fitness centres, clubs, spas, etc. with high or low frequency of

They are only suitable for installation and use in private rooms/bathrooms in hotels,

guesthouses, homes and ship’s cabins.

Alle in dieser Bedienungsanleitung angeführten Haartrockner sind NICHT für die Installation
