USER MANUAL Micro 8050 DREMEL

Original Instructions 10

NO

DREMEL MICRO C B A P N M I G E D H O L K J

A B C F E D 3

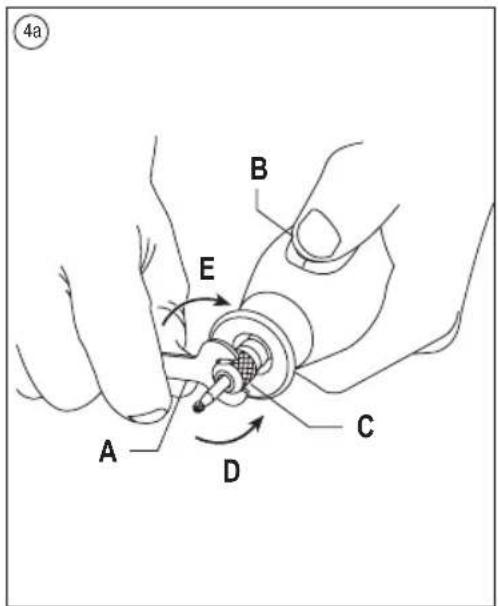

4a A B E D C

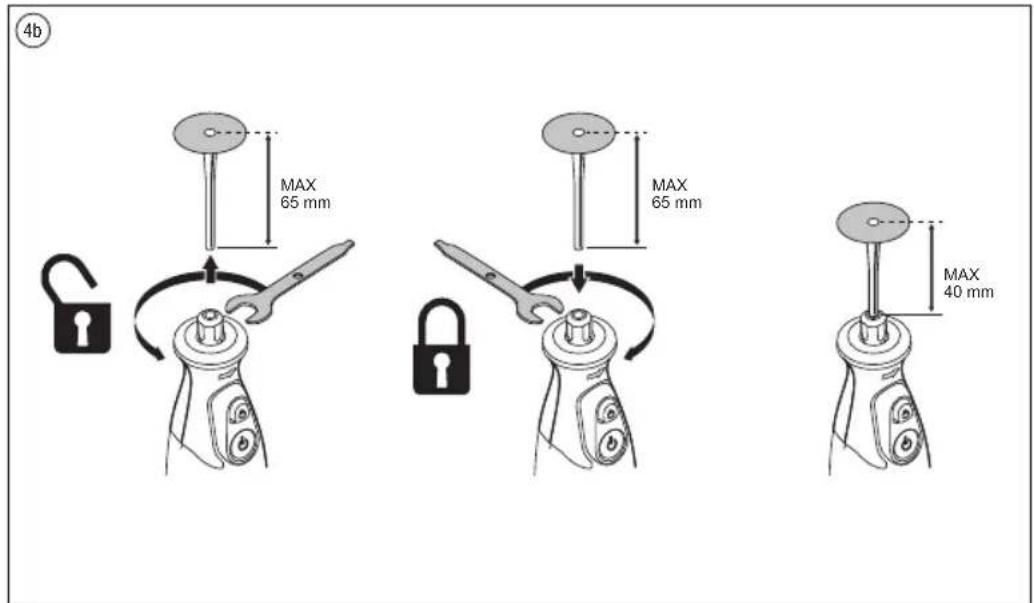

4b MAX 65 mm MAX 65 mm MAX 40 mm

Line drawing of a hand using an electric toothbrush to insert a screwdriver (no text or symbols present)

A REMEL MICRO B

Line drawing of a hand using a handheld device to press a circular component (no text or symbols present)

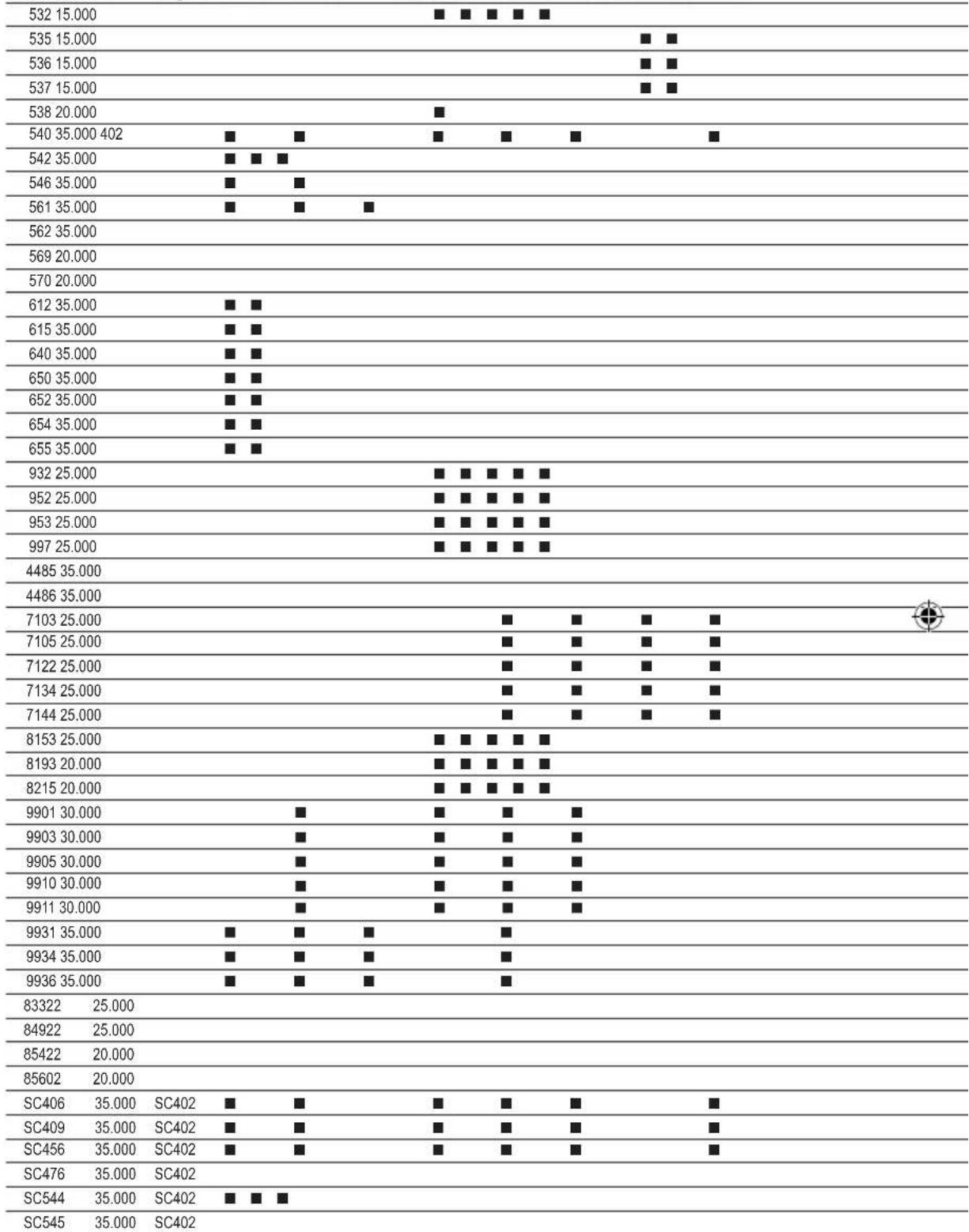

Max RPM
105 35.000		■	■	■
106 35.000		■	■	■
107 35.000		■	■	■
108 35.000		■	■	■
110 35.000		■	■	■
111 35.000		■	■	■
113 35.000		■	■	■
114 30.000		■		■			■
115 30.000		■		■			■
117 30.000		■		■			■
118 30.000		■		■			■
125 30.000		■		■			■
134 30.000		■		■			■
144 30.000		■		■			■
191 30.000		■		■			■
192 30.000		■		■			■
193 30.000		■		■			■
194 30.000		■		■			■
196 30.000		■		■			■
199 30.000		■		■			■
403 15.000						■	■	■	■	■
404 15.000						■	■	■	■	■
405 15.000						■	■	■	■	■
407 35.000		■	■	■	■	■	■
408 35.000		■	■	■	■	■	■
409 35.000 402		■		■		■		■		■
414 20.000 401						■	■	■	■	■
420 35.000 402		■		■		■		■		■
422 20.000 401						■	■	■	■	■
423S 20.000 (SC)402						■	■	■	■	■
425 20.000 402						■	■	■	■	■
426 35.000 402		■		■				■		■
428 15.000						■	■	■	■	■
429 20.000 401						■	■	■	■	■
430 35.000		■	■	■	■	■	■
431 35.000		■	■	■	■	■	■
432 35.000		■	■	■	■	■	■
438 35.000		■	■	■	■	■	■
442 15.000						■	■	■	■	■
443 15.000						■	■	■	■	■
453 30.000						■	■	■
454 30.000						■	■	■
455 30.000						■	■	■
457 30.000						■	■	■
462 30.000						■		■		■
502 35.000		■	■	■	■	■	■
504 35.000		■	■	■	■	■	■
511S 20.000 (SC)402		■		■
512S 20.000 (SC)402		■		■
516 20.000						■	■	■	■	■
520 20.000						■	■	■	■	■
530 15.000						■	■	■	■	■
531 15.000						■	■	■	■	■

Collection of grayscale icons representing various objects and objects (no text or symbols)

Pure geometric pattern of black squares on white background with horizontal lines (no text or symbols)

Max RPM

Collection of grayscale icons representing various objects and objects (e.g., tools, bricks, lamp, vases, containers, glasses) without any text or symbols.

Three parallel horizontal lines with small black square markers at the top (no text or symbols)

Three parallel horizontal black lines on white background, no text or symbols present

Grid of black squares arranged in rows and columns, possibly representing a pattern or data visualization with some cells highlighted.

GB

CE DECLARATION OF CONFORMITY We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents: EN60745 (tool), EN60335 (charger), EN61000, EN55014 in accordance with the provisions of the directives 2006/42/EC, 2006/95/EC, 2014/30/EU, 2011/65/EU.

NOISE/VIBRATION Measured in accordance with EN60745 the sound pressure level of this tool is 64.3 dB(A) and the sound power level 75.3 dB(A) (standard deviation: 3 dB), and the vibration 9.76 m/s ^2 (hand-arm method, uncertainty K=1.5 m/s').

NOTE: The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another. It may also be used in a preliminary assessment of exposure.

WARNING

The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which

you use the tool. Make an estimation of the exposure in the actual conditions of use and identify the safety measures for personal protection accordingly (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Technical file at: SKIL Europe BV, 4825 BD Breda, NL.

DE

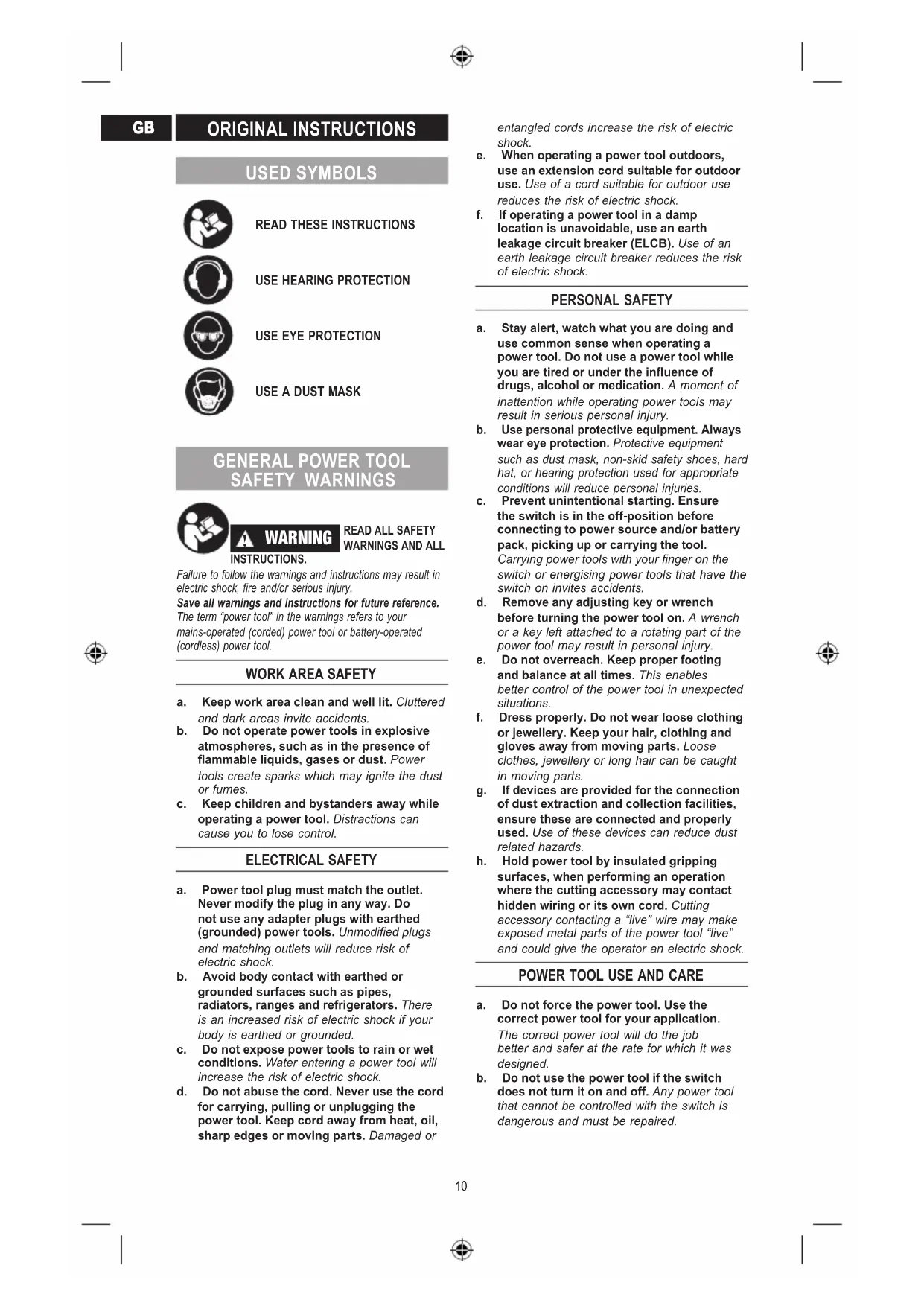

READ THESE INSTRUCTIONS

USE HEARING PROTECTION

USE EYE PROTECTION

USE A DUST MASK

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

READ ALL SAFETY WARNINGS AND ALL

INSTRUCTIONS.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

WORK AREA SAFETY

a. Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

a. Power tool plug must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or

entangled cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker (ELCB). Use of an earth leakage circuit breaker reduces the risk of electric shock.

PERSONAL SAFETY

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.
h. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

POWER TOOL USE AND CARE

a. Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

BATTERY TOOL USE AND CARE

a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c. When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid does make contact with eyes, then seek medical help. Liquid ejected from the battery may cause irritation or burns.

SERVICE

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR ALL OPERATIONS

SAFETY WARNINGS COMMON FOR GRINDING, SANDING, WIRE BRUSHING, POLISHING OR ABRASIVE CUTTING-OFF OPERATIONS

a. This power tool is intended to function as a grinder, sander, wire brush, polisher, carving or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
b. Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
c. The rated speed of the grinding accessories must be at least equal to the maximum speed marked on the power tool. Grinding accessories running faster than their rated speed can break and fly apart.
d. The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately controlled.
e. The arbour size of wheels, sanding drums, or any other accessory must properly fit the spindle or collet of the power tool. Accessories that do not match the mounting hardware of the power tool will become unbalanced, vibrate excessively and may cause loss of control.
f. Mandrel mounted wheels, sanding drums, cutters or other accessories must be fully inserted into the collet or chuck. If the mandrel is insufficiently held and/or the overhang of the wheel is too long, the mounted wheel may become loose and be ejected at high velocity.
g. Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, sanding drum for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
h. Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation.

Prolonged exposure to high intensity noise may cause hearing loss.

i. Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

j. Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

k. Always hold the tool firmly in your hand(s) during the start-up. The reaction torque of the motor, as it accelerates to full speed, can cause the tool to twist.

I. Use clamps to support workpiece whenever practical. Never hold a small workpiece in one hand and the tool in the other hand while in use. Clamping a small workpiece allows you to use your hand(s) to control the tool. Round material such as dowel rods, pipes or tubing have a tendency to roll while being cut, and may cause the bit to bind or jump toward you.

m. Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.

n. Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.

o. After changing the bits or making any adjustments, make sure the collet nut, chuck or any other adjustment devices are securely tightened. Loose adjustment devices can unexpectedly shift, causing loss of control. Loose rotating components will be violently thrown.

p. Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.

q. Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

r. Do not operate the power tool near flammable materials. Sparks could ignite these materials.

s. Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

KICKBACK AND RELATED WARNINGS

Kickback is a sudden reaction to a pinched or snagged rotating wheel, sanding band, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a. Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. The operator can control kickback forces, if proper precautions are taken.

b. Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

c. Do not attach a toothed saw blade. Such blades create frequent kickback and loss of control.

d. Always feed the bit into the material in the same direction as the cutting edge is exiting from the material (which is the same direction as the chips are thrown). Feeding the tool in the wrong direction causes the cutting edge of the bit to climb out of the work and pull the tool in the direction of this feed.

e. When using rotary files, cut-off wheels, high-speed cutters or tungsten carbide cutters, always have the work securely clamped. These wheels will grab if they become slightly canted in the groove, and can kickback. When a cut-off wheel grabs, the wheel itself usually breaks. When a rotary file, high-speed cutter or tungsten carbide cutter grabs, it may jump from the groove and you could lose control of the tool.

f. Never place your hand near the rotating accessory. The accessory may kickback over your hand.

g. Do not position your body in the area where the power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.

SAFETY WARNINGS SPECIFIC FOR GRINDING AND ABRASIVE CUTTING-OFF OPERATIONS

a. Use only wheel types that are recommended for your power tool and only for recommended applications. For example: do not grind with the side of a cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding. Side forces applied to these wheels may cause them to shatter.

b. For threaded abrasive cones and plugs use only undamaged wheel mandrels with an unrelieved shoulder flange that are of correct size and length. Proper mandrels will reduce the possibility of breakage.

c. Do not "jam" a cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or snagging of

the wheel in the cut and the possibility of kickback or wheel breakage.

d. Do not position your hand in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your hand, the possible kickback may propel the spinning wheel and the power tool directly at you.
e. When wheel is pinched, snagged or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel pinching or snagging.
f. Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
g. Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to snag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
h. Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

SAFETY WARNINGS SPECIFIC FOR SANDING OPERATIONS

a. Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback.

SAFETY WARNINGS SPECIFIC FOR POLISHING OPERATIONS

a. Do not allow any loose portion of the polishing bonnet or its attachment strings to spin freely. Tuck away or trim any loose attachment strings. Loose and spinning attachment strings can entangle your fingers or snag on the workpiece.

SAFETY WARNINGS SPECIFIC FOR WIRE BRUSHING OPERATIONS

a. Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.
b. Allow brushes to run at operating speed for at least one minute before using them. During this time no one is to stand in front or in line with the brush. Loose bristles or wires will be discharged during the run-in time.

c. Direct the discharge of the spinning wire brush away from you. Small particles and tiny wire fragments may be discharged at high velocity during the use of these brushes and may become imbedded in your skin.
d. If the use of a guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.
e. Do not exceed 15000 min ^-1 when using wire brushes.

WARNING

DO NOT WORK WITH MATERIALS CONTAINING

ASBESTOS (ASBESTOS IS CONSIDERED CARCINOGENIC).

WARNING

TAKE PROTECTIVE MEASURES WHEN WORKING. DUST CAN

DEVELOP THAT IS HARMFUL TO ONE'S HEALTH, COMBUSTIBLE OR EXPLOSIVE (SOME DUSTS ARE CONSIDERED CARCINOGENIC); WEAR A DUST MASK AND WORK WITH DUST/ CHIP EXTRACTION WHEN CONNECTABLE.

ENVIRONMENT

DISPOSAL

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

ONLY FOR EUROPEAN COUNTRIES

Do not dispose of power tools into household waste!

According the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its

implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

SPECIFICATIONS

GENERAL SPECIFICATIONS

Voltage Rating 7,2 V

Amperage Rating 1 Ah

No Load Speed n 5000–28000 min ^-1

Rated Speed n 28000/min

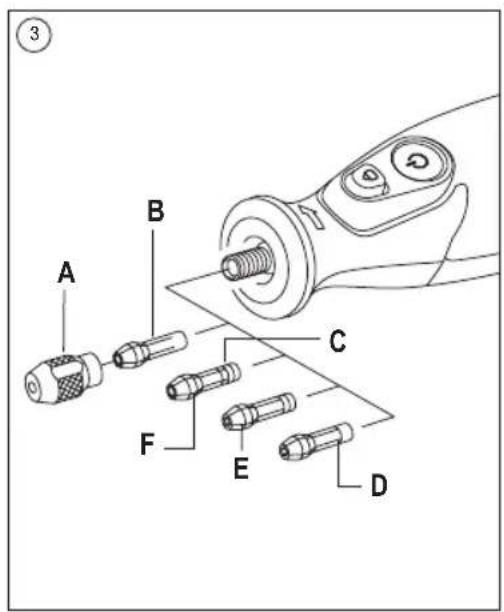

Collet Capacity 0,8 mm, 1,6 mm, 2,4 mm, 3,2 mm

SPECIFICATIONS CHARGER

Input 230-240 V, 50 - 60 Hz, 26 W

Output 3,6-10,8 V, 1,5 A

EXTENSION CORDS

Use completely unrolled and safe extension cords with a capacity of 5 Amps.

ASSEMBLY

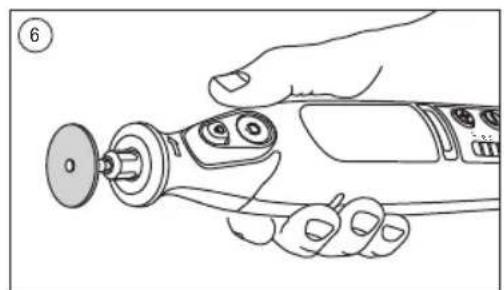

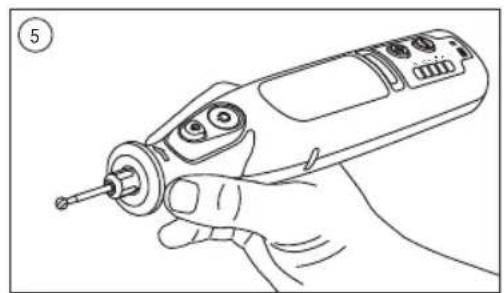

ALWAYS TURN OFF THE TOOL BEFORE CHANGING ACCESSORIES, CHANGING COLLETS, OR SERVICING THE TOOL.

IMPORTANT CHARGING NOTES

1. The charger was designed to fast charge the battery only when the battery temperature is between 32^ F ( 0^ C) and 113^ F ( 45^ C). If the battery pack is too hot or too cold, the charger will not fast charge the battery. (This may happen if the battery pack is hot from heavy use). When the battery temperature returns to between 32^ F ( 0^ C) and 113^ F ( 45^ C), the charger will automatically begin charging.

2. A substantial drop in operating time per charge may mean that the battery pack is nearing the end of its life and should be replaced.

3. Remember to unplug charger during storage period.

4. If tool does not charge properly: a. Check for voltage at outlet by plugging in some other electrical device. b. Check to see if outlet is connected to a light switch which turns power "off" when lights are turned off. c. Check charging base and power supply terminals for dirt. Clean with cotton swab and alcohol if necessary. d. If you still do not get proper charging, take or send tool to your local Dremel Service Center.

NOTE: Use of chargers or battery packs not sold by Dremel will void the warranty.

CHARGING BATTERY PACK

FUEL GAUGE

This tool is equipped with a fuel gauge that tells you how much charge your battery has. A fully charged battery is indicated when the light is green. As the battery discharges, the light will turn orange. When the light is red, the battery is almost empty. When the battery is dead, the tool will automatically turn off. This will be a sudden stop as opposed to a gradual winding down of the tool. Simply recharge the tool and reuse.

Green Light - 100% charge remaining.

Orange Light - 50% charge remaining or the tool is being used in heavy applications (low battery voltage due to current draw).

Red Light - 25% charge remaining.

Red Flashing Light - tool is about to shut off or battery is too hot or too cold for use. Turn tool off and let battery return to normal operating temperature before resuming use.

887 3 HOUR 45 MINUTE CHARGER

Your Dremel Micro does not come completely charged from the factory. Be sure to charge tool prior to initial use. Plug the power adapter jack onto the charging base and insert the power adapter plug into your standard power outlet.

Place tool in charging base as shown in picture 1. The blue LED lights located on the topside of the tool housing will start scrolling top/down to signal

the battery is receiving a charge. Charging will automatically stop when the tool is fully charged. When all the blue LED lights are off charging is complete. At this point the battery charge light will be green. The tool may be used even though the blue LED lights may still be scrolling top/down. The blue LED lights might require more time to stop scrolling depending on temperature.

The scope of the scrolling blue LED lights is to indicate that the tool is charging. It does not indicate the exact point of full charge. The blue LED lights will stop scrolling in less time if the tool was not completely discharged. In this case the battery charge light could be green, orange or red. When the battery pack is fully charged you can leave the tool in the charging base.

PICTURE 1

A. Charging base
B. Outlet for power supply
C. Power adapter
D. Jack for charging base outlet

GENERAL

The Dremel multitool is a high quality precision tool that can be used to perform detailed and intricate tasks. The wide range of Dremel accessories and attachments allow you to perform a large variety of tasks. These include tasks such as sanding, carving, engraving, routing, cleaning and polishing.

NOTE: The Dremel Micro is not compatible with attachments.

PICTURE 2

A. Shaft lock button
B. On/Off button
C. Collet wrench

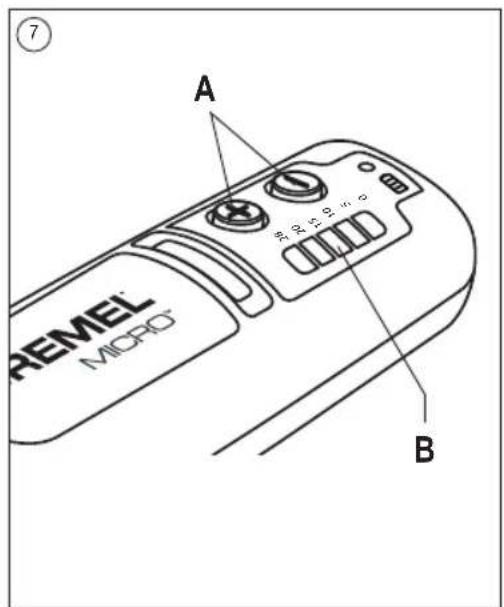

D. Speed control buttons
E. Battery charge light
F. Charging terminals
G. Speed control & charge indicator lights
H. Accessory storage
I. Ventilation openings
J. Charging base
K. Outlet for power supply
L. Jack for charging base outlet
M. Tapered grip zone with soft grip
N. Frontal LED lights
O. Power adapter
P. Collet nut

COLLETS

The Dremel accessories available for the multitool come with various shank sizes. Four size collets are available to accommodate the different shank sizes. Collet sizes are identified by the rings on the back of the collet.

PICTURE 3

A. Collet nut
B. 3.2 mm Collet without ring (480)
C. Indentification rings
D. 0.8 mm Collet with one ring (483)
E. 1.6 mm Collet with two rings (482)
F. 2.4 mm Collet with three rings (481)
NOTE: Some multitool kits may not include all four collet sizes. Collets are available separately.

Always use the collet that matches the shank size of the accessory you plan to use. Do not force a larger diameter shank into a smaller collet.

CHANGING COLLETS

PICTURE 4A

A. Wrench
B. Shaft lock button
C. Collet nut
D. To loosen
E. To tighten

1. Press the shaft lock button, hold down and rotate the shaft by hand until it engages the shaft lock. Do not engage the shaft lock button while multitool is running.

2. With the shaft lock button engaged, loosen and remove the collet nut. Use the collet wrench if necessary.

3. Remove the collet by pulling it free from the shaft.
4. Install the appropriate size collet fully into the shaft and reinstall the collet nut finger tight. Do not fully tighten the nut when there is no bit or accessory installed.

CHANGING ACCESSORIES

PICTURE 4B

1. Press the shaft lock button and rotate the shaft by hand until it engages the shaft lock. Do not engage the shaft lock button while multitool is running.
2. With the shaft lock button engaged, loosen (do not remove) the collet nut. Use the collet wrench if necessary.
3. Insert the bit or accessory shank fully into the collet.
4. With the shaft lock button engaged, finger tighten the collet nut until the bit or accessory shank is gripped by the collet.

NOTE: Be sure to read the instructions supplied with your Dremel accessory for further information on its use.

Use only Dremel tested, high performance accessories.

BALANCING ACCESSORIES

For precision work, it is important that all accessories be in good balance (much the same as the tires on your automobile). To true up or balance an accessory, slightly loosen collet nut and give the accessory or collet a 1/4 turn. Re tighten collet nut and run the Rotary Tool. You should be able to tell by the sound and feel if your accessory is running in balance. Continue adjusting in this fashion until best balance is achieved.

USE

GETTING STARTED

The first step in using the multitool is to get the "feel" of it. Hold it in your hand and feel its weight and balance. Feel the taper of the housing. This taper permits the tool to be grasped much like a

pen or pencil.

Always hold the tool away from your face.

Accessories can be damaged during handling and can fly apart as they come up to speed.

When holding tool, do not cover the ventilation openings with your hand. Blocking the ventilation openings could cause the motor to overheat. IMPORTANT! Practice on scrap material first to see how the tool's high-speed action performs.

Keep in mind that your multitool will perform best by allowing the speed, along with the correct Dremel accessory and attachment, to do the work for you. Do not put pressure on the tool during use, if possible. Instead, lower the spinning accessory lightly to the work surface and allow it to touch the point at which you want to begin.

Concentrate on guiding the tool over the work using very little pressure from your hand. Allow the accessory to do the work.

Usually it is better to make a series of passes with the tool rather than to do the entire job with one pass. A gentle touch gives the best control and reduces the chance of error.

HOLDING THE TOOL

For best control in close work, grip the multitool like a pencil between your thumb and forefinger. PICTURE 5

The "golf" grip method is used for heavier operations such as grinding or cutting. PICTURE 6

OPERATING SPEEDS

PICTURE 7

A. Speed control buttons
B. Speed control & charge indicator lights

To select the right speed for each job, use a practice piece of material.

"ON/OFF" BUTTON

The tool is turned "ON" by the on/off blue button located on the topside of the tapered part of the housing.

To turn the tool "ON" press and release the on/off blue button. The tool will start working at a speed of 15,000 rpm and the frontal LED light will turn on. If the on/off button is pressed but not released the tool and the frontal LED light won't turn on.

Right after the tool is turned on you have the possibility to turn off the frontal LED light. Simply press the minus (−) blue speed control button 3 times and the frontal LED light will turn off. At this point the tool speed will be set at 5,000 rpm. To turn on the frontal LED light again simply turn off and then on again the tool.

To turn the tool "OFF" press and release the on/off blue button. If for some reasons the on/off switch doesn't work there is always the option to alternatively turn off the tool by the following methods:

Press the minus (−) blue speed control button to bring the speed of the tool to the lowest speed level (5,000 RPM).

Hold the minus (−) blue speed control button for 5 seconds.

ELECTRONIC MONITORING

Your tool is equipped with an internal electronic monitoring system that helps to maximize motor and battery performance by limiting the current to the tool when overload and stall conditions occur. If you stall the tool for too long, or bind the bit in a work piece, especially at high speeds, the tool will automatically turn itself off thanks to the fallback built into it. Once this happens, simply take the tool out of the material you were stalled in, turn it back on again, adjust the speed if necessary, and continue using it. When the battery becomes close to empty, the tool may shut down automatically more frequent than normal. If this happens, it is time to recharge the tool.

SPEED CONTROL BUTTONS

Your Dremel Micro is equipped with speed control buttons. The speed may be adjusted during operation by pressing on the plus (+) or (-) minus blue buttons located on the topside of the battery housing. Speed will increment or decrement by 5,000 rpm from a minimum of 5,000 to a maximum of 28,000 rpm. The LED lights located alongside the blue buttons will illuminate according to the chosen speed. Every time the tool is turned off the speed set goes back to the medium level (15,000 rpm) so it might be necessary to increase/decrease the speed to the level that it was being used (e.g. 28,000 rpm) before the tool was turned off to keep working on the same application.

You can refer to the charts on pages 4-7 to determine the proper speed, based on the material being worked and the type of accessory being used. These charts enable you to select both the correct accessory and the optimum speed at a glance.

The speed of Rotary Tool is controlled by setting the blue speed control buttons.

Settings for Approximate Revolutions

Speed Setting	$peed Range
5	5,000 RPM
10	10,000 RPM
*15	15,000 RPM
20	20,000 RPM
28	28,000 RPM

* 15 is the maximum speed setting for wire brushes.

Needs for Slower Speeds

Certain materials, however, (some plastics and precious metals, for example) require a relatively slow speed because at high speed the friction of the accessory generates heat and may cause damage to the material.

Slow speeds (15,000 RPM or less) usually are best for polishing operations employing the felt polishing accessories. They may also be best for working on delicate projects as “eggery” work, delicate wood carving and fragile model parts.

WARNING

ALL BRUSHING APPLICATIONS REQUIRE LOWER SPEEDS TO

AVOID WIRE DISCHARGE FROM THE HOLDER.

Higher speeds are better for carving, cutting,

shaping, cutting dadoes or rabbets in wood. Hardwoods, metals and glass require high speed operation, and drilling should also be done at high speeds.

Many applications and accessories in our line will provide the best performance at full speed, but for certain materials, applications, and accessories, you need slower speeds, which is the reason our variable speed models are available.

To aid you in determining the optimum operational speed for different materials and different accessories, we have constructed a series of tables that appear on page 4, 5, 6 and 7. By referring to these tables, you can discover the recommended speeds for each type of accessory. Look these tables over and become familiar with them.

Ultimately, the best way to determine the correct speed for work on any material is to practice for a few minutes on a piece of scrap, even after referring to the chart. You can quickly learn that a slower or faster speed is more effective just by observing what happens as you make a pass or two at different speeds. When working with plastic, for example, start at a slow rate of speed and increase the speed until you observe that the plastic is melting at the point of contact. Then reduce the speed slightly to get the optimum working speed.

Some rules of thumb in regard to speed:

1. Plastic and other materials that melt at low temperatures should be cut at low speeds.

2. Polishing, buffing and cleaning with any type of bristle brush must be done at speeds not greater than 15,000 RPM to prevent damage to the brush from bristles flying toward operator.

3. Wood should be cut at high speed.

4. Iron or steel should be cut at high speed. If a high speed steel cutter starts to chatter — this normally means it is running too slow.

5. Aluminum, copper alloys, lead alloys, zinc alloys and tin may be cut at various speeds, depending on the type of cutting being done. Use paraffin or other suitable lubricant on the cutter to prevent the cut material from adhering to the cutter teeth.

Increasing the pressure on the tool is not the answer when it is not performing as you think it should. Perhaps you should be using a different accessory, and perhaps an adjustment in speed would solve the problem. Leaning on the tool does not help.

Your Dremel Micro can be used with all of the Dremel accessories, except router bits. While the tool will work with cut-off wheels, the reduced speed of this tool will not allow them to perform optimally. They can be used to cut soft materials such as wood or plastic, but cutting metals is not recommended. The Micro tool cannot be used with any of the Dremel line of attachments (attachments screw on to the nose of a rotary tool.) Let speed do the work!

STALL PROTECTION

This tool has a stall protection feature built into it to protect the motor and battery in the event of a stall. If you put too much pressure on the tool for too long, or bind the bit in a work piece, especially at high speeds, the motor will stop. Simply take the tool out of the material you were stalled in, and the tool will begin to spin again at the selected speed. If the tool continues to stall for longer than 5 seconds, the tool will automatically shut itself off. This additional feature further protects the motor and the battery from damage. When the battery becomes close to empty, the tool may shut down automatically more frequent than normal. If this happens, it is time to recharge the battery.

MAINTENANCE

Preventive maintenance performed by unauthorized personnel may result in misplacing of internal wiring and components which could cause serious hazard. We recommend that all tool service be performed by a Dremel Service Facility. To avoid injury from unexpected starting or electrical shock, always remove plug from wall outlet before performing service or cleaning.

CLEANING

WARNING

TO AVOID ACCIDENTS, ALWAYS DISCONNECT THE TOOL AND/

OR CHARGER FROM THE POWER SUPPLY BEFORE CLEANING. The tool can be cleaned most effectively with compressed dry air. Always wear safety goggles when cleaning tools with compressed air.

Ventilation openings and switch levers must be kept clean and free of foreign matter. Do not attempt to clean the tool by inserting pointed objects through an opening.

WARNING

CERTAIN CLEANING AGENTS AND SOLVENTS DAMAGE

PLASTIC PARTS. Some of these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents, ammonia and household detergents that contain ammonia.

SERVICE AND WARRANTY

WARNING

NO USER SERVICEABLE PARTS INSIDE. PREVENTIVE

MAINTENANCE PERFORMED BY UNAUTHORIZED PERSONNEL MAY RESULT IN INCORRECT CONNECTION OF INTERNAL WIRING AND COMPONENTS WHICH COULD CAUSE SERIOUS HAZARD. We recommend that all tool service be performed by a Dremel Service Centre. Servicemen: Disconnect the tool and/or charger from the power source before servicing.

This DREMEL product is guaranteed in accordance with statutory/country-specific regulations; damage due to normal wear and tear, overload or improper handling are excluded from the warranty.

In case of a complaint, send the undismantled

tool or charger and proof of purchase to your dealer.

CONTACT DREMEL

For more information on the Dremel product range, support and hotline, go to www.dremel.com.

Dremel Europe, P.O. Box 3267, 4800 DG Breda, The Netherlands

LESEN SIE DIESE ANWEISUNGEN

TRAGEN SIE GEHÖRSCHUTZ

TRAGEN SIE AUGENSCHUTZ

A. Schraubenschlüssel

CET OUTIL NE CONTIENT AUCUNE PIÈCE REMPLAÇABLE

PAR L'UTILISATEUR. TOUTE OPÉRATION D'ENTRETIEN PRÉVENTIF EFFECTUÉE PAR DU PERSONNEL NON AUTORISÉ PEUT ENTRAÎNER LE RACCORDEMENT INCORRECT DE COMPOSANTS INTERNES ET

SOLO PER I PAESI EUROPEI

UDSKIFTNING AF TILBEH∅R

BILLEDE 4B

In 230–240 V, 50–60 Hz, 26 W

SIKKERHET I ARBEIDSOMRÅDET

Inngang 230–240 V, 50–60 Hz, 26 W

Utgang 3,6–10,8 V, 1,5 A

SKJ∅TELEDNINGER

Bruk skjøteledninger som er helt rullet ut med en kapasitet på 5 A.

MONTERING

SLÅ ALLTID AV MULTIVERKT∅YET F∅R BYTTE AV TILBEH∅R, SPENNYLSER ELLER VEDLIKEHOLD AV VERKT∅YET.

VIKTIGE MERKNADER OM LADING

1. Laderen er konstruert for hurtiglading av batteriet när temperaturen er mellom 0 og 45 °C. Dersom batteriet er for varmt eller for kaldt, kan ikke laderen hurtiglade batteriet. (Dette kan skje dersom batteriet er varmt etter kraftig bruk.) Når batteritemperaturen er

YLEISET TEKNISET TIEDOT

Nimellisjännite 7,2 V

Nimelliskapasiteetti 1 Ah

230 V, 50–60 Hz, 26 W

Lähtö

3,6–10,8 V, 1,5 A

JATKOJOHDOT

Sisend 230–240 V, 50–60 Hz, 26 W

Väljund 3,6–10,8 V, 1,5 A

PIKENDUSJUHE

POGA "IESLÊGT/IZSLÊGT"

rientual support for the first part of the system. There is a direct relationship between the input and output of the system, which is not possible to be extracted from the input.

اصفر حجماً
