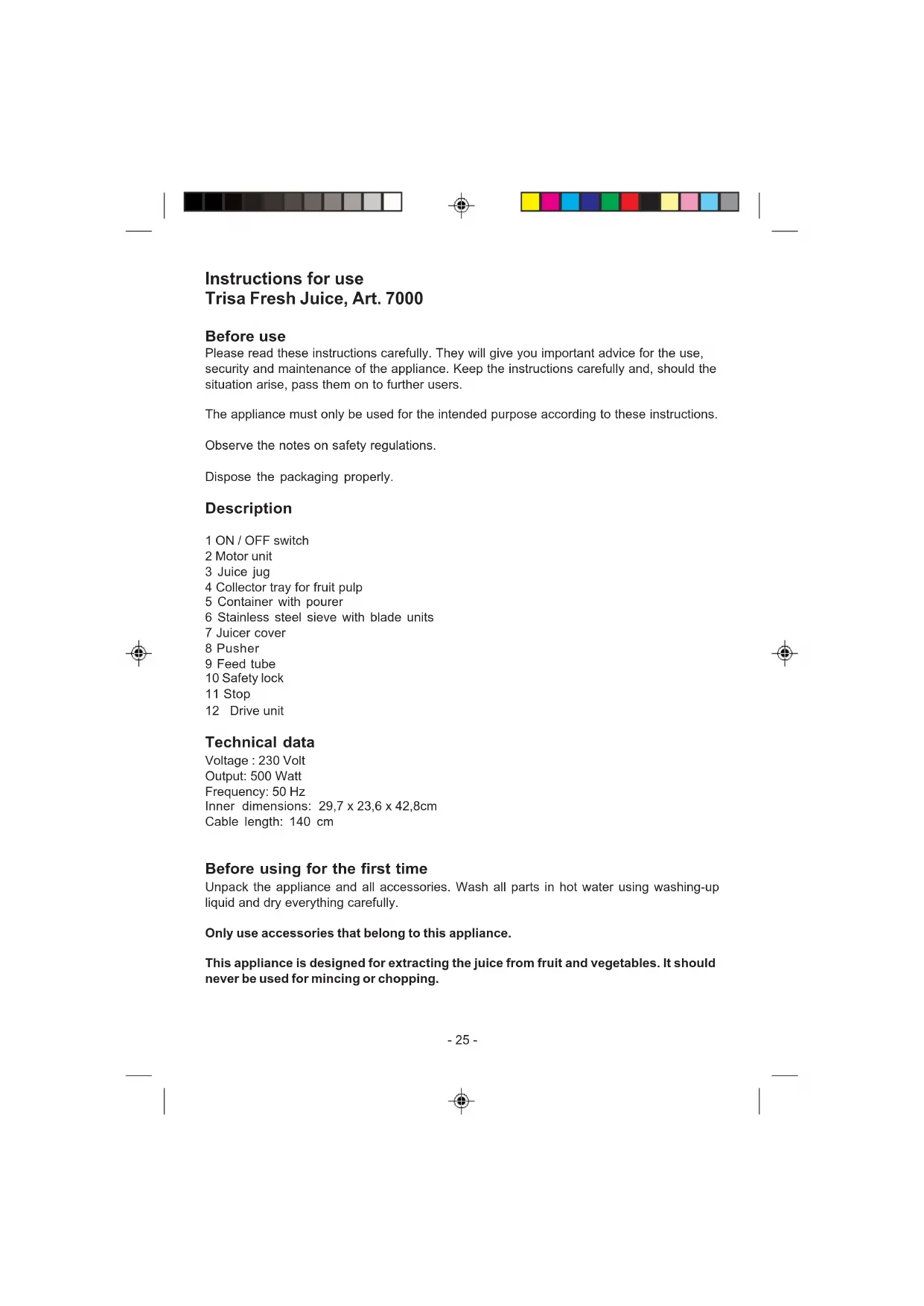

Instructions for use Trisa Fresh Juice, Art. 7000

Before use

Please read these instructions carefully. They will give you important advice for the use, security and maintenance of the appliance. Keep the instructions carefully and, should the situation arise, pass them on to further users.

The appliance must only be used for the intended purpose according to these instructions.

Observe the notes on safety regulations.

Disposethepackagingproperly.

Description

1 ON/OFF switch
2 Motor unit
3 Juice jug
4 Collector tray for fruit pulp
5 Container with pourer
6 Stainless steel sieve with blade units
7 Juicer cover
8 Pusher
9 Feed tube
10 Safety lock
11 Stop
12 Drive unit

Technical data

Voltage:230 Volt

Output: 500 Watt

Frequency: 50 Hz

Inner dimensions: 29,7 × 23,6 × 42,8cm

Cable length: 140 cm

Before using for the first time

Unpack the appliance and all accessories. Wash all parts in hot water using washing-up liquid and dry everything carefully.

Only use accessories that belong to this appliance.

This appliance is designed for extracting the juice from fruit and vegetables. It should never be used for mincing or chopping.

Preparation of foods

Wash the fruit and vegetables. If necessary, cut them into pieces so that they fit into the feed tube (9). Lots of fruits and vegetables will not need to be chopped because the feed tube (9) is very wide.

Important

Fruits with hard or inedible skins, such as melons, mangos, oranges or kiwis must be peeled first.

In the case of fruits with stones (e.g. nectarines, peaches, cherries, apricots, plums), the stones must be removed first.

Carrots should be fed into the feed tube with the thin end of the root first.

Use

1 Place the motor unit (2) onto a dry, even surface.

2 Insert the filter (6) into the container (5) and place them both onto the motor unit (2) (pouer facing forwards). Slowly turn anti-clockwise until the container (5) clicks into place.

3 Place the juicer lid (7) onto the container (5) and turn anticlockwise until it shups -in.

4 Push the collector tray for fruit pulp (4) under the juicer cover (7) until it locks into place. (You will cut down on cleaning if you line the collector tray with a plastic bag.)

5 Place the juice jug (3) under the pourer.

6 Plug the appliance in. The appliance can only be plugged in once all the parts are properly inserted and locked in place. Switch the appliance on using the ON/OFF switch (1).

7 Push the fruit or vegetables into the feed opening and press down with the pusher (8). Press down on the pusher evenly. Make sure that the pusher (8) moves in the furrow of the feed tube. Do not overfill the feed tube (9).

Make sure that the collector tray for fruit pulp (4) does not become overfilled. The tray can be emptied during juice extraction. You must switch off the appliance and replace the plastic bag or empty the container.

Warning

Take care when handling the filter - it can cause injuries! Never allow the appliance to run when it is empty. Do not run for more than 7 minutes.

If food sticks to the inside of the container (5) during juice extraction, stop the process and remove the food with a spatula. Never insert fingers or other objects into the feed tube; always use the pusher. Otherwise, you could injure yourself!

Cleaning and care

Always unplug the appliance before cleaning.

1 Switch the appliance off and unplug it from the mains.
2 Turn the juicer cover (7) clockwise and remove it from the container (5).
3 Turn the container (5) and filter (6) clockwise.
4 Remove them from the motor unit.

Wipe the motor unit (2) with a damp cloth. Wash the container (5), filter (6), juicer lid (7) and pusher (8) in warm water.

Dry the appliance and accessories well before storing.

If the appliance is not used for a long time, you should protect it from dust and dirt (in a plastic bag). Store the appliance in a cool, dry place.

Disposal

Make worn out appliances unusable. Pull out the mains plug and sever the cord. Electric appliances are to be returned to a shop of sale or handed over to an official dump.

Safety regulations

• Plug the appliance only in an outlet as mentioned on the rating plate.

• An electric appliance is not a children's toy. Children are not aware of the hazards of electrical appliances. Therefore close supervision is necessary when the appliance is used by children. Keep children away from packing material, e.g., plastic bags.

• Do not use this appliance near the water contained in bath-tubs, washbasins or other receptables nor expose it to rain or other humidity.

• Should however the appliance fall into water, only take it out after pulling the plug. Then do not use the appliance anymore, but first have it checked by an authorized service department.

• Regularly check if the main cable is defective. In this case the appliance must not be put into operation (immediately pull the plug). Send it to the manufacturer for repair.

• The appliance must not be operated (disconnect the mains plug immediately) when: * the appliance, casing or cable is damaged.

• the appliance shows visible signs of damage.

• a fault is suspected after a fall or the like.
• in case of faults during use.
• before cleaning or moving the appliance from place to place.

• after use.

• Never pull the plug out of the socket with wet hands.

• Never carry nor pull the appliance by the flex.
• Don't pull the flex over sharp edges. Don't wedge it.
• Do not bend the flex nor wind it around the appliance.
• Never put the appliance on hot surfaces nor near open flames. Lay the cord so that it does not touch hot or sharp-edged objects. Do not use the appliance while standing on a humid floor or when your hands or the appliance are wet.

• Never push food into the feed tube using hands, fingers or any other objects. Always use the pusher. Otherwise, you could injure yourself!
• Do not leave the appliance unattended while it is connected to the power source.
• Do not remove the lid or the container whilst the appliance is running (let it come to a stop first).
• Do not operate continuously for more than 7 minutes
• WARNING: The blades in the filter are sharp and therefore dangerous. They must be handled with care.
• CAUTION: The blades are sharp and therefore dangerous. Handle with caution.
  This appliance is not meant for commercial use only exclusively for private use.
• Only trained personnel should repair electrical appliances. Unskilled repairs can cause considerable danger to the user.
• In case of damage to the power cable this may only be replaced by a customer service authorized by the manufacturer.
• No warranty for any possible damage can be accepted if the appliance is used for improper purpose, wrongly operated or unprofessionally repaired. In such a case, any warranty claim is void.

Recommended recipes for delicious healthy fruit juices

In fruit and vegetables, 95% of the nutrients are contained in the juice. Fresh fruit and vegetable juices are an essential part of a healthy balanced nutrition based on abundant vitamins and minerals.

You can prepare the fruit juices individually according your taste.

The juices should be consumed immediately after their preparation in order to avoid vitamin losses.

Always use fresh and cleaned vegetables or fruit.

Hint

Add a dash of lemon juice to your apple juice to avoid discolouration. (or any fruit juices)

If you juice numerous ingredients of varying softness you will achieve best results if you process hard and soft ingredients alternately. Due to this alternation of hard and soft ingredients, the skin is released to a better extent and the juice extractor produces the maximum amount of juice from the ingredients.

The amount of juice depends on the fruit type and quality. The actual amount of juice is individual and cannot be stated in particular.

Pineapple - Peach - Pear Juice

For approx. 3 cups

1/2 small, peeled pineapple, cut in half

2 stoned peaches, cut in half

3 small ripe pears

Process the ingredients and serve immediately.

Pineapple - Pear - Strawberry Juice

For approx. 3 cups

1 small apple (Granny Smith)

3 small ripe pears

1 cup strawberries

Process the ingredients and serve immediately.

Melon - Peppermint - Mango Juice

For approx. 2 cups

1/2 small sugar melon, peel and seeds removed, cut in half

3 stems of fresh peppermint

1 peeled, stoned mango, cut in half

Process the ingredients and serve immediately.

Tomato - Carrot - Celery - Lime Juice

For approx. 3 cups

2 medium-sized tomatoes
1 large cleaned carrot
2 cleaned stalks of celery
1 peeled lime

Process the ingredients and serve immediately.

Beetroot - Carrot - Orange Juice

For approx. 2 cups
2 medium-sized cleaned carrots
3 medium-sized cleaned beetroot
4 peeled oranges

Process the ingredients and serve immediately.

Tomato - Cucumber - Parsley - Carrot Juice

For approx. 3 cups
3 medium-sized tomatoes
1 large cucumber
1 large bunch of fresh parsley
3 medium-sized cleaned carrots
Process the ingredients and serve immediately.

Blackberry - Pear - Grapefruit Juice

For approx. 3 cups

250 g blackberries
3 ripe pears
2 peeled grapefruits

Process the ingredients and serve immediately.

Sparkling Orange Juice

For approx. 8-10 cups

1 kg peeled oranges

Process the ingredients and serve immediately.

Blueberry - Blackberry - Strawberry - Lime Juice

For approx. 3 1/2 cups

500 g blackberries

500 g blueberries

500 g strawberries

1 peeled lime

Process the ingredients and serve immediately.

Melon - Strawberry - Passion Fruit Juice Beverage

For 4 persons

1/2 sugar melon, peel and seeds removed

250 g strawberries

Flesh of 2 passion fruit

1 cup crushed ice

Process the melon and the strawberries in the juice extractor.

Mix the flesh of the passion fruit with the juice of the melon and strawberries. Distribute the ice into the four glasses and pour the freshly prepared juice over it. Stir well and serve immediately.

Tropical Mix

For 4 persons

2 peeled, stoned mango, cut in half
3 peeled kiwi
1/2 pineapple without stem and crown, cut in 2 equal halves
1/2 cup fresh peppermint leaves
1 cup crushed ice

Process mangos, kiwi, pineapple and peppermint in the juice extractor.

Distribute the ice into the four glasses and pour the freshly prepared juice over it. Stir well and serve immediately.

Tomato - Nectarine - Passion fruit - Peppermint - Iced Beverage

For 4 persons

6 tomatoes

2 nectarines

1/2 cup fresh peppermint leaves

Flesh of 4 passion fruit

1 cup crushed ice

Process tomatoes, nectarines and peppermint leaves in the juice extractor.

Add the flesh of the passion fruit to the juice.

Distribute the ice into the four glasses and pour the freshly prepared juice over it. Stir well and serve immediately.

Sparkling Apricot -Apple - Pear Beverage

For 4 persons

4 large stoned apricots, cut in half

4 small red apples

3 medium-sized pears

250 ml sparkling mineral water

1/2 cup crushed ice

Process the apricots, apples and pears in the juice extractor.

Pour mineral water and ice into the freshly prepared juice and serve immediately.

Switzerland

Trisa Electro AG

Kantonsstrasse 121

CH-6234 Triengen

[e-mail]

++41419330030

Austria

Franz Holzbauer

Service GmbH

Unterhaus 33

A-2851 Krumbach

[e-mail]

++43(2647)4304070

Deutschland

HKS
