USER MANUAL Saeco Xsmall Plus PHILIPS

Type Sup 033R Ideas with Passion

Thank you for purchasing this highest quality espresso coffee machine and for your confi dence in our company. Before

operating the machine, we recommend carefully reading the operating instructions that explain how to use, clean and

maintain it in perfect working order. Please refer to an authorized dealer, or to Saeco, if you have any questions. We will

be happy to provide any clarifi cations.

Herzlichen Glückwunsch!

ad un centro assistenza.18

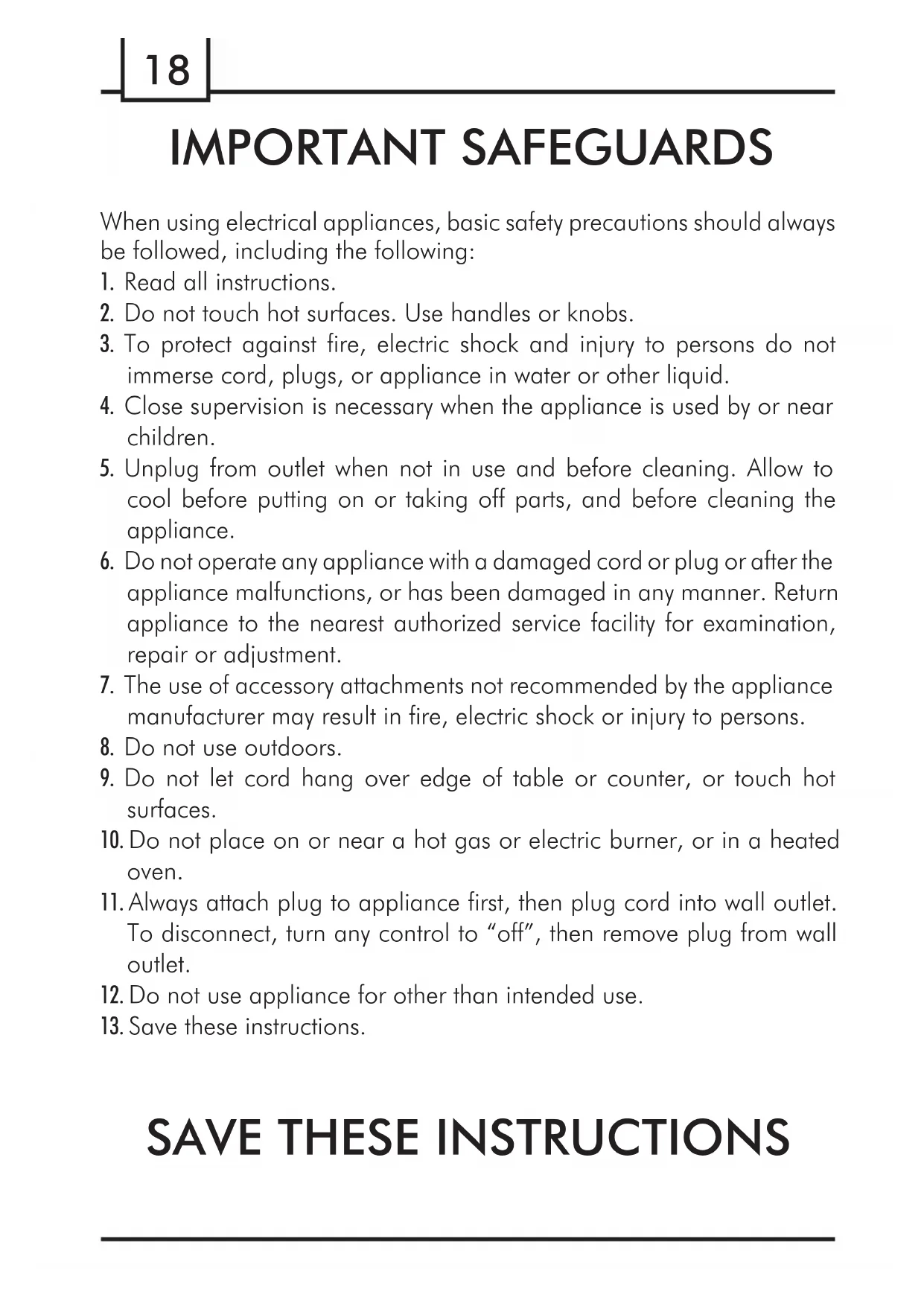

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always

be followed, including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against fire, electric shock and injury to persons do not

immerse cord, plugs, or appliance in water or other liquid.

4. Close supervision is necessary when the appliance is used by or near

5. Unplug from outlet when not in use and before cleaning. Allow to

cool before putting on or taking off parts, and before cleaning the

6. Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions, or has been damaged in any manner. Return

appliance to the nearest authorized service facility for examination,

repair or adjustment.

7. The use of accessory attachments not recommended by the appliance

manufacturer may result in fire, electric shock or injury to persons.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot

10. Do not place on or near a hot gas or electric burner, or in a heated

11. Always attach plug to appliance first, then plug cord into wall outlet.

To disconnect, turn any control to “off”, then remove plug from wall

12. Do not use appliance for other than intended use.

13. Save these instructions.

SAVE THESE INSTRUCTIONS19

CAUTION This appliance is for household use only. Any servicing, other than

cleaning and user maintenance, should be performed by an authorized

service centre. Do not immerse machine in water. To reduce the risk of

fire or electric shock, do not disassemble the machine. There are no

parts inside the machine serviceable by the user. Repair should be done

by authorized service personnel only.

1 Check voltage to be sure that the voltage indicated on the nameplate

corresponds with your voltage.

2 Never use warm or hot water to fill the water tank. Use cold water only.

3 Keep your hands and the cord away from hot parts of the appliance

4 Never clean with scrubbing powders or harsh cleaners. Simply use a

soft cloth dampened with water.

5 For optimal taste of your coffee, use purified or bottled water. Periodic

descaling is still recommended every 2-3 months.

6 Do not use caramelized or flavored coffee beans.

INSTRUCTIONS FOR THE POWER SUPPLY CORD A. A short power-supply cord (or detachable power-supply cord) is to

be provided to reduce risks resulting from becoming entangled in or

tripping over a longer cord.

B. Longer detachable power-supply cords or extension cords are available

and may used if care is exercised in their use.

C. If a long detachable power-supply cord or extension cord is used,

1. The marker electrical rating of the detachable power-supply cord

or extension cord should be at least as great as the electrical rating

2. If the appliance is of the grounded type, the extension cord should

be a grounding-type 3-wire cord, and

3. The longer cord should be arranged so that it will not drape over

the counter top or table top where it can be pulled on by children or

GENERAL INFORMATION - SAFETY REGULATIONS

1 GENERAL INFORMATION The coffee machine is suitable for preparing espresso

coffee using either coffee beans or ground coffee and

is equipped with a device to dispense steam and hot

water. The machine is designed for domestic use and is

not suitable for heavy or professional use.

Warning. No liability is assumed for damage

• Incorrect use not in accordance with the intended

• Repairs not carried out by authorized service

• Tampering with the power cord;

• Tampering with any part of the machine;

• Failure to descale the machine or use at tempera-

tures below 0°C (32°F);

• The use of non-original spare parts and acces-

In these cases, the warranty shall be deemed null

1.1 To Simplify Manual Reading

The warning triangle indicates all

important instructions for the

user's safety. Please follow these

instructions carefully to prevent serious injuries.

References to illustrations, parts of the appliance

or controls, etc. are indicated by numbers or letters.

Whenever possible, refer to the illustration.

This symbol is used to highlight information

that is particularly important to ensure opti-

mal use of the machine.

The illustrations corresponding to the text can

be found on the fi rst pages of the manual. Please

refer to these pages while reading the operating

1.2 How to Use These Operating Instructions

Keep these operating instructions in a safe place and

make them available to anyone else who would use

For further information or in case of problems, please

refer to an authorized service center. For Saeco

customer service, call 1-800-933-7876 in the U.S., or

1-514-385-5551 in Canada.

2 TECHNICAL SPECIFICATIONS The manufacturer reserves the right to make changes to

the technical specifi cations of the product.

Nominal Voltage - Power Rating - Power Supply

See label on the inside of the service door (3)

Pannarello Standard on the Plus model - Special device for cappuccino Water Tank

3 SAFETY REGULATIONS Never allow water to come into contact with any of

the electrical parts of the machine: Danger of short

circuit! Steam and hot water may cause scalding! Do

not direct the steam or hot water jet towards body

parts. Handle the steam/hot water spout by means of

the special handle: Danger of scalding!

Intended Use of the Machine

The coffee machine is intended for domestic use only.

Do not make any technical changes or use the machine

for unauthorized purposes since this would create

serious hazards! The appliance is not to be used by

persons (including children) with reduced physical,

mental or sensory abilities or with scarce experience

and/or expertise, unless they are supervised by a person

responsible for their safety, or they are instructed by this21

person on how to properly use the machine.

Only connect the coffee machine to a suitable power

socket. The voltage must correspond to the indication

on the machine's label, located on the inside of the

Never use the coffee machine if the power cord is

defective or damaged.

If damaged, the power cord must be replaced by the

manufacturer or an authorized service center. Do not

pass the power cord around corners, over sharp edges

or over hot objects and keep it away from oil.

Do not use the power cord to carry or pull the coffee

Do not pull out the plug by the power cord or touch it

Do not let the power cord hang freely from tables or

For the Safety of Others

Prevent children from playing with the machine.

Children are not aware of the risks related to electric

household appliances. Do not leave the machine

packaging materials within the reach of children.

Never direct the jet of hot steam and/or hot water

towards yourself or others: Danger of scalding! Always use the handles or knobs provided.

Place the coffee machine in a safe place, where there

will be no danger of overturning or injury.

Hot water or overheated steam may spill out of the

machine: Danger of scalding!

Do not keep the machine at a temperature below 0°C

(32°F). Frost may damage the machine. Do not use the

coffee machine outdoors.

In order to prevent its housing from melting or being

damaged, do not place the machine on very hot surfaces

or close to open fl ames.

Before cleaning the machine, turn it off by pressing the

ON/OFF button, then remove the plug from the socket.

Wait for the machine to cool down.

Never immerse the machine in water!

It is strictly forbidden to tamper with the internal parts

Water left in the tank for several days should not be

consumed. Wash the tank and fi ll it with fresh drinking

Suitable Location for Operation and Maintenance

To ensure a correct and efficient performance of

the coffee machine, we recommend following the

• Choose a level surface.

• Choose a location that is sufficiently well-lit, clean

and near an easily reachable socket.

• Allow for a minimum distance from the sides of the

machine as shown in Fig. A.

If the machine is to remain inactive for a long time, turn

it off and unplug it. Store it in a dry place and out of the

reach of children. Keep it protected from dust and dirt.

Servicing / Maintenance

In case of failure, problems or a suspected fault resulting

from the falling of the machine, immediately remove the

plug from the socket. Never attempt to operate a faulty

Servicing and repairs may only be carried out by

authorized service centers.

All liability for damages resulting from work not carried

out by professionals is declined.

Fire Safety Precautions

In case of fi re, use carbon dioxide (CO

Do not use water or dry powder extinguishers.22

Full drip tray indicator

Hot water/steam wand

Small coffee brew button

Large coffee brew button

Grinder adjustment key

Brew group lubricant

Pannarello (standard on the Plus model only)

4 INSTALLATION For your safety and the safety of others, carefully

follow the "Safety Regulations" in section 3.

4.1 Machine Packaging

The original packaging has been designed and

constructed to protect the machine during transport.

We recommend keeping the packaging material for

possible future transport.

4.2 Preliminary Operations

• Remove the coffee bean hopper lid (1) and the drip

tray (8) with grill (6) from the packaging.

• Remove the coffee machine from the packaging and

position it in a place that meets the requirements

described in the safety regulations (section 3).

• (Fig. 15) - Place the drip tray (8) with grill (6) into its

appropriate seat on the machine.

• Place the lid (1) on the coffee bean hopper (2).

• Before plugging the machine into the socket, be

sure that all steps outlined in section 4.3 have been

Important note: Carefully read the explana-

tions of all the warnings displayed by the

machine to the user by means of the lights on the

control panel (section 12).

Never remove the drip tray when the machine

is turned on. To remove the drip tray from the

machine, turn the machine off. The machine will carry

out a rinse/self-cleaning cycle (see section 4.4) when

it is turned off. When this cycle is fi nished, the drip

tray may be removed.

4.3 Using the Machine for the First Time

• (Fig. 3) - Remove the water tank (9).

• (Fig. 4) - Fill the tank with fresh drinking water up to

the MAX level. Re-insert the tank.

Use only fresh, non-sparkling water to fi ll the

tank (9). Hot water or any other liquid may

damage the tank and/or the machine. Do not turn

on the machine when the tank is empty. Make sure

there is enough water in the tank.

• (Fig. 1) - Remove the lid (1) from the coffee bean

INSTALLATION - ADJUSTMENTS

• (Fig. 2) - Fill the container with coffee beans.

Note: The grill on top of the coffee bean hop-

per cannot and must not be removed.

Only coffee beans must be put into the coffee

bean hopper (2). Ground coffee, instant coffee

or any other object may damage the machine.

• Replace the lid (1) on the coffee bean hopper (2).

• (Fig. 5A) - Insert the plug into the socket located on the

back of the machine.

• (Fig. 5B) - Insert the plug of the other end of the power

cord into a wall socket with suitable power voltage.

• Make sure control dial (17) is on "

is not the case, set it to that position.

• (Fig. 6) - Simply press the ON/OFF button (16) to

turn the machine on; the warning light (18) will begin

to blink rapidly indicating that the water circuit must

4.4 Priming the Water Circuit

• (Fig.7) - To prime the water circuit, place a container

below the steam wand (Pannarello for Plus version)

• (Fig. 9) - Turn the control dial (17) clockwise to set it

" position and wait.

When water regularly comes out and the warning light

(18) will blink slowly, indicating that you can turn off the

control dial, rotate the control dial counter-clockwise

to set it back to the "

• At this point the temperature light (19) begins to blink

slowly, indicating that the machine is in warm-up

Note: Before starting the machine after long

periods of inactivity or if the water tank has

been completely emptied, it is recommended that

the circuit be primed.

When warm-up is complete, the machine

performs a rinse cycle of the internal circuits

• When the above steps are complete, the machine is

• To brew coffee, dispense hot water or steam, and

for a proper use of the machine, carefully follow the

instructions provided.

4.5 Rinse/Self-Cleaning Cycle

This cycle rinses the coffee circuits with fresh water.

The rinse/self-cleaning cycle is carried out:

• When the machine is turned on (with cold boiler)

• After priming the water circuit (with cold boiler)

• During the warm-up phase (if a coffee product has

• When the machine is turned off (if a coffee product

Note: Place a container beneath the dispen-

sing spout (5) before the dispensing starts

A small amount of water will be dispensed which will

rinse and heat all the machine components; in this

phase the lights will fl ash counter-clockwise.

Wait for the cycle to fi nish automatically. You can stop

dispensing as well, by pressing either coffee button.

5 ADJUSTMENTS The machine that you have bought allows for certain

adjustments that will permit you to use it to its full

5.1 Saeco Adapting System

Coffee is a natural product and its characteristics may

change according to its origin, blend and roast. The

Saeco coffee machine is equipped with a self-adjusting

system that allows the use of all types of coffee beans

available on the market (not including flavored or

• The machine automatically adjusts itself in order to

optimize the extraction of the coffee, ensuring perfect

compression of the beans to obtain a creamy espresso

coffee that will release all the aromas, regardless of

the type of coffee used.

• The optimization process is a learning process that

requires the brewing of a certain number of coffees

to allow the machine to adjust the compactness of the

• Attention should be given to special blends, which

require grinder adjustments in order to optimize the

extraction of the coffee (see section 5.2).24

ADJUSTMENTS - COFFEE BREWING

5.2 Coffee Grinder Adjustment

Warning! The grinder adjustment knob, inside

the coffee bean hopper, must be turned only

when the grinder is working. Do not pour ground and/

or instant coffee into the coffee bean hopper.

Do not insert any material other than coffee

beans into the hopper. The grinder contains

moving parts that may be dangerous. Therefore, do

not insert fi ngers and/or other objects. Turn off the

machine by pressing the ON/OFF button and remove

the plug from the socket before carrying out any

type of operation inside the coffee bean hopper.

Do not pour coffee beans when the coffee grinder

The machine lets you make slight adjustments to the

coffee grinder to adapt it to the kind of coffee used.

To make any adjustment, use the pin inside the coffee

bean hopper; this must be pressed and turned using

only the grinder adjustment key provided.

(Fig. 27) - Press and turn the pin one notch at a time.

You must brew 2-3 coffees before you will taste a

(Fig. 28) - The reference marks inside the coffee bean

hopper indicate the grind setting; there are 5 different

grind settings to choose from with the following

5.3 Adjusting the Amount of Coffee Brewed

The machine allows you to adjust the amount of brewed

coffee according to your tastes and/or the size of your

Each time you press and release a coffee button, the

machine brews a pre-programmed amount of coffee.

This amount may be reprogrammed to your taste. Each

button may be individually programmed for a specifi c

As an example, the following procedure describes the

programming of the small coffee button (14), which is

normally associated with espresso coffee.

• (Fig. 10A) - Place a cup beneath the dispensing

• (Fig. 12) - Press and hold down the small coffee

button; the large coffee button blinks during this

• (Fig. 12) - Release the small coffee button when

the amount of coffee in the cup reaches the desired

At this point the small coffee button is programmed;

each time it is pressed and released, the machine

will brew the same amount of coffee that was just

The machine is designed for energy saving.

After 60 minutes of inactivity, the machines turns off

To turn the machine on again, simply press the ON/OFF

button (16); in this case the machine will go through the

rinse cycle only if the boiler is cold.

Most cups on the market can be used with this coffee

If you would like to use an exceptionally large cup,

remove the grill (6).

Make sure that the drip tray (8) is clean and

empty before removing the grill and position-

ing the cup (see section 9).

(Fig. 11) - Remove the grill (6) and place the cup in the

Replace the grill (6) when fi nished.

6 COFFEE BREWING Note: Should the machine not brew coffee,

make sure that the water tank (9) contains

Before brewing coffee, make sure that the

green temperature light (19) is steady on and

that the water tank and the coffee hopper are full.

Keep the control dial (17) in the " " position,

during the coffee brewing cycle.

• (Fig. 10 - Fig. 11) - Place 1 or 2 cups under the

dispensing spout (5).

• (Fig. 12) - To brew coffee, press and release:

the small coffee button for an espresso coffee;

the large coffee button for a long coffee.25

DISPENSING HOT WATER - PREPARING A CAPPUCCINO

• To dispense 1 cup of coffee, press the button once. To

dispense 2 cups of coffee, press the button twice.

In this operating mode, the machine automati-

cally grinds and doses the correct amount of

coffee. Brewing two coffees requires two grinding

cycles and two brewing cycles, which the machine

carries out automatically.

• After the prebrewing cycle, coffee begins to dispense

out of the dispensing spout (5).

• Coffee brewing stops automatically when the pre-

programmed level is reached; however, it is possible

to interrupt coffee brewing by pressing the button

The machine is adjusted to brew a true Italian

espresso coffee. This feature may slightly

lengthen the brewing time, allowing the intense fl avor

of the coffee to develop fully.

7 DISPENSING HOT WATER Warning: Dispensing may be preceded by

short sprays of hot water, and scalding is

possible. The hot water/steam wand may reach high

temperatures. Do not touch it with bare hands; use

the appropriate handle only.

• Before dispensing hot water, make sure that the

green temperature light (19) is on.

When the machine is ready, proceed as follows:

• (Fig. 7) - Place a container under the hot water/steam

wand (Pannarello for Plus version) (10).

• (Fig. 9) - Turn the control dial (17) clockwise to set it

• Fill the cup with hot water to the level desired; to stop

hot water dispensing, turn control dial (17) counter-

clockwise back to the "

" position. The machine

returns to the normal operating mode.

Occasionally, after turning the control dial

(17) hot water may not be dispensed and the

temperature light (19) may blink slowly. To obtain a

fl ow of hot water, simply wait until the temperature

light (19) stops blinking and remains steady.

8 STEAM DISPENSING / CAPPUCCINO Steam may be used to froth milk for a cappuccino, as

well as to reheat other beverages.

Warning: Dispensing may be preceded by

short sprays of hot water, and scalding is

possible. The hot water/steam wand may reach high

temperatures. Do not touch it with bare hands; use

the appropriate handle only.

• (Fig. 7) - Place a container under the hot water/steam

wand (10) (Pannarello).

• (Fig. 13) - When the machine is ready to brew coffee,

turn the control dial (17) counter-clockwise to set it to

" position; residual water may come out of the

• The temperature light (19) blinks during the preheating

time required by the machine.

• Steam dispensing will begin when the green

temperature light (19) remains steady.

• Turn the control dial (17) clockwise and set it back to

" position to stop dispensing steam.

• Fill 1/3 the cup with cold milk.

Use cold milk for better results when prepar-

• (Fig. 14) - Immerse the steam wand (Pannarello for

Plus version) in the milk to be heated and turn the

control dial (17) counter-clockwise to set it to the "

" position. Froth the milk by gently swirling the cup

and moving it up and down.

• After dispensing steam for the desired time, turn the

control dial (17) clockwise and set it back to the "

position to stop dispensing steam.

• The same procedure can be used to heat other

After using the steam wand (Pannarello for Plus

version), wash it as described in the "Cleaning and

Maintenance" section.

• Prime the machine as described in section 4.4.

If the control dial is left on the central posi-

tion, the machine, in order to save energy,

automatically reaches the temperature needed to

CLEANING AND MAINTENANCE

9 CLEANING AND MAINTENANCE

• Maintenance and cleaning can only be carried out

when the machine is turned off and unplugged.

• Do not immerse the machine in water.

• Do not wash any of its parts in the dishwasher.

• Do not use alcohol, solvents, and/or abrasive objects

to clean the machine.

• Use a soft, dampened cloth to clean the machine.

• Do not dry the machine and/or its components using

a microwave and/or standard oven.

• (Fig. 16) - Every day, after heating the milk, remove

the external part of the Pannarello (if present) and

wash it with fresh drinking water.

• (Fig. 17) - Clean the steam wand weekly. In order to

do this, you have to:

- Remove the external part of the Pannarello (for

- Remove the upper part of the Pannarello from the

hot water/steam wand;

- Wash the upper part of the Pannarello with fresh

- Wash the hot water/steam wand with a wet cloth and

remove any milk residue;

- Replace the upper part in the hot water/steam wand

(make sure it is completely inserted).

- Reassemble the external part of the Pannarello.

• (Fig. 4) - Clean the water tank daily.

- Remove the fi lter in the water tank and wash it under

running drinking water.

- Reposition the fi lter by gently pressing and turning

- Fill the water tank with fresh drinking water.

• (Fig. 15) - Empty and clean the drip tray (8) daily; this

operation must also be performed when the fl oat (7)

• (Fig. 18) - Empty and clean the dregdrawer daily.

• The brew group (13) must be cleaned at least once a

• Turn off the machine by pressing the ON/OFF button

(16) and remove the plug from the socket.

• (Fig. 18 - Fig. 19) - Remove the dregdrawer (4). Open

the service door (3).

• (Fig. 20) - To remove the brew group (13), pull it by

the handle and press the «PUSH» button.

• (Fig. 21) - Wash the brew group with lukewarm water,

carefully clean the upper fi lter and dry.

• Thoroughly clean the inside of the machine.

• (Fig. 22) - Make sure that the two reference marks

• (Fig. 23) - Make sure that the lever is in contact with

the brew group. Press the "PUSH" button to make

sure that the brew group is in the correct position.

Lubricate the brew group after approximately

500 brewing cycles. The brew group lubricant

may be purchased through Saeco or authorized

• (Fig.24) - Lubricate the brew group guides using the

• (Fig.25-26) - Apply the lubricant evenly on both side

• Insert the brew group in its seat until it locks into place

WITHOUT pressing the "PUSH" button.

• Insert the dregdrawer and close the service door.

10 DESCALING THE MACHINE Limescale normally builds up with the use of the

appliance. Descaling should be performed every 1-2

months, or when indicated by the machine.

Please use Saeco descaling solution in your

machine. It has been specifi cally developed to

preserve performance and functionality throughout

the lifetime of the machine and to ensure, with regular

use, a high quality delivered product.

Warning! Never use vinegar as a descaling

(Fig. 17) - Before descaling, remove the Pannarello (if

present) from the hot water/steam wand as described in

the "Cleaning and Maintenance" section.

• Turn the machine on by pressing the ON/OFF button

(16). Wait for the machine to complete the warm

up and rinse cycles.

• Mix the descaling solution with water as specifi ed on

the package of the descaling product and fi ll the water

• (Fig.7) - Place a container under the hot water/steam

• (Fig.9) - Dispense one cup of water at a time to

completely empty the water tank by turning the

control dial (17) clockwise to the "

dispensing, turn the control dial (17) counter-clockwise

to set it back to the "

• Between each interval, allow the descaling solution

to take effect for about 10-15 minutes and press the

ON/OFF button (16) to turn the machine off. Empty

• Repeat this operation until the water tank is empty.

• Rinse the water tank and fi ll it with fresh water.

• Turn the machine on by pressing the ON/OFF button

• (Fig. 9) - Empty the water tank by turning the control

dial (17) clockwise to the "

" position. When the

water tank is empty, turn the control dial (17) counter-

clockwise to set it to the "

When descaling is complete, insert the Pannarello

(for Plus version) into the hot water/steam wand as

described in the "Cleaning and Maintenance" section.

Saeco descaling solution should be disposed

of according to the manufacturer instructions

and/or the regulations in the country of use.

- The packing materials can be recycled.

- Appliance: unplug the appliance and cut the power

- Deliver the appliance and power cord to a service

center or public waste disposal facility

This product complies with eu directive 2002/96/ec.

on the product or on its

packaging indicates that this product may not be

treated as household waste. Instead it shall be handed

over to the applicable collection point for the recycling

of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will

help prevent potential negative consequences for the

environment and human health, which could otherwise

be caused by inappropriate waste handling of this

product. For more detailed information about recycling

of this product, please contact your local city offi ce, your

household waste disposal service or the shop where

you purchased the product.28

CONTROL PANEL LIGHTS

12 CONTROL PANEL LIGHTS Light Signals Causes Solutions

The machine is warmed up and ready

The machine is warming up.

Machine is overheating. Coffee may

Indicates that the machine is

programming the amount of coffee

to brew (see section 5.3).

The machine is brewing a double

The coffee bean hopper is empty. Fill the bean hopper with whole

Dregdrawer full. With the machine turned on, empty

the coffee dregdrawer.

The dregdrawer must be emptied

after every 8 coffee cycles. If the

dregdrawer is emptied with the

machine turned off, or when the

indicator light is not illuminated, the

count of coffee cycles is not reset.

For this reason, the indicator light to

empty the dregdrawer may illuminate

even when it is not full.29

Light Signals Causes Solutions

The machine needs to be primed. Fill the tank with fresh drinking

water and prime the water circuit as

described in section 4.4.

Brew group not inserted.

Dregdrawer not inserted.

Service door is open.

Control dial is not in correct

Make sure that all components have

been correctly inserted and closed.

Flashing counterclockwise

The machine is performing the

rinse/self-cleaning cycle (see

The machine ends the cycle

You can interrupt the cycle by

pressing either coffee button.

Flashing simultaneously

An error has occurred. Turn the machine off. After

30-seconds, turn it back on.

Try this 2 or 3 times.

If the machine does NOT start,

contact an authorized service

Flashing alternately

A fault has occurred in the brew

Try again to brew another coffee.30

MACHINE ACTIONS - CAUSES - SOLUTIONS Problems Causes Solutions

The machine does not turn on. The machine is not connected to the

Connect the machine to the power source.

The coffee is not hot enough. The cups are cold. Preheat the cups with hot water.

Hot water or steam is not

The hole of the hot water/steam wand

Clean the hole of the hot water/steam using

Make sure that the machine is turned off

and has cooled before performing this

Pannarello is dirty (if present). Clean the Pannarello.

The coffee is not creamy

The coffee blend is unsuitable, the

coffee is not freshly roasted or the grind

Change coffee blend or adjust the grind

The machine takes a long time to

warm up or the amount of water

dispensed from the wand is too

The machine's water circuit is obstructed

by limescale build-up

Descale the machine.

The brew group does not come

The brew group is out of place. Turn the machine on. Close the service door.

The brew group is automatically placed in

the correct position.

The dregdrawer is inserted. Remove the dregdrawer fi rst, then the brew

The machine grinds the coffee

beans but no coffee comes out.

Water tank is empty. Fill the water tank and prime the circuit

The brew group is dirty. Clean the brew group (section 9.1).

The circuit is not primed. Prime the circuit again by dispensing hot

water from the hot water/steam wand.

Rare event that occurs when the

machine is automatically adjusting the

Brew a few coffees as described in section

The dispensing spout is dirty. Clean the dispensing spout.

The coffee is too weak.

Rare event that occurs when the

machine is automatically adjusting the

Brew a few coffees as described in section

Coffee is brewed slowly.

The coffee grind is too fi ne. Change coffee blend or adjust the grind

The water circuit is not primed. Prime the circuit again by dispensing hot

water from the hot water/steam wand.

The brew group is dirty. Clean the brew group (section 9.1).

Coffee leaks out of the dispensing

The dispensing spout is clogged. Clean the dispensing spout and its holes.

Note: These problems can be considered normal if the coffee blend has been changed or if the machine has

just been installed; in this case wait until the machine performs a self-adjusting operation as described in

Please contact customer service for any problems not covered in the above table or when the suggested

solutions do not solve the problem.31

(waste electrical and electronic equipment - WEEE).

ONTKALKING - AFVALVERWERKING

89/336, CE 92/31, CE 93/68.

declare under our responsability that the

AUTOMATIC COFFEE MAKER SUP 033R

to which this declaration relates is in conformity with the

following standards or other normative documents :

• Safety of household and electrical appliances - General

requirements - EN 60335-1(2002) + A1(2004) + A2(2006)

+ A11(2004) + A12(2006)

• Safety of household and electrical appliances - Part

2-15 - Particular requirements for appliances for heating

liquids - EN 60335-2-15(2002) + A1(2005)

• Household and similar electrical appliances - Electro-

magnetic fi elds - methods for evaluation and measure-

ment EN 50366 (2003) + A1 (2006).

• Household and similar electrical appliances - safety -

Part 2-14 - Particular requirements for kitchen machines

EN 60335-2-14 (2006).

• Electromagnetic compatibility (EMC) - Requirements for

household appliances , electric tools and similar appara-

tus - Part 1 - Emission EN 55014-1 (2000) + A1 (2001) +

Section 2 : Limits for harmonic current emissions (equip-

Part 3^ : Limits - Section 3 : Limitation of voltage chang-

es , voltage fl uctuations and fl icker in public low - voltage

supply systems , for equipment with rated current ≤ 16 A

for phase and not subject to conditional connection EN

61000-3-3 (1995) + A1 (2001)

• Electromagnetic compatibility - Requirements for house-

hold appliances , electric tools and similar apparatus -

Part 2. Immunity - Product family standard EN 55014-2

Following the provision of the directives: EC 73/23, EC

89/336/EG, 92/31EG, 93/68/EG.

CE 89/336, CE 92/31, CE 93/68.

CE 73/23, CE 89/336, CE 92/31, CE 93/68.

The manufacturer reserves the right to change the features of the product without prior notice.

© Saeco International Group S.p.A.
