USER MANUAL Saeco Xsmall Steam PHILIPS

Dispositivi di sicurezza . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Termofusibile• 14 •

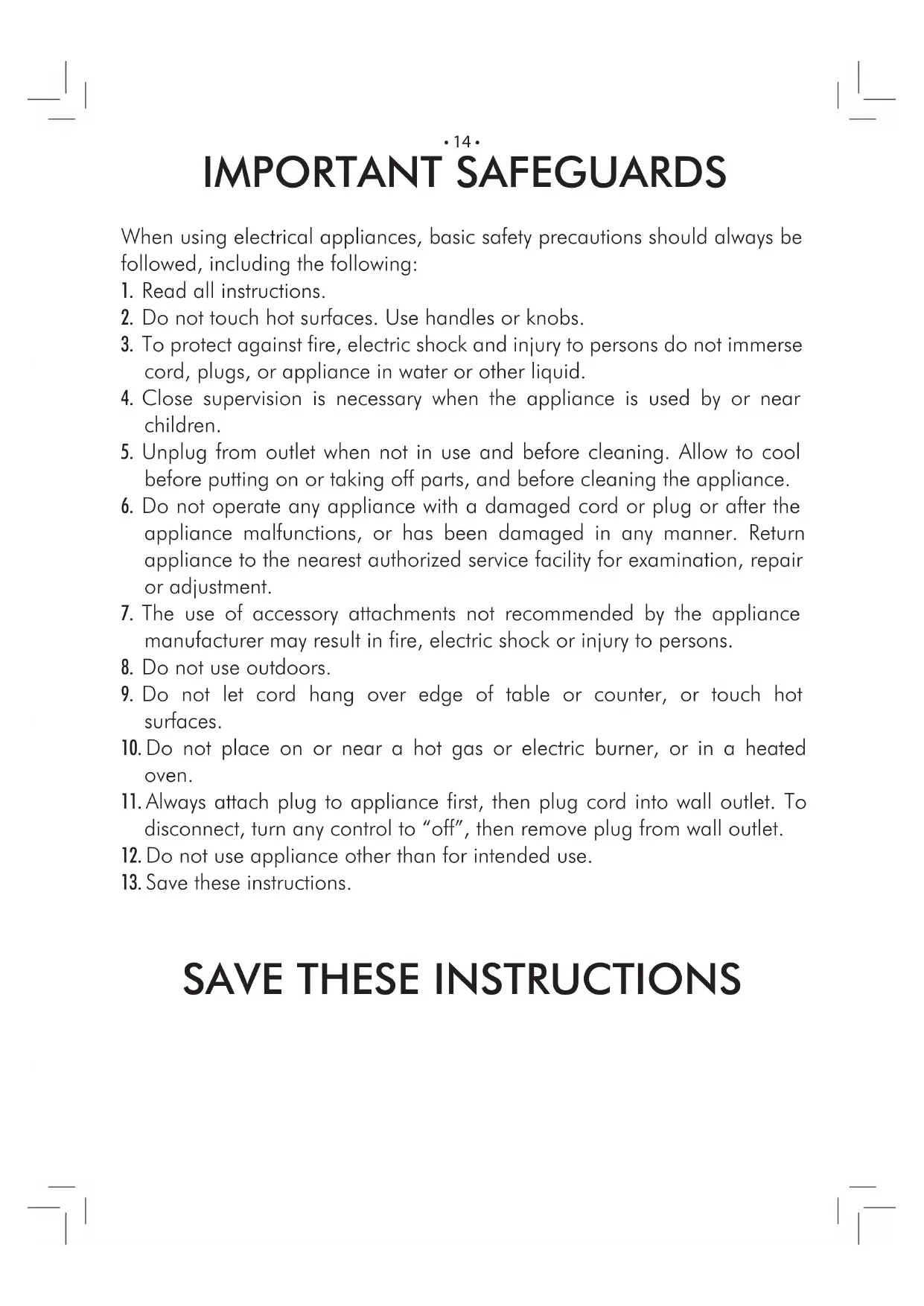

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be

followed, including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against fire, electric shock and injury to persons do not immerse

cord, plugs, or appliance in water or other liquid.

4. Close supervision is necessary when the appliance is used by or near

5. Unplug from outlet when not in use and before cleaning. Allow to cool

before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions, or has been damaged in any manner. Return

appliance to the nearest authorized service facility for examination, repair

7. The use of accessory attachments not recommended by the appliance

manufacturer may result in fire, electric shock or injury to persons.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot

10. Do not place on or near a hot gas or electric burner, or in a heated

11. Always attach plug to appliance first, then plug cord into wall outlet. To

disconnect, turn any control to “off”, then remove plug from wall outlet.

12. Do not use appliance other than for intended use.

13. Save these instructions.

SAVE THESE INSTRUCTIONS• 15 •

CAUTION This appliance is for household use only. Any servicing, other than cleaning

and user maintenance, should be performed by an authorized service center.

Do not immerse machine in water. To reduce the risk of fire or electric shock,

do not disassemble the machine. There are no parts inside the machine

serviceable by the user. Repair should be done by authorized service personnel

1 Check voltage to be sure that the voltage indicated on the nameplate

corresponds with your voltage.

2 Never use warm or hot water to fill the water tank. Use cold water only.

3 Keep your hands and the cord away from hot parts of the appliance during

4 Never clean with scrubbing powders or harsh cleaners. Simply use a soft

cloth dampened with water.

5 For optimal taste of your coffee, use purified or bottled water. Periodic

descaling is still recommended every 2-3 months.

6 Do not use caramelized or flavored coffee beans.

INSTRUCTIONS FOR THE POWER SUPPLY CORD A. A short power-supply cord (or detachable power-supply cord) is to be

provided to reduce risks resulting from becoming entangled in or tripping

B. Longer detachable power-supply cords or extension cords are available

and may used if care is exercised in their use.

C. If a long detachable power-supply cord or extension cord is used,

1. The marker electrical rating of the detachable power-supply cord or extension

cord should be at least as great as the electrical rating of the appliance

2. If the appliance is of the grounded type, the extension cord should be a

grounding-type 3-wire cord, and

3. The longer cord should be arranged so that it will not drape over the counter top

or table top where it can be pulled on by children or tripped over.• 16 •

GENERAL INFORMATION The co ee machine is suitable for preparing espresso co ees using whole co ee beans and is

equipped with a device to dispense steam and hot water.

The machine is designed for domestic use and is not suitable for heavy or professional use.

Keep these operating instructions in a safe place and make them available to anyone

who may use the co ee machine.

For further information or in case of problems that are not included or not completely explai-

ned in these instructions, please contact the Saeco customer service or an authorized service

Warning. No liability is assumed for damage caused by:

• Incorrect use not in accordance with the intended uses;

• Repairs not carried out by authorized service centers;

• Tampering with the power cord;

• Tampering with any part of the machine;

• Storage or use of the machine at a temperature outside the operating temperature

range (+15°C / +45°C);

• Use of non-original spare parts and accessories.

In these cases, the warranty shall be deemed null and void.

SAFETY REGULATIONS Never allow water to come into contact with any of the electrical parts of the

machine: Danger of short circuit! Steam and hot water may cause scalding! Do

not direct the steam or hot water jet towards body parts. Carefully handle the steam/

hot water spout by means of the special handle: Danger of scalding!

The co ee machine is intended for domestic use only. Do not make any technical changes or use

the machine for unauthorized purposes since this would create serious hazards! The appliance is

not to be used by persons (including children) with reduced physical, mental or sensory abilities

or with limited experience and/or expertise, unless they are supervised by a person responsible

for their safety, or they are instructed by this person on how to properly use the machine.

Power Supply - Power Cord

Only connect the co ee machine to a suitable power socket.

The voltage must correspond to the indication on the machine label located on the inside of

Never use the co ee machine if the power cord is defective or damaged.

If damaged, the power cord must be replaced by the manufacturer or an authorized service

center. Do not pass the power cord around corners, over sharp edges or over hot objects and

keep it away from oil. Do not use the power cord to carry or pull the co ee machine.

Do not pull out the plug by the power cord or touch it with wet hands. Do not let the power cord

hang freely from tables or shelves.

For the Safety of Others

Keep children under control to prevent them from playing with the product. Children are not

aware of the risks related to electric household appliances. Do not leave the machine packaging

materials within the reach of children.• 17 •

Never direct the jet of hot steam and/or hot water towards yourself or others: Danger of scal-

ding! Always use the handles or knobs provided.

Machine Location - Suitable Location for Operation and Maintenance

For best use, it is recommended to:

• Choose a safe, level surface, where there will be no danger of overturning it or being inju-

• Choose a location that is su ciently well-lit, clean and near an easily reachable socket.

• Allow for a minimum distance from the sides of the machine as shown in the illustration;

• During machine turning on/o , it is recommended to place an empty glass under the di-

Do not keep the machine at a temperature below 0°C (32°F). Frost may damage the machine.

Do not use the co ee machine outdoors. In order to prevent its housing from melting or being

damaged, do not place the machine on very hot surfaces or close to open  ames.

Storing the Machine - Cleaning

Before cleaning the machine, turn it o by pressing the ON/OFF button, then remove the plug

Wait for the machine to cool down.

Never immerse the machine in water!

It is strictly forbidden to tamper with the internal parts of the machine.

Water left in the tank for several days should not be consumed. Wash the tank and  ll it with

fresh drinking water.

If the machine is to remain inactive for a long time, dispense water from the steam wand, and

carefully clean the Pannarello (if supplied), then turn it o and unplug it. Store it in a dry place,

out of the reach of children. Keep it protected from dust and dirt.

Repairs / Maintenance

In case of failure, problems or a suspected fault resulting from the falling of the machine, im-

mediately remove the plug from the socket. Never attempt to operate a faulty machine.

Servicing and repairs may only be carried out by authorized service centers. All liability for

damages resulting from work not carried out by professionals is declined.

Fire Safety Precautions

In case of  re, use carbon dioxide (CO

) extinguishers. Do not use water or dry powder extin-

Co ee bean hopper lid

Grinder adjustment key

Brew group lubricant

Double co ee light and brewed

co ee length setting

Full drip tray indicator

Hot water/steam wand

INSTALLATION For your safety and the safety of

others, carefully follow the instruc-

tions provided in the “Safety Regula-

The original packaging has been designed

and constructed to protect the machine

during transport. We recommend keeping

the packaging material for possible future

Preliminary Operations

• Remove the co ee bean hopper lid and

the drip tray with grill from the packa-

• Remove the co ee machine from the

packaging and position it in a place that

meets the requirements described in the

“Safety Regulations”.

• Place the drip tray with grill into its

appropriate seat on the machine. Make

sure it is fully inserted to its limit stop.

• Replace the co ee bean hopper lid.

• Before plugging the machine into the

socket, be sure that all steps outlined in

section “Using the Machine for the First

Time” have been completed.

Important Note: Carefully read

the explanations of all the

warnings displayed by the machine

to the user by means of the lights on

the control panel (see section “Control

NEVER remove the drip tray

when the machine is turned on.

Wait a couple of minutes after turning

on/o , since the machine will carry out

a rinse/self-cleaning cycle (see section

“Rinse/Self-Cleaning Cycle”).

MAX MIN Using the Machine for the

• Remove the water tank.

• Rinse and  ll it with fresh water ma-

king sure that it is not  lled exceeding

the MAX level indicated in the water

tank. Put the water tank back in its

seat to its limit stop.

Use only fresh, non-sparkling

water to fill the tank. Hot

water or any other liquid may damage

the tank and/or the machine. Do not

turn on the machine when the tank

is empty: Make sure there is enough

• Remove the co ee bean hopper lid.

Note: The hopper may be

fitted with different safety

features according to the regula-

tions of the country of use of the

• Slowly pour the co ee beans into the

Only co ee beans must be put

into the co ee bean hopper.

Ground coffee, instant coffee or

any other object may damage the

• Replace the lid on the co ee bean hop-

• Insert the plug into the socket located

on the back of the machine.

• Insert the plug of the other end of the

power cord into a wall socket with

suitable power voltage.• 20 •

• Make sure control dial is on “ ” posi-

tion; if this is not the case, set it to that

• Simply press the ON/OFF button to

turn the machine on; the “ “ light will

begin to blink rapidly indicating that

the water circuit must be primed.

Note: Before starting the

machine for the first time,

prime the water circuit.

Priming the Water Circuit

• To prime the water circuit, place a

container under the hot water / steam

• Turn the control dial clockwise to set it

” position and wait.

When water steadily comes out and the

“ light will blink slowly - indicating

that the knob can be turned o - rotate

the control dial counter-clockwise to set

• At this point the “

blink slowly, indicating that the ma-

chine is in warm-up mode.

When warm-up is complete,

the machine performs a rinse

cycle of the internal circuits.

• When the above steps are complete,

“ light is on steady.

The machine is now ready for use.

• To brew co ee, dispense hot water or

steam, and for a proper use of the ma-

chine, carefully follow the instructions

Rinse/Self-Cleaning Cycle

This cycle will rinse the internal circuits

The cycle is carried out:

• At machine start (with cold boiler)

• After priming the water circuit (with

• During the standby preparation phase

(if a co ee product has been brewed)

• During the turning off phase after

pressing the ON/OFF button (if a co ee

product has been brewed).

place a container beneath

the dispensing spout.

A small amount of water will be dispensed

which will rinse and heat all the machine

components; in this phase the indicator

lights  ash counter-clockwise.

Wait for the cycle to  nish automatically.

You can stop dispensing as well, by pres-

sing either co ee button.

ADJUSTMENTS The machine that you have bought allows

for certain adjustments that will permit

you to use it to its full potential.

Saeco Adapting System

Coffee is a natural product and its cha-

racteristics may change according to its

origin, blend and roast. The Saeco co ee

machine is equipped with a self-adjusting

system that allows the use of all types of

co ee beans available on the market (non

• The machine automatically adjusts

itself in order to optimize the extrac-

tion of the coffee, ensuring perfect

compression of the beans to obtain a

creamy espresso co ee that will release

all the aromas, regardless of the type of

• The optimization process is a learning

process that requires the brewing of a

certain number of co ees to allow the

machine to adjust the compactness of

• Attention should be given to spe-

cial blends, which require grinder

adjustments in order to optimize the

extraction of the co ee (see section

“Co ee Grinder Adjustment”).

Coff ee Grinder Adjustment

Warning! The grinder

adjustment knob, inside the

co ee bean hopper, must be turned

only when the grinder is working. Do

not pour ground and/or instant co ee

into the co ee bean hopper.

Do not insert any material

other than co ee beans into

the hopper. The grinder contains

moving parts that may be dangerous.

Therefore, do not insert  ngers and/or

other objects. Only adjust the grinder

using the grinder adjustment key.

Turn o the machine by pressing the

ON/OFF button and remove the plug

from the socket before carrying out

any type of operation inside the co ee

bean hopper. Do not pour co ee beans

when the co ee grinder is working.

The machine lets you make slight

adjustments to the co ee grinder to adapt

it to the kind of co ee used.

This adjustment should be carried out by

adjusting the pin on the inside of the co ee

bean hopper; this pin must be pressed and

turned only with the grinder adjustment

key provided with the co ee machine.

Press and turn the pin one notch at a time.

You must brew 2-3 co ees before you will

The reference marks inside the co ee bean

hopper indicate the grind setting. There

are 5 different grind settings to choose

from with the following references:

Adjusting the Brewed Coff ee

The machine allows you to adjust the

amount of brewed coffee according to

your taste and/or the size of your cups.

are pressed and released, the machine

brews a pre-set amount of coffee. This

amount may be reprogrammed to your

taste. Each button may be individually

programmed for a speci c brew setting.

As an example, the following procedure

describes the programming of the small

“, which is normally

associated with espresso co ee.

• Place a cup under the dispensing

• Press and hold down the “

“ light blinks during this

amount of coffee in the cup reaches

At this point the button “

grammed; each time it is pressed and

released, the machine will brew the same

amount of co ee that was just program-

The machine is designed for energy sa-

After 60 minutes of inactivity, the machi-

nes turns o automatically.

Note: During the turning o

phase, the machine performs

a rinse cycle, if a co ee product has

To turn the machine on again, simply

press the ON/OFF button; in this case the

machine will go through the rinse cycle

only if the boiler is cold.

COFFEE BREWING Before brewing co ee, make

sure that the green tem-

that the water tank and the co ee

Leave the control dial on the

the dispensing phase.

• Place 1 or 2 cups under the dispensing

• To brew co ee, press and release:

button once. To dispense 2 cups of

co ee, press the button twice.

In this operating mode,

the machine automatically

grinds and doses the correct amount

of coffee. Brewing two coffees re-

quires two grinding cycles and two

brewing cycles, automatically carried

out by the machine; this option is

• After the prebrewing cycle, co ee be-

gins to dispense out of the dispensing

• Coffee brewing stops automatically

when the pre-programmed level is

reached; however, it is possible to in-

terrupt co ee brewing by pressing the

button initially pressed.

The machine is adjusted to

brew a true Italian espresso

coffee. This feature may slightly

lengthen the brewing time, allowing

the intense flavor of the coffee to

DISPENSING HOT WATER Warning: Dispensing may be

preceded by short sprays of

hot water, and scalding is possible.

The hot water/steam wand may reach

high temperatures. Do not touch it

with bare hands; use the appropriate

• Before dispensing hot water, check

that the green temperature “

When the machine is ready, proceed as

• Place a container under the hot water /

steam wand (Pannarello, if supplied);

• Turn the control dial clockwise to set it

• Fill the cup with hot water to the desi-

red level; to stop hot water dispensing,

turn control dial counter-clockwise

returns to the normal operating mode.

Occasionally, after turning

the control dial, hot water

may not be dispensed and the “

light may blink slowly. To obtain a

 ow of hot water, simply wait until

“ light stops blinking and re-

CAPPUCCINO BREWING Steam may be used to froth milk for a

cappuccino, as well as to reheat other

Warning: Dispensing may be

preceded by short sprays of

hot water, and scalding is possible.

The hot water/steam wand may reach

high temperatures. Do not touch it

with bare hands; use the appropriate

Important Note: Immediately

after using the steam to froth

the milk, clean the steam wand (or

Pannarello when provided). When

the machine is ready, brew a small

Steady on• 23 • English amount of hot water in a glass and

clean the wand (or Pannarello when

provided) externally. In this way, all

parts will be perfectly cleaned and

free of any milk residue.

• Place a container under the hot water /

steam wand (Pannarello, if supplied).

• When the machine is ready to brew

coffee, turn the control dial counter-

clockwise to set it onto the “

tion. Residual water may come out of

the wand (Pannarello, if supplied).

“ light blinks during the prehea-

ting time required by the machine.

• Steam dispensing will begin when the

“ remains steady on; soon

after only steam will begin to come

• Turn the control dial clockwise and

set it back to the “

• Fill 1/3 of the container you wish to use

to prepare the cappuccino with cold

After using steam to prepare

To brew a coffee: Follow the procedu-

re described in section “Steam/Coffee

Switchover” to bring the machine back to

the co ee brewing temperature.

To dispense hot water: Follow the pro-

cedure described in section “Dispensing

If the control dial is left on the

central position, the machine,

in order to save energy, automatically

reaches the temperature needed to

Steam/Coff ee Switchover

• After dispensing steam and pressing

“ or “ “ co ee button, the

“ light blinks quickly to show that

the machine is overheated and cannot

• To brew coffee, first drain a small

Place a container under the steam wand

(Pannarello, if supplied) and turn the

control dial clockwise to set it to the “

Wait for the temperature “ “ light to be

Then turn the control dial counter-

clockwise and set it back to the “

position to stop dispensing.

• Now follow the procedure described in

the “Coffee Brewing” section to brew

CLEANING AND MAINTENANCE General Cleaning

• Empty and clean the dregdrawer daily,

with the machine turned on.

• Maintenance and cleaning operations

can only be carried out when the

machine is turned o and unplugged.

• Do not immerse the machine in water.

Use cold milk for better results

when preparing a cappuc-

• Immerse the steam wand (Pannarello, if

supplied) in the milk to be heated and

” position. Froth the

milk by gently swirling the cup and

moving it up and down.

• After dispensing steam for the desired

time, turn the control dial clockwise

and set it back to the “

stop dispensing steam.

• The same procedure can be used to heat

After using the steam wand (Pannarello, if

supplied), wash it as described in the “Cle-

aning and Maintenance” section.• 24 •

• Do not wash any of its parts in the

• Do not use alcohol, solvents, and/or

abrasive objects to clean the machine.

• Use a soft, dampened cloth to clean the

• Do not dry the machine and/or its

components using a microwave and/

After brewing milk beve-

rages, dispense hot water

from the hot water / steam wand

(Pannarello, if supplied) to obtain a

• Every day, after heating the milk, remo-

ve the external part of the Pannarello

(if supplied) and wash it with fresh

• Clean the hot water / steam wand we-

ekly. In order to do this, perform the

following operations:

- Remove the external part of the

Pannarello (for standard cleaning);

- Remove the upper part of the Panna-

rello from the wand;

- Wash the upper part of the Pannarel-

lo with fresh drinking water;

- Wash the wand with a wet cloth and

remove any milk residue;

- Replace the upper part in the wand

(make sure it is completely inser-

Reassemble the external part of the

• It is recommended to clean the water

- Remove the small white  lter from

the water tank and wash it under

running drinking water.

- Reposition the small white  lter in

its housing by gently pressing and

turning it at the same time.

- Fill the water tank with fresh drinking

• Empty and clean the drip tray daily.

Perform this operation also when the

• The brew group should be cleaned

every time the co ee bean hopper is

 lled or at least once a week.

• Turn o the machine by pressing the

ON/OFF button and remove the plug

• Remove the dregdrawer. Open the

• To remove the brew group, pull it by the

handle and press the «PUSH» button.

The brew group must be washed only

with lukewarm water with no deter-

• Wash the brew group with lukewarm

water, carefully clean the upper  lter

• Thoroughly wash and dry all the parts

• Thoroughly clean the inside of the

• Make sure that the two reference marks

• Make sure that the lever is in contact

with the brew group. Press the “PUSH”

button to make sure that the brew

group is in the correct position.

Lubricate the brew group

after approximately 500

brewing cycles. The brew group

lubricant may be purchased through

Saeco or authorized service centers.

• Lubricate the brew group guides using

the supplied lubricant only.

• Apply the lubricant evenly on both side

• Insert the brew group in its seat until it

locks into place WITHOUT pressing the

DESCALING Limescale normally builds up with the

use of the appliance. Descaling should be

performed every 1-2 months, or when in-

dicated by the machine.

Use the Saeco descaling so-

lution. Its formula has been

designed to ensure better machine

performance and operation for its

whole operating life. If correctly used,

it also avoids alterations in the brewed

Warning! Never use vinegar as

a descaling solution.

Before descaling, remove the Pannarello (if

supplied) from the hot water / steam wand

as described in the “Cleaning and Mainte-

• Turn the machine on by pressing the ON/

OFF button. Wait for the machine to

 nish its rinse cycle and warm up.

• Mix the descaling solution with water as

speci ed on the package of the descaling

product and  ll the water tank.

• Replace water tank back on machine.

• Place a container below the steam

• Dispense one cup of water at a time to

completely empty the water tank by

turning the control dial clockwise to the

” position. To stop dispensing, turn

the control dial counter-clockwise to set

descaling solution to work for about

button to turn the machine o . Empty

• Repeat this operation until the descaling

solution is  nished and the water tank is

• When the descaling solution is  nished,

rinse the water tank and  ll it with fresh

• Turn the machine on by pressing the ON/

• Empty the water tank by turning the

control dial clockwise to the “

sition. When the water tank is empty,

When descaling is complete, insert the

Pannarello (if supplied) onto the hot

water / steam wand as described in the

“Cleaning and Maintenance” section.

The descaling solution is to

be disposed of according

to the manufacturer’s instructions

and/or regulations in force in the

- The packing materials can be re-

- Appliance: unplug the appliance and

- Deliver the appliance and power cord to

a service center or public waste disposal

This product complies with eu directive

on the product or on

its packaging indicates that this product

may not be treated as household waste.

Instead it shall be handed over to the ap-

plicable collection point for the recycling

of electrical and electronic equipment.

By ensuring this product is disposed of

correctly, you will help prevent potential

negative consequences for the environ-

ment and human health, which could

otherwise be caused by inappropriate

waste handling of this product. For more

detailed information about recycling of

this product, please contact your local

city o ce, your household waste disposal

service or the shop where you purchased

Light Signals Causes Solutions

The machine has reached the right temperature and

- For co ee brewing;

- For hot water dispensing;

- For steam dispensing

The machine is warming up to brew coffee and

dispense hot water or steam.

Machine is overheating. Co ee may not be brewed. The water must be drained into a container by turning the

selector switch clockwise to the

“ ” position until the green

ready temperature light “ “ stays constantly on. After that, stop

Indicates that the machine is programming the

amount of co ee to brew (see section “Adjusting the

The machine is brewing a double co ee

Low water level. Fill the water tank with fresh drinking water. After re lling the water

tank, the indicator light turns o .

The co ee bean hopper is empty. Fill the hopper with co ee beans and start the procedure again.

The dregdrawer is full With the machine turned on, empty the dregdrawer. The dregdrawer

must be emptied after every 8 co ee cycles. If the dregdrawer is

emptied with the machine turned o , or when the indicator light

is not illuminated, the count of co ee cycles is not reset. For this

reason, the indicator light to empty the dregdrawer may illuminate

even when it is not full.

The water circuit is empty. Fill the tank with fresh drinking water and prime the water circuit as

described in Section “Using the Machine for the First Time”.

Brew group not inserted. Dregdrawer not inserted.

Service door open. Control dial is not in correct position.

Make sure that all components have been correctly inserted and

closed. The blinking red light will now turn o .

Blinking in counter-

clockwise direction (cyclical)

The machine is performing the rinse/self-cleaning

The machine ends the cycle automatically.

You can interrupt the cycle by pressing either co ee button.

A fault has occurred in the brew group. Try again to brew another co ee.

A fault has occurred in the machine and hot water,

steam or co ee cannot be dispensed.

Turn the machine o . After 30-seconds, turn it back on.

Try this 2 or 3 times.

If the machine does NOT start, contact an authorized service center.

CONTROL PANEL LIGHTS• 27 • English Problems Causes Solutions

The machine does not turn on. The machine is not connected to the power source. Connect the machine to the power source.

The co ee is not hot enough. The cups are cold. Preheat the cups with hot water.

Hot water or steam is not dispensed. The hole of the hot water / steam wand is clogged. Clean the hole of the hot water / steam wand using a pin.

Make sure that the machine is turned o and has cooled

before performing this operation.

Pannarello is dirty (if supplied). Clean the Pannarello.

The co ee is not creamy enough.

The co ee blend is unsuitable, the co ee is not freshly

roasted or the grind is too coarse.

Change co ee blend or adjust the grinder as explained in section

“Co ee Grinder Adjustment”.

The machine takes a long time to warm up or

the amount of water dispensed from the wand

The machine’s water circuit is obstructed by limescale

Descale the machine.

The brew group cannot be removed. The brew group is out of place. Turn the machine on. Close the service door. The brew group au-

tomatically returns to the correct position.

The dregdrawer is inserted. Remove the dregdrawer  rst, then the brew group.

The machine grinds the co ee beans but no cof-

The brew group is dirty. Clean the brew group (section “Brew Group”).

The circuit is not primed. Prime the circuit (section “Using the Machine for the First Time”).

Rare event that occurs when the machine is automati-

cally adjusting the dose.

Brew a few co ees as described in section “Saeco Adapting Sys-

The dispensing spout is dirty. Clean the dispensing spout.

The co ee is too weak.

Rare event that occurs when the machine is automati-

cally adjusting the dose.

Brew a few co ees as described in section “Saeco Adapting Sys-

Co ee is brewed slowly.

The co ee grind is too  ne. Change co ee blend or adjust the grind as explained in section

“Co ee Grinder Adjustment”.

The water circuit is not primed. Prime the circuit (section “Using the Machine for the First Time”).

The brew group is dirty. Clean the brew group (section “Brew Group”).

Note: These problems can be considered normal if the co ee blend has been changed or if the machine has just been installed. In this case

wait until the machine performs a self-adjusting operation as described in section “Saeco Adapting System”.

Please contact customer service for any problems not covered in the above table or when the suggested solutions do not solve the pro-

TROUBLESHOOTING TECHNICAL SPECIFICATIONS The manufacturer reserves the right to make changes to the technical speci cations of the product.

AN 09 - 2006/95/CE, 2004/108/CE.

Ing. Andrea Castellani

declare under our responsibility that the product :

AUTOMATIC COFFEE MAKER SUP 033R

to which this declaration relates is in conformity with the following standards

or other normative documents :

• Safety of household and electrical appliances - General requirements

EN 60335-1(2002) + A1(2004) + A2(2006) + A11(2004) + A12(2006)+ A13(2008)

• Safety of household and electrical appliances - Part 2-15

Particular requirements for appliances for heating liquids

EN 60335-2-15(2002) + A1(2005)

• Household and similar electrical appliances - Electromagnetic  elds - methods for

evaluation and measurement EN 50366 (2003) + A1 (2006).

• Household and similar electrical appliances - safety - Part 2-14

Particular requirements for kitchen machines EN 60335-2-14 (2006).

• Electromagnetic compatibility (EMC) - Requirements for household appliances ,

electric tools and similar apparatus - Part 1 - Emission EN 55014-1 (2006).

• Electromagnetic compatibility (EMC) - Part. 3^ Limits - Section 2 : Limits for harmo-

nic current emissions (equipment input current ≤ 16A for phase)

• Electromagnetic compatibility (EMC) - Part 3^ : Limits - Section 3 : Limitation of vol-

tage changes , voltage  uctuations and  icker in public low - voltage supply systems,

for equipment with rated current ≤ 16 A for phase and not subject to conditional

connection - EN 61000-3-3 (1995)+ corr.(1997) +A1 (2001) + A2 (2005).

• Electromagnetic compatibility - Requirements for household appliances , electric

tools and similar apparatus - Part 2. Immunity - Product family standard

EN 55014-2 (1997) + A1 (2001)

following the provisions of the Directives: EC 2006/95 , EC 2004/108.

The manufacturer reserves the right to change the features of the product without prior notice.

© Saeco International Group S.p.A.
