USER MANUAL Series 55070cc BRAUN

Clean&Charge Station

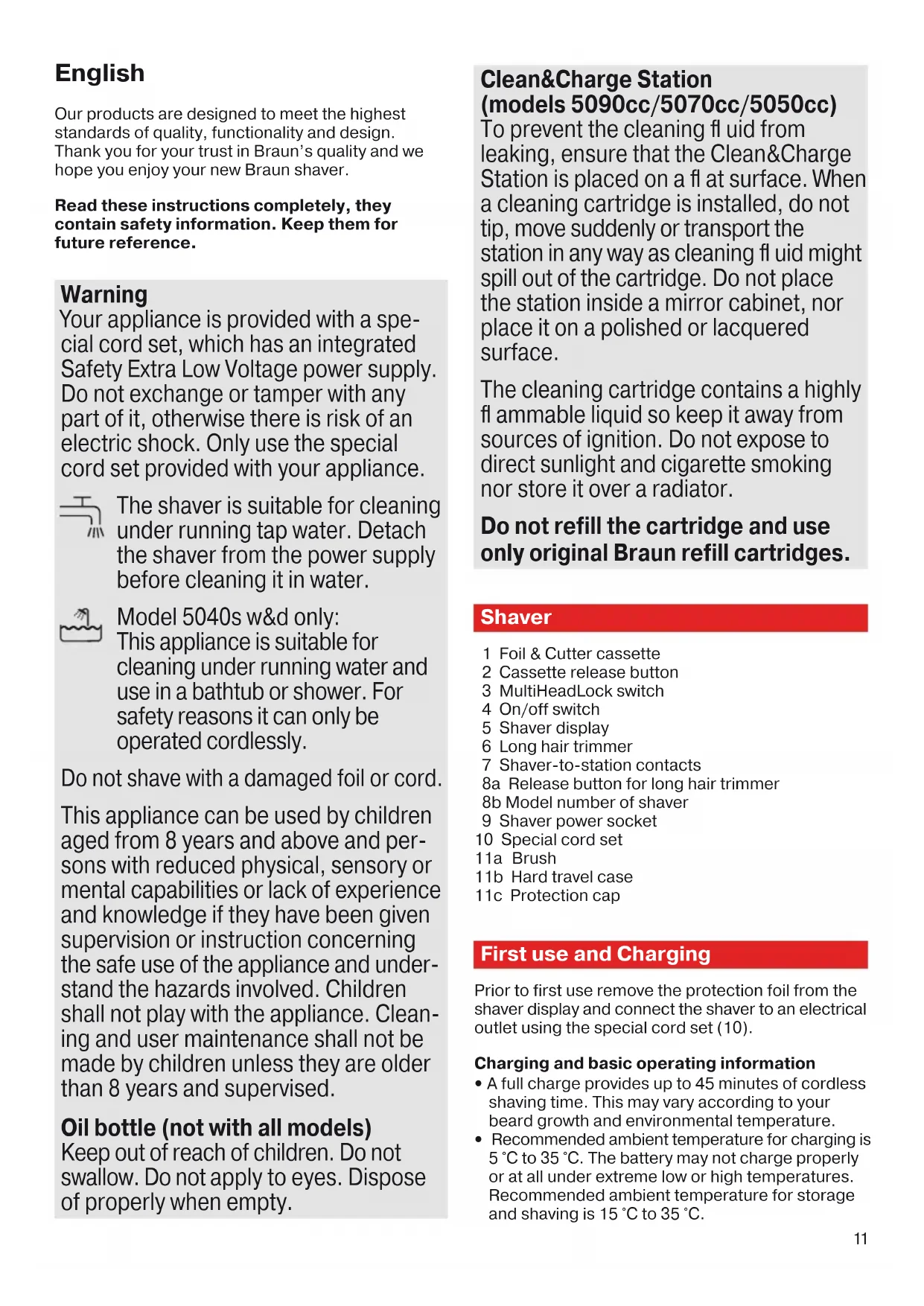

Our products are designed to meet the highest

standards of quality, functionality and design.

Thank you for your trust in Braun’s quality and we

hope you enjoy your new Braun shaver.

Read these instructions completely, they

contain safety information. Keep them for

Your appliance is provided with a spe-

cial cord set, which has an integrated

Safety Extra Low Voltage power supply.

Do not exchange or tamper with any

part of it, otherwise there is risk of an

electric shock. Only use the special

cord set provided with your appliance.

The shaver is suitable for cleaning

under running tap water. Detach

the shaver from the power supply

before cleaning it in water.

Model 5040s w&d only:

This appliance is suitable for

cleaning under running water and

use in a bathtub or shower. For

safety reasons it can only be

operated cordlessly.

Do not shave with a damaged foil or cord.

This appliance can be used by children

aged from 8 years and above and per-

sons with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning

the safe use of the appliance and under-

stand the hazards involved. Children

shall not play with the appliance. Clean-

ing and user maintenance shall not be

made by children unless they are older

than 8 years and supervised.

Oil bottle (not with all models)

Keep out of reach of children. Do not

swallow. Do not apply to eyes. Dispose

of properly when empty.

Clean&Charge Station

(models 5090cc/5070cc/5050cc)

To prevent the cleaning fl uid from

leaking, ensure that the Clean&Charge

Station is placed on a fl at surface. When

a cleaning cartridge is installed, do not

tip, move suddenly or transport the

station in any way as cleaning fl uid might

spill out of the cartridge. Do not place

the station inside a mirror cabinet, nor

place it on a polished or lacquered

The cleaning cartridge contains a highly

fl ammable liquid so keep it away from

sources of ignition. Do not expose to

direct sunlight and cigarette smoking

nor store it over a radiator.

Do not refill the cartridge and use

only original Braun refill cartridges.

1 Foil & Cutter cassette

2 Cassette release button

3 MultiHeadLock switch

First use and Charging

Prior to first use remove the protection foil from the

shaver display and connect the shaver to an electrical

outlet using the special cord set (10).

Charging and basic operating information

• A full charge provides up to 45 minutes of cordless

shaving time. This may vary according to your

beard growth and environmental temperature.

• Recommended ambient temperature for charging is

5 °C to 35 °C. The battery may not charge properly

or at all under extreme low or high temperatures.

Recommended ambient temperature for storage

and shaving is 15 °C to 35 °C.

97144167_5090cc_MN_S6-76.indd 11 11.09.14 08:1212

• Do not expose the appliance to temperatures

higher than 50 °C for extended periods of time.

• When the shaver will be connected to an electrical

outlet, it may take some minutes until the display

The shaver display (5) shows the charge status of

During charging: The battery symbol will blink.

(5090cc: The respective battery segment will blink.)

Fully charged (shaver is connected to an electrical

outlet): The battery symbol will light up for a few

seconds. (5090cc: All battery symbols will light up

The low-charge light

flashes red when the

battery is running low. You should be able to finish

your shave. With switching off the shaver a beep

sound reminds of the low charge status.

(models 5090cc/5070cc/5050cc only)

The cleaning indicator

lights up, when the shaver

needs to be cleaned in the Clean&Charge Station.

lights up when the shaver has

been locked to avoid unintended starting of the

motor (e.g. for storing it in a suitcase).

Using the shaver (see fig. A)

Press the on/off switch (4) to operate the shaver.

Tips for a perfect dry shave

For best results, Braun recommends you to follow

1. Always shave before washing your face.

2. At all times, hold the shaver at the right angle

3. Stretch your skin and shave against the direction

of your beard growth.

MultiHeadLock switch (head lock)

To shave hard-to-reach areas (e.g. under the nose)

slide the MultiHeadLock switch (3) down to lock the

shaver head. The shaver head can be locked in five

positions. To change position, move the shaver head

with your thumb and forefinger back or forth. It will

automatically click into the next position.

Models 5090cc/5070cc/5050cc: For automatic

cleaning in the Clean&Charge Station the head lock

release button (8a) and slide the long hair trimmer

Shaving with the cord (models 5090cc/5070cc/

5050cc/5030s/5020s only)

If the shaver has run out of power (discharged), you

may also shave with the shaver connected to an

electrical outlet via the special cord set.

• Activation: By pressing the on/off switch (4) for

3 seconds the shaver is locked. This is confirmed

by a beep sound and the lock symbol

display. Afterwards the display turns off.

• Deactivation: By pressing the on/off switch for

3 seconds the shaver is unlocked again.

Manual cleaning of the shaver (s. fig. B/C)

Cleaning under running water

• Switch on the shaver (cordless) and rinse the shaver

head under hot running water until all residues

have been removed. You may use liquid soap

without abrasive substances. Rinse off all foam

and let the shaver run for a few more seconds.

• Next, switch off the shaver, press the release

button (2) to remove the Foil & Cutter cassette (1)

• If you regularly clean the shaver under water, then

once a week apply a drop of light machine oil on

top of the Foil & Cutter cassette.

Model 5040s w&d only: The shaver should be

cleaned after each foam usage.

Cleaning with a brush

• Switch off the shaver. Remove the Foil & Cutter

cassette (1) and tap it out on a flat surface. Using

the brush, clean the inner area of the pivoting

head. Do not clean the cassette with the brush as

Clean&Charge Station

for models 5090cc/5070cc/5050cc only

The Clean&Charge Station has been developed for

cleaning, charging, lubricating, disinfecting and

storing your Braun shaver.

12 Station power socket

13 Lift button for cartridge exchange

14 Station-to-shaver contacts

15 Clean&Charge Station display

17 Cleaning cartridge

97144167_5090cc_MN_S6-76.indd 12 11.09.14 08:1213

Installing the Clean&Charge Station (see fig. D)

• Remove the protection foil from the Clean&Charge

• Using the special cord set (10), connect the

station power socket (12) to an electrical outlet.

• Press the lift button (13) at the rear side of the

Clean&Charge Station to lift up the housing.

• Hold the cleaning cartridge (17) down on a flat,

stable surface (e.g. table).

• Carefully remove the lid from the cartridge.

• Slide the cartridge from the rear side into the base

of the station until it snaps into place.

• Slowly close the housing by pushing it down until

Charging the shaver in the Clean&Charge Station

Insert the shaver head down into the cleaning station.

Important: The shaver needs to be dry and free

from any foam or soap residue!

The contacts (7) on the back of the shaver need to

align with the contacts (14) in the station. Push the

shaver in the correct position.

A beep sound confirms that the shaver sits properly

in the station. Charging will start automatically.

Model 5090cc: The Clean&Charge Station analyzes

the hygiene status. The status is shown by the

cleaning program indicators

Station display (15) more details see chapter

«Cleaning programs» below.

Cleaning the shaver (see fig. D)

When the cleaning indicator lights up in the shaver

display, insert the shaver into the Clean&Charge

Station, upside down and with the front showing (with

released head lock/contact alignment/beep sound).

5090cc: The hygiene status will be analyzed and one

of the following program indicators will light up.

short economical cleaning

normal level of cleaning

high intensive cleaning

5070cc/5050cc: One standard cleaning program

Start automatic cleaning

Start the cleaning process by pressing the start

button (16). If status light (15a) does not shine

(Clean&Charge Station switches to stand-by after

ca. 10 minutes), press start button twice. Otherwise

cleaning will not start. For best shaving results,

we recommend cleaning after each shave.

Each cleaning program consists of several cycles,

where cleaning fluid is flushed through the shaver

head. Depending on your Clean&Charge Station

model and/or program selected, the cleaning time

takes up to 3 minutes. During this time the status light

blinks. Leave the shaver in the station for drying.

It takes several hours until remaining moisture

evaporates depending on the climatic conditions.

Afterwards the shaver is ready for use.

After completing the cleaning and charging proce-

dure, all indicators turn off.

Removing the shaver from the Clean&Charge

Station (see fig. E)

Hold the Clean&Charge Station with one hand and

tilt the shaver slightly to the front to release it.

Cleaning Cartridge / Replacement (see fig. F)

When the level indicator

lights up permanently

red, the remaining fluid in the cartridge is sufficient

for about 3 more cycles. When the level indicator

blinks red, the cartridge needs to be replaced -

about every 4 weeks (when used daily).

After having pressed the lift button (13) to open the

housing, wait for a few seconds before removing

the used cartridge to avoid any dripping. Before

discarding the used cartridge, make sure to close

the openings using the lid of the new cartridge,

since the used cartridge will contain contaminated

The hygienic cleaning cartridge contains ethanol or

isopropanol (specification see cartridge), which once

opened will naturally evaporate slowly. Each cartridge,

if not used daily, should be replaced after approxi-

mately 8 weeks to ensure optimal disinfection.

The cleaning cartridge also contains lubricants for

the shaving system, which may leave residual marks

on the outer foil frame and the cleaning chamber

of the Clean&Charge Station. These marks can be

removed easily by wiping gently with a damp cloth.

Braun recommends changing your shaver’s

Foil & Cutter cassette every 18 months to maintain

your shaver’s maximum performance.

Available at your dealer or Braun Service Centres:

• Foil & Cutter cassette: 52S/52B

• Cleaning cartridge Clean&Charge Station: CCR

• Braun Shaver cleaner spray

Environmental notice

Product contains batteries and/or recyclable

electric waste. For environment protection do

not dispose of in household waste, but for

recycling take to electric waste collection

points provided in your country.

The cleaning cartridge can be disposed of with

regular household waste.

Subject to change without notice.

For electric specifications, see printing on the

97144167_5090cc_MN_S6-76.indd 13 11.09.14 08:1214

Problem Possible reason Remedy

SHAVER Unpleasant smell

from the shaver head.

1. Shaver head is cleaned with

2. Cleaning cartridge is in use

for more than 8 weeks.

1. When cleaning the shaver head with water only

use hot water and from time to time some liquid

soap (without abrasive substances). Remove

Foil & Cutter cassette to let it dry.

2. Change cleaning cartridge at least every 8 weeks.

dropped significantly.

1. Foil and cutter are worn

which requires more power

2. Shaver head is regularly

cleaned with water but not

1. Renew Foil & Cutter cassette.

2. If the shaver is regularly cleaned with water, apply

a drop of light machine oil on top of the foil once

a week for lubrication.

dropped significantly.

1. Foil and cutter are worn.

2. Shaving system is clogged.

1. Renew Foil & Cutter cassette.

2. Soak the Foil & Cutter cassette into hot water

with a drop of dish liquid. Afterwards rinse it

properly and tap it out. Once dry apply a drop of

light machine oil on the foil.

Foil and cutter are worn which

requires more power for each

– Renew Foil & Cutter cassette.

– Regularly oil the shaving system, especially when

cleaning with water only.

1. Drying time after automatic

cleaning was too short.

2. Drain of the Clean&Charge

1. Clean directly after shaving to allow enough time

2. Clean the drain with a wooden toothpick.

CLEAN&CHARGE STATION Cleaning does not

1. Shaver is not placed properly

in the Clean&Charge Station.

2. Cleaning cartridge contains

not enough cleaning fluid

(display blinks red).

1. Insert shaver into the Clean&Charge Station and

push it to the rear side of the station (contacts

of the shaver need to align with contacts in the

Drain of the Clean& Renew

– Clean the drain with a wooden toothpick.

– Regularly wipe the tub clean.

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee

period we will eliminate any defects in the appliance resulting from faults in materials or workmanship,

free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that

have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs

are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales

receipt to an authorised Braun Customer Service Centre (address information available online at

www.service.braun.com)

97144167_5090cc_MN_S6-76.indd 14 11.09.14 08:1215

This guarantee in no way affects your rights under

For Australia & New Zealand only:

In Australia, our goods come with guarantees

that cannot be excluded under the Australian

Consumer Law. You are entitled to a replacement

or refund for a major failure and for compensation

for any other reasonably foreseeable loss or

damage. You are also entitled to have the goods

repaired or replaced if the goods fail to be of

acceptable quality and the failure does not

amount to a major failure.

The benefits given by this warranty are in

addition to other rights and remedies of the

For Claims in Australia please contact:

Procter & Gamble Australia Pty Ltd

1 Innovation Road, Macquarie Park

Email: gillette@au.pgconsumers.com

For claims in New Zealand please contact:

Procter & Gamble Distributing New Zealand Limited

Unit 3, Building I, 5 Orbit Drive

Rosedale, North Shore City 0632

Auckland, New Zealand

Telephone: +649 477 6400

This appliance is also covered by a 24 Month

Replacement Warranty commencing on the date of

purchase (Our Warranty).

Our Warranty applies in all States and Territories

of Australia and in New Zealand and is in addition

to any mandatory statutory obligations imposed

on Procter & Gamble Australia Pty. Ltd., its

distributors and its manufacturer. Our Warranty

does not purport to exclude, restrict or modify

any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance

resulting from faults in workmanship or materials.

Therefore, if your appliance becomes faulty as a

result of faults in workmanship or materials, it will be

exchanged by your retailer, on presentation of proof

Our Warranty only applies to domestic or household

use of this appliance and the warranty will only apply

if the correct operating instructions included with

this product have been followed. For any appliance

replaced under this warranty, Our Warranty ends on

the expiry of the warranty period that applied to the

Our Warranty does not cover:

A. Damage arising from improper use or operation

on incorrect voltages.

B. Breakages to shaver foils, glass jars, etc.

C. Normal wear due to moving parts.

D. Repairs undertaken by unauthorised service

personnel or use of non genuine parts.

E. Appliances that are outside the warranty period or

This appliance is not intended for use by young

children or infirm persons without supervision.

Young children should be supervised to ensure that

they do not play with the appliance.

If the appliance is powered by a cord extension set

or electrical portable outlet device these should be

positioned so they are not subject to splashing or

ingress of moisture.

To the extent permitted by the laws of the

Commonwealth of Australia and New Zealand and

applicable laws of a State or Territory of Australia,

and without affecting any mandatory statutory

obligations imposed by law, Our Warranty is given in

exchange for any other rights you may have against

Procter & Gamble Australia Pty. Ltd. or its

distributors or manufacturer, whether at law, in tort

(including negligence), in equity or under statute.

Please retain proof of purchase of this appliance.

If you have any questions in relation to Our Warranty,

please call our Consumer Service line (see below for

If you intend to make a claim please telephone our

Customer Service line on the numbers set out below

to obtain information about your claim and any costs

associated with claiming under Our Warranty. You

will bear the cost of returning your product to us.

If you are sending your appliance for repair under

Our Warranty, please pack the appliance adequately

and send it to your nearest Service Agent, at your

For service or replacement parts refer to the

authorised Service Agents listed overleaf. Local

Service Agents may change from time to time – in

that event please contact the Consumer Service free

call number below for updated local service agent

Australian Consumer Service (free call):

New Zealand Consumer Service (free call):

97144167_5090cc_MN_S6-76.indd 15 11.09.14 08:1216

Australian & New Zealand Service Agents

VICTORIA & TASMANIA Statewide Services Pty Ltd trading

17-19 Hossack Avenue

QUEENSLAND Walters Import trading as Brisbane Appliance

Email: basc@waltersimport.com.au

WESTERN AUSTRALIA Mark 1 Appliances

Unit 1, 46 Abernethy Road

Rooty Hill, NSW 2766

SOUTH AUSTRALIA & NT Adelaide Service Centre

Parkholme Shopping Centre

319 Oaklands Road, Parkholme

NEW ZEALAND Key Service Ltd

(PO Box 38569, Howick, Auckland,

station Clean&Charge est

barbear (consulte as figuras B/C)

Clean&Charge station

Clean&Charge station.

Clean&Charge station

2. Scheerapparaat is regelmatig

reinigen was te kort.

2. Afvoerkanaal van het

Clean&Charge station zit

Clean&Charge station zit

Kun model 5040s w&d:

Clean&Charge-station

Kun for modell 5040s w&d:

3 MultiHeadLock-bryter

i Clean&Charge-displayet

Clean&Charge-station

Clean&Charge -aseman

97144167_5090cc_MN_S6-76.indd 73 11.09.14 08:1276

Please note down the suggested

replacement date (in 18 months from

now) below the key parts number.
