USER MANUAL WaterFlex WF2s BRAUN

91113587/IX-16 91113587_Waterflex2_CEE_S1.indd 191113587_Waterflex2_CEE_S1.indd 1 19.09.16 14:0319.09.16 14:03

Stapled booklet, 120 x 170 mm, 56 pages (incl. 8 pages cover), 2/2c = cyan + black

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 1 of 55English 6

(Sharecall charged at local rates)

www.service.braun.com

91113587_Waterflex2_CEE_S2.indd 191113587_Waterflex2_CEE_S2.indd 1 19.09.16 14:0319.09.16 14:03

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 2 of 551

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 3 of 5590°

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 4 of 556

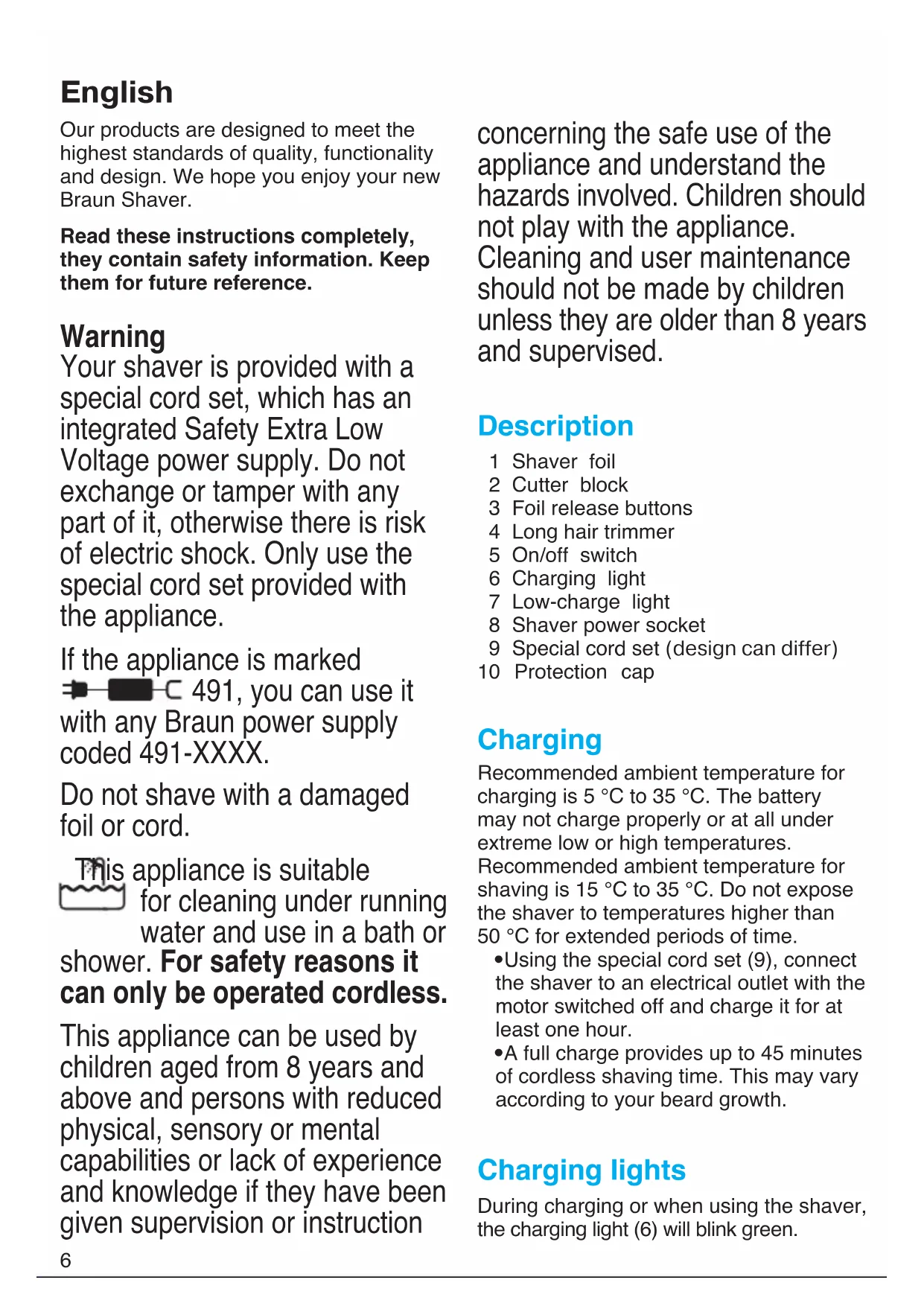

Our products are designed to meet the

highest standards of quality, functionality

and design. We hope you enjoy your new

Read these instructions completely,

they contain safety information. Keep

them for future reference.

Your shaver is provided with a

special cord set, which has an

integrated Safety Extra Low

Voltage power supply. Do not

exchange or tamper with any

part of it, otherwise there is risk

of electric shock. Only use the

special cord set provided with

If the appliance is marked

with any Braun power supply

Do not shave with a damaged

This appliance is suitable

for cleaning under running

water and use in a bath or

shower. For safety reasons it

can only be operated cordless.

This appliance can be used by

children aged from 8 years and

above and persons with reduced

physical, sensory or mental

capabilities or lack of experience

and knowledge if they have been

given supervision or instruction

concerning the safe use of the

appliance and understand the

hazards involved. Children should

not play with the appliance.

Cleaning and user maintenance

should not be made by children

unless they are older than 8 years

3 Foil release buttons

9 Special cord set (design can differ)

Recommended ambient temperature for

charging is 5 °C to 35 °C. The battery

may not charge properly or at all under

extreme low or high temperatures.

Recommended ambient temperature for

shaving is 15 °C to 35 °C. Do not expose

the shaver to temperatures higher than

50 °C for extended periods of time.

• Using the special cord set (9), connect

the shaver to an electrical outlet with the

motor switched off and charge it for at

• A full charge provides up to 45 minutes

of cordless shaving time. This may vary

according to your beard growth.

During charging or when using the shaver,

the charging light (6) will blink green.

91113587_Waterflex2_CEE_S6-56.indd 691113587_Waterflex2_CEE_S6-56.indd 6 20.09.16 07:5820.09.16 07:58

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 5 of 557

When fully charged, it will light up

continuously, provided the shaver is

switched on or connected to an electrical

The red low-charge light (7) flashes when

the battery is running low. You should be

able to finish your shave.

Press the on/off switch (5) to operate the

To trim sideburns, moustache or beard,

slide the long hair trimmer (4) upwards.

Tips for the perfect dry shave

For best shaving results, Braun recom-

mends you to follow 3 simple steps:

1. Always shave before washing your

2. At all times, hold the shaver at right

angles (90°) to your skin.

3. Stretch your skin and shave against

the direction of your beard growth.

Regular cleaning ensures better shaving

performance. Rinsing the shaver head

under running water after each shave is

an easy and fast way to keep it clean:

• Press the foil release buttons (3) to lift the

shaver foil. Do not remove the shaver

• Switch the shaver on (cordless) and

rinse the shaver head under hot running

water until all residues have been

removed. You may use liquid soap

without abrasive substances. Rinse off

all foam and let the shaver run for a few

• Next, switch off the shaver and remove

the shaver foil (1). Then leave the

disassembled shaving parts to dry.

• If you regularly clean the shaver under

water, then once a week apply a drop of

light machine oil onto the long hair

trimmer and shaver foil.

The following quick cleaning is another

alternative cleaning method:

• Press the foil release buttons (3) to lift

the shaver foil (do not remove the foil

completely). Switch on the shaver for

approx. 5–10 seconds so that the shaved

stubbles can fall out.

• Switch off the shaver. Remove the

shaver foil and tap it out on a flat surface.

Using a brush, clean the inner area of

the shaver head. However, do not clean

the shaver foil nor the cutter block with

the brush as this will damage them.

Keeping your shaver in top

Replacing the shaver foil and cutter

To maintain 100% shaving performance,

replace your foil and cutter block at least

every 18 months or when worn.

Available at your dealer or Braun Service

Shaver foil and cutter block: 51B Braun Shaver cleaner spray

Environmental notice

Product contains batteries and/or

recyclable electric waste. For

environment protection do not

dispose of in household waste, but

for recycling take to electric waste

collection points provided in your country.

Subject to change without notice.

For electric specifications, see printing on

the special cord set.

91113587_Waterflex2_CEE_S6-56.indd 791113587_Waterflex2_CEE_S6-56.indd 7 20.09.16 07:5820.09.16 07:58

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 6 of 558

We grant a 2 year guarantee on the product

commencing on the date of purchase.

Within the guarantee period we will

eliminate any defects in the appliance

resulting from faults in materials or

workmanship, free of charge either by

repairing or replacing the complete

appliance at our discretion.

This guarantee extends to every country

where this appliance is supplied by Braun

or its appointed distributor.

This guarantee does not cover: damage

due to improper use, normal wear and

tear (e.g. shaver foil or cutter block) as

well as defects that have a negligible

effect on the value or operation of the

appliance. The guarantee becomes void

if repairs are undertaken by unauthorised

persons and if original Braun parts are

To obtain service within the guarantee

period, hand in or send the complete

appliance with your sales receipt to an

authorised Braun Customer Service

Centre (address information available

online at www.service.braun.com).

This guarantee in no way affects your

rights under statutory law.

91113587_Waterflex2_CEE_S6-56.indd 891113587_Waterflex2_CEE_S6-56.indd 8 20.09.16 07:5820.09.16 07:58

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 7 of 559

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 8 of 5510

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 9 of 5511

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 10 of 5512

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 11 of 5513

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 12 of 5514

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 13 of 5515

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 14 of 5516

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 15 of 5517

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 16 of 5518

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 17 of 5519

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 18 of 5520

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 19 of 5521

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 20 of 5522

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 21 of 5523

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 22 of 5524

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 23 of 5525

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 24 of 5526

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 25 of 5527

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 26 of 5528

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 27 of 5529

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 28 of 5530

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 29 of 5531

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 30 of 5532

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 31 of 5533

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 32 of 5534

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 33 of 5535

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 34 of 5536

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 35 of 5537

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 36 of 5538

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 37 of 5539

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 38 of 5540

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 39 of 5541

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 40 of 5542

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 41 of 5543

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 42 of 5544

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 43 of 5545

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 44 of 5546

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 45 of 5547

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 46 of 5548

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 47 of 5549

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 48 of 5550

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 49 of 5551

91113587_Waterflex2_CEE_S6-56.indd 5191113587_Waterflex2_CEE_S6-56.indd 51 20.09.16 07:5820.09.16 07:58

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 50 of 5552

91113587_Waterflex2_CEE_S6-56.indd 5291113587_Waterflex2_CEE_S6-56.indd 52 20.09.16 07:5820.09.16 07:58

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 51 of 5553

91113587_Waterflex2_CEE_S6-56.indd 5391113587_Waterflex2_CEE_S6-56.indd 53 20.09.16 07:5820.09.16 07:58

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 52 of 5554

91113587_Waterflex2_CEE_S6-56.indd 5491113587_Waterflex2_CEE_S6-56.indd 54 20.09.16 07:5820.09.16 07:58

CSS APPROVED Effective Date 17Oct2016 GMT - Printed 05Apr2017 Page 53 of 5551B

Please note down the suggested

replacement date (in 18 months

from now) below replacement

part reference number.

FR Merci de prendre note de la date de remplacement suggérée (d’ici à dans
