Series 5 50W1200s - Shaver BRAUN - Free user manual and instructions

Product type	Rechargeable electric shaver
Brand	Braun
Model	Series 5 50W1200s
Power supply	Rechargeable via special power supply (492-XXXX)
Estimated battery life	About 45 minutes
Estimated charging time	About 1 hour
Shaving head	3 blades with flexible shaving foil
Usage	Wet and dry (in the shower or with foam/gel)
Additional features	Integrated beard trimmer, cleaning brush included, body trimmer (with comb)
Protection rating	Waterproof, washable under water
Cleaning	Rinse under hot water after each use with foam/gel; clean brush with cold water
Spare parts	Replaceable shaving foil and cutter block (suggested every 18 months)
Repairability	Integrated battery replaceable only at authorized center; disassembly possible for end-of-life recycling
Safety	Use in bath/shower only when unplugged; do not immerse charger; max temperature 50°C
Warranty	2 years in Canada (excluding foil and cutter block)
Included accessories	Cleaning brush, body trimmer with comb, special power cord
Country of origin	Manufactured by Braun, Germany (subject to change)

Frequently Asked Questions - Series 5 50W1200s BRAUN

How to charge the Braun Series 5 shaver?

Use the special power cord provided. Connect the shaver to the cord, then plug the cord into an electrical outlet. The charging indicator shows charging status. Do not use the charger in the bath or shower.

Can I use the shaver in the shower?

Yes, as long as it is unplugged. The shaver is waterproof and can be used in the shower or with shaving foam. Rinse it after use.

How to clean the shaver?

After wet shaving, rinse the head under hot water while running the shaver. Use the included brush to clean the trimmer and blades. Clean the brush with cold water.

When should I replace the foil and cutter block?

Braun recommends replacing the foil and cutter block every 18 months for optimal shaving. You can note the replacement date under the part number.

Can the shaver be used with shaving gel or foam?

Yes, use it with foam or gel. Rinse the head with hot water immediately after to remove residues.

How to use the integrated beard trimmer?

Press the trimmer against the skin with the removable comb. Do not use it without the comb on sensitive areas. For delicate areas, use only with the comb.

What is the battery life?

The integrated rechargeable battery lasts about 45 minutes per charge. Charge it fully before first use. To replace the battery, contact an authorized center.

What to do if the device no longer works?

Check the charge. If the problem persists, contact Braun customer service at 1-800-387-6657 (Canada) or bring it to an authorized center. Do not disassemble the device yourself (except at end of life for battery recycling).

Is the shaver guaranteed?

Yes, Braun offers a limited 2-year warranty in Canada (excluding foil and cutter block). Keep your proof of purchase. A 60-day money-back guarantee is also offered for Braun shavers.

Can I dispose of the device with household waste?

No, it contains a rechargeable battery. At end of life, disassemble the device to remove the battery (according to instructions) and recycle it in accordance with local regulations. The device must be disposed of at an appropriate collection point.

USER MANUAL Series 5 50W1200s BRAUN

Black Bruh Clean EasyClean electric shaver with S5 brand model and power button (no text or symbols on body)

English 4,

Français 6,

Español 8,

12

Thank yo0 for purchasing a Braun product.

We hope you are completely satisfied with your new Braun shaver.

If you have any questions, please visit

www.service.braun.com or call:

US residents 1-800-BRAUN-11

1-800-272-8611

Canadian residents 1-800-387-6657

Diagram of a hand holding a small electric shaver with red arrows indicating motion or change (no text or symbols present)

*

Close-up of a black electric shaver with a red arrow indicating the blade (no text or symbols visible)

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

When disconnected, the hand-held part of this shaving appliance may be used in a bath or shower. For safety reasons this appliance can only be operated cordless.

DANGER

To reduce the risk of electric shock:

1. The charger unit is not for immersion in water or for use in shower.
2. Do not reach for a charger that has fallen into water. Unplug immediately.
3. Do not place, store or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
4. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
5. This appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.
6. Do not use an extension cord with this appliance.
7. Unplug this appliance before cleaning.

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening of the appliance.
6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
7. Do not use this appliance with a damaged or broken foil, as serious skin injuries may occur.
8. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls off, then remove plug from outlet.
9. When plugging to an electrical outlet outside North America, use a plug adapter to match the outlet's pin configuration.
10. Caution: The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100 °C ( 212 °F ), or incinerate.
11. To recharge the battery, only use the detachable power supply provided with this appliance. If the appliance is marked 492, only use Braun power supplies coded 492-XXXX.

SAVE THESE INSTRUCTIONS

CONSIGNES DE SÉCURITÉ IMPORTANTE

This product is for household use only.

Caution

Keep power supply and charging stand dry.

Do not expose the appliance to temperatures higher than 50^ C / 122^ F for extended periods of time.

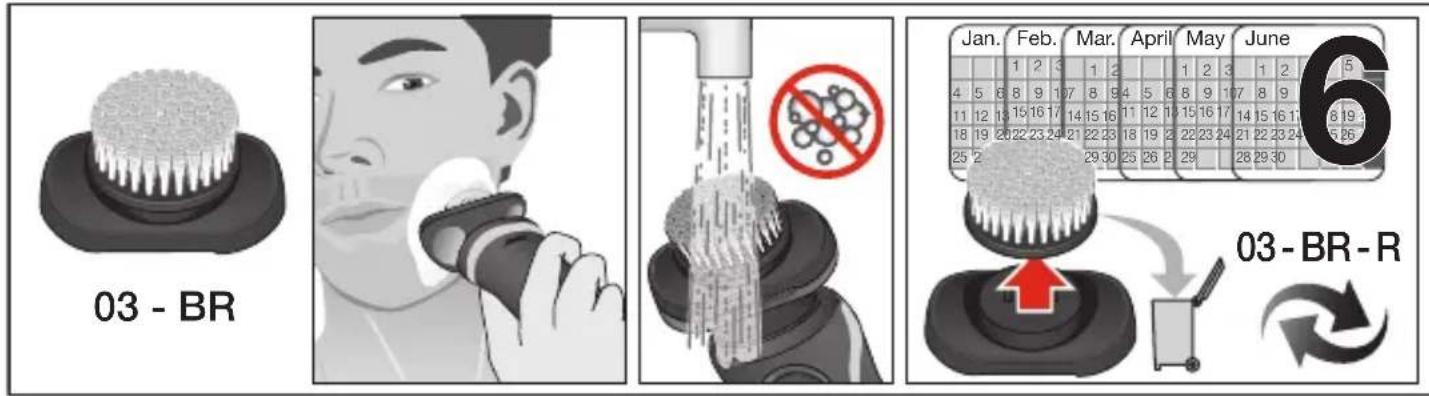

The brush (03-BR) must not be used on damaged or irritated skin or on wounds. If skin irritation occurs, discontinue use.

Avoid direct contact with eyes and hairline.

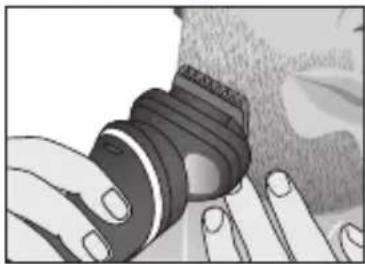

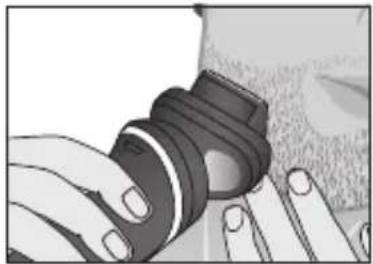

When the distance comb is removed, the trimmer should not be pressed into the skin. Risk of injury!

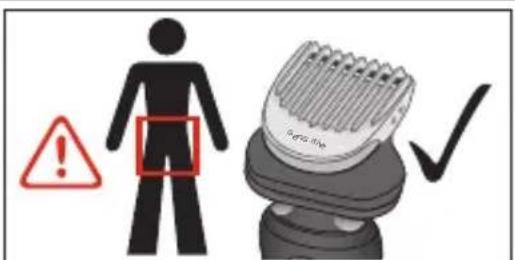

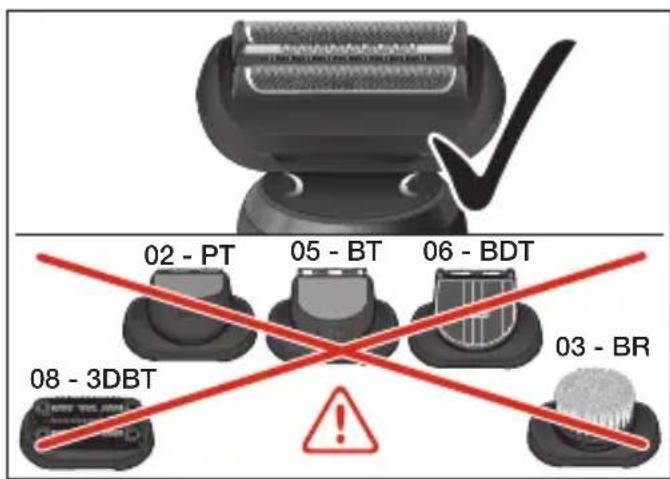

The body trimmer (06-BDT) must only be used with comb attachment in delicate areas.

Important

Do not open the appliance! The built-in rechargeable batteries can only be replaced by an authorized Braun Service center.

Only at the end of the product's useful life, disassemble the rechargeable battery for disposal reasons: Disassemble the housing as shown in the battery removal pictures, remove the rechargeable battery and recycle or dispose of properly, according to local guidelines. Caution: Disassembling the appliance will destroy it and invalidate the warranty.

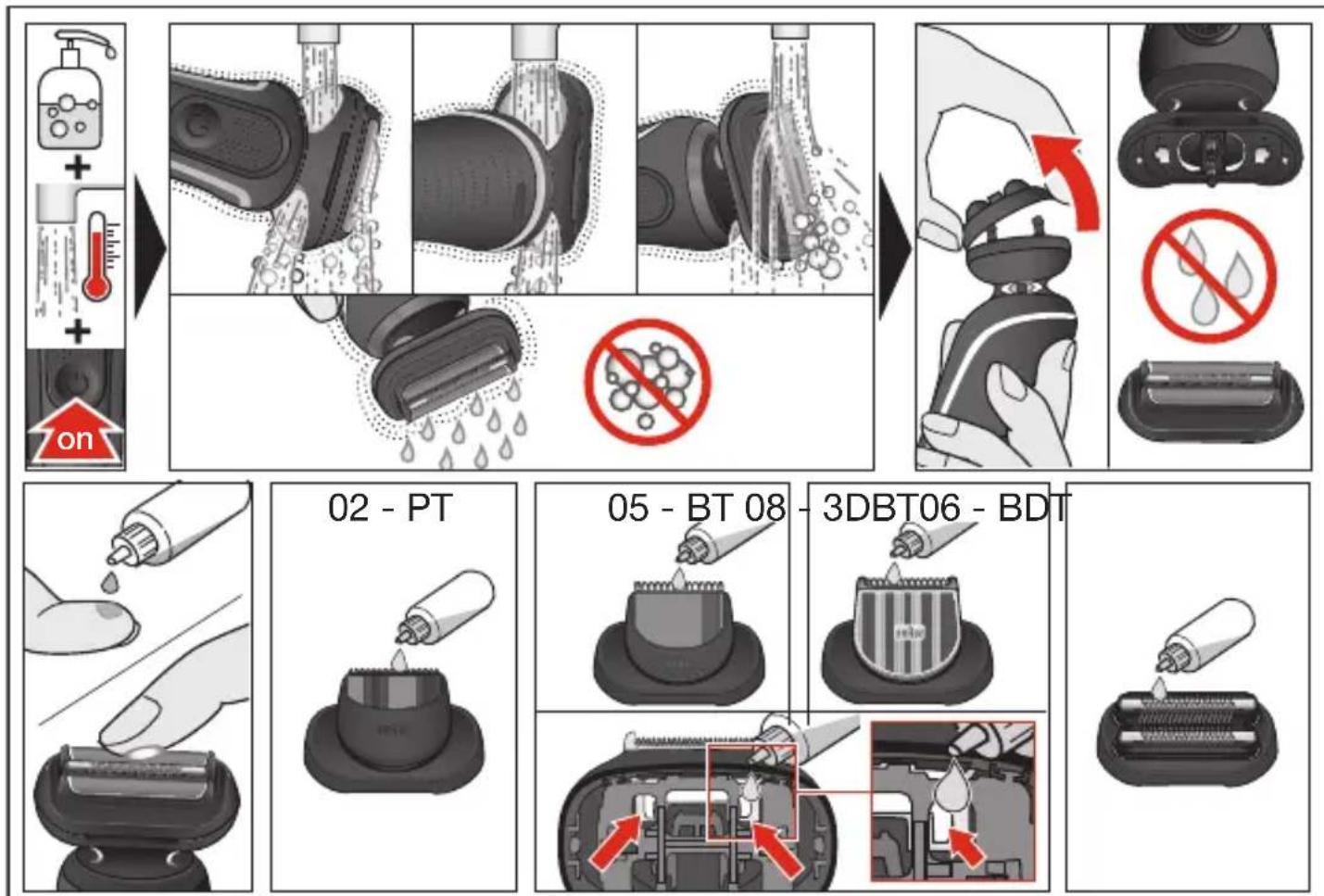

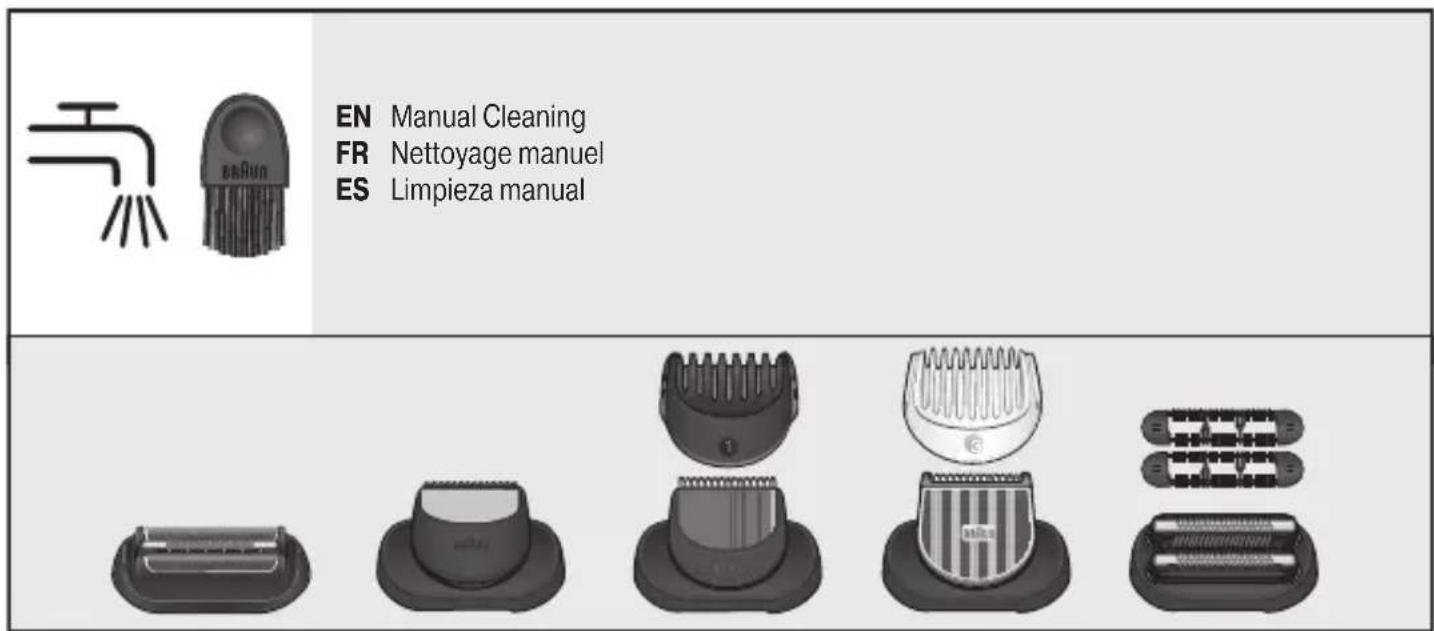

The shaver head needs cleaning under hot running water after each foam or gel usage! The brush needs to be cleaned with cool running water after each usage! Switch the shaver on and rinse until all residues have been removed. For hygienic reasons, do not share this appliance with other persons.

Subject to change without notice.

Français

EN Battery removal for disposal only

Pure electrical circuit symbols without any text or labels

EN Display
FR Écran d'affichage
ES Visualización

Pure electrical circuit symbols without any text or labels

Abstract diagram with white droplet, dot, and lock icons on dark background (no text or symbols)

EN Cleaning indicator
FR Indicateur de nettoyage
ES Indicador de limpieza

Abstract grayscale image with white droplet and rectangular shapes on dark background (no text or symbols)

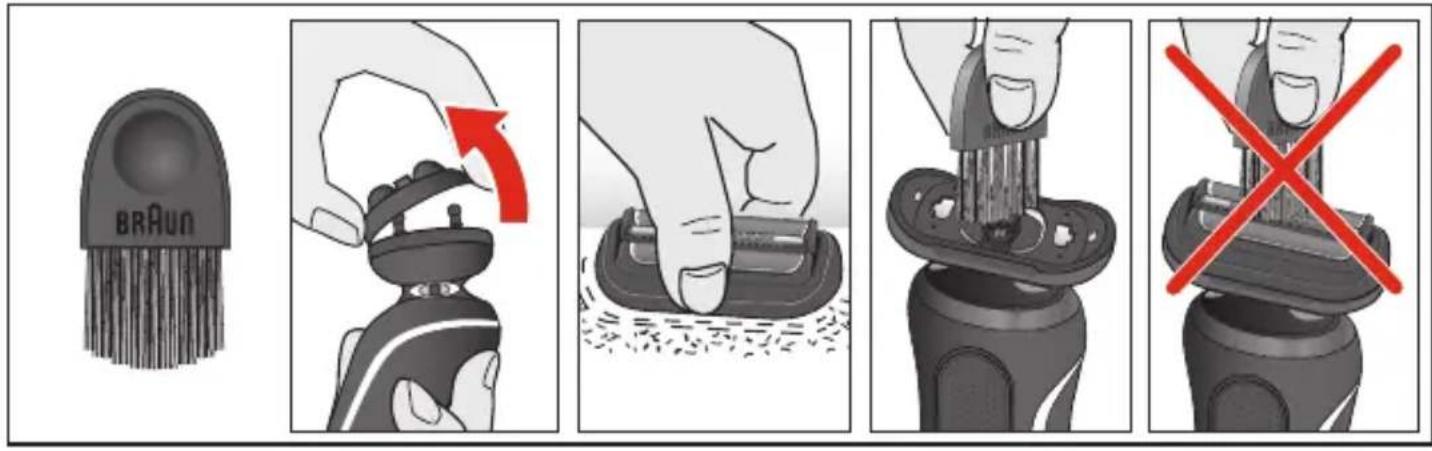

Illustration of a black industrial brush with a cylindrical handle and a small inset image showing a mechanical component (no text or symbols visible)

5^ C - 35^ C √ 41^ F - 95^ F

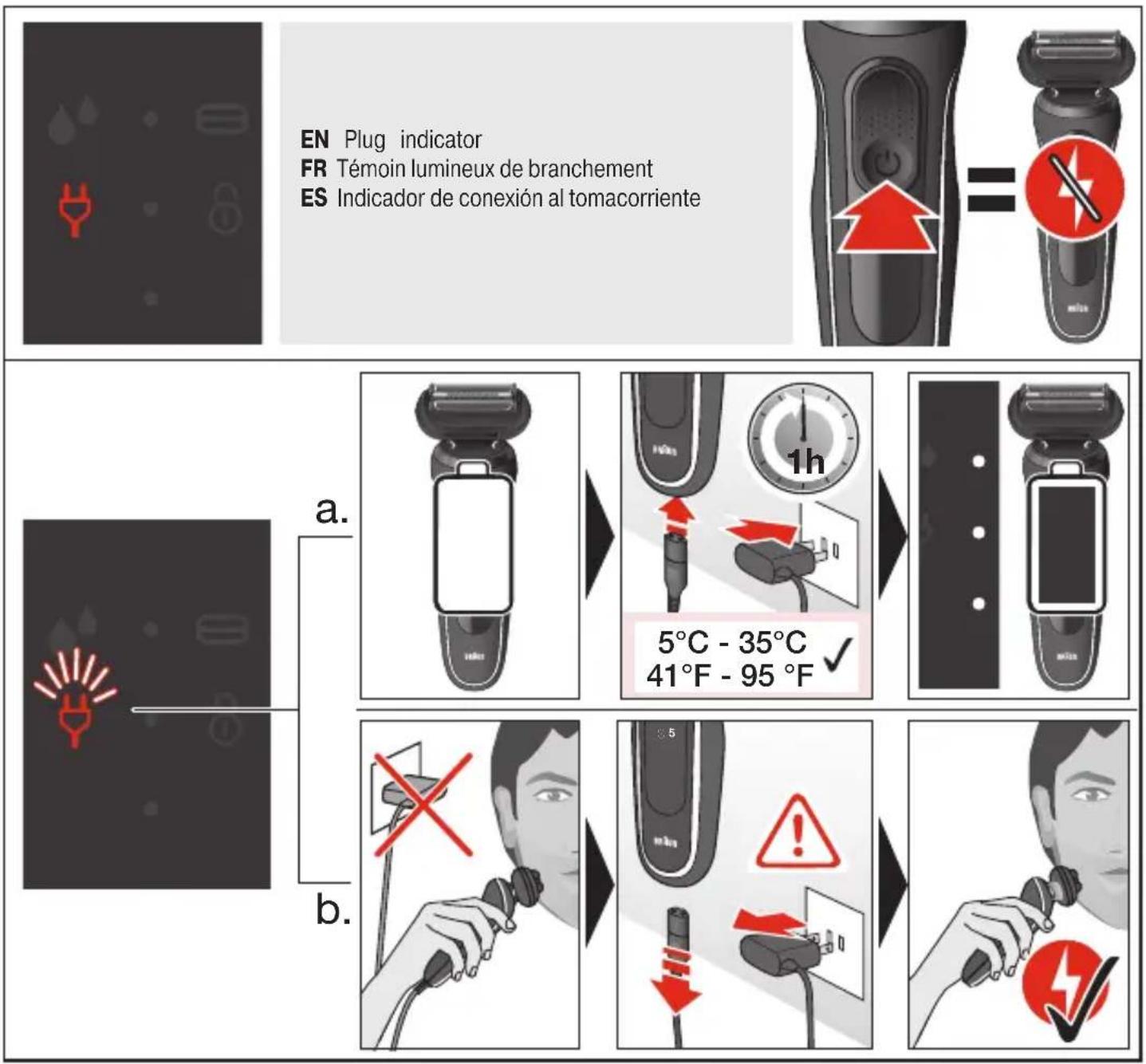

EN Charging

Illustration of a hand using a power shaver to adjust the blade, showing step-by-step assembly (no text or symbols)

3D rendered image of a gray plastic hat with striped pattern and 'yellow' text (no readable document content)

02 - PT

Close-up of a dark, textured object with a striped top and base (no visible text or symbols)

05 - BT

Close-up illustration of a person's face with a stylized object near the mouth (no text or symbols visible)

Close-up of a dark, textured object with a striped top and base (no visible text or symbols)

05 - BT

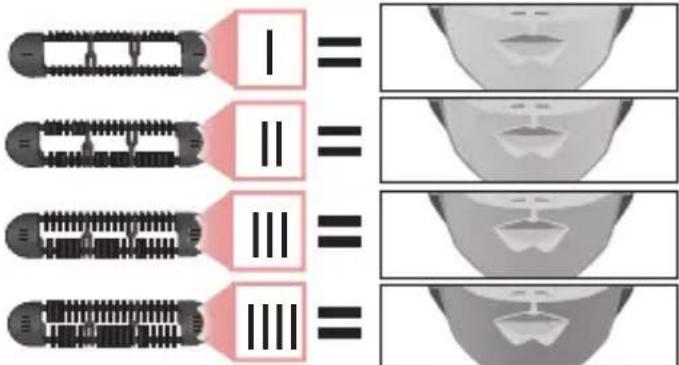

2 mm 3 mm 5 mm 7 mm 1 mm

nm 5 mm 7 mm1 mm

Illustration of a hand holding a camera lens, no text or symbols present

Side profile illustration of a person's ear and hand, showing anatomical structures without any text or symbols

Close-up of hands holding a dark, textured object with no visible text or symbols

Close-up of a white and gray filter blade with slats, resting on a dark base (no text or symbols visible)

06 - BDT

3mm

Illustration of a person's arm and hand holding a device (no text or symbols visible)

Illustration of a hand holding a black electric shaver (no text or symbols visible)

08-3DBT

Illustration of a person using a handheld device (no text or symbols visible)

Illustration of a person's face with a checkmark (no text or symbols present)

Illustration of a person's face with a red X mark, no text or symbols present

Cross-sectional view of a mechanical device with internal components and a red arrow indicating motion (no text or symbols)

0,5-2,3 mm

    J["02 - PT"] --> K["Close-up of brush"]
    K --> L["Close-up of tool"]
    L --> M["Close-up of brush"]
    M --> N["Close-up of tool"]
    N --> O["Close-up of brush"]
    O --> P["Close-up of tool"]

    Q["05 - BT 08"] --> R["Close-up of brush"]
    R --> S["Close-up of tool"]
    S --> T["Close-up of brush"]
    T --> U["Close-up of tool"]
    U --> V["Close-up of brush"]

    W["3DBT06 - BDT"] --> X["Close-up of brush"]
    X --> Y["Close-up of tool"]

How to obtain service in the USA

Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or,
B. Ship the product to the Authorized Braun Service Center of your choice.
Pack the product well.
Ship the product prepaid and insured (recommended).
Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts and accessories:

Contact a Braun Authorized Service Center.

Please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized

Braun Service Center closest to you or visit www.service.braun.com.

To speak to a Braun Consumer Service Representative:

Please call 1-800-BRAUN 11 (272-8611).

How to obtain service in Canada

Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or,
B. Ship the product to the Authorized Braun Service Center of your choice.
Pack the product well.
Ship the product prepaid and insured (recommended).
Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts & accessories:

Contact a Braun Authorized Service Center.

Please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To speak to a Braun Service Representative:

Please call 1-800-387-6657.

60 day money back satisfaction guarantee for men's grooming products

Braun Shavers

Braun Beard Trimmers

Once you have tried your new Braun shaver or beard trimmer, we are confident you will appreciate its performance. We suggest using the product regularly for 2 to 3 weeks. If you are not satisfied with the product, please call 1-800-211-6661 for instructions on how to return the product. Return the unit and all parts within 60 days of purchase. Retain original cash receipt, product and all product parts, including the box. Do not return to the retailer for guarantee fulfillment.

Please note: No refunds will be made for any product damaged by accident, neglect or unreasonable use.

Your product must be shipped in its original packaging, with your original sales slip indicating the date of purchase.

Please include the following information when you return your product:

Name

Street

City

State

Zip code

Telephone number

Please allow 6-8 weeks for handling.

FOR USA ONLY

2 year limited warranty (foil and cutter block excluded)

Braun warrants this Braun shaver (except foil and cutter block) to be free of defects in material and workmanship for a period of two years from the date of original purchase.

If the shaver exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge.

Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you or visit www.service.braun.com.

This warranty does not cover foil and cutter cassette or damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, normal wear, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance, including recharging.

ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 2 YEARS FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state.

FOR CANADA ONLY

2 year limited warranty (foil and cutter block excluded)

In the event a Braun Shaver fails to function within 2 years from date of purchase, because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer.

This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse, kinks in the shaver foil as well as the normal wear of the shearing parts.

Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada. Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product.

Close-up of a black electric shaver blade with red arrows indicating compression or disassembly process (no text or symbols)

Please note down the suggested replacement date (in 18 months from now) below replacement part reference number.

53B

Three identical rectangular frames each containing a single vertical line, no text or symbols present
