USER MANUAL GSR 18 VEC Professional BOSCH

General Power Tool Safety Warnings

WARNING Read all safety warnings, instruc-

tions, illustrations and specifica-

tions provided with this power tool. Failure to follow all in-

structions listed below may result in electric shock, fire and/

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-

operated (corded) power tool or battery-operated (cord-

Work area safety u Keep work area clean and well lit. Cluttered or dark areas invite accidents. u Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or

dust. Power tools create sparks which may ignite the dust

or fumes. u Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety u Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with

earthed (grounded) power tools. Unmodified plugs and

matching outlets will reduce risk of electric shock. u Avoid body contact with earthed or grounded sur- faces, such as pipes, radiators, ranges and refrigerat-

ors. There is an increased risk of electric shock if your

body is earthed or grounded. u Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of elec-

tric shock. u Do not abuse the cord. Never use the cord for carry- ing, pulling or unplugging the power tool. Keep cord

away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric

shock. u When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suit-

able for outdoor use reduces the risk of electric shock. u If operating a power tool in a damp location is un- avoidable, use a residual current device (RCD) protec-

ted supply. Use of an RCD reduces the risk of electric

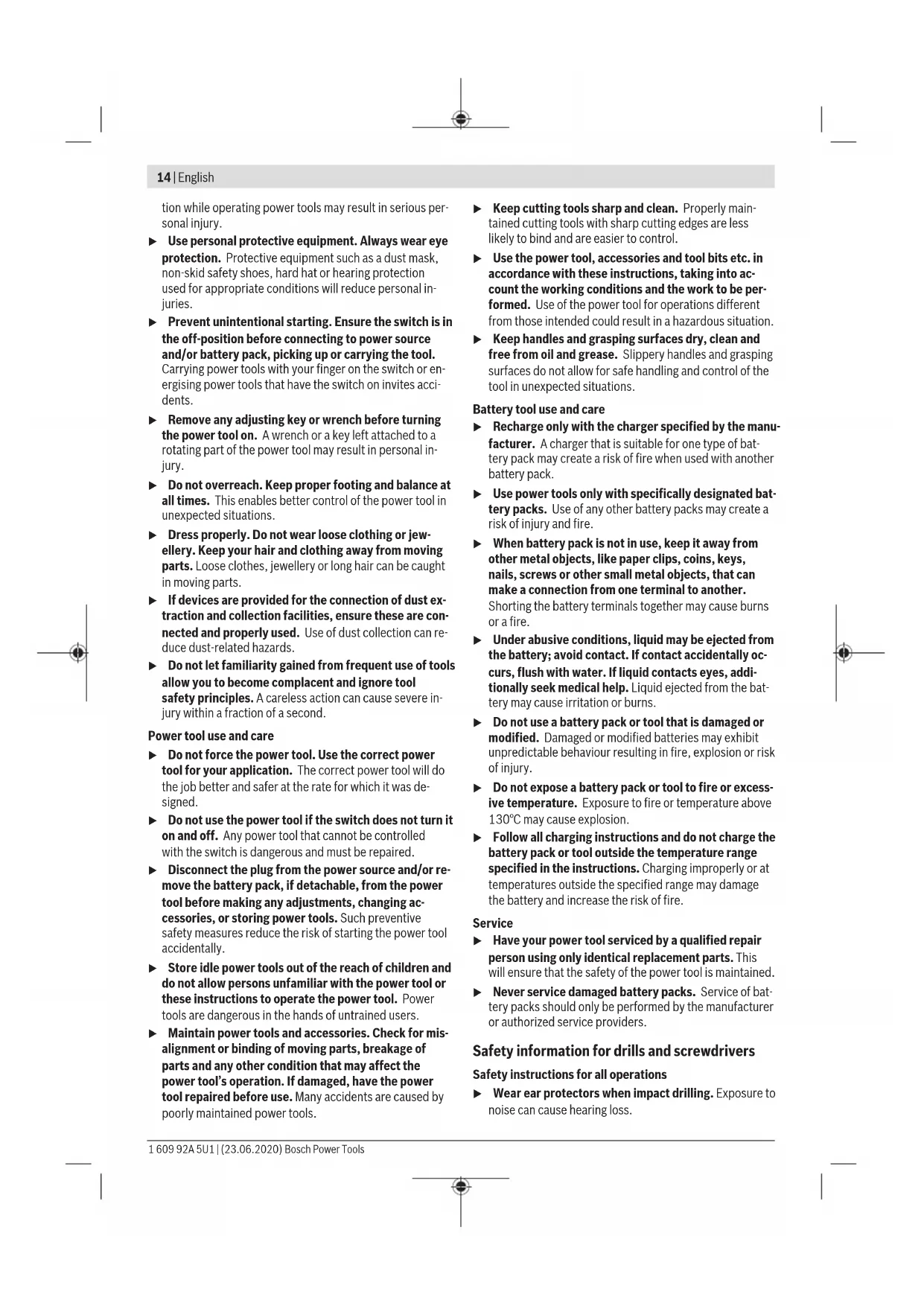

Personal safety u Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a

power tool while you are tired or under the influence

of drugs, alcohol or medication. A moment of inatten- Bosch Power Tools 1 609 92A 5U1 | (23.06.2020)14 | English

tion while operating power tools may result in serious per-

u Use personal protective equipment. Always wear eye

protection. Protective equipment such as a dust mask,

non-skid safety shoes, hard hat or hearing protection

used for appropriate conditions will reduce personal in-

u Prevent unintentional starting. Ensure the switch is in

the off-position before connecting to power source

and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or en-

ergising power tools that have the switch on invites acci-

u Remove any adjusting key or wrench before turning

the power tool on. A wrench or a key left attached to a

rotating part of the power tool may result in personal in-

u Do not overreach. Keep proper footing and balance at

all times. This enables better control of the power tool in

unexpected situations.

u Dress properly. Do not wear loose clothing or jew-

ellery. Keep your hair and clothing away from moving

parts. Loose clothes, jewellery or long hair can be caught

u If devices are provided for the connection of dust ex-

traction and collection facilities, ensure these are con-

nected and properly used. Use of dust collection can re-

duce dust-related hazards.

u Do not let familiarity gained from frequent use of tools

allow you to become complacent and ignore tool

safety principles. A careless action can cause severe in-

jury within a fraction of a second.

Power tool use and care

u Do not force the power tool. Use the correct power

tool for your application. The correct power tool will do

the job better and safer at the rate for which it was de-

u Do not use the power tool if the switch does not turn it

on and off. Any power tool that cannot be controlled

with the switch is dangerous and must be repaired.

u Disconnect the plug from the power source and/or re-

move the battery pack, if detachable, from the power

tool before making any adjustments, changing ac-

cessories, or storing power tools. Such preventive

safety measures reduce the risk of starting the power tool

u Store idle power tools out of the reach of children and

do not allow persons unfamiliar with the power tool or

these instructions to operate the power tool. Power

tools are dangerous in the hands of untrained users.

u Maintain power tools and accessories. Check for mis-

alignment or binding of moving parts, breakage of

parts and any other condition that may affect the

power tool’s operation. If damaged, have the power

tool repaired before use. Many accidents are caused by

poorly maintained power tools.

u Keep cutting tools sharp and clean. Properly main-

tained cutting tools with sharp cutting edges are less

likely to bind and are easier to control.

u Use the power tool, accessories and tool bits etc. in

accordance with these instructions, taking into ac-

count the working conditions and the work to be per-

formed. Use of the power tool for operations different

from those intended could result in a hazardous situation.

u Keep handles and grasping surfaces dry, clean and

free from oil and grease. Slippery handles and grasping

surfaces do not allow for safe handling and control of the

tool in unexpected situations.

Battery tool use and care

u Recharge only with the charger specified by the manu-

facturer. A charger that is suitable for one type of bat-

tery pack may create a risk of fire when used with another

u Use power tools only with specifically designated bat-

tery packs. Use of any other battery packs may create a

risk of injury and fire.

u When battery pack is not in use, keep it away from

other metal objects, like paper clips, coins, keys,

nails, screws or other small metal objects, that can

make a connection from one terminal to another.

Shorting the battery terminals together may cause burns

u Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally oc-

curs, flush with water. If liquid contacts eyes, addi-

tionally seek medical help. Liquid ejected from the bat-

tery may cause irritation or burns.

u Do not use a battery pack or tool that is damaged or

modified. Damaged or modified batteries may exhibit

unpredictable behaviour resulting in fire, explosion or risk

u Do not expose a battery pack or tool to fire or excess-

ive temperature. Exposure to fire or temperature above

130°C may cause explosion.

u Follow all charging instructions and do not charge the

battery pack or tool outside the temperature range

specified in the instructions. Charging improperly or at

temperatures outside the specified range may damage

the battery and increase the risk of fire.

u Have your power tool serviced by a qualified repair

person using only identical replacement parts. This

will ensure that the safety of the power tool is maintained.

u Never service damaged battery packs. Service of bat-

tery packs should only be performed by the manufacturer

or authorized service providers.

Safety information for drills and screwdrivers

Safety instructions for all operations

u Wear ear protectors when impact drilling. Exposure to

noise can cause hearing loss.

1 609 92A 5U1 | (23.06.2020) Bosch Power ToolsEnglish | 15

u Hold the power tool by insulated gripping surfaces,

when performing an operation where the cutting ac-

cessory or fasteners may contact hidden wiring. Cut-

ting accessory or fasteners contacting a "live" wire may

make exposed metal parts of the power tool "live" and

could give the operator an electric shock.

Safety instructions when using long drill bits

u Never operate at higher speed than the maximum

speed rating of the drill bit. At higher speeds, the bit is

likely to bend if allowed to rotate freely without contact-

ing the workpiece, resulting in personal injury.

u Always start drilling at low speed and with the bit tip

in contact with the workpiece. At higher speeds, the bit

is likely to bend if allowed to rotate freely without contact-

ing the workpiece, resulting in personal injury.

u Apply pressure only in direct line with the bit and do

not apply excessive pressure.Bits can bend causing

breakage or loss of control, resulting in personal injury.

Additional safety warnings

u Hold the power tool securely. When tightening and

loosening screws be prepared for temporarily high torque

u Secure the workpiece. A workpiece clamped with

clamping devices or in a vice is held more secure than by

u Use suitable detectors to determine if there are hid-

den supply lines or contact the local utility company

for assistance. Contact with electric cables can cause

fire and electric shock. Damaging gas lines can lead to ex-

plosion. Breaking water pipes causes property damage.

u Always wait until the power tool has come to a com-

plete stop before placing it down. The application tool

can jam and cause you to lose control of the power tool.

u In case of damage and improper use of the battery, va-

pours may be emitted. The battery can set alight or ex-

plode. Ensure the area is well ventilated and seek medical

attention should you experience any adverse effects. The

vapours may irritate the respiratory system.

u Do not open the battery. There is a risk of short-circuit-

u The battery can be damaged by pointed objects such

as nails or screwdrivers or by force applied externally.

An internal short circuit may occur, causing the battery to

burn, smoke, explode or overheat.

u Only use the battery with products from the manufac-

turer. This is the only way in which you can protect the

battery against dangerous overload.

Protect the battery against heat, e.g. against

continuous intense sunlight, fire, dirt, water

and moisture. There is a risk of explosion and

u Switch the power tool off immediately if the applica-

tion tool becomes blocked. Be prepared for high

torque reactions which cause kickback. The applica-

tion tool becomes blocked when it becomes jammed in

the workpiece or when the power tool becomes over-

u Caution! When using the power tool with Bluetooth

fault may occur in other devices and systems, aero-

planes and medical devices (e.g. pacemakers, hearing

aids). Also, damage to people and animals in the im-

mediate vicinity cannot be completely excluded. Do

not use the power tool with Bluetooth

medical devices, petrol stations, chemical plants,

areas with a potentially explosive atmosphere or in

blasting areas. Do not use the power tool with

in aircraft. Avoid using the product near

your body for extended periods.

word mark and logos are registered trade-

marks owned by Bluetooth SIG, Inc. and any use of such

marks by Robert Bosch Power Tools GmbH is under li-

Product Description and

Read all the safety and general instructions.

Failure to observe the safety and general in-

structions may result in electric shock, fire

and/or serious injury.

Please observe the illustrations at the beginning of this oper-

The power tool is intended for driving and loosening screws

and for drilling in wood, metal, ceramic and plastic. The GSB

is also designed for impact drilling in brick, concrete and

With the GCY 30-4 Bluetooth

Low Energy Module that is fit-

ted in the power tool, data and settings of the power tool can

be transferred between the tool and a mobile device by

wireless technology.

The numbering of the product features refers to the diagram

of the power tool on the graphics page.

Battery release button

Universal bit holder

Handle (insulated gripping surface)

Cover for GCY 30-4 Bluetooth® Low Energy Module

Battery charge indicator button

Battery charge indicator

Accessories shown or described are not included with the

product as standard. You can find the complete selection of

accessories in our accessories range.

Cordless drill/driver GSR 18V-60 C GSB 18V-60 C Article number

Rated voltage V= 18 18

Max. torque, hard / soft screwdriving application accord-

Max. drilling diameter

Tool holder mm 1.5–13 1.5–13

Max. screw diameter mm 10 10

Weight according to EPTA-Procedure 01:2014

Recommended ambient temperature during charging °C 0 to +35 0 to +35

Permitted ambient temperature during operation

°C -20 to +50 -20 to +50

Recommended chargers GAL 18...

Measured at 20−25°C with rechargeable batteryGBA 18V 4.0Ah.

B) Depends on battery in use

C) Limited performance at temperatures <0°C D) The mobile terminal devices must be compatible with Bluetooth® Low Energy devices (version 4.1) and support the Generic Access Profile

E) The signal range may vary greatly depending on external conditions, including the receiving device used. The Bluetooth® range may be signi-

ficantly weaker inside closed rooms and through metallic barriers (e.g. walls, shelving units, cases, etc.).

Noise/Vibration Information

Noise emission values determined according to

GSR 18V-60 C Typically, the A-weighted sound pressure level of the power

tool is 75dB(A). Uncertainty K=5dB. The noise level when

working can exceed the volume stated. Wear hearing pro-

GSB 18V-60 C Typically, the A-weighted noise level of the power tool is:

(triax vector sum) and uncertainty K determined according to EN62841-2-1.

Drilling into metal:

Impact drilling into concrete:

The vibration level and noise emission value given in these

instructions have been measured in accordance with a

standardised measuring procedure and may be used to com-

pare power tools. They may also be used for a preliminary

estimation of vibration and noise emissions.

The stated vibration level and noise emission value repres-

ent the main applications of the power tool. However, if the

power tool is used for other applications, with different ap-

plication tools or is poorly maintained, the vibration level

and noise emission value may differ. This may significantly

increase the vibration and noise emissions over the total

To estimate vibration and noise emissions accurately, the

times when the tool is switched off or when it is running but

not actually being used should also be taken into account.

This may significantly reduce vibration and noise emissions

over the total working period.

Implement additional safety measures to protect the oper-

ator from the effects of vibration, such as servicing the

power tool and application tools, keeping their hands warm,

and organising workflows correctly.

Assembly u Remove the battery from the power tool before carry- ing out work on the power tool (e.g. maintenance,

changing tool, etc.). The battery should also be re-

moved for transport and storage. There is risk of injury

from unintentionally pressing the on/off switch.

GCY30-4 (Accessory)

Read the corresponding operating instructions for informa-

tion about the Bluetooth® Low Energy ModuleGCY30-4.

Charging the Battery u Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of

Note: The battery is supplied partially charged. To ensure

full battery capacity, fully charge the battery in the charger

before using your power tool for the first time.

The lithium-ion battery can be charged at any time without

reducing its service life. Interrupting the charging process

does not damage the battery.

The lithium-ion battery is protected against deep discharge

by the "Electronic Cell Protection (ECP)". When the battery

is discharged, the power tool is switched off by means of a

protective circuit: The application tool no longer rotates. u Do not continue to press the On/Off switch after the power tool has automatically switched off. The battery

Follow the instructions on correct disposal.

Removing the Battery

The battery (7) is equipped with two locking levels to pre-

vent the battery from falling out when pushing the battery re-

lease button (8) unintentionally. As long as the battery is in-

serted in the power tool, it is held in position by means of a

To remove the battery (7), press the release button (8) and

pull the battery out of the power tool. Do not use force to

Battery Charge Indicator

The green LEDs on the battery charge indicator(17) indic-

ate the state of charge of the battery(7). For safety reasons,

it is only possible to check the state of charge when the

power tool has been stopped.

Press the battery charge indicator button(16) to show the

state of charge. This is also possible when the battery is re-

If no LED lights up after pressing the battery charge indicator

button(16), the battery is defective and must be replaced.

Battery Model GBA 18V… (seefigureD)

3× continuous green light 60−100%

2× continuous green light 30−60%

1× continuous green light 5−30%

5× continuous green light 80−100%

4× continuous green light 60−80%

3× continuous green light 40−60%

2× continuous green light 20−40%

1× continuous green light 5−20%

1× flashing green light 0−5%

Changing the tool (see figure A)

u Remove the battery from the power tool before carry-

ing out work on the power tool (e.g. maintenance,

changing tool, etc.). The battery should also be re-

moved for transport and storage. There is risk of injury

from unintentionally pressing the on/off switch.

The drill spindle is locked when the on/off switch (13) is not

pressed. This makes it possible to change the application

tool in the drill chuck quickly, conveniently and easily.

Open the keyless chuck (2) by turning it in the direction of

rotation ➊ until the tool can be inserted. Insert the tool.

Firmly tighten the keyless chuck (2) by turning it by hand in

the direction of rotation ➋. This will automatically lock the

Dust/Chip Extraction

Dust from materials such as lead-containing coatings, some

wood types, minerals and metal can be harmful to one’s

health. Touching or breathing-in the dust can cause allergic

reactions and/or lead to respiratory infections of the user or

Certain dust, such as oak or beech dust, is considered carci-

nogenic, especially in connection with wood-treatment ad-

ditives (chromate, wood preservative). Materials containing

asbestos may only be worked by specialists.

– Provide for good ventilation of the working place.

– It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the ma-

terials to be worked.

u Avoid dust accumulation at the workplace. Dust can

Inserting the battery

Note: The use of batteries unsuitable for your power tool can

lead to malfunctions or damage to the power tool.

Set the rotational direction switch (12) to the middle posi-

tion to avoid unintentionally switching it on. Insert the

charged battery (7) into the handle until you feel it engage

and it is flush with the handle.

Setting the Rotational Direction (see figure B)

The rotational direction switch (12) is used to change the ro-

tational direction of the power tool. However, this is not pos-

sible while the on/off switch (13) is being pressed.

Rotate clockwise: Slide the rotational direction

switch (12) on both sides until it stops in the posi-

Rotate anti-clockwise: Slide the rotational direction

switch (12) on both sides until it stops in the posi-

Setting the Operating Mode

Set the torque presetting ring (3) to the re-

Set the mode selector switch (4) to the

Set the torque presetting ring (3) to the "screw-

Set the mode selector switch (4) to the "screw-

Impact drilling (GSB 18V-60 C)

Set the mode selector switch (4) to the "impact

To start the power tool, press and hold the on/off switch

The LED (9) lights up when the on/off switch (13) is lightly

or fully pressed, meaning that the work area is illuminated in

poor lighting conditions.

To switch off the power tool, release the on/off switch (13).

You can adjust the speed of the power tool when it is on by

pressing in the on/off switch (13) to varying extents.

A light pressure on the on/off switch (13) results in a low ro-

tational speed. Increased pressure on the switch causes an

Pre-selecting the torque

The torque presetting ring (3) can be used to pre-select the

required torque in 20 stages. Once the set torque has been

reached, the application tool will be stopped.

Mechanical gear selection

u You can press the gear selector switch (5) with the

power tool off or on. You should not do this at full load

or maximum torque, however.

u Always push the gear selector switch as far as it will

go. Otherwise, the power tool may become damaged.

Low speed range; for working with a large drilling diameter

or for screwdriving.

High speed range; for working with a small drilling diameter.

1 609 92A 5U1 | (23.06.2020) Bosch Power ToolsEnglish | 19

Temperature-dependent overload protection

When used as intended, the power tool cannot be over-

loaded. In the event of overloading or the temperature

rising/falling outside the permitted operating temperature

range, the speed will be reduced. The power tool will not run

at full speed again until the permitted operating temperature

Activation of the temperature-controlled overload protector

is indicated by the LED (10) on the power tool lighting up

red. To return to within the permitted operating temperature

range, switch the gear selector (5) to first gear, run the

power tool at no load or wait until the LED (10) goes out.

When the LED (10) has gone out, the tool has returned to

within the permitted operating temperature range.

Protection against deep discharge

The lithium-ion battery is protected against deep discharge

by the "Electronic Cell Protection (ECP)". When the battery

is discharged, the power tool is switched off by means of a

protective circuit: The application tool no longer rotates.

Emergency switch-off (KickBack Control)

The emergency switch-off function (Kick-

Back Control) gives the user greater control

over the power tool and offers them better

protection than power tools that do not

have KickBack Control. The power tool will switch off if it

suddenly and unforeseeably rotates around the drilling

Rapid shut-off is indicated by the LED on the power tool

To switch the tool back on, release the on/off switch and

then press it again.

u If the Kickback Control function is defective, it will no

longer be possible to switch the power tool on. Have

the power tool serviced by a qualified repair person

using only original replacement parts.

Connectivity functions

In conjunction with the Bluetooth® Low Energy Mod-

uleGCY30-4, the following connectivity functions are avail-

able for the power tool:

– Registration and personalisation

Read the corresponding operating instructions for informa-

tion about the Bluetooth® Low Energy ModuleGCY30-4.

u With the GCY 30-4 Bluetooth

Low Energy Module (ac-

cessory), the power tool is equipped with a radio in-

terface. Local operating restrictions, e.g. in aircraft or

hospitals, must be observed.

u Only apply the power tool to the screw when the tool

is switched off. Rotating application tools can slip off.

An auxiliary tool can be used to remove the screwdriver bit

or universal bit holder.

You can use the belt clip (6) to hang the power tool on a belt,

for example. You then have both hands free and the power

tool is always at hand.

Maintenance and Service

Maintenance and Cleaning

u Remove the battery from the power tool before carry-

ing out work on the power tool (e.g. maintenance,

changing tool, etc.). The battery should also be re-

moved for transport and storage. There is risk of injury

from unintentionally pressing the on/off switch.

u To ensure safe and efficient operation, always keep

the power tool and the ventilation slots clean.

After-Sales Service and Application Service

Our after-sales service responds to your questions concern-

ing maintenance and repair of your product as well as spare

parts. You can find explosion drawings and information on

spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you

with any questions about our products and their accessor-

In all correspondence and spare parts orders, please always

include the 10‑digit article number given on the nameplate

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Customer Contact Center

Robert Bosch Ltd. (B.S.C.)

UB 9 5HJ At www.bosch-pt.co.uk you can order spare parts or arrange

the collection of a product in need of servicing or repair.

Tel. Service: (0344) 7360109

Republic of South Africa

Hotline: (011) 6519600

35 Roper Street, New Centre

E-Mail: bsctools@icon.co.za

KZN – BSC Service Centre

Unit E, Almar Centre

E-Mail: bsc.dur@za.bosch.com

Western Cape – BSC Service Centre

Democracy Way, Prosperity Park

Armenia, Azerbaijan, Georgia

TOO “Robert Bosch” Power Tools, After Sales Service

The contained lithium-ion batteries are subject to the Dan-

gerous Goods Legislation requirements. The batteries are

suitable for road-transport by the user without further re-

When shipping by third parties (e.g.: by air transport or for-

warding agency), special requirements on packaging and la-

belling must be observed. For preparation of the item being

shipped, consulting an expert for hazardous material is re-

Dispatch battery packs only when the housing is undam-

aged. Tape or mask off open contacts and pack up the bat-

tery in such a manner that it cannot move around in the

packaging. Please also observe the possibility of more de-

tailed national regulations.

Power tools, rechargeable batteries, accessor-

ies and packaging should be sorted for environ-

mental-friendly recycling.

Do not dispose of power tools and batteries/re-

chargeable batteries into household waste!

Only for EU countries:

According to the Directive 2012/19/EU, power tools that

are no longer usable, and according to the Directive

2006/66/EC, defective or used battery packs/batteries,

must be collected separately and disposed of in an environ-

mentally correct manner.

Battery packs/batteries:

Please observe the notes in the section on transport (see
