USER MANUAL HF255SAA HAIER

GB Instruction for use

ELEMENTS Thanks for purchasing a Haier Product

Please read these instructions carefully before using this appliance. The instructions contain important

information which will help you get the best out of the appliance and ensure safe and proper

installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass

on this manual so that the new owner can become familiar with the appliance and safety warnings.English

The presence of this symbol on the product, accessories or materials that goes with this information

indicates that at the end of its useful life the product or its electronic accessories (ex. charger, headset, USB

cable) should not be disposed with other household waste.

To prevent possible damage to the environment or human health from uncontrolled waste disposal, please

separate these items from other types of waste and recycle them. This will promote the sustainable reuse of

Household users should contact either the retailer where they purchased the product or the relevant local

authorities to find out how they can take this item for environmentally safe recycling and safe. Business

users should contact their supplier and check the conditions of the purchase. This product and its electronic

accessories should not be mixed with other commercial waste.

This appliance use AC power supply.

Please connect the appliance to normal voltage. In case of voltage fluctuation, the appliance may fail to start

up, the temperature controller or the compressor may be damaged or has abnormal voices. At this time,

please add proper stabilizer.

Three-hole socket must be used.

In any event, please ensure the socket is connected with ground wire and make no change on power cord

and plug. The power cord plug shall be attached firmly with the socket, otherwise it may cause a fire.After the

appliance is installed, the plug shall be easily accessible so that it can be detached in time in case of accidents.

Do not damage the power cord.

Do not pull the power cord to disconnect the plug. Please hold the plug to detach it directly from the socket.

The body of the appliance shall not press on the power cord and do NOT stamp on the power cord.

When the power cord is damaged:

When the power cord is damaged or the plug is worn, do not use. The worn or damaged power cord must

be replaced at the specified maintenance provider by the manufacturer or by the qualified personnel.

If a longer power cord is needed, the cross-sectional area of the added power cord shall not be less than

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of

When flammable gas such as natural gas leaks:

Close the valve which leaks the gas. Open house door and window. DO NOT unplug/plug the power plug of

the appliance or other electrical appliances.

Be careful of frostbite

Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet

hands as your hands may freeze onto the surface.

When the appliance falls into disuse:

Keep the appliance away from fire to avoid accidents. Remove the door of the appliance (open the door

and hold it before removing the screws) to avoid children entering into the appliance and causing accident.

Send the appliance to the designated place for disposal.

Open the door by the handle.

Do not store or use gasoline or other inflammable materials in the vicinity of the freezer to avoid a fire.

Never store inflammables, explosives or highly corrosive acids, alkalis and other chemicals in the freezer.

Never store bottled beer or beverages in the freezer, as these will burst during freezing.

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are

of the type recommended by the manufacturer.

Pay attention to your children

Children should be supervised to ensure that they do not play with the appliance.

Do not hang on the door to avoid personal injury as the door or the appliance may fall.

Make sure the hands or feet of the children do not enter holes and side seams of the metal parts such as the

compartment or the back of the appliance to avoid personal injury.

Do not place unstable articles (heavy objects, containers filled with water) on the top of the appliance, to

avoid personal injury caused by falling or electric shock caused by contact with water.

Keep away from water

Do not use water to spray on or flush the refrigerator, and do not place the refrigerator at wet place or the

place which is easy to be splashed with water to avoid the impact to the electric insulation performance of

the appliance or even electric shock or fire.

Do not damage the refrigerant circuit

Disassembly and alteration of the freezer must be authorized. Any agitated movement of the freezer may

damage the cooling pipes. Repair of the appliance must be performed by professional personnel.

Detach the power plug when:

Before cleaning and maintenance, or in case of failure of appliance or power off, please detach the power

plug of the refrigerator. When unplugging the appliance allow at least 5 minutes before restarting, as

frequent starting be damage the compressor.

This freezer is a household appliance for storing food only. Do not store blood, medicines, biological

products or other products in the appliance.

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for their safety.

This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, oces and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

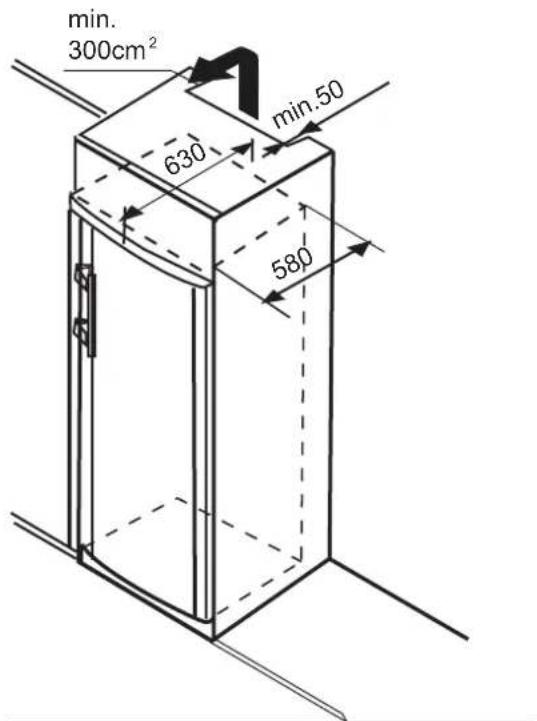

Install the appliance in a cool, dry room with adequate ventilation.

When installing the appliance, a space of at least 10cm must be kept above and around the freezer to ensure

adequate ventilation around the freezer.

Allow warm food to cool down before placing it in the appliance.

Do not keep the door of the appliance open for too long when putting food in or taking food out. The

shorter time, for which the door is open, the less ice will form in the freezer.

Clean the rear of the freezer regularly. Dust increases energy consumption.

Do not set temperature colder than necessary.

Do not cover air vent openings.5

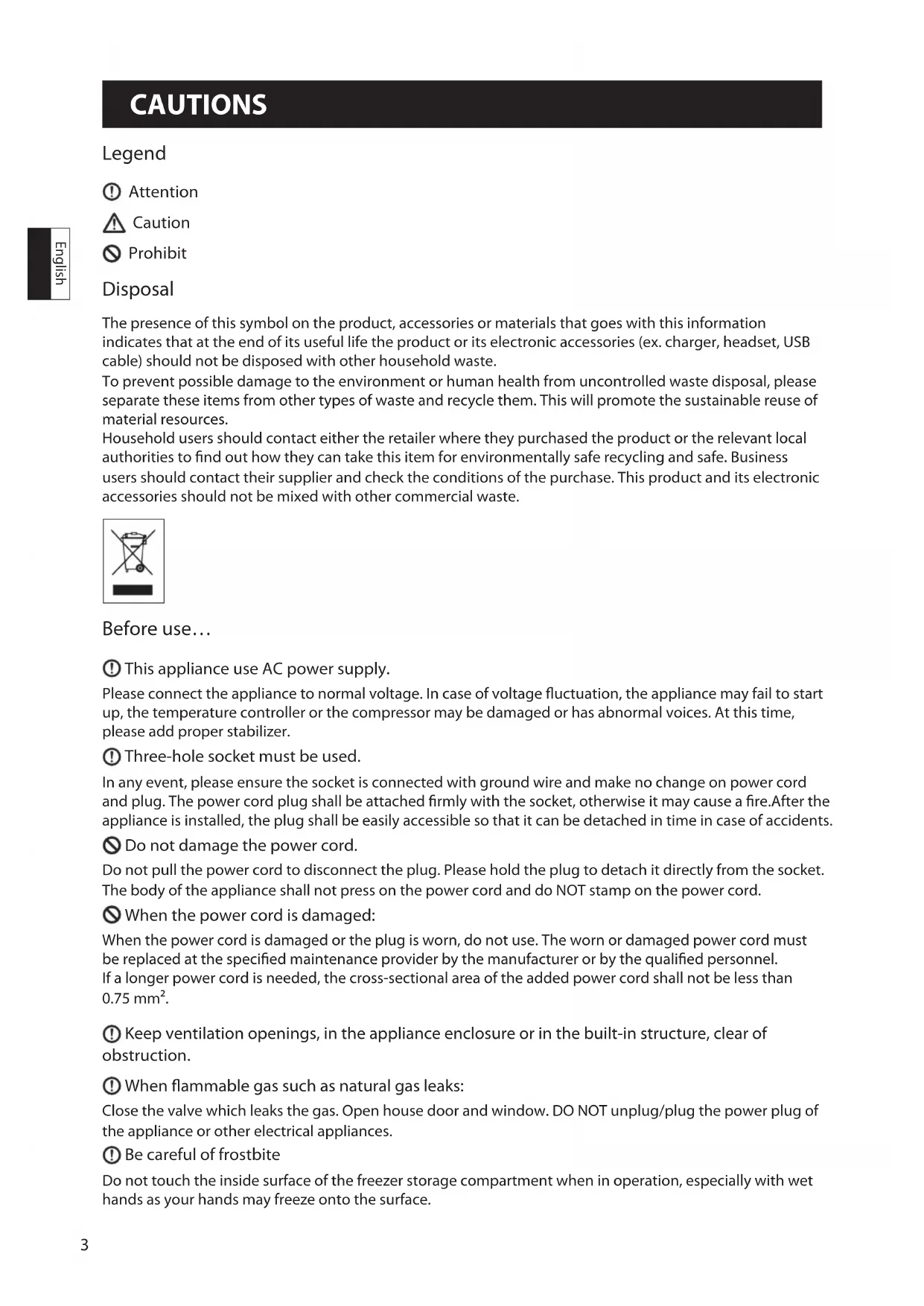

CAUTIONS English Freezing and storage of fresh food

Food shall be stored with a space in between, which is good for refrigeration cycle.

Food shall be stored in different categories so that you can nd it more easily.

Food shall be sealed before stored in the freezer to avoid water loss and smell taint.

It’s optional to pack food before putting it in the freezer. The outside of the packing must be dry to avoid

bags sticking together. Packing materials should be odor-free, airtight, non poisonous and non-toxic.

We suggest to identify portion noting down information as follow:

Quantity (number of pieces)

Limit date of storage

See the diagram inside the freezer for common food storage time limit:

1. stew, ice cream, sausages, bread

2. Fish, shrimp, lamb, meat

3. Vegetables, fruits, poultry, beef

Food should be fresh, mature and of good quality.

Fresh vegetables and fruits must be frozen, if possible, immediately after harvest to maintain the most

nutrients, structure, texture, color and taste.

In case of meat and game, it is preferable to hang for a suciently long period before freezing.

Hot food should be cooled down to room temperature prior to placing it in the freezer.

Only take the required amount of food from the freezer. Defrosted food cannot be re-frozen unless it is

rst cooked, otherwise it may be less edible.

Avoid placing fresh food directly in contact with deep frozen food. Deep frozen food could defrost and may

not outlast the foreseen storage time.

To freeze very well, insert fast freezing function (see functions chapter) 2 hours before storing fresh food.

Do not load excessive quantities of fresh food in the freezer. It is better to refer to the freezing capacity of

Usually 24 hours are enough to bring the freezing process to an end. After this time, function will be

disabled automatically.

For freezing small quantity of food, it’s possible to stop the function manually after few hours to avoid

useless energy consumption.

BEFORE USE Description

This diagram may be slightly different from the layout of the freezer you have just purchased.

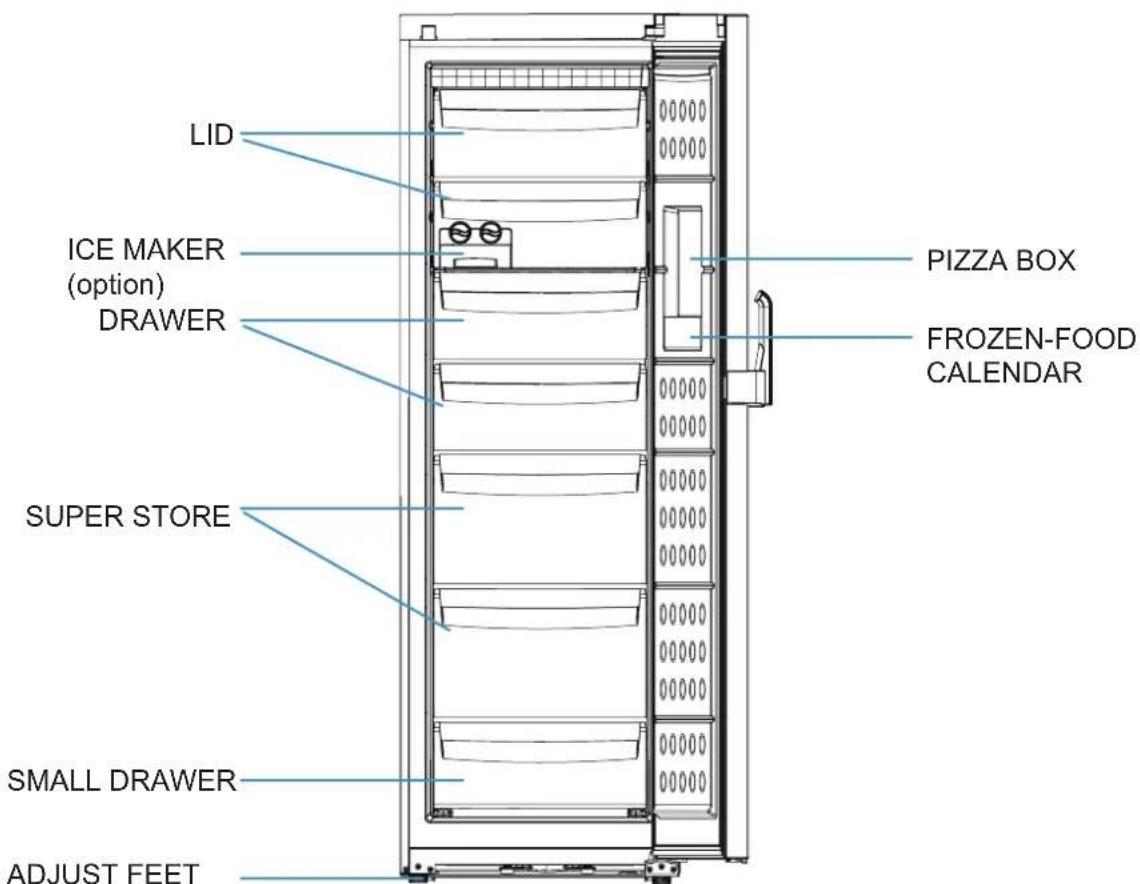

DRAWER SMALL D RAWER SUPER STORE ADJUST FEET

(trasport grips at front, trasport castors at back)

Large drawers, super stores and small drawer can be removed to increase freezer storage space.

LID PIZZA BOX FROZEN-FOOD CALENDAR ICE MAKER

(trasport grips at front, trasport castors at back)7

The freezer should be placed on a flat and solid surface. If the

appliance is placed on a pedestal, flat strong and fire-resistant

materials must be used. Never use the foam packing material

as a pedestal. If the freezer is slightly unstable, you can prolong

or shorten the adjustable foots of the freezer by turningthem

clockwise or counterclockwise to increase or decrease the height

of the freezer. Do not place the freezer under the direct sunlight or

in a place where it is exposedto heaters to ensure the performance

of the Freezer. Install the appliance in a well ventilated place and a space of at least 10cm must be

kept above and around the freezer.

Never place the freezer in a damp area or location where it may be splashed with water. Clean and

dry any water splashes and stains with soft cloth in time to prevent rust.

Do not place the freezer where the temperature is too low (under 5

). Do not keep freezer outside

Preparation prior to use

Remove all package parts, the foam base and the adhesive tape fixing accessories.

Place the freezer in a proper location (please refer to Placing Environment).

Clean the inside and outside of the freezer before use (please refer to Defrosting and Cleaning)

After the appliance has been leveled and cleaned, let it remain idle for at least 6h before switching

it on so as to ensure its normal running.8

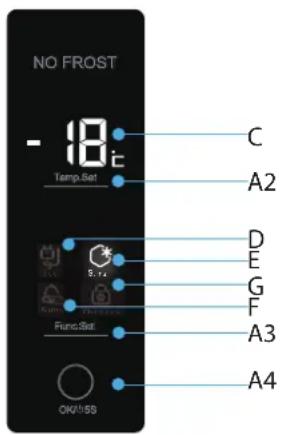

FUNCTIONS Controls panel

Insert the plug in the socket to switch on the freezer.

Display will show you code dF and it means that the freezer is in defrosting condition. After defrosting ,

display will show you code HH.

The alarm led F and acoustic signal will indicate that the temperature inside freezer is not suciently cold

for storage of foodstuffs. Pressing the button A3 to choose the “Alarm” function then press the button A4,

you can disable acoustic signal, but warning light will be on till freezer will reach the temperature of -12°C.

When display show the temperature of -12°C, alarm condition will stop automatically and freezer will be

ready for food storage.

Check the Controls Panel:

Touch any button on the display screen and check whether the temperature area and the selected icon can

To set temperature, push the button A2. During temperature setting two numbers on display show the

point set in flashing mode. Additional pressing on this button modify the set-point in cycling and decreasing

mode from –14°C to –26°C.

If no action is done on the OK button within 5 sec, the set point will be stored automatically.

After the temperature is set, the two numbers on display come back to the freezer temperature visualization.

Manufacturer setting of temperature is -18°C.

Press the button A4 for 5 sec to turn off the power of the freezer; do it again the power will be turned on.

Before any cleaning operation, make sure to disconnect the appliance from the power supply by pulling

out the plug, it isn’t enough to turn off the appliance pushing power button.

C Freezing temperature display icon

F Alarm indicator icon

A3 Function selection button

(eco/ fast freezing/ alarm/child lock)

A4 OK button / Power button9

FUNCTIONS English Freezer functions

Press the button A3 to choose the “S.FRZ” function, then press the button A4, you can

activate fast freezing of fresh food.

The dedicate light E switches on to indicate that the function is on, and activation of the function is

light will be on till function will be disabled.

For fast freezing a small amount of food, this function is recommended to be activated 2 hours before

inserting food; if you have a large amount of food to freeze at one time, it is recommended that the function

be activated 24 hours before inserting food Function will stop automatically after 24 hours or manually.

Power consumption will increase when this function is on.

When the screen is unlocked, press the button A3 to choose the “ECO” function, then

press the button A4, you can activate the function of energy saving, setting temperature within the range of

-18°C and -14°C. If the temperature has been set at -19°C or lower, it will be set automatically at -18°C when

the ECO function is on.

If this function is activated, led D will be on till the function will be unable.

You can press the button A3 to choose the “ECO” function, then press the button A4 to disable the function.

ECO function and Fast Freezing function can not be used simultaneously.

When the screen is unlocked, press the button A3 to select the Child Lock function and then

press the button A4, the function will be on. Unlock: Touch any button on the screen, the display screen and

the child lock button will be lightened; press the button A3, the child lock button flickers; press the button

A4, the screen will be unlocked.

When the screen is locked, the button A2 is not effective; function selection is not available when pressing

the button A3; power can be turned off by press the button A4 for 5 sec.

if temperature inside freezer is over -8°C, an intermittent buzzer and the flashing

led F will indicate the temperature alarm. Display will show you code HH After the screen is unlocked, press the button A3 to choose the “Alarm” function, then press the button A4,

it’s possible to stop acoustic sign, but alarm condition will continue till internal temperature will be colder

If the door is left open for 60 seconds, the anomalous condition will be notified by

intermittent buzzer. The alarm condition will stop by closing the door or by pressing button to select Alarm

function and pressing the OK button, but in this second case alarm condition will restart after 60 seconds if

door is still open. If the door is open for consecutive 7 minutes, the inner light will be off and there will be

Code F4 on display together with alarm led F flashing will indicate a faulty condition of

freezer, but there is no danger for temporary food preservation.

Code Ed on display together with alarm led F flashing and acoustic signal, will indicate a grave faulty

condition of freezer that must be switched off.

For both faulty conditions you must call after sales service as soon as possible.10

FUNCTIONS English Insertion into a row of kitchen units

The appliance can be inserted into a row of kitchen units. To match the appliance to the height of

the row of the units, a suitable stack cabinet can be added. When inserting the appliance into a row

of standard kitchen units (max. depth 580 mm), the appliance can be installed directly next to the

kitchen unit. The appliance door projects relative to the front of the kitchen unit by 34mm at the

side and by 55mm in the middle of the appliance. It can be opened and closed perfectly as a result.

Important for the ventilation:

At the back of the stack cabinet, there has to be a ventilation duct of at least 50mm depth

throughout the width of the stack cabinet.

The ventilation space under the ceiling has to be at least 300cm².

The larger the ventilation space, the more energy-saving the appliance is in operation.

If the appliance is installed with the hinges next to a wall, the distance between appliance and wall

has to be at least 55mm. This corresponds to the projection of the handle when the door is open. min. 300cm 2

LID OPENING To open upper lids, lift them slightly and turn inside out.

Open the lid to put the food into the drawer.

Close the lid to avoid contact with the door.

The lid can be removed to increase storage space.

NOTE: Two layers in the upper are furnished with lids, but no food placement

is allowed in the front part of the glass plate; or otherwise lids may fail to be

closed, and if so, please check the food items, adjust their locations, and then

re-close the lids. Warning: check if the lids are closed before shutting the

door, and be sure to shut the door after the lids are properly closed so that no

squeezing on the lids may occur.

REMOVING DRAWERS Pull the drawers out fully, then lift them up slightly in order to remove.

Drawers (except the bottom drawer) can be removed in order to obtain

increased storage space.

Slides available for some models.

SUPER STORE DRAWER Pull super store drawer out fully. Lift and pull it out of telescopic guides.

NOTE: Some models of the large drawer are set with slide structure. Proper

way of drawer removing: rst, take the food away from it and push it to the

end; then lift its rear part and pull it out. Don’t lift the drawer up until it is

blocked, then it can be taken out easily; but if so failed , push it to the end

and repeat the steps again.

ICE CUBES PRODUCTION Some models are equipped with an ice system including ice cube trays with

removal device and ice bin.

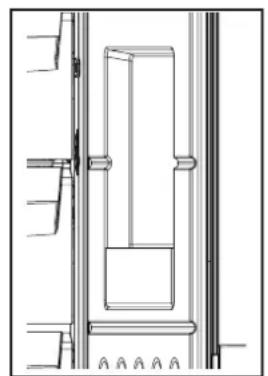

Clean and fill with waterRefit ice trays on its support.

Wait for a few hours for the ice to be ready, then turn the knobs to extract the

The ice cubes will fall directly into the ice container.

Boxes on the door may contain a packed PIZZA with a thickness of less than

30mm or other thin packaged food.

Eutectics available for some models. You can also buy eutectics and put them

in the freezer, and the thickness of the eutectics shall be less than 30mm.12

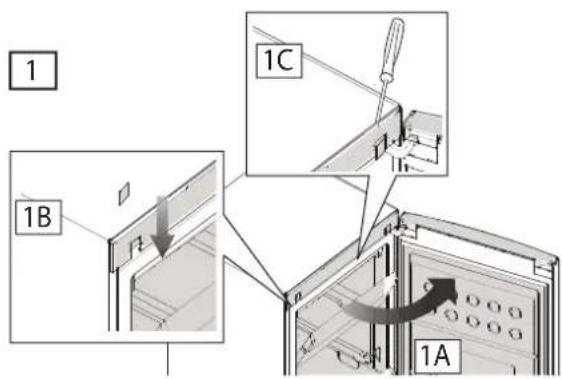

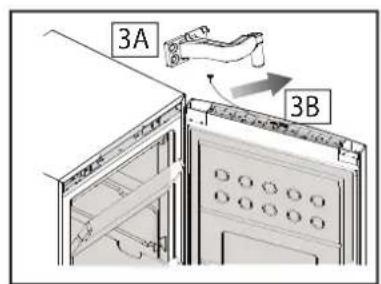

4A Door reversibility:

dismantling door from the right

Disconnect power and empty the

appliance before you start the

B. Force downward to remove the two small covers respec-tively

on the left and right

C. Pry the front cover outward

A. Use a screwdriver to remove the small cover on the right of

B. Use a screwdriver to pry inward to remove the decorative

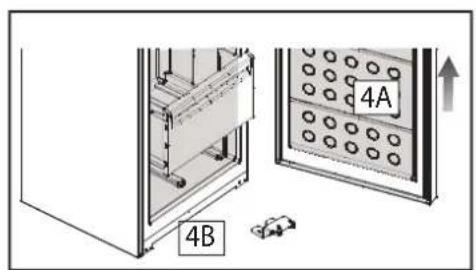

A Move the door body upward to remove the door body

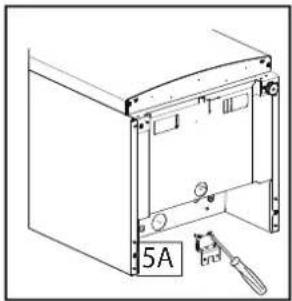

B. Use a crosshead screwdriver to remove the lower hinge

A. Use wrenches or pliers to remove the hinge shaft, and fix it in

the hinge left hole.

B. Use a crosshead screwdriver to remove the screws on the left

of the cabinet body, and mount the screws, on the right side of

the cabinet. Mount the lower hinge on the left side.

A. Use a flat-headed screwdriver to pry off the screw plug on the

right of the door body.

B. Remove the upper hinge shaft and fix it reversely on the

hinge. Move the screw plug to the left side and plug the screw

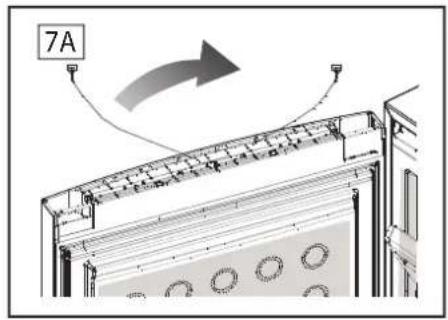

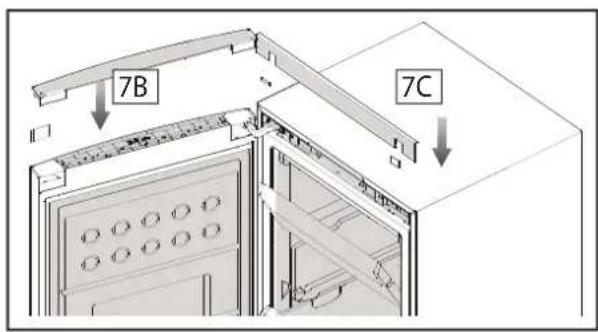

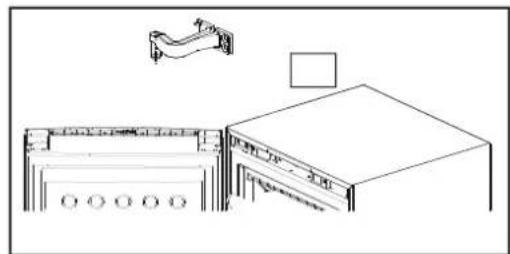

A. Connect the signal line in the door decora-

tive strip to the terminal in the hinge.

Clear up the harness and place it into the

decorative strip cover.

B. Fix the decorative strip and buckle its small

cover on the right side.

C. Close the cabinet upper front cover.

Insert the left and right small covers into the

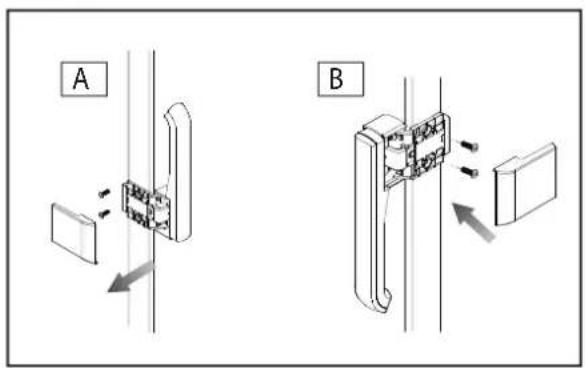

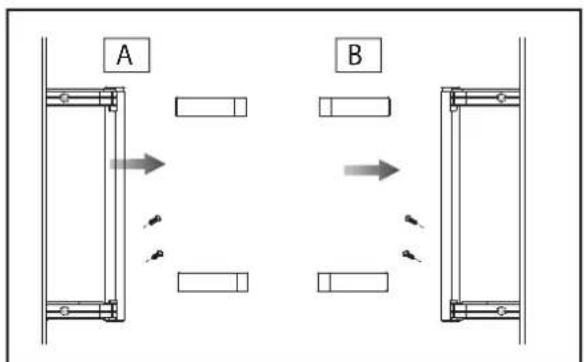

Direction for handle replacement: according

to the different configurations (The figure is

A. Use a flat-headed screwdriver to prise off

the handle upper cover. Remove the two

screws and then remove the handle.

B. Use a flat-headed screwdriver to pry off

the screw plug on the right of the door body.

Move the screw plug to the left side and plug

the screw hole. Fix the handle on the right

side and have it covered.

A. Use a flat-headed screwdriver to prise off

the handle upper cover. Remove the two

screws and then remove the handle.

B. Use a flat-headed screwdriver to pry off

the screw plug on the right of the door body.

Move the screw plug to the left side and plug

C. Fix the handle on the right side and have it

MAINTENACE Defrosting and cleaning

DEFROSTING THE FREEZER: The freezer defrosts automatically. No manual operation is needed.

CLEANING: The appliance should be cleaned regularly to prevent

bad stored food odors.

Unplug the power cord before cleaning the freezer.

Clean the refrigerator with a soft cloth or sponge with warm water

(can be added with mild detergent).

Dry water droplets on the refrigerator surface with a dry cloth.

Always keep the door gasket clean.

The refrigerator is very heavy. When you are moving it for

cleaning or repair, take care not to damage the floor. Keep the

freezer upright during moving. Do not move the freezer by

rocking it to avoid damage to the floor.

Do not spray or flush the freezer with water to avoid impact

on its electrical insulation property.

Do not clean with hard brush, wire brush, detergent powder,

gasoline, amyl acetate, acetone and similar organic solutions,

warm water or acid or alkaline solutions.

When cleaning the display screen and other electrical

appliances, do use dry cloth.

If the freezer will not be used for an extended period, please unplug the power cord and clean it with the

method described above.

Keep the freezer door open to prevent any food remaining in the compartment from producing bad odors.

To ensure the service life of the appliance, it is recommended that the freezer not be turned off unless it

Detach the power plug and turn off the power.

Remove all food in the freezer.

Secure the drawers and other movable parts in the freezer with adhesive tape.

Close the door and secure with adhesive tape so that it will not be opened when moving.

Do not tilt the freezer more than 45 degrees (angle to vertical) to avoid damaging the refrigerating system

when moving the freezer.

Wrap the feet of the freezer to avoid scratching the floor. Never move the freezer forcefully Do not move the

freezer by its handle, lid or pipes to avoid property damage or personal injury.

Never place the refrigerating horizontally down.English

TROUBLE-SHOOTING Before calling for service, please read the following troubleshooting table first. This can save both

your time and money. The table contains common problems except those caused by defects in

workmanship or material of the refrigerator.

PROBLEMS CAUSES SOLUTIONS Freezer operation

Product is in defrosting cycle.

Freezer is not plugged into a

Product is turned OFF.

This is normal for an automatic defrosting

Check whether the plug, socket or fuse is

damaged. Turn on the power when they are

Press the power button to start up the freezer

frequently or runs for

The indoor or outdoor

temperature is high.

The freezer has been

powered off for a period of

The door is opened too

frequently or for a long

The door of the freezer is

The temperature setting is

dirty, worn, cracked or

The condenser is dirty.

In this case, it is normal for freezer to run

Normally, it takes 8 to 12 hours for freezer to

Warm air enters the freezer and causes it to

start frequently. Please do not open the door

Ensure the freezer is located on a level ground

and there is no food or container jarring the

Set the temperature higher until a satisfactory

freezer temperature is obtained. It takes 24

hours for freezer temperature.

Clean or replace the door gasket. A leakage

gap ofdoor gasket can cause a longer running

time of freezer in order to maintain desired

Clean the condenser.

Too high temperature

Too high temperature

The door is opened too

frequently or for too long each

Temperature is set too high.

The door is not closed

Warm air will enter the refrigerator whenever

the door is opened. Try to open the door as less

frequently as possible.

Reset the temperature.

Ensure the freezer is located on a level ground

and there is no food or container jarring the

Clean the condenser.

Water / moisture / frost on outside surface of the freezer

Moisture accumulates

The door is not closed

tightly. This causes

condensation of cold air in

the freezer and the warm air

This is normal in damp climate.

Make sure the ground is at and no food or

containers reach out of the door; close the

TROUBLE-SHOOTING English

PROBLEMS CAUSES SOLUTIONS Bad odors in the freezer

The inside of the refrigerator

Food of strong odor is

stored in the freezer.

Clean the internal of the refrigerator. (Please refer

to Defrosting and Cleaning)

Check whether the food is deteriorated. Take

out deteriorated food or food of strong odor

The freezer door is open.

The temperature in the

freezer is too high.

Close the door or silence the alarm manually.

The alarm is normal when it is rst started or

the food is stored for the rst time. You can

silence the alarm manually.

Contact the after-sale service personnel.

The freezer is not located on

The freezer touches some

Adjust the feet to level the refrigerator.

Remove objects around it.

Slight sound similar to

that of owing water

This is the sound of the

refrigerating system.

The refrigerating system is

working refrigerating system.

This prevents condensation and is normal.

The nameplate is located inside the freezer compartment glued low down on the left side.

The nameplate provides important information about the appliance and must not be tampered

Valid capacity and rated power consumption shown on the nameplate is subject to relevant

(trasport grips at front, trasport castors at back)

(trasport grips at front, trasport castors at back)

- in Bed- and Breakfast-Hotels;

(trasport grips at front, trasport castors at back)

(trasport grips at front, trasport castors at back)

(trasport grips at front, trasport castors at back)

(trasport grips at front, trasport castors at back)

(trasport grips at front, trasport castors at back)

(trasport grips at front, trasport castors at back)
