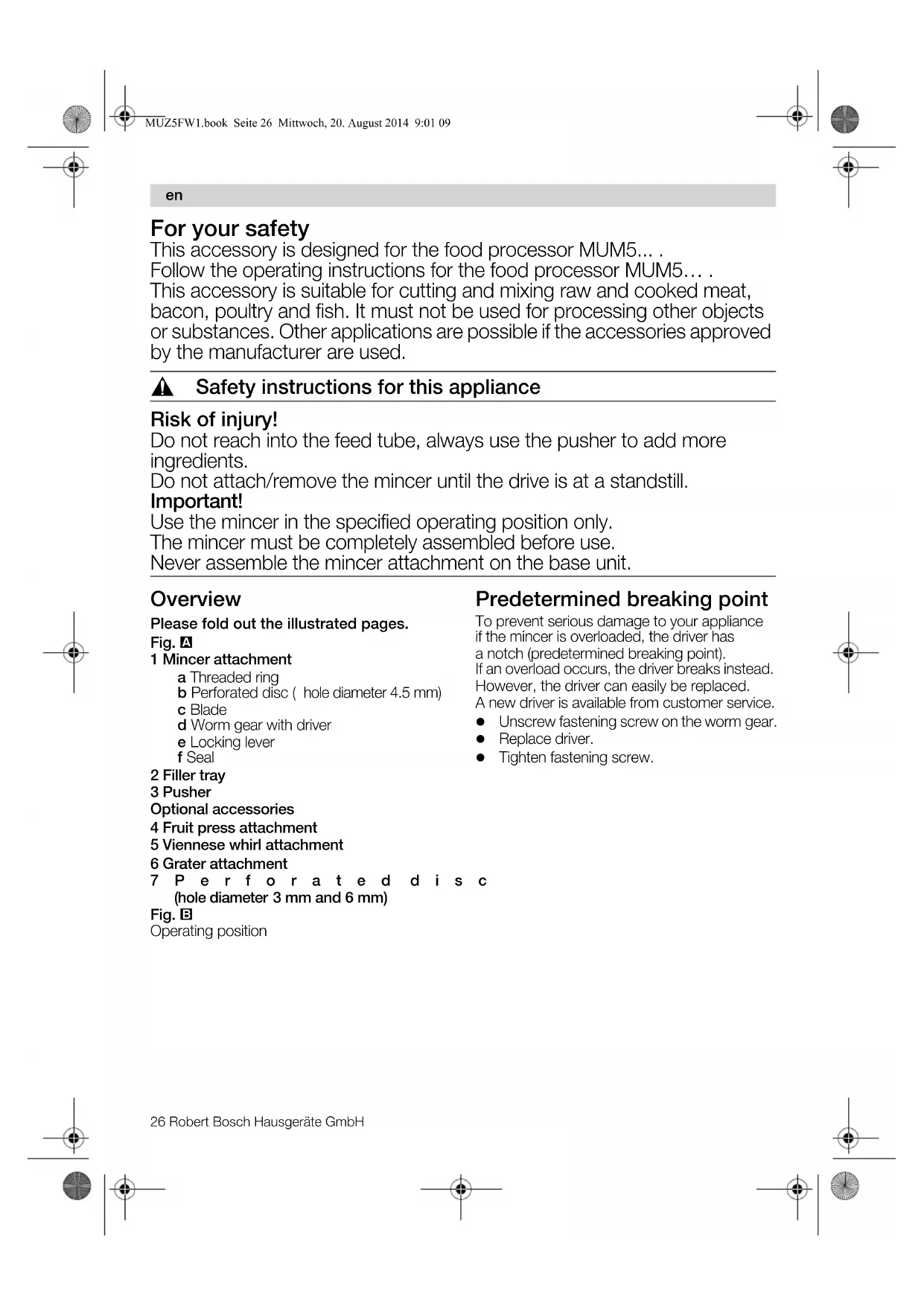

Änderungen vorbehalten. MUZ5FW1.book Seite 25 Mittwoch, 20. August 2014 9:01 0926 Robert Bosch Hausgeräte GmbH For your safety This accessory is designed for the food processor MUM5... . Follow the operating instructions for the food processor MUM5… . This accessory is suitable for cutting and mixing raw and cooked meat, bacon, poultry and fish. It must not be used for processing other objects or substances. Other applications are possible if the accessories approved by the manufacturer are used. , Safety instructions for this appliance Risk of injury! Do not reach into the feed tube, always use the pusher to add more ingredients. Do not attach/remove the mincer until the drive is at a standstill. Important! Use the mincer in the specified operating position only. The mincer must be completely assembled before use. Never assemble the mincer attachment on the base unit. Overview Please fold out the illustrated pages. Fig. 1 Mincer attachment a Threaded ring b Perforated disc ( hole diameter 4.5 mm) c Blade d Worm gear with driver e Locking lever f Seal 2 Filler tray 3 Pusher Optional accessories 4 Fruit press attachment 5 Viennese whirl attachment 6 Grater attachment 7Perforated disc (hole diameter 3 mm and 6 mm) Fig. Operating position Predetermined breaking point To prevent serious damage to your appliance if the mincer is overloaded, the driver has a notch (predetermined breaking point). If an overload occurs, the driver breaks instead. However, the driver can easily be replaced. A new driver is available from customer service. Unscrew fastening screw on the worm gear. Replace driver. Tighten fastening screw.

MUZ5FW1.book Seite 26 Mittwoch, 20. August 2014 9:01 09Robert Bosch Hausgeräte GmbH 27 Operation Thoroughly clean the mincer before using for the first time, see “Cleaning and care”. Assemble mincer attachment in the indi- cated sequence (Fig. ). Do not fully tighten threaded ring. Insert seal. Note position (Fig. )! Fig. Press the Release button and move the swivel arm to position 4. Connect mincer to the drive. Note position of the agitator with respect to the drive. If required, turn the agitator slightly. To do this, the threaded ring must not be screwed tightly! Turn mincer anti-clockwise. Press down locking lever. Now tighten the threaded ring. Attach filling tray. Place a bowl or plate under the outlet opening. Insert the mains plug. Set rotary knob to setting 7. Place the food to be processed in the filling tray. Use the pusher to push in ingredients. t~êåáåÖ> aç=åçí=éêçÅÉëë=ÄçåÉëK Tip: Process steak tartare through the mincer twice. After using the appliance Switch off the appliance with the rotary switch. Lift up locking lever. Rotate the mincer in a clockwise direction and remove. Clean mincer. Cleaning and servicing ^ííÉåíáçå> aç=åçí=ìëÉ=~Äê~ëáîÉ=ÅäÉ~åáåÖ=~ÖÉåíëK= pìêÑ~ÅÉë ã~ó=ÄÉ=Ç~ã~ÖÉÇK jáåÅÉê=~åÇ=áåÇáîáÇì~ä=é~êíë=~êÉ=åçí= ÇáëÜï~ëÜÉêJéêççÑK Loosen threaded ring and disassemble attachment. Rinse individual parts by hand and dry immediately. Optional accessories (available from dealers) t~êåáåÖ> ^äï~óë=~ëëÉãÄäÉ=íÜÉ=~ÅÅÉëëçêáÉë=ïáíÜçìí= Ää~ÇÉë=~åÇ=éÉêÑçê~íÉÇ=ÇáëÅëK= cçääçï=~ää=áåëíêìÅíáçåë=ãÉåíáçåÉÇ=~ÄçîÉ= ÅçåÅÉêåáåÖ=“cçê=óçìê=ë~ÑÉíóÒI=“^ÑíÉê=ïçêâÒ= çê “`äÉ~åáåÖ=~åÇ=ëÉêîáÅáåÖÒK Fruit press attachment for pressing e.g. berries, tomatoes, apples, pears, rosehips (cook rosehips for 1 hour before pressing). Extracted fruit pulp is especially suitable for making jam. Fig. Preparation as described for mincer attach- ment. Note required individual parts and sequence when assembling the fruit press attachment. First undo the fastening screw as far as is required to allow the pulp to flow out while still moist. Then adjust the fastening screw until the pulp flows out with the required moisture. Place the food to be processed in the filling tray. Use the pusher to push in ingredients. Set rotary knob to setting 7. Viennese whirl attachment for shaping biscuit dough or short pastry. Fig. Preparation as described for mincer attach- ment. Note required individual parts and sequence when assembling the biscuit attachment. Place the dough to be processed in the filling tray. Use the pusher to push in ingredients. Set rotary switch to setting 4 or 5 depending on dough consistency. Separate the shaped dough coming out of the appliance with a pastry cutter. Briefly switch off the food processor if the dough comes out too quickly.

MUZ5FW1.book Seite 27 Mittwoch, 20. August 2014 9:01 0928 Robert Bosch Hausgeräte GmbH Grater attachment for grating almonds, nuts and dried bread or bread rolls. t~êåáåÖ> mêçÅÉëë=çåäó=Çêó=åìíë=~åÇ=~äãçåÇë=áå=ëã~ää= èì~åíáíáÉë> Fig. Preparation as described for mincer attach- ment. Note required individual parts and sequence when assembling the grating attachment. Place the food to be processed in the filling tray. Use the pusher to push in ingredients. Turn rotary switch to setting 3 or 4 depen- ding on hardness of the food.
