USER MANUAL T10 Easy clip SWITEL

5.2 Dialling a telephone number directly from the caller

list 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.3 Deleting telephone numbers from the caller list 56

6.2 R−button and supplementary services offered by

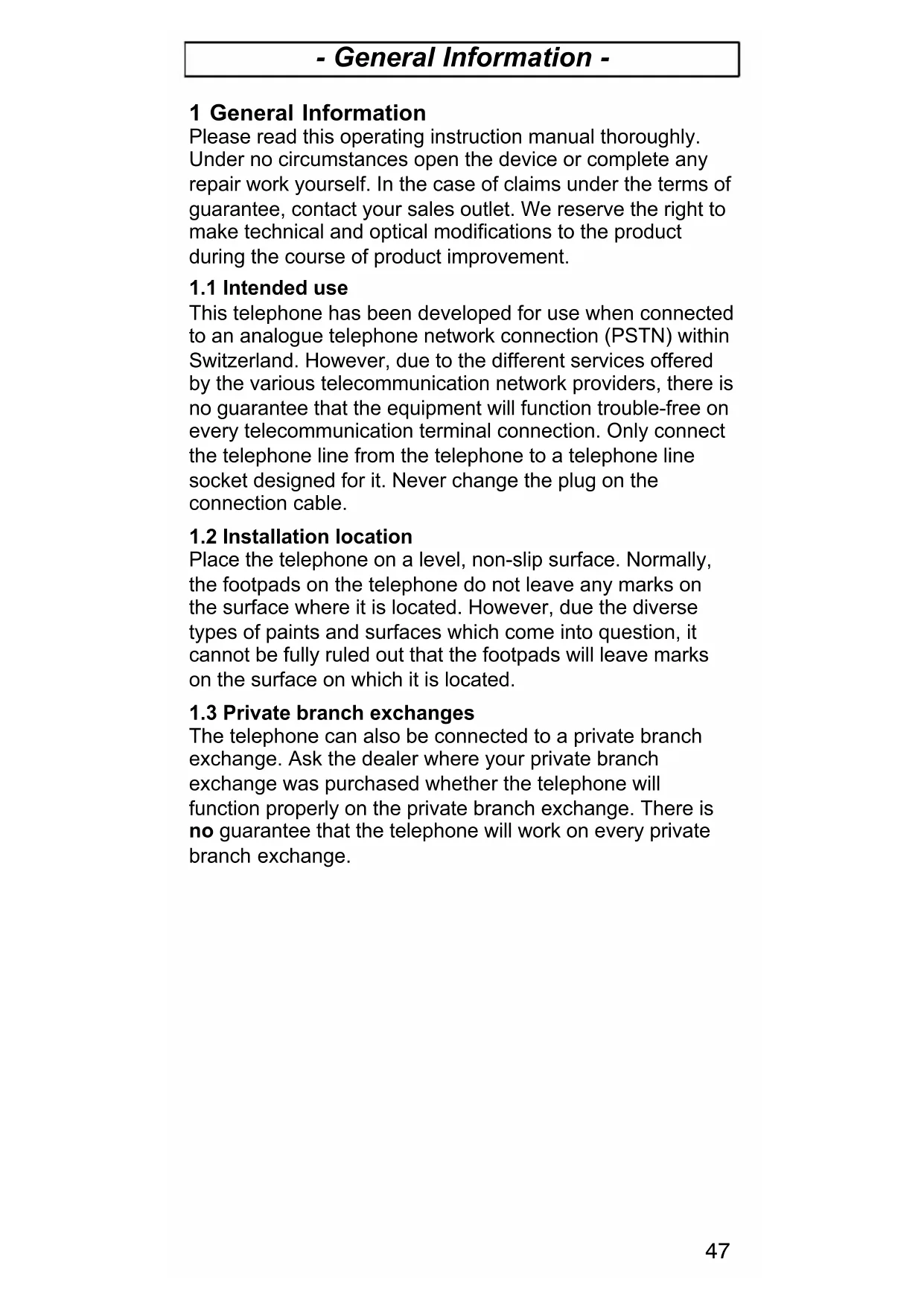

1 General Information Please read this operating instruction manual thoroughly. Under no circumstances open the device or complete any repair work yourself. In the case of claims under the terms of guarantee, contact your sales outlet. We reserve the right to make technical and optical modifications to the product during the course of product improvement.

This telephone has been developed for use when connected to an analogue telephone network connection (PSTN) within Switzerland. However, due to the different services offered by the various telecommunication network providers, there is no guarantee that the equipment will function trouble−free on every telecommunication terminal connection. Only connect the telephone line from the telephone to a telephone line socket designed for it. Never change the plug on the connection cable.

1.2 Installation location

Place the telephone on a level, non−slip surface. Normally, the footpads on the telephone do not leave any marks on the surface where it is located. However, due the diverse types of paints and surfaces which come into question, it cannot be fully ruled out that the footpads will leave marks on the surface on which it is located.

1.3 Private branch exchanges

The telephone can also be connected to a private branch exchange. Ask the dealer where your private branch exchange was purchased whether the telephone will function properly on the private branch exchange. There is no guarantee that the telephone will work on every private branch exchange.− General Information −

The implementation of European law in national laws and directives obliges you to dispose of consumable goods appropriately. This serves to protect both persons and the environment. The adjacent symbol indicates that electrical and electronic apparatus no l onger required must be disposed of s eparate from domestic waste. Equipment which is old or has outlived its service life must be disposed of at a suitable collection point provided by the public waste authorities. Batteries and power packs must be disposed of at the point of sale or at the appropriate collection points provided by the public waste authorities. Packaging materials must be disposed of according to local regulations.

1.5 Temperature and ambient conditions

The telephone is designed for use in protected rooms with a temperature range from 10 °C to 30 °C. The telephone should not be used in rooms exposed to moisture, such as bathrooms or laundries. Do not locate the device in the vicinity of sources of heat such as radiators, and never expose it to direct sunlight. Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

1.6 Cleaning and upkeep

Clean the housing surfaces with a soft, dry, fluff−free cloth. Never use cleaning agents or aggressive solvents. Apart from occasionally cleaning the housing, no other upkeep is necessary. The rubber footpads on the telphone are not resistant to all cleaning agents. The manufacturer is not liable for any claims for damage to furniture or such.− User controls −

2.1 Inside the receiver

4. Connection to base unit

2.2 Upper side of receiver

8. Indicator light for new

12. Dialling from the

2.3 Underside of base unit

1. Fixing for wall mounting

3. Fixing wall mounting

4. Connection for spiral

2.4 Inside of base unit

6. Battery compartment

Caution: Before setting up, it is essential that you read the General Information at the beginning of this manual.

3.2 Check contents of pack

The following items are supplied: one telephone base one telephone receiver one telephone connecting cable one spiral cable one instruction manual three AA batteries

3.3 Connecting the receiver

After unpacking your telephone, you must first connect the telephone receiver to the telephone base. First take one end of the spiral cable and plug it into the socket at the bottom of the receiver. Turn the telephone over and plug the other end into the lower socket (see Chapter 2, Section entitled Underside of base unit, Item 4.). Bring the cable out via the cable duct.

3.4 Fitting the batteries

Before connecting your new telephone to the telephone network, the batteries should be fitted. Please always use a good type of AA batteries. No messages will be shown in the display if the batteries are not fitted. Before installing or changing the battery, make sure that the telephone is not connected to the telephone network.

1. The battery compartment is to be found on the

inside of your telephone base.

2. Open the battery compartment with a small

screwdriver or a pointed object.

3. Insert the batteries, ensuring that the polarity is

4. Close the battery compartment.

The battery should be changed when the \ symbol appears in the display. All three batteries must then be changed. If the batteries become discharged, the display will go dark.− Setting up −

3.5 Connecting the telephone

Connect the telephone cable supplied to the telephone socket and the telephone jack on the underside of the telephone base (see Chapter 2, Section entitled Underside of base unit, Item 2.). Then feed the cable out of the telephone housing through the cable guide either towards the top or the bottom. Secure the cable firmly in the cable duct. The telephone works using the MF system (Tone Dialling).

Your telephone is also suitable for wall mounting. Use two screws for fixing to the wall. Drill two holes 85 mm apart, vertically one above the other, and leave the screws protruding 5 mm from the wall. Now place the telephone base over the screws and push down slightly. When the telephone is mounted on a wall, you can hang the receiver on the telephone without cutting off the call. A small hook is located at the top of the receiver rest for this purpose.

3.7 Adjust date and time

1. Press the button y for 4 seconds.

2. Enter the current hour by repeatedly pressing the

3. Confirm with the C button. The display jumps to

the minutes display.

4. Enter the current minutes by repeatedly pressing

5. Confirm with the C button. The cursor jumps to

6. Enter the current day by repeatedly pressing the

7. Confirm with the C button. The cursor jumps to

8. Enter the current month by repeatedly pressing

9. Confirm with the C button. This completes the

entries and the current data will now be shown in the display. Note: If the batteries are fully discharged, the time and date must be re−entered.− Operation −

Your telephone can be used like any conventional telephone.

1. Lift the receiver and wait until you hear the dialling

2. Now dial the required telephone number. The

display can show a telephone number with a maximum of 14 digits. If the number dialled is longer than this, only the last 14 digits will be displayed.

3. To end the call, replace the receiver on the rest.

You can end the current call by using the disconnect button and you will immediately obtain a new dialling tone.

When a call comes through, you will hear the ringing tone. The call can now be accepted using the receiver.

4.3 Call Duration Display

The call duration is shown in the display in minutes and seconds during a call. The indication starts after the number has been dialled. The call duration still remains showing in the display for a few seconds after the call has been ended.

4.4 Adjusting the receiver volume

If the receiver volume is too quiet or too loud for you, you can change this to suit your requirements. You can adjust the volume from soft to loud using the VOL. slide switch on the receiver.

If a connection that you have dialled is engaged or you were unable to get through to anybody, simply replace the receiver. The last number dialled remains stored in the telephone automatically. To use the redial facility, proceed as follows: Lift the receiver and press the redial button F. The stored redial number will now be dialled.

4.6 Adjusting the receiver volume

By means of the slide switch on the right side of the telephone base you can choose the settings (loud) or (soft) to match the volume of the ringing tone to your requirements. If at any time you do not want to be disturbed, use the (off) setting.− Operation −

4.7 Storing speed dial numbers

Your telephone allows you to store 10 numbers for speed dialling. The numbers 0 to 9 on the number pad are used as memory locations.

1. Lift the receiver.

2. Press the S button and the display will show

3. Press the S button again. The cursor will flash

and the display will show MEMORY.

4. Press the required memory location between 0

and 9 on the number pad. S If the memory location is already occupied, the display will show the message OVERWRITE ?. S If you want to overwrite the memory location, press the S button again. S If you do not want to overwrite the memory location, press the disconnect button once and repeat the entire process.

5. Now enter the required telephone number with a

To call a saved speed dial number, proceed as follows:

1. Lift the receiver.

2. Press the e button and the required storage

location between 0 and 9. The saved telephone number will be dialled directly.− Caller display (CLIP) −

5 Caller display (CLIP) In the case of incoming calls, you can see who is calling you by means of the caller display facility. If this function is available on your line, the display shows you the caller’s telephone number while the telephone is ringing. The display reports the following information when there is no telephone number available. If the message UNAVAILABLE or ERROR appears in the display, the number has only been partially or incorrectly received. If the message LONG DISTANCE appears in the display, the particulars of the number are not available. This could have been an international call. If the message PRIVATE appears in the display, the caller has suppressed the transmission of his telephone number or it was not possible to transmit the number. In your absence, all calls will be saved in a caller list with date and time. Up to 99 numbers are saved in the caller list. When the list is full, the oldest number is always deleted from the list. If calls are registered during your absence, this will be indicated in the display by the message NEW and the indicator light for new calls will flash.

5.1 Viewing the caller list

Use the z button to move to the last phone number registered. You can then page through the caller list with y and z . All calls registered will be shown as follows: REPEAT The caller called several times The call is new Time and date Memory location in the caller list Phone number of the caller When you reach the last storage location in the list, the display will show the message END OF LIST. Note: When all newly recorded numbers have been checked, the new call indicator light goes off and the "NEW" indicator in the display shows "00". Note: If no button is pressed within 30 seconds, the caller list is no longer displayed and the display shows the current time and date once more along with the number of telephone numbers stored in− Caller display (CLIP) −

the caller list and the number of newly stored telephone numbers.

5.2 Dialling a telephone number directly from the

caller list You can dial telephone numbers directly from the caller list.

1. Select the required telephone number using the

3. If you have already lifted the receiver, the number

will be dialled directly. If the receiver is in place, the message PICK UP HANDSET will appear in the display.

5.3 Deleting telephone numbers from the caller list

1. Select the telephone number from the caller list

that you want to delete with the y and z buttons.

2. Press the delete button C once. The display will

show the message DELETE ?.

3. Now immediately press and hold the delete

button C for 2 seconds. The number will be deleted and the display will now show another number from the caller list.

5.4 Deleting the entire caller list

1. Select any telephone number from the caller list.

2. Hold the C button pressed until the message

DELETE ALL ? appears in the display.

3. Now immediately press and hold the C button

again for 2 seconds until the message NO CALLS appears in the display.− Private Branch Exchanges −

6 Private Branch Exchanges / Supplementary Services The R button on the handset is used in private branch exchanges and for taking advantage of supplementary services provided by telephone network provider.

6.1 R−button on Private Exchanges

If the telephone is connected to a private branch exchange, all the functions associated with the R button, such as transferring calls, automatic call back, etc., can be used. A private branch exchange requires a Flash time of 100 ms. The dealer where you purchased the exchange can provide information as to whether the telephone will work properly with the exchange.

6.2 R−button and supplementary services offered

by your telephone network provider Your SWITEL telephone supports the most important supplementary services provided by your telephone network provider (e.g. brokering, call waiting, three−way conferencing, etc.). Please contact your telephone network provider with regard to enabling the supplementary services.

In the case of private branch exchanges, it is necessary to dial a specific number (e.g. 9" or 0") in order to obtain the dialling tone for an outside line. When using some older private branch exchanges, it takes a little time before the dialling tone becomes audible. Particularly in the case of such private branch exchanges, it is possible to insert an automatic pause after the number for the outside line so that the number can be dialled in a continuous process without having to wait for the dialling tone. Press the F button once between dialling the number for the outside line and the actual phone number. After dialling the number for the outside line, the telephone waits 3 seconds before dialling the actual phone number.− Important information −

Remove all extra telephone equipment and connect only the telephone directly to the telephone socket. If the fault is still present, connect another telephone (if available) to the telephone socket. The results will show you whether the fault lies with the unit or with the telephone line.

SWITEL equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble−free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the standard batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase. All deficiencies resulting from material or production faults which occur during the period of guarantee will be eliminated free of charge. Rights to claims under the terms of guarantee are annulled following intervention by the purchaser or third parties. Damage caused as a result of improper handling or operation, incorrect positioning or storing, improper connection or installation, Acts of God or other external influence are not covered by the terms of guarantee. In the case of complaints, we reserve the right to repair or replace defect parts or provide a replacement device. Replacement parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer. If your device shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the SWITEL device together with the purchase receipt. All rights to claims under the terms of guarantee in accordance with this agreement must be asserted exclusively with regard to your sales outlet. Two years after the purchase and transfer of our products, claims under the terms of guarantee can no longer be asserted.59− Declaration of Conformity −

OF Route d’Englisberg 17 CH−1763 Granges−Paccot Declare under our own responsibility that the product MODEL: T10 clip DESCRIPTION: Cord−connected telephone Is in conformity with directives: R&TTE Directive (1999/5/EC)

COMPLIANCE IS ACHIEVED BY CONFORMITY TO

Name (printed): Selim Dusi Position in company: Managing Director Date of issue: 24.08.2005 Copies of this document will be held on file for a period of 10 years after the last production. Supplier:TELGO AG, Route d’Englisberg 17, CH−1763 Granges−Paccot Product: T10 clip This product is intended for connection to analogue PSTN lines within Switzerland. However, due to differences between the individual PSTNs provided in the different countries, the appro- val does not, of itself, give an unconditional assur- ance of successful operation on every PSTN network termination point.
