USER MANUAL D7000 Vita Plus SWITEL

Diagram showing connections between a device with cable and connectors (no text or symbols)

Technical line drawing of two mechanical components (no text or symbols)

Headset

Telgo AG, Rte. D'Englisberg 11, 1763 Granges-Paccot, Switzerland

Technische Daten

Standard

DECT

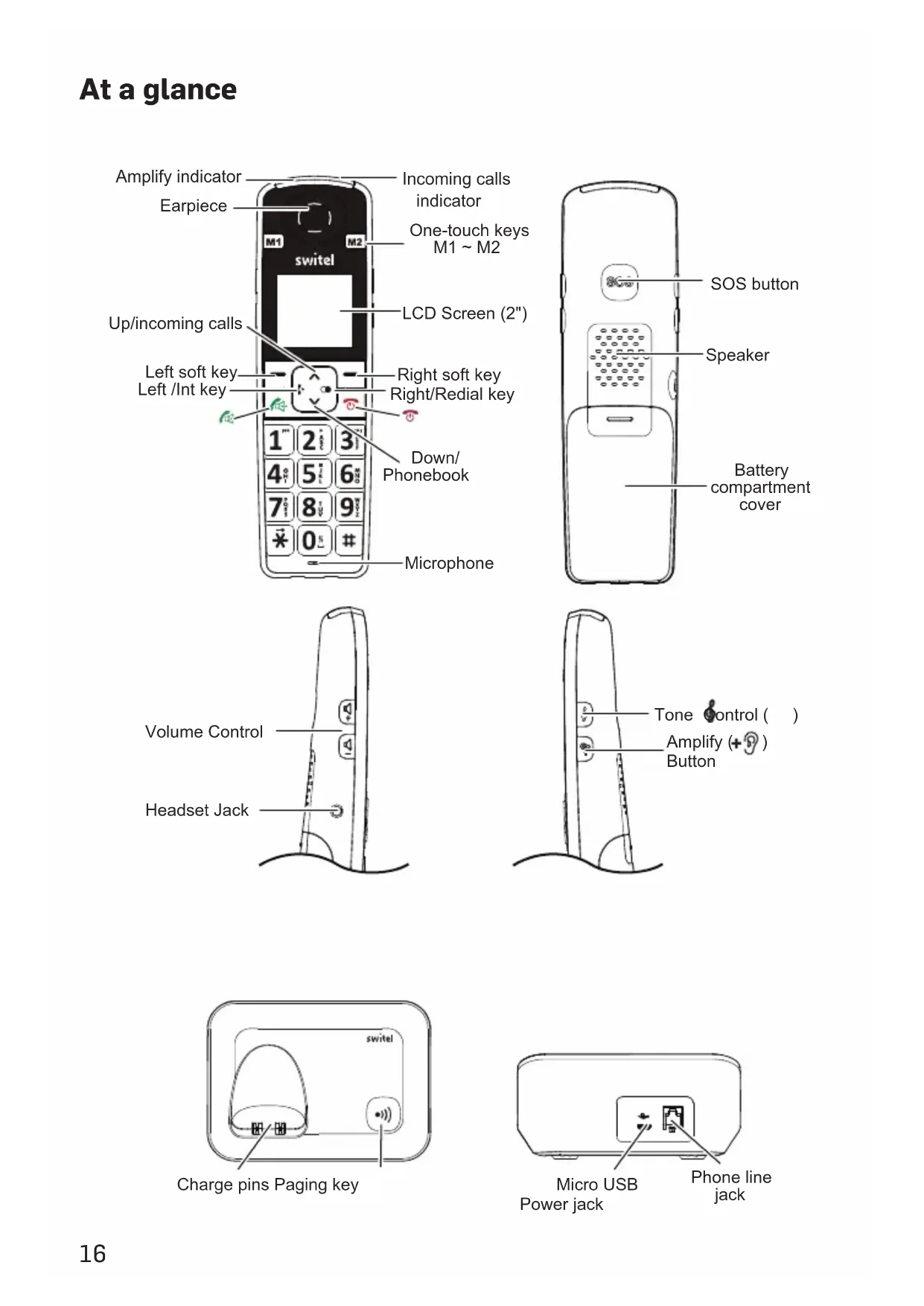

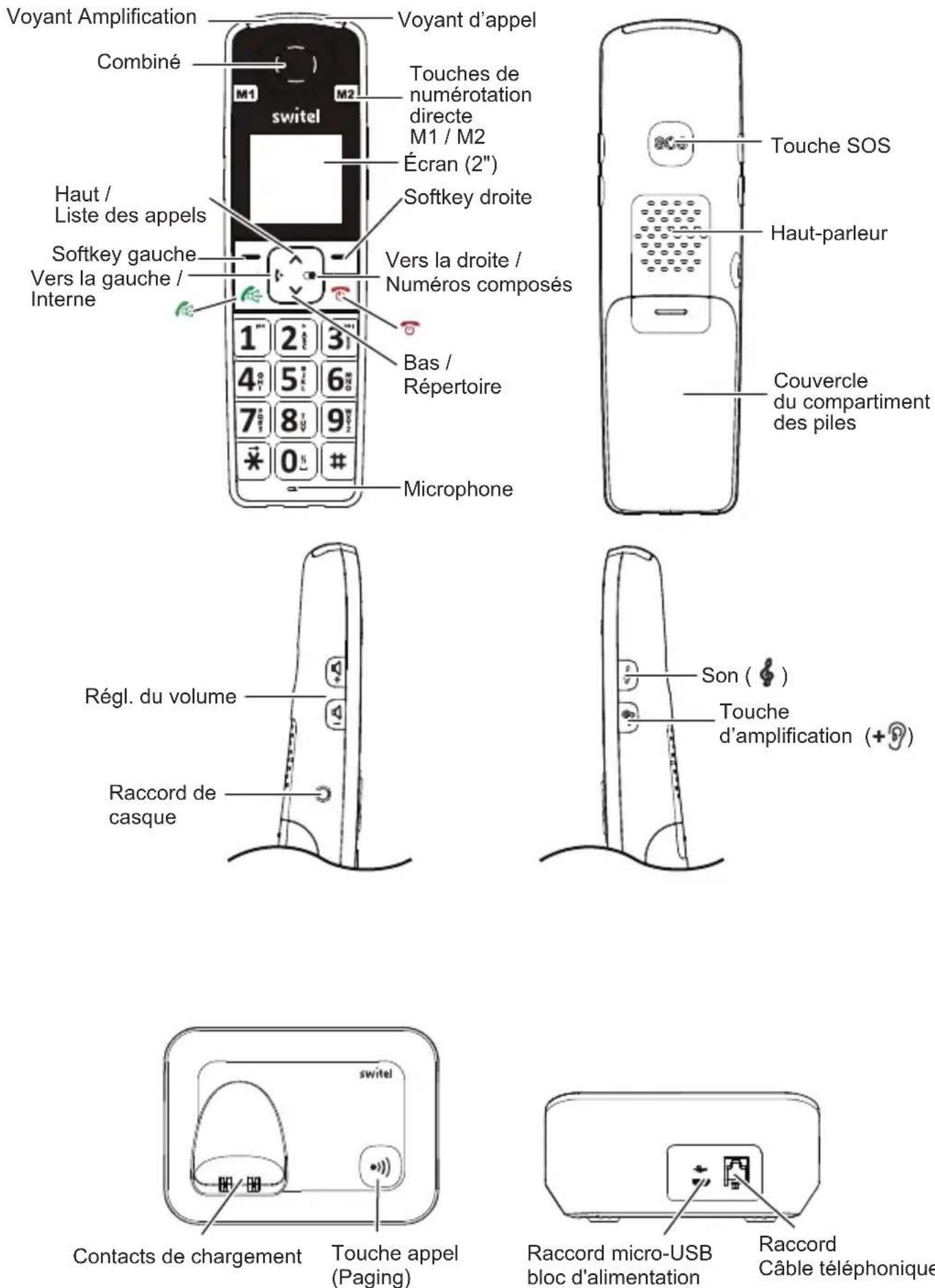

Amplify indicator Earpiece Incoming calls indicator One-touch keys M1 ~ M2 switel LCD Screen (2") Up/incoming calls Left soft key Left /Int key Right soft key Right/Redial key Down/ Phonebook Microphone

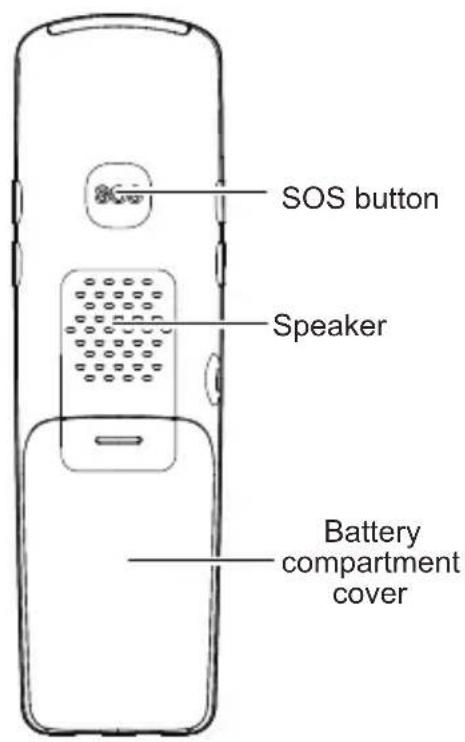

SOS button Speaker Battery compartment cover

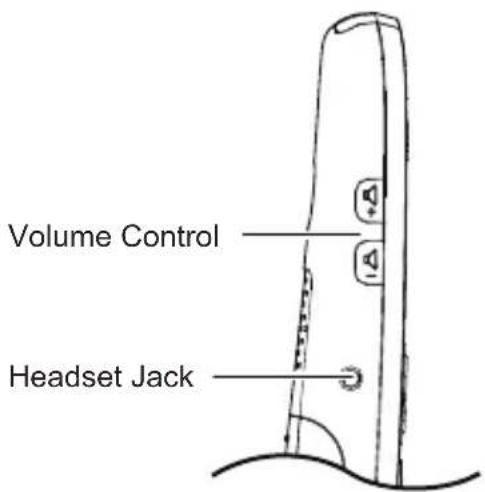

Volume Control Headset Jack

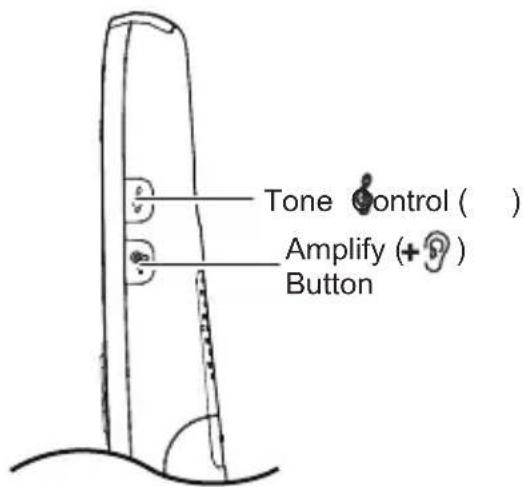

Tone control ( ) Amplify (+) Button

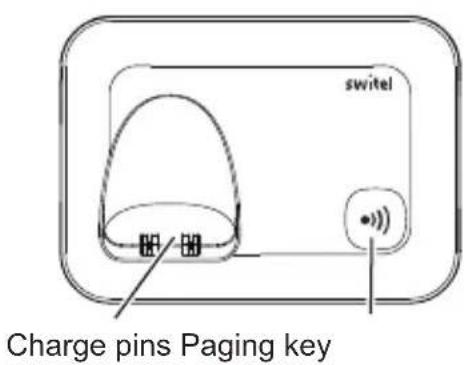

switel Charge pins Paging key

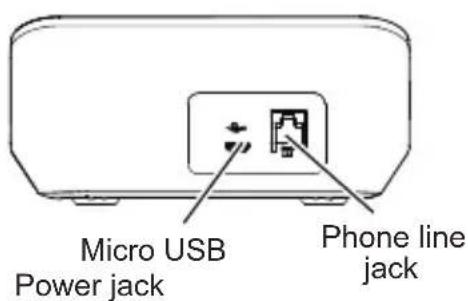

Micro USB Power jack Phone line jack

Set up your phone system

Package contents

GB

1 Base station 1 Cordless handset
3 NiMH-Akkus, 1,2 V, 600 mAh 1 Adapter
1 Carrying clip for handset 1 Line cord
1 User's manual

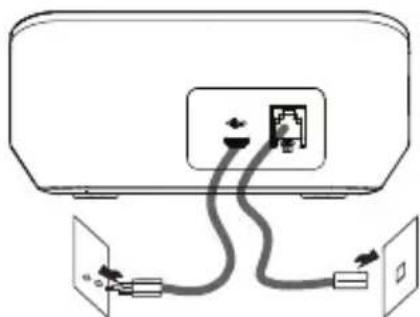

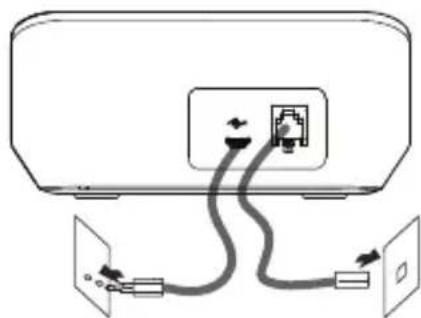

Connection the base station

Diagram showing connections between a device with cable and connectors (no text or symbols)

To AC wall outlet
To phone wall outlet

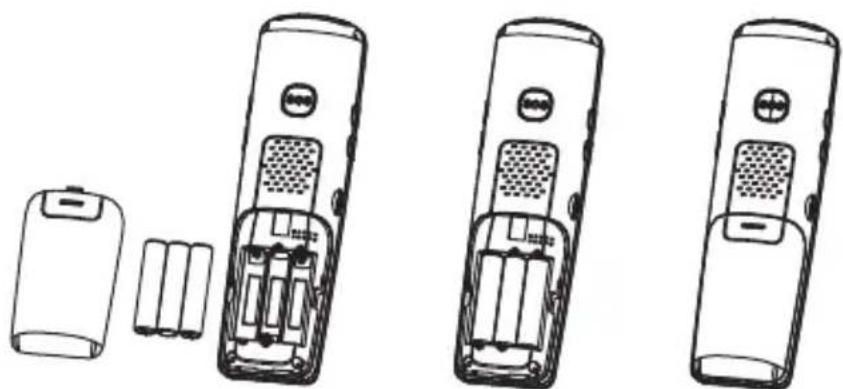

Installing the batteries

Line drawings of three remote devices with battery packs and internal components (no text or symbols)

Charging

Before initial operation, fully charge the handset for 15 hours or more. To charge the handset, simply place it on the charger.

Using handset carrying clip (optional)

The supplied handset carrying clip allows you to conveniently carry the handset with you. It clips easily to your belt, waist band, or shirt pocket.

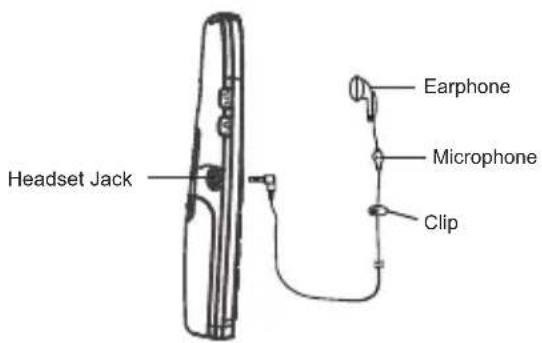

Using headset (optional)

The headset jack is located in the left side of the handset and is 3.5 mm standard plug. Simply plug the headset into this jack and the headset will be activated.

Headset Jack Earphone Microphone Clip

Using the phone

Key functions

To enter *.

Press and hold to turn on/off keypad lock function.

In standby mode press and hold this key to activate the torch function.

Perform the functions indicated by the text immediately over them (on the bottom line of the display) which changes time by time.

End call key:

Press to turn the phone on. If held pressed, turns the phone off. In menu mode, briefly press it to cancel your input and return to standby mode. During a call, briefly press it to end the call.

Talk key:

Makes telephone calls and answers them.

If pressed during a call, activates the speakerphone for handsfree operation.

One-touch memories. You can store 3 numbers in One-touch memories (M1, M2 and SOS = M3).

Navigation key:

Up key / calls list:

Scroll up through lists and menu options.

Enter the incoming calls list.

Down key / phonebook:

Scroll down through lists and menu options.

Enter the phonebook.

INT key:

Set up an internal call to another handset.

Transfer an incoming call to another handset.

GB

Redial:

Redial a number.

Insert one or more pauses when pre-dialing.

Display icons

	Shows the current signal strength. The more segments, the stronger the signal.
	Indicates the handsfree function is enabled.
	New entries in the calls list.
	Battery charge level: ( =ll / = empty.)
	Alarms set to ring at a specified time.
	Keypad is locked.
	The line is engaged.
	One or more messages in your voice mailbox (depends on provider).
	Vibration is activated.(switching on/off: longpress key 0 approx. 3 seconds).

Menu structure map

CID book

Phonebook New

Edit

Delete

Delete all

PB Status

BS Settings Terminate HS

Dial Mode

Flash Time

Modify PIN

BS Reset

HS Settings Alarm

Audio Setup

Ring Setup

Tone Setup

Language

HS Name

Auto Answer

LCD Contrast

Date & time

Select Base

HS Reset

Registration

Use

GB

Turning the cordless handset on/off

To turn on the handset, press and hold the End call key until the display lights up, or place it in the charging station.

To turn off the handset, press and hold the End call key until the display goes out.

Setting the language

In the delivery state, the language is set to "English".

1 Press Menu, select HS Settings and press Select.
2 Select Language and press Select.
3 Select the desired language and press Save.

Setting date and time

1 Press Menu, select HS Settings and press Select.
2 Select Date & Time and press Select.
3 Select Set Time and press Select.
4 Enter the current time and press Save.
5 Select Set Date and press Select.
6 Enter the current date and press Save.
7 Select Date Format and press Select.
8 Select the desired date format and press Save.
9 Select Time Format and press Select.
10 Select the desired time format and press Save.

Making a call

1 Press the Talk key.
2 Enter the telephone number.
3 To end the call, press the End call key or replace the handset on the charger.

or

1 Enter the telephone number. If you make a mistake, correct it by using the Erase key.
2 Press the Talk key.
3 To end the call, press the End call key or replace the handset on the charger.

Taking a call

1 Press the Talk key.
2 To end the call, press the End call key or replace the handset on the charger.

Hands-free

1 Press the Talk key once again during a call.
2 To turn off the speakerphone, press the key again.

Redial

1 Press or Redial to open the redial list.

2 Select an entry and press the Talk key.

Setting the volume

1 Whilst in a call press the volume keys located on the side of the handset.

Amplification

Your phone is equipped with a specialized amplification function.

1 Whilst in a call press the Amplification key, located on the side of the handset, to enable the function. You can also use the Tone setting key to control the sound.
2 Press the key once again to disable the function.

Mute (microphone off)

1 Press Mute to mute the microphone.
2 Press Mute once again to switch on the microphone.

Locking the keypad (cordless handset only)

If the keypad is locked, all keys except M1, M2, SOS and the Talk key are locked so that you can call the direct call numbers or accept an incoming call. During this call, the key lock is released, but it is activated again after the call is ended.

1 In idle state press and hold the * key, until the symbol appears, to lock the keypad.
2 For unlocking the keypad press and hold the * key until the symbol disappears.

Paging (base phone only)

To find a mislaid handset, you can initiate a paging call on the base.

1 In idle state press the paging key.
2 To cancel the paging press the key once again or press any key on the handset.

Phonebook

Storing a new entry

1 Press Menu, select Phonebook and press Select.
2 Select New and press Select.
3 Enter the name and press Select.
4 Enter the telephone number and press Select.
5 Select a melody for this entry and press Save.

Dialing from the phonebook

1 Press.
2 Select an entry and press the Talk key.

Editing or deleting entries

1 Press Menu, select Phonebook and press Select.
2 Select Edit or Delete and press Select.
3 Select an entry (M1, M2, M3 = direct call keys) and press Select to edit or to delete it.

Deleting all entries

1 Press Menu, select Phonebook and press Select.
2 Select Delete All and press Select.
3 Confirm the confirmation query.

Phonebook status

1 Press Menu, select Phonebook and press Select.
2 Select PB Status and press Select.
3 The current status is displayed (e.g. 03/50: 3 out of 50 possible entries are used).

Call log

Viewing calls and calling

1 Press Menu, select CID Book and press Select.

or

1 Press^.

2 Select an entry. Missed calls are marked with a , already reviewed calls with a ↑.

3 Press the Talk key to call the telephone number.

Editing entries

1 Press Menu, select CID Book and press Select.

or

1 Press^.

2 Select an entry and press More. You can save or delete the entry or delete the entire list.

Direct call keys

Storing telephone numbers

1 Press one of the direct call keys (M1, M2 or SOS).
2 If a telephone number has not yet been stored, enter a number and press Next.
3 Select a melody for this entry and press Save.

Dialing with direct call keys

1 Press one of the direct call keys to dial the stored number.

Editing or deleting direct call numbers

1 Press Menu, select Phonebook and press Select.
2 Select Edit or Delete and press Select.
3 Select the entry (M1/M2/SOS=M3), you want to edit or delete, and press Select.

Internal call

1 Press.
2 Enter the number for the desired device.

Transferring a call / 3-party conference

1 You are conducting an external call and want to forward it internally or establish a 3-party conference.
2 Press.
3 Enter the number for the desired device.
4 If the internal partner had answered, press the End call key to forward the call, or the star key to establish a 3-party conference.
5 If the internal partner does not answer, or if you want to cancel the transfer, press again.

Note:

- If one of the participants leaves the conference, the others remain connected.

Alarm

An active alarm is indicated in the display by the symbol.

1 Press Menu, select HS Settings and press Select.
2 Select Alarm and press Select.
3 Select On and press Select.
4 Enter the alarm time and press Next.
5 Select whether the Snooze function should be on or off and press Save.
6 When the alarm sounds, press any key to turn it off.

Note:

• If the snooze function is activated, the alarm is repeated at intervals of approx. 11 minutes. To turn it off completeness, press the End Call key.
• To deactivate an alarm, proceed as described above, then select Off in step 3.

More settings

Further settings are described below. You can access the corresponding function via the menu (see menu structure).

Auto Answer (HS Settings)

If set to on, you can answer a call by simply picking up the handset from the charger, without pressing any key.

Select Base (HS Settings)

If your handset is registered to different base stations (up to 4), you can select the active base station.

HS Name (HS Settings)

You can give the handset an individual name.

LCD Contrast (HS Settings)

You can adjust the display contrast.

Reset (HS Settings / BS Settings)

Base phone or handset are reset to the delivery state. To reset, you must enter the PIN (in delivery state 0000).

Audio settings (HS Settings -> Audio Setup)

Set the default handset and loudspeaker volume. You can make individual changes during a conversation with the volume keys on the side of the handset.

Ringer melody and ringer volume (HS Settings -> Ring Setup)

Select the ringtone and volume for internal and external calls.

Notification tones (HS Settings -> Tone Setup)

Turn the key tone or the tone for the range warning (handset too far from the base) on or off.

BS Settings

In this menu, you can deregister handsets, set the dialing method, determine the duration of the flash signal, change the PIN (in delivery state 0000) or reset the base to default.

Note: If you have questions about dialing method or flash time, please contact your network operator.

Registering a new handset

You can register up to 5 handsets to your base.

To do this, assign a new number to each handset that you register.

The supplied handset is already registered with the number 1, appearing as 1.

1 Press the paging button on the base station for approx. 5 seconds until it flashes red / blue.
2 Now perform the necessary steps for the registration of the new handset (see respective user manual).

Example D7000:

1 Press Menu, select Registration and press Select.
2 Select a base and press Select.
3 Enter the base station's PIN code (in delivery state 0000) and press Select.

Removing a handset

Please note that the handset cannot be used anymore with the base.

1 Press Menu, select BS Settings and press Select.
2 Select Terminate HS and press Select.
3 Enter the current PIN (in delivery state = 0000) and press OK.
4 Select the handset that you want to remove, and press Select.
5 After a few seconds the handset is deleted.

Appendix

Safety notes

• Read the instructions in this handbook carefully. Be sure to save it for future reference.
• Read and follow all warning and instruction labels on the equipment itself.
• Be sure to use only the power supply in the package, and ensure that your power source matches the rating listed for it. If you are not sure, check with your dealer or with your local power company.
• Avoid strong shocks. Don't use the power supply if it has received any hard knocks or looks damaged in any way; immediately contact an authorised service center.

- Hold your handset firmly. Otherwise it may fall and be damaged.

- Do not operate the phone in an explosive atmosphere.

- Do not use the phone near water, or spill liquid of any kind on it. If you think that liquid has penetrated the phone, immediately unplug it, dry it with a soft, clean cloth and contact your dealer.

- Respect the environmental conditions. All of the parts of this equipment are designed for indoor use only. Never expose them to extremely hot or cold temperatures. Don't expose the cordless telephone to excessive vibrations or dusty, rainy places.

- Never try to disassemble or service the equipment by yourself (aside from the routine maintenance described in this manual). Doing so immediately voids the warranty, and you can cause damage requiring extensive repair work. Always contact your local dealer for assistance.

- Handle the batteries properly. Particularly, strictly follow the directions stated in this manual.

- Never use the phone with non-suitable batteries, and charge them only with the supplied base and charger. The use of any non-genuine parts can create hazards, electric shocks and other risks, and voids the warranty.

- In case of problems, please refer to this user's manual or contact your dealer and/or the nearest official service center. Every service operation not provided by official service centers voids the warranty.

- Use always good sense! Don't go on with any operations if you are not sure what you are really doing. In case of doubts please contact your dealer.

- This phone cannot be used to place calls, including emergency calls, under these conditions: during power failure, if batteries are defective or depleted, or if the keypad is locked.

- Do not use this phone near emergency medical equipment or near people with implanted electrical devices, such as pacemakers. Additionally, radio signals between the handset and the base can interfere with hearing aids, causing strong noise.

Power adapter plug

The power adapter plug supplied fulfils the ecodesign requirements of the European Union (Directive 2009/125/EC). This means that, both in an operating state and in an idling state, the power consumption is considerably lower compared to power adapter plugs with an older design.

Disposal

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The adjacent symbol indicates that the device must not be disposed of in normal domestic waste!

Batteries represent a hazard to health and the environment!

Never open, damage or swallow batteries or allow them to pollute the environment. They may contain toxic, ecologically hazardous heavy metals. You are legally obliged to dispose of power packs and batteries at the point of sale or in the corresponding containers provided at collection points provided by local public waste authorities. Disposal is free of charge. The adjacent symbols indicate that the batteries must not be disposed of in normal domestic waste and must be brought to collection points provided by local public waste authorities. Packaging materials must be disposed of according to local regulations.

Declaration of conformity

This device fulfils the requirements stipulated in the EU directive: 2014/53/EU.

Conformity with the above mentioned directive is confirmed by the CE symbol on the device. To view the complete Declaration of Conformity, please refer to the free download available on our website www.switel.com.

Telgo AG, Rte. D'Englisberg 11, 1763 Granges-Paccot, Switzerland

Technical data

Standard

DECT

Power supply (base) Input: 100-240V 50/60Hz Output: 5 VDC 1 A

Range Outdoors approx. 300 m, Indoors approx. 50 m

Standby Up to 100hrs

Maximum Talk Time Up to 10hrs

Maximum earpiece volume +35 dB

Rechargeable batteries 1.2 V, 600 mAh, NiMH

Dialling mode Tone (DTMF) / Pulse

Recall time (Flash) 100 ms (Flash-1), 300 ms (Flash-2)

Optimum ambient temperature 0°C to 45°C

Optimum relative humidity 20% to 80%

Guarantee

SWITEL equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system.

The terms of the guarantee do not apply to the rechargeable batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies resulting from material of production faults which occur during the period of guarantee will be eliminated free of charge. Rights to claims under the terms of guarantee are annulled following intervention by the purchaser or third parties. Damage caused as a result of improper handling or operation, incorrect positioning or storing, improper connection or installation, Acts of God or other external influence are not covered by the terms of guarantee.

In the case of complaints, we reserve the right to repair or replace defect parts or provide a replacement device. Replacement parts or devices become our property.

Rights to compensation in the case of damage are excluded where there is no evidence or intent or gross negligence by the manufacturer.

If your equipment shows signs of defect during the period of guarantee, please return to the sales outlet in which you purchased the SWITEL equipment together with the purchase receipt. All rights to claims under the terms of guarantee in accordance with this agreement must be asserted exclusively with regard to your sales outlet.

Two years after the purchase of our products, claims under the terms of guarantee can no longer be asserted.

Aperçu

Installation

Raccorder la station de base

Diagram showing connections between a device with a plug and two connectors (no text or symbols)

Line drawings of three remote devices with battery packs and internal components (no text or symbols)

Charger le combiné

Technical line drawing of two mechanical components with internal mechanisms (no text or symbols)

Casque

Telgo AG, Rte. D'Englisberg 11, 1763 Granges-Paccot, Switzerland

Diagram showing cable routing between a device with labeled ports and connection points

Line drawings of three remote devices with battery packs and internal components (no text or symbols)

Technical line drawing of two identical mechanical components with internal features (no text or symbols)

Cuffie auricolari

Risp. Auto (Imposta PT)

Telgo AG, Rte. D'Englisberg 11, 1763 Granges-Paccot, Switzerland

Dati tecnici

Standard DECT

Diagram showing connections between a device with cable and connectors (no text or symbols)

Line drawings of three remote devices with visible internal components and battery pack (no text or symbols)

Cargar terminal inalámbrico

Technical line drawings of two mechanical components (no text or symbols)

Auriculares

Telgo AG, Rte. D'Englisberg 11, 1763 Granges-Paccot, Switzerland

Line drawings of three remote devices with battery packs and internal components (no text or symbols)

Handset laden

Technical line drawings of two mechanical components with internal features (no text or symbols)

Headset

Telgo AG, Rte. D'Englisberg 11, 1763 Granges-Paccot, Switzerland

Technische specificaties

Standaard DECT

In the case of technical questions, please use the service form on our website: http://www.switel.com/en/product-information-technical-support/
