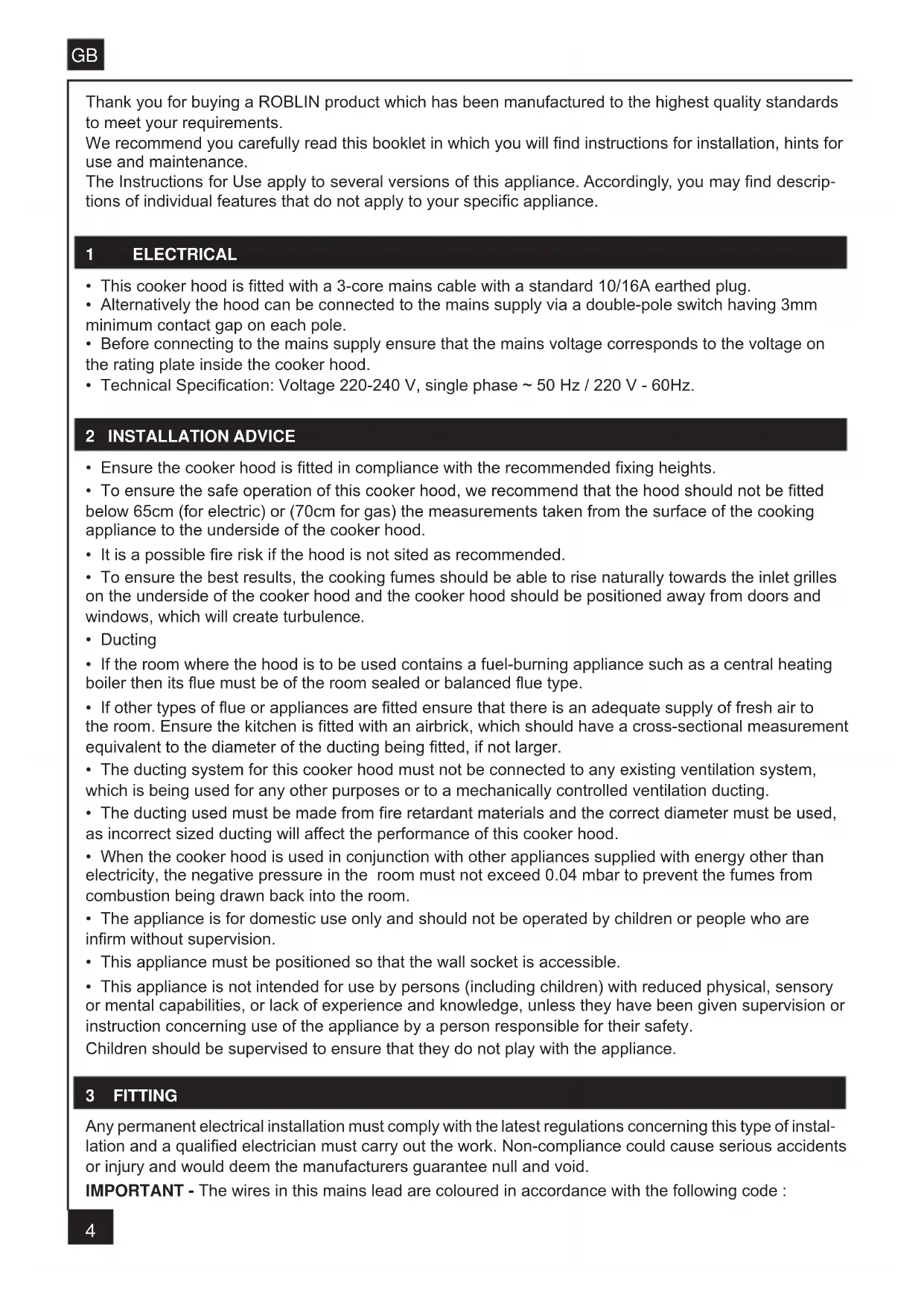

Thank you for buying a ROBLIN product which has been manufactured to the highest quality standards to meet your requirements.

We recommend you carefully read this booklet in which you will find instructions for installation, hints for use and maintenance.

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

1 ELECTRICAL

• This cooker hood is fitted with a 3-core mains cable with a standard 10/16A earthed plug.
• Alternatively the hood can be connected to the mains supply via a double-pole switch having 3mm minimum contact gap on each pole.
• Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.
• Technical Specification: Voltage 220-240 V, single phase \~ 50 Hz / 220 V - 60Hz.

2 INSTALLATION ADVICE

• Ensure the cooker hood is fitted in compliance with the recommended fixing heights.
• To ensure the safe operation of this cooker hood, we recommend that the hood should not be fitted below 65cm (for electric) or (70cm for gas) the measurements taken from the surface of the cooking appliance to the underside of the cooker hood.
• It is a possible fire risk if the hood is not sited as recommended.
• To ensure the best results, the cooking fumes should be able to rise naturally towards the inlet grilles on the underside of the cooker hood and the cooker hood should be positioned away from doors and windows, which will create turbulence.
• Ducting
• If the room where the hood is to be used contains a fuel-burning appliance such as a central heating boiler then its flue must be of the room sealed or balanced flue type.
• If other types of flue or appliances are fitted ensure that there is an adequate supply of fresh air to the room. Ensure the kitchen is fitted with an airbrick, which should have a cross-sectional measurement equivalent to the diameter of the ducting being fitted, if not larger.
• The ducting system for this cooker hood must not be connected to any existing ventilation system, which is being used for any other purposes or to a mechanically controlled ventilation ducting.
• The ducting used must be made from fire retardant materials and the correct diameter must be used, as incorrect sized ducting will affect the performance of this cooker hood.
• When the cooker hood is used in conjunction with other appliances supplied with energy other than electricity, the negative pressure in the room must not exceed 0.04 mbar to prevent the fumes from combustion being drawn back into the room.
• The appliance is for domestic use only and should not be operated by children or people who are infirm without supervision.
• This appliance must be positioned so that the wall socket is accessible.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

3 FITTING

Any permanent electrical installation must comply with the latest regulations concerning this type of installation and a qualified electrician must carry out the work. Non-compliance could cause serious accidents or injury and would deem the manufacturers guarantee null and void.

IMPORTANT - The wires in this mains lead are coloured in accordance with the following code :

green / yellow : earth blue : neutral brown : live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

• The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol ⏚ or coloured green or green and yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

ATTENTION: Do not forget to use adequate plugs to the support brackets. Enquire after the manufacturers. Do an embedding if necessary. The manufacturer accepts no responsibility in case of a faulty hanging due to the drilling and the setting up of plugs.

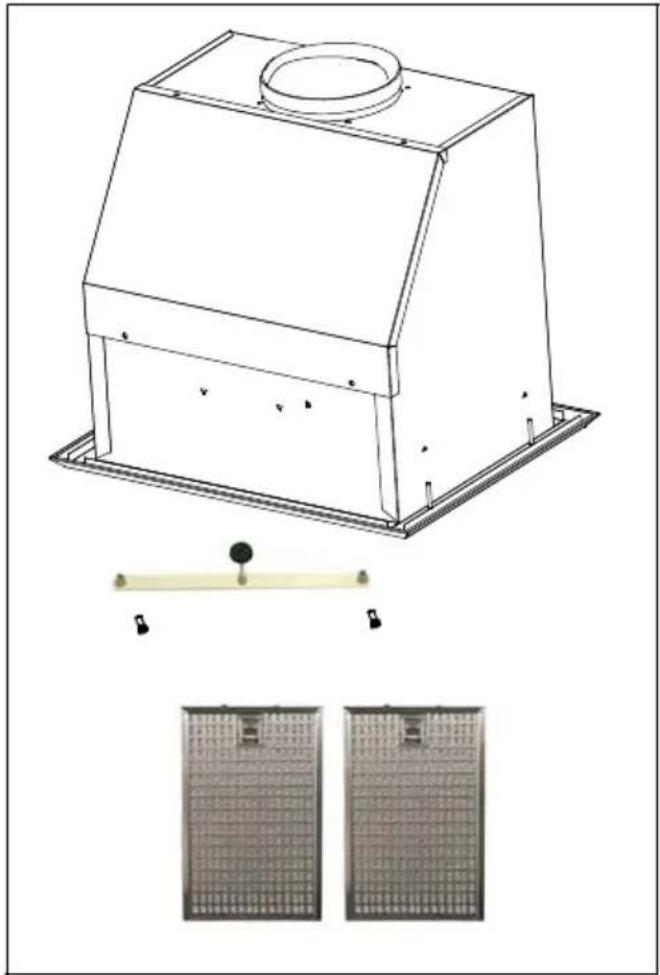

The extractor unit is fitted into the base board of the cooker hood (thickness: 12 to 22 mm). (Fig 1) Connect the electrical plug and set the extractor tube in place.

Clip the appliance into the cutout; the 4 adjustable fastening clips are made flexible to allow quick assembly without the need for any complicated prior dismounting. Retighten the screws if necessary.

Ducting:

The hood is more effective when used in the extraction mode (ducted to the outside). When the cooker hood is ducted to the outside, charcoal filters are not required. The ducting used must be 150 mm (6 INS), rigid circular pipe and must be manufactured from fire retardant material, produced to BS.476 or DIN 4102-B1. Wherever possible use rigid circular pipe which has a smooth interior, rather than the expanding concertina type ducting.

Maximum length of ducting run:

• 4 metres with 1 x 90° bend.
• 3 metres with 2 x 90° bends.
• 2 metres with 3 x 90° bends.

The above assumes our 150 mm (6 INS) ducting is being installed.

Please note ducting components and ducting kits are optional accessories and have to be ordered, they are not automatically supplied with the chimney hood.

• RECYCLING

The air is recirculated into the kitchen through the opening located on the upper side of the cabinet or of the hood (Fig. 2).

Install the charcoal filters inside the canopy (Fig 3).

4 OPERATION

Key ■ : Speed 1

Key : Speed 2

Key ... : Speed 3

Key : High Speed

Key : Lighting

5 USEFUL HINTS

• To obtain the best performance we recommend you to switch 'ON' the cooker hood a few minutes (in the boost setting) before you start cooking and you should leave it running for approximately 15 minutes after finishing.
  • IMPORTANT: NEVER DO FLAMBÉ COOKING UNDER THIS COOKER HOOD
• Do not leave frying pans unattended during use as over-heated fat and oil might catch fire.
• Do not leave naked flames under this cooker hood.
• Switch 'OFF' the electric and gas before removing pots and pans.
• Ensure heating areas on your hotplate are covered with pots and pans when using the hotplate and cooker hood simultaneously.

6 MAINTENANCE

Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply. The cooker hood must be kept clean; a build up of fat or grease may cause a fire hazard.

Casing

• Wipe the cooker hood frequently with a clean cloth, which has been immersed in warm water containing a mild detergent and wrung out.
• Never use excessive amounts of water when cleaning particularly around the control panel.
• Never use scouring pads or abrasive cleaners.
  • Always wear protective gloves when cleaning the cooker hood.

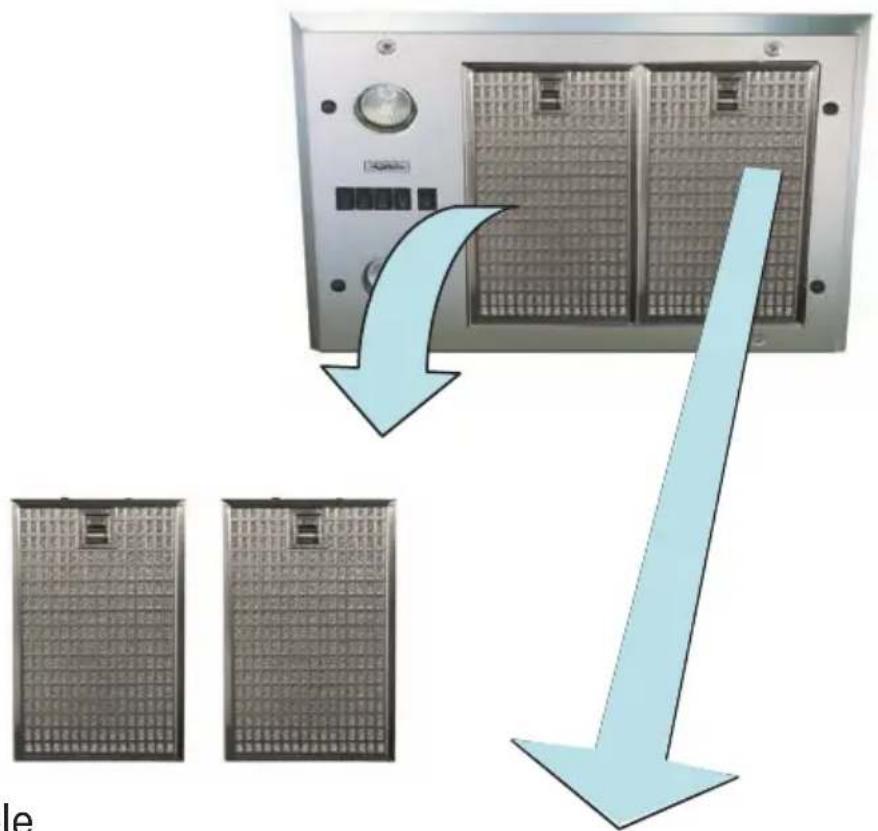

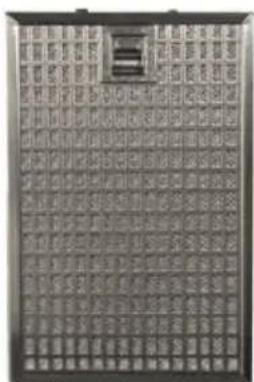

Metal Grease Filters : The metal grease filters absorb grease and dust during cooking in order to keep clean the cooker hood inside. The grease filters should be cleaned once a month or more frequently if the hood is used for more than 3 hours per day.

To remove and replace the metal grease filters

• Remove the metal grease filters one at a time by releasing the catches on the filters; the filters can now be removed.
• The metal grease filters should be washed, by hand, in mild soapy water or in a dishwasher.
• Allow to dry before replacing.

Active Charcoal Filter : The charcoal filter cannot be cleaned. The filter should be replaced at least every three months or more frequently if the hood is used for more than three hours per day.

To remove and replace the filter

• Remove the metal grease filters.
• Press against the two retaining clips, which hold the charcoal filter in place and this will allow the filter to drop down and be removed.
• Clean the surrounding area and metal grease filters as directed above.
• Insert the replacement filter and ensure the two retaining clips are correctly located.
• Replace the metal grease filters.

Extraction tube : Check every 6 months that the dirty air is being extracted correctly. Comply with local rules and regulations with regard to the extraction of ventilated air.

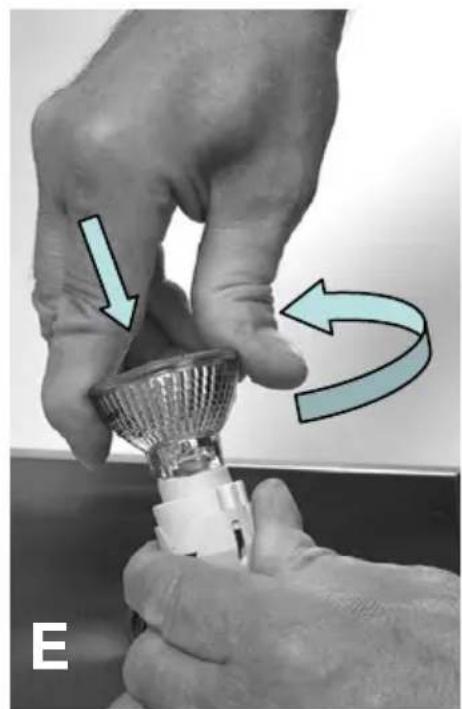

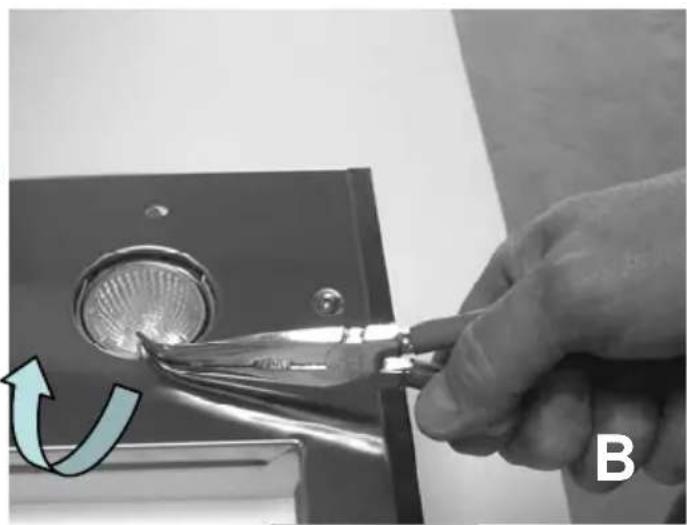

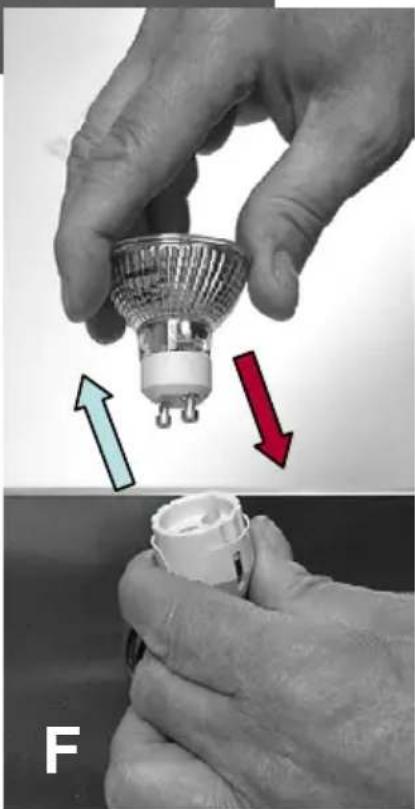

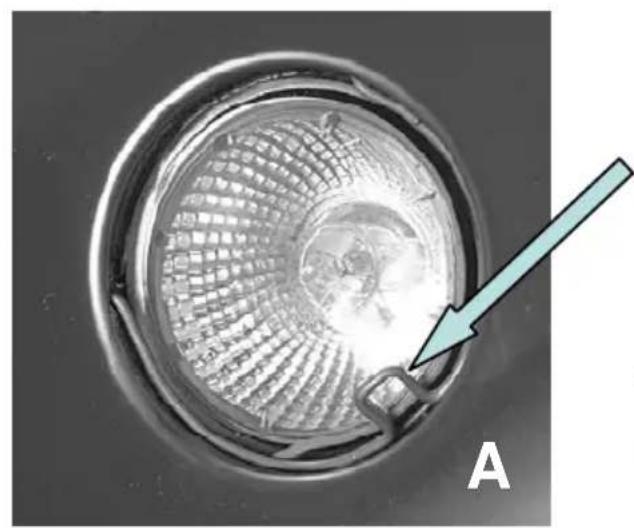

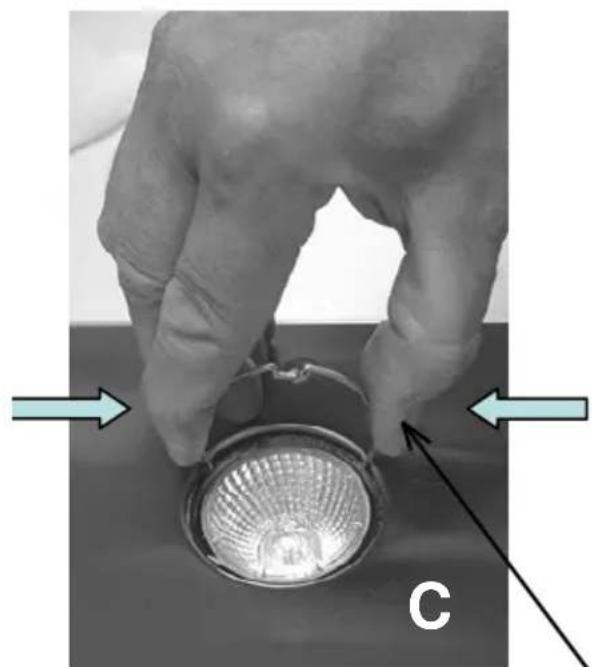

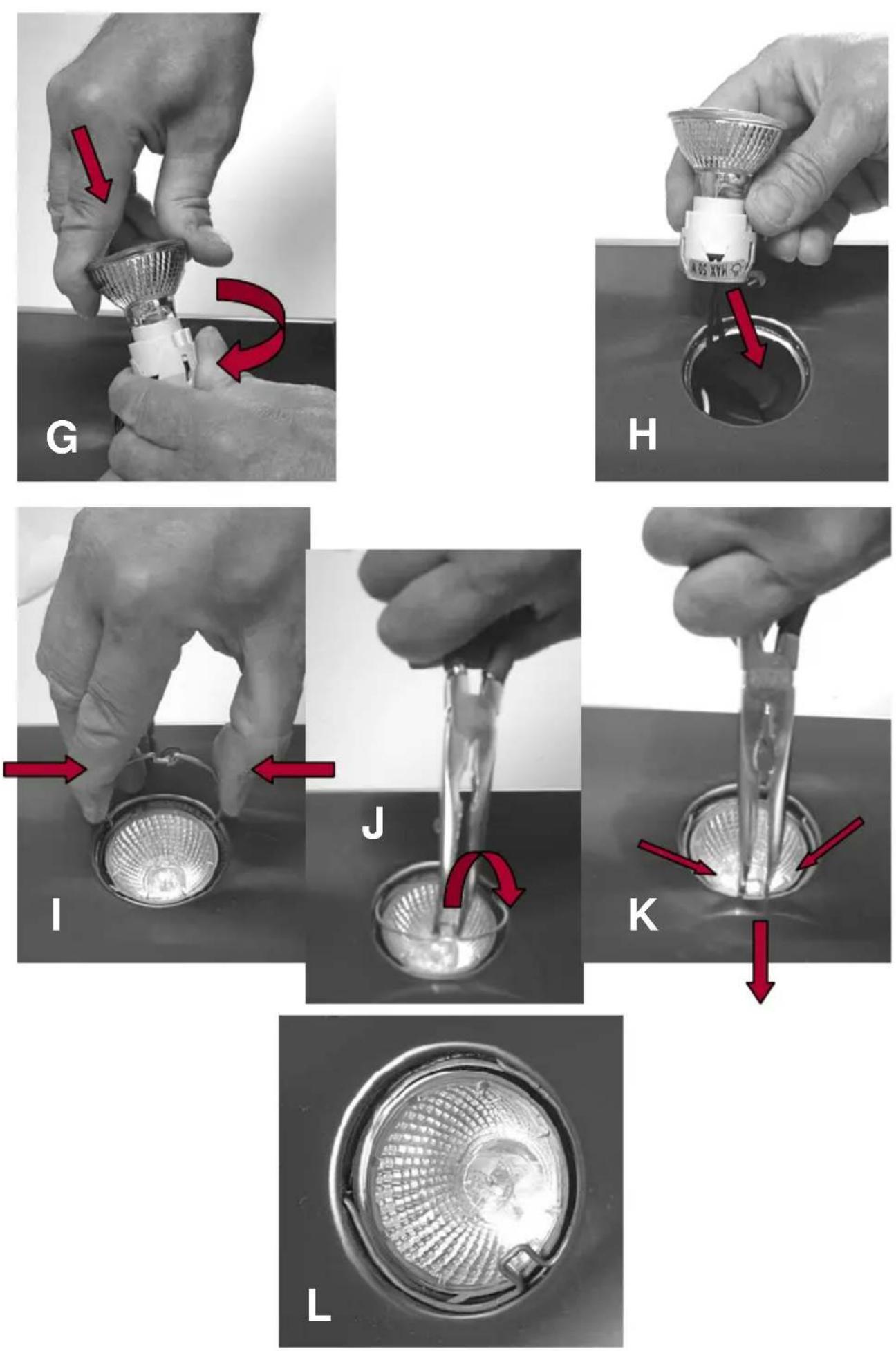

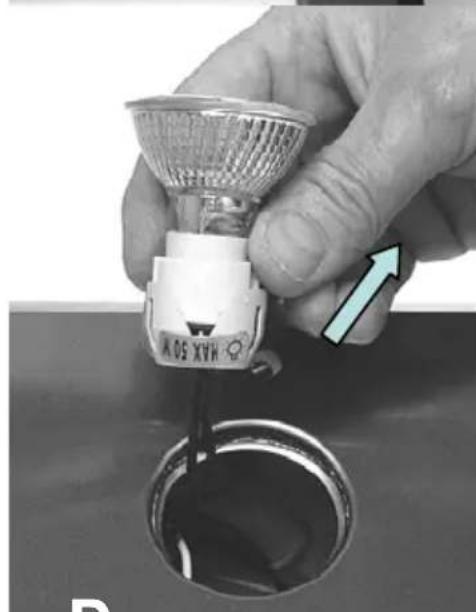

Lighting : If the lamp fails to function check to ensure it is fitted correctly into the holder. If lamp failure has occurred then it should be replaced with identical replacement.

Do not replace with any other type of lamp and do not fit a lamp with a higher rating.

7 GUARANTEE AND AFTER SALES SERVICE

- In the event of any malfunction or anomaly, notify your fitter who will have to check the appliance and its connection.

• In the event of damage to the mains supply cable, this can only be replaced by at approved repair centre appointed by the manufacturer who will have the required tools and equipment to carry out any repairs properly. Repairs carried out by other persons will invalidate the guarantee.
• Use only genuine spare parts. Should these warnings fail to be observed it could affect the safety of your cooker hood.
• When ordering spare parts quote the model number and serial number written on the rating plate, which is found on the casing behind the grease filters inside the hood.
  • Proof of purchase will be required when requesting service. Therefore, please have your receipt available when requesting service as this constitutes the date from which your guarantee commenced.
  This Guarantee does not cover :
• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or filters or removable parts of glass or plastic.
  These items are considered to be consumable under the terms of this guarantee.

8 REMARKS

This appliance complies with European regulations on low voltages Directive 2006/95/CE on electrical safety, and with the following European regulations: Directive 2004/108/CE on electromagnetic compatibility and Directive 93/68 on EC marking.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European directive 2002/96/EC. Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic product. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

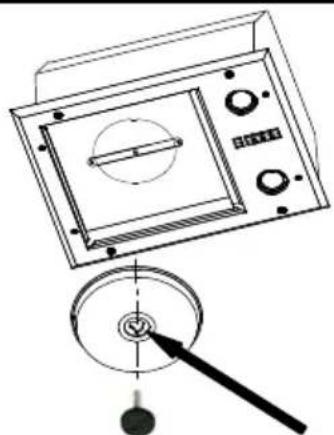

3 INSTALLATIE VAN HET APPARAAT

Simple line drawing of a mechanical or electrical component with an arrow indicating direction (no text or symbols)

3a

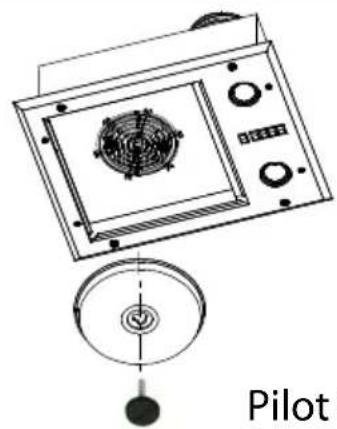

Technical diagram of a pilot-driven electrical device with fan and control panel (no text or symbols)

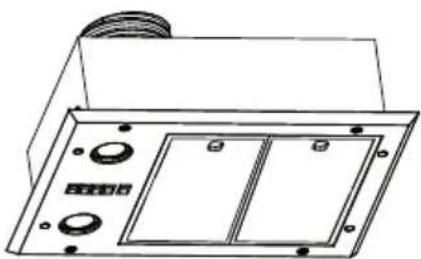

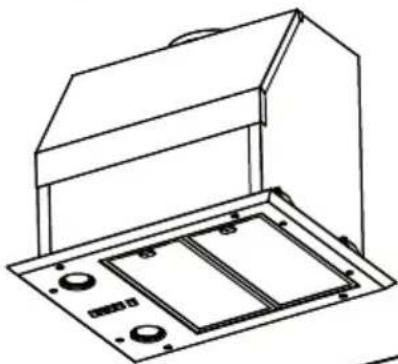

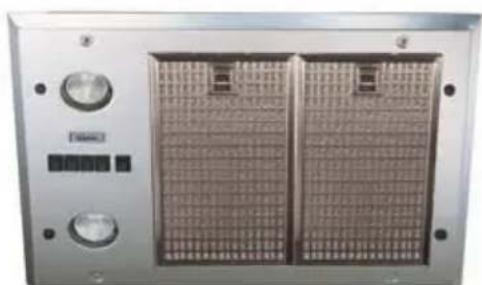

Pilot Optima

3b

Technical line drawing of a mechanical device with a circular dial and pointer (no text or symbols)

Technical line drawing of a mechanical device with a circular dial and control panel (no text or symbols)

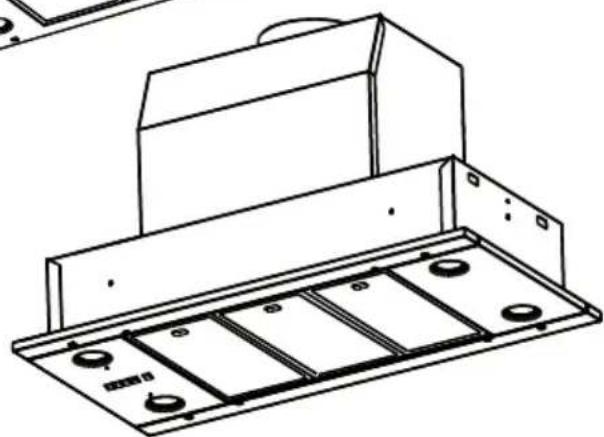

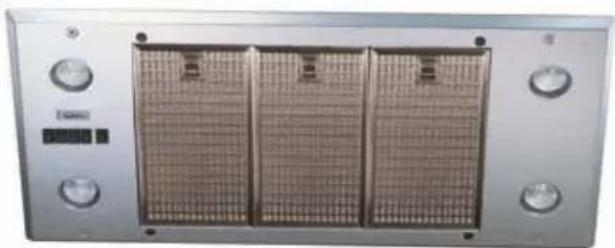

Pilot Master Pro

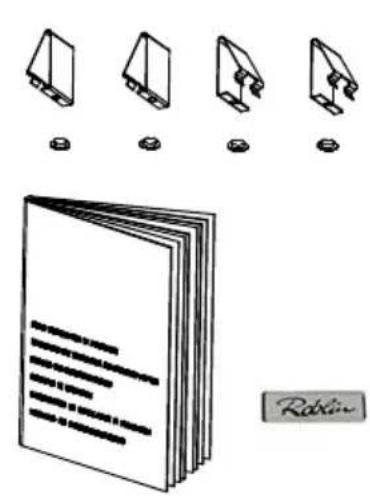

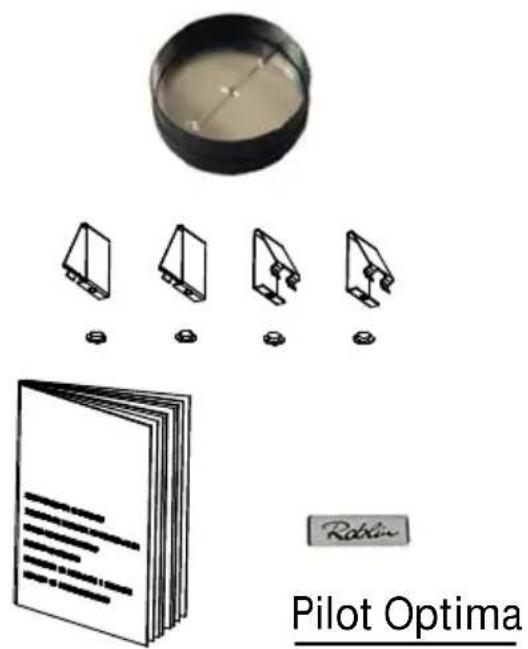

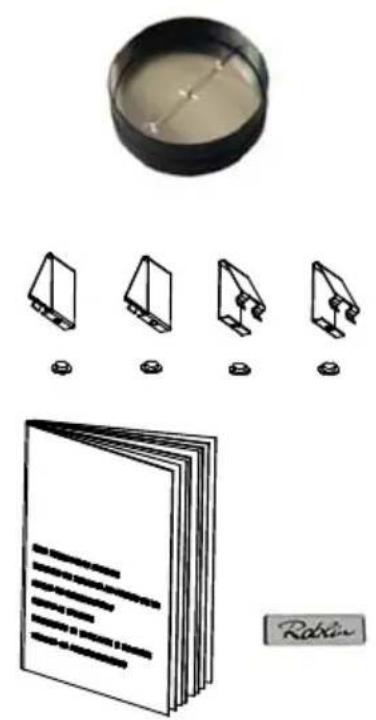

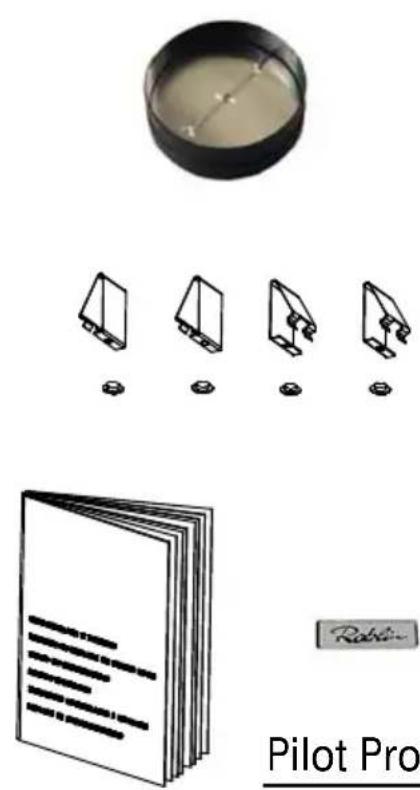

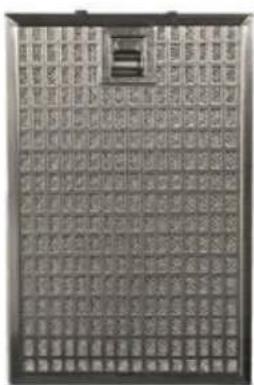

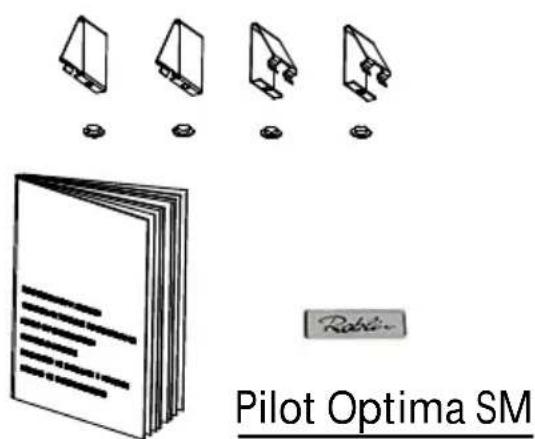

ACCESSOIRES ACCESSORIES ZUBEHÖRE

ACCESSORI ACCESORI ACCESSOIRES

Pilot Optima

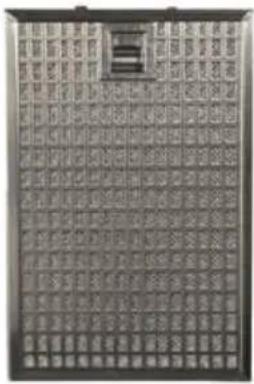

Ancient Chinese stone stele with inscribed characters and grid patterns, likely from a stele inscription or calligraphy piece.

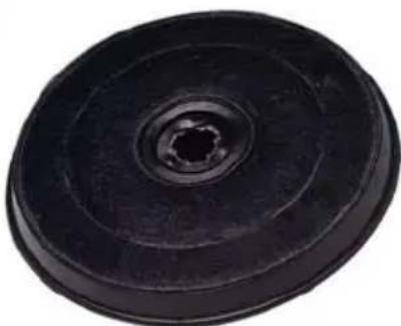

5403003

13MC076 290 x 145 x 8mm

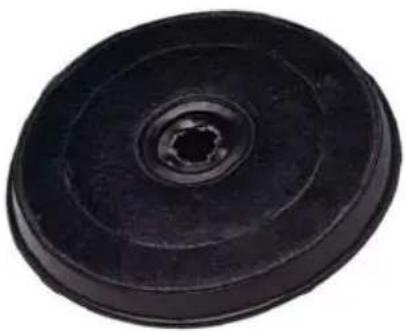

Circular black mechanical component with concentric rings and central hole (no text or symbols)

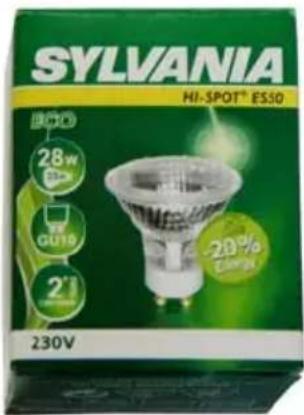

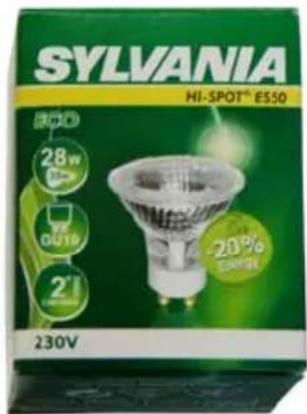

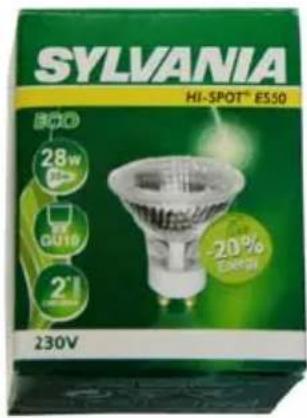

GU10 28 W - 230 V Code 12EC024

Close-up of a small incandescent light bulb with a white plastic cap and two metallic pins (no text or symbols visible)

SYLVANIA HI-SPOT® ES50 LED 28W 30μF OUTR 2 230V 20% SUV

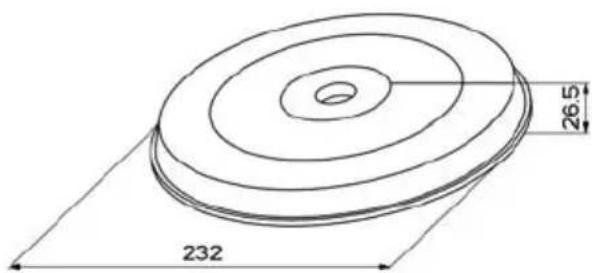

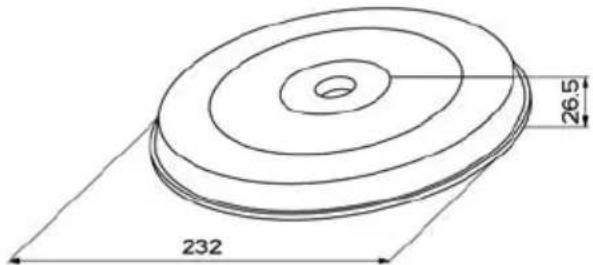

232 26.5

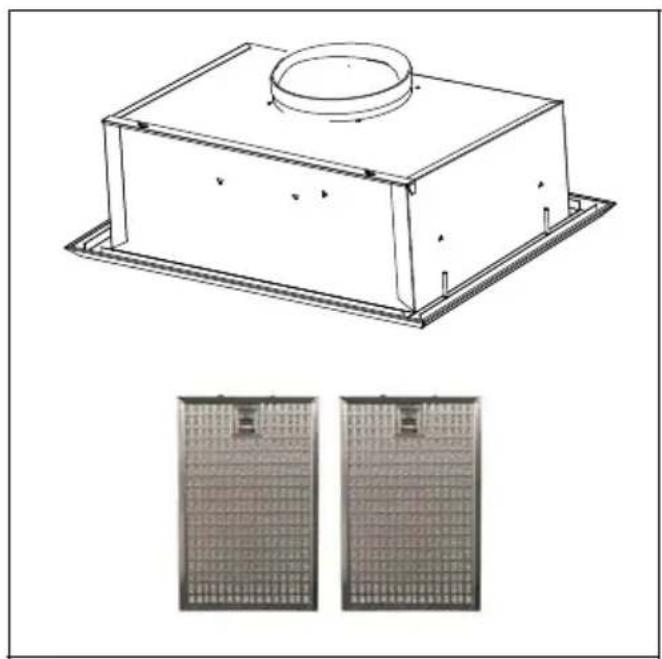

Pilot Optima SM

Ancient Chinese stone inscription with grid layout and central seal, likely from a stele or tablet

13MC076 290 x 145 x 8mm

GU10 28 W - 230 V Code 12EC024

Close-up of a small incandescent light bulb with three metallic pins (no visible text or symbols)

SYLVANIA HI-SPOT® ES50 28W Guts 2" 230V -20% DMV

Ancient Chinese bronze tablet with grid of inscribed characters and a central seal-like emblem

13MC076
290 x 145 x 8mm

GU10
28 W - 230 V
Code 12EC024

Close-up of a small incandescent light bulb with three metallic pins (no visible text or symbols)

SYLVANIA HI-SPOT® ES50 LED 28W W 2W 2W 230V -20% Energy

5403003

Circular black mechanical component with concentric rings and central hole (no text or symbols)

232 26.5

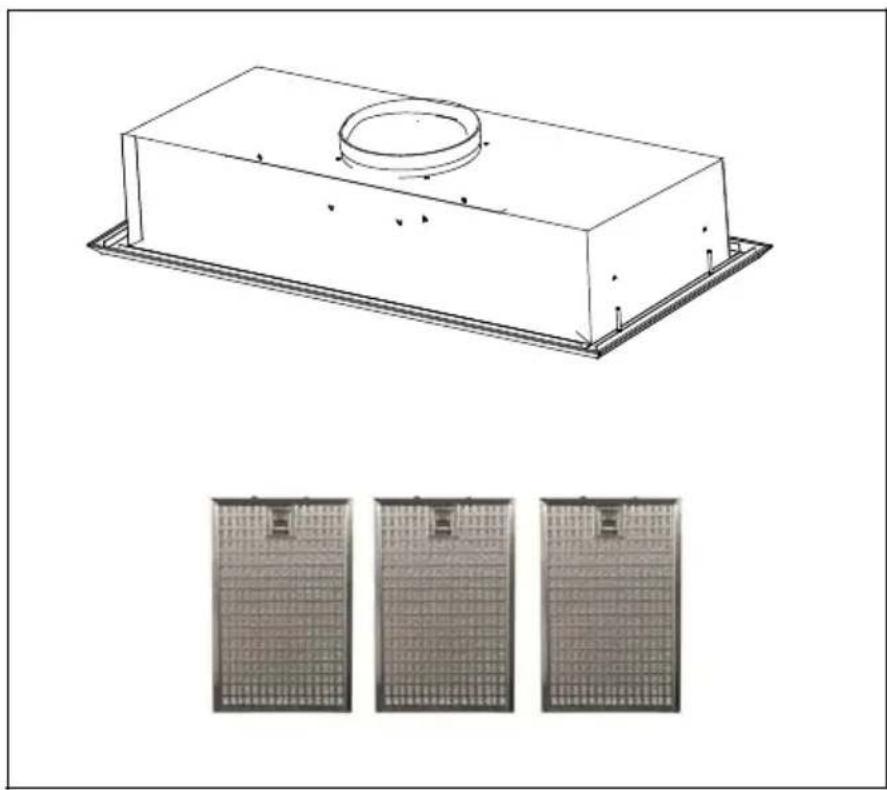

Pilot Master Pro SM

Ancient Chinese stone inscription with grid layout and central seal, likely from a stele or tablet

13MC076
290 x 145 x 8mm

GU10
28 W - 230 V
Code 12EC024

Close-up of a small incandescent light bulb with three metallic pins (no visible text or symbols)

SYLVANIA HI-SPOT® ES50 DCO 28w 30μF GUTS 2 230V 20% Energy

Close-up of a circular metallic object with a grid pattern and a small protrusion, labeled 'A' (no text or symbols on the object itself)

Close-up of a hand using a tool to cut a metal component with a circular opening, showing a curved arrow (no text or symbols visible)

Close-up of a hand holding a small metallic object with a circular base, labeled 'C' and arrows pointing to it (no text or symbols on the object itself)

Close-up of a hand holding a small white LED light bulb with a circular drain, showing liquid level (no text or symbols visible)

Close-up of hands holding a small LED bulb with a curved arrow indicating rotation (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Two-panel image showing hands assembling a LED bulb with color-coded arrows indicating direction (no text or symbols)

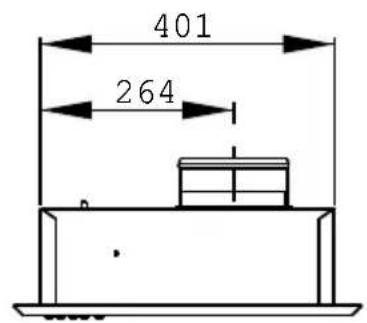

401 80122

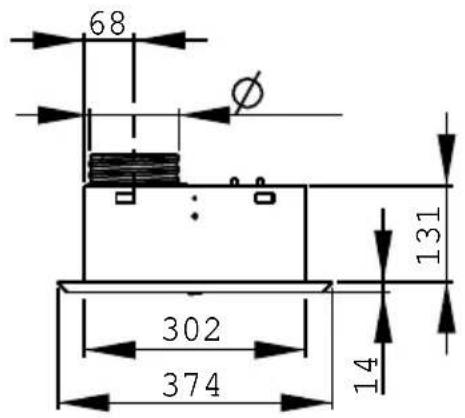

68 Ø 302 374 131 14

474 374

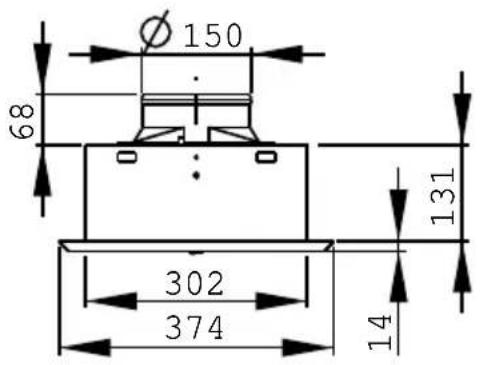

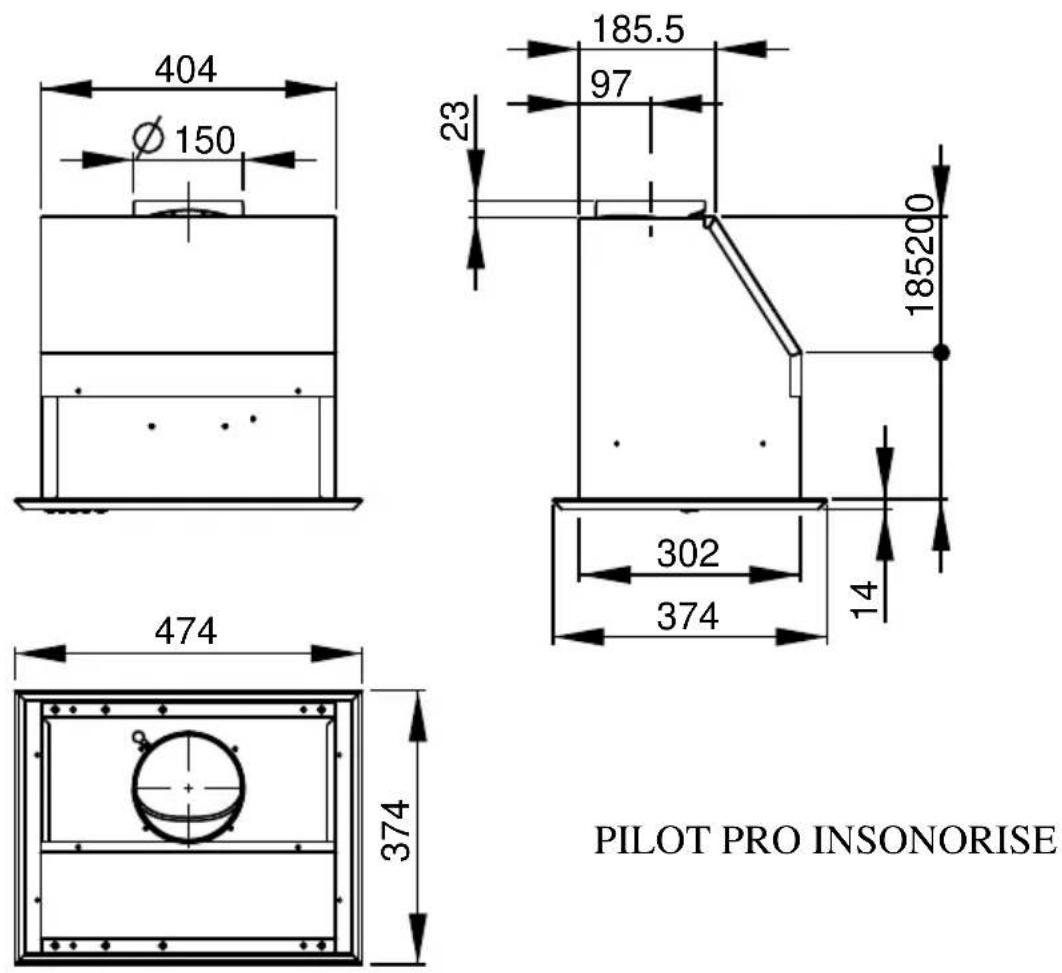

PILOT OPTIMA

401 264

Ø 150 68 131 302 374 14

474 374

PILOT OPTIMA SM

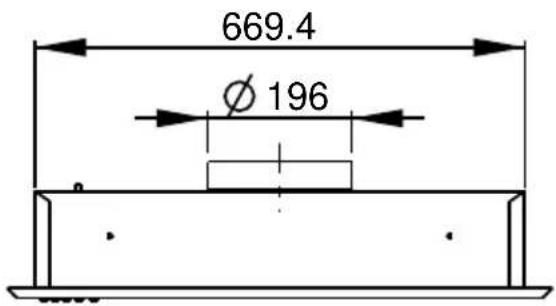

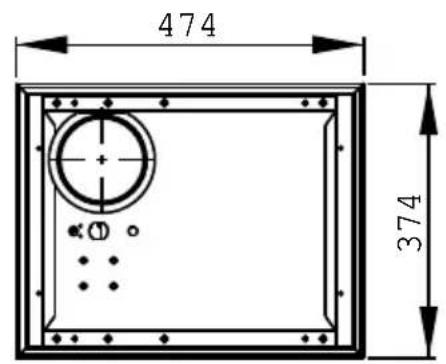

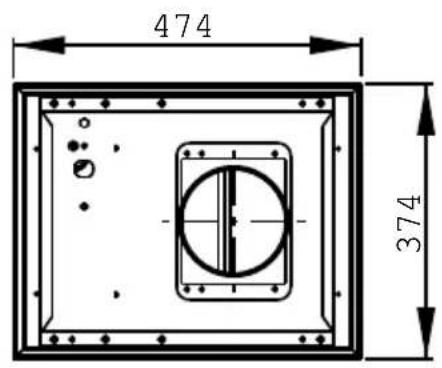

669.4 381 Ø 150

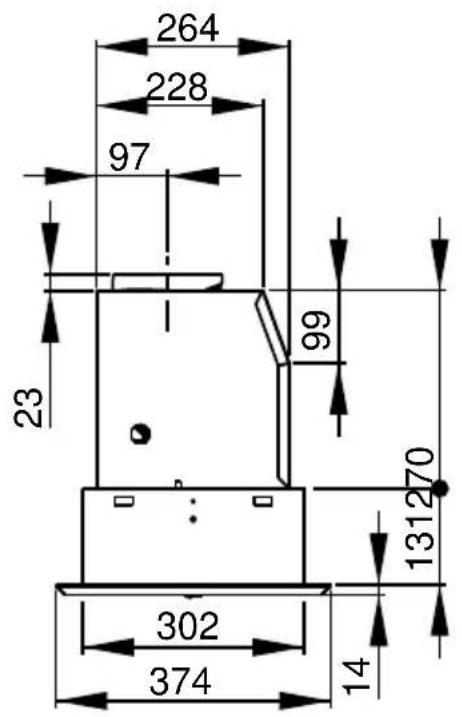

264 228 97 23 99 131270 302 374 14

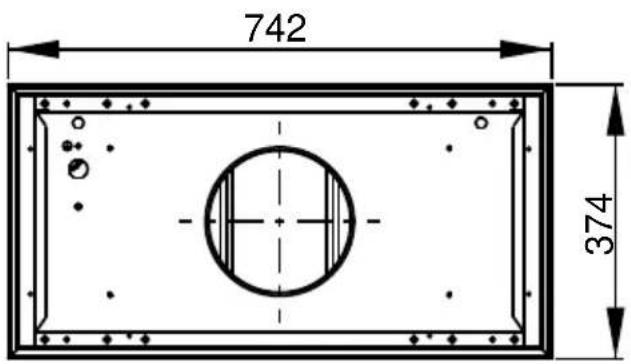

742 374

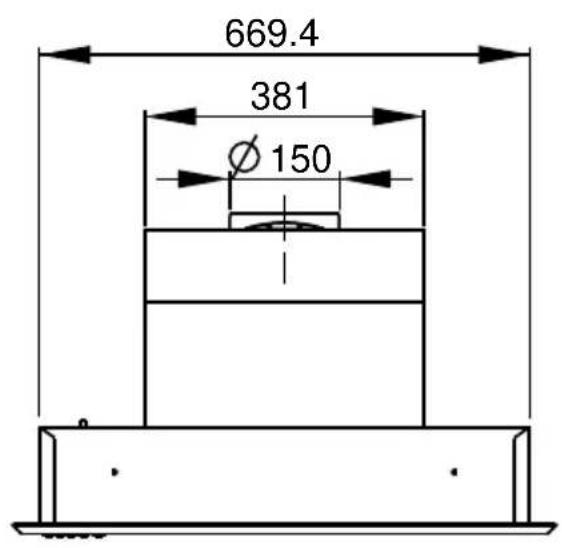

PILOT MASTER PRO

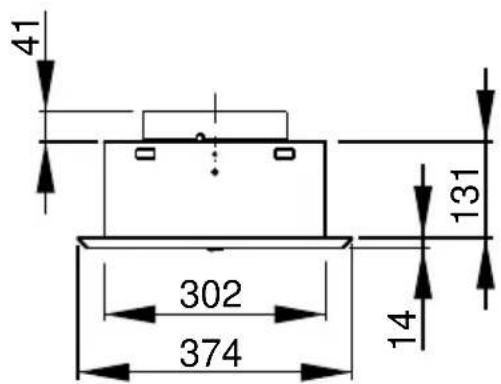

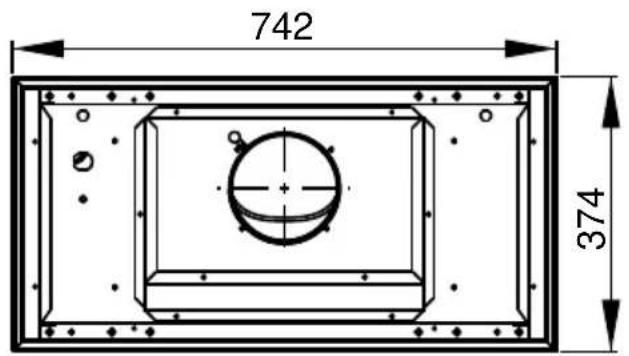

669.4 Ø 196

41 302 374 131 14

742 374

PILOT MASTER PRO SM

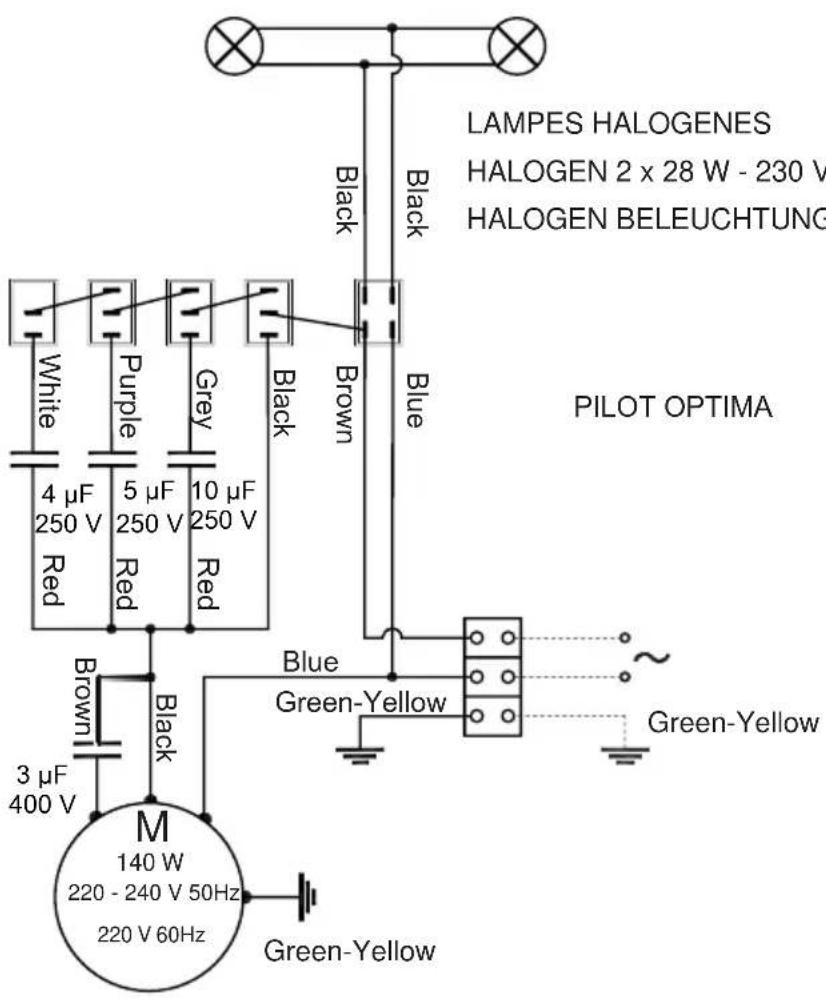

LAMPES HALOGENES HALOGEN 2 x 28 W - 230 V HALOGEN BELEUCHTUNG Black White Purple Grey 4 µF 250 V Red 5 µF 250 V Red 10 µF 250 V Red Brown Blue PILOT OPTIMA Brown 3 µF 400 V M 140 W 220 - 240 V 50Hz 220 V 60Hz Blue Green-Yellow Green-Yellow Green-Yellow
