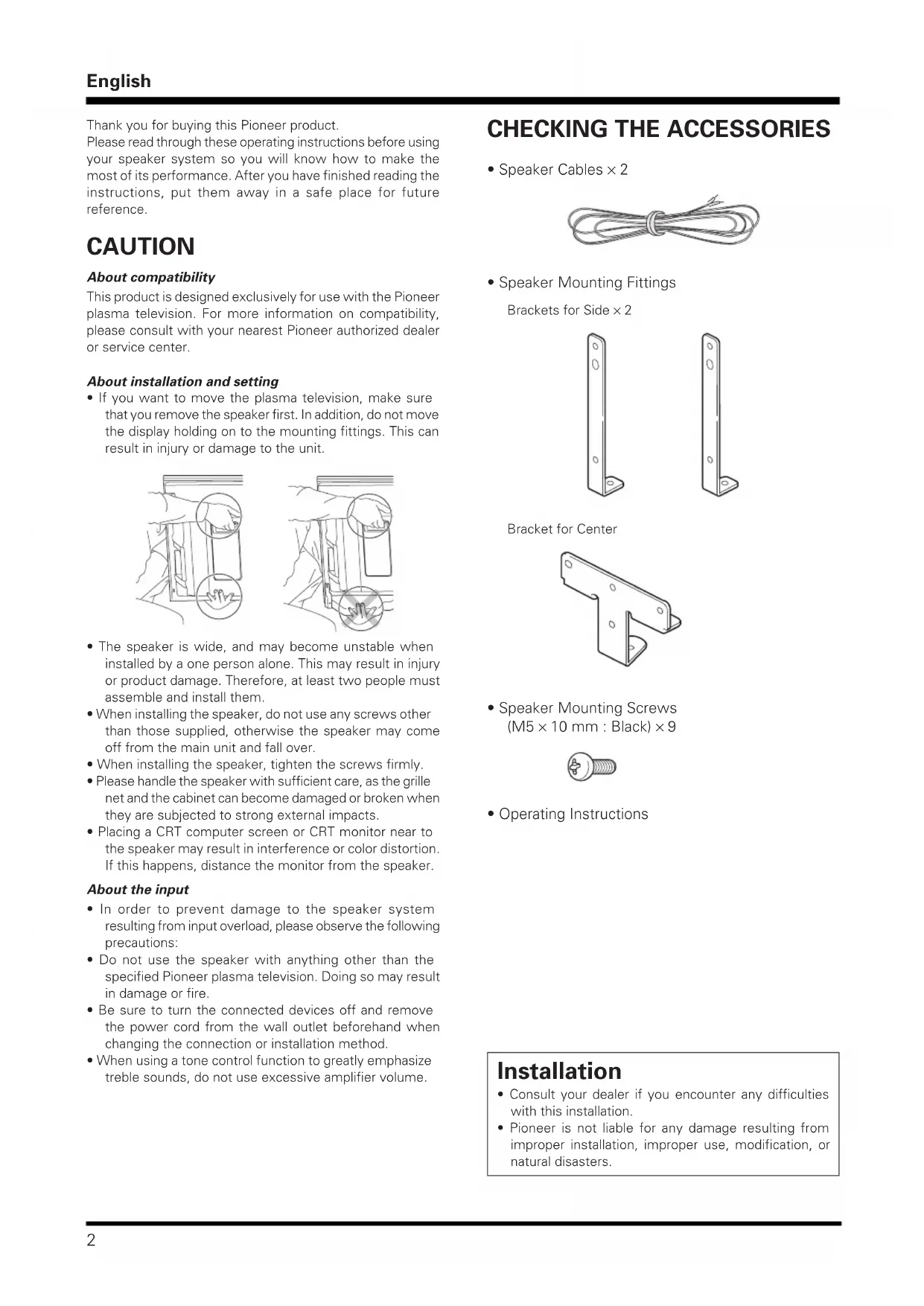

USER MANUAL PDPS59 PIONEER

Thank you for buying this Pioneer product.

Please read through these operating instructions before using your speaker system so you will know how to make the most of its performance. After you have finished reading the instructions, put them away in a safe place for future reference.

CAUTION

About compatibility

This product is designed exclusively for use with the Pioneer plasma television. For more information on compatibility, please consult with your nearest Pioneer authorized dealer or service center.

About installation and setting

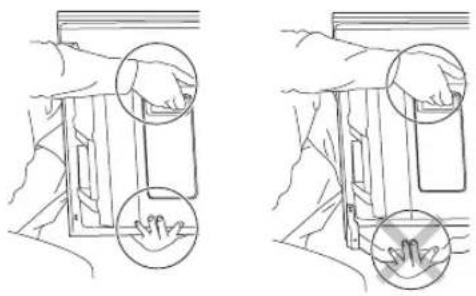

• If you want to move the plasma television, make sure that you remove the speaker first. In addition, do not move the display holding on to the mounting fittings. This can result in injury or damage to the unit.

• The speaker is wide, and may become unstable when installed by a one person alone. This may result in injury or product damage. Therefore, at least two people must assemble and install them.
• When installing the speaker, do not use any screws other than those supplied, otherwise the speaker may come off from the main unit and fall over.
• When installing the speaker, tighten the screws firmly.
• Please handle the speaker with sufficient care, as the grille net and the cabinet can become damaged or broken when they are subjected to strong external impacts.
• Placing a CRT computer screen or CRT monitor near to the speaker may result in interference or color distortion. If this happens, distance the monitor from the speaker.

About the input

• In order to prevent damage to the speaker system resulting from input overload, please observe the following precautions:
• Do not use the speaker with anything other than the specified Pioneer plasma television. Doing so may result in damage or fire.
• Be sure to turn the connected devices off and remove the power cord from the wall outlet beforehand when changing the connection or installation method.
• When using a tone control function to greatly emphasize treble sounds, do not use excessive amplifier volume.

CHECKING THE ACCESSORIES

• Speaker Cables × 2

• Speaker Mounting Fittings

Brackets for Side × 2

Bracket for Center

• Speaker Mounting Screws (M5 × 10mm : Black) × 9

• Operating Instructions

Installation

• Consult your dealer if you encounter any difficulties with this installation.
• Pioneer is not liable for any damage resulting from improper installation, improper use, modification, or natural disasters.

INSTALLATION ON THE PLASMA TELEVISION

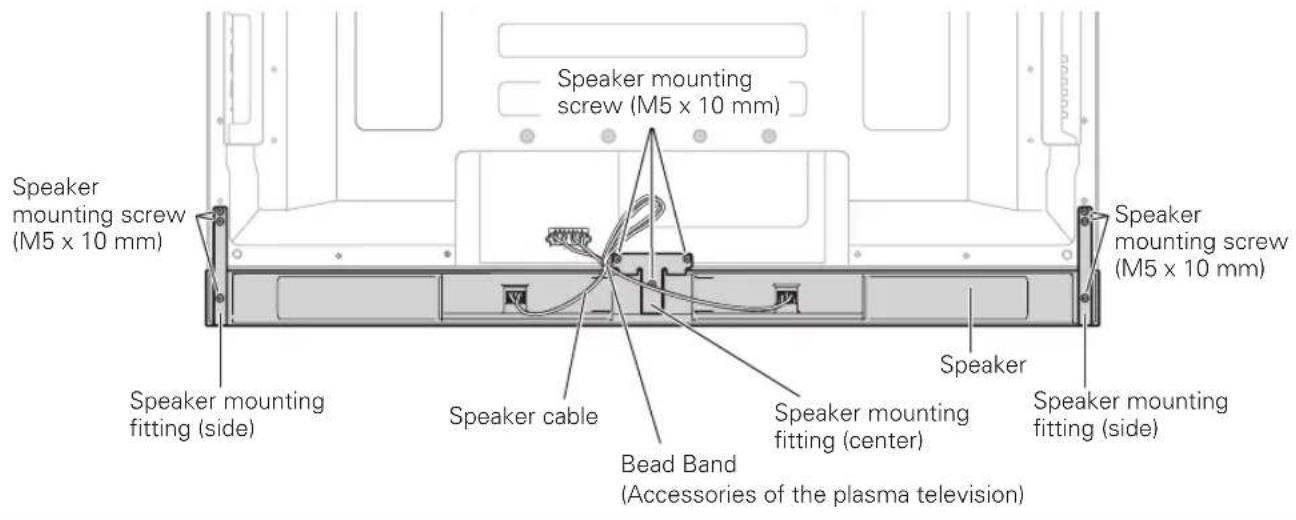

Plasma television with the speaker installed

When using the table top stand:

NOTE:

Before attaching the speaker, please attach the PDK-TS28 series table top stand (or another Pioneer plasma television stand) to the plasma television.

1. Attach the speaker mounting fittings to the rear of the plasma television.

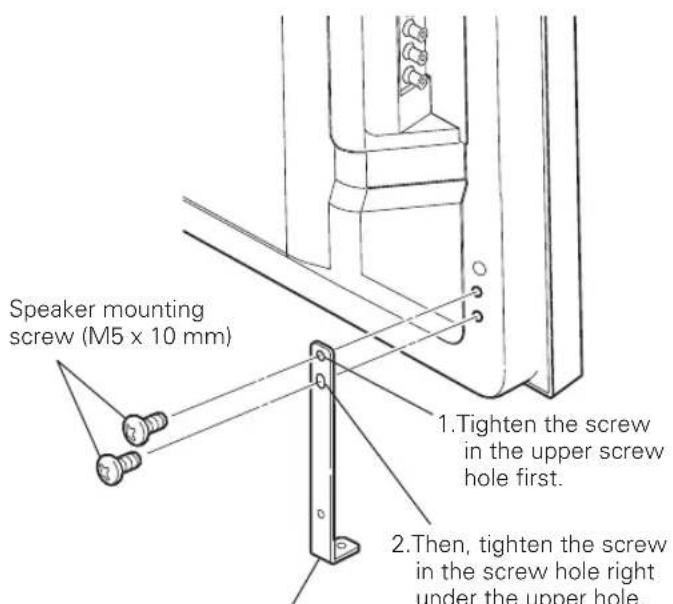

• Attach the fittings for right and left sides to the bottom right and left on the rear panel of the plasma television using the supplied screws.

Speaker mounting fitting for side (It shows the attachment of the fitting on the left side. It is attached on the right side by the same procedure.)

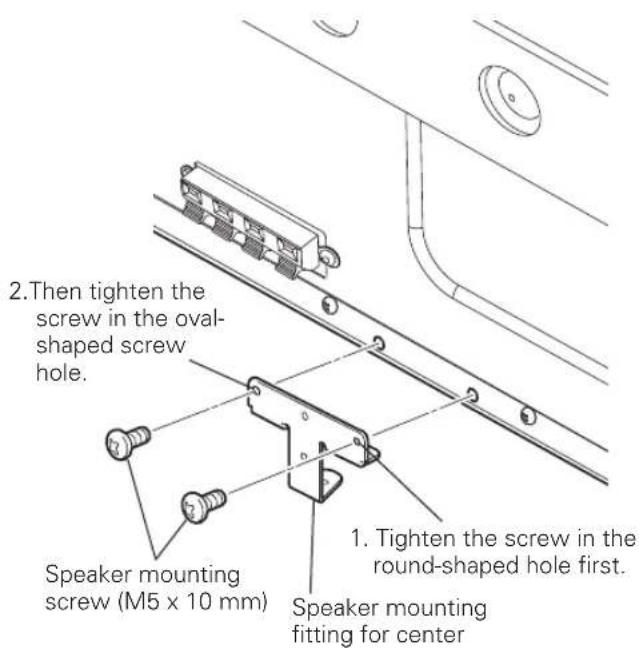

• Attach the fitting for center to the lower center on the rear panel of the plasma television using the two supplied screws.

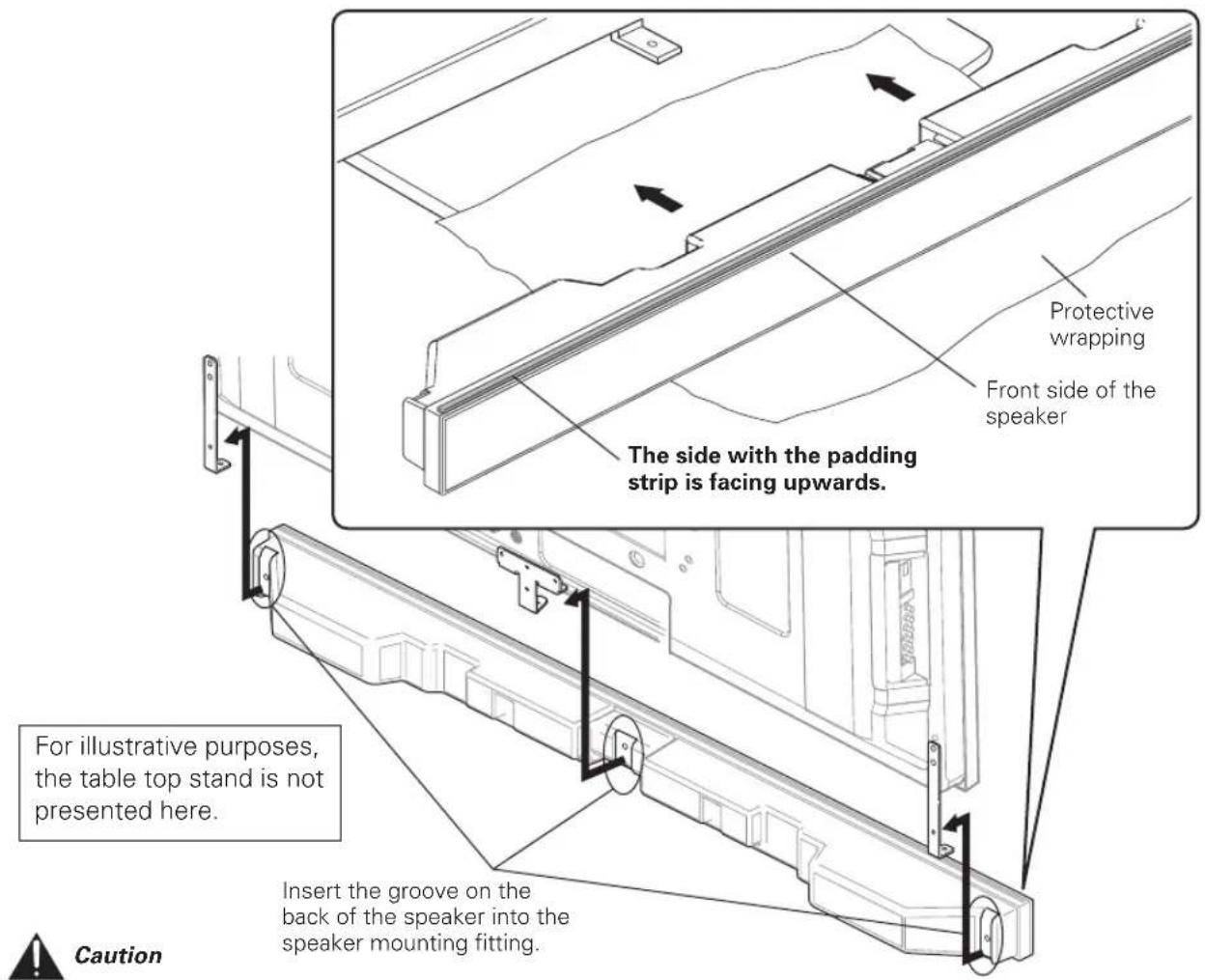

2. Fit the speaker to the mounting fittings in the correct direction.

• Be sure not to mount the speaker upside down.

• To avoid any damage to the speaker and/or table top stand from striking against each other, fit the speaker to the mounting fittings while confirming their locations. As you may easily strike the stand, use the protective wrapping in which the speaker was wrapped between the speaker and stand.
• When the speaker mounting fittings do not fit the grooves at the rear of the speaker, adjust the speaker mounting fittings angle.

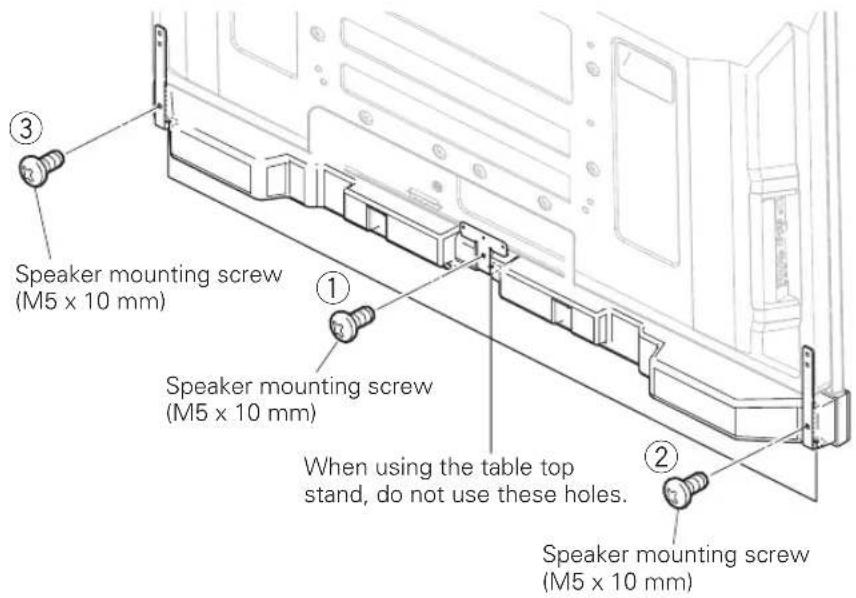

3. Tighten from back using the supplied screws (three locations).

• Tighten the three screws in order ①, ②, ③ as shown in the diagram.

CAUTION

If you want to move the plasma television, make sure that you remove the speaker first.

In addition, do not move the display holding on to the mounting fittings. This can result in injury or damage to the unit.

The screw hole at the bottom surface of the speaker mounting fitting is used when the plasma television is installed on the wall. It is not used when installed with the stand.

NOTE:

If after attaching the speaker its position needs to be adjusted horizontally or vertically, first loosen the speaker mounting screws, reposition and then tighten the screws again at the appropriate position.

4. Connect the supplied speaker cables to the rear of plasma television.

• Connect the cables correctly with respect to the polarity of the plasma television speaker terminals, that is, cable (Gray) to terminals (Red) and cable (Black) to terminals (Black).

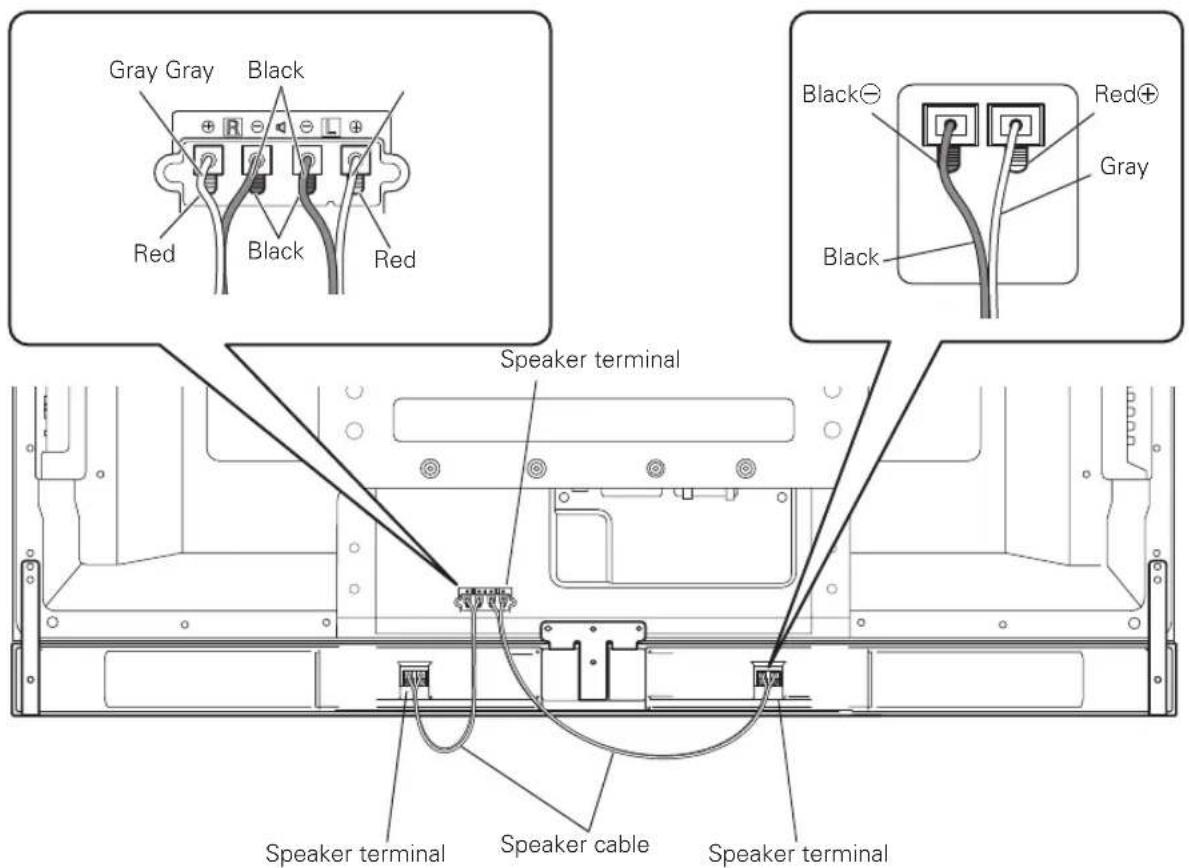

5. Connect the other end of the speaker cables to the speaker.

• Connect the cables correctly with respect to the polarity of the speaker terminals, that is, cable (Gray) to terminals (Red) and cable (Black) to terminals (Black).

NOTE:

• Press the lever and insert the end of the cable.
• When you release the lever, it clamps onto the speaker cable.

Caution

• Be sure to turn the connected devices off and remove the power cord from the wall outlet beforehand when changing the connection or installation method.
• If you insert the speaker cable too far so that the insulation is touching the speaker terminal, you may not get any sound. Please insert it with showing the copper wire.
• Check if the end of the speaker cables are securely connected to the terminals by slightly tugging on the cable after making connections. Loose connections may result in sound dropouts or noise.
• If there is a short in the and cables caused by an exposed lead wire, excessive load may be applied to the plasma television, resulting in interrupted operation or malfunction.

• Incorrect connections of the speaker cable to the right or left of the plasma television terminals with respect to the polarity may result in insufficient stereo sound effects, delivering poor bass sounds or unstable sound image.
• Bundle the cable without pulling.

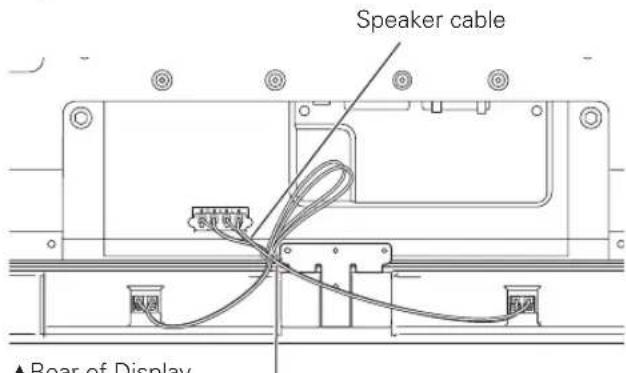

6. Bundling the cables.

• Bead bands are included with the plasma television.
• Use the bead bands as necessary.
• When tidying up your speaker cables, make sure to bundle them so that they are not subjected to any pressure.

Bead Band

When using the hung on wall unit:

NOTE:

First lay the plasma television on top of a soft sheet etc., then attach the speaker mounting fittings.

1. Attach the speaker mounting fittings to the rear of the plasma television (See procedure 1 on page 3).
2. Connect the supplied speaker cables to the rear of the plasma television (See procedure 4 on page 5).

3. Place the plasma television on the mounting fittings of the hung on wall unit.

4. For details, refer to the operating instructions supplied with the hung on wall unit.

Caution

Be careful about the speaker mounting fittings when installing or connecting. This may result in injury.

4. Connect the other end of the speaker cables to the speaker (See procedure 5 on page 5).

Caution

Have two people perform this procedure.

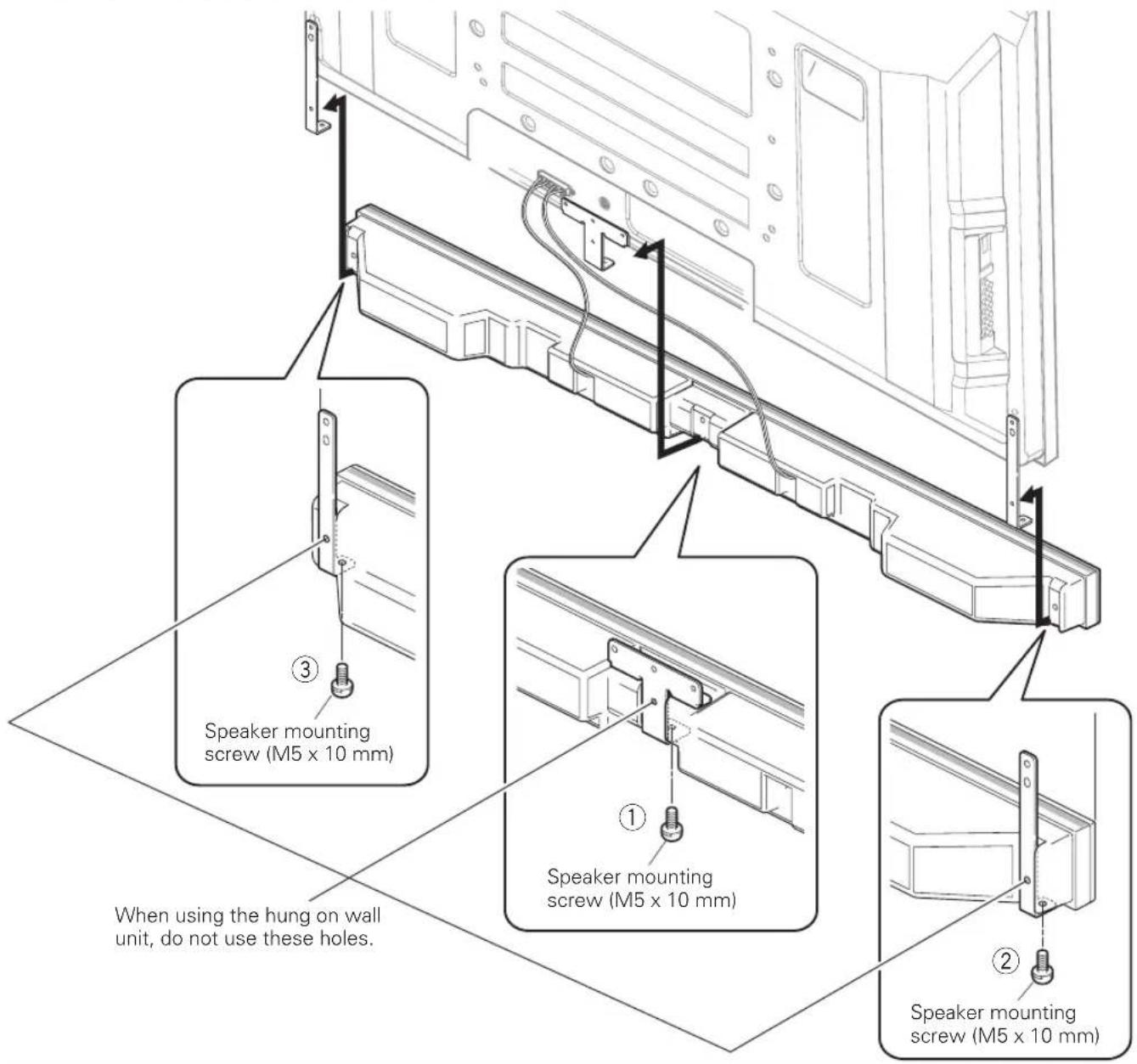

5. Fit the speaker to the mounting fittings the correct direction.

• Be sure not to mount the speaker upside down.

6. Tighten from below using the supplied screws (three locations).

• Tighten the three screws in order ①,②,③ as shown in the diagram (see page 6).

The screw hole at the rear surface of the speaker mounting fitting is used when the plasma television is installed with the table top stand. It is not used when installed on the wall.

NOTE:

If after attaching the speaker its position needs to be adjusted horizontally, first loosen the speaker mounting screws, reposition and then tighten the screws again at the appropriate position.

7. Bundling the cables (See procedure 6 on page 5).

CABINET MAINTENANCE

• Use a polishing cloth or dry cloth to wipe off dust and dirt.
• When the cabinet is very dirty, wipe with a soft cloth moistened with water-diluted cleanser; then wipe again with a dry cloth. Do not use furniture wax or cleaners. They may damage the surface of the cabinet.
• Never use thinner, benzine, insecticide sprays and other chemicals on or near the cabinets, since these will corrode the surfaces.
• When a chemical cloth is used, read the cautions for the chemical cloth carefully.

SPECIFICATIONS

Cabinet. Bass-reflex type

Used speaker (two-way system):

Woofer (for low tones) 4.8 cm × 13 cm cone type

Tweeter (for high tones) 2.5 cm semidome type

Nominal impedance 6Ω

Frequency Range. 60 Hz to 30 000 Hz

Sensitivity (1 m, 1 W) .80 dB

Permissible input :

Max. input 18 W

Rated input 6 W

Crossover frequency 3 kHz

External Dimensions

1 224 (W) mm × 77 (H) mm × 115 (D) mm

Weight 2.9 kg

Accessory parts

Speaker cables × 2

Brackets

Side × 2

Center × 1

Screws (M5× 10mm)× 9

..Operating Instructions × 1

NOTE:

Specifications and design subject to possible modification without notice, due to improvements.

IMPORTANT NOTICE - RECORD THE MODEL NUMBER AND SERIAL NUMBERS OF THIS EQUIPMENT BELOW. THE NUMBERS ARE ON THE REAR.

MODEL NO. SERIAL NO.

KEEP THESE NUMBERS FOR FUTURE USE.

D1-4-2-6-2_En

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

K058_A_En

Published by Pioneer Corporation.

Copyright © 2007 Pioneer Corporation.

All rights reserved.
