USER MANUAL Desklamp LUMIE

Modern desk lamp with curved arm and base (no text or symbols visible)

English

USER GUIDE i

Desklamp

Introduction 3

Precautions 4

Safety 5

Getting started 6

Using Desklamp 6

When should I use it? 8

What time of day? 9

LED lifetime 9

Cleaning 9

Warranty 10

Technical description 10

Contact us 11

Introduction

Using Desklamp will provide you with the bright light your body needs during the dark winter months. It can help to boost your energy levels, put you in a better mood and make you feel more awake ^1 . Light therapy is safe and is proven to help alleviate the winter blues and SAD (Seasonal Affective Disorder) ^2 .

Our circadian rhythms are strongly influenced by light and the short wavelengths around the blue part of the spectrum are known to be particularly important. Because the white LEDs used in Desklamp emit extra blue light, they offer an effective alternative to the white fluorescent tubes used in larger lightboxes.

Please read these instructions carefully to get the most out of your Desklamp.

1 J Affect Disord. 2000 Jan-Mar;57(1-3):55-61.

2 Am J Psychiatry. 2005 Apr;162(4):656-62.

SN	Serial number
CE6129	European Declaration of Conformity:Class IIa Medical Device
	Manufacturer: Lumie,3 The Links, Bar Hill, Cambridge,CB23 8UD, United Kingdom.

	Double-insulated(Class II electrical)
~	AC (alternating current)power supply
	For indoor use only

	Do not place in household waste. Dispose of at a recycling centre.
	Read instructions for use
	Caution
	Keep dry

	Member of the ‘Green Dot’ recycling scheme
	Recyclable

English

Precautions

Research shows that light therapy is very safe. However, please check with your doctor first if any of the following apply:

- You have a major eye problem or have had eye surgery;

- You have been advised to avoid bright light or are taking medication that may cause photo-sensitivity;

- You have been diagnosed with depression or other mood/sleep disorders. This is especially important if you are also taking medication for this, since light therapy can also affect your mood.

A few people experience side effects but these are generally mild (including headaches, eye strain, nausea and hyperactivity) and can usually be solved simply by switching off the light. Over the next few days, gradually build up the time you spend in front of it to find a treatment time that works best for you. Some people complain of difficulty sleeping and often this is down to using the light too close to bedtime.

If you have any problems while using Desklamp, or if you've been using the light for a week but haven't noticed any benefit, please call your Lumie distributor or speak to your doctor.

IMPORTANT: the guidelines in this leaflet are not medical directions for treating any condition. If your doctor has suggested using light therapy, follow their instructions and discuss any effects with them.

English

Safety

If the product is damaged please contact us before use.
- Keep the unit away from water and damp.
- For indoor use only.
- Use only the Lumie adaptor supplied.
- Keep the cable away from heated surfaces. If the cable is damaged it must be replaced by Lumie, a Lumie distributor or suitably qualified person in order to avoid a hazard.
Children using the light, or playing near it, should be supervised.
- Do not attempt to service any part of the unit.
- Not to be used by or on individuals who are unconscious, anaesthetised or incapacitated e.g. under the influence of alcohol.

Electromagnetic compatibility

This product conforms to the electromagnetic compatibility standard for medical devices and is unlikely to cause interference affecting other electrical and electronic products in its vicinity. However, radio transmitting equipment, mobile phones and other electrical/electronic equipment can interfere with this product; if this happens simply move the product away from the source of interference. In rare cases where product function is lost due to EMC effects, disconnect the product from power source for 5 seconds and then restart. If the problem persists, please contact support.

For further detailed information on the electromagnetic environment in which the device can be operated refer to the website: www.lumie.com/pages/e-m-c.

Disposal

At the end of its life, do not throw the unit out with normal domestic waste. Please take it to an official recycling point to be disposed of responsibly.

Getting started

Position Desklamp at arm's length (about 50cm/20in) with the head angled towards your face. Connect the power adaptor and plug into the mains. You can turn the light on and off and adjust the brightness using the touch-sensitive area on the base.

Touch control lighting

The ‘sense’ touchpad provides adjustable lighting that means you can use Desklamp for reading and task lighting as well as light therapy.

There are four light levels offering approx. 40, 60, 80 and 100% of full brightness. Press the ‘sense’ touchpad to turn on the light at low level, to increase the brightness and then to turn off the light.

Or press and hold to cycle through the four light levels and off - simply let go at the desired light level.

Using Desklamp

Desklamp has a removable diffuser that easily lifts off to provide flexible light therapy as well as excellent task lighting.

Position Desklamp at arm's length (about 50cm/20in) with the head angled towards your face. You shouldn't stare at the light – especially when using Desklamp without the diffuser – but light must reach your eyes to have any effect. If you find your eyes ache slightly, try using it further away, or with the light dimmed or switch it off for a while.

Without the diffuser – typically 30 minutes

With the diffuser off and the light at full brightness, you're getting the maximum benefit from Desklamp so you don't need to use it for long. This provides bright, intensive light therapy (2,500lux at 50cm) that's ideal if you're pushed for time or need a quick boost at work.

English

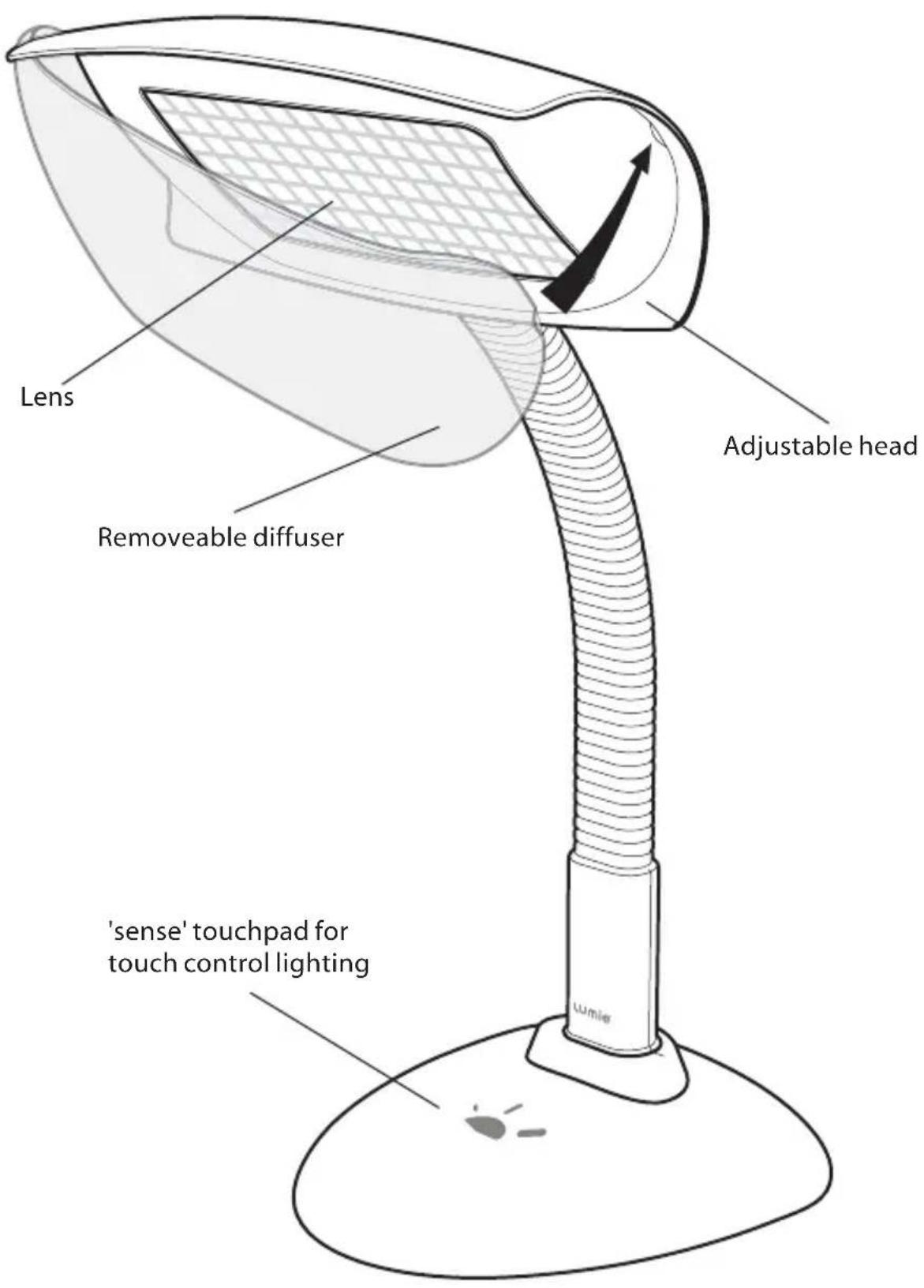

Lens Removeable diffuser Adjustable head 'sense' touchpad for touch control lighting

With the diffuser – typically 60 minutes

With the diffuser in place and the light at full brightness, Desklamp provides a softer, wider spread of light (1,250lux at 50cm) that's more suitable if you have time for a longer session.

There's no harm in using Desklamp for longer than 60 minutes, e.g. if you're away from your desk you can make up this time by dipping in throughout the day. If you're more comfortable with it further away or with the light at less than full brightness then you'll need to use it for longer.

You can use Desklamp whilst you're working at the computer, watching TV, studying, crafting etc. Dark glasses, tinted lenses or closing your eyes will all limit the effects of light therapy.

You should notice positive benefits after using Desklamp for three or four days in a row.

When should I use it?

It's best to tackle the winter blues or SAD as soon as possible. Look out for early signs - often in September or October - and if you start to feel lethargic, anxious or irritable, start using your Desklamp.

Most people can skip a day here and there, especially when the weather is bright. As spring comes around you will probably start to cut back your light therapy; your body will tell you if it's too soon and if you notice your symptoms returning simply use your Desklamp again for a few days.

Light therapy is proven to put you in a better mood, to boost alertness and to help you feel more awake so Desklamp is ideal for use at work. Use it wherever and whenever you need to restore concentration and give yourself a mental boost.

What time of day?

If you're using Desklamp to help with the winter blues or SAD, bright light in the morning has been shown to be most effective so try that first. For some people, early evening light exposure is beneficial. Whether you're using Desklamp for winter blues, SAD or as a general pick-me-up, once you've found a pattern that's right for you, try to use it around the same time every day.

I find it difficult to get going in the morning

Switch on as soon as you can. If you don't have much time in the morning, then you should aim for a top-up or full session in the afternoon. You could take your Desklamp to work if you're at a desk every day.

I feel sleepy or fall asleep too early

Use Desklamp in the late afternoon/early evening. It's best to avoid bright light too close to bedtime - within about three hours - as you may find it difficult to get to sleep.

LED lifetime

It will make only a negligible difference to the light output if an LED has failed and you can continue to use Desklamp.

LEDs have a very long lifetime compared to common light bulbs, 30,000 hours being a typical figure. It's possible for individual LEDs to fail, in the same way as other electronic components; however this is unlikely.

Cleaning

Clean only with a dry or lightly moistened cloth.

English

Warranty

This unit is covered under warranty against any manufacturing defect for three years from the date of purchase. This is in addition to your statutory rights. If possible, use the original packaging (including internal pieces) to return your Desklamp for service. Make sure the plug is prevented from moving in transit and damaging the unit. If the unit is received damaged, through misuse or accidental damage, then we may have to charge to repair it; we will contact you first. Please call Lumie for further advice.

Technical description

Subject to change without notice.

Lumie Desklamp

Lumie 100-240 Vac, 50/60 Hz power adaptor (supplied)

Operating temperature: 5 °C to 35 °C

Storage/transport temperature range: -25 °C to +70 °C

Class IIa Medical Device

English

Contact us

Lumie is Europe's leading specialist in light therapy. Our products are based on the latest scientific studies and we focus solely on light therapy and its benefits. If you have any suggestions that you feel could help us improve our products or service, or if there are problems you think we should know about, please call the Lumie Careline on [phone] or email [e-mail].

Lumie

3 The Links, Trafalgar Way

Bar Hill

Cambridge

CB23 8UD

UK

Lumie is a registered trademark of:

Outside In (Cambridge) Limited, incorporated in England and Wales.

Registered Number: 2647359. VAT No: GB 880 9837 71.

© Lumie 2015
