GW21852 - Thermostat Gewiss - Free user manual and instructions

Product type	Room thermostat
Brand	Gewiss
Model	GW21852
Power supply	230 V ~ 50/60 Hz
Output type	Relay with changeover contact (NO/NC) 8(2)A / 250 V~
Max wire cross-section at terminals	2.5 mm²
Protection rating	IP30
Insulation class	II
Setting range	+5°C to +30°C
Max thermal gradient	1K/15 min
Operating differential	0.7°C
Reading accuracy	±1°C
Operating temperature limits	0°C to +50°C
Main functions	Summer/winter switching, remote night setback (-4°C), load on/off indication
Recommended installation	Height 1.50-1.70 m from the floor, away from heat sources, doors or windows
Electrical connection	Terminals 4 (L), 5 (N), 1 (common), 2 (normally open), 6-7 (remote control input)
Compliance	EMC EN55014-1/2, EN61000-3-2/3, LVD EN60730-1/2-9 (Directives 89/336/EEC - 73/23/EEC)
Disconnection type	1B / Electronic
Pollution	Normal

Frequently Asked Questions - GW21852 Gewiss

How to install the GW21852 thermostat?

Install the thermostat at a height of 1.50 to 1.70 m from the floor, away from heat sources, air vents, doors or windows. Before installation, cut off the power supply. Connect the power wires to terminals 4 (Line) and 5 (Neutral), then the device to be controlled to terminals 1 (common) and 2 (normally open). For night setback, use terminals 6 and 7.

What is the recommended installation height?

The recommended height is 1.50 to 1.70 m from the floor, in a place protected from dust and without risk of water infiltration.

How to connect the power wires?

The power wires (230 V~) must be connected to terminals 4 (Line, phase) and 5 (Neutral). Use conductors with a maximum cross-section of 2.5 mm². For inductive loads, place an RC filter in parallel.

How to use the summer/winter function?

The thermostat has a mode selector: summer position for air conditioning, winter position for heating. The signaling LED indicates the load status (on = activated).

How does night setback work?

Night setback is activated via a remote input (terminals 6 and 7). When the external contact is closed, the set temperature is reduced by 4°C compared to the programmed value (Comfort mode = contact open, Reduction = contact closed). This function is not active in summer mode.

What to do in case of malfunction?

In case of anomaly or malfunction, contact an authorized technician or contact GEWISS technical support (SAT). Do not intervene yourself on internal components.

What is the adjustable temperature range?

The setting range is from +5°C to +30°C. Reading accuracy is ±1°C and operating differential is 0.7°C.

Is the thermostat compatible with a heat pump?

Yes, the thermostat can control a circulation pump, wall-mounted boiler, burner or zone solenoid valve. Check that the load does not exceed 8(2)A / 250 V~ for the relay contact.

How to clean the thermostat?

Clean the device with a soft dry cloth. Do not use abrasive products, solvents or liquid cleaners. Avoid water infiltration into the housing.

What are the indicator lights and their meaning?

The thermostat has a load status signaling LED: on = load activated (heating or air conditioning running); off = load deactivated. There is no other indicator.

USER MANUAL GW21852 Gewiss

Electronic summer/winter thermostat

ATTENTION - IMPORTANT

• Congratulations for having choosing a Gewiss product. Gewiss products are constructed with careful attention to detail, using only high quality materials. Gewiss products assure you of peak performance over time.
• Carefully read the following instructions since they contain important information on installing and operating the product. The installer should give these instructions to the final user and ask him to read the contents.
• System programming products must be installed in conformity with the provisions of ÖD 384 - UEC364 regulations for devices for household or similar use in non-dusty rooms or where special protection against water penetration is not required.
• Un case of failure and/or malfunction, contact an authorized technician or GEWÜSS SAT technical assistance service.

INDEX

page

GENERAL PRODUCT DESCRIPTION

-zunctions 12

- INSTALLATION INSTRUCTIONS

• location advice 13
• yelectrical connections 14

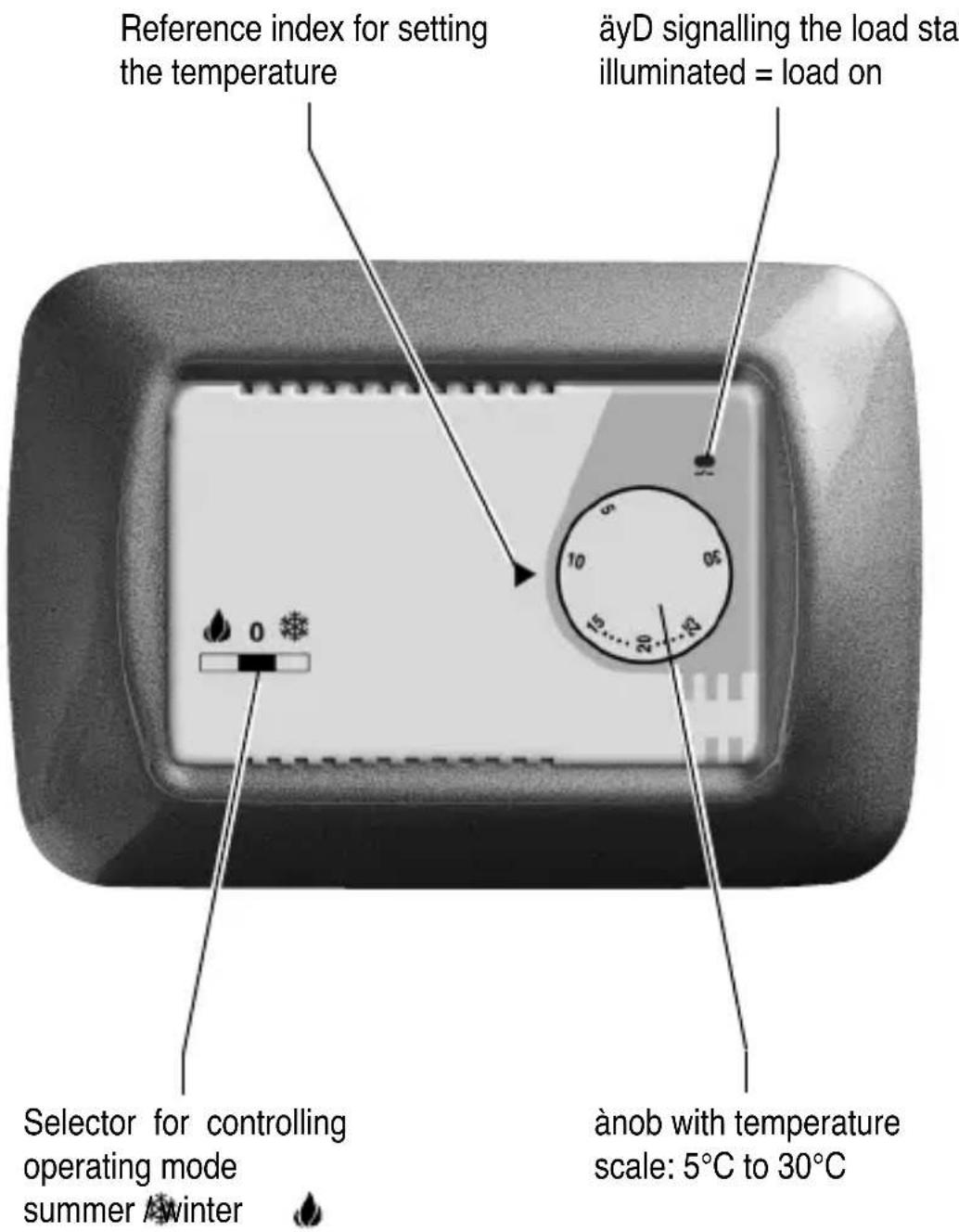

OPERATING INSTRUCTIONS

• wommands and signals 16

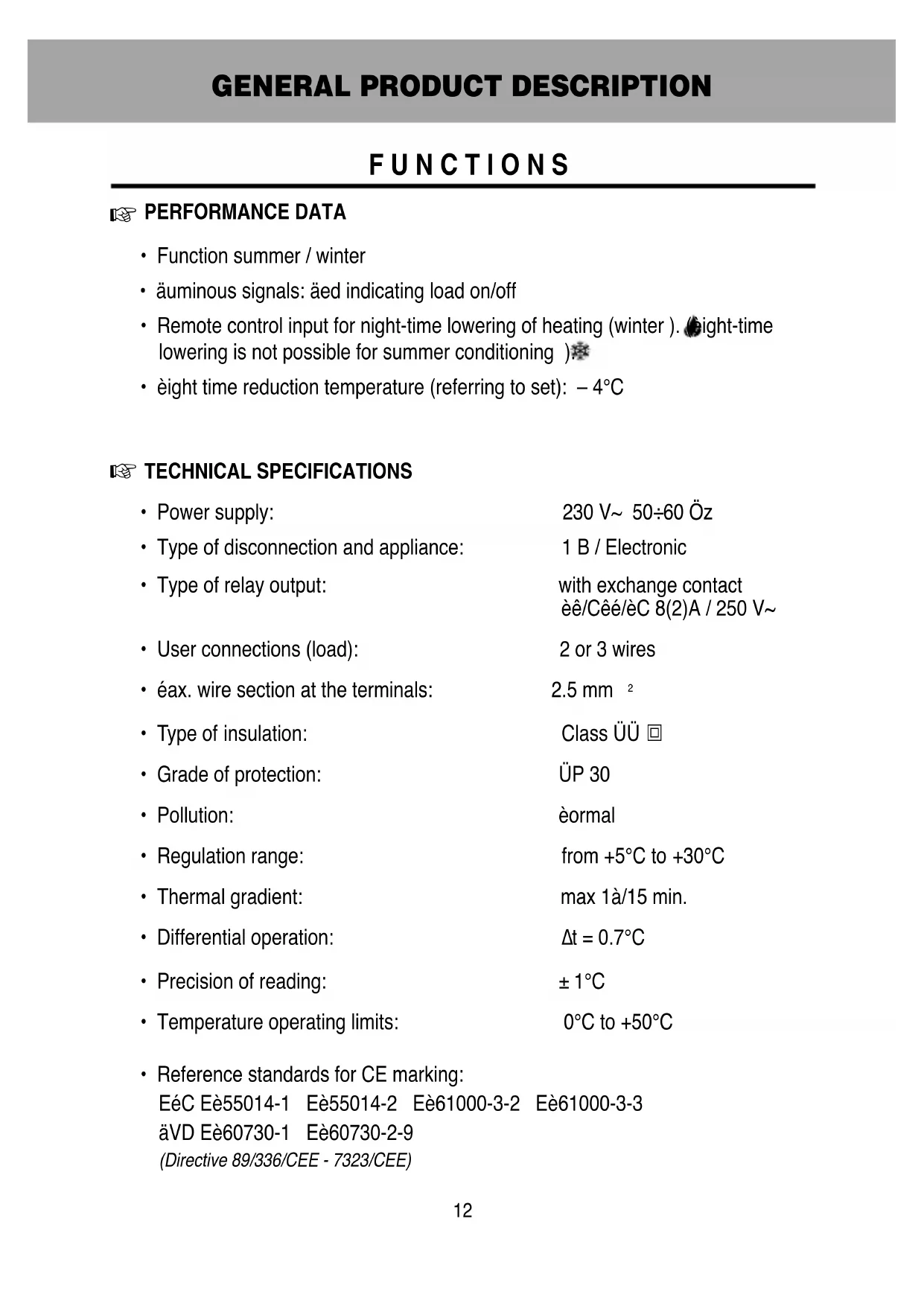

PERFORMANCE DATA

• Function summer / winter
• auminous signals: aed indicating load on/off
• Remote control input for night-time lowering of heating (winter). Night-time lowering is not possible for summer conditioning
• eight time reduction temperature (referring to set): -4^

TECHNICAL SPECIFICATIONS

• Power supply: 230 V~ 50÷60 Oz
• Type of disconnection and appliance: 1 B / Electronic
• Type of relay output: with exchange contact eê/Cêé/èC 8(2)A / 250 V~
• User connections (load): 2 or 3 wires
• éax. wire section at the terminals: 2.5 mm
• Type of insulation: Class UU
• Grade of protection: ÜP 30
  Pollution: eormal
• Regulation range: from +5^ to +30^
• Thermal gradient: max 1 à/15 min.
• Differential operation: t = 0.7^
• Precision of reading: ± 1°C
• Temperature operating limits: 0^ to +50^
• Reference standards for CE marking:

EeC Ee55014-1 Ee55014-2 Ee61000-3-2 Ee61000-3-3

aVD Ee60730-1 Ee60730-2-9

(Directive 89/336/CEE - 7323/CEE)

INSTALLATION INSTRUCTIONS

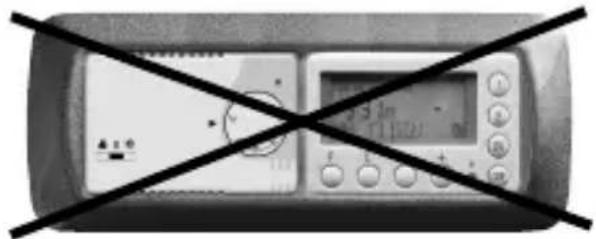

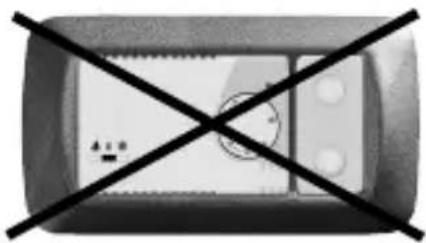

LOCATION ADVICE

OK

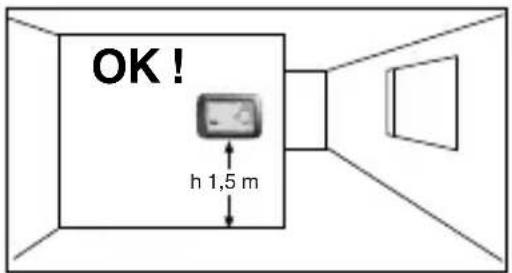

Recommendations for positioning:

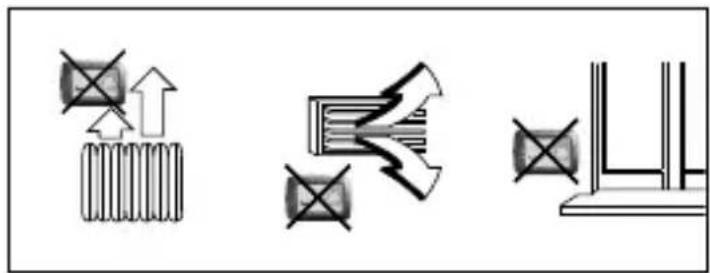

Unstall the thermostat at a height of approx. 1.50 ÷ 1.70 ~m from floor level, away from heat sources, draughts, doors and windows.

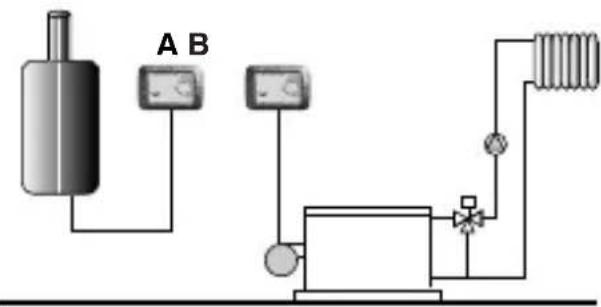

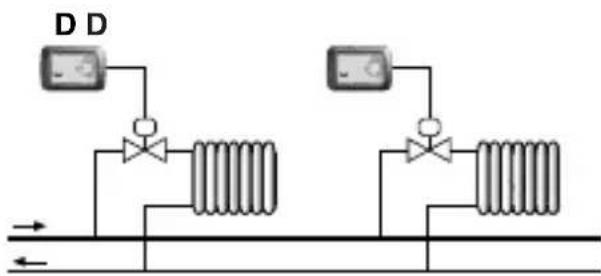

Oeating systems with thermostat controlling:

A Wall mounted boiler
B Burner
C Circulation pump
D Zone solenoid valve

N.B.: The examples given in the following documentation are for illustrative purposes only.

Important: The installation and electrical connecting of the devices and appliances must be undertaken by qualified personnel and in accordance with standards and regulations in force at the time. The manufacture declines to accept any responsibility concerning the use of the products in accordance with particular environmental or installation regulations, as this responsibility rests entirely with the installer.

Warning: Prior to installing the product, ensure the mains electrical supply is disconnected.

With the mains power supply disconnected:

Connect the power supply cables to terminals ^4 (aine) and ^5 (eneutral).

Connect the wires of the device to be controlled to terminals: n^ 1 = common

$$ n ^ {\circ} 2 = \text {n o r m .} $$

$$ n ^ {\circ} 3 = \text {n o r m . c l o s e d} $$

With strong inductive loads (pumps and solenoid valves) it is recommended that an RC filter is connected in parallel to the load.

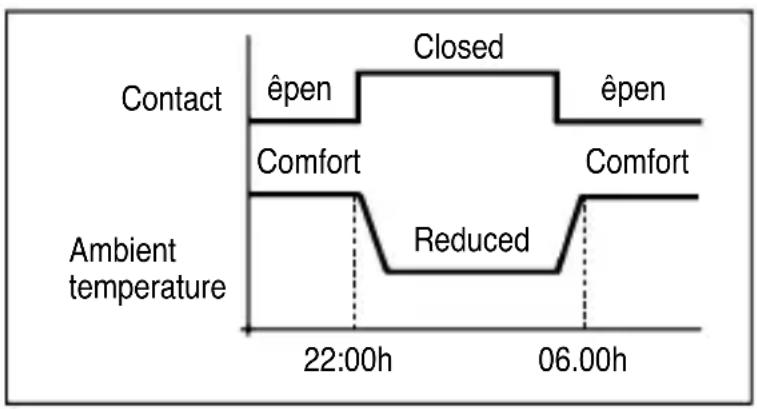

Remote selection of "Comfort" or "Reduced" temperature

Whenever it is desired to utilise the remote selection of "Comfort" or "Reduced" temperature, connect the external contact to terminals e^6 and e^7 of the thermostat.

"Comfort" temperature = external contact open

"Reduced" temperature = external contact closed

Selection of "Reduced" temperature results in a 4^ reduction with respect to the set temperature.

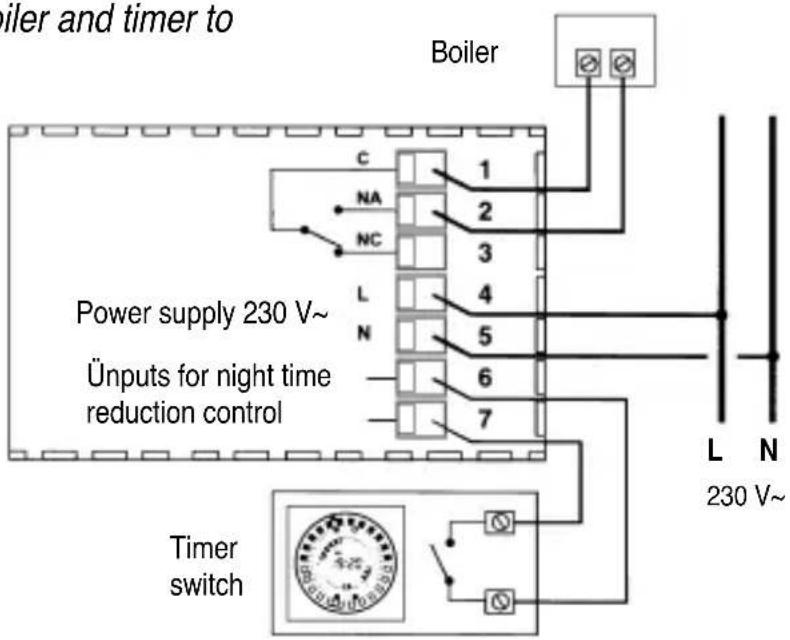

Example of connections to a boiler and timer to control night time reduction

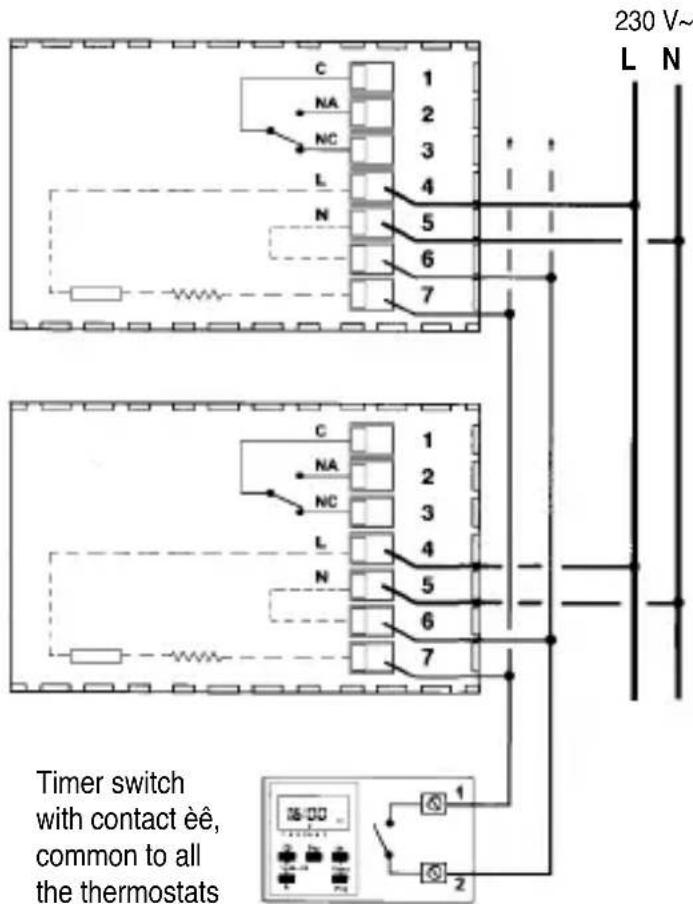

Multiple installations

Un multiple installations (offices, schools, homes, etc.) where the night time reduction is controlled from a single centralised timer, in addition to the above it is necessary to

pay close attention to the following instructions:

1) Power supply 230V~

Terminal 4: connect to mains aine (230V)

Terminal 5: connect to mains eneutral (return)

N.B.: normally with civil mains power supplies "brown" is the recognised colour for phase and "blue" for neutral (line return).

2) Connections for night time reduction

All terminals 6: connect in parallel with output 2 of the timer.

All terminals 7: connect in parallel with output 1 of the timer.

Gew55

FRANÇAIS

• Raccordement apparel (charge):

2 ou 3 conducteurs

Date of installation

Room in which installed

äcal de l'installation

Installer's stamp and signature
