Product type	Room thermostat
Brand	Gewiss
Model	GW14705
Power supply	230 V ~ 50/60 Hz
Output type	Relay with changeover contact (NO/NC)
Adjustment range	+5 °C to +35 °C
Thermal gradient	±0.5 °C at 20 °C
Operating temperature	0 °C to +50 °C
Degree of protection	IP30
Insulation class	II
Maximum wire cross-section	2.5 mm²
Main functions	Summer/winter switching, temperature regulation
Indicators	Yellow LED (location), Green LED (output status)
Standards	EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3
Recommended installation height	1.50 to 1.70 m from floor
Electrical connection	Terminals L (phase), N (neutral), 1 (NO), 2 (common), 3 (NC)
Maintenance and cleaning	Clean with a soft, dry cloth; do not use solvents
Safety	Installation by a qualified electrician; cut power before intervention
General information	Thermostat for heating and cooling system (summer/winter)

Frequently Asked Questions - GW14705 Gewiss

How to install the GW14705 thermostat?

Installation must be carried out by a qualified electrician. Before any intervention, cut the power supply. Mount the thermostat at a height of 1.50 to 1.70 m from the floor, away from heat sources, drafts and moisture. Connect the wires to the terminals: L (phase), N (neutral), 1 (NO contact), 2 (common), 3 (NC contact).

What is the adjustable temperature range?

The adjustable temperature range is +5 °C to +35 °C. The thermal gradient is ±0.5 °C at 20 °C, ensuring precise regulation.

What does the yellow LED on the thermostat mean?

The yellow LED is a location function. It allows the thermostat to be located in the dark or to check that it is powered.

What does the green LED mean?

The green LED indicates the output status. When it is on, it means that the NO (Normally Open) contact is closed and the load (heating or cooling) is activated.

How to connect the wires to the thermostat?

The connection terminals are: L (phase), N (neutral), 1 (NO contact), 2 (common), 3 (NC contact). The maximum wire cross-section is 2.5 mm². For inductive loads, it is recommended to place an RC filter in parallel.

At what height should the thermostat be installed?

The recommended height is 1.50 to 1.70 m from the floor. Avoid placing it near a heat source, window, door or air intake for accurate room temperature measurement.

Is this thermostat compatible with a boiler?

Yes, the GW14705 can control a wall-mounted boiler, burner, circulation pump or zone valve. Simply connect the output relay (terminals 1, 2, 3) to the device to be controlled.

Can I use this thermostat for cooling (air conditioning)?

Yes, the thermostat has a summer/winter function. In summer mode, it can control an air conditioning system. The connection is similar, but the switching direction can be adapted according to the installation.

How to clean the thermostat?

Use a soft, dry cloth to clean the surface. Never use solvents, alcohol or abrasive products that could damage the device. Disconnect the power before cleaning.

What to do in case of thermostat malfunction?

First check the power supply and wire connections. Make sure the thermostat is correctly positioned. If the problem persists, contact a qualified electrician or Gewiss after-sales service. Do not attempt to repair the device yourself.

USER MANUAL GW14705 Gewiss

NA/COM/NC 8 A / 250 V~

Electronic summer/winter thermostat

Attention - Important

Warning! The safety of this appliance is only guaranteed if all the instructions given here are followed scrupulously.

These should be read thoroughly and kept in a safe place.

Chorus product series can be installed in compliance with the requirements of HD 384 / IEC364 standards covering equipment for domestic and similar uses in a dust-free environment and where no special protection against the penetration of water is required.

The GEWISS sales organization is ready to provide full explanations and technical data on request.

INDEX

GENERAL PRODUCT DESCRIPTION page

• Functions 12

INSTALLATION INSTRUCTIONS

• Location advice 13
• Electrical connections. 15

OPERATING INSTRUCTIONS

-Commands and signals 16

Functions

PERFORMANCE DATA

Function summer / winter.

Luminous signals:

• Yellow localisation function LED.
• Green output status indicator LED (NA contact access closed).

TECHNICAL SPECIFICATIONS

Power supply: 230V 50÷ 60Hz

Power absorbed: 2VA

Type of relay output: with exchange contact

NA/COM/NC 8 A / 250 V~

User connections (load): 2 or 3 wires

Max. wire section at the terminals: 2,5mm

Type of insulation: Class II

Grade of protection: IP 30

Pollution: Normal

Regulation range: from +5^ to +35^

Thermal gradient: ± 0 , 5^ to 20^

Temperature operating limits: 0^ ÷ +50^

Reference standards for CE marking:

EMC EN55014-1 EN55014-2 EN61000-3-2 EN61000-3-3

Recommendations for positioning:

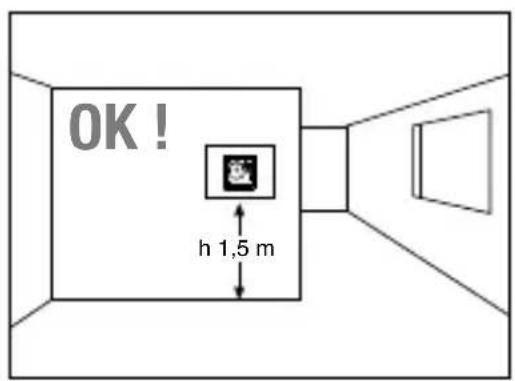

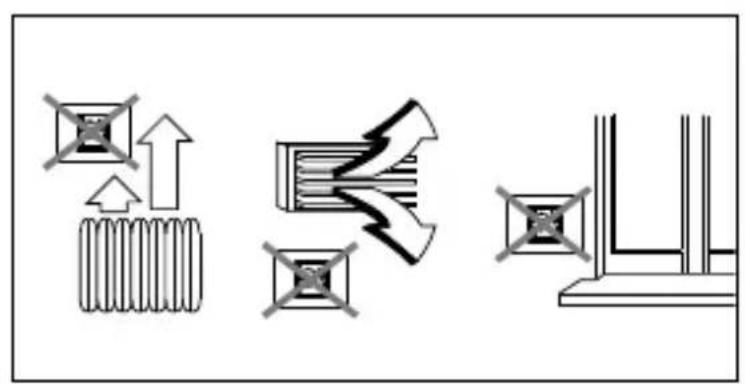

Install the thermostat at a height of approx. 1.50 ÷ 1.70 m from floor level, away from heat sources, draughts, doors and windows.

Heating systems with thermostat controlling

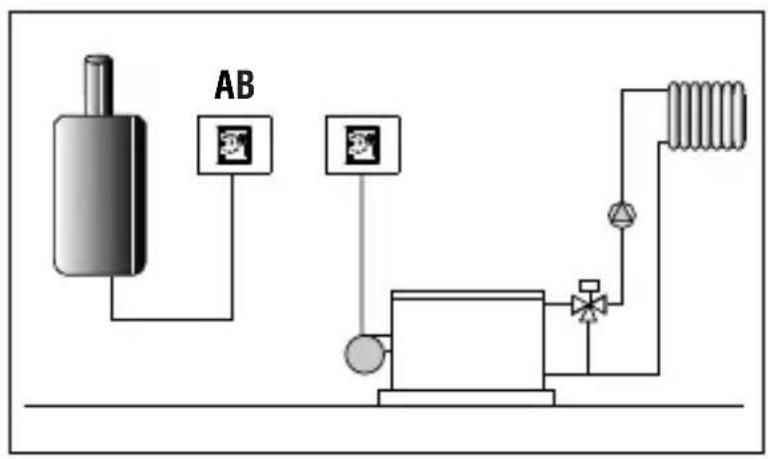

A Wall mounted boiler
B Burner

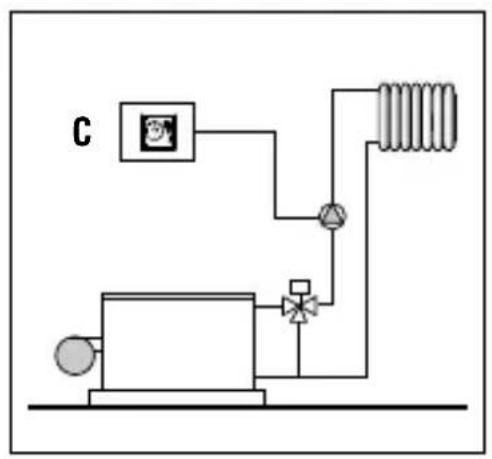

C Circulation pump

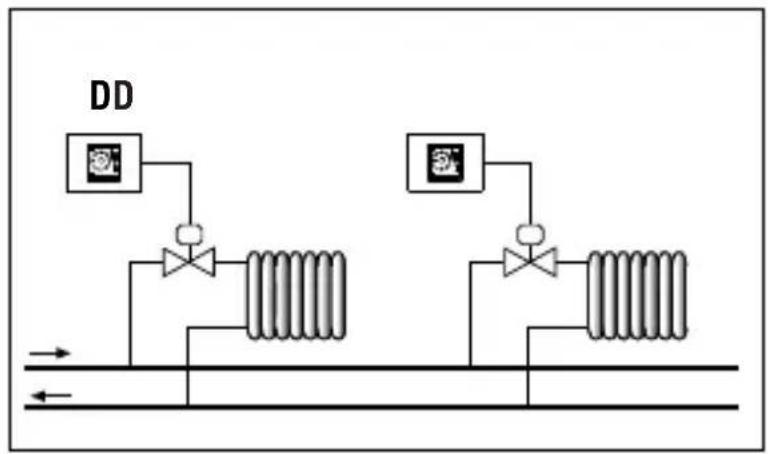

D Zone solenoid valve

N.B.: The examples given in the following documentation are for illustrative purposes only.

Electrical connections

Important: The installation and electrical connecting of the devices and appliances must be undertaken by qualified personnel and in accordance with standards and regulations in force at the time. The manufacture declines to accept any responsibility concerning the use of the products in accordance with particular environmental or installation regulations, as this responsibility rests entirely with the installer.

Warning: Prior to installing the product, ensure the mains electrical supply is disconnected.

With the mains power supply disconnected:

Connect the power supply wires to terminals: n^ L (Line) and n^ N (Neutral).

Connect the wires of the device to be controlled to terminals:

$$ n ^ {\circ} 1 = N A \text {c o n t a c t} $$

$$ n ^ {\circ} 2 = \text {c o m m o n} $$

$$ n ^ {\circ} 3 = N C \text {c o n t a c t} $$

With strong inductive loads (pumps and solenoid valves) it is recommended that an RC filter is connected in parallel to the load.

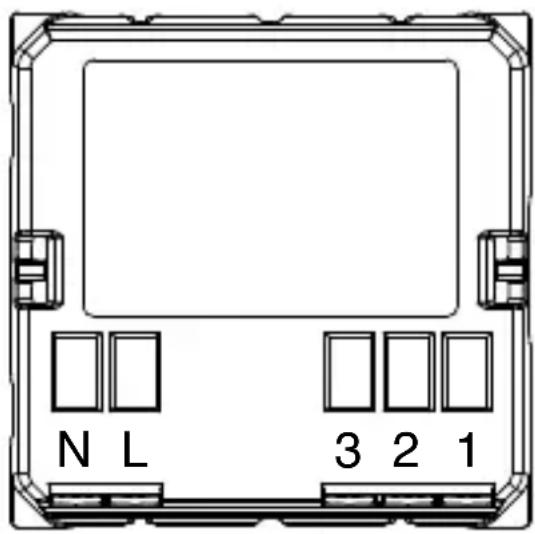

Cabling terminals

Power supply : L - Phase

N - Neutral

Output relay: 1 = NA contact

$$ 2 = \text {c o m m o n} $$

$$ 3 = N C \text {c o n t a c t} $$

OPERATING INSTRUCTIONS

Commands and signal

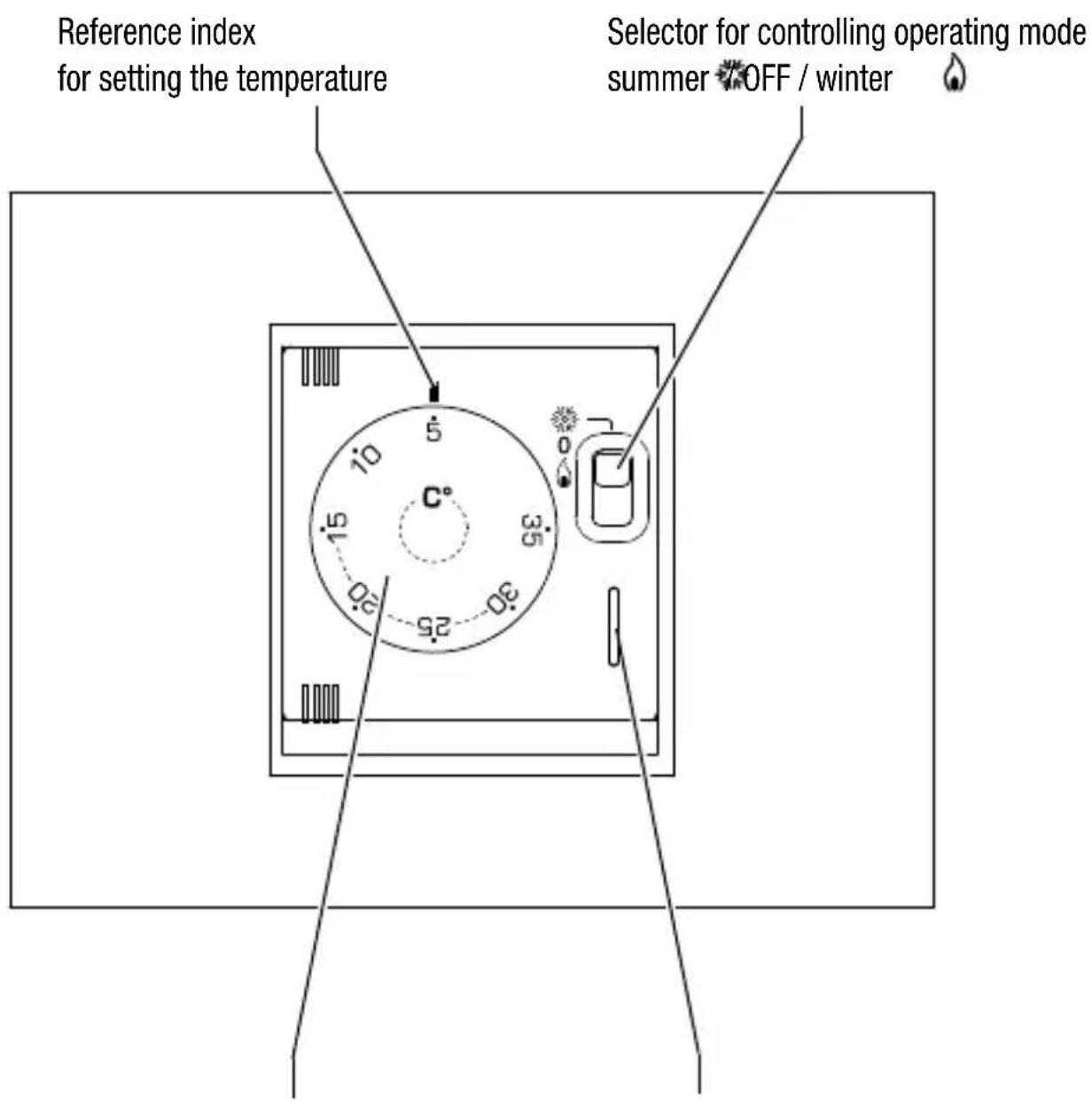

Knob with temperature scale: 5^ to 35^
LED signalling the load state: illuminated = load on
