Product Type	Programmable Thermostat (chronothermostat)
Dimensions (L x H x D)	130 x 92 x 23 mm
Power Supply	3 AAA alkaline batteries 1.5 V
Operating Modes	Automatic, Manual, Off/Anti-freeze
Main Functions	Weekly programming, Party, Holiday, temporary override, self-learning
Measurement Temperature	0 to 45°C
Measurement Accuracy	±0.5°C at 20°C
Time Programming Resolution	15 minutes
Number of Temperature Levels	3 (T1, T2, T3) programmable from 5 to 40°C
Anti-freeze Temperature	Adjustable from 2 to 7°C
High Temperature Protection	Adjustable from 30 to 40°C
Differential Setting	Adjustable from 0.2 to 2°C
Party Function	From 1 to 23 hours
Holiday Function	From 1 to 99 days
Remote Control	Via GSM system GW 90821 (optional)
Relay Output	1 NO/NC, 5A (AC1), 250 V~
Display	LCD with icons
Maintenance	Clean with a dry cloth. Do not use abrasive products.
Safety	Installation in accordance with national standards and IEC 60364
Repairability	Batteries replaceable by user. For any other repair, contact customer service.

Frequently Asked Questions - GW14701 Gewiss

How to change the heating/cooling mode?

Press the Heating/Cooling selection key (sun/snowflake symbol) to switch between heating and cooling. The corresponding symbol is displayed.

How to set the date and time?

Press the SET key once. The SET symbol appears and the day flashes. Use the + and - keys to select the day (1=Monday, 7=Sunday), then confirm with OK. Then set the hours and minutes in the same way.

How to customize the daily schedule?

Press the PROG key twice. Select the day with +/-, confirm with OK. Use +/- to choose the time (in 15 min steps) and the set-point (T1, T2 or T3) with the temperature keys. Repeat for each change. To copy the schedule to the next day, press OK after finishing.

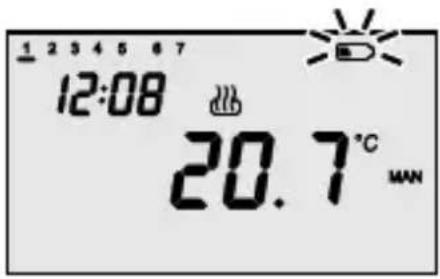

What to do if the battery icon flashes?

The battery icon flashes when the batteries are low. Replace the three AAA alkaline batteries as soon as possible. You have about 2 minutes before the device loses the time; other settings are retained.

How to reset the thermostat?

Press the –, + and OK keys simultaneously for a few seconds. All custom settings will be erased and default programs will be restored.

How to activate the Party function?

In AUTO mode, press the Party key (party symbol). The set-point flashes, adjust the desired temperature with +/-. Then set the duration (1 to 23 hours) with the +/- keys. Confirm with OK or wait 5 seconds. The Party icon is displayed.

How to activate the Holiday function?

In AUTO mode, press the Holiday key (suitcase symbol). The set-point flashes, adjust the desired temperature. Then set the duration (1 to 99 days) with +/-. Confirm with OK. The Holiday icon is displayed and the remaining days count down.

Can I use the thermostat with a remote control?

Yes, the thermostat can be connected to the GSM remote control system GW 90821 (sold separately) via serial terminals (TX, GND, RX). This allows changing the mode, set-point and receiving information by SMS.

What is the default anti-freeze temperature?

The default anti-freeze temperature is 5°C. It is adjustable from 2 to 7°C via the SET menu.

How to replace the batteries?

Open the flap, remove the thermostat from its base. Replace the three AAA alkaline batteries respecting polarity. Put the thermostat back in place. The time and date may need adjustment after replacement.

USER MANUAL GW14701 Gewiss

Simple line drawing of a fire and explosion symbol (no text or labels)

SET T- 18.0

SET -05.0

sat ≈35.0

SET OFF On

SET SB y OFF

00:00 Tz 18.0°C PROG

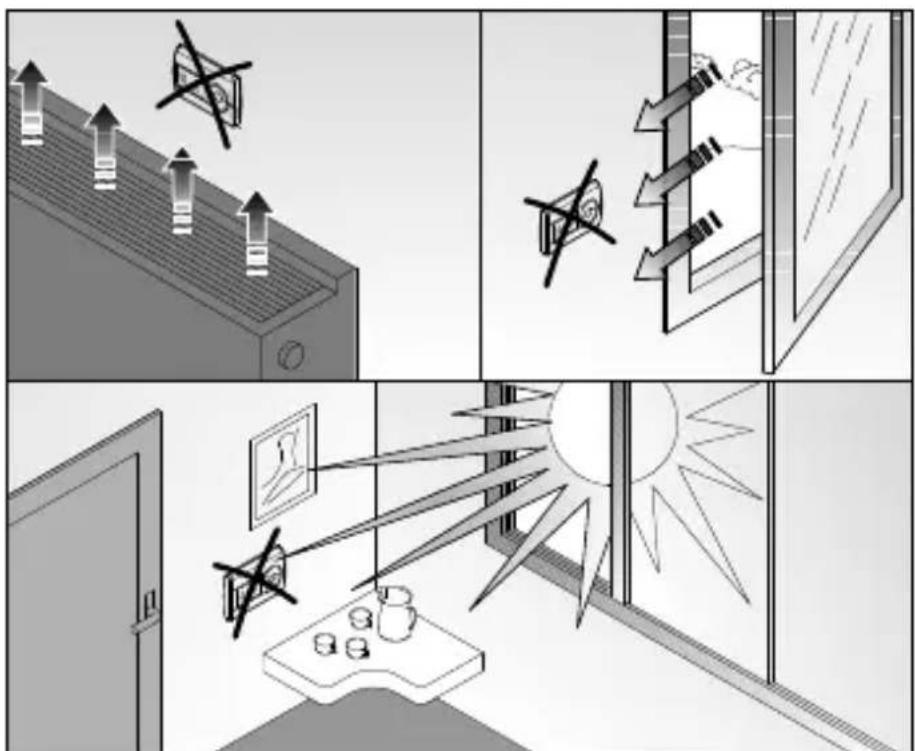

Four-panel illustration showing room ventilation, ceiling-mounted air ducts, and sunlight streaming from a window (no text or symbols)

Wall time-thermostat daily-weekly programme

Attention - Important

Warning ! The safety of this appliance is only guaranteed if all the instructions given here are followed scrupulously. These should be read thoroughly and kept in a safe place.

Chorus products can be installed in environments which are dust-free and where no special protection against the penetration of water is required.

They shall be installed in compliance with the requirements for household devices set out by the national standards and rules applicable to low-voltage electrical installations which are in force in the country where the products are installed, or, when there are none, following the international standard for low-voltage electrical installations IEC 60364, or the European harmonization document HD 60364. Gewiss sales organization is ready to provide full explanations and technical data on request.

INDEX

OPERATING INSTRUCTIONS page

- General description 30

- Description of the controls.... 31

- Operating modes.... 32

- Heating / Air conditioning selection 33

- Parameter setting.... 34

- Personalizing the daily program 38

- Temporary forcing of the temperature 39

- Party function 40

- Holiday function 41

- Sunday's program copy.... 42

- Manual operation 43

- Remote control.... 43

- Low batteries indication 44

- Reset and restore the preset values 44

- Preset programs.... 45

- Preset parameters.... 46

INSTALLATION INSTRUCTIONS

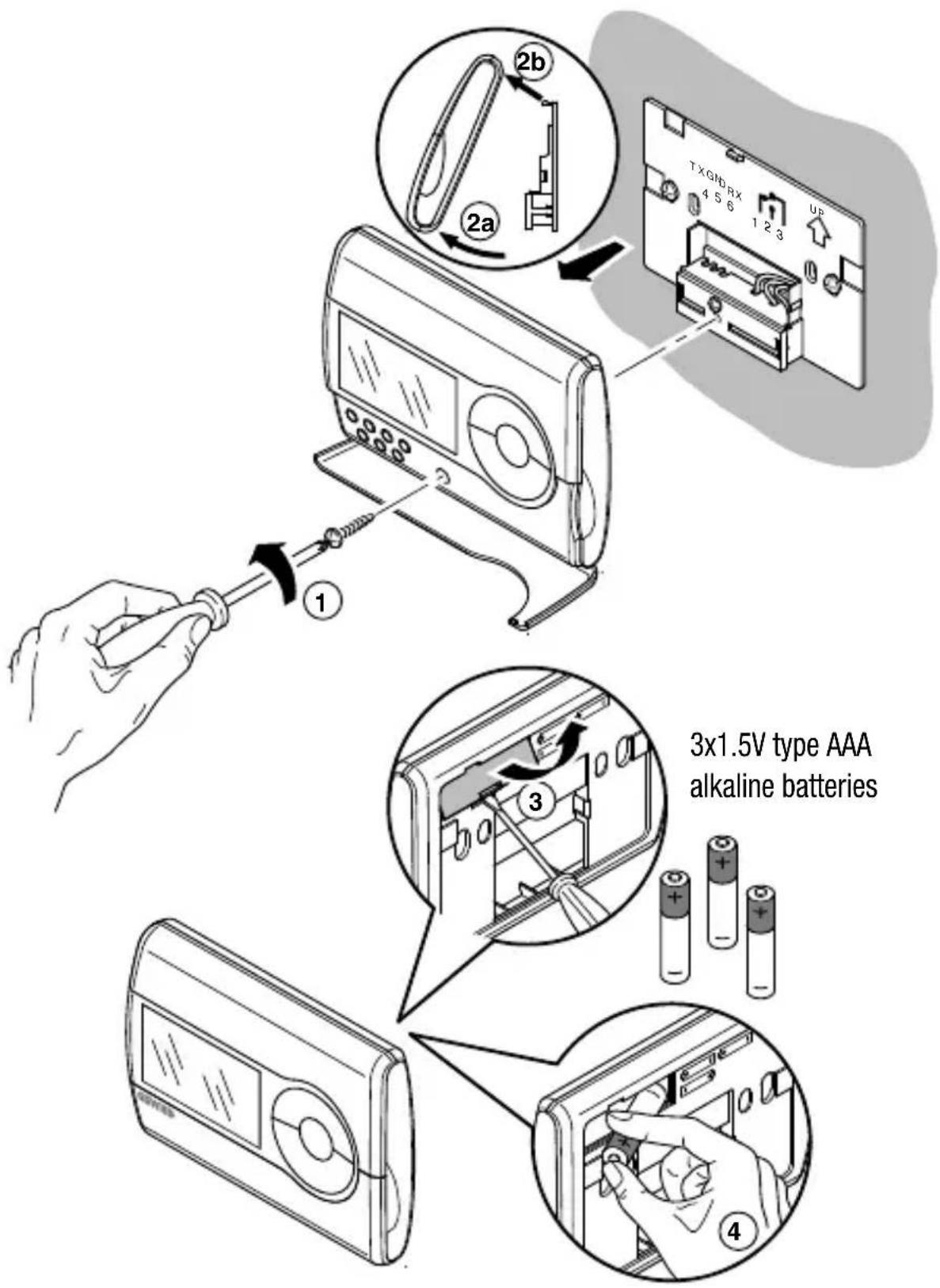

- Installation.... 47

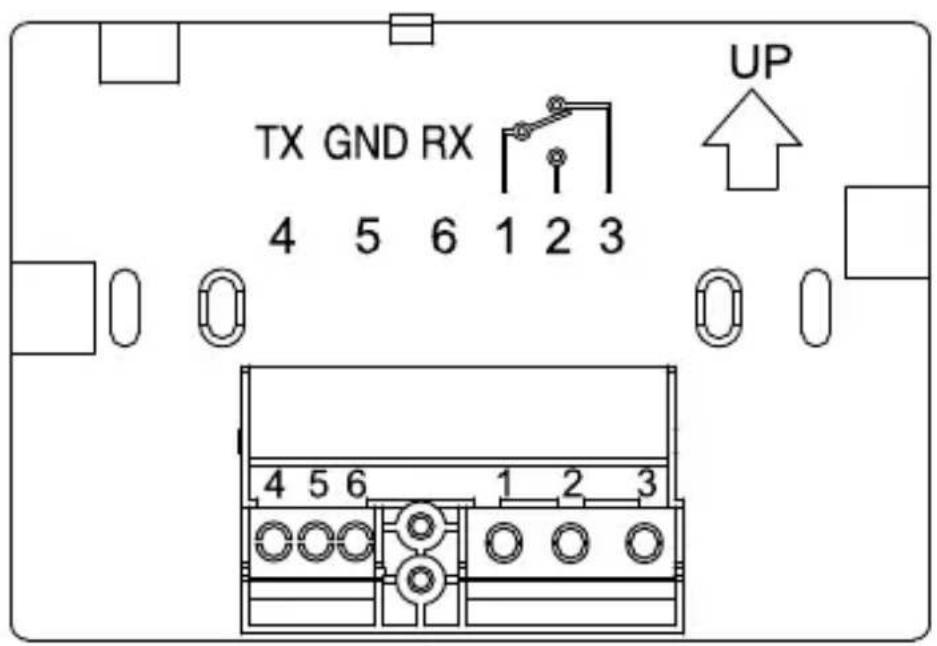

- Connection terminals.... 50

- Battery replacement.... 51

FUNCTIONAL DETAILS / TECHNICAL DATA 52

OPERATING INSTRUCTIONS

General description

The time-thermostat manages ambient temperature control and control of the boilers, zone valves, conditioning units, fan-coils, etc. through a relay output.

Activating the combined output modules makes it possible to control: boilers, zone valves, air conditioners, fan-coils, etc.

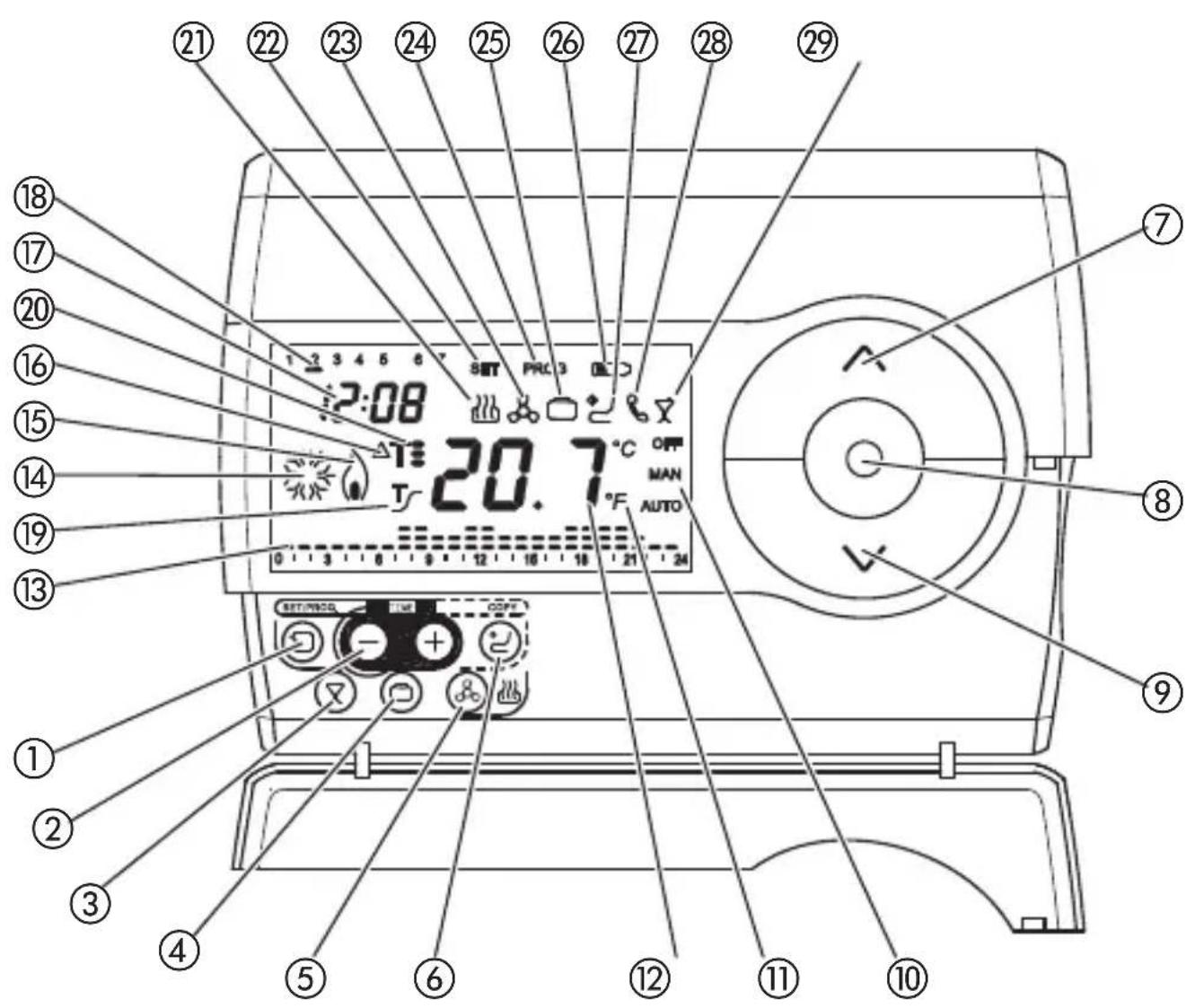

The timer-thermostat is provided with a display, 3 control buttons that are always accessible and 7 control buttons accessible when the hatch is open.

21 22 23 24 25 26 27 28 29 1 2 3 4 5 6 7 SET PROC 3 2:08 T=20.7°C OFF T= T= AUTO 0 3 0 9 12 16 18 21 24 SET PROC ⑦ ⑧ ⑨ ① ② ③ ④ ⑤ ⑥ ⑫ ⑪ ⑩

OPERATING INSTRUCTIONS

Description of the controls

CONTROL BUTTONS	Symbol
1Programming / setting
2Regulate time
3Party
4Holiday
5Select heating / air conditioning
6Copy
7Regulate temperature (+) / Select parameters
8Select operating mode / Confirm
9Regulate temperature (−) / Select parameters

DISPLAY INDICATIONS

10Functioning mode AUTO-MAN-OFF11Temperature unit of measure °C / °F12Ambient temperature measured13Daily program profile14Air conditioning activation15Heating activation16Thermal differential17Clock18Day of the week19Self-learning function activation20Temperature set point21Operating in heating mode22Parameter setting status SET23Operating in air conditioning mode24Programming status PROG25Holiday function26Low batteries27Holiday program copy function28Activation from telephonic controller29Party function

OPERATING INSTRUCTIONS

Operating modes

The timer-thermostat offers 3 different operating modes::

• AUTOMATIC
• MANUAL
• OFF/ANTIFREEZE/HIGH TEMPERATURE PROTECTION

Key is used to switch from one mode to another.

1 2 3 4 5 6 7 16:28 T-22.2°C AUTO 0 1 2 3 4 5 6 7 12 21 24

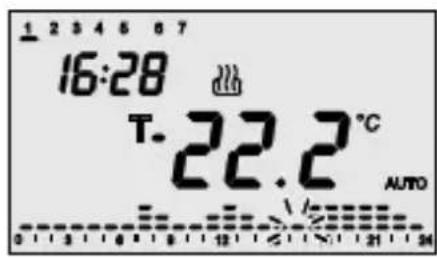

In automatic operation the timer-thermostat uses a program that can be different for every day of the week.

The text AUTO, the ambient temperature measured and the symbol of the set point relative to the current quarter of an hour appear on the display.

In the hourly profile the column relative to the current hour blinks with the representation of the active set point.

1 2 3 4 5 6 7 16:28 22.2 °C MAN

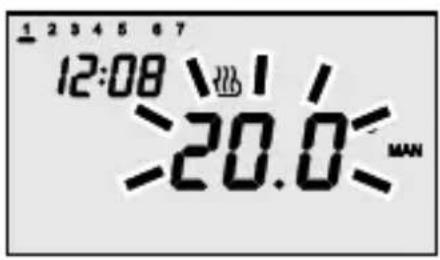

In manual operation the timer-thermostat permanently uses a temperature set point that can be freely set.

The text MAN and the ambient temperature measured appear on the display.

1 2 3 4 5 6 7 16:29 22.4 °C OFF

The antifreeze/high temperature protection operations are active in heating and air conditioning mode respectively.

In these two cases the time-thermostat uses the antifreeze/high temperature protection temperature set point that has been set.

The message "OFF" and the measured ambient temperature are displayed on the VDU.

OPERATING INSTRUCTIONS

Operating modes

When operating, the activation of the heating or air conditioning is signaled as follows:

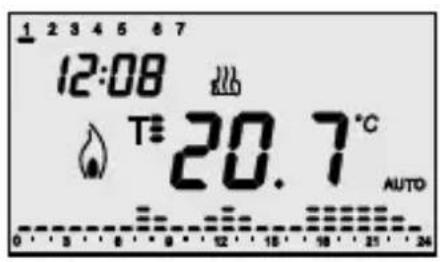

1 2 3 4 5 6 7 12:08 T=20.7°C AUTO 0 5 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

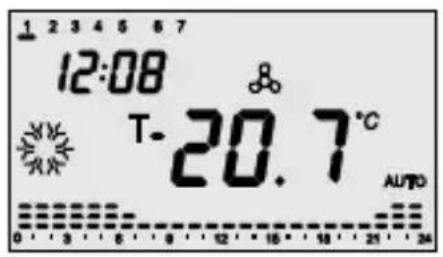

Heating

The symbol shows switching on of the heating.

1 2 3 4 5 6 7 12:08 T-20.7°C AUTO 0 3 6 9 12 15 18 21 24

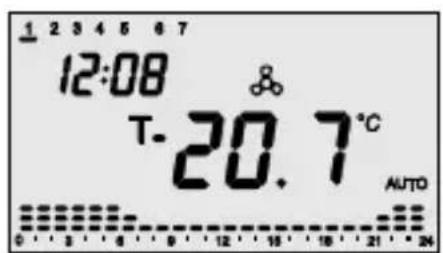

Air conditioning

The symbol shows switching on of the air conditioning.

Heating / Air conditioning selection

Pressing key is used to switch the type of operating from heating to air conditioning and vice versa.

1 2 3 4 5 6 7 12:08 T=20.7°C AUTO 0 3 6 9 12 15 18 21 24

Heating

Symbol identifies heating.

1 2 3 4 5 6 7 12:08 T-20.7°C AUTO 0 1 2 3 4 5 6 7 9 12 15 18 21 24

Air conditioning

Symbol identifies air conditioning.

OPERATING INSTRUCTIONS

Parameter setting

Press the key once to set the parameters.

The SET symbol and the clock appear on the display, while the bar of the day of the week starts blinking.

At this point it is possible to modify, in sequence:

• day of the week,
• hours,
• minutes,
• temperature unit of measure,
• set point T1,
• set point T2,
• set point T3,

Temperatures used in the heating or air conditioning program, differentiated by type of operation.

• antifreeze/high temperature protection temperature value
• self-learning activation (only available in "heating" operating mode)
• differential regulation value

Alternatively it is possible to scroll the sequence pressing key, until the parameter to be modified is selected. The value of each parameter is confirmed by pressing key. The setting phase is exited by pressing key again or, automatically, 30 seconds after the last key entry.

≥1≤34687 09:50

Setting the day of the week

When the day of the week bar blinks, select the current day with keys Ⓑ⊕

(Monday=1, Tuesday=2 ... Sunday=7).

Press key within 30 seconds to confirm the set value.

OPERATING INSTRUCTIONS

Parameter setting

1 3/4 5 6 7 >09≤0

Setting the time

When the hour figures blink, set the hour with keys .

Press key within 30 seconds to confirm the set value.

1 2 3 4 5 6 0:50

Setting the minutes

When the minutes figures blink, set the minutes with keys ⊖⊕

Press key Ⓞ within 30 seconds to confirm the set value.

SET C

Setting the temperature unit of measure

When the °C or °F symbol starts blinking, select the unit of measure with keys .^^

Press key Ⓞ within 30 seconds to confirm the set value.

Simple line drawing of a fire with smoke and fire sparks (no text or symbols)

OPERATING INSTRUCTIONS

Parameter setting

SET T- 18.0

Setting Set Point T1

When symbol appears, the temperature value starts to blink. Regulate the value of T1 with keys. Press key ⊙ within 30 seconds to confirm the set value.

T=20.7 sat

Setting Set Point T2

When symbol T appears, the temperature value starts to blink. Regulate the value of T2 with keys . V Press key ⊙ within 30 seconds to confirm the set value.

BAR T: 22.0

Setting Set Point T3

When symbol T appears, the temperature value starts to blink. Regulate the value of T3 with keys . ^ V Press key ⊙ within 30 seconds to confirm the set value.

05.0

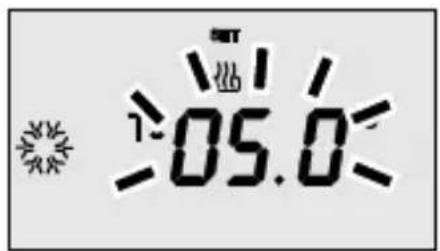

Setting the antifreeze/high temperature protection temperature value

The temperature value starts to blink.

Depending on the type of operation (heating/air conditioning), the antifreeze/high temperature protection temperature value can be adjusted using the keys. Press the key within 30 seconds to confirm the value set.

SET ≥35.0℃

There are the following constraints for the set point values: Heating: T antifreeze < T1 < T2 < T3 – Air conditioning: T1 < T2 < T3 < T high temperature

OPERATING INSTRUCTIONS

Parameter setting

SET OFF On

SET SB y OFF

Activating self-learning

When symbol appears, activate (ON) or deactivate (OFF) the function with keys.

Press key Ⓞ within 30 seconds to confirm the set value.

Self-learning is used to activate the advance (max. 2 hours) on activating the heating. The timer-thermostat automatically manages the advance, so as to guarantee the temperature set at the start of each period of the programmed profile. This function is activated in heating, in automatic operating mode only.

SET 01.3

Setting the regulation differential

When symbol appears, set the value of the regulation differential with keys .

Press key Ⓞ within 30 seconds to confirm the set value.

The regulation differential is the displacement between the set point set and the actual activation temperature. Save for special situations, it is recommended to keep the preset value.

OPERATING INSTRUCTIONS

Personalizing the daily program

Press key ☐ twice to personalize the preset daily program or to make a modification.

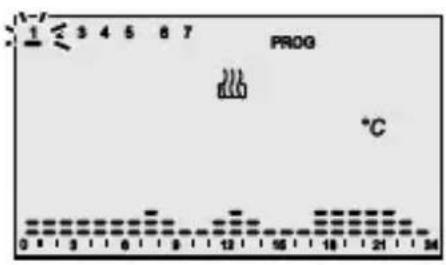

1 ≤ 3 4 5 6 7 PROG °C 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

The PROG symbol appears on the display while the bar for the first day of the week will start to blink.

Select the first day required with keys ⊖⊕

Press key within 30 seconds to confirm the selection.

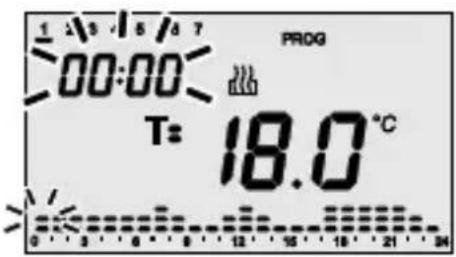

1 2 3 4 5 6 7 00:00 PROG Tz 18.0 °C 0 1 2 3 4

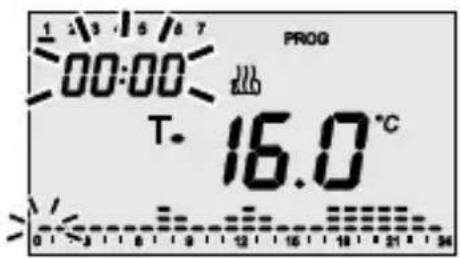

After confirmation of the first day, the current profile, relative to the day selected is displayed on the display.

The hour starts to blink.

Select the temperature set point that it is required to set starting from hour 00:00 using keys.

1 2 3 4 5 6 7 PROG 00:00 T- 16.0 °C > 0 < 3 8 9 12 15 18 21 24

The symbols T or T and the value corresponding to the selected set point appear on the display.

The set point is applied to the hourly profile until the first variation present in the current program.

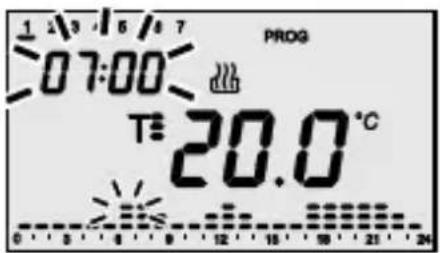

1 2 3 4 5 6 7 07:00 PROG T=20.0 °C 0 5 4 9 12 15 18 21 24

Increase the time with keys until the moment when it is required to modify the proposed profile; during the increase the column relative to the selected time blinks on the hourly profile.

Select the new set point with keys, which will be applied until the next variation present in the program.

OPERATING INSTRUCTIONS

Personalizing the daily program

The time is decreased/increased with steps of 15 minutes each time keys, are pressed, so it is possible to define up to 4 programming periods for each hour.

Proceed in the same way as described above until the profile is complete.

Copying the Program

If it is required to copy the program to the next day, confirm the programming performed by pressing key within 30 seconds.

Press key within 30 seconds to confirm the programming without copying; an automatic move is made to the programming for the next day.

Press key, at the end of weekly programming to return to normal operations.

To activate the program select AUTO operating mode by pressing key until the AUTO symbol appears on the display.

Temporary forcing of the temperature

In AUTO operating mode it is possible to temporarily force the active temperature set point using keys to set the required value. Confirm the value by pressing key or wai-ting 5 seconds.

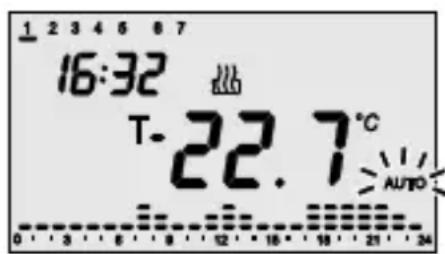

1 2 3 4 5 6 7 16:32 T-22.7°C >AUTO

Activation of the forcing is signaled on the display by the blinking of the AUTO symbol.

The forcing remains active until the first variation of the profile present in the programz.

OPERATING INSTRUCTIONS

Party function

In AUTO mode, the Party function is used to temporarily exclude the set program by manually entering a set point for a different temperature, for a period of between 1 and 23 hours inclusive. This function can be used, for example, to extend the comfort period during a dinner, a party, etc.

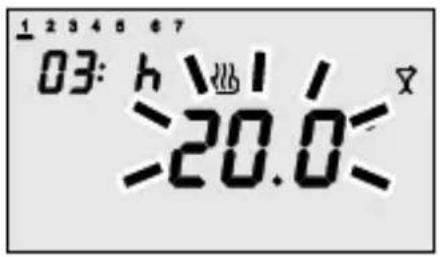

1 2 3 4 5 6 7 03: h \u1111/1 >20.0

Press key to activate the function, the symbol appears on the display while the value of the set point active at that time starts blinking. Use keys to set the new value of the temperature set point.

Use keys to set the number of hours of activation, that will be displayed on the display.

Press key ☐ or wait 5 seconds, to confirm the setting made.

When the function is active it is still possible to modify the value of the set point and period of activation, in the same way as described above.

The function can also be activated when the timer-thermostat in manual mode (MAN).

The Party function remains active until the set period elapses.

The hours count is decremented during operation.

Press key ; for deactivation in advance: on deactivation, the timer-thermostat returns to the starting operating mode.

OPERATING INSTRUCTIONS

Holiday function

In AUTO mode, the Holiday function is used to temporarily exclude the set weekly program by manually entering a set point for a different temperature, for a period of between 1 and 99 days inclusive. This function could be used, for example, to program a period of economy during a holiday with reactivation of the program on the day of return.

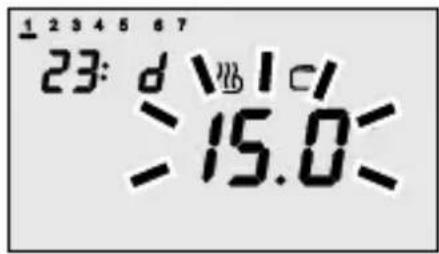

1 2 3 4 5 6 7 23: d \nb1 c/ -15.0

Press key to activate the function, the symbol appears on the display while the value of the set point active at that time starts blinking. Use keys to set the new value of the temperature set point.

Use keys to set the number of hours of activation, that will be displayed on the display.

Press key ☐ or wait 5 seconds to confirm the setting made.

When the function is active it is still possible to modify the value of the set point and period of activation, in the same way as described above.

The function can also be activated when the timer-thermostat in manual mode (MAN).

The Holiday function remains active until the set period elapses.

The days count is decremented during operation.

Press key Ⓗ for deactivation in advance: on deactivation the timer-thermostat returns to the starting operating mode.

OPERATING INSTRUCTIONS

Sunday's program copy

In AUTO mode it is possible to copy the sunday's profile to any day of the week.

This function is particularly useful when a period of temporary comfort is required, for example, on a public holiday during the week.

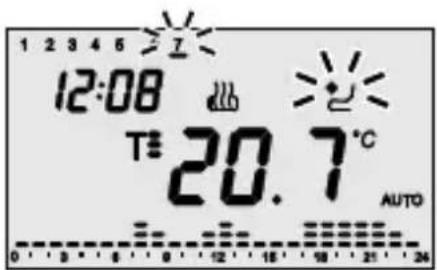

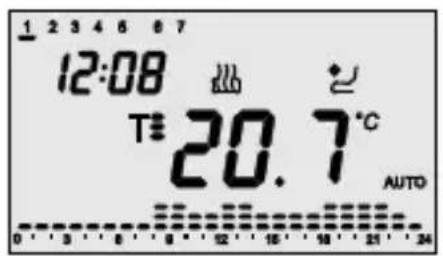

1 2 3 4 5 ≥7 12:08 T=20.7°C AUTO 0 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

Press key to activate the function, the symbol and the bar of the feast day start blinking on the display. Use keys to select the day of the week to which to copy the feast day profile; press key, or wait 30 seconds to confirm the setting made.

12:08 T=20.7°C AUTO

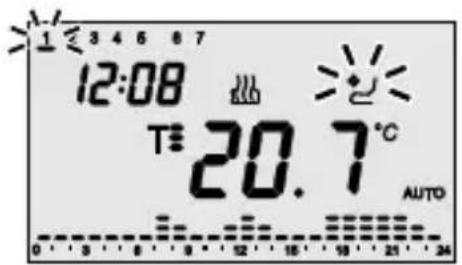

When the function is active, pressing key displays the day to which the feast day profile has been copied: the corresponding bar starts blinking on the display. Press key again to deactivate the function; if it is required to modify the day of the week, use keys and press key or wait 30 seconds to confirm the new setting.

1 2 3 4 5 6 7 12:08 T: 20.7°C AUTO 0 3 8 9 12 16 18 21 24

When the day selected for the feast copy is in progress, symbol is fixed on. The validity of the feast day copy is temporary, after midnight of the selected day, a return is made to the programmed weekly profile.

OPERATING INSTRUCTIONS

Manual operation

1 2 3 4 5 6 7 12:08 \ 1 / >20.0 < MAX

To activate manual operating mode, press key , until the text MAN appears on the display. The temperature set point appears for about two seconds.

Use keys to set the required set point value, press key, or wait 5 seconds to confirm the setting.

Remote control

The time-thermostat can be connected to the GSM GW 90 821 remote control unit by a serial connection.

The SMS commands can thus be used to:

• set the type of operation (air conditioning/heating)
• set the operating mode (manual/automatic/off)
• set the operating set point (in MAN mode only)
• request the current status

Every SMS command sent to the device has a corresponding confirmation SMS (with predefined text that cannot be configured);

the status request message gives a reply that includes the following information:

• current operating mode (off/auto/man)
• set point temperature currently set
• ambient temperature measured
• relay output status (ON/OFF)

- current operating type (heating/air conditioning)

The following symbol is displayed on the VDU whenever the operating type or mode are modified from the remote control unit.

OPERATING INSTRUCTIONS

Low batteries indication

1 2 3 4 5 6 7 12:08 20.7°C MIN

When the batteries charge is low, the symbol on the display starts to blink. Operation of the timer-thermostat is guaranteed in any case. In this case, the batteries must be replaced as soon as possible.

Timer-thermostat operation is no longer guaranteed when symbol is fixed on, in this case the last operation guaranteed is automatic deactivation of the heating/air conditioning.

The available time for replacing the batteries is about 2 minutes, after which only the clock/calendar setting will be lost: all the other settings are kept in non-volatile memory.

Reset and restore the preset values

Pressing keys, simultaneously performs a complete reset of the timer-thermostat.

N.B.: all parameters set and personalized programs will be cancelled.

When the timer-thermostat is switched on again, it uses the parameters and programs preset in the factory. The timer-thermostat goes into heating in AUTO mode. The Party and Holiday functions are not active.

OPERATING INSTRUCTIONS

Preset programs

The timer-thermostat has 2 preset programs, one for heating and one for air conditioning.

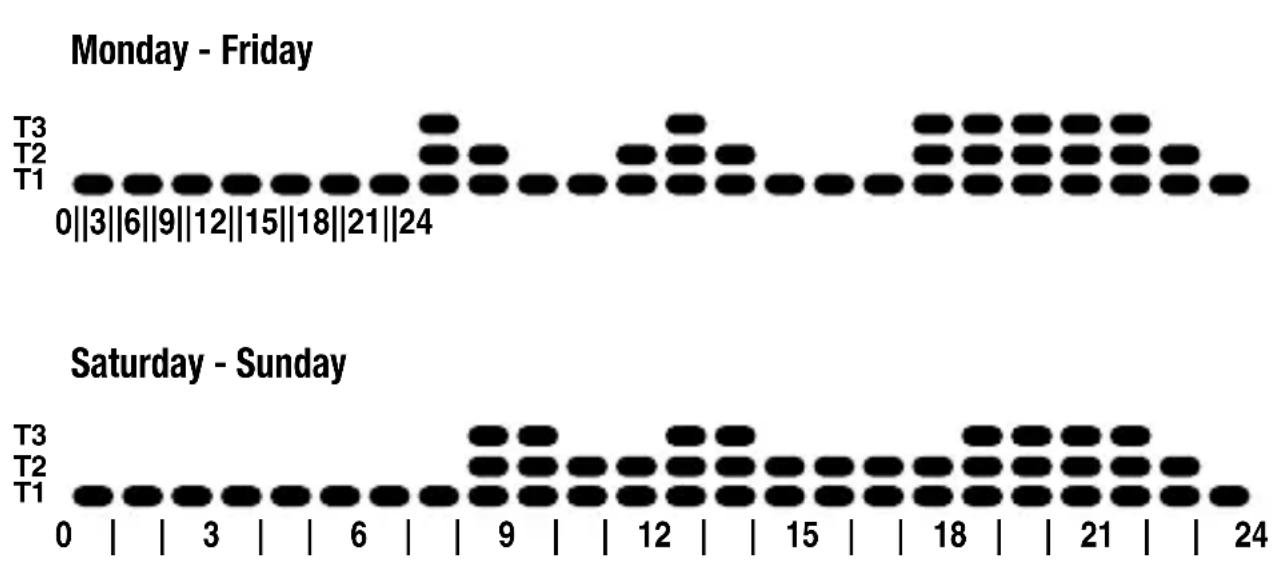

HEATING PROGRAM

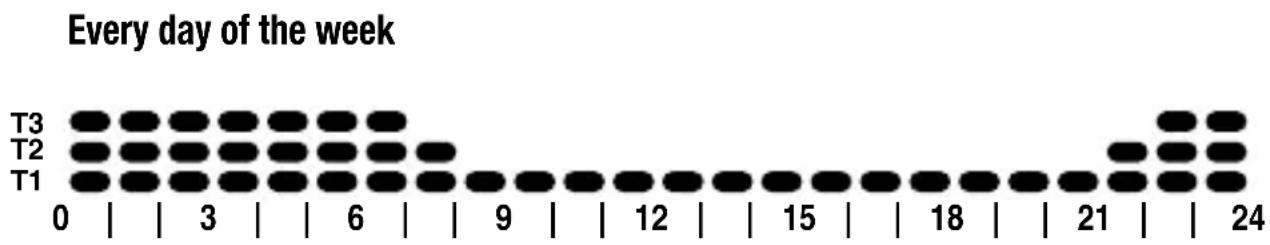

AIR CONDITIONING PROGRAM

These preset programs can be modified and personalized according to requirements. Follow the instructions contained in the “Daily program personalization” paragraph to make the modifications.

OPERATING INSTRUCTIONS

Preset parameters

Day of the week 1: Monday

Time 00:00

Heating temperature set point T1 16 °C

T2 18 °C

T3 20 °C

T antifreeze 5 °C

Air conditioning temperature set point T1 24 °C

T2 26 °C

T3 28 °C

T protection 35 °C

Self-learning Function disabled (OFF)

Differential regulation Heating 0.2 °C

Air conditioning 0.5 °C

Temperature unit of measure

°C

INSTALLATION INSTRUCTIONS

Installation

WARNING

• Before installation ensure that the associated output modules receive the commands correctly.
• In the installation phase respect the assembly direction ( ) on the base of the support.

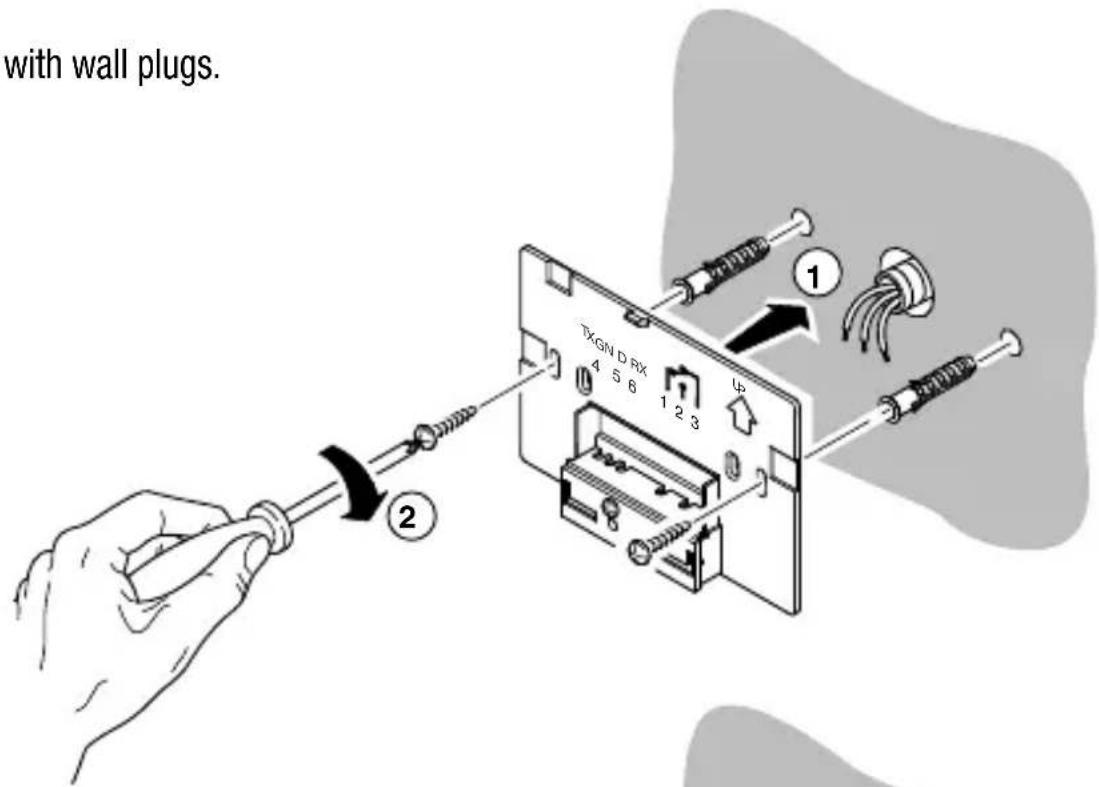

Fitting with wall plugs.

with wall plugs. TXGN D RX 4 5 6 1 2 3 UP ①

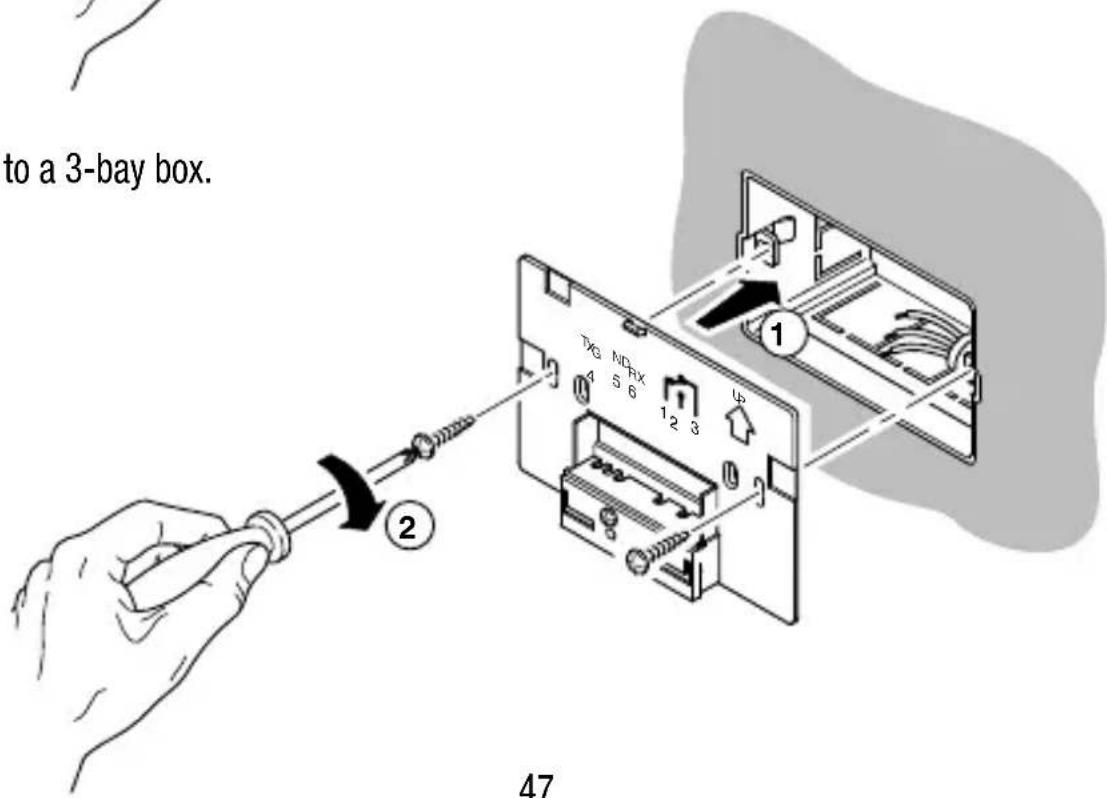

Fitting to a 3-bay box.

to a 3-bay box. 47

INSTALLATION INSTRUCTIONS

Installation

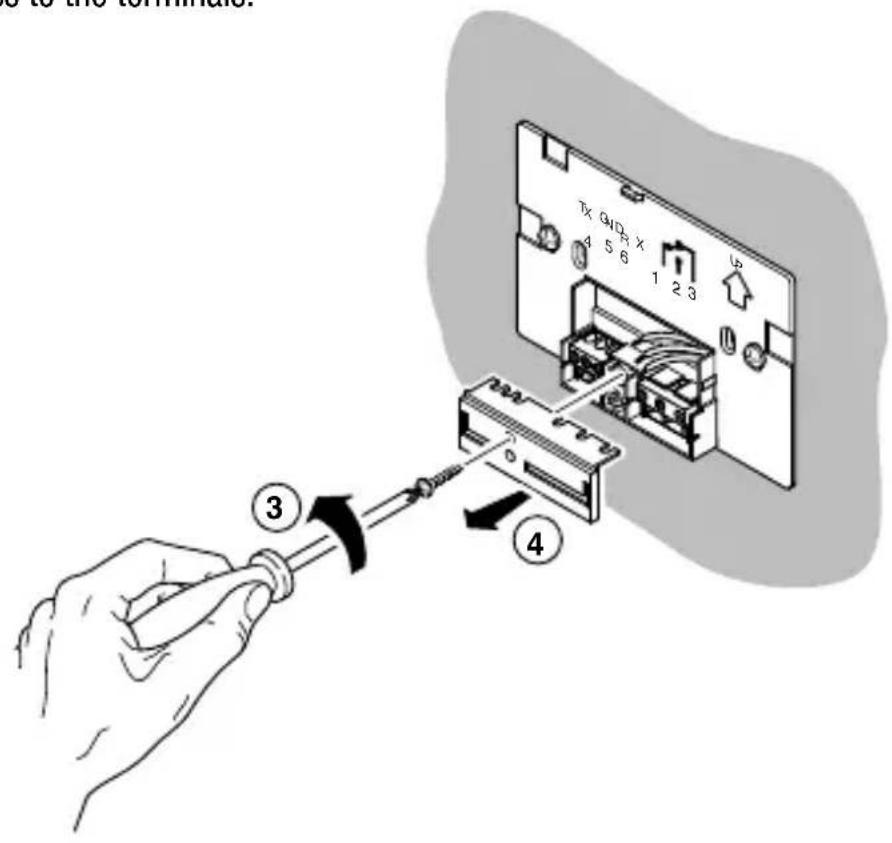

Access to the terminals.

to the terminal. Tx GND X 4 5 6 1 2 3 4 ③ ④

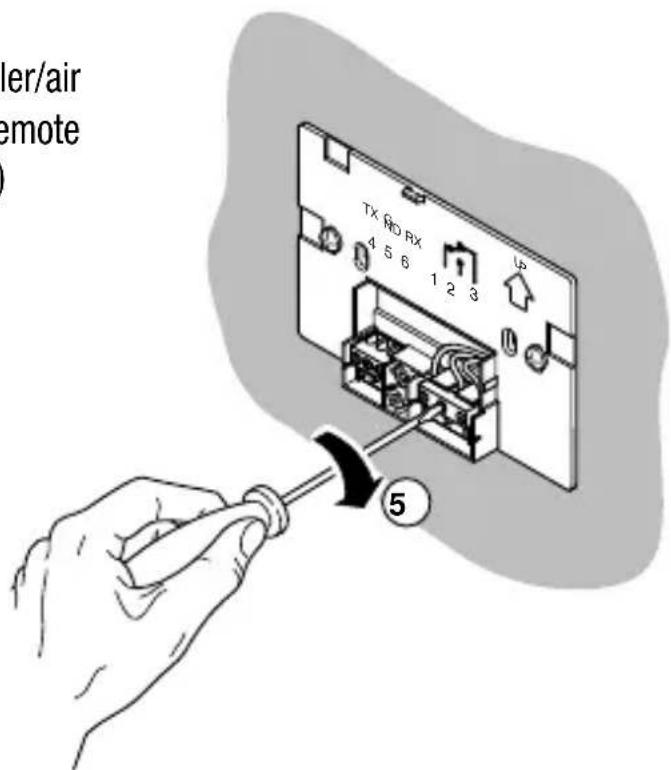

Connection to the boiler/air conditioner and the remote control unit (3 cables)

ler/air remote TX 00 RX 4 5 6 1 2 3 Up 5

INSTALLATION INSTRUCTIONS

Installation

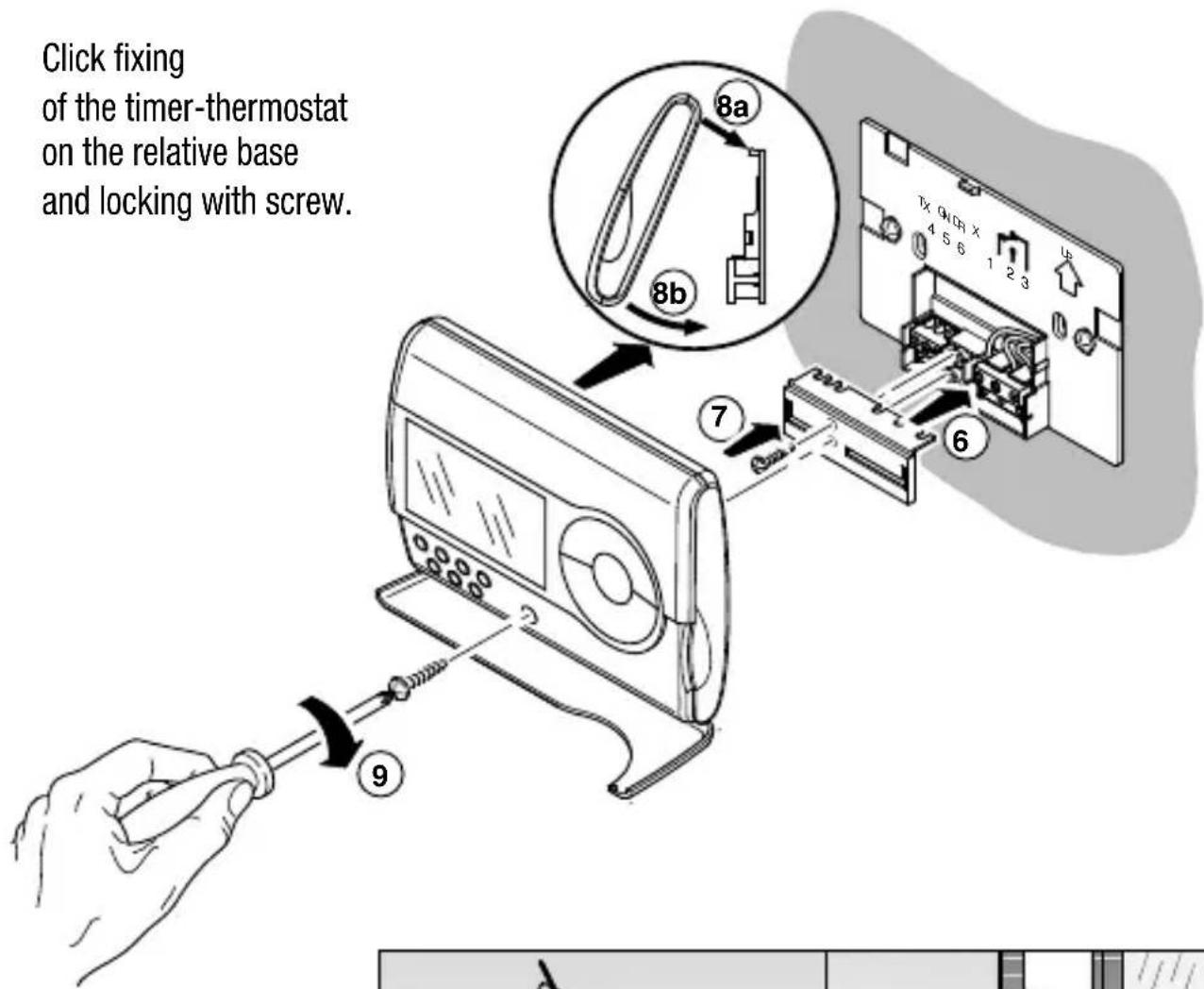

Click fixing

of the timer-thermostat on the relative base and locking with screw.

Click fixing of the timer-thermostat on the relative base and locking with screw.

For correct reading of

the ambient

temperature

to be controlled,

it is important

that the

timer-thermostat

is not installed

in niches.

Behind doors

or near windows

or sources of heat.

Four-panel illustration showing room ventilation, ceiling-mounted fixtures, and sunlight streaming (no text or symbols)

INSTALLATION INSTRUCTIONS

Connection terminals

TX GND RX 4 5 6 1 2 3 UP

Remote control unit connection (serial line).

4 - TX (output data)

5 - GND (common)

6 - RX (input data)

Connection for boiler or air conditioner control.

Output contact 1 NA/NC 5A (AC1) / 2A (AC15), 250Vac.

1 - Common

2 - NA contact

3 - NC contact

INSTALLATION INSTRUCTIONS

Battery replacement

2b 2a TXGND RX 4 5 6 1 2 3 UP 1 3x1.5V type AAA alkaline batteries 4

Do not dispose of dead batteries in the environment.

FUNCTIONAL DETAILS / TECHNICAL DATA

Type of operation: heating and air conditioning

Operating mode: automatic, manual and antifreeze

Operating temperature: -5^ ÷ +45^

Measured temperature: 0 ÷ +45°C

Temperature probe: NTC, 100KΩat 25°C

Measurement accuracy: ±0.5°C at 20°C

Preset programs: 2 weekly programs

(heating and air conditioning)

Resolution hourly programming: 15 minute

Max. n° of temperature changes: 4 per hour

Temperature levels: 3 levels (T1-T2-T3) programmable

from 5 to 40°C differentiated

between air conditioning and heating

Temperature set point resolution: 0.1°C

Antifreeze temperature: adjustable from 2 to 7°C

High temperature protection level: adjustable from 30 to 40 °C

Manual temperature: adjustable from 5 to 40°C

Differential regulation: adjustable from 0.2 to 2°C

Party function: timed from 1 to 23 hours

Holiday function: timed from 1 to 99 days

Temporary temperature forcing: settable

Thermal gradient self-learning: selectable, with max. advance of 2 hours

Unit of measure: ^ C or ^ F

Interval between two successive measurements: 1 minute

Remote control: with the GSM code GW 90 821 remote control

unit (not included)

Output contact: relay, without potential

1 NA/NC 5A (AC1)/2A (AC15), 250V ac

Batteries discharged signal: with symbol on the display

Supply: 2x1.5V type AAA alkaline batteries

Stand-by charge: 2 minutes for battery replacement

Max. dimensions (B x L x H): 130x92x23mm

FRANÇAIS

Chronothermostat mural programme journalier-hebdomadaire

Attention - Important

The text MAN and the ambient temperature measured appear on the display.

1 2 3 4 5 6 7 16:29 22.4 °C OFF

Programmation minutes

Simple line drawing of a fire with smoke and fire sparks (no text or symbols)

SET T- 18.0

Programmation du Set-point T1

Programmation du Set-point T2

SET SB OFF

Activation autoapprentissage

00:00 Tz 18.0°C PROG

1 2 3 4 5 6 7 23: d \nb 1 c/ =15.0=

Four-panel illustration showing ceiling lighting, window view, and sunlit interior (no text or symbols)

Description bornes

TX GND RX 4 5 6 1 2 3 UP

Simple line drawing of a fire with smoke and fire sparks (no text or symbols)

SET T- 18.0

SET 01.3 Δ7=0.13

00:00 Tz 18.0 °C

Diagram showing a hand holding a cable connected to an electronic device with labeled parts and numbered connection points.

Conexión a la

Four-panel illustration showing ceiling lighting, window view, and outdoor lighting with sun rays (no text or symbols)

Simple line drawing of a fire and a star with rays, no text or symbols present

Parameter-einstellung

SET T- 18.0

T: 20.7 SBT

SET ≈35.0

SET OFF On

SET SB OFF

SET Δ7:01.3

00:00 Tz 18.0 °C

1 2 3 4 5 6 7 12:08 20.7°C MIN

Four-panel illustration showing ceiling lighting, window view, and outdoor scene with sun rays and a window (no text or symbols)
