CPD 430 - Calculator OLYMPIA - Free user manual and instructions

Product Type	Printing Calculator
Brand	Olympia
Model	CPD 430
Dimensions (W × D × H)	245 mm × 150 mm × 57 mm
Weight	Approx. 450 g (with batteries)
Power Supply	4 AA batteries (DC 6 V) or DC 6 V, 300 mA AC adapter
Calculation Capacity	Up to 12 digits
Main Functions	Arithmetic calculations, currency conversion, tax calculation, cost/sell/margin calculation, calendar and clock functions, metric conversion, roll printing
Display and Printing	LCD display, paper roll (width 57 mm, max diameter 96 mm)
Ink Roller	IR40T (replaceable)
Maintenance and Cleaning	Clean with a dry cloth, no water or solvents
Safety	Do not insert metal objects. Do not attempt to repair yourself. Unplug if problem occurs. Turn off after use.
Spare Parts	Ink roller IR40T, paper roll 57 mm × 96 mm
Reparability	Contact Olympia customer center or the retailer. Do not attempt personal repair.
General Information	Indoor use. DC 6 V power supply. Data retained in memory even after disconnection. Reset button on the back.

Frequently Asked Questions - CPD 430 OLYMPIA

How to change the ink roller?

Turn the calculator off. Remove the printer cover. Lift the ink roller out of the holder. Install a new ink roller (IR40T) and replace the cover.

How to install the paper roll?

Raise the spool support arm. Place the paper roll on the support, with the paper unrolling from the bottom. Insert the paper into the slot at the back of the machine. Turn on the device and press the PAP key to advance the paper.

What to do if error 'E' is displayed?

The 'E' error appears if the result exceeds 12 digits, if a division by zero is attempted, or if the input speed is too fast. Press the CE/C key to clear the error.

How to set the date and time?

Use the CALENDAR AND TIME SETTING key. Refer to the manual for the exact procedure. After a reset, you will need to reconfigure these settings.

How to perform a margin calculation?

Use the COST, SELL, MARGIN keys. Enter two values (e.g., cost and selling price) then press the key for the missing value to obtain the result.

How to use currency conversion?

Use the C1, C2 keys. First set the exchange rate via the selector. Enter an amount, then press C1 or C2 to convert.

How to clean the calculator?

Turn off the calculator. Clean it with a dry cloth. Never use water, solvents (alcohol, thinner) or abrasive products.

What to do if the calculator does not turn on?

Check that the switch is in PRINT or ON position. Make sure the AC adapter is plugged in (if used) or that the batteries are installed correctly (4 AA batteries). If the problem persists, press the reset button on the back.

How to reset the calculator?

Press the reset button located on the back of the calculator with a thin object. After the reset, you will need to reconfigure the calendar, time, exchange rates and tax rates.

What types of batteries to use?

Use 4 AA batteries (LR6) for power. You can also use a DC 6 V, 300 mA AC adapter (not included).

USER MANUAL CPD 430 OLYMPIA

This printing calculator should be used exclusively for business indoors. Any other use is considered unintended use.

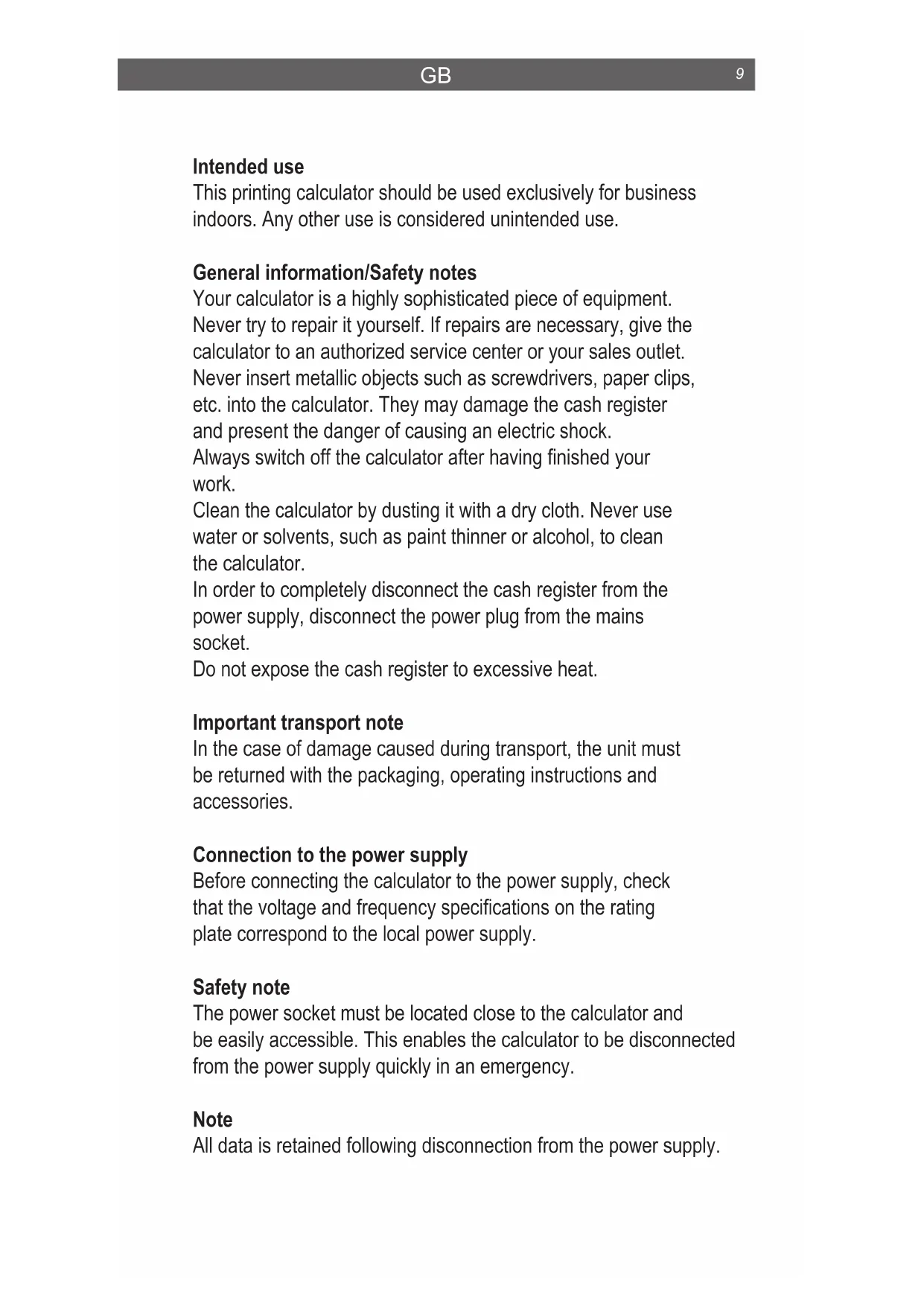

General information/Safety notes

Your calculator is a highly sophisticated piece of equipment.

Never try to repair it yourself. If repairs are necessary, give the calculator to an authorized service center or your sales outlet.

Never insert metallic objects such as screwdrivers, paper clips, etc. into the calculator. They may damage the cash register and present the danger of causing an electric shock.

Always switch off the calculator after having finished your work.

Clean the calculator by dusting it with a dry cloth. Never use water or solvents, such as paint thinner or alcohol, to clean the calculator.

In order to completely disconnect the cash register from the power supply, disconnect the power plug from the mains socket.

Do not expose the cash register to excessive heat.

Important transport note

In the case of damage caused during transport, the unit must be returned with the packaging, operating instructions and accessories.

Connection to the power supply

Before connecting the calculator to the power supply, check that the voltage and frequency specifications on the rating plate correspond to the local power supply.

Safety note

The power socket must be located close to the calculator and be easily accessible. This enables the calculator to be disconnected from the power supply quickly in an emergency.

Note

All data is retained following disconnection from the power supply.

Disposal

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, haze

dous substances can leak into the groundwater and get into the food chain or poison the flora and fauna for years to come.

When replacing old appliances with new ones, the retailer is legally obliged to take back your old appliance for disposal free of charge.

Keyboards Describe

CE C	When performing a calculation, press once to clear the last entered value. Press again to clear all entered values, except memory. This key is also used for clearing the overflow error.
1 = 9, 0, 00,	Digit keys.
+ -, x, ÷, =, %	Function keys.
+/-	Sign change key.
→	Scroll Right key (moves the number displayed to the right, deleting the last digit on the right-hand side).
	Paper feed.
C1 C2	Used for calculating the currency.
COST SELL/MARGIN	Used for calculating the cost, selling price and profit margin amount. Enter the value of any 2 items to obtain the remaining value (e.g. enter the value of the cost and the selling price to obtain the profit margin%).
	Used for setting the calendar and time.
TAX+ TAX-	Used for calculating the tax.
#metric Promote	Used for calculating the metric conversion.
#/P	Non-Add Key - Used for printing out information which does not affect the calculation such as dates and serial numbers. Figures are printed on the lefthand side of the paper.
	Sub-total.
*	Total is printed.
M*	Memory clear.
M'	Recall memory.
M=	Memory minus.
M±	Memory plus.

Decimal Point Selector Switch

Designating the decimal point position (A 0 2 3 F) for results.

Addition and subtraction functions are performed with an 16-bit 2-digit decimal place.

All effective numbers up to 12 digits are printed or dis

Rounding switch

Used for round - up , round - off (5/4), round - down to elected decimal digits in the result.

Currency/Rate Set/Print/Item/Power On - Off Switch

exchange rate.

Used for setting or recalling the CURRENCY

Used for setting or recalling the TAX rate.

Set switch to ITEM to print the number of times the

• and - keys have been pressed (up to 999).

When the ^ , M or M keys are pressed the

item count will be printed on the paper roll.

Entries and results will appear on the display and

will be printed out.

Power on, the entries and results will appear on

the display but not be printed out.

POWER OFF.

Overflow function

In the following cases, "E" will be displayed and the keyboard is electronically locked, the further operation is impossible. Press CE/C to clear the overflow.

Overflow Error Condition:

1. When the calculated result exceeds 12 digits.
2. Dividing by "0".
3. The sequential operation speed is faster than the calculation processing speed.

Specifications

Power Source: AA × 4 , DC 6 V

Adaptor: DC 6 V, 300 mA

Calculating Capacity: 12 digits maximum

Dimension: 245 mm( L) × 150 mm( W) × 57 mm( H)

Ink Roll: IR40T

Paper Tape:Width:57 mm

Diameter: 96 mm

Note

If you experience problems with the calculator, please press the RESET button at the back of the calculator. After resetting, be sure to set the calendar, clock, currency exchange and tax rate again.

Replacing the ink roller

1. Turn the power switch off.
2. Remove the printer cover. (Figure 1)
3. Lift the ink roll out from the roll holder. (Figure 2)
4. Install a new ink roll into position. (Figure 3)
5. Replace the printer cover. (Figure 4)

Installing printing paper

1. Lift up the paper arm. (Figure 5)
2. Place the new paper roll on the arm. The edge of the paper should be positioned as shown. (Figure 6)
3. Insert the paper into the slit at the back of the machine as indicated. (Figure 7)
4. Turn the power switch on. Press the paper feed key to advance the paper as shown.(Figure 8)

Utilisation prévue

Pwntote to dnoo oac yia tic tottoeioec twv onmuiv oulloync.

Otav n aTOKoIbI Tuv nEKTPIKwv OuaKeuWv yivetai avEeEeykTa, mTopei kata n aAloiwn Touc va 0taouv Etnikivduce ouiec oTa uToyia udata kai etoi otn diatpoikn aluoida n va dnlntnpiaotei n

Date Setting Example: May 1,2003

Fixer la date Exemple:1 mai 2003

Example: If switches below do not match the example, please set switches as shown.

Cost-Sell-Margin Calculation

Calculation Operation	Display	Print Out
Calculating Cost	200 SELL	SELL 200.	200.**
Selling Price: 200
Profit Margin: 12%	12 MARGIN	COST 176.00	12. M %
Cost = ? ( 176)			176.00 C*
Calculating Profit Margin	60 COST	COST 60.	60. C*
Cost: 60
Selling Price: 100	100 SELL	MARGIN% 40.00	100.**
Profit Margin = ? (40%)			40.00 M %
Calculating Selling Price	20 MARGIN	MARGIN% 20.	20. M %
Profit Margin: 20%
Cost: 120	120 COST	SELL 150.00	120. C*
Selling price: ? ( 150)			150.00 **

Tax Calculation

Calculation Operation	Display Print Out
Set Tax Rate Rate: 5 %	CURRENCY RATEITEM P RTONOFF		0. %
	5		RATE 5.
	CURRENCY RATEITEM P RTONOFF		5. %
		TAX %5.
To add Tax to $ 120. Tax = ? (6) Selling Price with Tax = ? (126.00)	120 TAX +	+ TAX 126.00	120. 5.% 6.00 Δ 126.00 *
To subtract Tax from $ 120. Tax = ? (-5.71) Price without Tax = ? (114.29)	120 TAX -	-TAX 114.29	120. 5.% -5.71 Δ 114.29 *
Recall Tax Rate	CURRENCY RATEITEM P RTONOFF
		RATE 5. %

Currency exchange calculation

Calculation Operation	Operation Display	Print Out
Set Exchange Rate Rate: 5 %	CURRENCY RATEITEM P RTONOFF5CURRENCY RATEITEM P RTONOFF	C1 1.C1 5.C1 5.	1. CΔ5. CΔ◇
Exchange Rate is 5 The enter number is 120 Calculate C1/C2 = ?	120 C1	C1 600.00	120.5. CΔ600.00 C◇
	120 C2	C2 24.00	120.5. CΔ24.00 C◇
Recall exchange Rate	CURRENCY RATEITEM P RTONOFF	C1 5. CΔ

Item Count

Calculation Operation Display Print Out
23	23+	23.00	23.00 +
25	25+	48.00	25.00 +
+) 42	42+	90.00	42.00 +
90			003......
)- 18	◇	90.00	90.00◇
+ ) 63	18-	72.00	18.00 -
135	63+	135.00	63.00 +
			005......
	*	135.00	135.00*

Percentage Calculation

Calculation Operation Display Print Out
20 + 20 x 52 % = 30.4	20x52%+	20.10.4030.40	20.x52.%10.40*30.40 + %
20 - 20 x 52 % = 9.6	20x52%-	20.10.409.60	20.x52.%10.40*9.60 - %

Memory Calculation

Calculation Operation	Display Print Out
(2 + 6) - (5 + 1) = 2	2+6*M+51M-	2.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.00	2.006.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.008.00

Data Printout

Calculation Operation Display Print Out
May 10, 2003	5.10.2003 #	5.10.2003	# 5.10.2003 .......
2365	2365	2'365.00	2,365.00 +
8456	8456	10'821.00	8,456.00 +
May 11, 2003	5.11.2003 #	5.11.2003	# 5.11.2003 .......
5230	5230	16'051.00	5,230.00 +
+ ) 2578	2578	18'629.00	2,578.00 +
18629		18'629.00	18,629.00 *

Metric Conversion

Calculation Operation	Display
inch → centimeter	17	2.54
yard → meter	19	0.91
foot → meter	14	0.30
mile → kilometer	16	1.61
ounce → gram	11	28.35
pound → kilogram	12	0.45
acre → square meter	13	4'046.80
square inch → square centimeter	18	6.45
square foot → square meter	15	0.09

Declaration of Conformity

in accordance with the Directive 2004/108/EEC and 2006/95/EEC

declares that the product:

complies with the essential requirements when used for its intended purpose.

Protection requirements concerning electromagnetic compatibility

Place & date of issue

This instruction manual is purely informative. The contents are not part of any offer for sale or contract. The specifications, extensions and options described may differ from country to country. Olympia Business Systems Vertriebs GmbH reserves the right to revise specifications, make modifications and technical changes to the product described here in without notification.
