USER MANUAL Musik Walker INTENSO

Intenso Music Walker

1. Index 1
2. Cautions 2
3. Key Features 2
4. System Requirements 2
5. Package Content 2
6. Before Using 3
7. Basic Operations 5
8. Advanced Features 6
9. System Stittings 8
10. Check system information 8
11. Troubleshooting 9
12. Technical Specifications 10

2. Cautions

• Protect the device from blows and don't drop it.
• Do not use the player in extreme heat or cold, or dusty or damp areas. Do not expose it to direct sunshine.
• Back up the data frequently in case of accidental data loss.
• Avoid using the player in a strong magnetic field.
• Keep the device away from water or other liquids. In the event that water or other liquids enter the device, power off the product immediately, and clean the device.
• Do not use chemical solutions to clean the device in order to avoid corrosion. Clean it with a dry cloth.
• We are not responsible for damage or lost data caused by malfunctions, misuse, repairing the device or battery replacement.
• Do not attempt to disassemble, repair or modify the product. This will void the guarantee.
• The use of earphones or headphones at high volume can cause permanent damage to your sense of hearing.

3. Key Features

MP3&WMA Player
- Folder navigation
- Removable storage device
- Customized settings

4. System Requirements

• Hardware: IBM PC & Compatible PC, Notebook with USB port
• Operating System: Windows98/SE, Windows Me, Windows2000/XP, Windows Vista, Windows7

5. Package Content

Please check the package for the following items.

• Intenso MP3 Player
• Stereo earphones
  AAA -size alkaline battery
• User manual

6. Before Using

Installing Battery

(1) Press and push the battery cover to open it.
(2) Remove the cover and insert one AAA-size battery into the battery compartment.
(3) Close the cover.

Connecting to the PC

If your PC's operating system is Windows 98/SE, please install a driver before connecting the player to your PC. (Driver downloads are available at www.intenso.de). It is not necessary to install a driver if your operating system is WIN 2000/XP/ME/Vista/Windows7.

Please proceed as follows:

(1) Connect the player to a USB connector on the PC.
(2) The 'Intenso' window opens. You can now save data from your hard disk to the removable medium.

Safe removal from the PC

For Windows 2000/XP/ME/Vista/Windows7:

Right click the 'Safely Remove Hardware' icon in the taskbar at the bottom right. Left click 'Remove USB storage device' in the context menu that appears. Please first make sure that the data transfer has been completed.

You can now remove the device.

For Windows 98/SE:

Left click the device in the Device Manager. Now click the menu item 'Remove'. Make sure in this case too that the data transfer has been completed.

You can now disconnect the device from the PC.

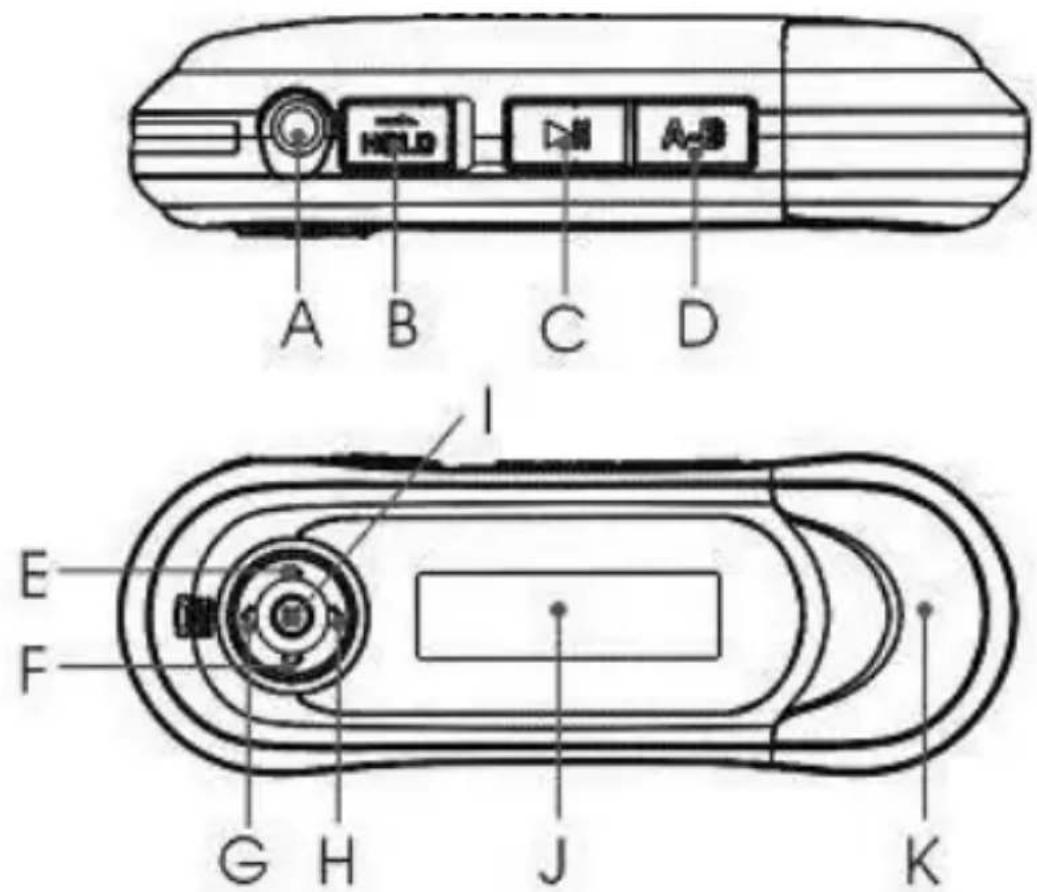

Keys Description

A. Earphone port
B. Hold Switch
C. Play/pause
D. A-B repeat
E. Volume up
F. Volume down
G. Previous
H. Next
I. MENU
J. Display area
K. USB port

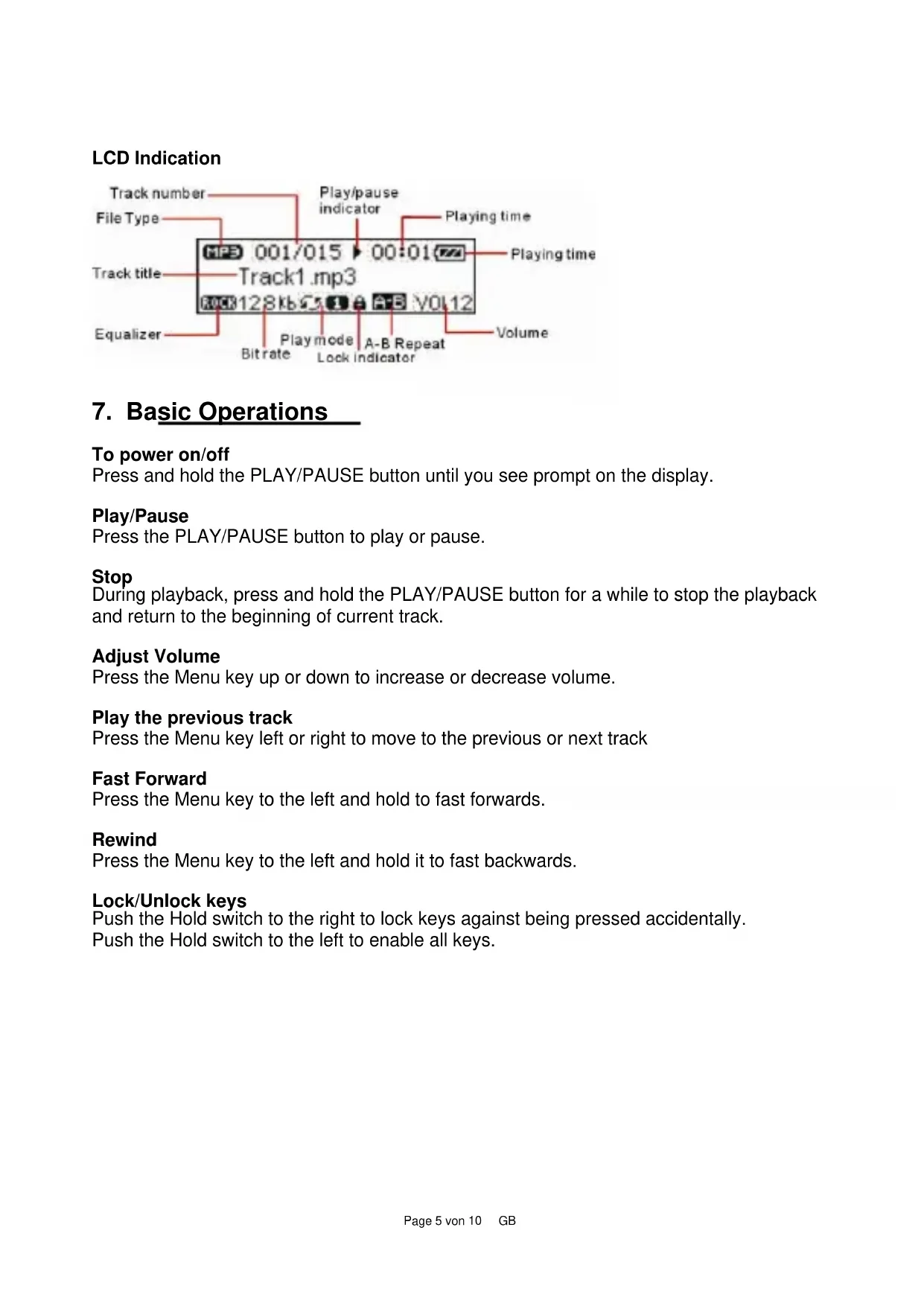

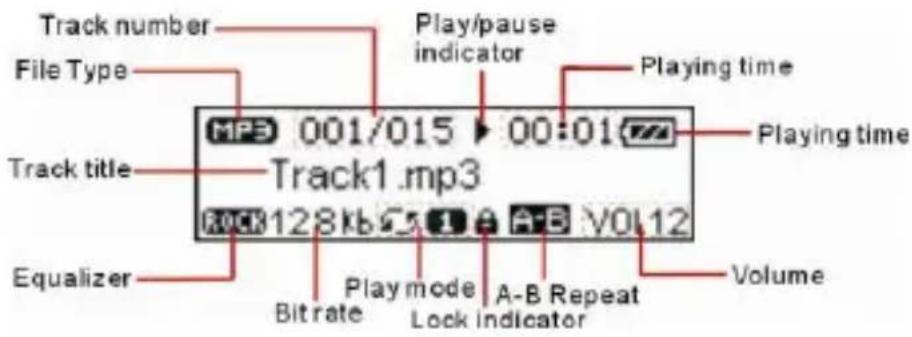

LCD Indication

7. Basic Operations

To power on/off

Press and hold the PLAY/PAUSE button until you see prompt on the display.

Play/Pause

Press the PLAY/PAUSE button to play or pause.

Stop

During playback, press and hold the PLAY/PAUSE button for a while to stop the playback and return to the beginning of current track.

Adjust Volume

Press the Menu key up or down to increase or decrease volume.

Play the previous track

Press the Menu key left or right to move to the previous or next track

Fast Forward

Press the Menu key to the left and hold to fast forwards.

Rewind

Press the Menu key to the left and hold it to fast backwards.

Lock/Unlock keys

Push the Hold switch to the right to lock keys against being pressed accidentally.

Push the Hold switch to the left to enable all keys.

8. Advanced Features

Using the Menu

(1) Press and hold the Menu key to enter the main menu.
(2) Push the Menu key leftwards or rightwards to select the menu item and press the Menu key to confirm the selected option.
(3) Press the PLAY/PAUSE button to return or do not press any key it will return automatically in a few seconds.

Using the Navigation Function

(1) In the music press and hold the Menu key to enter the menu.
(2) Select "Folder" and press the Menu button to confirm.
(3) Push the Menu key left or right to select folder.
(4) Push the Menu key left or right to select track that you want to play.
(5) Press the Menu key to continue and see two options: "Play now" and "Delete?"
(6) Push the Menu button to select one option and press the Menu button to continue or confirm, or press the PLAY/PAUSE button to cancel or return.

A-B Repeat

To repeat specified section of the current track.

(1) Press the A-B key during playback to select the start point of the repeat.
(2) Press the A-B key again at the desired point to specify the end point of the repeat. The section between the start point and the end point begins to be played repeatedly.
(3) Press the A-B key briefly to stop A-B repeat.

Select Play Mode

You can switch between the following play modes:

Normal: Play all tracks in order and stop after playing all

Repeat One: Keep repeating the current track

Repeat All: Play all tracks in order and repeat

Random Repeat: Keep repeating all tracks randomly

Dir normal: Play all files in the current folder and stop after playing all

Dir all repeat: Repeat all files in the current folder

Dir random repeat: Play all files in the current folder randomly.

To select the play mode:

(1) In the Music mode, press and hold the Menu key to show the main menu.
(2) Select "Setting" and press the Menu key to show the provided options.
(3) Select "Repeat mode" and press the Menu key to confirm.
(4) Push the Menu key leftwards or rightwards to select the desired repeat mode, and press the Menu key to confirm or press the PLAY/PAUSE button to cancel and return.

Select preset EQ mode

You can play the tracks in different sound effect. The device provides 6 preset EQ modes: Normal, Rock, Jazz, Classic, Pop and Bass.

To set the EQ mode:

(1) In the Music mode, press and hold the Menu key to show the main menu.
(2) Select "Setting" and press the Menu key to show the provided options.
(3) Select "Equalizer" and press the Menu key to confirm.
(4) Push the Menu key leftwards or rightwards to select the desired EQ mode, and press the Menu key to confirm or press the PLAY/PAUSE button to cancel and return.

Delete track

You can delete track following these steps:

(1) Press and hold the Menu key to enter the main menu.
(2) Select "Folder" and press the Menu button to enter folder navigation mode.
(3) Move the Menu button to select the track that you want to delete and press the Menu button to continue.
(4) Select "Delete?" by pushing the Menu button right and press the Menu button again to confirm.
(5) Push the Menu key leftwards to select the "Yes" option and press the Menu key again to confirm deletion, or press the PLAY/PAUSE button to cancel deletion.

9. System Sttings

To customize the player settings:

(1) On the main menu, select the "Settings" item and press the MENU button to enter the system settings mode.
(2) Push the Menu key leftwards or rightwards to select setting item and press the Menu button to confirm or press the PLAY/PAUSE button to cancel and return.

Contrast: Set the contrast between the background and the foreground of the LCD.

Backlight Set the duration of the backlight after you press any key.

Power Set Set the length of time after which the player is turned off automatically when there is no activity.

Language Select language in which onscreen text is displayed

Reset Load system setting to default

10. Check system information

To check system version or memory information,

(1) Press and hold the Menu button to enter the main menu.
(2) Select "Info" and press Menu key to continue. You see the software version number and the memory information displayed.

11. Troubleshooting

Problem Possible Cause Solution

• The LCD displays nothing when the device is started.

(1) Battery is too low.
Replace the battery.
(2) The keys are locked.
Unlock the Hold switch

• No sound when playing music file.

(1) The volume is too low.
Adjust the volume.
(2) There are problems with the audio file.

Delete the file or play other files.

• The player cannot be connected to the PC.

(1) The driver is not installed or destroyed. Install or reinstall the driver shipped with the player.
(2) The USB port is not supported by PC's motherboard.

Update or replace the PC's motherboard.

• The displayed time is changing constantly.
  (1) The bit rate of the MP3 file is changing during playback.
  Try to use fixed bit rate to compress the MP3 file.
• The PC has an error when you plug-in and unplug the player.
  (1) The player is disconnected from the PC abruptly while transferring files.
  Do not disconnect the player from the PC when transferring files.
• Total memory displayed on the player is not in accordance with the marked amount.
  (1) Part of memory is used to store programs and display characters.
• Some of MP3 files cannot be played properly.
  (1) The MP3 file is compressed by a standard, such as MPEG I Layer 1 or Layer 2 that the player does not support. Delete the unsupported MP3 files.

12. Technical Specifications

Battery Type

AAA-Size Alkaline

LCD Display

132x32 pixels. White backlight

Earphone Power

5mW+5mW

Output Frequency

20Hz - 20kHz

Audio Format

MP3, WMA

SNR

90dB

USB Port

USB2.0

Operating Temperature

0^ +55^

Storage Temperature

-20°C ~ +55°C

Operating Relative Humidity

20% 90% (40°C)

Storage Relative Humidity

20% 93% (40°C)

(INTENSO)

49377 Vechta

Germany

www.intenso.de
